John Deere 772G Motor Graders
John Deere 772G
Average price
$321,993.21
5+
sold in last year
General overview
John Deere 772G is a motor grader used for precise grading, shaping, and maintenance work in construction environments. It is powered by a John Deere PowerTech PSS 9.0L engine rated at 202 kW (275 hp), and it has an operating weight of 17,502 kg (38,590 lb).
The model uses a John Deere powershift (8F/8R) transmission with 8 forward and 8 reverse gears and a maximum travel speed of 45 km/h (28 mph). A 3,660 mm (12 ft) moldboard, 22° articulation, and 360° circle rotation support controlled blade placement, while blade lift above ground of 490 mm (19 in) and blade side shift of 683 mm (27 in) add working range.
Year
2013, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
8,890 mm
~350 in
3,180 mm
~125.2 in
2,490 mm
~98 in
Engine Power
275 hp
Operating Weight
17,502 kg
Moldboard Width
3,660 mm
Additional specifications
Displacement
9 cu(m)
Fuel tank
416 L
Cooling system
45 L
Overall length w/header
8,890 mm
Height to top of cab
3,180 mm
Wheelbase
6,160 mm
Number of Cylinders
6
Battery Voltage
24
Overall width
2,490 mm
Maximum Travel Speed - High
45 km/h
Engine Oil
29 L
Net Power (ISO 9249)
275 hp
Manufacturer and Model
John Deere PowerTech PSS 9.0L
Net Peak Torque
1,375 Nm
Alternator Rating
55
Hydraulic System
60 L
Main Pump Type
Closed center variable displacement
Powertrain Type
John Deere powershift (8F/8R)
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7 m
Steering (Articulation)
22 deg
Maximum Pump Flow
212 L/min
Maximum System Pressure
18,961 kPa
Blade Range - Lift Above Ground
490 mm
Blade Range - Blade Side Shift (right or left)
683 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,083 mm
Bank Cut Angle (right or left)
90 deg
Blade Pull At Maximum Operating Weight
22,453 kg
Blade Base
2,570 mm
Circle Rotation
360 deg
Circle Side Shift (right)
683 mm
Base Length
3,660 mm
Height (measured along arc, including cutting edge)
610 mm
Moldboard Thickness
22 mm
Cutting Edge - Thickness
16 mm
Cutting Edge - Width
152 mm
Ground Clearance (front axle)
587 mm
Operating Weight - Front
4,881 kg
Operating Weight - Rear
12,501 kg
Circle Diameter
1,524 mm
Operating Weights - Total
17,502 kg

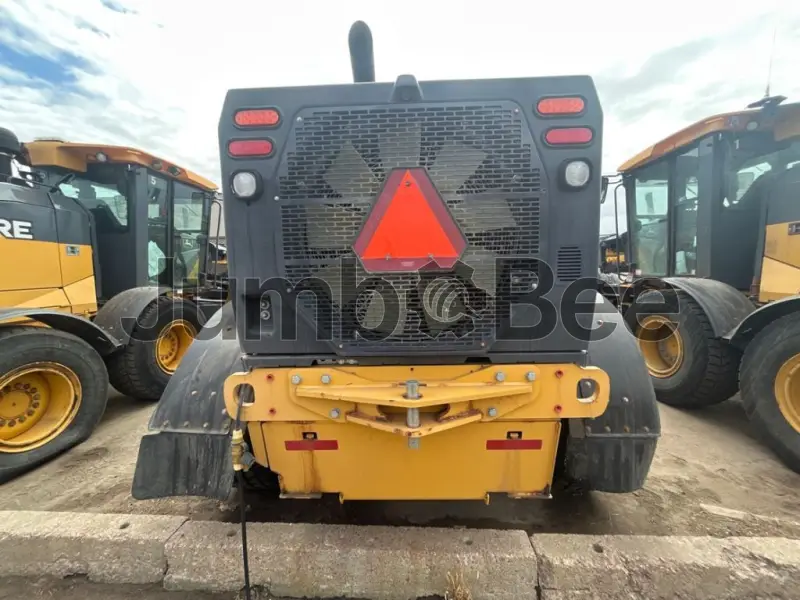

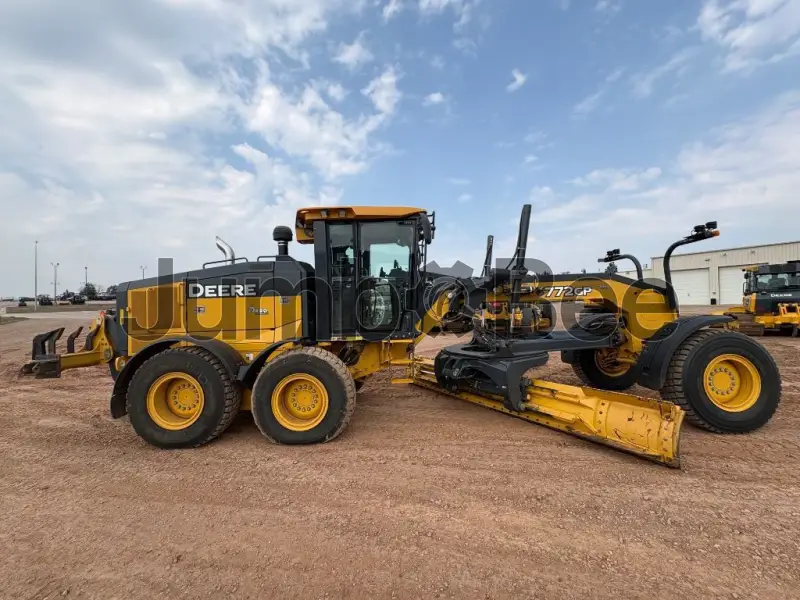

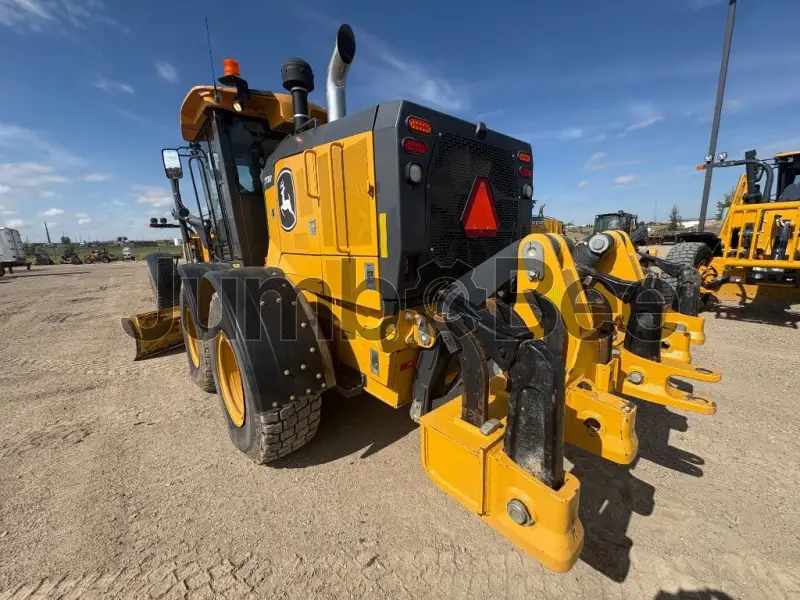

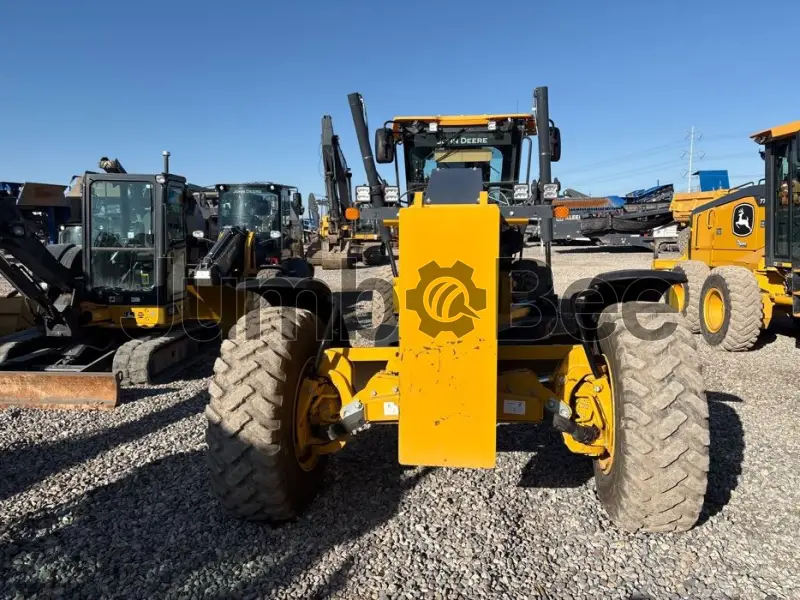

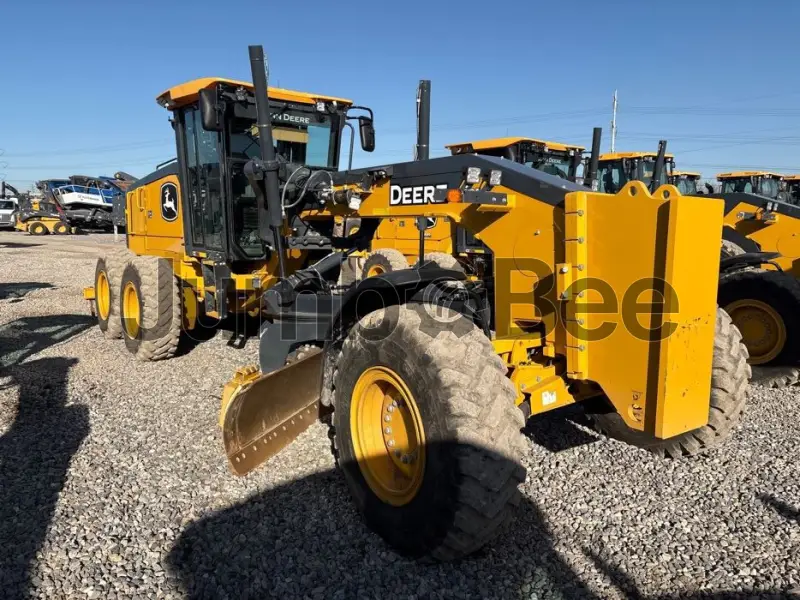

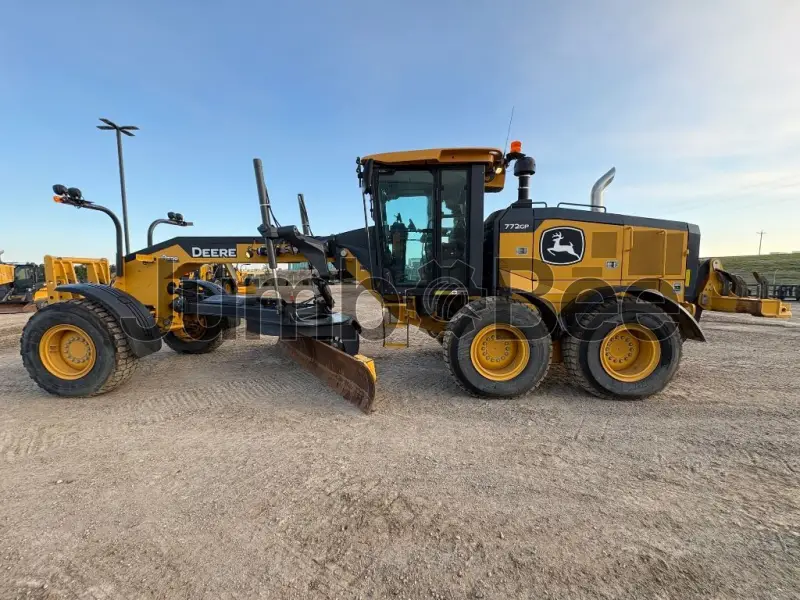

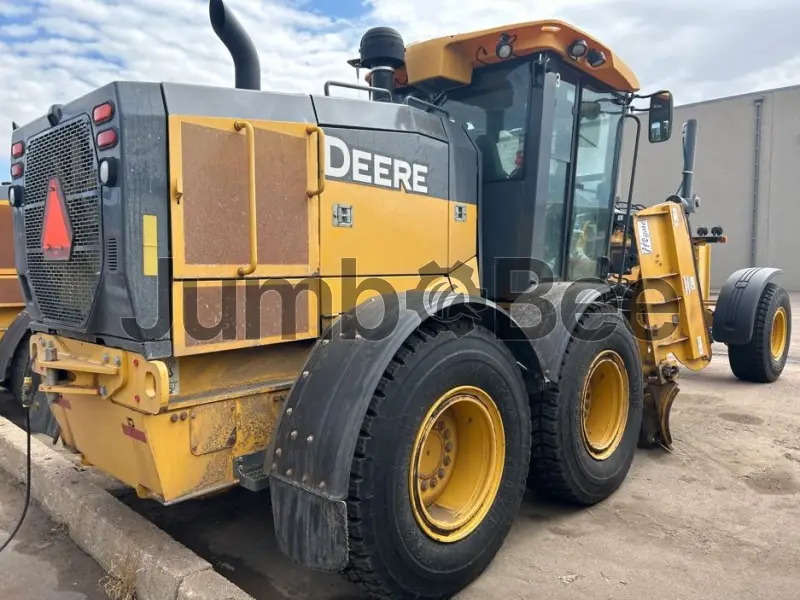

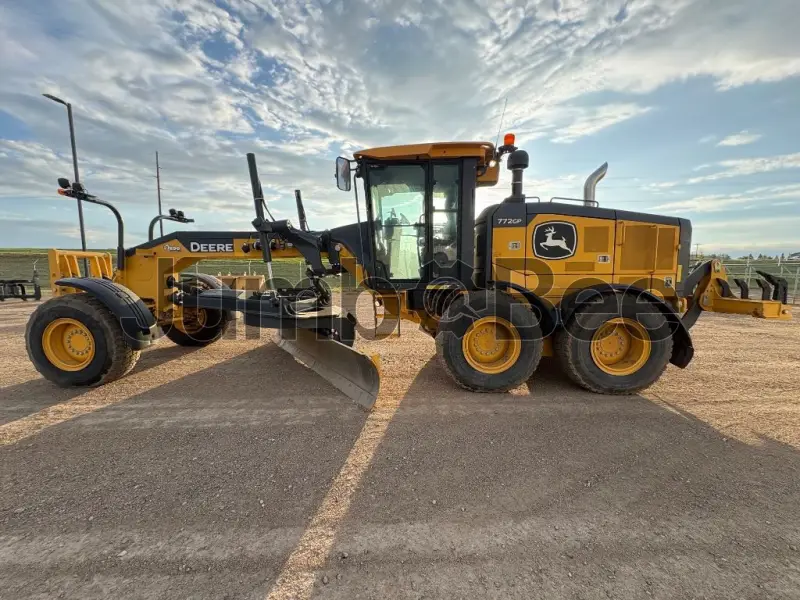

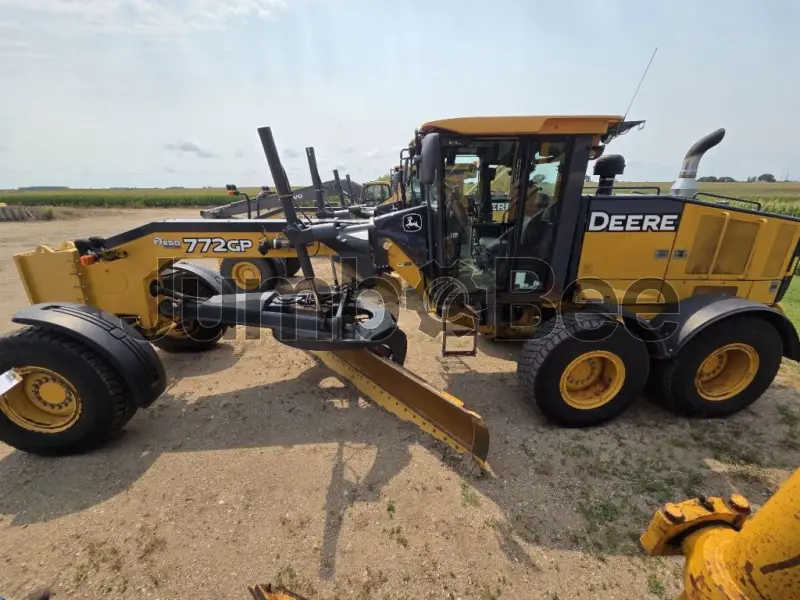

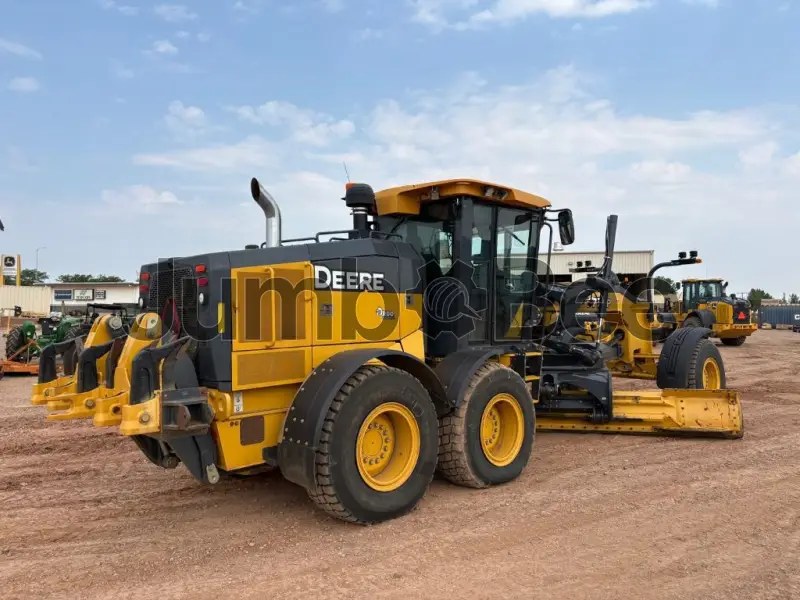

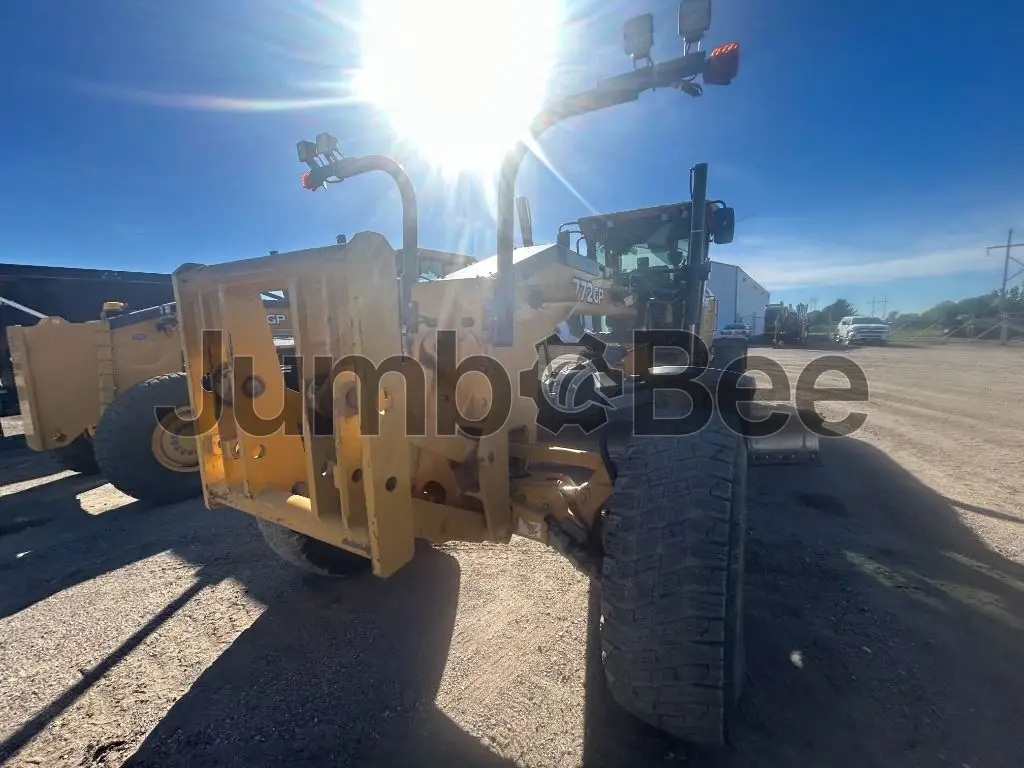

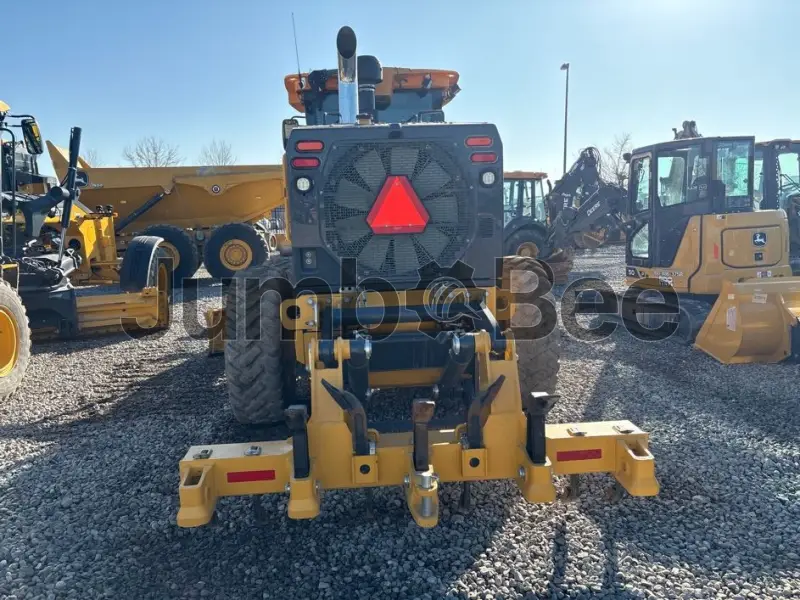

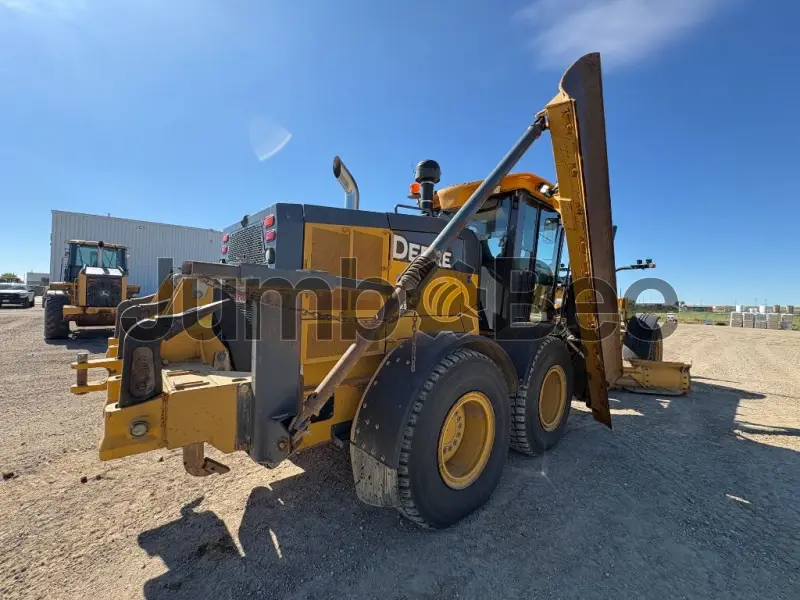

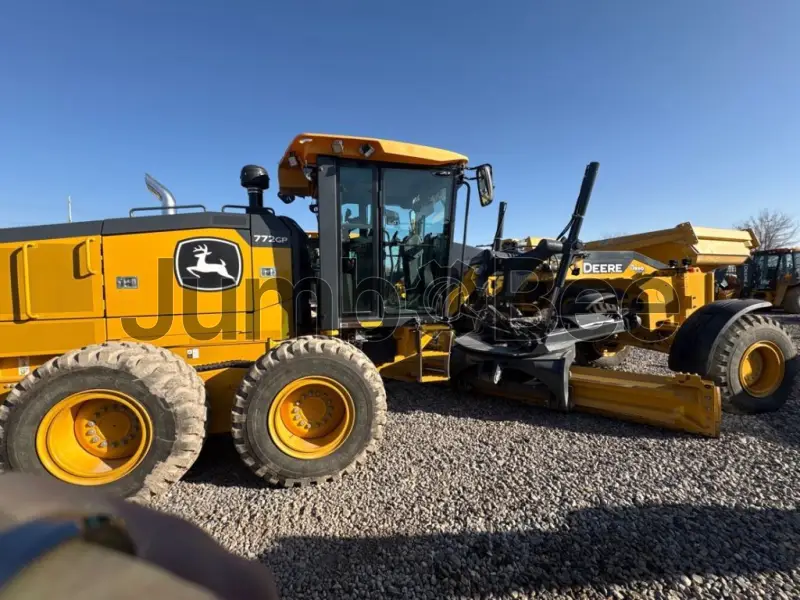

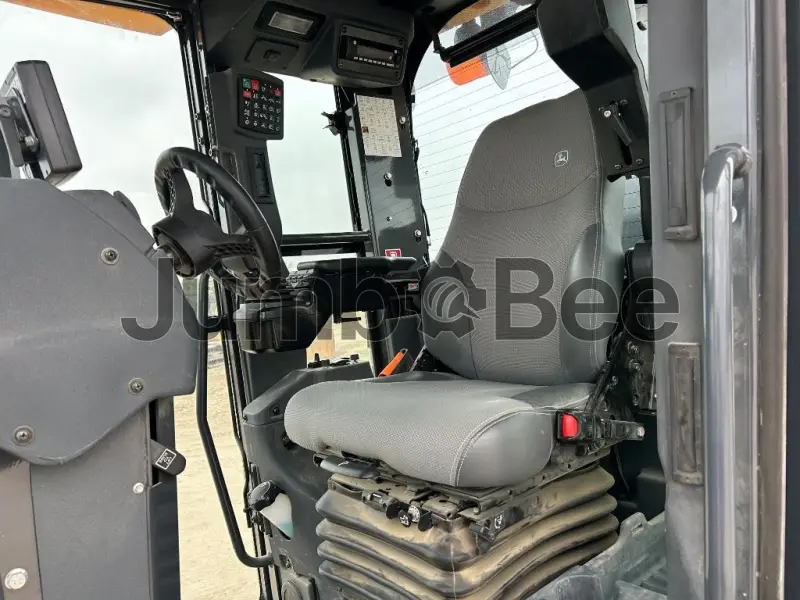

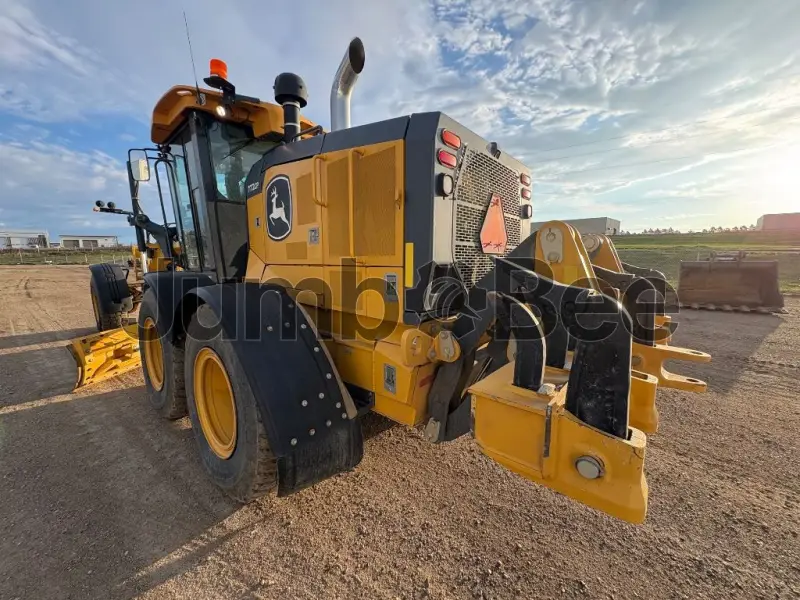

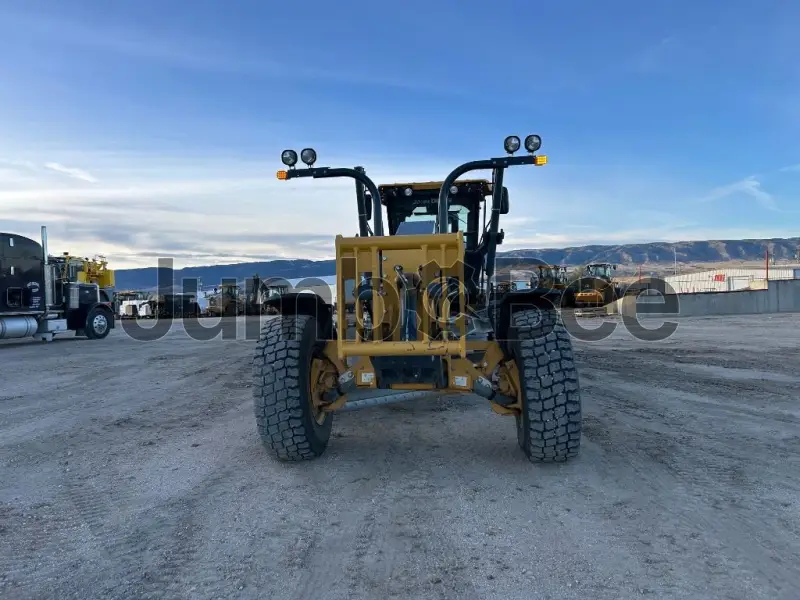

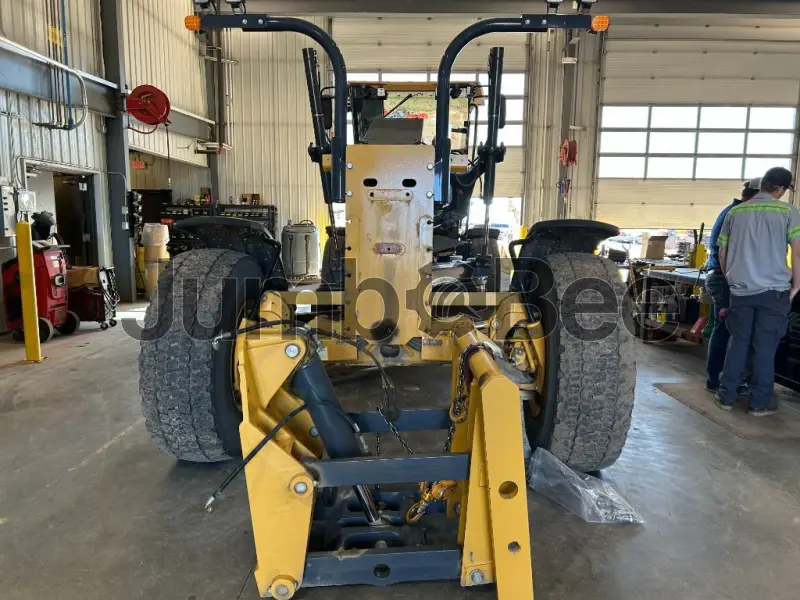

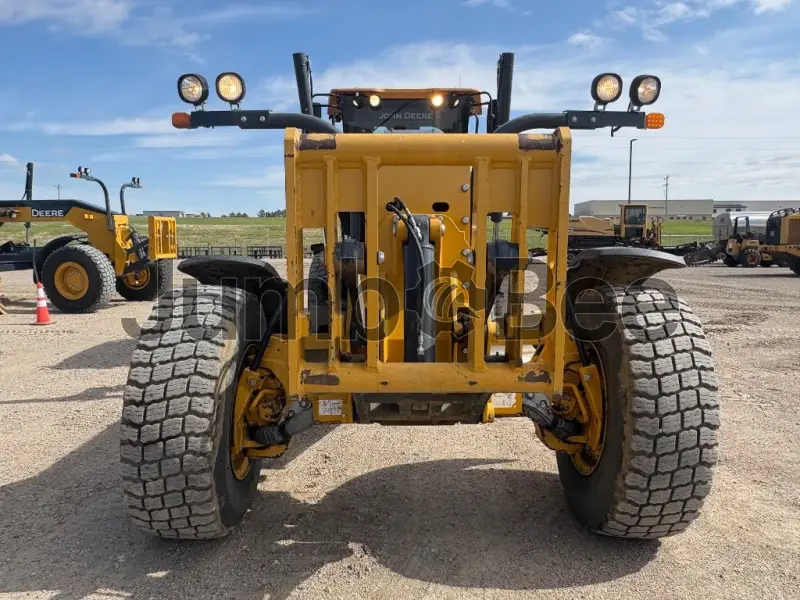

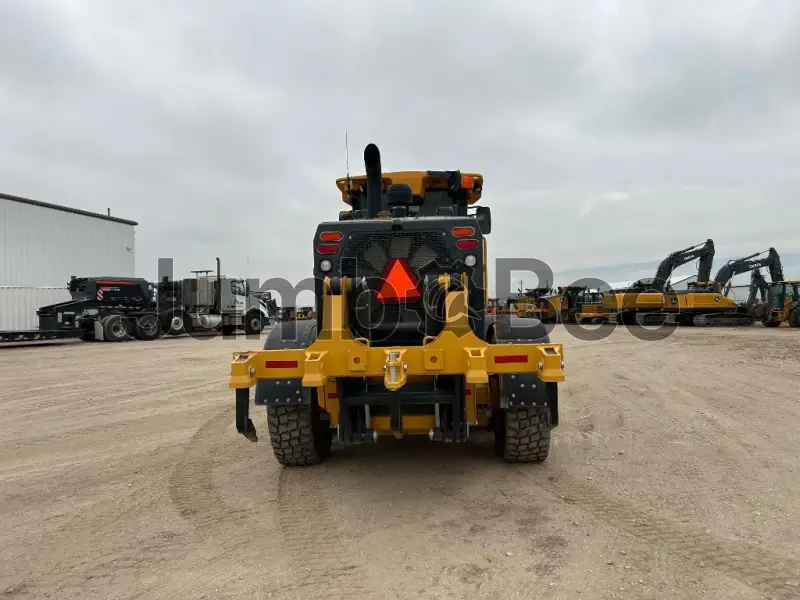

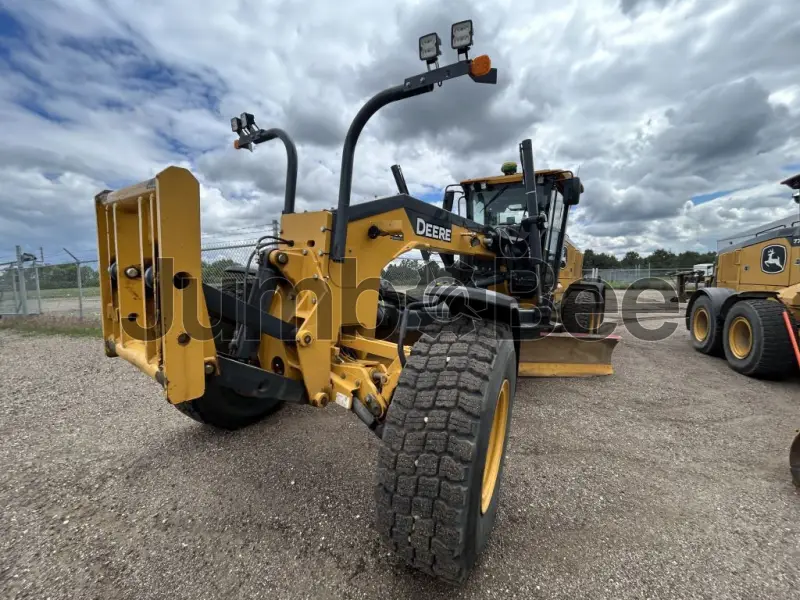

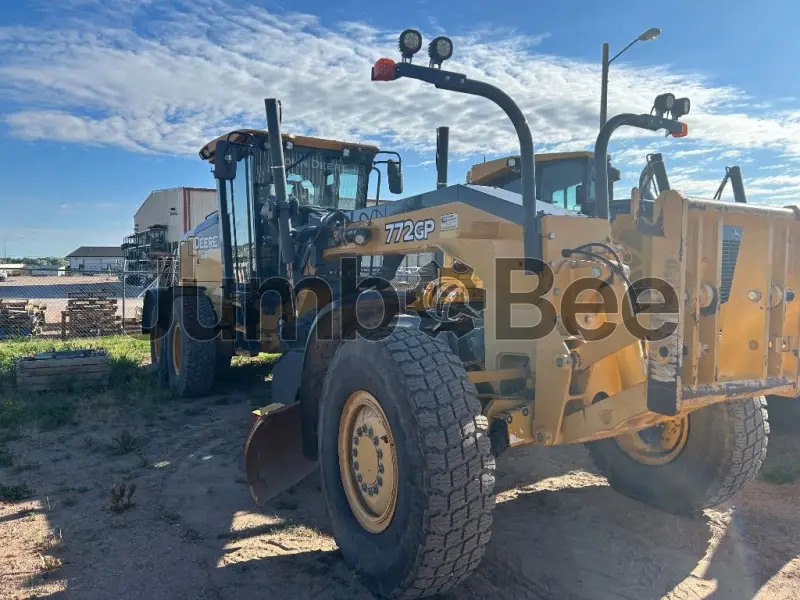

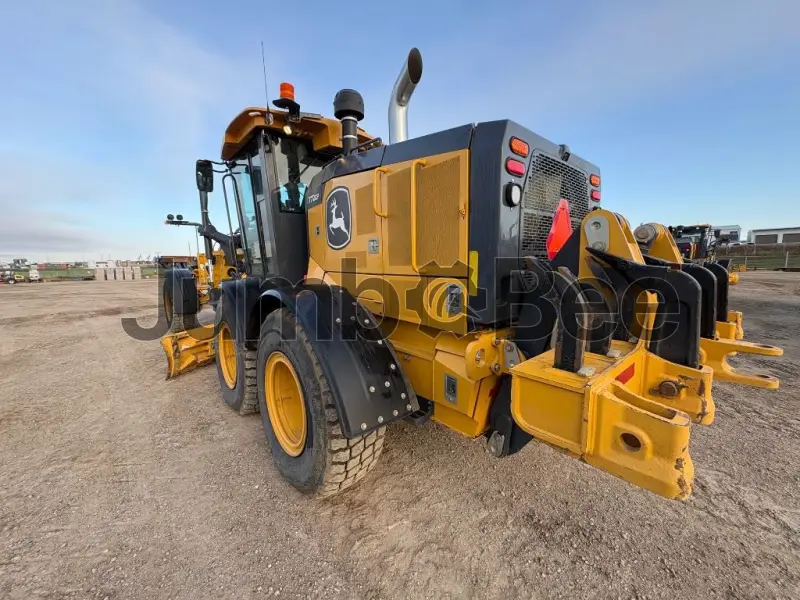

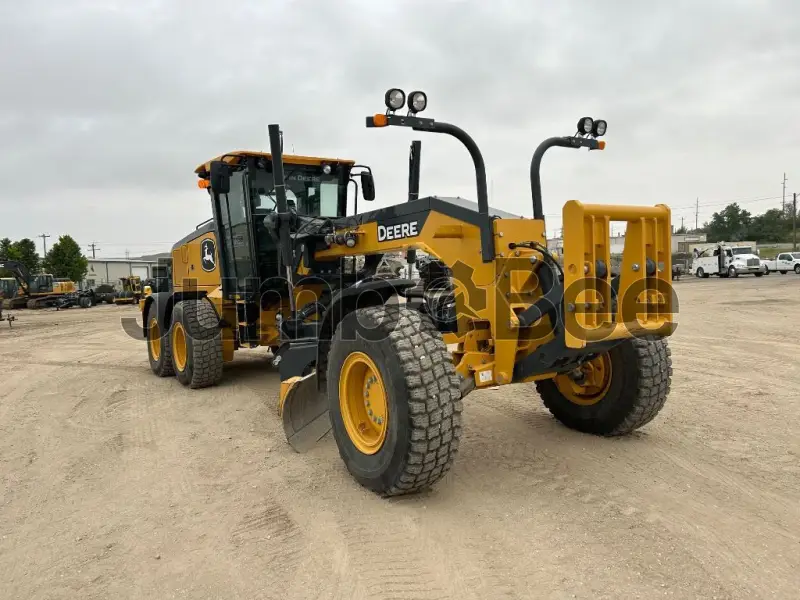

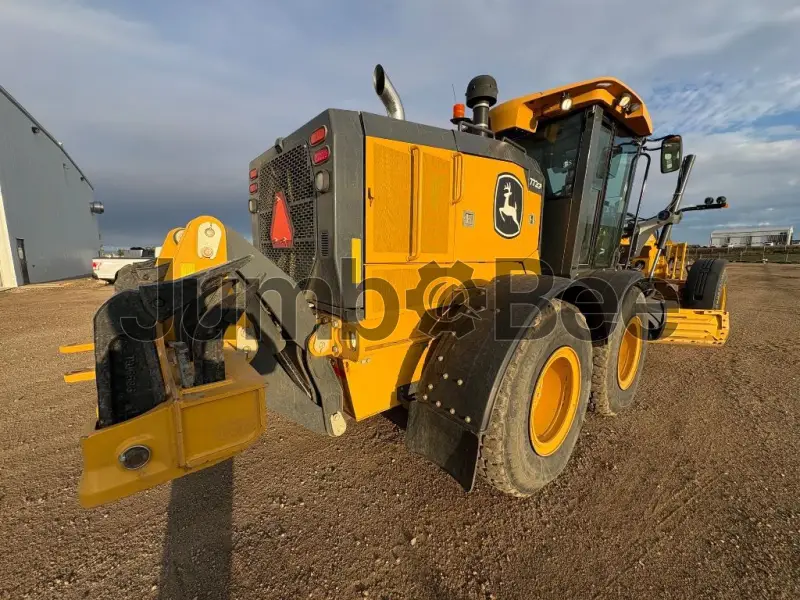

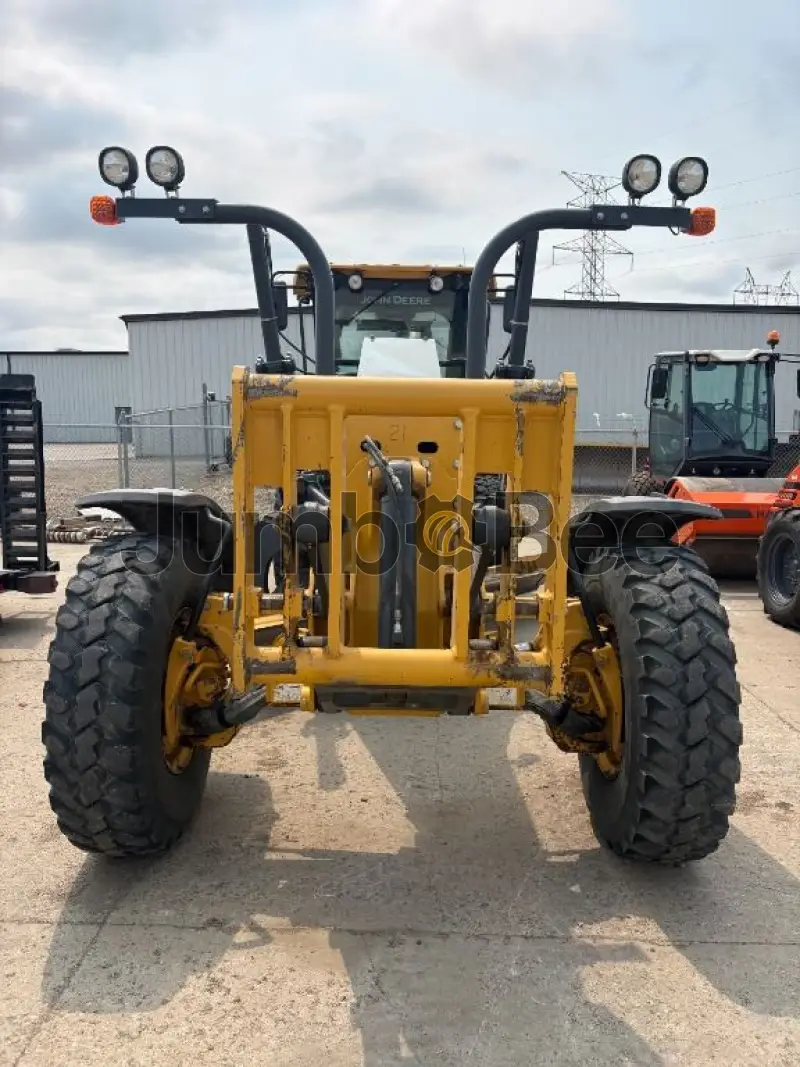

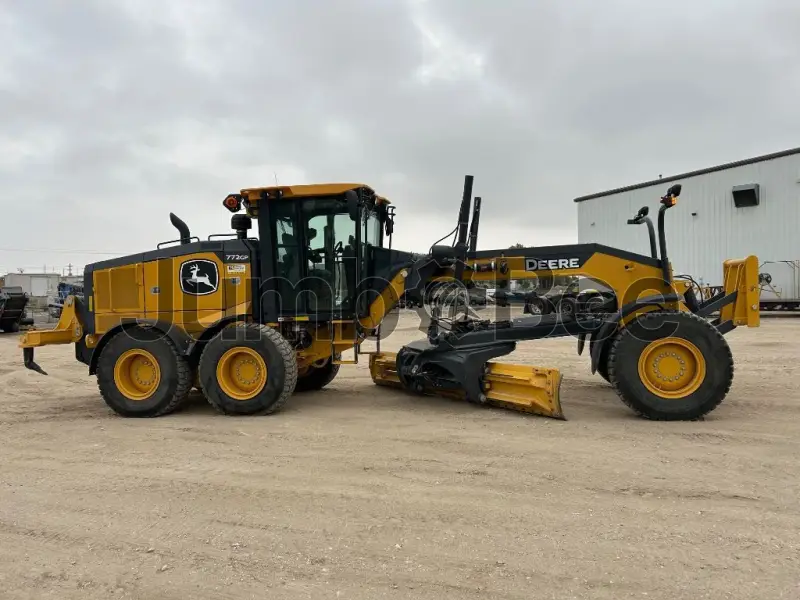

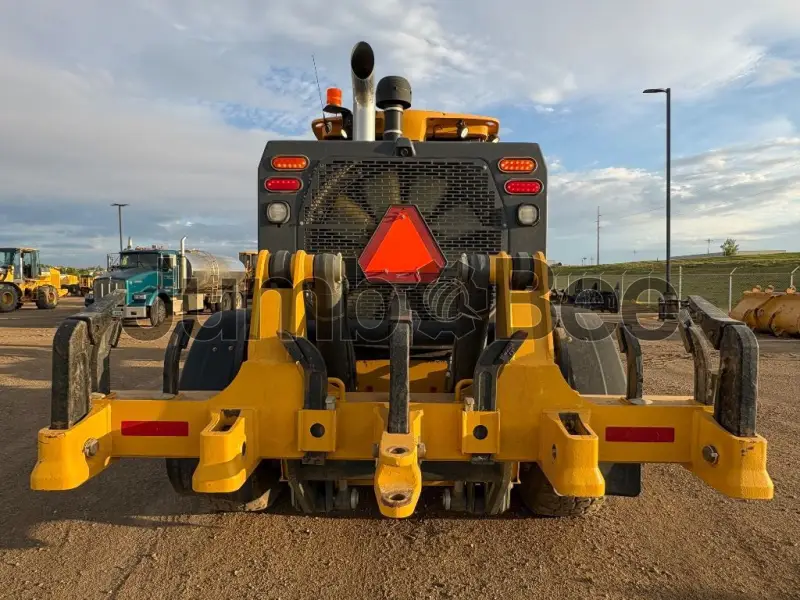

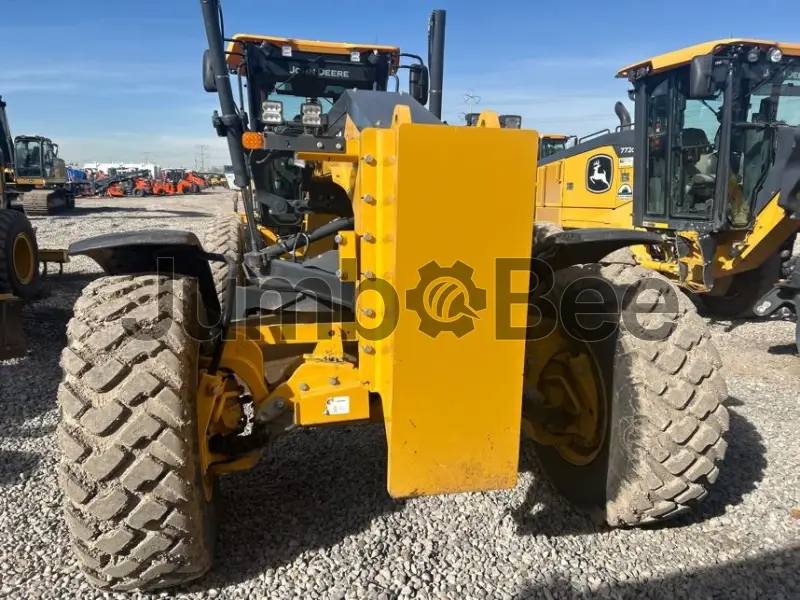

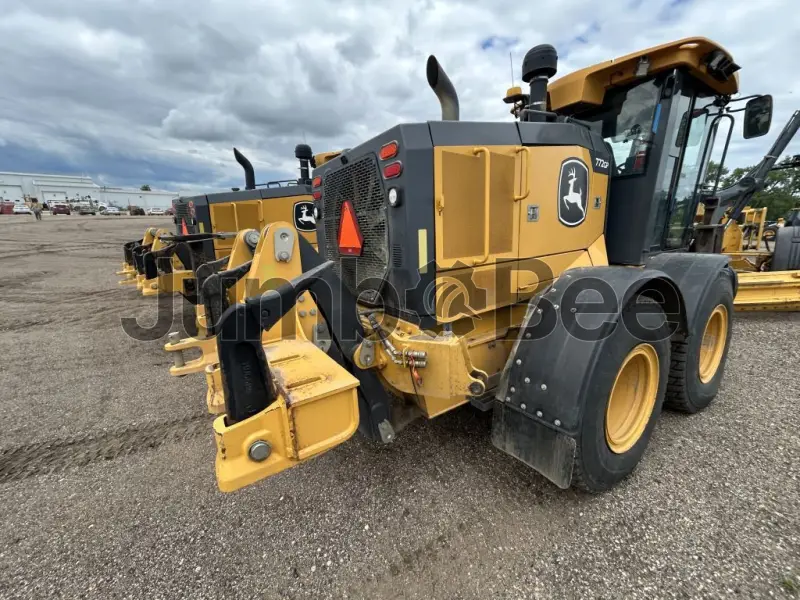

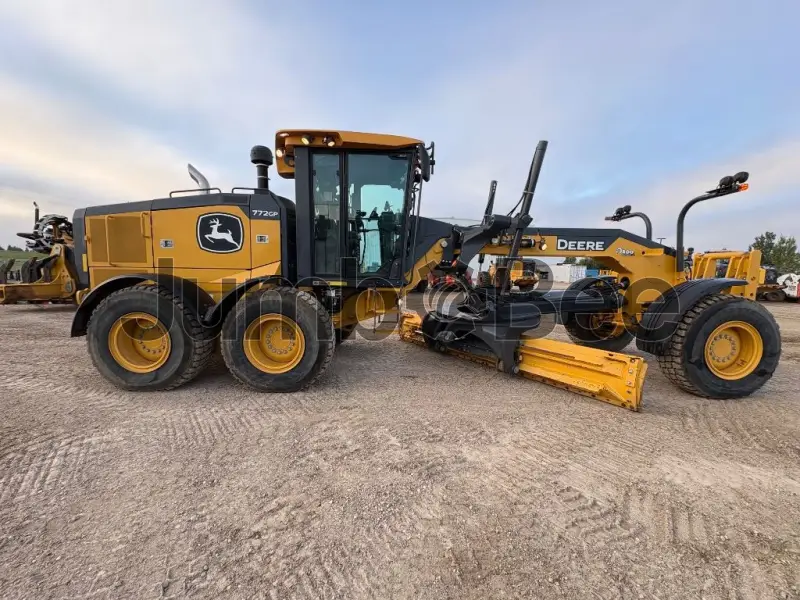

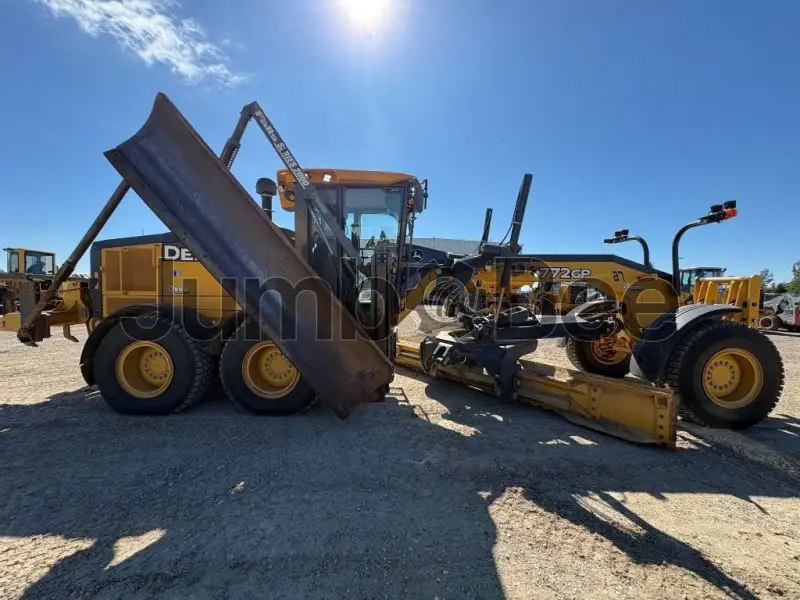

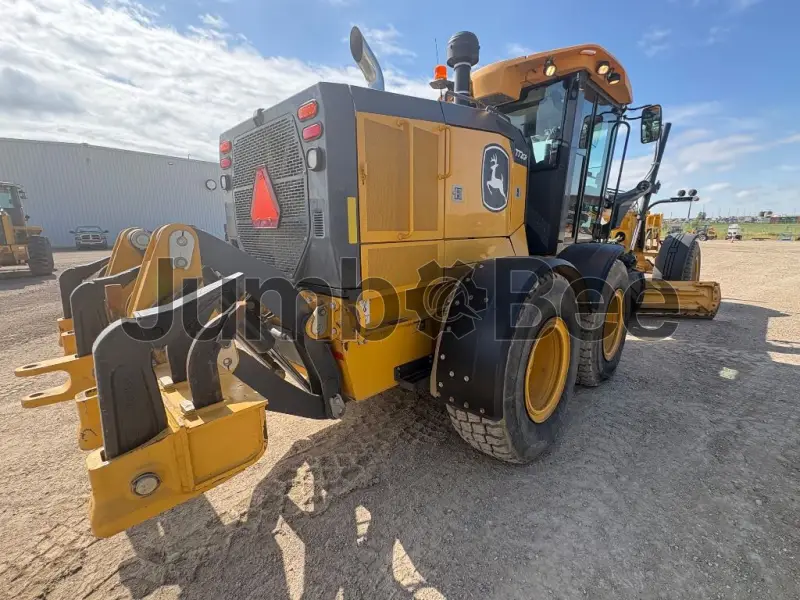

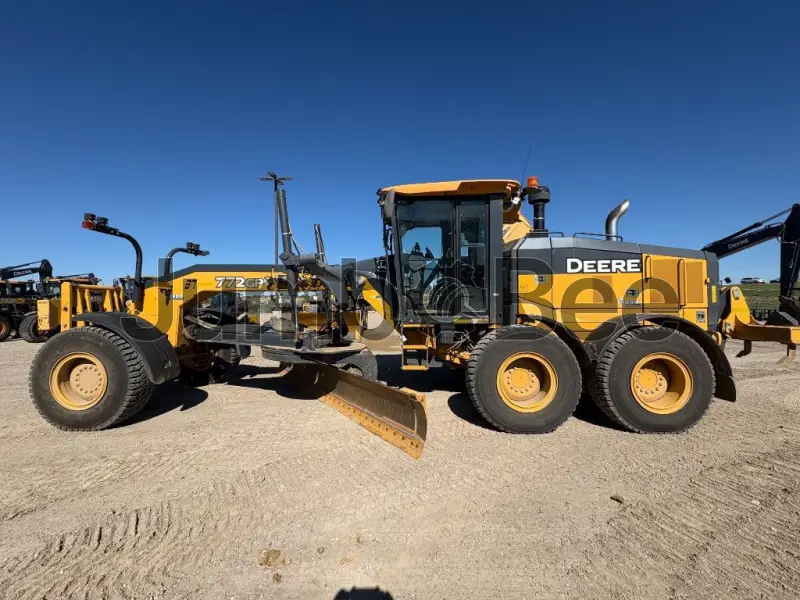

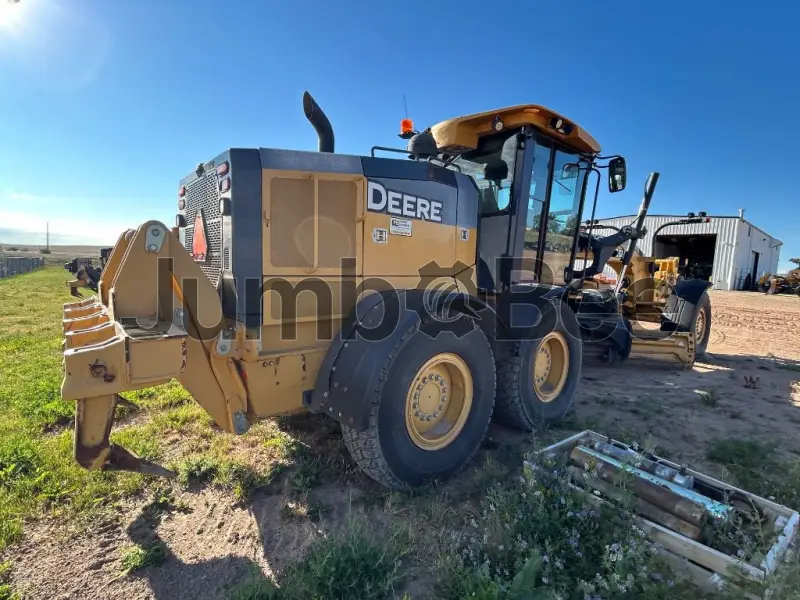

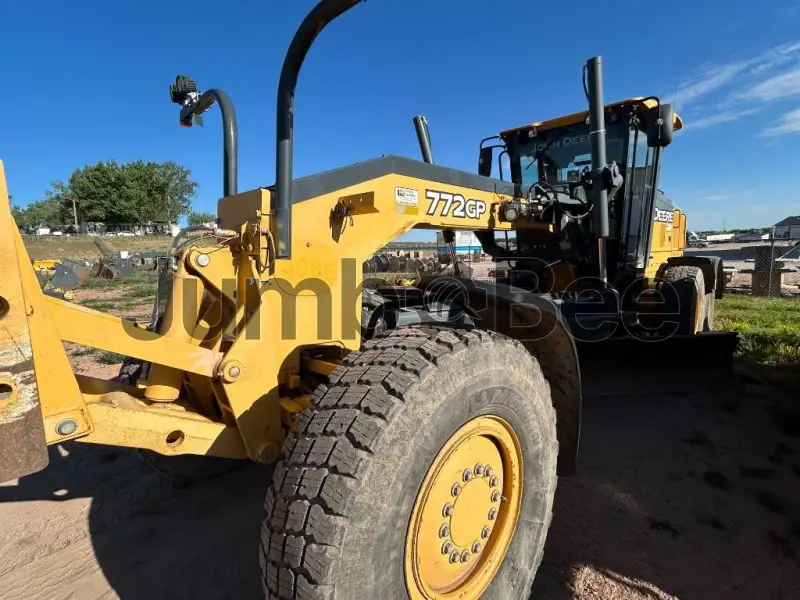

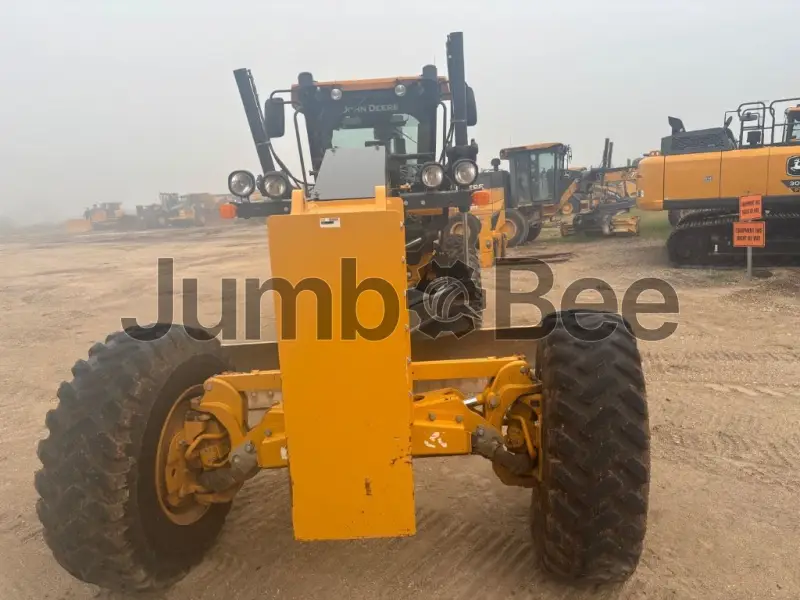

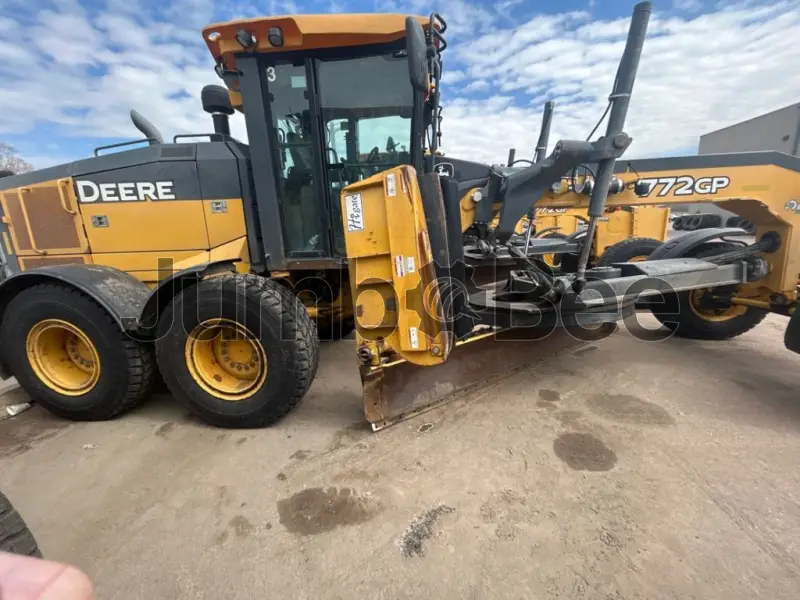

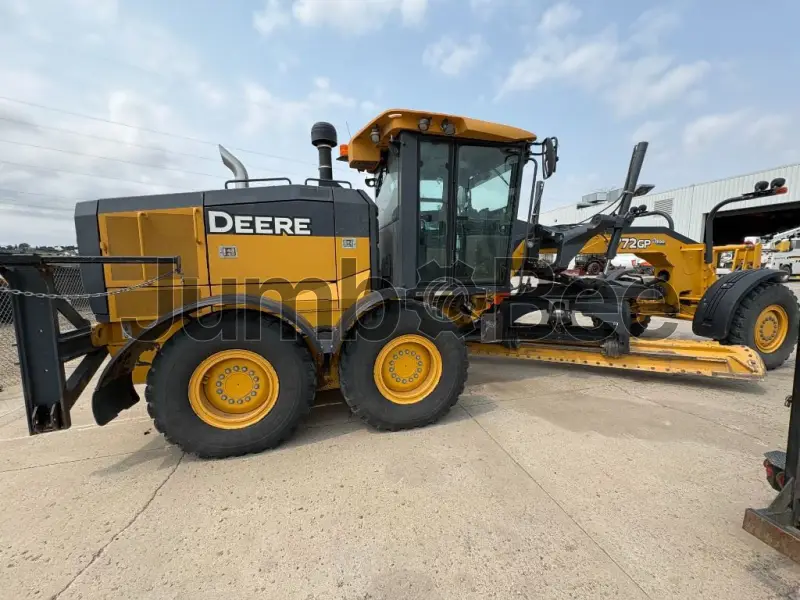

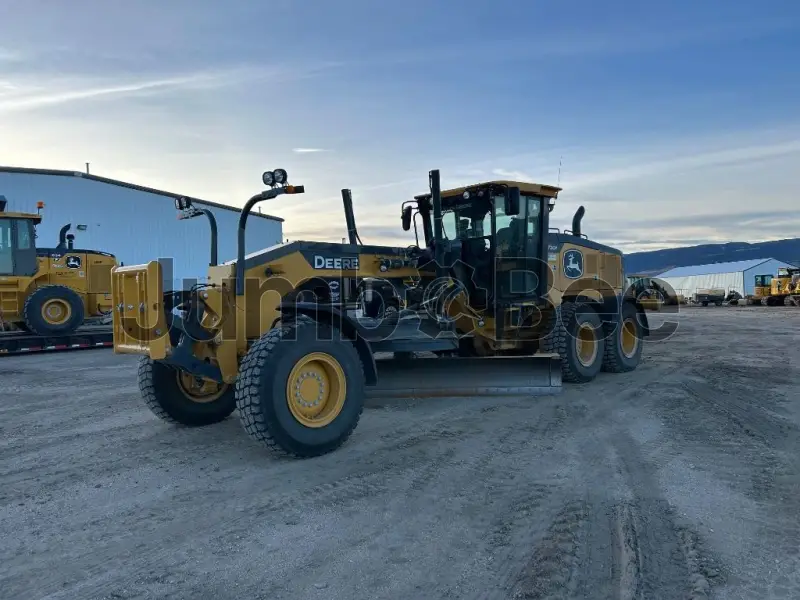

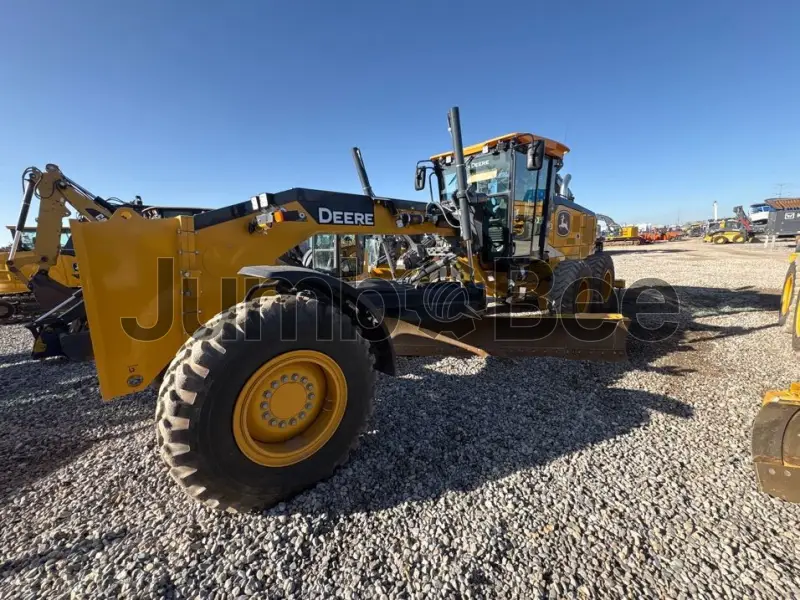

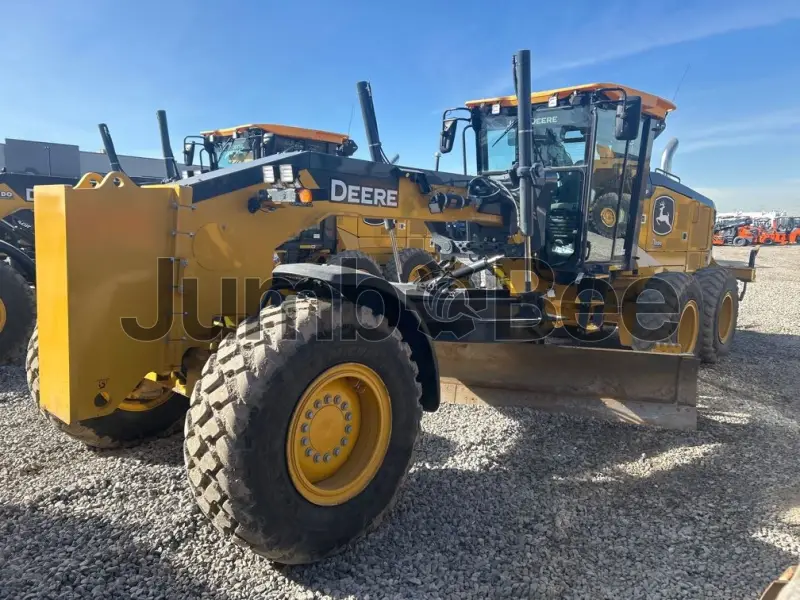

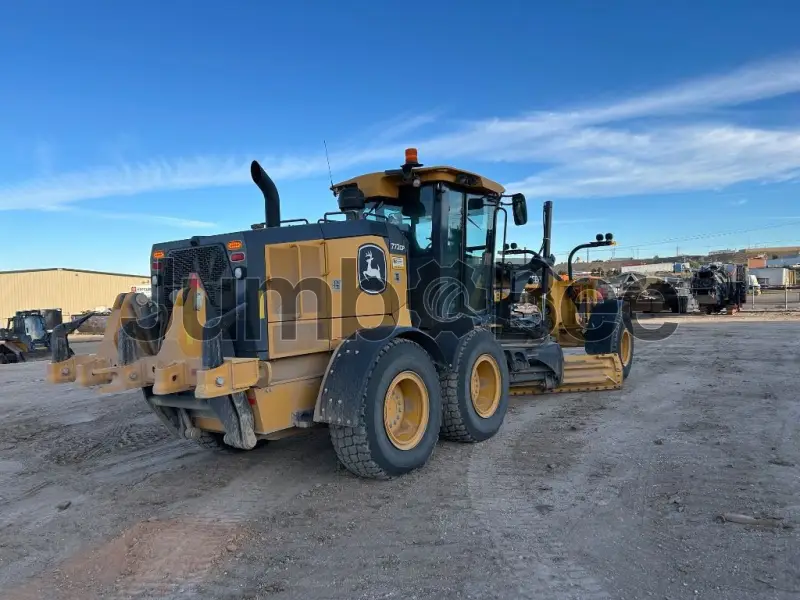

John Deere 772G Motor Graders Listings

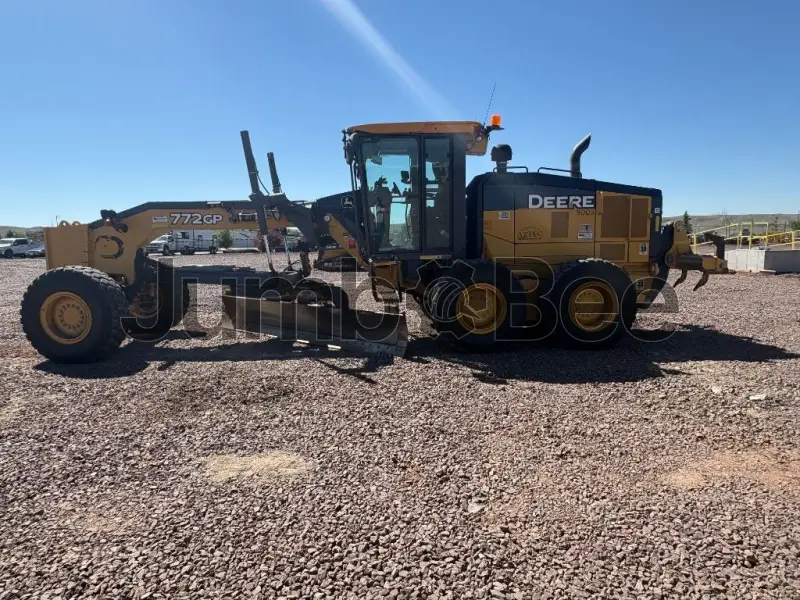

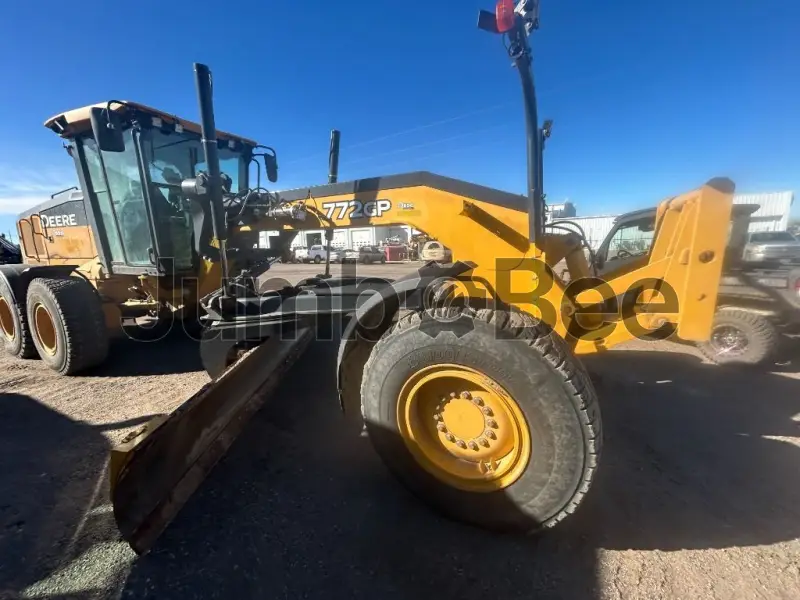

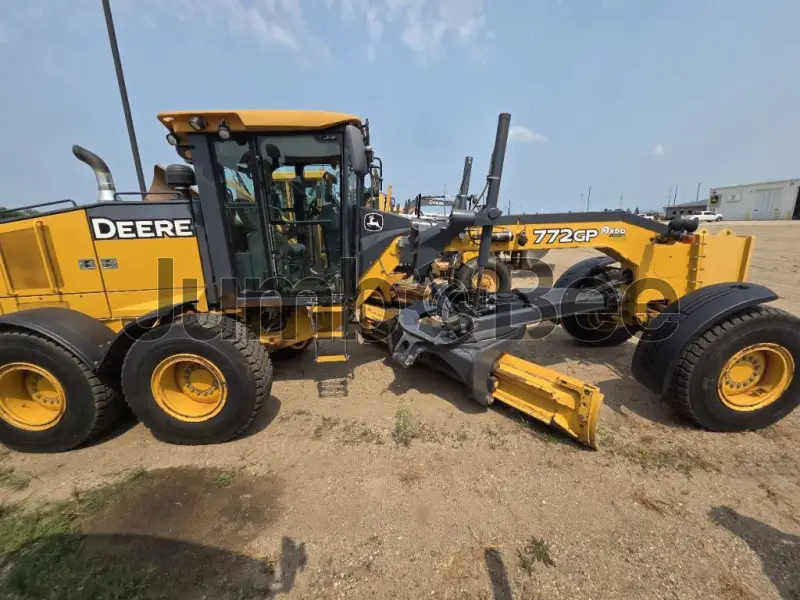

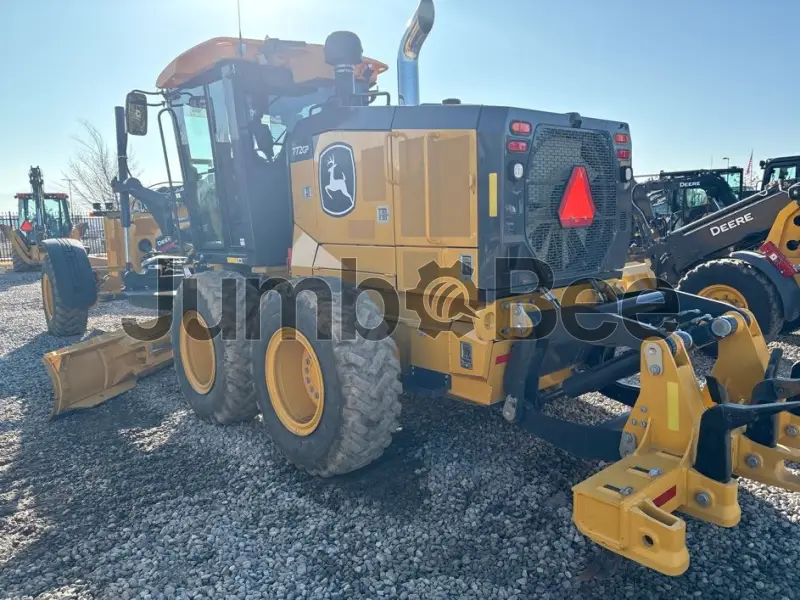

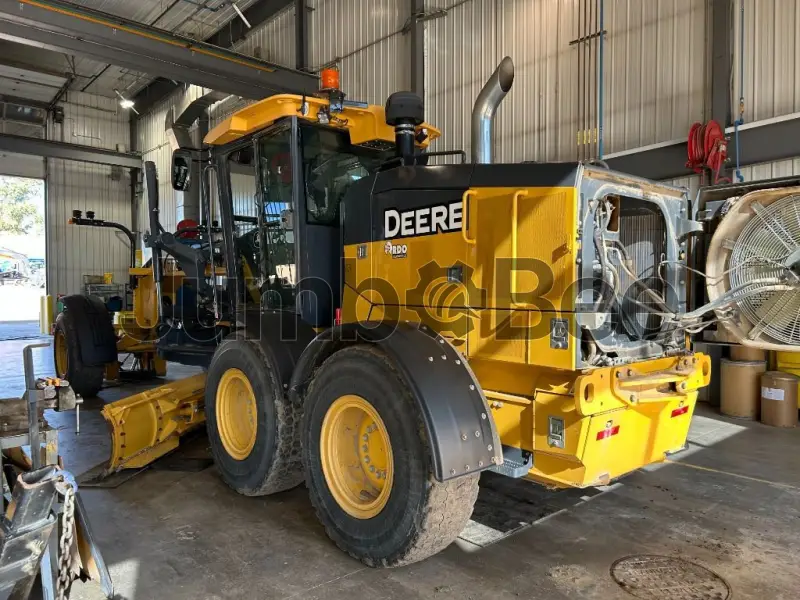

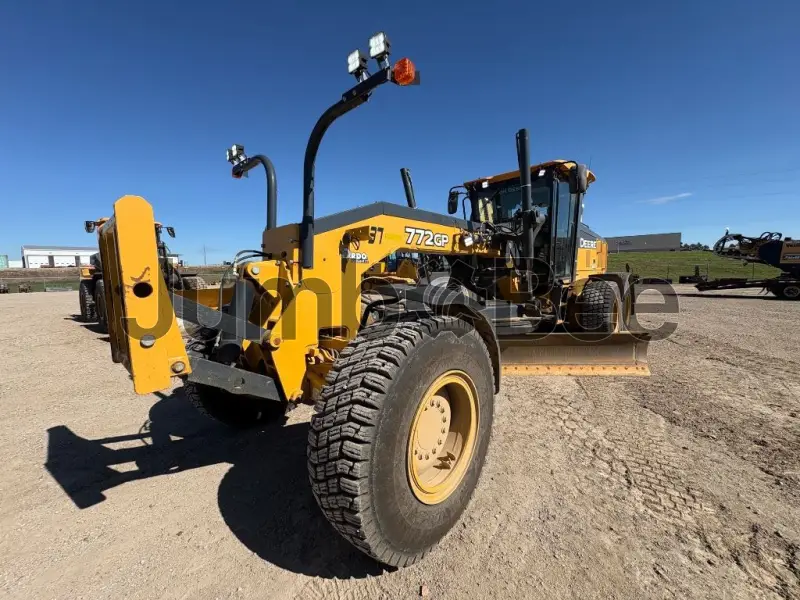

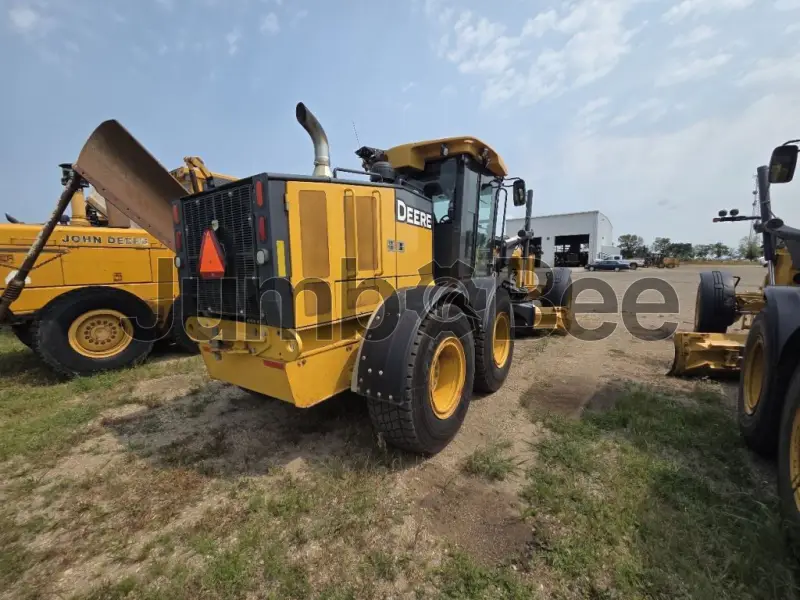

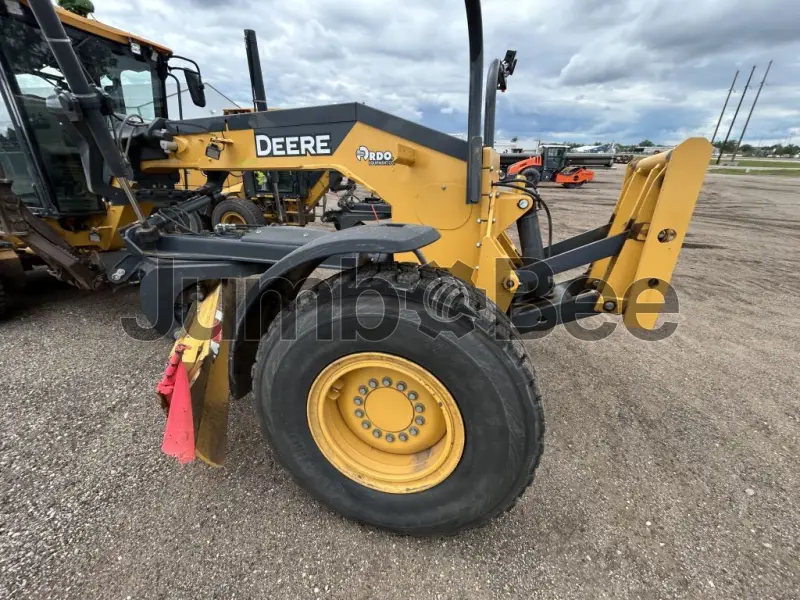

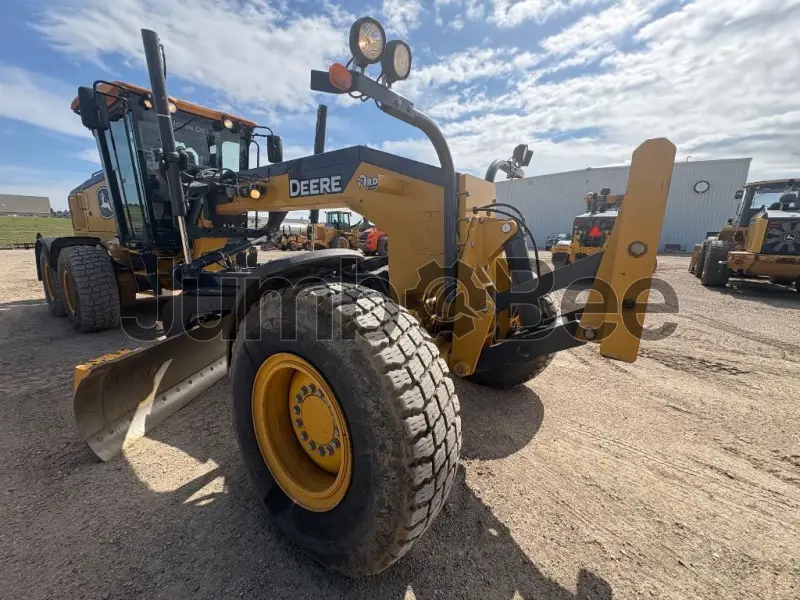

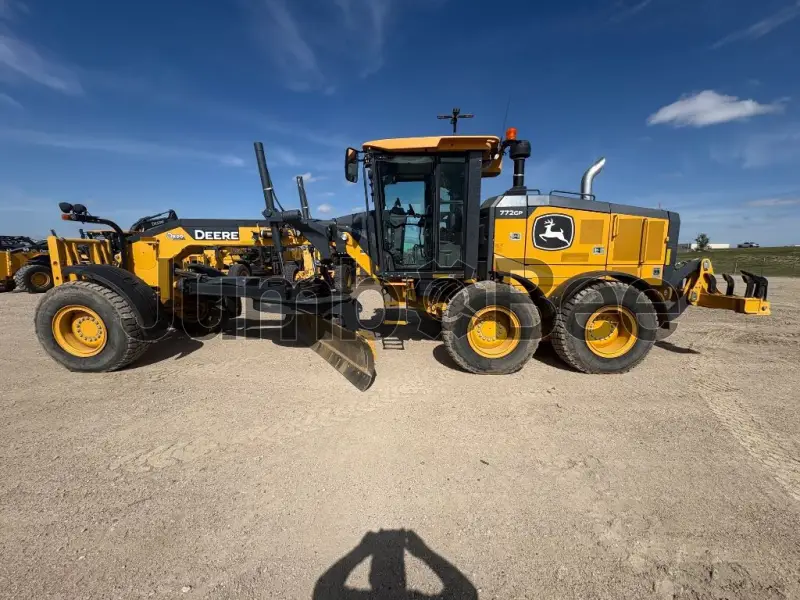

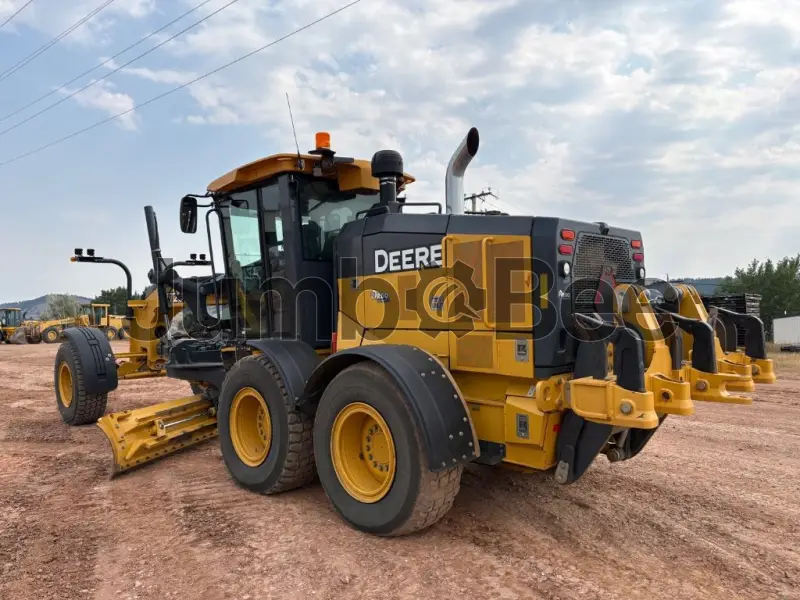

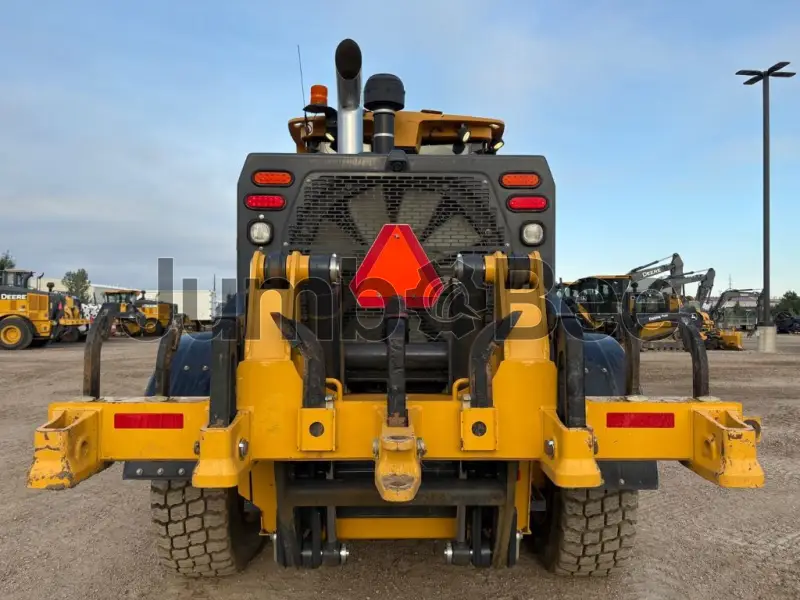

$137,000
275 hp
17502 kg
John Deere PowerTech PSS 9.0L
8214 hours
Minot, United States

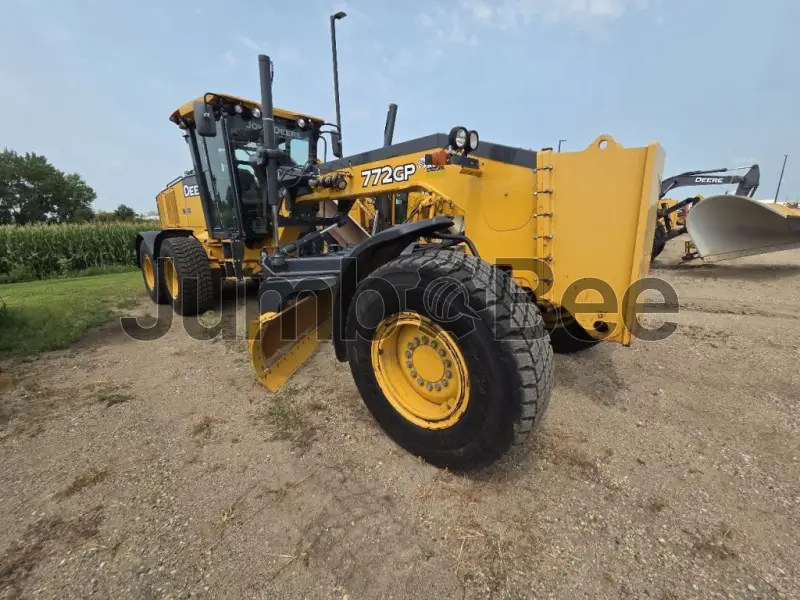

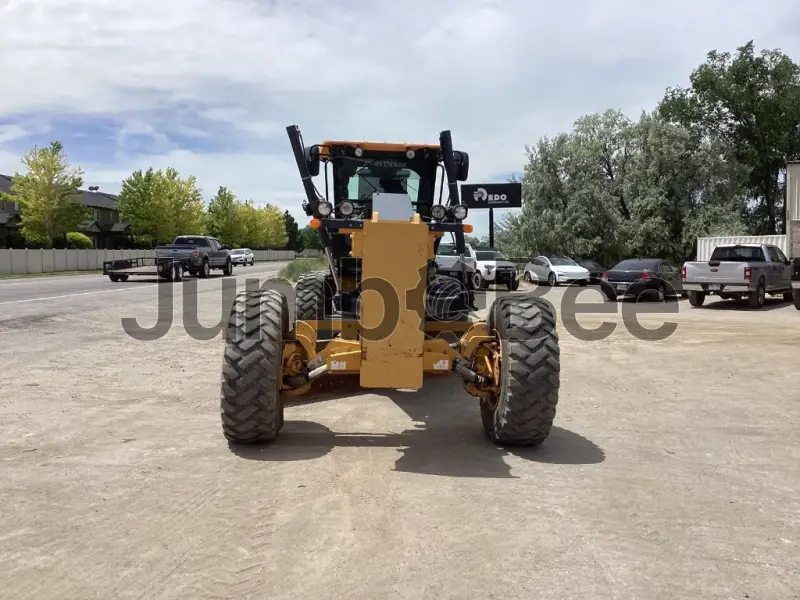

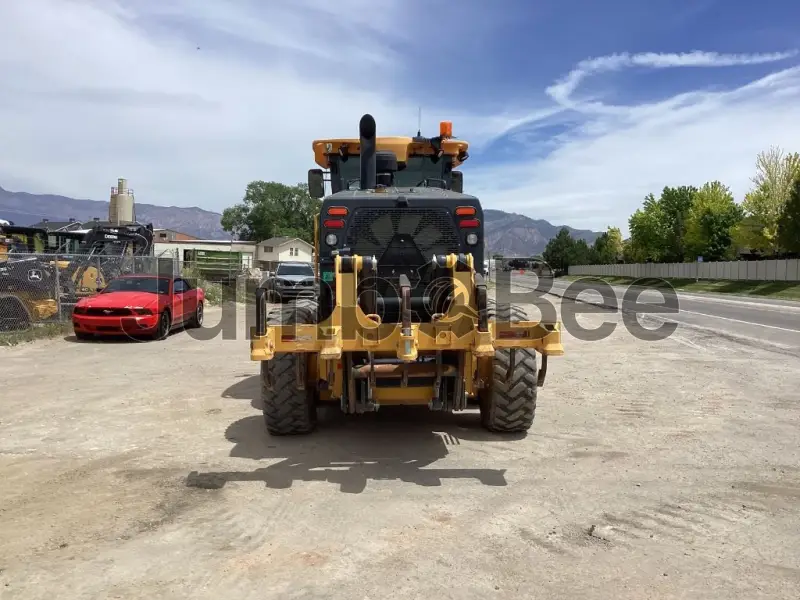

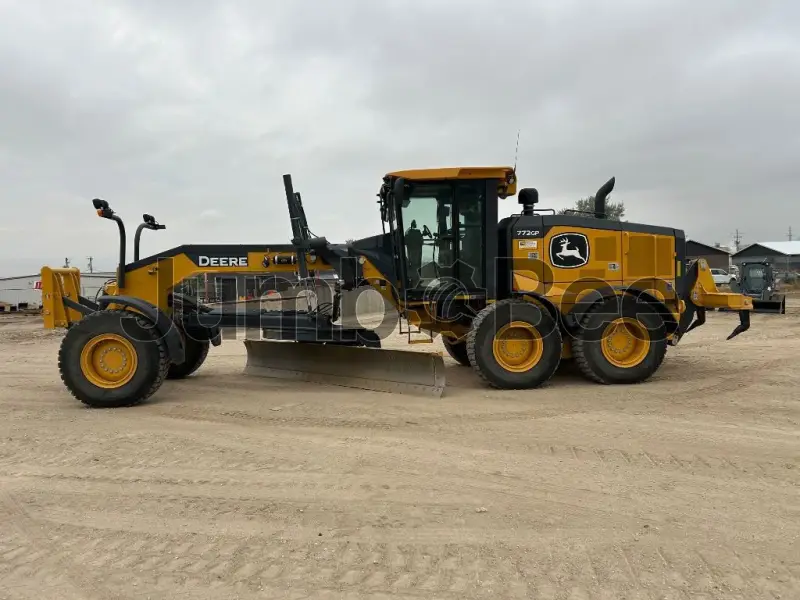

$225,500
5 deg
22453 kg
3180 mm
3093 hours
Sioux Falls, United States

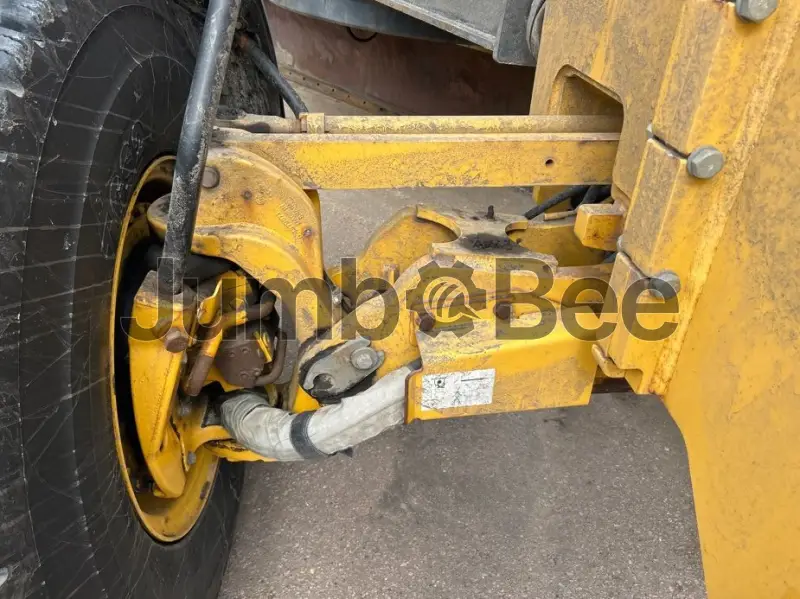

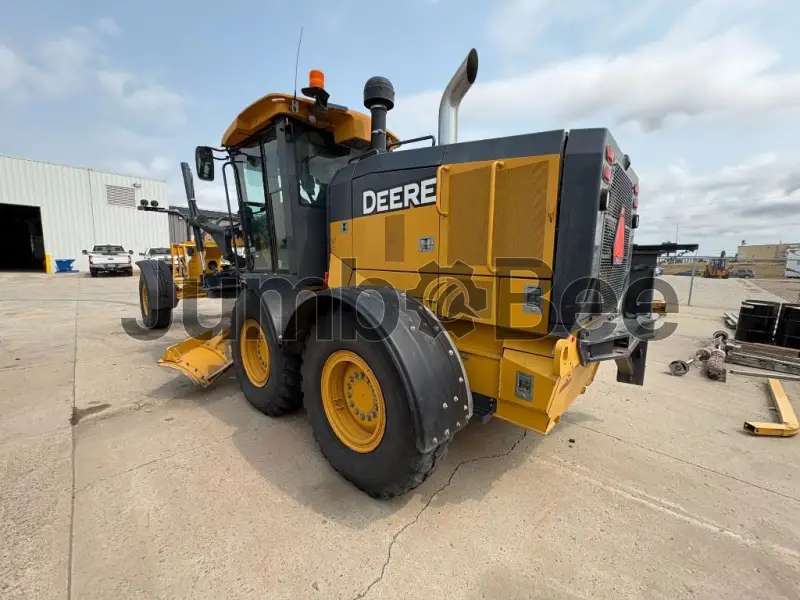

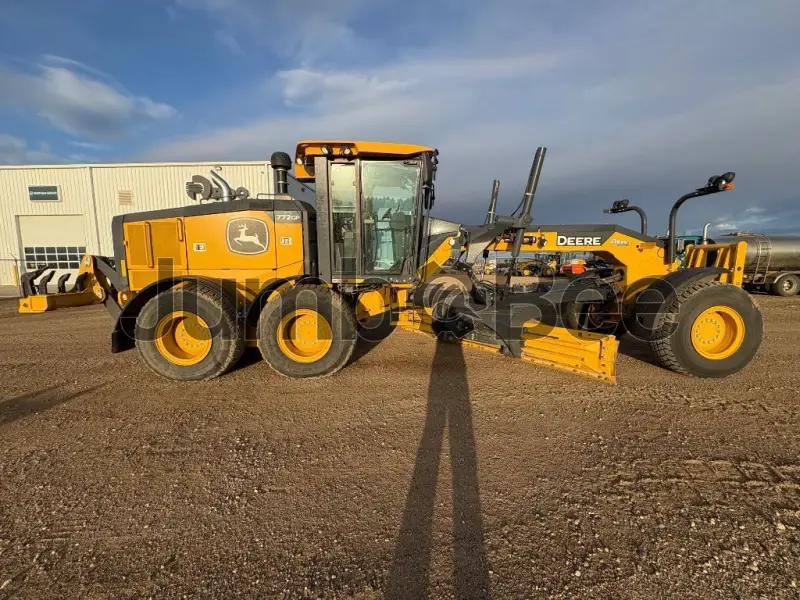

$128,500
John Deere PowerTech PSS 9.0L
275 hp
6
9149 hours
Williston, United States

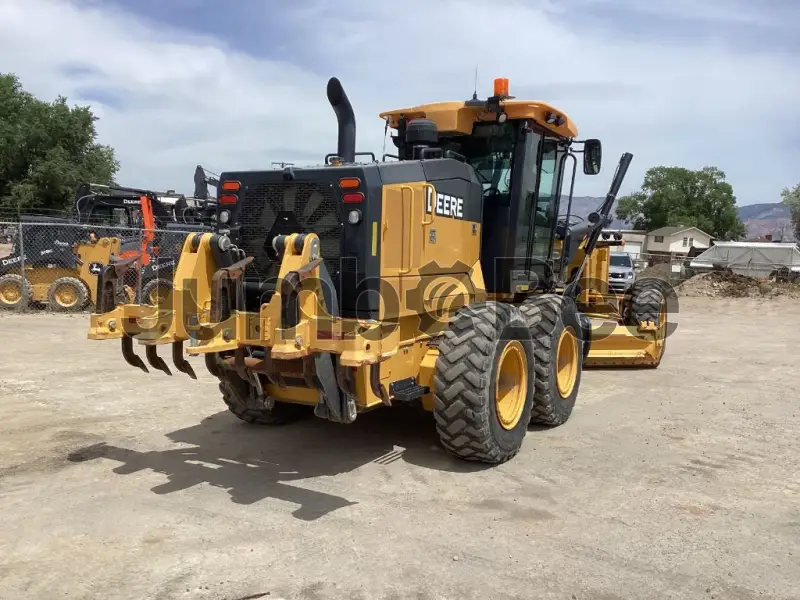

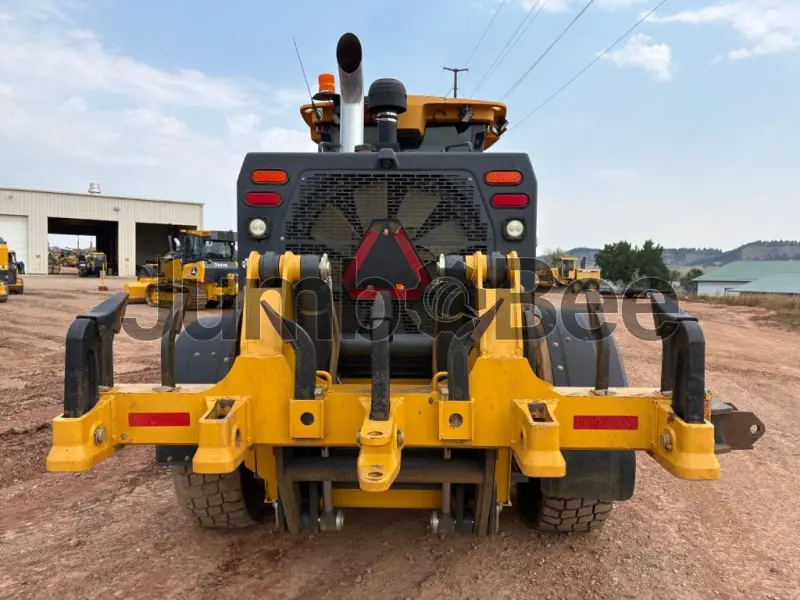

$205,500
416 L
18961 kPa
2570 mm
6232 hours
Williston, United States

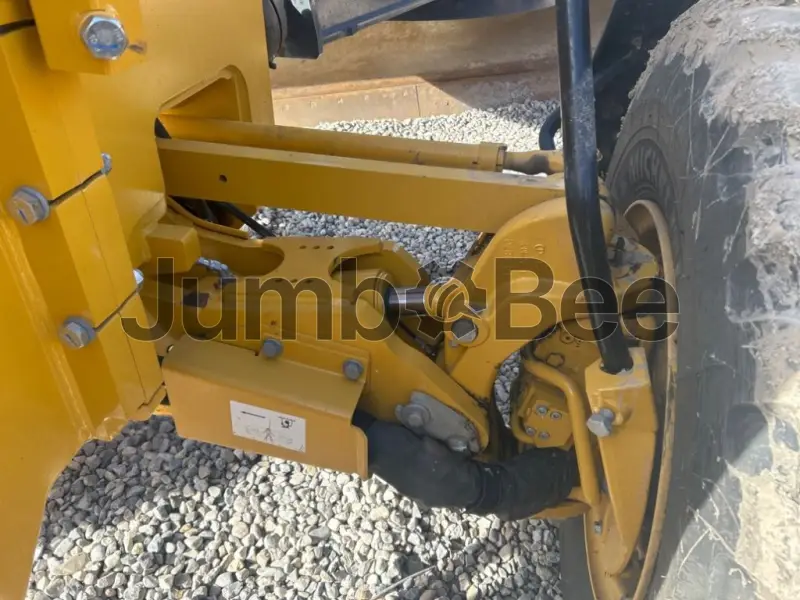

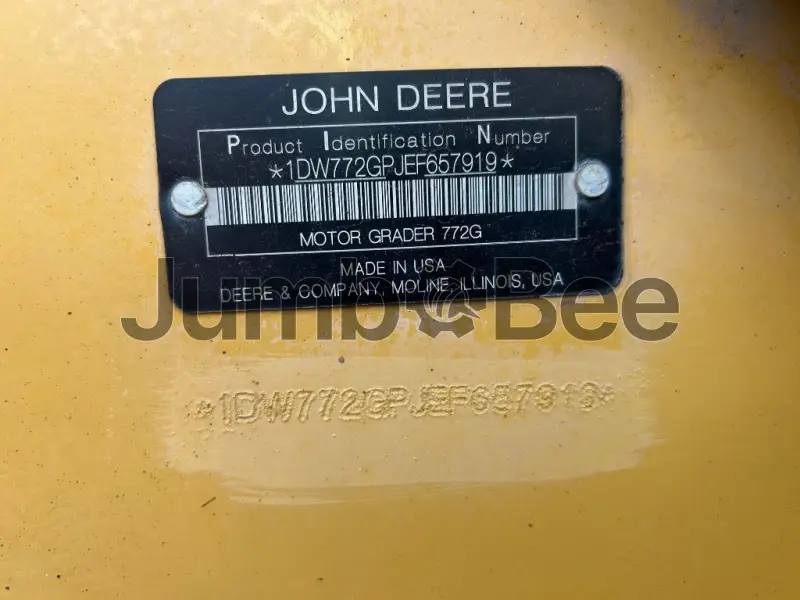

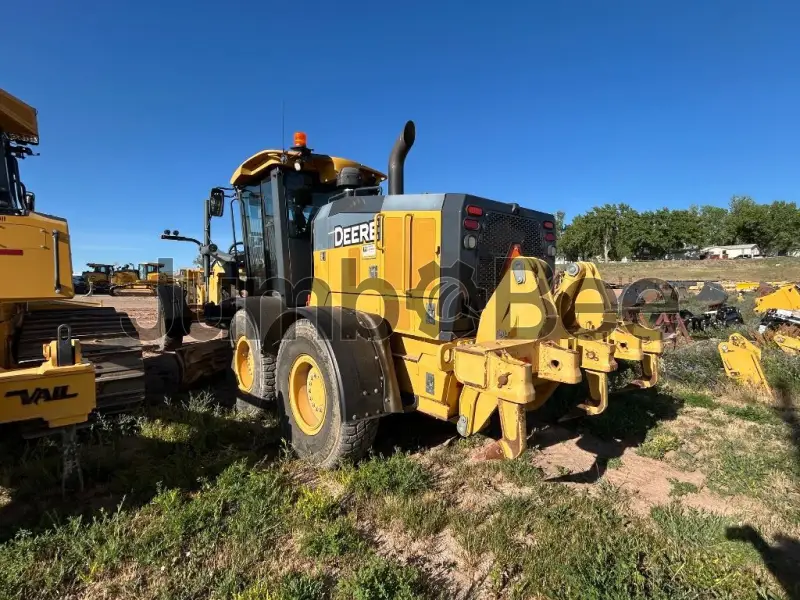

$212,500
275 hp
2570 mm
6160 mm
6128 hours
Williston, United States

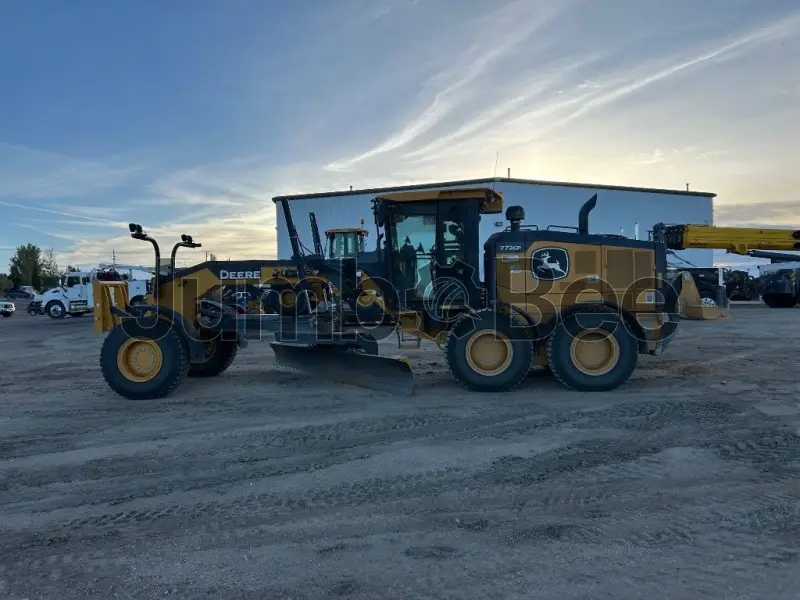

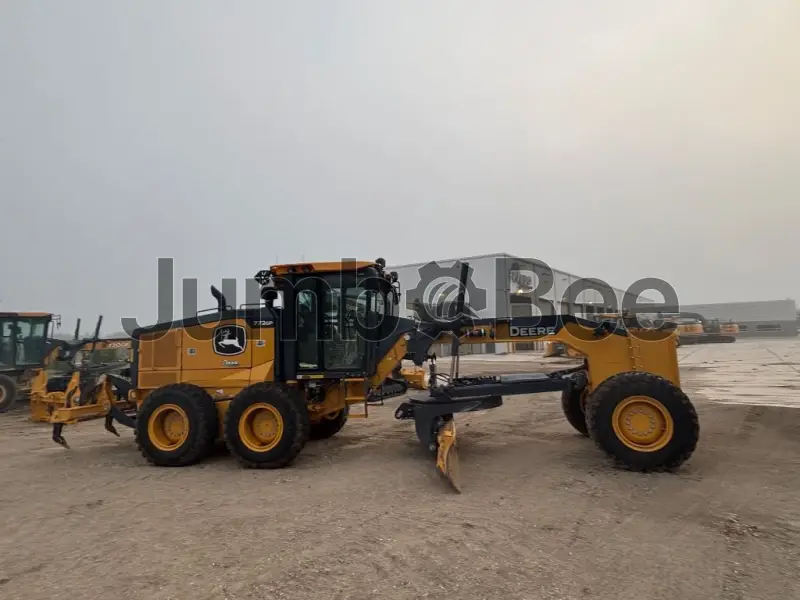

$375,000
275 hp
3660 mm
275 hp
2154 hours
Mills, United States

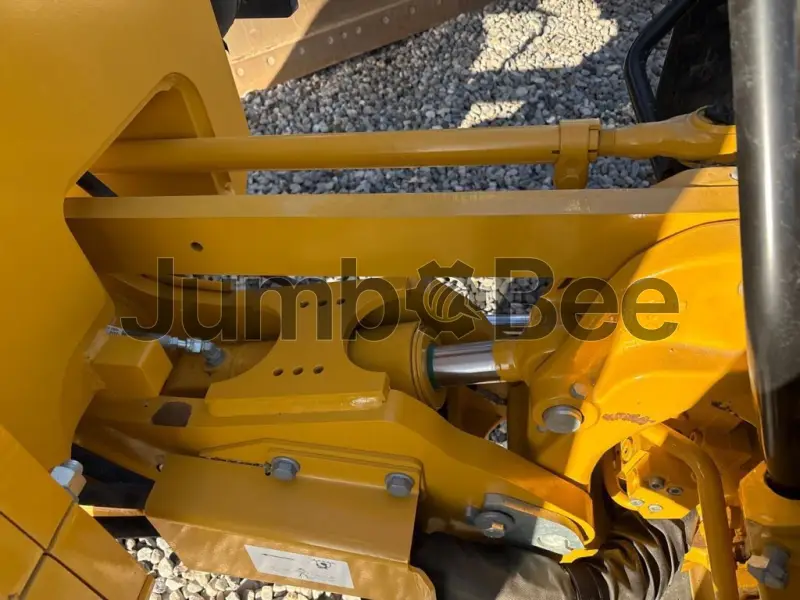

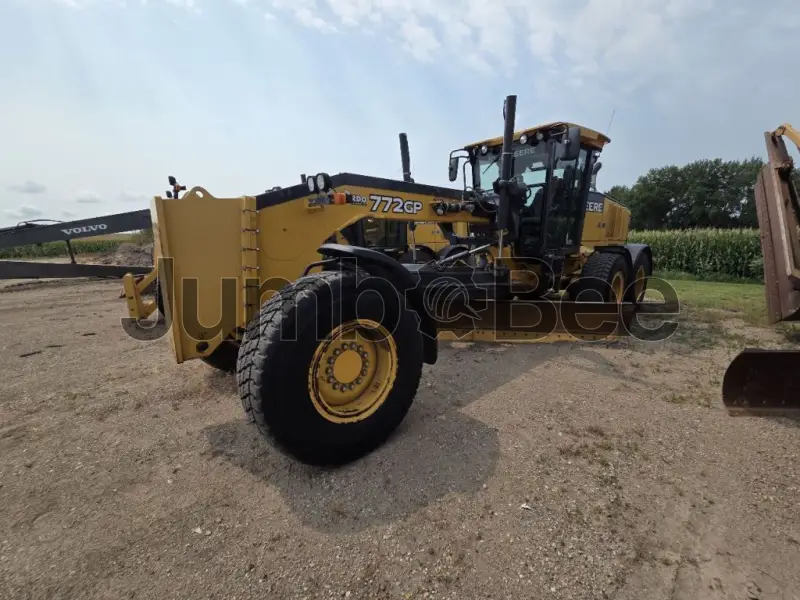

$178,070
17502 kg
3660 mm
8
3022 hours
Marshall, United States

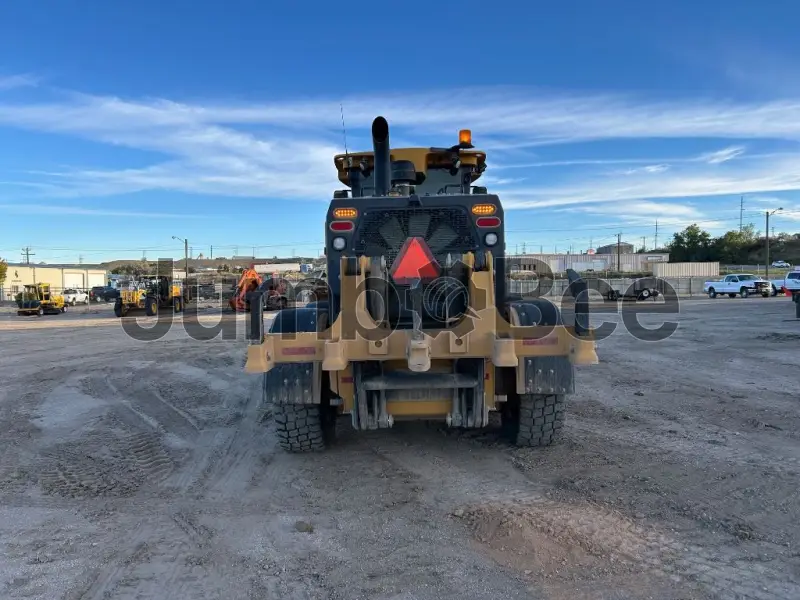

$99,980
