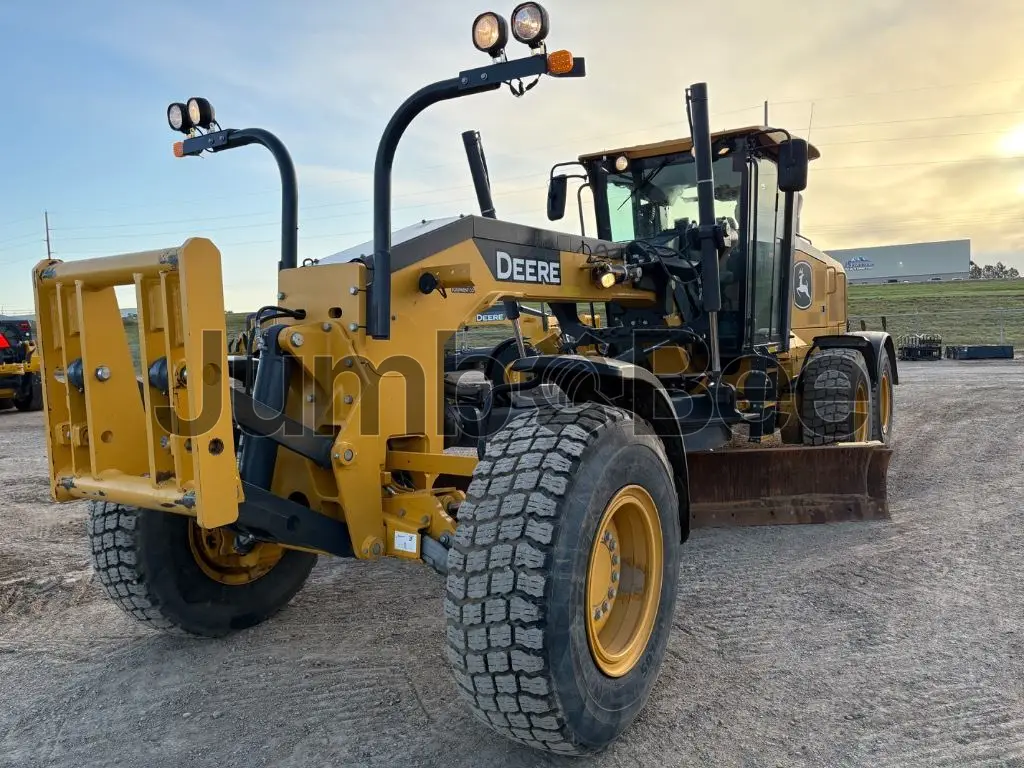

2021 John Deere 772G - Used, 6,464 Hours for Sale

275 hp

North Dakota, United States

Item price

$203,500

2021 John Deere 772G - Used, 6,464 Hours for Sale

Used

ID:4J7J8VFF
North Dakota, United States
Shipping to 150+ countries

Instant Rate Calculation

Usage

6,464 hr

Power

275 hp

Year

2021

Item price

$203,500

Verified Sellers Only

All sellers are screened for legitimacy via Sumsub

Pre-Sale Inspection

Request an independent inspection before you buy.

Purchase Protection

Transactions protected for both buyers and sellers.

Full-Service Shipping

Worldwide heavy equipment shipping by trusted logistics experts.

Not ready to create an account?

You can still contact us and request shipping rates.

New to JumboBee?

Watch a short guide to learn how to browse equipment, check shipping costs, and buy with confidence.

Verified Sellers

Instant Shipping Rates

Guarantees Every Transaction

Pre-sale inspections

Item description

MOTOR GRADER - CAB/AC/HEAT - LOW CAB - AIR SEAT - CLOTH SEAT - PS TRANS - FWD - 17.5X25 RADIALS - 3 PIECE RIMS - 14' BLD - RIPP/SCAR - FRT HYD - R HYD - FRT HTCH - DRAWBAR - RADIO

Specifications

Engine Power

275 hp

(205.1 kW)

Operating Weight

17,502 kg

Moldboard Width

12 ft

(3.7 m)

Engine hours

6,464 hr

Dimensions L×W×H

350 × 98 × 125.2 in

(8,890 × 2,490 × 3,180 mm)
Width

98 in

(2,490 mm)
Length

350 in

(8,890 mm)
Height

125.2 in

(3,180 mm)
Fuel tank

416 L

(109.9 ga)
Height to top of cab

3,180 mm

Blade Base

8.4 ft

(2.6 m)
Wheelbase

20.2 ft

(6.2 m)
Overall length w/header

29.2 ft

(8.9 m)
Number of Cylinders

6

Displacement

549,215.8 cu(in)

(< 0.1 L)
Manufacturer and Model

John Deere PowerTech PSS 9.0L

Net Power (ISO 9249)

275 hp

(205.1 kW)
Overall width

98 in

(2.5 m)
Tires

17.5 Tires, Radials

Net Peak Torque

1,375 Nm

(1,014.1 ft-lb)
Alternator Rating

55

Battery Voltage

24

Hydraulic System

60 L

(15.9 ga)
Engine Oil

29 L

(7.7 ga)
Cooling system

45 L

(11.9 ga)
Main Pump Type

Closed center variable displacement

Powertrain Type

John Deere powershift (8F/8R)

Gears Forward

8

Gears Reverse

8

Front Axle Oscillation (total)

32 deg

Front Axle Wheel Lean Angle (each direction)

20 deg

Maximum Travel Speed - High

45 km/h

Maximum System Pressure

18,961 kPa

(2,750.1 psi)
Steering (Turning Radius)

< 0.1 ft

(< 0.1 m)
Steering (Articulation)

22 deg

Maximum Pump Flow

212 L/min

(56 gpm)
Blade Range - Lift Above Ground

490 mm

(19.3 in)
Blade Range - Blade Side Shift (right or left)

683 mm

(26.9 in)
Shoulder Reach Outside Wheels (frame straight, right or left)

2,083 mm

(82 in)
Pitch at Ground Line - Forward

42 deg

(< 0.1 deg)
Pitch at Ground Line - Back

5 deg

(< 0.1 deg)
Bank Cut Angle (right or left)

90 deg

(< 0.1 deg)
Blade Pull At Maximum Operating Weight

22,453 kg

(49,500.4 lb)
Base Length

12 ft

(3.7 m)
Height (measured along arc, including cutting edge)

610 mm

(24 in)
Moldboard Thickness

22 mm

(0.9 in)
Cutting Edge - Width

152 mm

(6 in)
Cutting Edge - Thickness

16 mm

(0.6 in)
Ground Clearance (front axle)

587 mm

(23.1 in)
Operating Weight - Front

4,881 kg

(10,760.8 lb)
Operating Weight - Rear

12,501 kg

(27,560 lb)
Operating Weights - Total

17,502 kg

(38,585.3 lb)
Circle Diameter

1,524 mm

(60 in)
Circle Rotation

360 deg

(< 0.1 deg)
Circle Side Shift (right)

683 mm

(26.9 in)
Operators Station

Cab w/ AC

Attachments

Ripper/Scarifier
