John Deere 770G Motor Graders
John Deere 770G
Average price
$205,488
5+
sold in last year
General overview
John Deere 770G is a motor grader designed for grading, shaping, and maintaining road and site surfaces. It is powered by a John Deere PowerTech PSS 9.0L engine rated at 187 kW (255 hp) and has an operating weight of 19,396 kg (42,760 lb), placing it in a heavy-duty class for construction work.
The model uses a John Deere 8-speed (8F/8R) powertrain and a 3,660 mm (12 ft) moldboard, supported by 360° circle rotation and 683 mm (27 in) circle side shift to the right. Its 6,160 mm (20 ft 3 in) wheelbase, 22° articulation, and 32° front axle oscillation (total) help define its long-frame grading configuration, while maximum travel speed reaches 45 km/h (28 mph).
Year
2011, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
8,890 mm
~350 in
3,180 mm
~125.2 in
2,490 mm
~98 in
Engine Power
255 hp
Operating Weight
19,396 kg
Moldboard Width
3,660 mm
Additional specifications
Displacement
9 cu(m)
Fuel tank
416 L
Overall length w/header
8,890 mm
Height to top of cab
3,180 mm
Wheelbase
6,160 mm
Number of Cylinders
6
Battery Voltage
24
Maximum Travel Speed - High
45 km/h
Net Power (ISO 9249)
255 hp
Manufacturer and Model
PowerTech PSS 9.0L
Net Peak Torque
1,318 Nm
Hydraulic System
60 L
Powertrain Type
John Deere 8-speed (8F/8R)
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7 m
Steering (Articulation)
22 deg
Maximum Pump Flow
212 L/min
Maximum System Pressure
18,961 kPa
Blade Range - Lift Above Ground
490 mm
Blade Range - Blade Side Shift (right or left)
683 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,083 mm
Bank Cut Angle (right or left)
90 deg
Blade Pull At Maximum Operating Weight
15,501 kg
Blade Base
2,570 mm
Circle Rotation
360 deg
Circle Side Shift (right)
683 mm
Base Length
2,570 mm
Height (measured along arc, including cutting edge)
610 mm
Moldboard Thickness
22 mm
Operating Weight - Front
4,305 kg
Operating Weight - Rear
12,084 kg
Circle Diameter
1,524 mm
Operating Weights - Total
19,396 kg

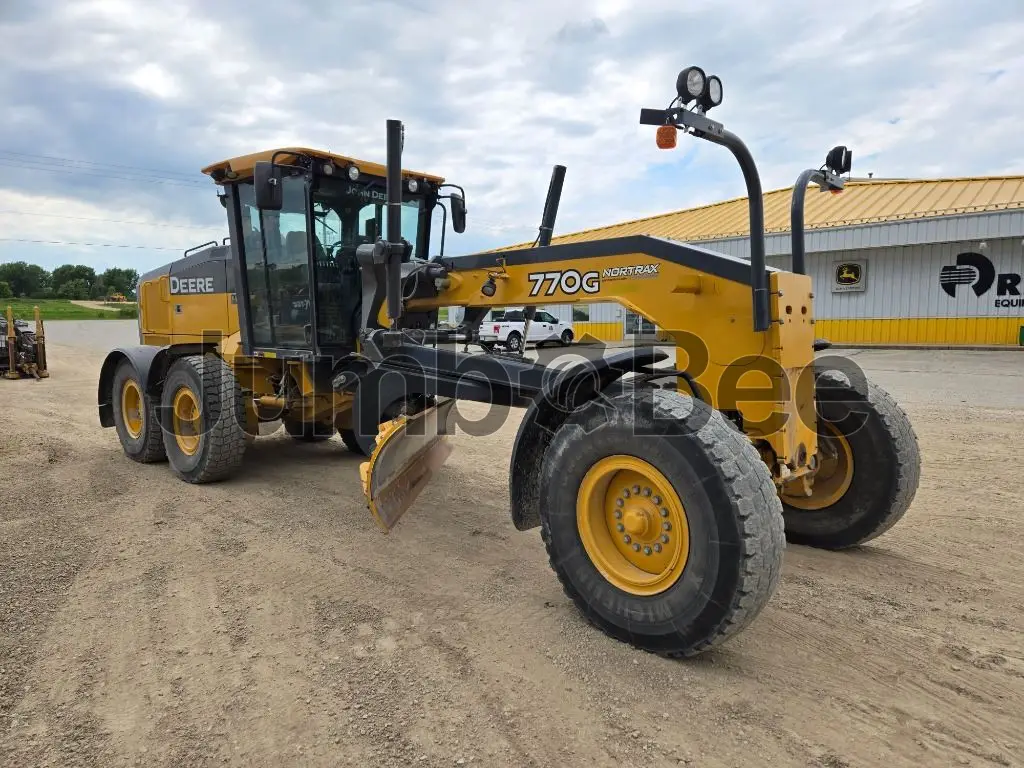

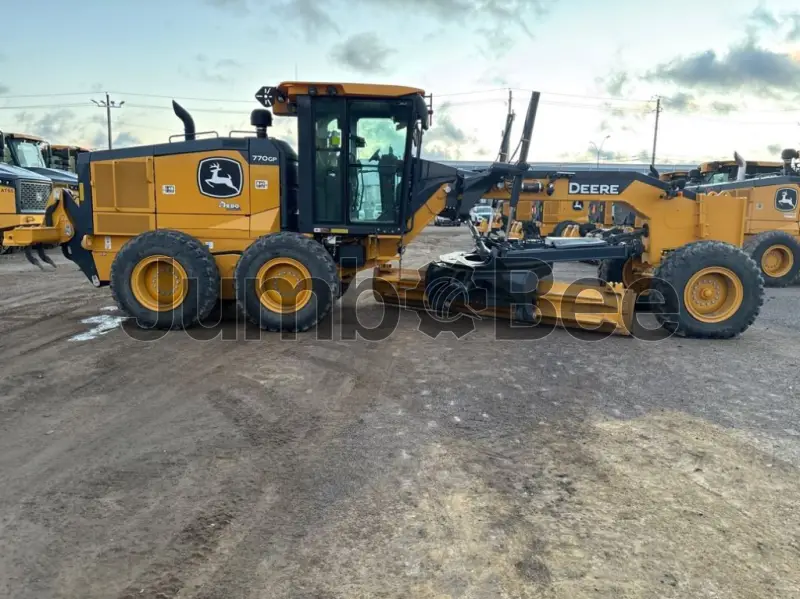

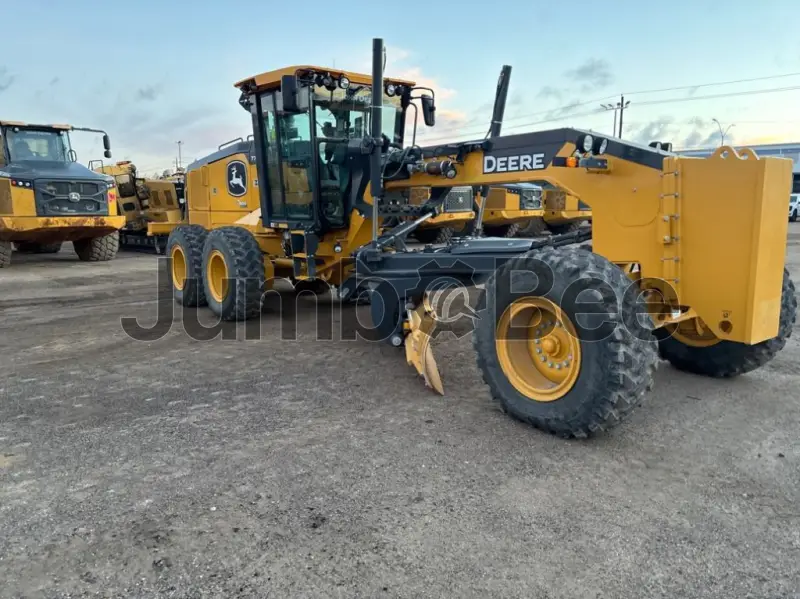

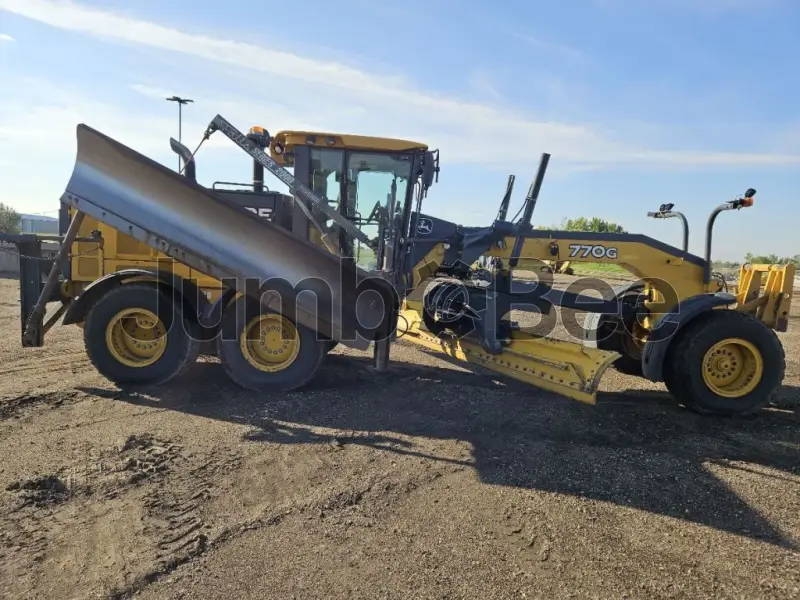

John Deere 770G Motor Graders Listings
$170,960
490 mm
683 mm
90 deg
3044 hours
Rochester, United States
$93,000
683 mm
5 deg
90 deg
8026 hours
Grand Forks, United States
$136,120
45 km/h
3660 mm
19396 kg
8386 hours
Grand Forks, United States
$477,360
6160 mm
255 hp
8890 mm
539 hours
Fort Worth, United States
