John Deere 770BH Motor Graders
John Deere 770BH
Average price
$30,000
5+
sold in last year
General overview

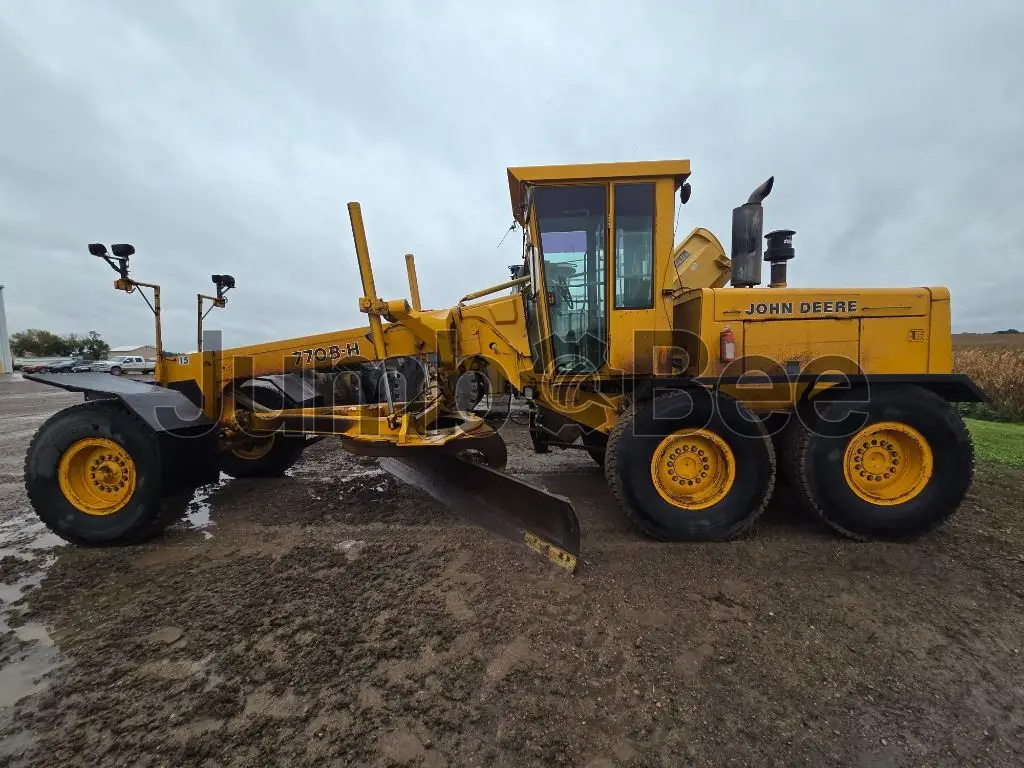

John Deere 770BH is a motor grader from 1991 used for grading and surface-shaping work in construction settings. It is equipped with a 119 kW (162 hp) engine and a 3,658 mm (12 ft) moldboard, giving it the working width and power class associated with road and site grading.
The model uses a Power Shift transmission with 8 forward gears and 4 reverse gears, and it has an operating weight of 14,197 kg (31,300 lb). Other notable characteristics include a 6,096 mm (20 ft) wheelbase, a 360° circle rotation, and a maximum travel speed of 41 km/h (25.5 mph), supporting controlled movement across grading jobs and prepared work surfaces.
Year
1991
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
8,534 mm
~336 in
3,048 mm
~120 in
Engine Power
162 hp
Operating Weight
14,197 kg
Moldboard Width
3,658 mm
Additional specifications
Displacement
7 cu(m)
Fuel tank
340 L
Cooling system
38 L
Overall length w/header
8,534 mm
Height to top of cab
3,048 mm
Wheelbase
6,096 mm
Number of Cylinders
6
Battery Voltage
24
Maximum Travel Speed - High
41 km/h
Engine Oil
25 L
Net Power (ISO 9249)
162 hp
Manufacturer and Model
John Deere 6,076A
Alternator Rating
50
Hydraulic System
87 L
Main Pump Type
Closed Center Variable Displacement
Powertrain Type
Power Shift
Gears Forward
8
Gears Reverse
4
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7 m
Steering (Articulation)
25 deg
Maximum Pump Flow
198 L/min
Blade Range - Lift Above Ground
483 mm
Blade Range - Blade Side Shift (right or left)
787 mm
Pitch at Ground Line - Forward
49 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,159 mm
Tandem Axle Spacing
1,524 mm
Blade Base
2,743 mm
Circle Rotation
360 deg
Circle Side Shift (right)
787 mm
Base Length
3,658 mm
Height (measured along arc, including cutting edge)
610 mm
Moldboard Thickness
25 mm
Ground Clearance (front axle)
1,000 mm
Operating Weight - Front
3,946 kg
Operating Weight - Rear
10,251 kg
Circle Diameter
1,499 mm
Operating Weights - Total
14,197 kg
John Deere 770BH Motor Graders Listings
$30,000
10251 kg
7 cu(m)
8
18686 hours
Marshall, United States
Compare John Deere 770BH Motor Grader to other motor graders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 770BH?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 770BH?
Listed strengths include 120.8 kW (162 hp) net power, a Power Shift transmission with 8 forward and 4 reverse gears, 360° circle rotation, and a 3,658 mm (144 in) moldboard. It also has 787 mm (31 in) blade side shift and 2,159 mm (85 in) shoulder reach.
What type of engine does the 770BH use?
The 770BH uses a John Deere 6076A engine with 6 cylinders and 7 m³ (9.16 cu yd) displacement.
How much horsepower does the 770BH have?
The John Deere 770BH has 120.8 kW (162 hp) net power under ISO 9249.
What fuel does the John Deere 770BH use?
The supplied specifications do not confirm the fuel type. They list a fuel tank capacity of 340 L (89.8 US gal).
What jobs is this Motor Graders best suited for?
Its moldboard, 360° circle rotation, blade side shift, and shoulder reach support grading and shaping work. The supplied data does not identify specific job applications; suitability depends on site conditions, material, attachments, and operator requirements.
What is the expected lifespan of the 770BH?
The supplied data does not provide an expected service-life estimate. For a used machine, assess maintenance records, engine condition, transmission operation, hydraulic performance, moldboard wear, frame condition, and overall operating history.
What should a buyer check when purchasing a used Motor Graders?
Check maintenance records, engine starting and operation, transmission shifting, hydraulic function, blade and circle wear, articulation and steering movement, tire condition, structural damage, leaks, and overall operating condition. Confirm that the machine’s configuration matches the intended work.
