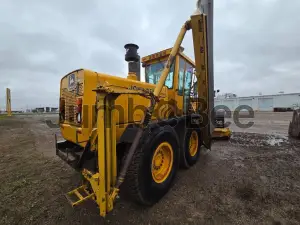

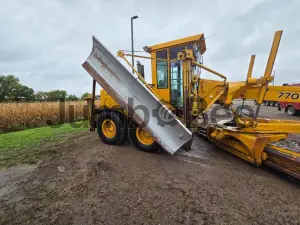

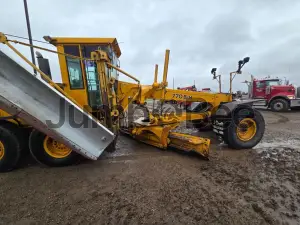

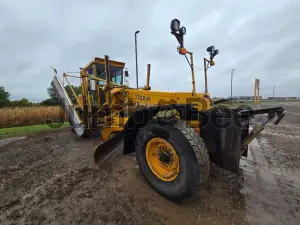

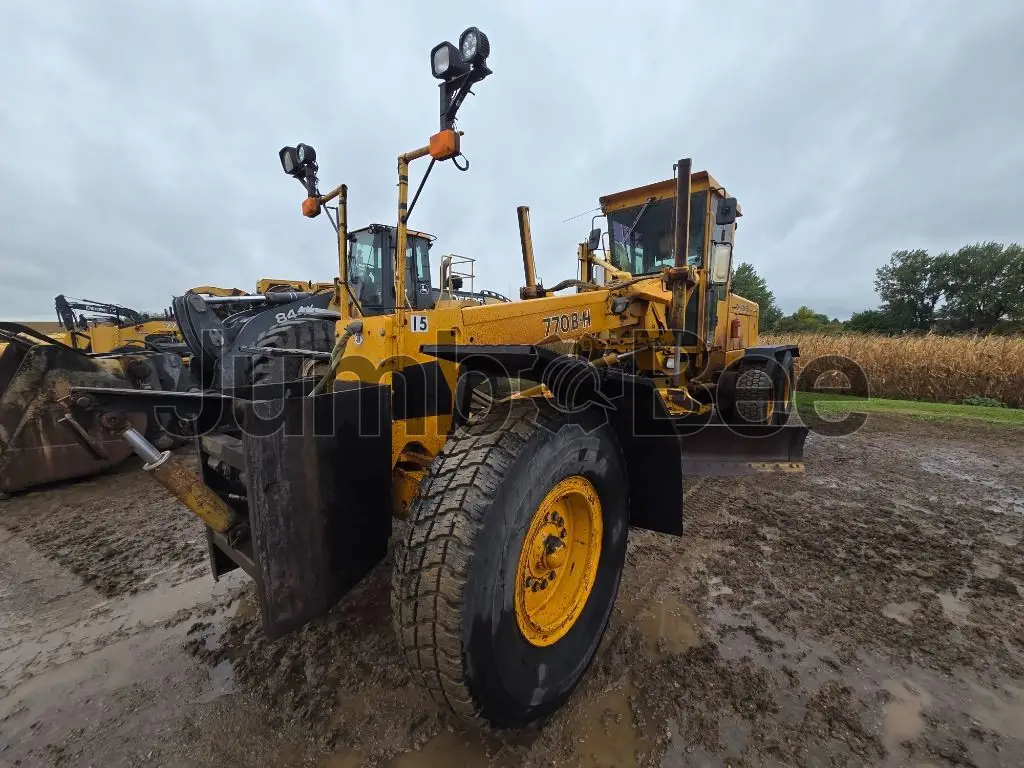

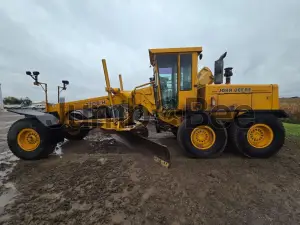

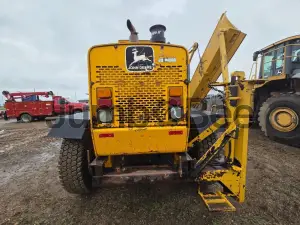

1991 John Deere 770BH - Used, 18,686 Hours for Sale

162 hp

Minnesota, United States

Item price

$29,990

1991 John Deere 770BH - Used, 18,686 Hours for Sale

Used

ID:JCU3HVT8
Minnesota, United States
Shipping to 150+ countries

Instant Rate Calculation

Usage

18,686 hr

Power

162 hp

Year

1991

Item price

$29,990

Verified Sellers Only

All sellers are screened for legitimacy via Sumsub

Pre-Sale Inspection

Request an independent inspection before you buy.

Purchase Protection

Transactions protected for both buyers and sellers.

Full-Service Shipping

Worldwide heavy equipment shipping by trusted logistics experts.

Not ready to create an account?

You can still contact us and request shipping rates.

New to JumboBee?

Watch a short guide to learn how to browse equipment, check shipping costs, and buy with confidence.

Verified Sellers

Instant Shipping Rates

Guarantees Every Transaction

Pre-sale inspections

Item description

MOTOR GRADER - CAB/AC/HEAT - TALL CAB - SUS SEAT - CLOTH SEAT - PWR SHFT TRANS - PS TRANS - 14X24 RADIALS - 14' BLD - FRT HYD - R HYD - SNOW WING - FRT HTCH

Specifications

Engine Power

162 hp

(120.8 kW)

Operating Weight

14,197 kg

Moldboard Width

12 ft

(3.7 m)

Engine hours

18,686 hr

Length

336 in

(8,534 mm)
Height

120 in

(3,048 mm)
Fuel tank

340 L

(89.8 ga)
Cooling system

38 L

(10 ga)
Engine Oil

25 L

(6.6 ga)
Hydraulic System

87 L

(23 ga)
Wheelbase

20 ft

(6.1 m)
Height to top of cab

3,048 mm

Tandem Axle Spacing

5 ft

(1.5 m)
Blade Base

9 ft

(2.7 m)
Overall length w/header

28 ft

(8.5 m)
Number of Cylinders

6

Manufacturer and Model

John Deere 6076A

Displacement

427,167.9 cu(in)

(< 0.1 L)
Net Power (ISO 9249)

162 hp

(120.8 kW)
Battery Voltage

24

Alternator Rating

50

Tires

14.00 Tires, Radials

Main Pump Type

Closed Center Variable Displacement

Powertrain Type

Power Shift

Steering (Turning Radius)

< 0.1 ft

(< 0.1 m)
Gears Forward

8

Gears Reverse

4

Front Axle Wheel Lean Angle (each direction)

20 deg

Maximum Travel Speed - High

41 km/h

Steering (Articulation)

25 deg

Front Axle Oscillation (total)

32 deg

Maximum Pump Flow

198 L/min

(52.3 gpm)
Blade Range - Lift Above Ground

483 mm

(19 in)
Pitch at Ground Line - Forward

49 deg

(< 0.1 deg)
Shoulder Reach Outside Wheels (frame straight, right or left)

2,159 mm

(85 in)
Blade Range - Blade Side Shift (right or left)

787 mm

(31 in)
Pitch at Ground Line - Back

5 deg

(< 0.1 deg)
Circle Side Shift (right)

787 mm

(31 in)
Circle Rotation

360 deg

(< 0.1 deg)
Circle Diameter

1,499 mm

(59 in)
Moldboard Thickness

25 mm

(1 in)
Base Length

12 ft

(3.7 m)
Height (measured along arc, including cutting edge)

610 mm

(24 in)
Ground Clearance (front axle)

1,000 mm

(39.4 in)
Operating Weight - Rear

10,251 kg

(22,599.6 lb)
Operating Weight - Front

3,946 kg

(8,699.4 lb)
Operating Weights - Total

14,197 kg

(31,299.1 lb)
Operators Station

Cab w/ AC

Attachments

Snow Wing
