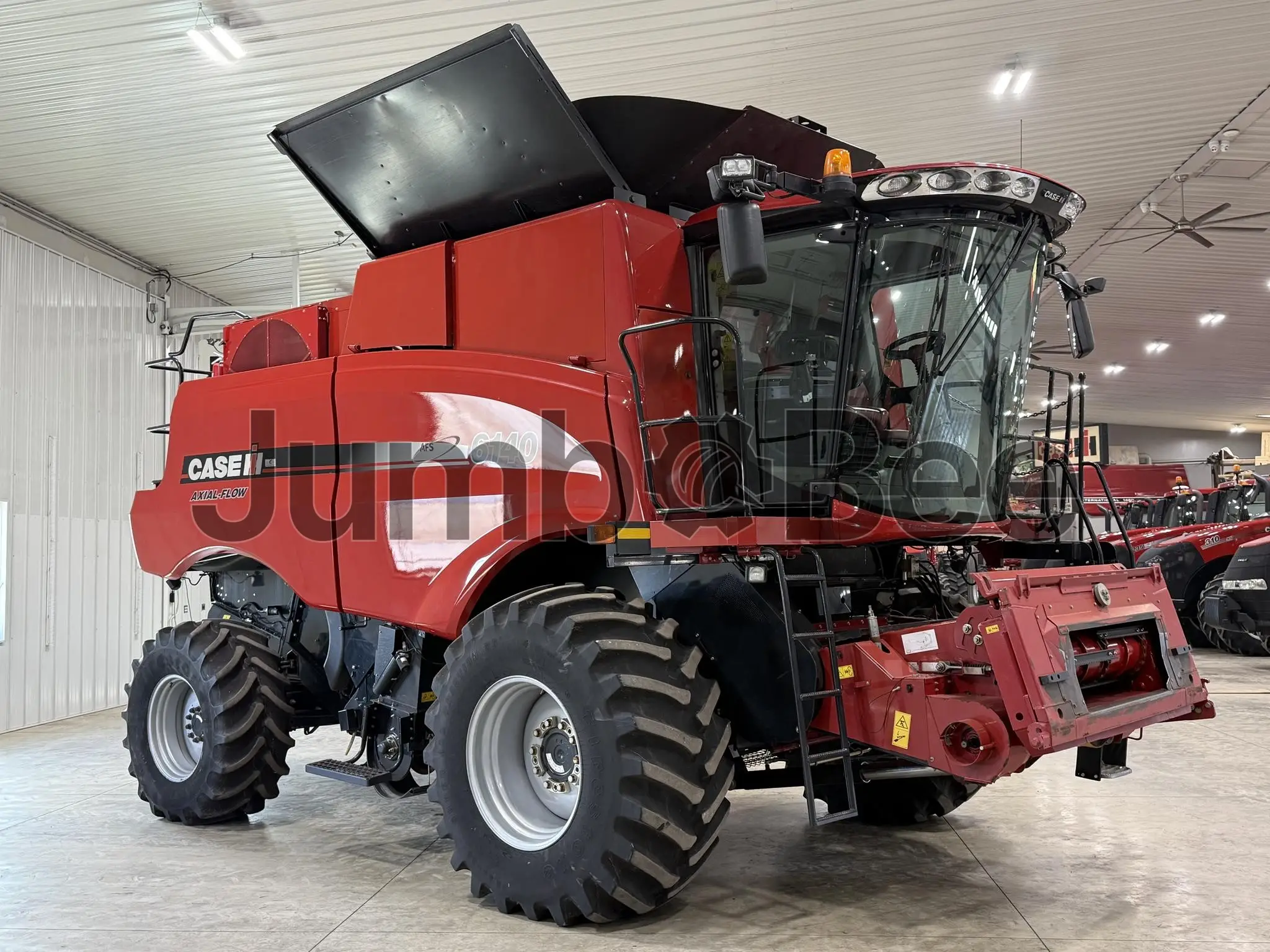

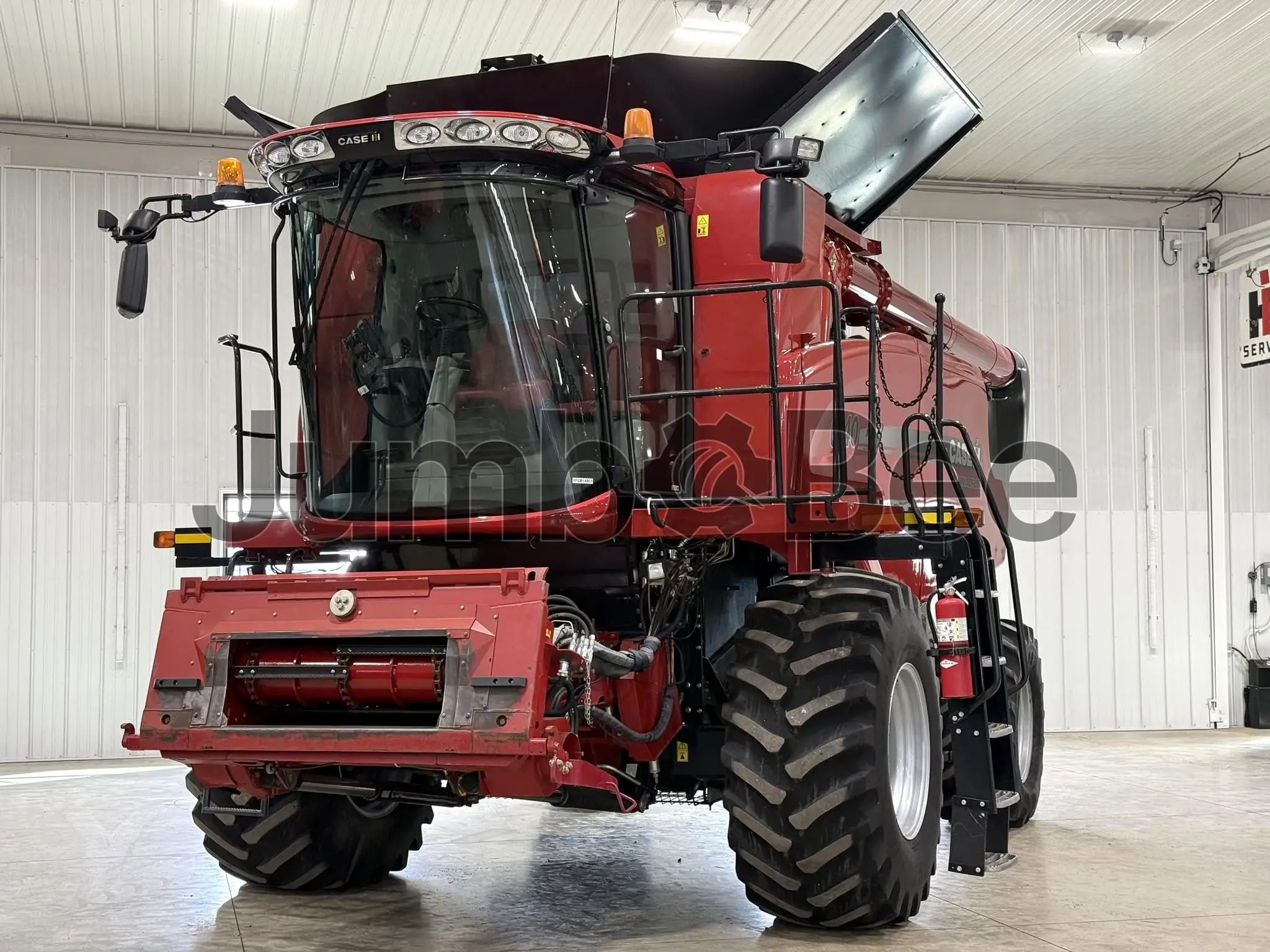

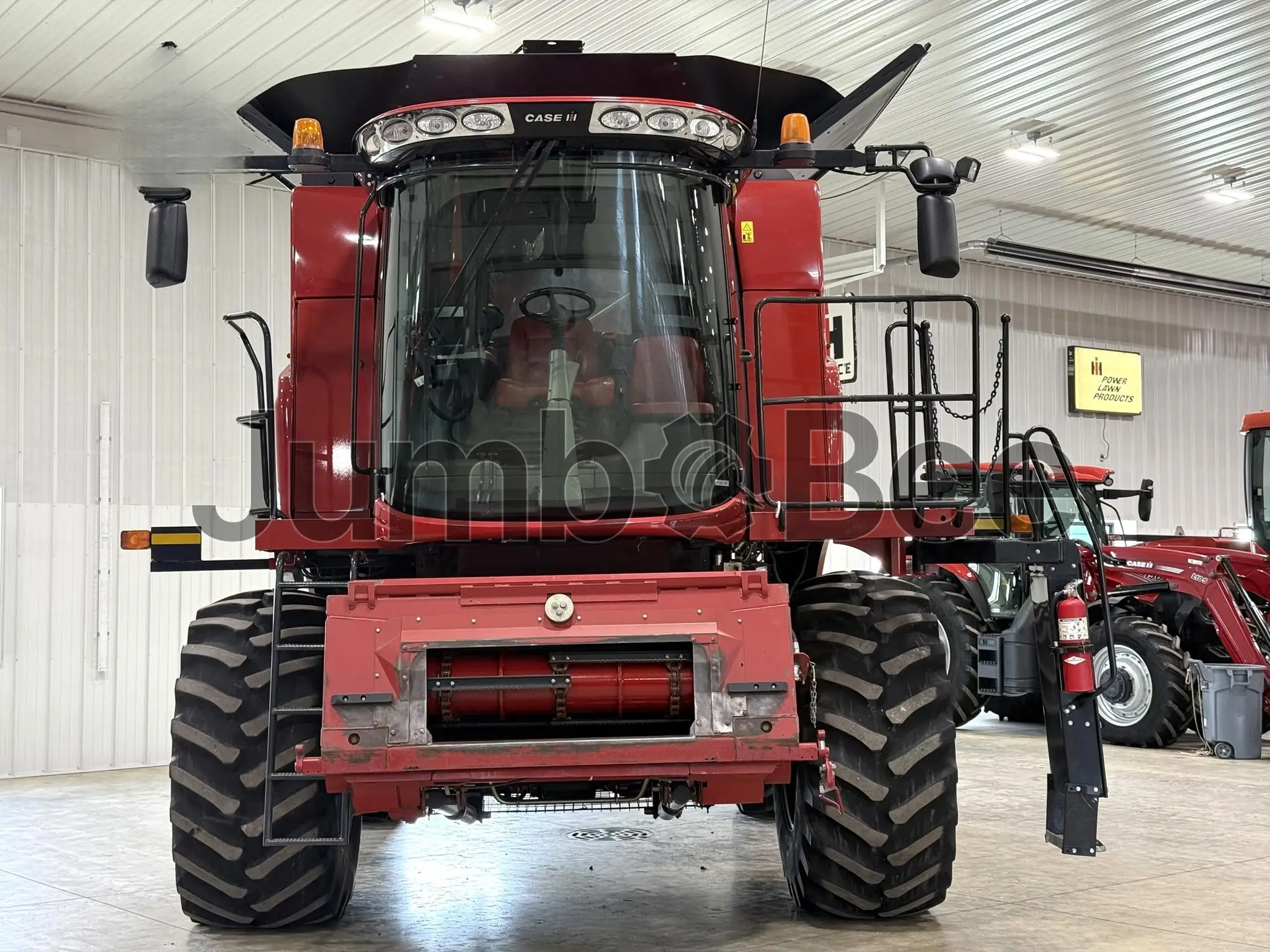

Case IH 6140 Combines
Case IH 6140
5+
sold in last yearGeneral overview
Case IH 6140 is a combine harvester from Case IH designed for grain harvesting in field operations. Produced from 2014 to 2018, it uses a diesel engine with an engine power of 411 kW (559 hp) and meets Tier 4B / Final emissions requirements. The model is configured with wheel propulsion for mobile work across crop fields.
Its harvesting system includes a longitudinal rotor separator and a threshing area wrap of 156.5°. Grain handling features include a 10,572 L (2,793 US gal) grain tank, an unloading rate of 113 L/s (3.2 bu/s), and a 5.52 m² (59.4 sq ft) sieve area.
Year
2014, 2015, 2016, 2017, 2018
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,600 mm
~141.7 in
4,060 mm
~159.8 in
8,250 mm
~324.8 in
15,481 kg
~34,129.8 lb
Engine Power
411 hp
Emission standard level
Tier 4B / Final
Grain tank size
10,572 L
Peak unloading rate
113 L/sec
Additional specifications
Engine type
Diesel
Displacement
531 cu(in)
Fuel tank
946 L
Type of propulsion
Wheel
Separator type
Longitudinal rotor
Threshing Area Wrap
156.5 deg
Sieve area
5.52 sq(m)
Unloading rate
113 L/sec
Rated power
348 hp
Case IH 6140 Combines Listings
Looking for Case IH 6140 Combines?
See similar listingsCompare Case IH 6140 Combine to other combines
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH 6140?
No confirmed market price is supplied for the Case IH 6140. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Case IH 6140?
Listed features include a longitudinal rotor separator, 10,572 L grain tank, 113 L/s unloading rate, 306.5 kW (411 hp) engine power, and wheel propulsion. It also meets Tier 4B / Final emissions requirements.
What type of engine does the 6140 use?
The 6140 uses a diesel engine with 531 cu in displacement.
How much horsepower does the 6140 have?
The Case IH 6140 has 306.5 kW (411 hp) engine power. Its rated power is 259.5 kW (348 hp).
What fuel does the Case IH 6140 use?
The Case IH 6140 uses diesel fuel. Its fuel tank capacity is 946 L (249.9 US gal).
What jobs is this Combines best suited for?
The supplied specifications do not identify particular crops or harvesting jobs. The machine is a wheel-propelled combine with a longitudinal rotor separator, 10,572 L grain tank, and 113 L/s unloading rate.
What is the expected lifespan of the 6140?
No expected service-life figure is supplied for the 6140. Inspect maintenance records, engine condition, rotor and threshing components, unloading system, tires, and signs of wear before purchase.
What should a buyer check when purchasing a used Combines?
Check maintenance records, engine operation, fuel system, rotor and threshing components, sieve area, grain tank and unloading system, tires, hydraulic functions, and signs of leaks or structural wear. Confirm that all controls and safety equipment operate correctly.
