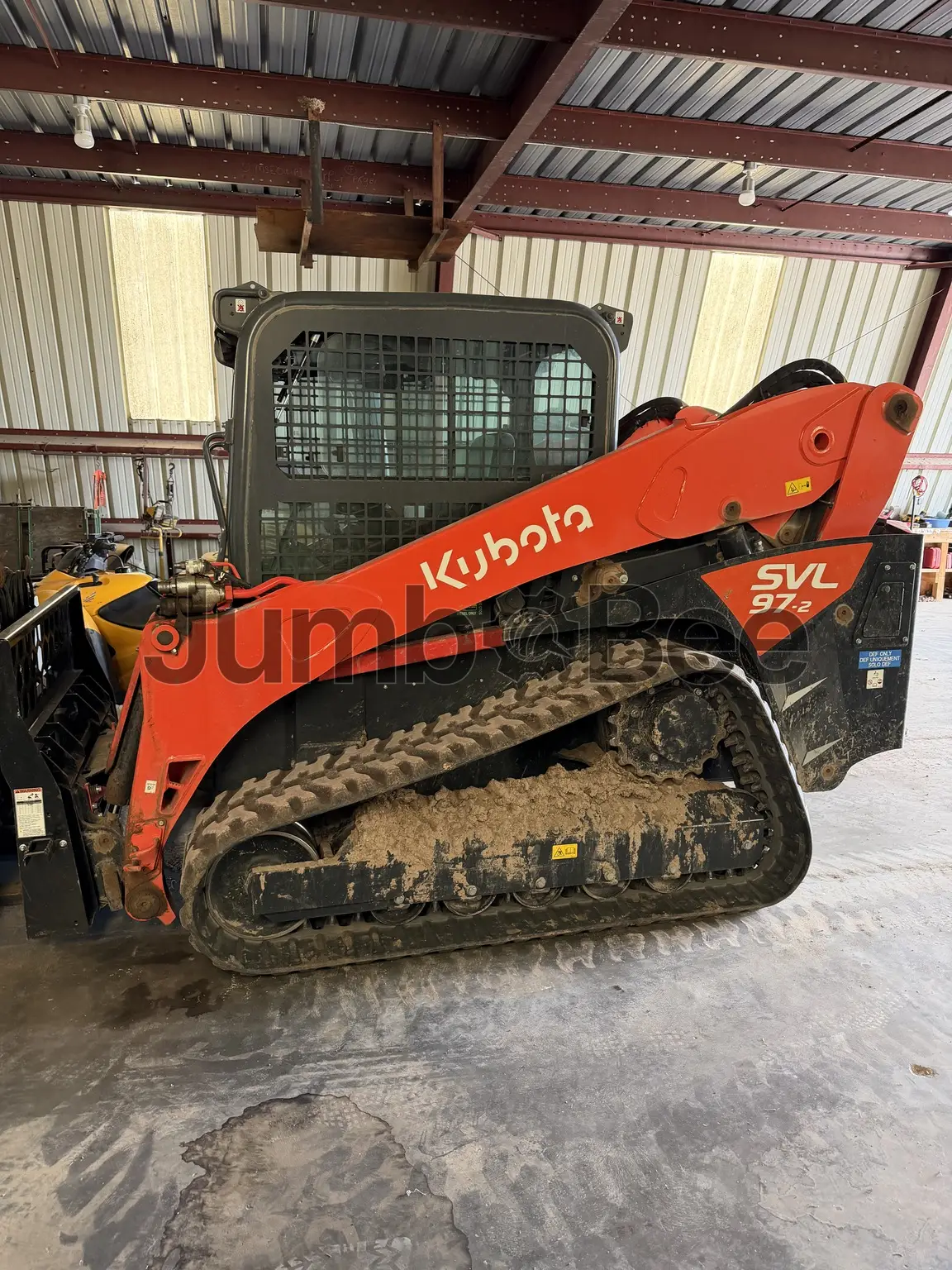

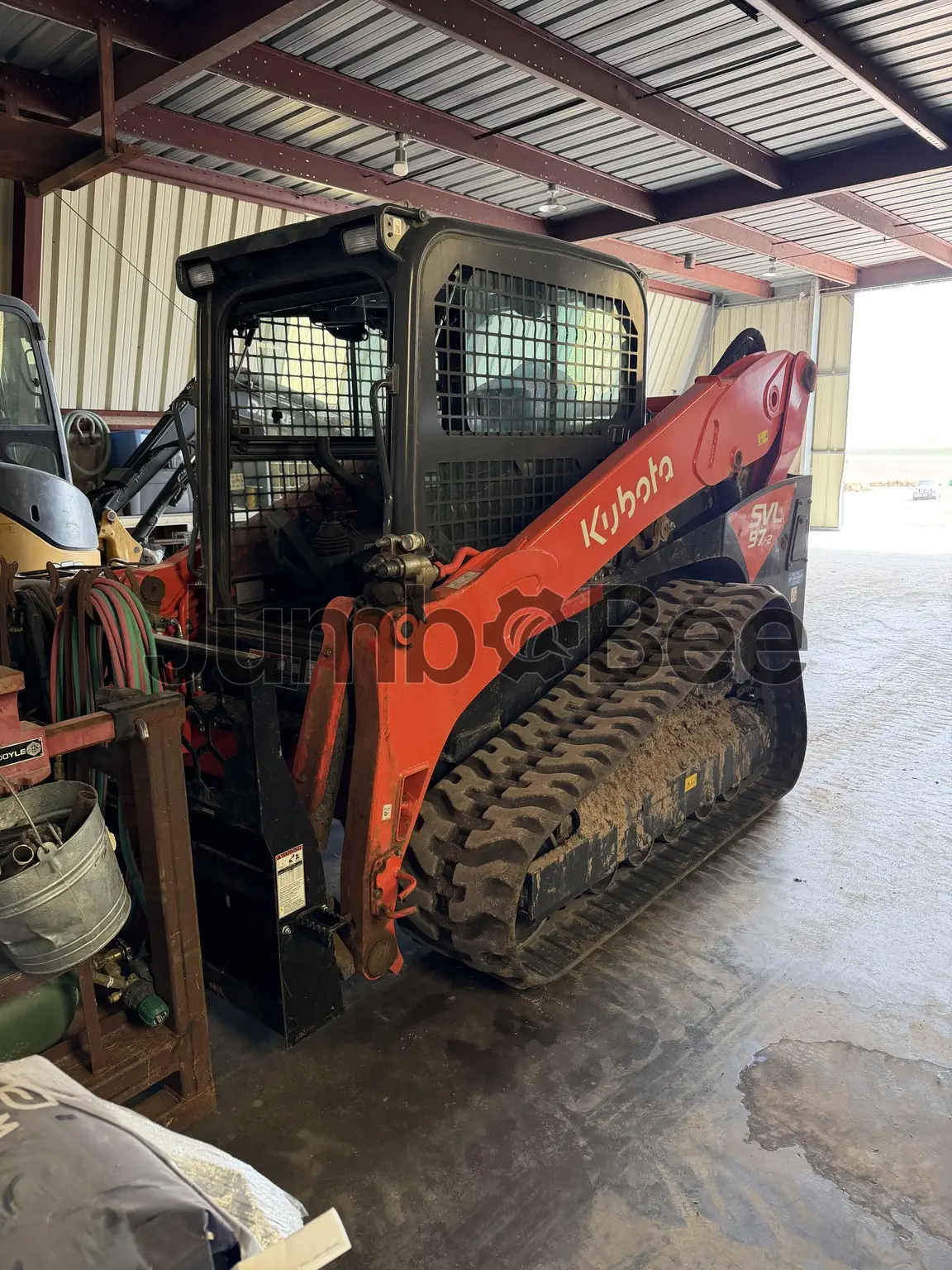

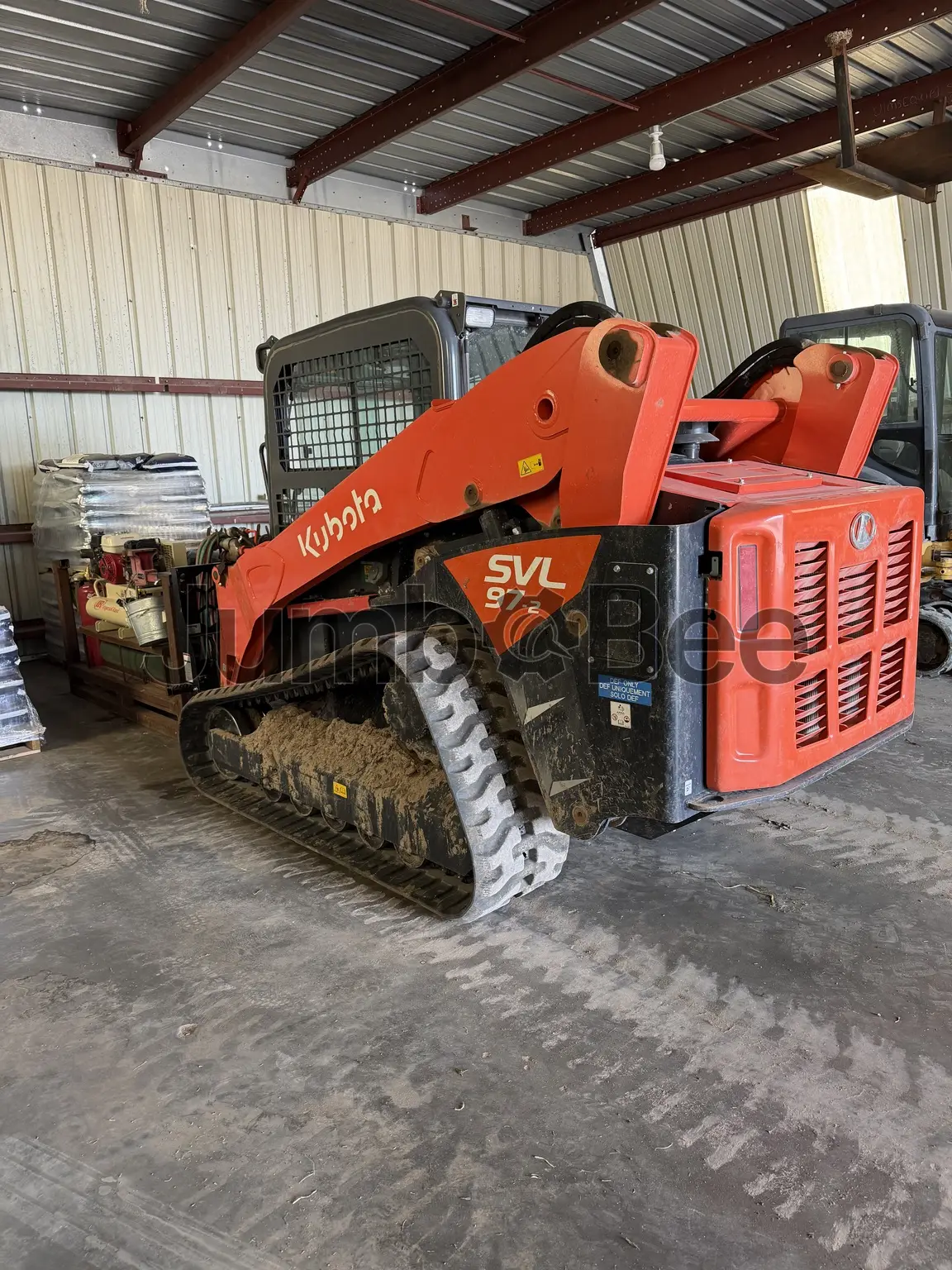

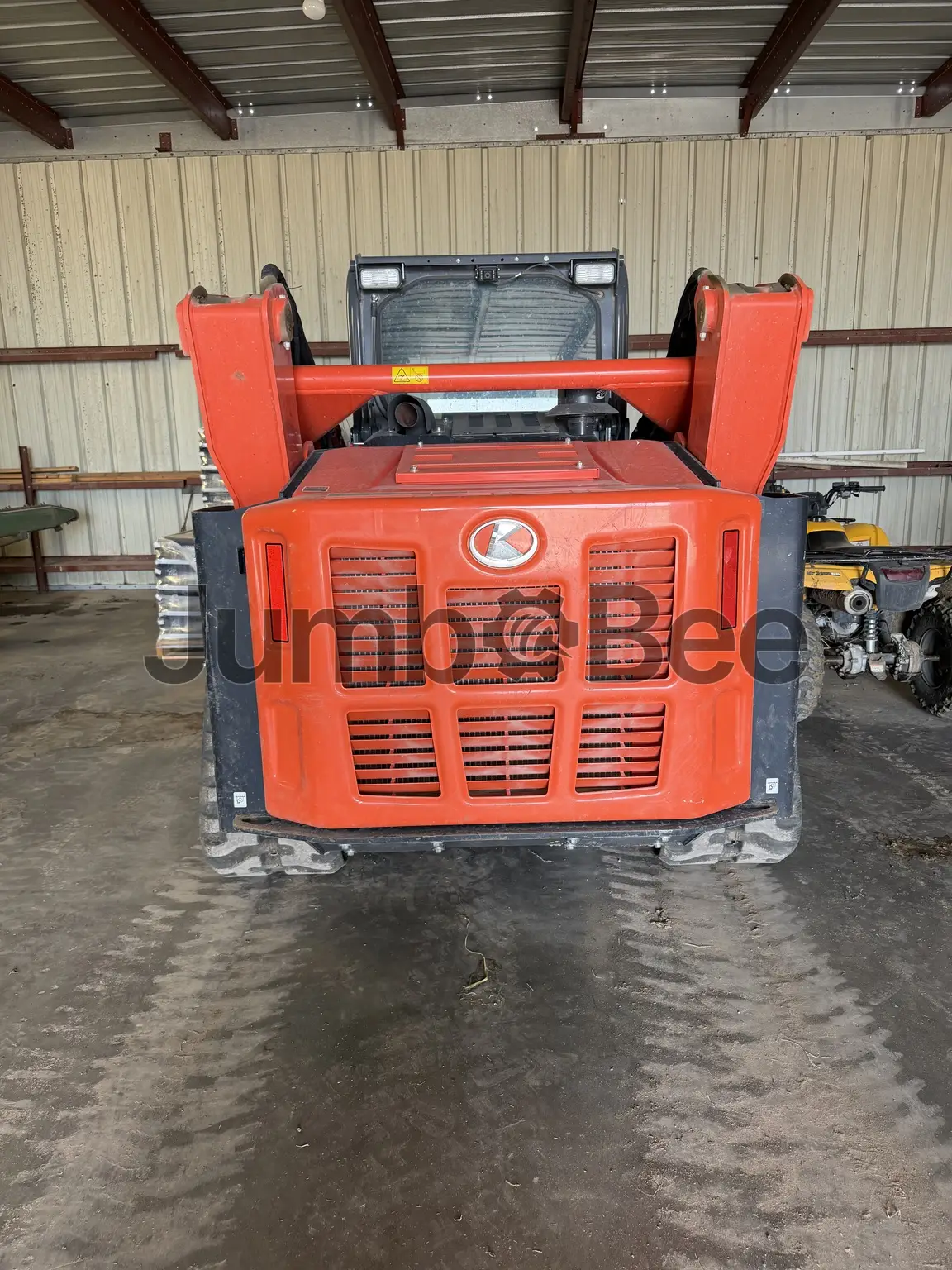

Kubota SVL97-2 Skid Steer / CTL
Kubota SVL97-2
5+
sold in last yearGeneral overview
Kubota SVL97-2 is a crawler loader designed for loading and material-handling work in construction environments. Built in Japan, it is powered by a V3800-TIEF4 engine rated at 71 kW (96.4 hp) and has an operating weight of 5,125 kg (11,300 lb). The model is also specified with Tier 4 Final emissions compliance.
Its hydrostatic drive system with two-speed travel supports controlled movement on job sites, and pilot-operated joystick controls are used for steering. The loader has a heaped bucket capacity of 0.76 m³ (1 cu yd), a breakout force of 35.4 kN (7,960 lbf), and a static tipping load of 4,147 kg (9,140 lb), placing it in a size class suited to repetitive loading work.
Year
2021, 2022, 2023, 2024, 2025
Country of manufacturing
Japan
General specifications
Dimensions
Width
Height
Length
Weight
1,962 mm
~77.2 in
2,116 mm
~83.3 in
3,929 mm
~154.7 in
5,125 kg
~11,298.7 lb
Engine Power
96.4 hp
Operating Weight
5,125 kg
Bucket Capacity - Heaped
0.76 cu(m)
Rated Operating Capacity
1,451 kg
Additional specifications
Emission standard level
Tier 4 Final
Displacement
230 cu(in)
Transmission type
Hydrostatic drive system with two-speed travel
Fuel tank
109 L
Number of batteries
1
Number of Cylinders
4
Battery Voltage
12 V
System Relief Pressure
3,553 psi
Undercarriage Ground Pressure
4.5 psi
Length of Track on Ground
1,667 mm
Battery Capacity
85.3 Ah
Hydraulic System - Including Tank
68 L
Track Gauge
1,512 mm
Net Power (ISO 9249)
96.4 hp
Manufacturer and Model
V3,800-TIEF4
Powertrain System Relief Pressure
3,553 psi
Travel Speeds
11.7 km/h
Steering
Pilot-operated joystick controls with two-speed travel
Drawbar Pull Maximum
Drawbar Pull at 1.9 km/h (1.2 mph)
Drawbar Pull at 3.2 km/h (2.0 mph)
Pump Flow
87.6 L/min
Alternator Rating
80 A
Grouser Width
450 mm
Track Rollers, Each Side
5
Hydraulic Tank
38.1 L
Width of Bucket (General Purpose)
1,880 mm
Capacity Heaped
0.76 cu(m)
Bucket Weight
454 kg
Breakout Force
7,960 lbf
Static Tipping Load
4,147 kg
Kubota SVL97-2 Skid Steer / CTL Listings
Looking for Kubota SVL97-2 Skid Steer / CTL?
See similar listingsCompare Kubota SVL97-2 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Kubota SVL97-2 Skid Steer / CTL
0.76 cu(m)
5125 kg
3929 mm × 1962 mm × 2116 mm
Add model
Add model
4.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
4.0
Comfort & Ergonomics
5.0
Safety
5.0
Technology & Features
3.0
Elijah Johnson
We run ours hard at mulching. Attachment hook-up is quick and clean. The hydraulics are strong for running a mulcher.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Kubota SVL97-2?
No confirmed market price is supplied for the Kubota SVL97-2. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Kubota SVL97-2?
Listed strengths include 71.9 kW (96.4 hp) net power, a 0.76 m³ (0.99 cu yd) heaped bucket capacity, hydrostatic two-speed travel, and 87.6 L/min (23.1 gpm) pump flow. Its undercarriage ground pressure is 31 kPa (4.5 psi).
What type of engine does the SVL97-2 use?
The SVL97-2 uses a V3800-TIEF4 engine. It has 4 cylinders, 230 cu in displacement, and a Tier 4 Final emission standard level.
How much horsepower does the SVL97-2 have?
The SVL97-2 has 71.9 kW (96.4 hp) of engine power. Net Power (ISO 9249) is also listed as 71.9 kW (96.4 hp).
What fuel does the Kubota SVL97-2 use?
The supplied specifications do not confirm the fuel type for the Kubota SVL97-2. They list a fuel tank capacity of 109 L (28.8 US gal).
What jobs is this Crawler Loaders best suited for?
The supplied data does not identify specific best-suited jobs. Buyers can assess suitability using the 0.76 m³ (0.99 cu yd) bucket capacity, 4,147 kg (9,143 lb) static tipping load, 35.4 kN (7,960 lbf) breakout force, and 31 kPa (4.5 psi) ground pressure.
What is the expected lifespan of the SVL97-2?
No expected service-life estimate is supplied for the SVL97-2. For a used machine, review maintenance records and inspect the engine, hydraulic system, undercarriage, tracks, bucket, and controls.
What should a buyer check when purchasing a used Crawler Loaders?
Inspect the engine, hydraulic system, undercarriage, tracks, bucket, and pilot-operated joystick controls. Review maintenance records and verify operation of the hydrostatic two-speed travel system. Also check for fluid leaks, wear, damage, and any faults during operation.
