John Deere 872G Motor Graders
John Deere 872G
Average price
$300,911.56
5+
sold in last year
General overview
John Deere 872G is a motor grader used for grading, leveling, and surface shaping on construction and road-building projects. It is powered by a John Deere PowerTech PSS 9.0L engine rated at 221 kW (300 hp) and meets Tier 4f/EU V emission standard level.
The machine has an operating weight of 18,012 kg (39,710 lb) and a moldboard width of 4.27 m (14 ft). Its blade system uses all-hydraulic controls with float position and 7 discrete saddle positions, plus 360° circle rotation, 683 mm (27 in) side shift, and 452 mm (18 in) lift above ground. Blade pull at maximum operating weight is 22,453 kg (49,500 lb), the wheelbase is 6.16 m (20 ft 3 in), and maximum travel speed is 45.5 km/h (28.3 mph).
Year
2011, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,490 mm
~98 in
3,400 mm
~133.9 in
8,890 mm
~350 in
18,000 kg
~39,683.2 lb
Engine Power
300 hp
Operating Weight
18,012 kg
Moldboard Width
4.27 m
Additional specifications
Emission standard level
Tier 4f/EU V
Displacement
548 cu(in)
Transmission type
Automatic dual-path hydrostatic drive; increases tractive effort and front-end control; includes separate left and right systems with variable-displacement pumps, axial-piston wheel motors, and freewheel at transport speeds; operator-selectable 15-position rotary aggressiveness control and inching capability down to 0 mph; precision mode (propelled by front wheels only)
Fuel tank
416.5 L
Cooling system
55 L
Wheelbase
6.16 m
Number of Cylinders
6
Battery Voltage
24V
Engine Model
John Deere PowerTech PSS 9.0L
Maximum Travel Speed - High
45.5 km/h
Engine Oil
28.4 L
Net Peak Torque
1,472 Nm
Alternator Rating
130 amp
Cab Height
3.18 m
Lights
Driving lights; 2 high- and 2 low-beam halogen headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning lights
Main Pump Type
Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7.21 m
Steering (Articulation)
22 deg
Maximum Pump Flow
218 L/min
Maximum System Pressure
2,750 psi
Pump Displacement
5.5 cu(in)
Blade Function
All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
Blade Range - Lift Above Ground
452 mm
Blade Range - Blade Side Shift (right or left)
683 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,329 mm
Bank Cut Angle (right or left)
90 deg
Blade Pull At Maximum Operating Weight
22,453 kg
Height to Top of Exhaust
3.13 m
Height to Top of Blade-Lift Cylinders
3.05 m
Tandem Axle Spacing
1.54 m
Blade Base
2.53 m
Overall Length With Scarifier
9.69 m
Overall Length With Push Block and Ripper
9.99 m
Overall Length With Scarifier and Ripper
10.59 m
Mainframe Type
Welded box construction
Mainframe Width (minimum)
307 mm
Mainframe Height (minimum)
307 mm
Circle - Consruction
Welded construction, heat-treated, machined for flatness
Circle Rotation
360 deg
Circle Side Shift (left)
787 mm
Moldboard Type
High-strength, pre-stressed for higher strength, wear-resistant, high-carbon steel and reversible end bits; blade side-shift wear system includes quick-change replaceable wear inserts and quick-adjust jackscrew system
Base Length
4.27 m
Height (measured along arc, including cutting edge)
686 mm
Moldboard Thickness
25 mm
Cutting Edge - Type
Dura-Maxâ„¢ through-hardened steel edge
Cutting Edge - Thickness
19 mm
Cutting Edge - Width
203 mm
Scarifiers - Type
V-type toolbar with 2-pitch positions and hydraulic float R
Width of Cut
1.2 m
Lift Above Ground
589 mm
Maximum Depth
335 mm
Shank - Spacing
146 mm
Shank - Size
25 x 76 mm (1 x 3 in.)
Front Lift Group - Type
Parallel linkage, mechanical pins, and hydraulic float
Lift - Above Ground (top of tube)
1,864 mm
Lift - Range
988 mm

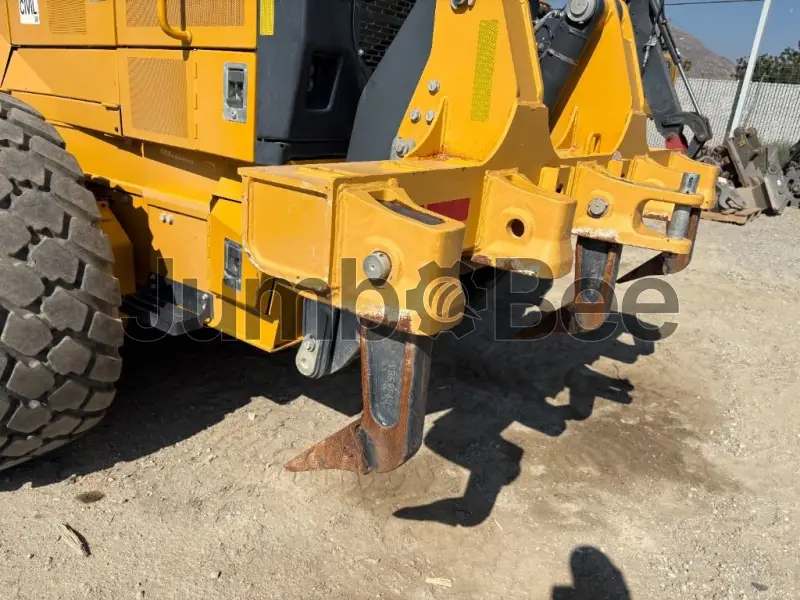

Rear Ripper/Scarifier - Type
Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
Rear Ripper/Scarifier - Width of Cut
Rear Ripper/Scarifier - Number of Shanks/Teeth
3 (maximum capacity 5) /None standard (maximum capacity 9)
Rear Ripper/Scarifier - Lift Above Ground
602 mm (23.7 in.)/810 mm (31.9 in.)
Rear Ripper/Scarifier - Maximum Depth
426 mm
Force - Penetration
10,483 kg
Force - Pry-Out
14,843 kg
Force - Shank Size
61.5 x 133 mm/25 x 76 mm
Wheel Tread on Ground
2.16 m
Ground Clearance (front axle)
587 mm
Operating Weight - Front
5,110 kg
Operating Weight - Rear
12,902 kg
Circle Diameter
1,524 mm

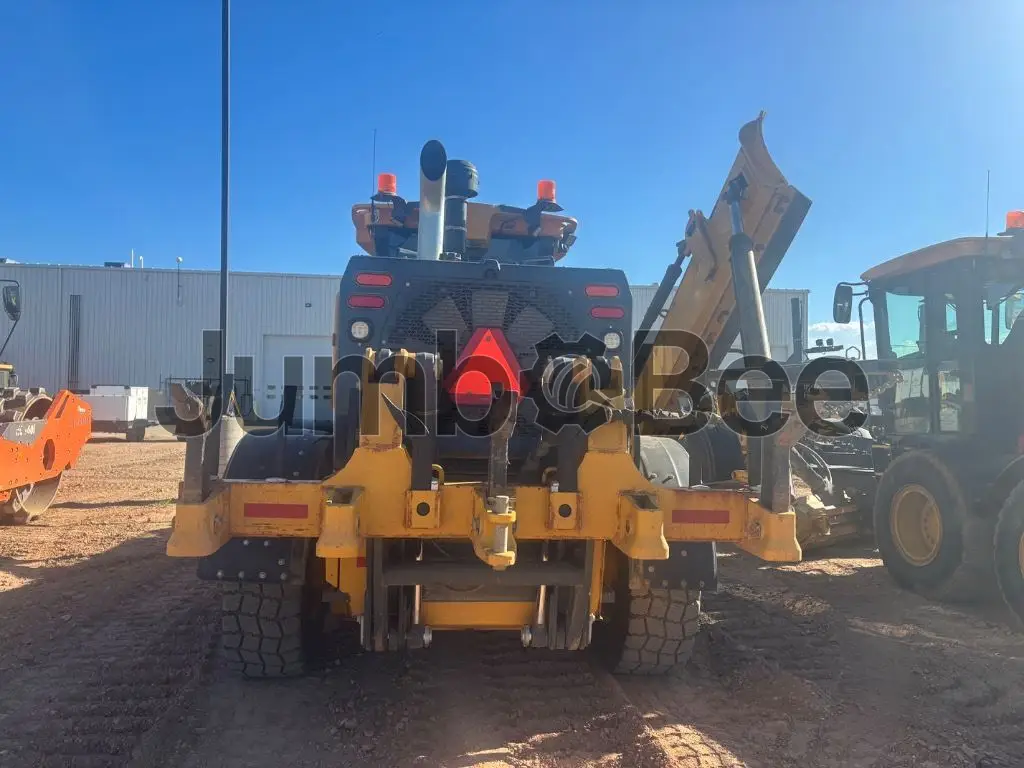

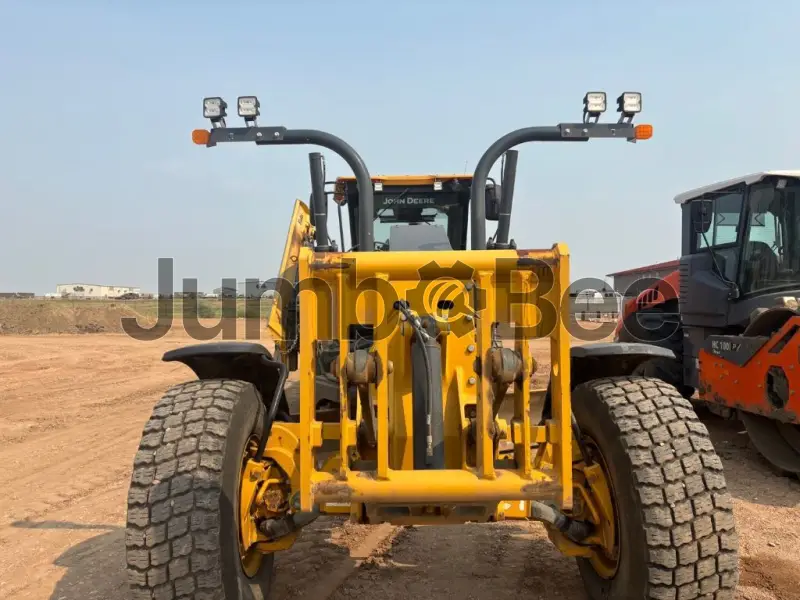

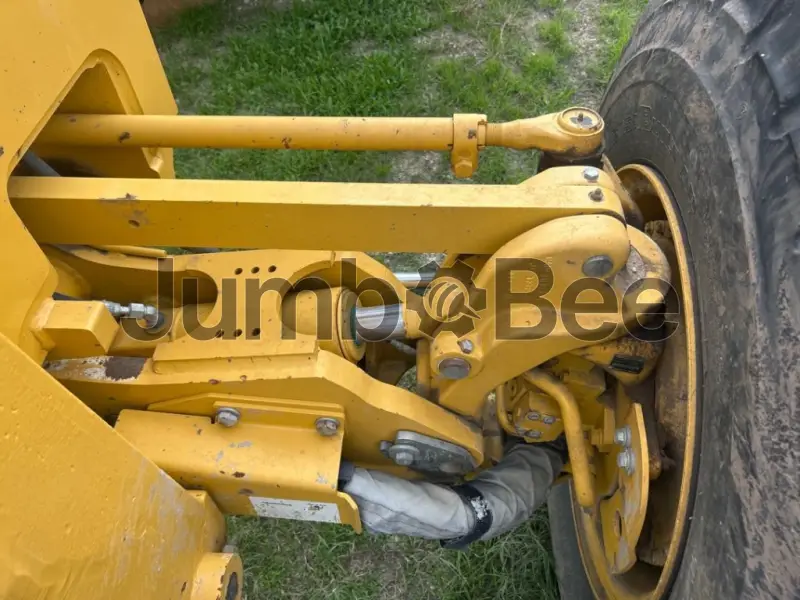

John Deere 872G Motor Graders Listings
$299,000
9.99 m
307 mm
307 mm
4291 hours
Dickinson, United States
$272,500
18012 kg
300 hp
5.5 cu(in)
4802 hours
Dickinson, United States
$240,000
Automatic dual-path hydrostatic drive; increases tractive effort and front-end control; includes separate left and right systems with variable-displacement pumps, axial-piston wheel motors, and freewheel at transport speeds; operator-selectable 15-po...
Welded construction, heat-treated, machined for flatness
360 deg
5367 hours
Dickinson, United States
$411,910
307 mm
203 mm
1.2 m
1284 hours
Grand Forks, United States
$265,320
1472 Nm
Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
20 deg
5074 hours
Dickinson, United States
$295,630
Automatic dual-path hydrostatic drive; increases tractive effort and front-end control; includes separate left and right systems with variable-displacement pumps, axial-piston wheel motors, and freewheel at transport speeds; operator-selectable 15-po...
6.16 m
6
5270 hours
New Braunfels, United States
$388,254
18012 kg
32 deg
3.18 m
4235 hours
Tucson, United States
$251,520
8
6.16 m
452 mm
5389 hours
Marshall, United States
$284,070
18012 kg
Tier 4f/EU V
55 L
2877 hours
Fort Worth, United States
Compare John Deere 872G Motor Grader to other motor graders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 872G?
No confirmed market price is supplied for the John Deere 872G. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 872G?
Listed advantages include all-hydraulic blade controls with float, a 360° circle rotation, closed-center PCLS hydraulics, and a rear ripper/scarifier with hydraulic float. The moldboard uses a Dura-Max™ through-hardened steel cutting edge.
What type of engine does the 872G use?
The 872G uses a John Deere PowerTech PSS 9.0L engine with 6 cylinders and a Tier 4f/EU V emission standard level.
How much horsepower does the 872G have?
The 872G is rated at 300 hp of engine power.
What fuel does the John Deere 872G use?
The supplied specifications do not confirm the fuel type for the John Deere 872G. They list a fuel tank capacity of 416.5 L (110 US gal).
What jobs is this Motor Graders best suited for?
The supplied specifications indicate grading and surface-shaping work, with an all-hydraulic moldboard, side shift, shoulder reach, and a scarifier and rear ripper/scarifier for ground preparation. Specific job suitability depends on site conditions and required attachments.
What is the expected lifespan of the 872G?
The supplied data does not provide an expected lifespan for the 872G. Service history, operating conditions, inspections, and maintenance practices are relevant when evaluating a used machine.
What should a buyer check when purchasing a used Motor Graders?
Check maintenance records, operating hours, engine operation, hydraulic performance, blade and cutting-edge wear, circle operation, articulation and steering, axle condition, tires, electrical lights, and the scarifier or ripper. Test all controls and inspect for leaks, damage, and excessive play.
