John Deere 772D Motor Graders
John Deere 772D
Average price
$105,470
5+
sold in last year
General overview
John Deere 772D is a motor grader designed for construction and road work. It is powered by a John Deere PowerTech 6081H 6-cylinder, 8 L engine rated at 158 kW (215 hp), and it has an operating weight of 15,547 kg (34,280 lb). The model is built in the United States and was produced from 2008 to 2026.
The 772D uses a powershift transmission with direct drive, PowerShift Plus, Event-Based Shifting (EBS), and an inching pedal, with 8 gears forward and 8 gears reverse. Its grading equipment includes a 4,267 mm (14 ft) moldboard, all-hydraulic blade control, and 681 mm (27 in) of blade side shift. Other notable specifications include 360° circle rotation, 22° steering articulation, and a maximum travel speed of 41 km/h (25.5 mph).
Year
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
8,814 mm
~347 in
3,175 mm
~125 in
2,489 mm
~98 in
Engine Power
215 hp
Operating Weight
15,547 kg
Moldboard Width
4,267 mm
Additional specifications
Emission standard level
Tier 2
Displacement
8 cu(m)
Fuel tank
401 L
Cooling system
53 L
Overall length w/header
8,814 mm
Height to top of cab
3,181 mm
Wheelbase
6,121 mm
Number of Cylinders
6
Battery Voltage
24
Maximum Travel Speed - High
41 km/h
Engine Oil
36 L
Net Power (ISO 9249)
215 hp
Manufacturer and Model
John Deere PowerTech 6,081H
Net Peak Torque
1,000 Nm
Alternator Rating
100
Hydraulic System
76 L
Main Pump Type
Variable displacement piston; axial-piston main pump
Powertrain Type
Powershift with direct drive; PowerShift Plus; Event-Based Shifting (EBS); inching pedal
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
22 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Articulation)
22 deg
Maximum Pump Flow
207 L/min
Maximum System Pressure
18,960 kPa
Pump Displacement
982 cu(cm)
Blade Function
All-hydraulic; float position; hand-lever controls; convertible two-hand to one-hand lift
Blade Range - Lift Above Ground
mm
Blade Range - Blade Side Shift (right or left)
681 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,096 mm
Blade Pull At Maximum Operating Weight
12,800 kg
Tandem Axle Spacing
1,543 mm
Blade Base
612 mm
Mainframe Type
High-strength mainframe
Circle - Consruction
Inverted (five-piece, hardened steel alloy) mm
Circle Rotation
360 deg
Circle Side Shift (right)
680 mm
Moldboard Type
14 ft (4.27 m) curved single-piece, high-tensile strength steel
Base Length
612 mm
Height (measured along arc, including cutting edge)
787 mm
Moldboard Thickness
23 mm
Cutting Edge - Type
Reversible curved
Cutting Edge - Thickness
22 mm
Cutting Edge - Width
610 mm
Scarifiers - Type
Rear, parallelogram mount (3-position)
Number of Shanks/Teeth
11
Front Lift Group - Type
Front-mounted, three-bar or push block
Operating Weight - Front
4,365 kg
Operating Weight - Rear
11,190 kg
Circle Diameter
2,083 mm
Operating Weights - Total
15,547 kg

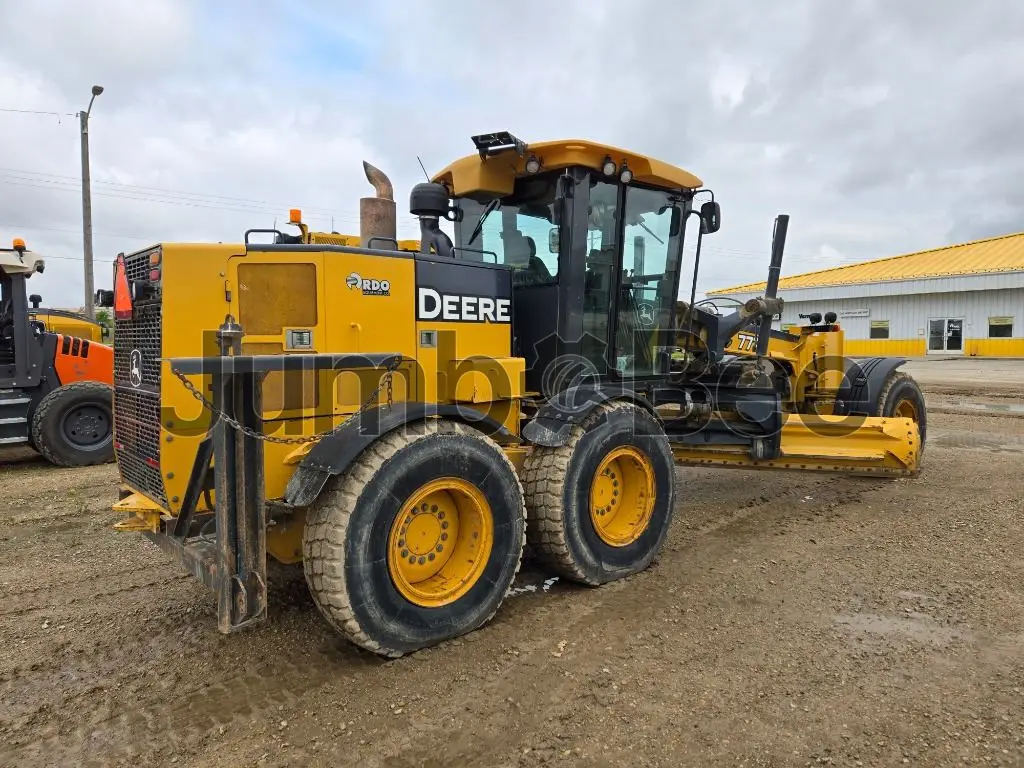

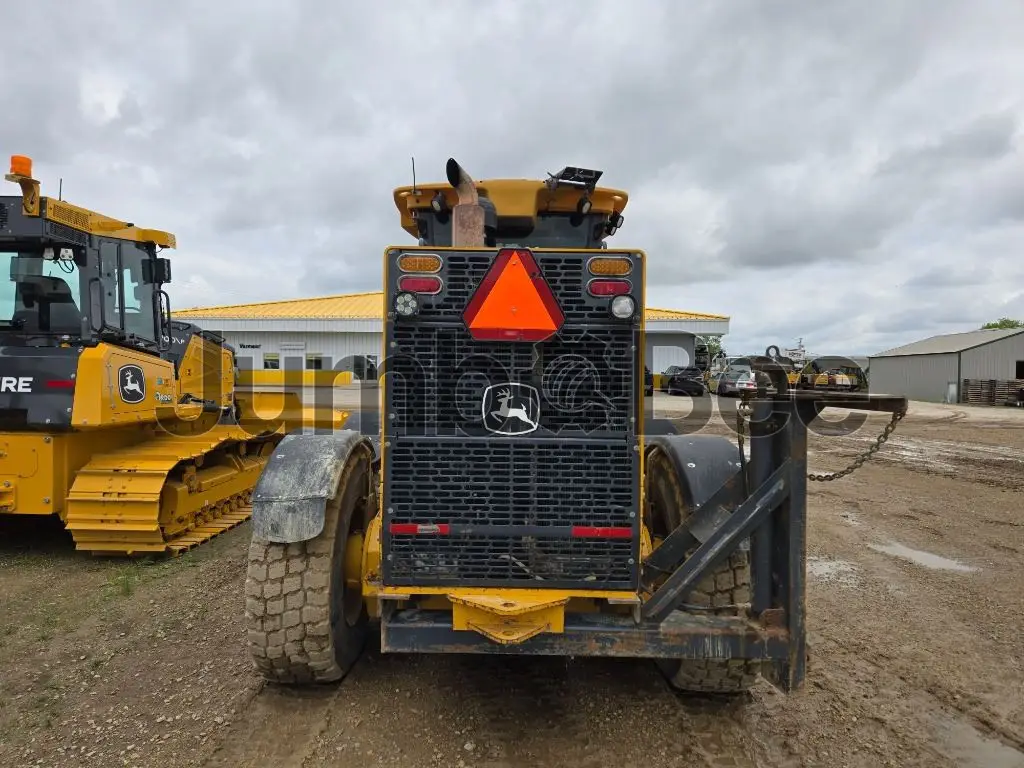

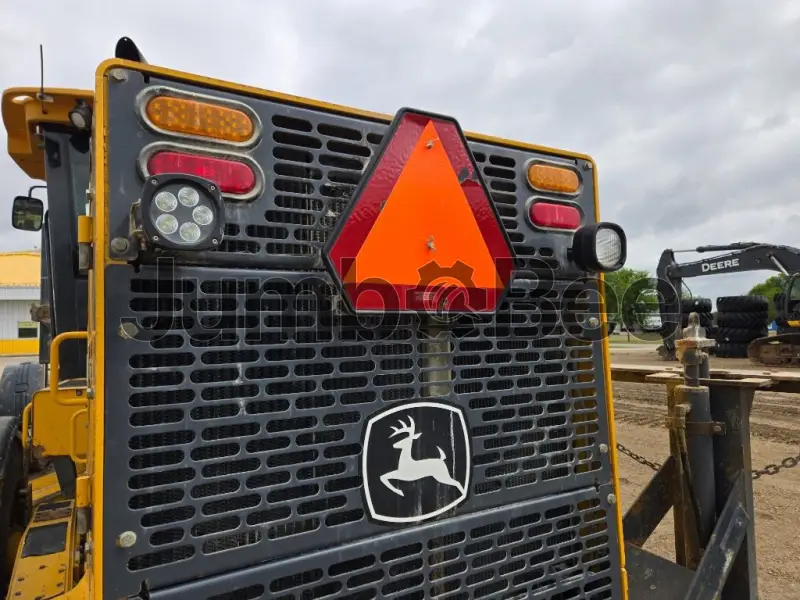

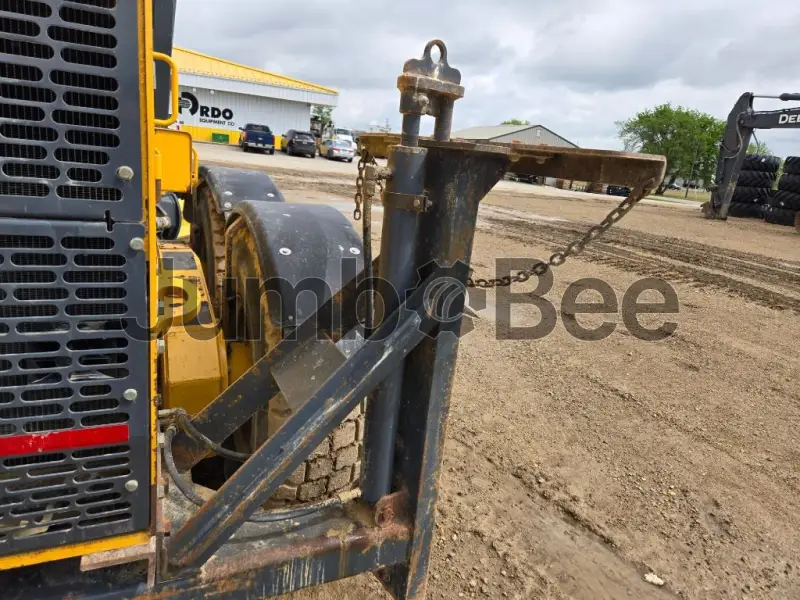

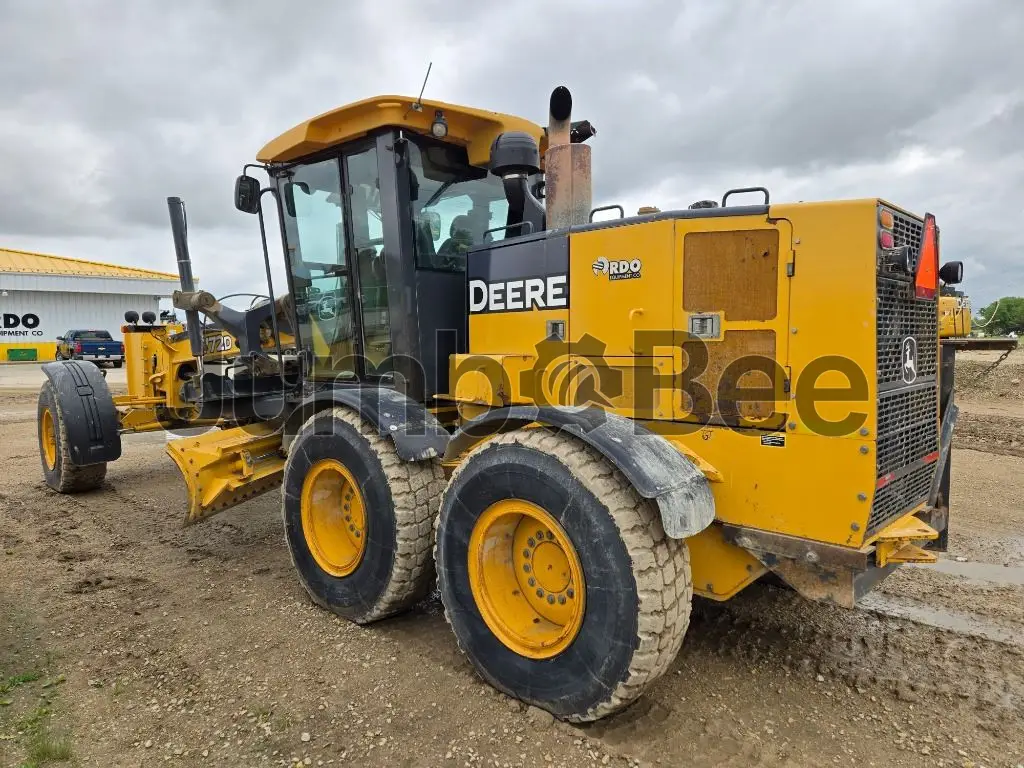

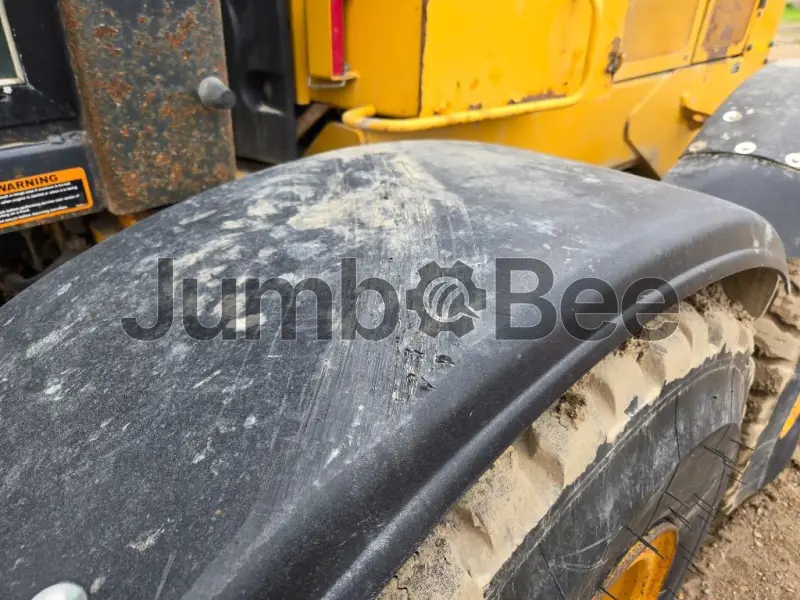

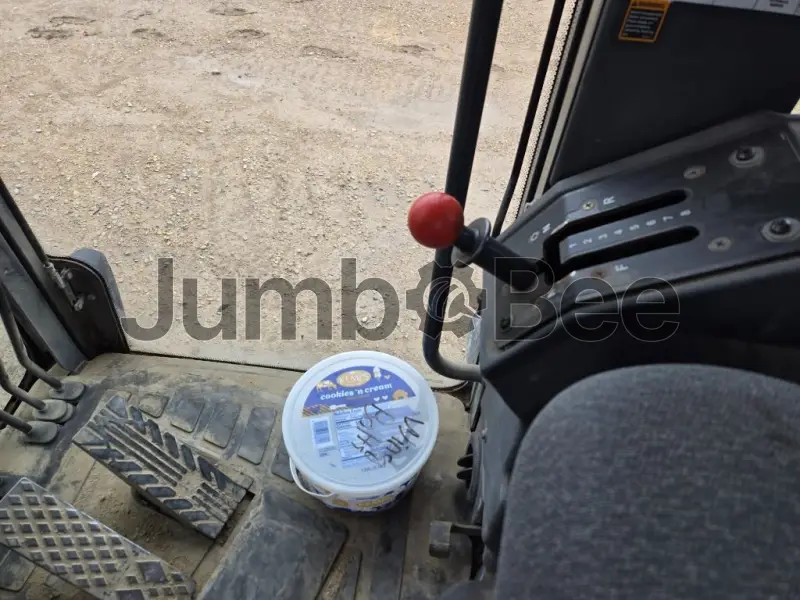

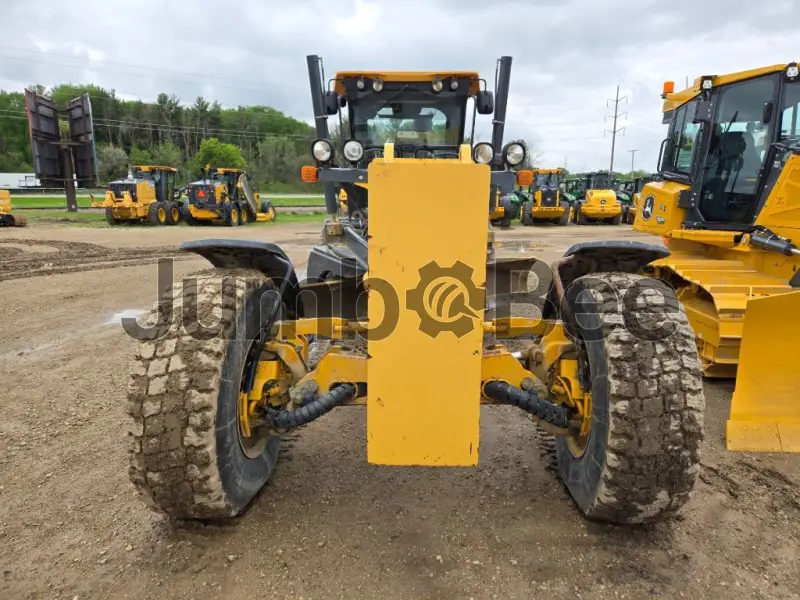

John Deere 772D Motor Graders Listings
$105,470
100
8 cu(m)
53 L
5768 hours
Rochester, United States
Compare John Deere 772D Motor Grader to other motor graders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 772D?
No confirmed market price is supplied for the John Deere 772D. Check current listings and compare the machine’s condition, location, and configuration.
What are the key advantages of the John Deere 772D?
Listed strengths include 160.3 kW (215 hp) net power, an 8-forward/8-reverse Powershift drivetrain, a 4,267 mm (168 in) moldboard, 360° circle rotation, and all-hydraulic blade functions. The rear scarifier has 11 shanks/teeth.
What type of engine does the 772D use?
The 772D uses a John Deere PowerTech 6081H engine. It is listed with 6 cylinders, Tier 2 emissions, and 160.3 kW (215 hp) net power under ISO 9249.
How much horsepower does the 772D have?
The 772D has 160.3 kW (215 hp) net power, rated under ISO 9249.
What fuel does the John Deere 772D use?
The supplied specifications do not confirm the fuel type for the John Deere 772D. They list a fuel-tank capacity of 401 L (105.9 US gal).
What jobs is this Motor Graders best suited for?
Based on its motor-grader configuration, hydraulic moldboard, 360° circle rotation, side shift, and rear scarifier, it is suited to grading and surface-shaping work. The supplied data does not identify specific job applications or materials.
What is the expected lifespan of the 772D?
The supplied data does not provide an expected service life for the 772D. For a used machine, assess maintenance records, operating condition, and wear in the engine, drivetrain, hydraulics, moldboard, circle, and scarifier.
What should a buyer check when purchasing a used Motor Graders?
Check maintenance records and inspect the engine, Powershift drivetrain, hydraulic system, moldboard and cutting edge, circle, articulation, tandem axles, tires, scarifier, cab controls, and signs of leaks or structural damage. Confirm that blade and steering functions operate properly.
