John Deere 672G Motor Graders
John Deere 672G
Average price
$393,437.84
5+
sold in last year
General overview
The John Deere 672G is a motor grader designed for grading and surface shaping work in road construction and site preparation. It is powered by a PowerTech PSS 9.0L six-cylinder engine rated at 187 kW (255 hp) and has an operating weight of 17,116 kg (37,730 lb).
An 8F/8R power shift transmission is fitted, with Auto-Shift Plus optional, and the moldboard measures 3,660 mm (12 ft). The machine also offers 683 mm (27 in) blade side shift, 490 mm (19 in) lift above ground, 360° circle rotation, and a maximum travel speed of 45 km/h (28 mph), supporting controlled grading over a wide operating range.
Year
2019, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
8,890 mm
~350 in
3,180 mm
~125.2 in
2,490 mm
~98 in
Engine Power
255 hp
Operating Weight
17,116 kg
Moldboard Width
3,660 mm
Additional specifications
Displacement
9 cu(m)
Fuel tank
416 L
Overall length w/header
8,890 mm
Wheelbase
6,160 mm
Number of Cylinders
6
Battery Voltage
24
Maximum Travel Speed - High
45 km/h
Net Power (ISO 9249)
255 hp
Manufacturer and Model
PowerTech PSS 9.0L
Net Peak Torque
1,273 Nm
Hydraulic System
60 L
Powertrain Type
John Deere 8F/8R power shift (Auto-Shift Plus optional)
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
64 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7 m
Steering (Articulation)
22 deg
Maximum Pump Flow
212 L/min
Maximum System Pressure
18,961 kPa
Blade Range - Lift Above Ground
490 mm
Blade Range - Blade Side Shift (right or left)
683 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,083 mm
Bank Cut Angle (right or left)
90 deg
Blade Pull At Maximum Operating Weight
22,453 kg
Blade Base
2,570 mm
Circle Rotation
360 deg
Circle Side Shift (right)
683 mm
Height (measured along arc, including cutting edge)
610 mm
Moldboard Thickness
22 mm
Operating Weight - Front
4,781 kg
Operating Weight - Rear
12,215 kg
Circle Diameter
1,524 mm
Operating Weights - Total
17,116 kg

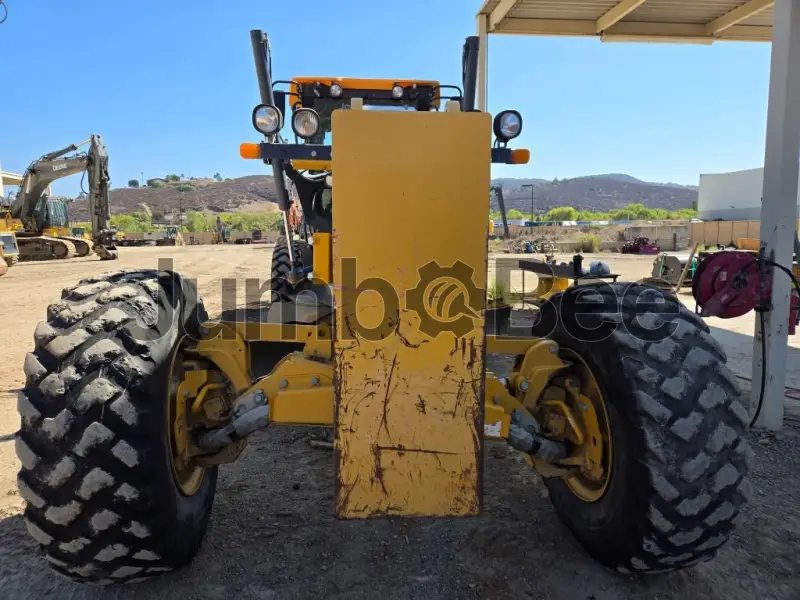

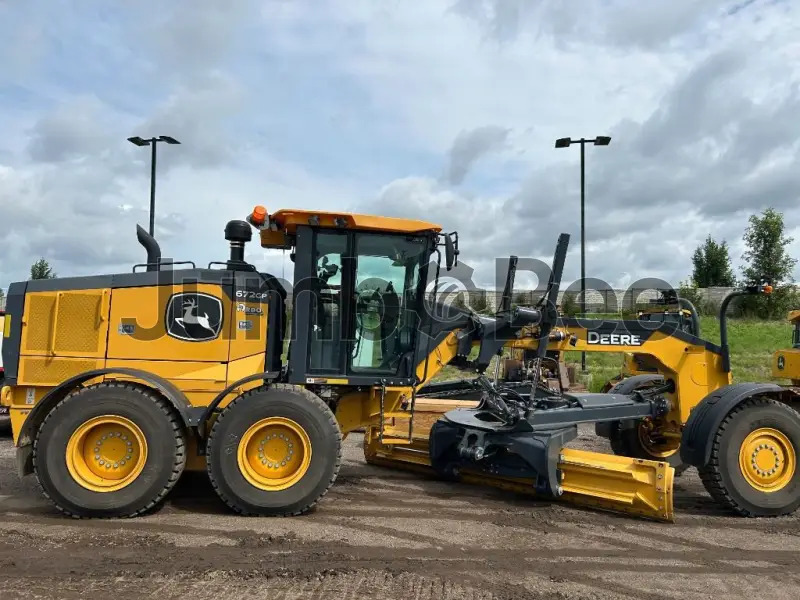

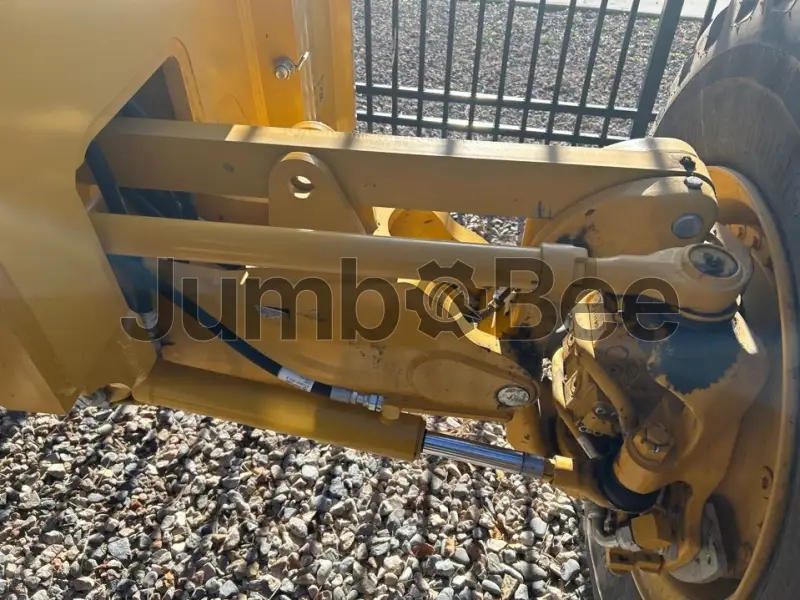

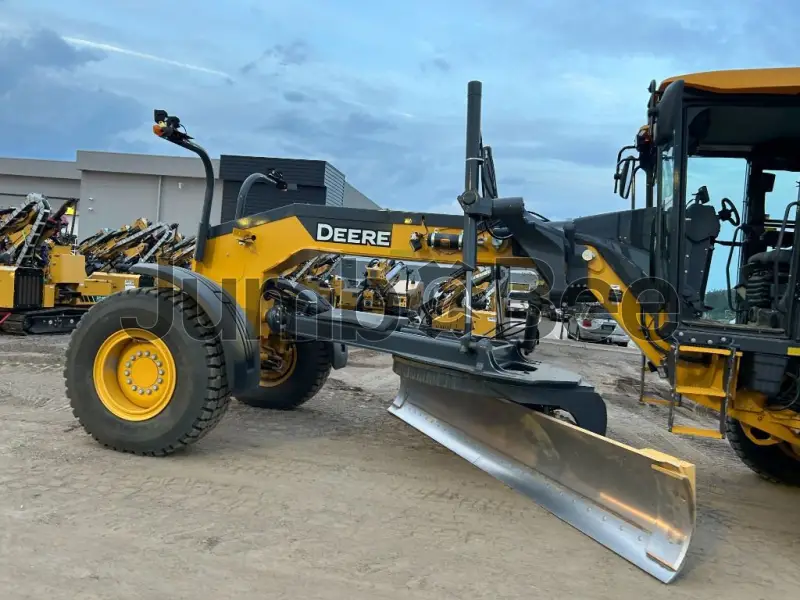

John Deere 672G Motor Graders Listings
$524,190
255 hp
22 mm
255 hp
358 hours
Salt Lake City, United States
$465,509
3660 mm
18961 kPa
24
2272 hours
Lakeside, United States
$403,100
22 deg
6
John Deere 8F/8R power shift (Auto-Shift Plus optional)
3491 hours
Bozeman, United States
$463,350
3660 mm
6
John Deere 8F/8R power shift (Auto-Shift Plus optional)
3375 hours
Mckinney, United States
$449,680
360 deg
683 mm
17116 kg
1509 hours
Mckinney, United States
$469,750
18961 kPa
255 hp
3660 mm
2632 hours
Laredo, United States
$438,830
255 hp
3660 mm
255 hp
1752 hours
Fort Worth, United States
$418,660
PowerTech PSS 9.0L
255 hp
John Deere 8F/8R power shift (Auto-Shift Plus optional)
778 hours
Moorhead, United States
$430,600
255 hp
John Deere 8F/8R power shift (Auto-Shift Plus optional)
683 mm
325 hours
Rochester, United States
$408,570
255 hp
John Deere 8F/8R power shift (Auto-Shift Plus optional)
18961 kPa
535 hours
Dayton, United States
$402,260
416 L
2083 mm
8890 mm
447 hours
Dayton, United States
$413,550
17116 kg
255 hp
John Deere 8F/8R power shift (Auto-Shift Plus optional)
548 hours
Dayton, United States
$414,570
255 hp
PowerTech PSS 9.0L
John Deere 8F/8R power shift (Auto-Shift Plus optional)
218 hours
Dayton, United States
$297,370
255 hp
6
9 cu(m)
4950 hours
Chandler, United States
$265,420
4781 kg
3660 mm
17116 kg
5064 hours
Chandler, United States
$251,520
255 hp
212 L/min
9 cu(m)
4761 hours
Irving, United States
$313,550
John Deere 8F/8R power shift (Auto-Shift Plus optional)
60 L
22453 kg
1609 hours
Sauk Rapids, United States
$244,720
255 hp
3660 mm
255 hp
4314 hours
New Braunfels, United States
Compare John Deere 672G Motor Grader to other motor graders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 672G?
No confirmed market price is supplied for the John Deere 672G. Check current listings and compare machine condition, location, hours, maintenance history, and configuration.
What are the key advantages of the John Deere 672G?
Listed strengths include 190.2 kW (255 hp) net power, a John Deere 8F/8R power shift transmission, 360° circle rotation, 683 mm (26.9 in) blade side shift, and a 3,660 mm (144.1 in) moldboard.
What type of engine does the 672G use?
The 672G uses a PowerTech PSS 9.0L engine with 6 cylinders.
How much horsepower does the 672G have?
The 672G has 190.2 kW (255 hp) of engine power. Its net power under ISO 9249 is also listed as 190.2 kW (255 hp).
What fuel does the John Deere 672G use?
The supplied specifications do not confirm the fuel type for the John Deere 672G. They list a fuel tank capacity of 416 L (109.9 US gal).
What jobs is this Motor Graders best suited for?
As a motor grader, the 672G is suited to grading and shaping work. Its moldboard, blade side shift, shoulder reach, bank cut angle, and circle rotation support tasks requiring controlled blade positioning.
What is the expected lifespan of the 672G?
The supplied data does not provide an expected service life for the 672G. Actual longevity depends on operating conditions, maintenance practices, inspection results, and the condition of major components.
What should a buyer check when purchasing a used Motor Graders?
Check maintenance records, operating hours, engine condition, transmission shifting, hydraulic leaks and function, blade and moldboard wear, circle operation, axle and steering play, tire condition, frame damage, and all controls. Test the machine under working conditions when possible.
