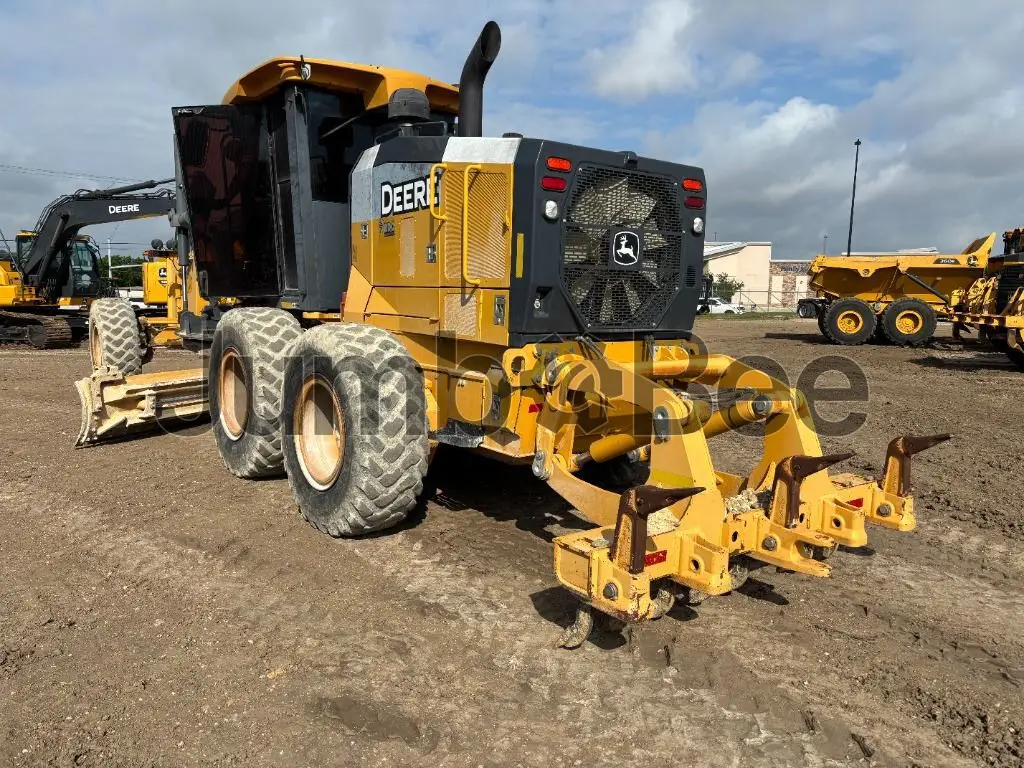

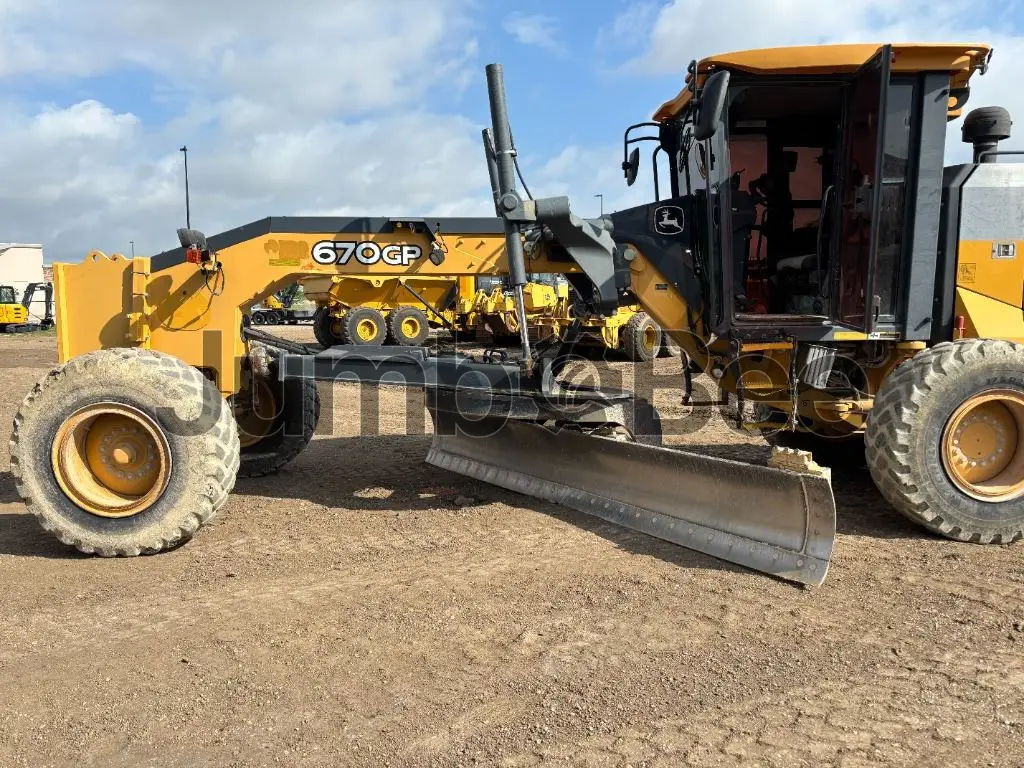

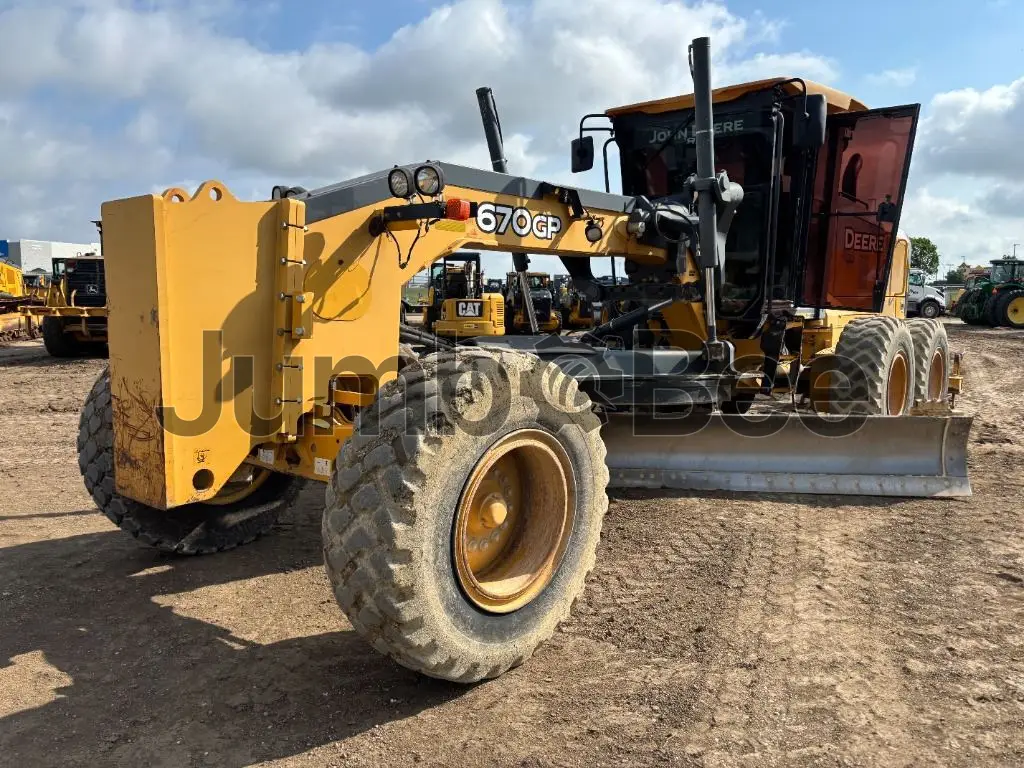

John Deere 670G Motor Graders
John Deere 670G
5+
sold in last yearGeneral overview
John Deere 670G is a motor grader manufactured in the United States and used in construction and roadwork for grading, shaping, and maintaining prepared surfaces. It combines an operating weight of 15,505 kg (34,180 lb) with engine power of 169 kW (230 hp) from a John Deere PowerTechâ„¢ Plus 9.0L engine, and it is rated to EPA Tier 3/EU Stage IIIA emissions standards.
The machine has a 3.66 m (12 ft) moldboard and a 6.16 m (20 ft 3 in) wheelbase, with all-hydraulic blade-function controls, float position, and 360° circle rotation. The mainframe uses welded box construction, and the circle is built with welded construction, heat-treated, machined for flatness, and quick-change replaceable wear inserts. Blade movement includes 490 mm (19 in) lift above ground and 683 mm (27 in) side shift, while 22° steering articulation and a maximum travel speed of 45.5 km/h (28.3 mph) support grading and repositioning.
Year
2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,490 mm
~98 in
3,400 mm
~133.9 in
8,890 mm
~350 in
15,530 kg
~34,237.8 lb
Engine Power
230 hp
Operating Weight
15,505 kg
Moldboard Width
3.66 m
Additional specifications
Emission standard level
EPA Tier 3/EU Stage IIIA
Displacement
548 cu(in)
Transmission type
Direct-drive John Deere PowerShift Plusâ„¢, modulated shift-on-the-go, Event-Based Shifting (EBS), inching pedal; independent transmission reservoir with separate filtration and cooling system with 117-L/min. (31 gpm) gear pump
Fuel tank
416.5 L
Cooling system
48.5 L
Wheelbase
6.16 m
Number of Cylinders
6
Battery Voltage
24V
Engine Model
John Deere PowerTechâ„¢ Plus 9.0L
Maximum Travel Speed - High
45.5 km/h
Engine Oil
28 L
Net Power (ISO 9249)
230 hp
Net Peak Torque
1,204 ft-lb
Alternator Rating
100 amp
Cab Height
3.18 m
Lights
Driving lights; 2 high- and 2 low-beam halogen headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning lights
Main Pump Type
Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
Gears Forward
8
Gears Reverse
8
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
20 deg
Steering (Turning Radius)
7.21 m
Steering (Articulation)
22 deg
Maximum Pump Flow
212 L/min
Maximum System Pressure
2,750 psi
Pump Displacement
5.5 cu(in)
Blade Function
All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
Blade Range - Lift Above Ground
490 mm
Blade Range - Blade Side Shift (right or left)
683 mm
Pitch at Ground Line - Forward
42 deg
Pitch at Ground Line - Back
5 deg
Shoulder Reach Outside Wheels (frame straight, right or left)
2,083 mm
Bank Cut Angle (right or left)
90 deg
Blade Pull At Maximum Operating Weight
15,501 kg
Height to Top of Exhaust
3.1 m
Height to Top of Blade-Lift Cylinders
3.05 m
Tandem Axle Spacing
1.54 m
Blade Base
2.57 m
Overall Length With Scarifier
9.69 m
Overall Length With Push Block and Ripper
9.99 m
Overall Length With Scarifier and Ripper
10.59 m
Mainframe Type
Welded box construction
Mainframe Width (minimum)
307 mm
Mainframe Height (minimum)
307 mm
Circle - Consruction
Welded construction, heat-treated, machined for flatness, equipped with quick-change replaceable wear inserts
Circle Rotation
360 deg
Circle Side Shift (left)
787 mm
Moldboard Type
High-strength, pre-stressed for higher strength; wear-resistant, high-carbon steel and reversible end bits; blade side-shift wear system includes quick-change replaceable wear inserts and quick-adjust jackscrew system
Base Length
3.66 m
Height (measured along arc, including cutting edge)
610 mm
Moldboard Thickness
22 mm
Cutting Edge - Type
Dura-Maxâ„¢ through-hardened steel edge
Cutting Edge - Thickness
16 mm
Cutting Edge - Width
152 mm
Scarifiers - Type
V-type toolbar with manual 2-pitch positions and hydraulic float
Width of Cut
1.2 m
Lift Above Ground
589 mm
Maximum Depth
335 mm
Shank - Spacing
146 mm
Shank - Size
25 x 76 mm (1 x 3 in.)
Front Lift Group - Type
Parallel linkage, mechanical pins, and hydraulic float
Lift - Above Ground (top of tube)
1,864 mm
Lift - Range
988 mm

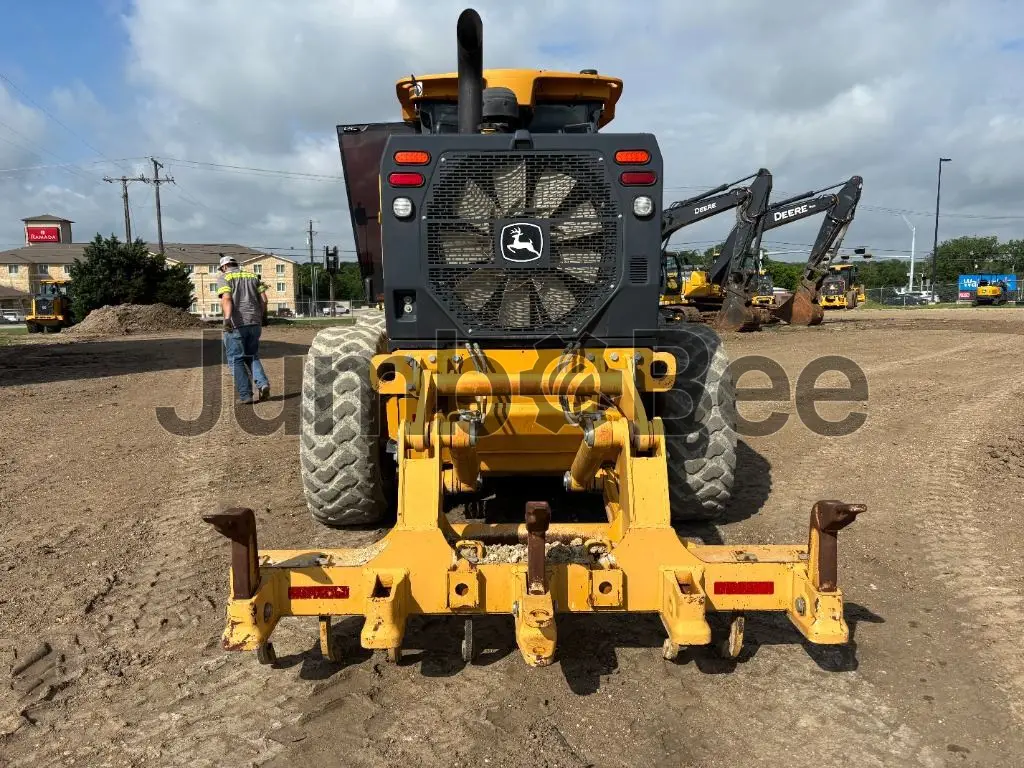

Rear Ripper/Scarifier - Type
Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
Rear Ripper/Scarifier - Width of Cut
Rear Ripper/Scarifier - Number of Shanks/Teeth
3 (maximum capacity 5) /None standard (maximum capacity 9)
Rear Ripper/Scarifier - Lift Above Ground
602 mm
Rear Ripper/Scarifier - Maximum Depth
426 mm
Force - Penetration
9,520 kg
Force - Pry-Out
12,544 kg
Force - Shank Size
61.5 x 133 mm (25 x 76 mm)
Wheel Tread on Ground
2.08 m
Ground Clearance (front axle)
587 mm
Operating Weight - Front
4,188 kg
Operating Weight - Rear
11,316 kg
Circle Diameter
1,524 mm
