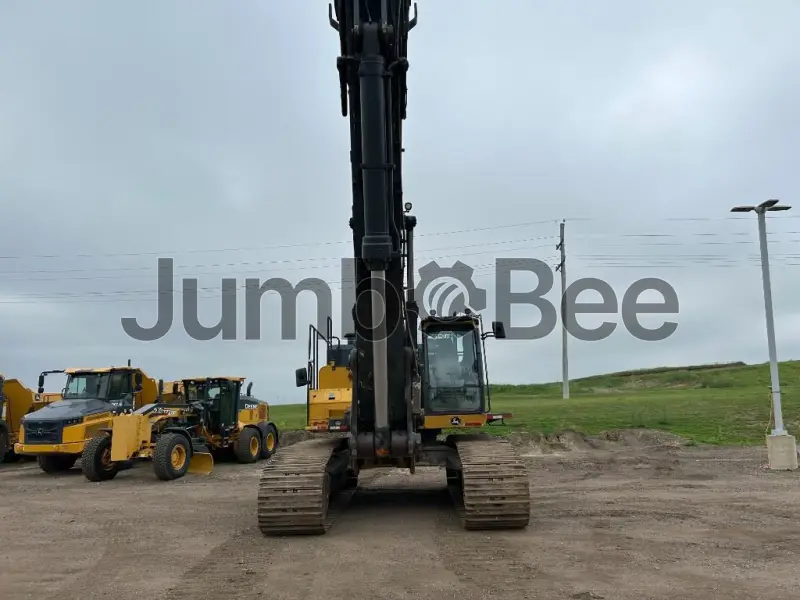

John Deere 470GLC Tracked Excavators
John Deere 470GLC
Average price
$344,461.67
5+
sold in last year
General overview
The John Deere 470GLC is a hydraulic excavator for construction work, produced for the 2020-2022 model years. It is powered by a John Deere PowerTech PSS 6135 engine rated at 270 kW (367 hp), and it has a reference bucket capacity of 2 m³ (2.6 cu yd). The model is positioned as a large excavator for digging, loading, and general earthmoving tasks.
With an operating weight of 51,218 kg (112,920 lb), the 470GLC sits in a heavy class of excavator. Its hydraulic system is rated at 800 L/min (211.3 gpm), with maximum operating pressure of 319 bar (4,630 psi) and maximum pressure - equipment of 353 bar (5,120 psi). Working reach includes a maximum digging depth of 8,270 mm (27 ft 2 in) and a maximum reach at ground level of 12,280 mm (40 ft 3 in).
Year
2019, 2020, 2021, 2022
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
12,100 mm
~476.4 in
3,500 mm
~137.8 in
3,290 mm
~129.5 in
Engine Power
367 hp
Emission standard level
Stage IV
Displacement
13 cu(m)
Fuel tank
675 L
Alternator output
100
Number of batteries
2
Cooling system
62 L
Number of Cylinders
6
Dimensions
1,370 mm
Width
3,290 mm
Operating Weight
51,218 kg
Reference Bucket Capacity
2 cu(m)
Drawbar Pull
328 kN
Maximum Rated Flow
800 L/min
System Relief Pressure
3,900 kPa
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
310 L
Engine Model
John Deere PowerTech PSS 6,135
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
35,300 kPa
Maximum Pressure - Travel
35,300 kPa
Maximum Pressure - Swing
28,400 kPa
Engine Oil
44 L
Hydraulic System - Including Tank
510 L
Shipping Height - Top of Cab
3,330 mm
Tail Swing Radius
3,670 mm
Track Gauge
2,890 mm
Maximum Digging Depth
8,270 mm
Boom working ranges
7 mm
Stick working ranges
2.9 mm
Bucket working ranges
1.41 mm
Maximum Reach at Ground Level
12,280 mm
Maximum Cutting Height
11,160 mm
Maximum Loading Height
7,770 mm
Maximum Vertical Wall Digging Depth
6,980 mm
Bucket Digging Force - ISO
286 kN
Stick Digging Force - ISO
201 kN
Boom length
7,000 mm
Stick length
3,900 mm
Net Power (ISO 9249)
367 hp
Hydraulic Pump
1 gear
Maximum Operating Pressure
31,900 kPa
Additional specifications
Rated power
274 kW
Ground Pressure
61 kPa
John Deere 470GLC Tracked Excavators Listings
$155,970
3 km/h
5 km/h
328 kN
6016 hours
Sioux Falls, United States
$439,170
328 kN
35300 kPa
62 L
4398 hours
Riverside, United States
$385,460
367 hp
51218 kg
2 cu(m)
4141 hours
Williston, United States
$521,360
367 hp
51218 kg
2 cu(m)
3274 hours
Riverside, United States
$322,390
510 L
310 L
7000 mm
4791 hours
Williston, United States
Compare John Deere 470GLC Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 470GLC Tracked Excavator
367 hp
12100 mm × 3290 mm × 3500 mm
Add model
Add model
2.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
2.0
Reliability & Durability
3.0
Comfort & Ergonomics
2.0
Safety
3.0
Technology & Features
2.0
Otis Kowalczyk
We added a tilt coupler and it's far more versatile. It's smooth, quiet and quick on the footings. Dig force and reach cover most of our footings.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 470GLC?
No confirmed market price is supplied for the John Deere 470GLC. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 470GLC?
The supplied specifications list 273.7 kW (367 hp) of engine power, 51,218 kg (112,916 lb) operating weight, a 2 m³ (2.62 cu yd) reference bucket capacity, and a maximum digging depth of 8,270 mm (325.6 in).
What type of engine does the 470GLC use?
The 470GLC uses a John Deere PowerTech PSS 6135 engine. The supplied data lists 6 cylinders and Stage IV emissions.
How much horsepower does the 470GLC have?
The 470GLC has 367 hp (273.7 kW) of engine power. Its Net Power (ISO 9249) is also listed as 273.7 kW (367 hp).
What fuel does the John Deere 470GLC use?
The supplied data does not confirm the fuel type for the John Deere 470GLC. It lists a fuel tank capacity of 675 L (178.3 US gal).
What jobs is this Excavators best suited for?
The supplied specifications indicate a large excavator with a 2 m³ (2.62 cu yd) reference bucket, 8,270 mm (325.6 in) maximum digging depth, and 12,280 mm (483.5 in) maximum reach at ground level. Specific job suitability is not confirmed.
What is the expected lifespan of the 470GLC?
The supplied data does not provide an expected service life for the 470GLC. Inspect maintenance records, hydraulic performance, engine condition, undercarriage wear, attachment condition, and signs of leakage before purchase.
What should a buyer check when purchasing a used Excavators?
Check maintenance records, engine operation, hydraulic response, leaks, structural damage, cab condition, and undercarriage wear. Verify the boom, stick, bucket, tracks, and attachments operate correctly, then compare the machine’s configuration with the seller’s specifications.
