John Deere 135G Tracked Excavators
John Deere 135G
Average price
$168,533.93
5+
sold in last year
General overview

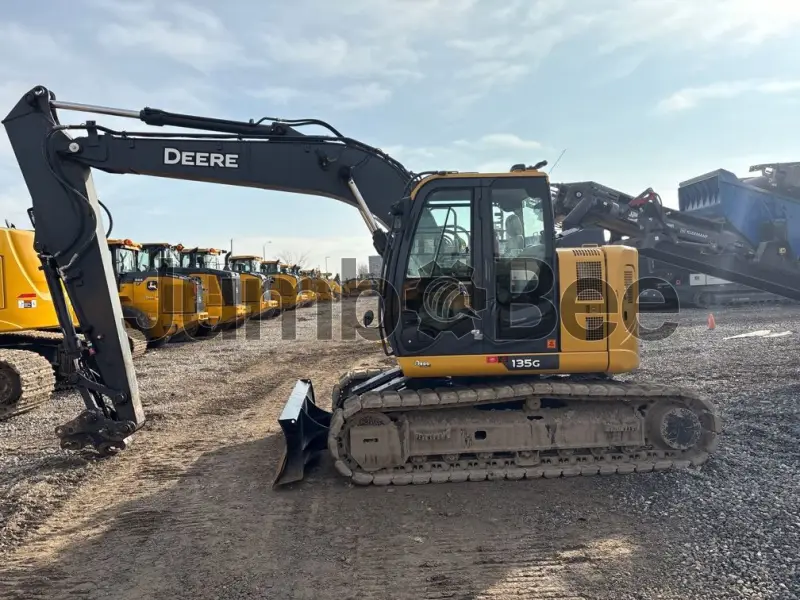

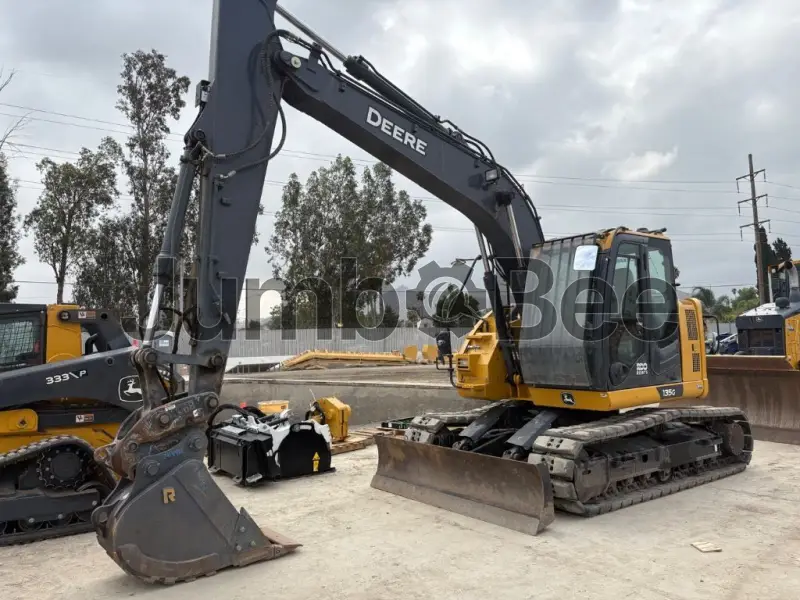

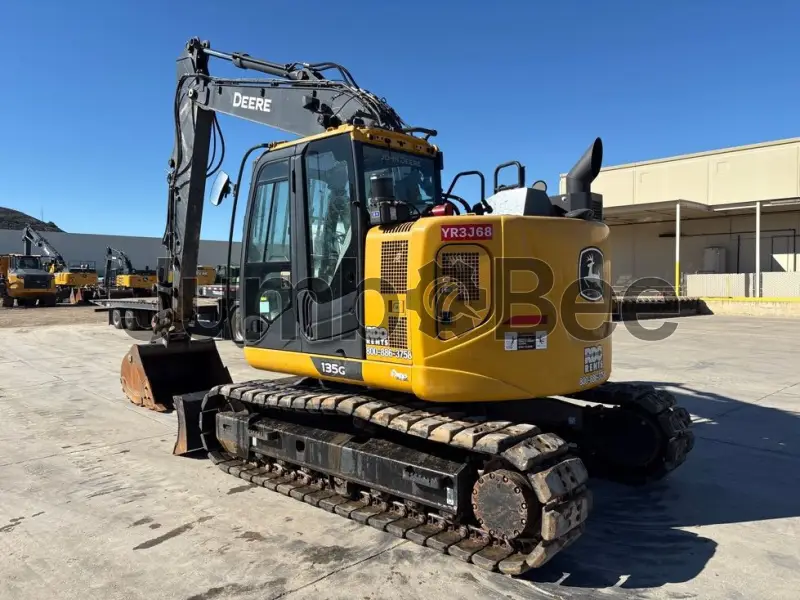

John Deere 135G is a hydraulic excavator produced in the United States for construction work from 2020 to 2023. It is powered by an Isuzu 4JJ1 engine rated at 74 kW (101 hp) and has an operating weight of 13,900 kg (30,640 lb).
The model uses a 4-cylinder, 3 L engine with Tier 4 Final emissions compliance and a gear-pump hydraulic system rated at 210 L/min (55.5 gpm). Key working figures include a maximum digging depth of 5,490 mm (18 ft), a maximum reach at ground level of 8,240 mm (27 ft), and a bucket digging force of 104 kN (23,380 lbf).
Year
2018, 2020, 2021, 2022, 2023
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
7,370 mm
~290.2 in
2,790 mm
~109.8 in
2,490 mm
~98 in
Engine Power
101 hp
Emission standard level
Tier 4 Final
Displacement
3 cu(m)
Fuel tank
220 L
Alternator output
50
Number of batteries
2
Cooling system
21 L
Number of Cylinders
4
Width
2,490 mm
Operating Weight
13,900 kg
Reference Bucket Capacity
0.62 cu(m)
Drawbar Pull
110 kN
Maximum Rated Flow
210 L/min
System Relief Pressure
34,300 kPa
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
60 L
Engine Model
Isuzu 4JJ1
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
36,300 kPa
Maximum Pressure - Travel
34,800 kPa
Maximum Pressure - Swing
32,300 kPa
Engine Oil
17 L
Hydraulic System - Including Tank
155 L
Shipping Height - Top of Cab
2,870 mm
Tail Swing Radius
1,490 mm
Track Gauge
1,990 mm
Maximum Digging Depth
5,490 mm
Boom working ranges
1 mm
Stick working ranges
2,520 mm
Maximum Reach at Ground Level
8,240 mm
Maximum Cutting Height
9,290 mm
Maximum Loading Height
6,830 mm
Maximum Vertical Wall Digging Depth
4,730 mm
Bucket Digging Force - ISO
104 kN
Stick Digging Force - ISO
69 kN
Stick length
2,520 mm
Net Power (ISO 9249)
101 hp
Hydraulic Pump
Gear pump
Maximum Operating Pressure
34,300 kPa
Additional specifications
Rated power
75 kW
Ground Pressure
43 kPa
Additional Options

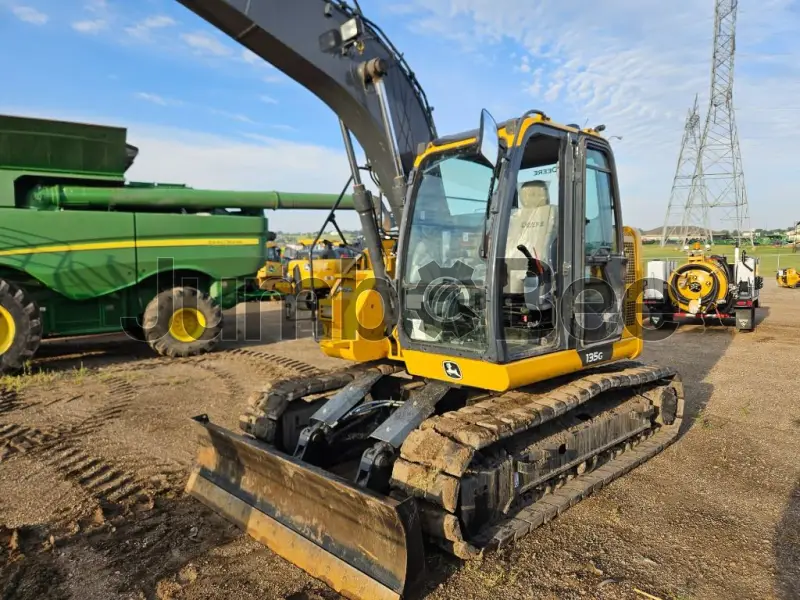

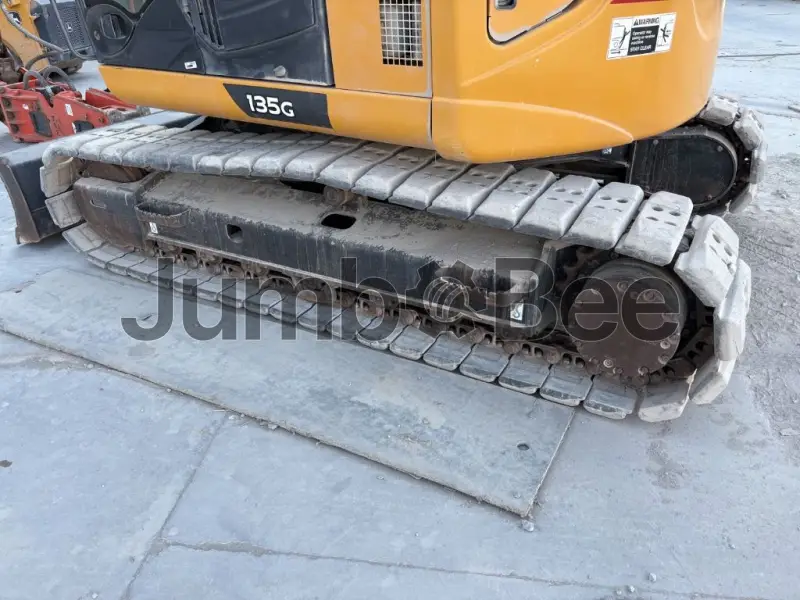

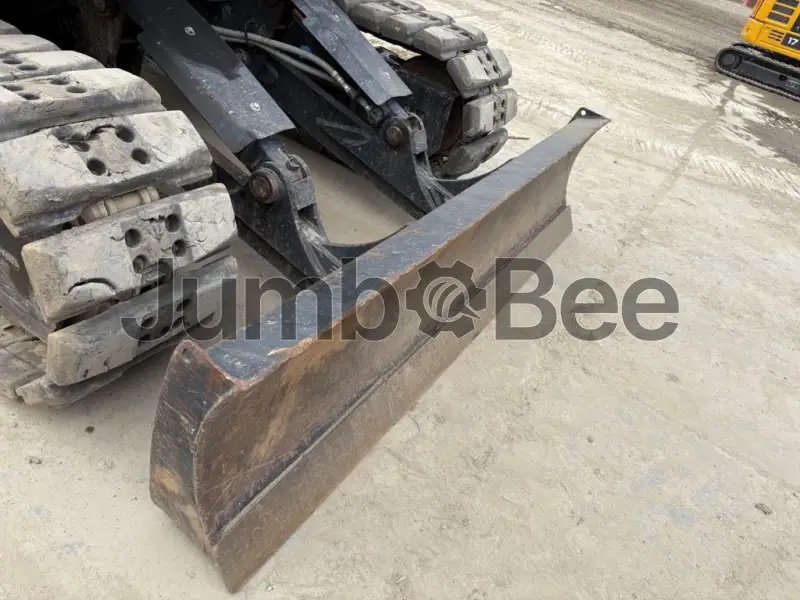

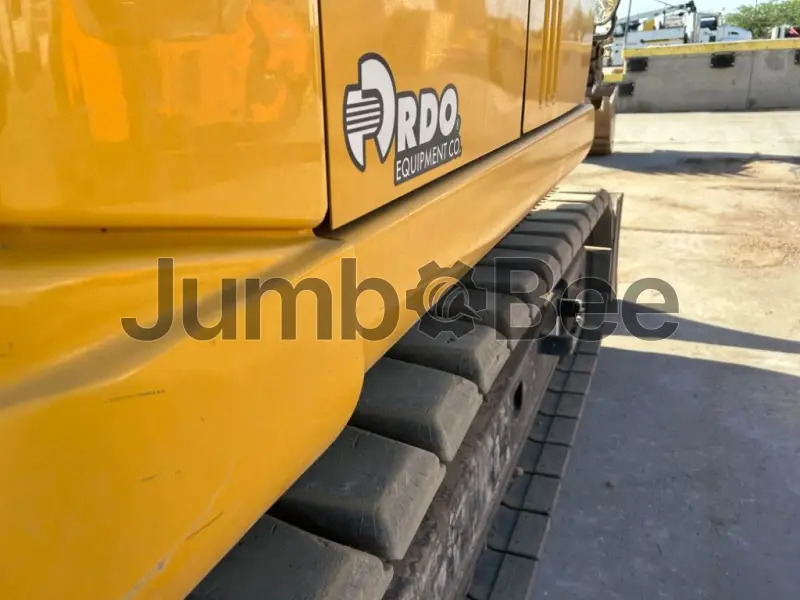

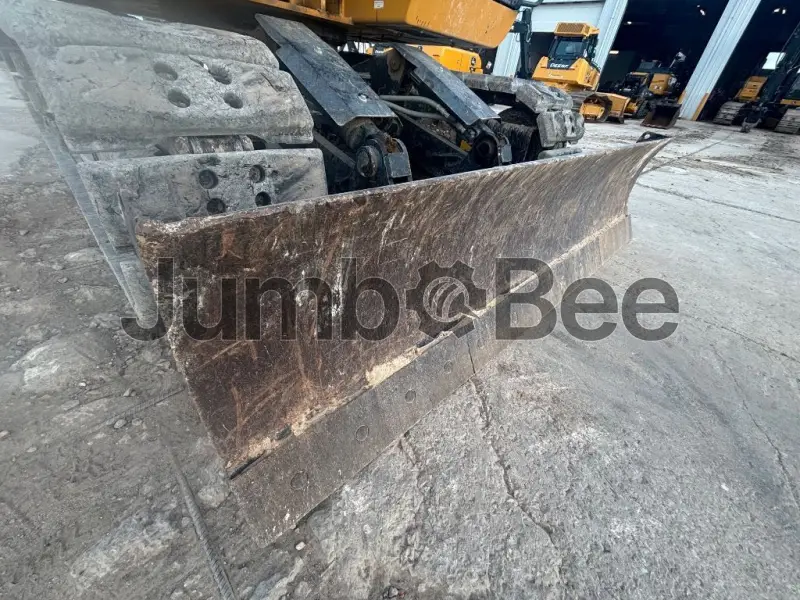

Standard: 500 mm rubber crawler pads; optional 600 mm or 700 mm triple semi-grouser shoes. Optional arm length 3,010 mm (9 ft 11 in). Blade optional.

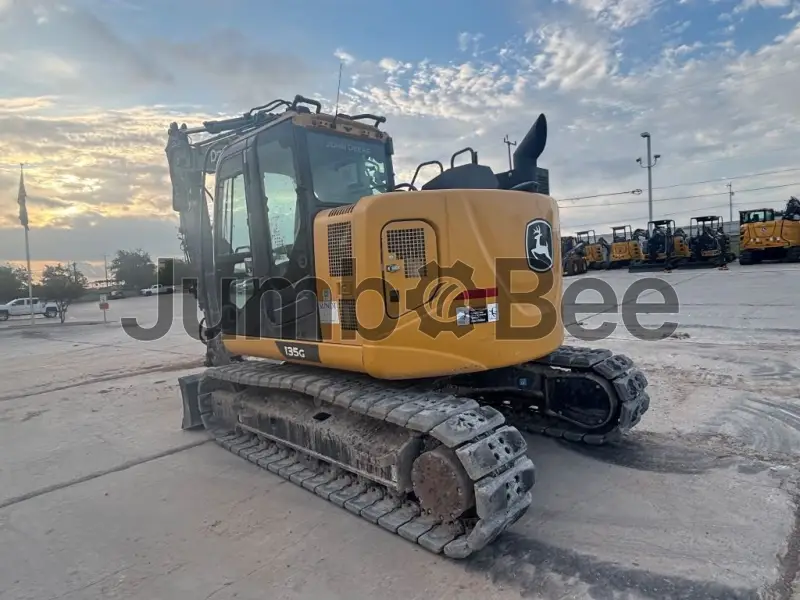

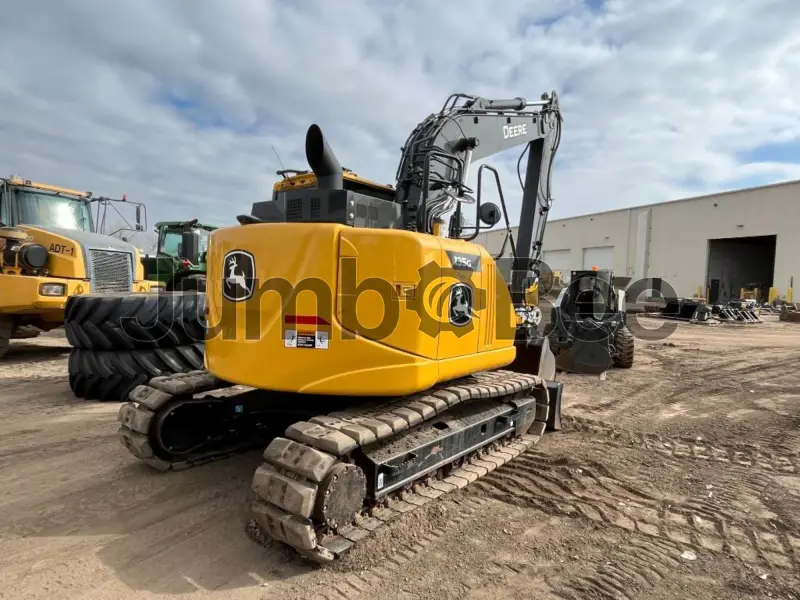

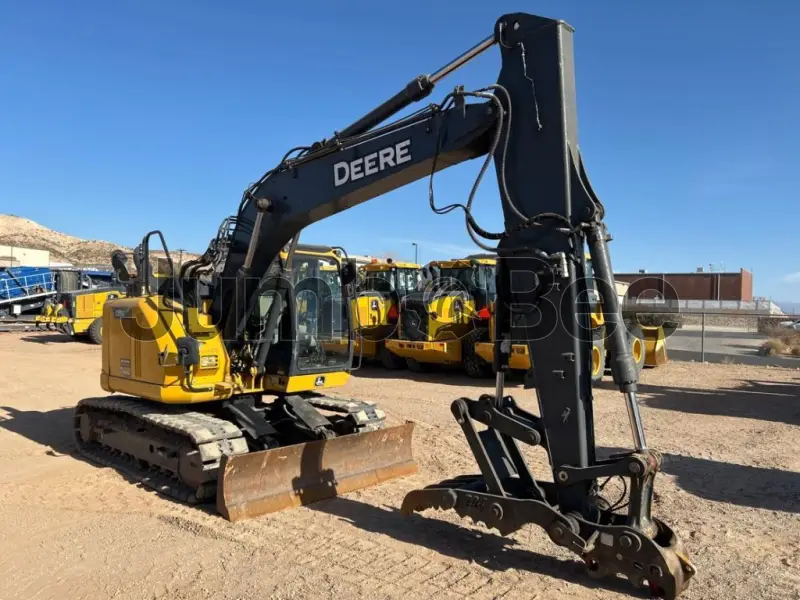

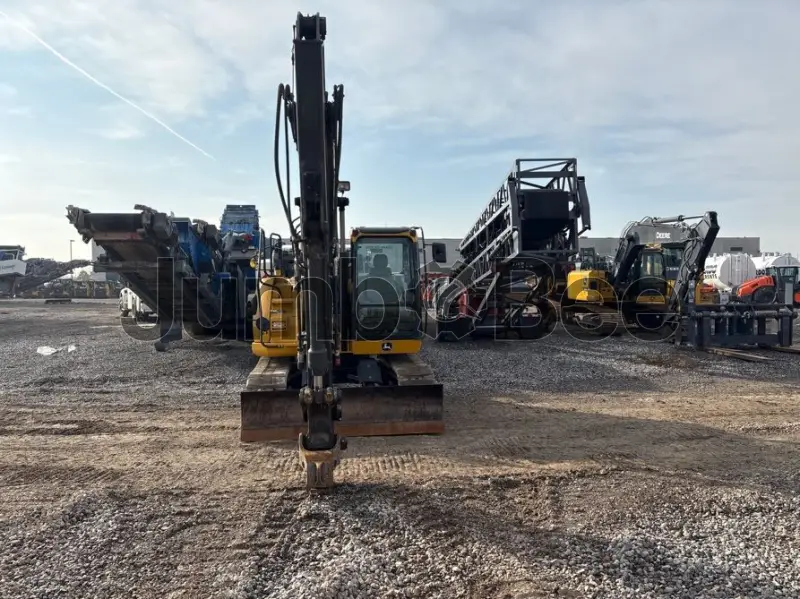

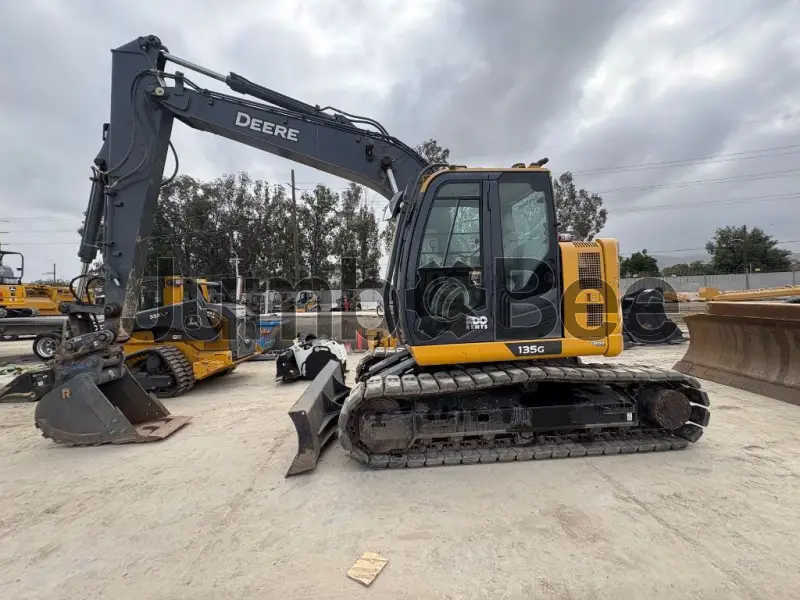

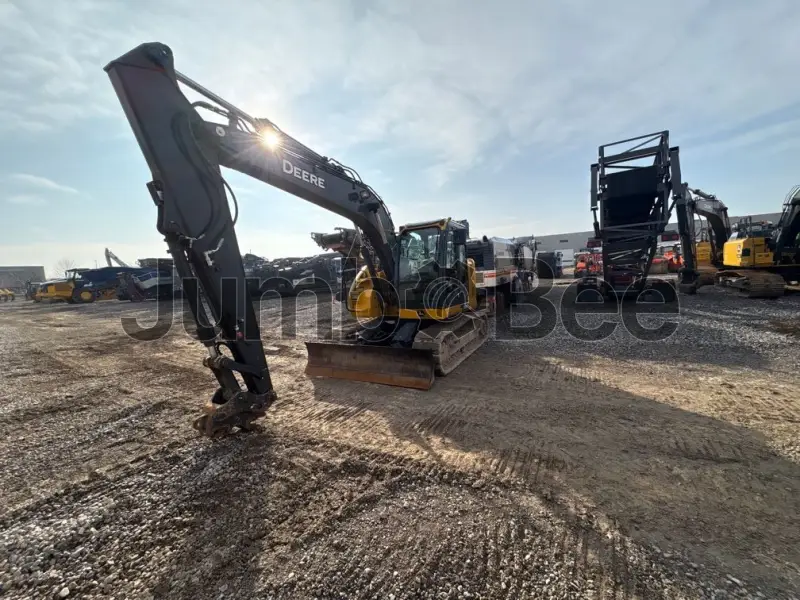

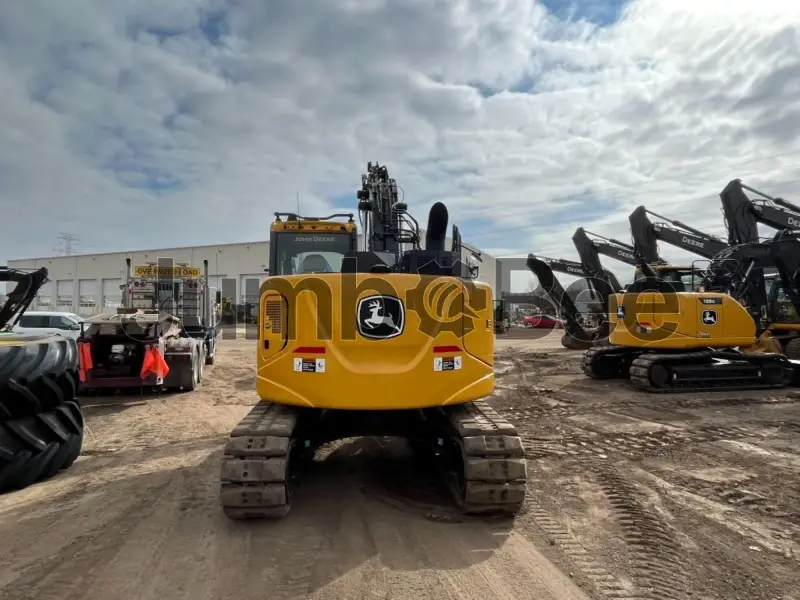

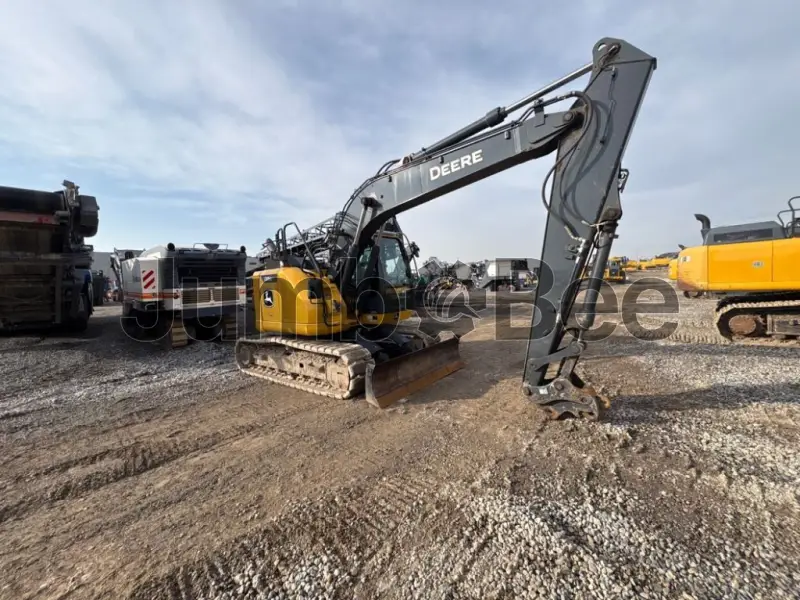

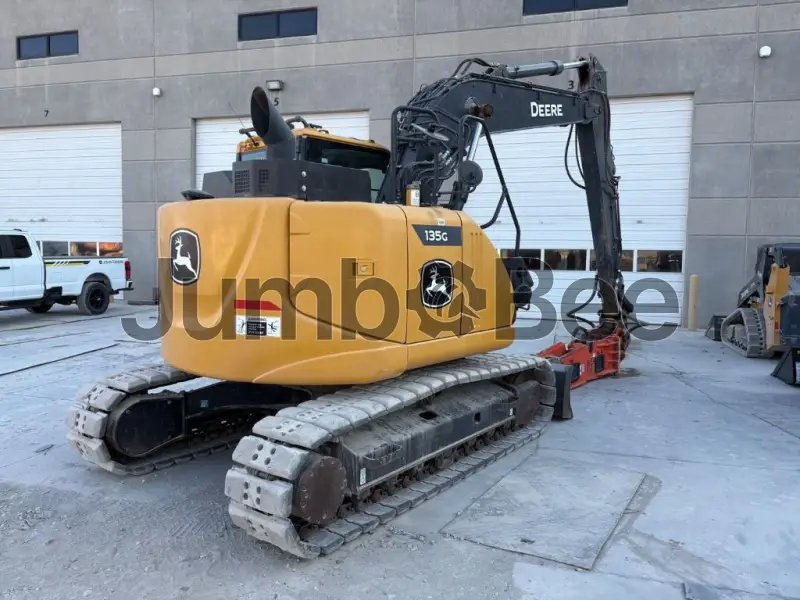

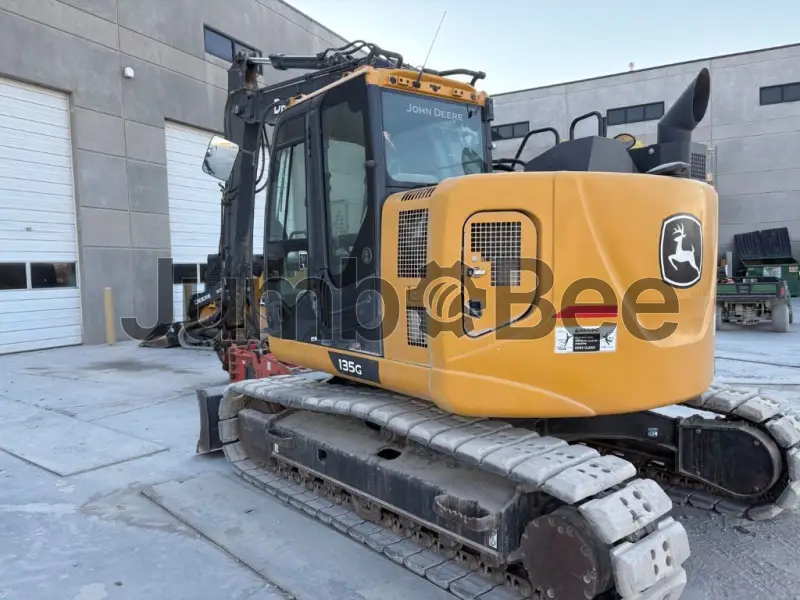

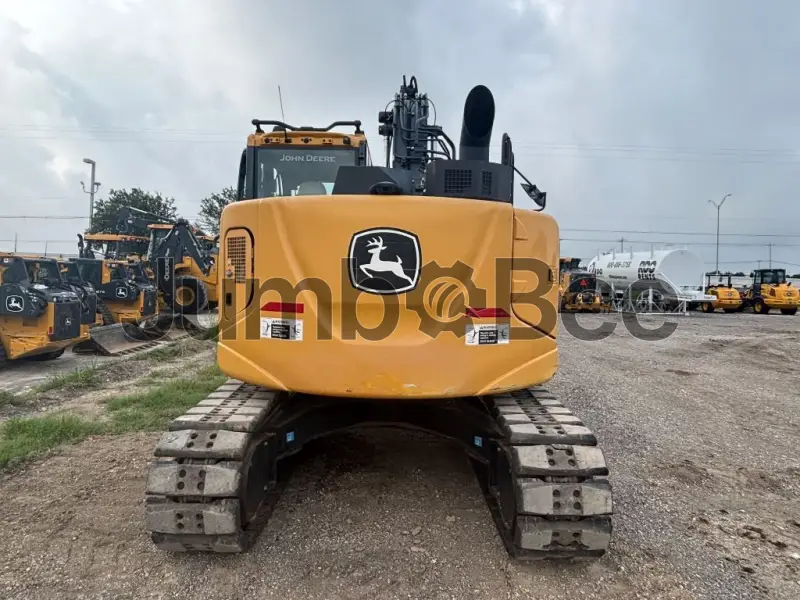

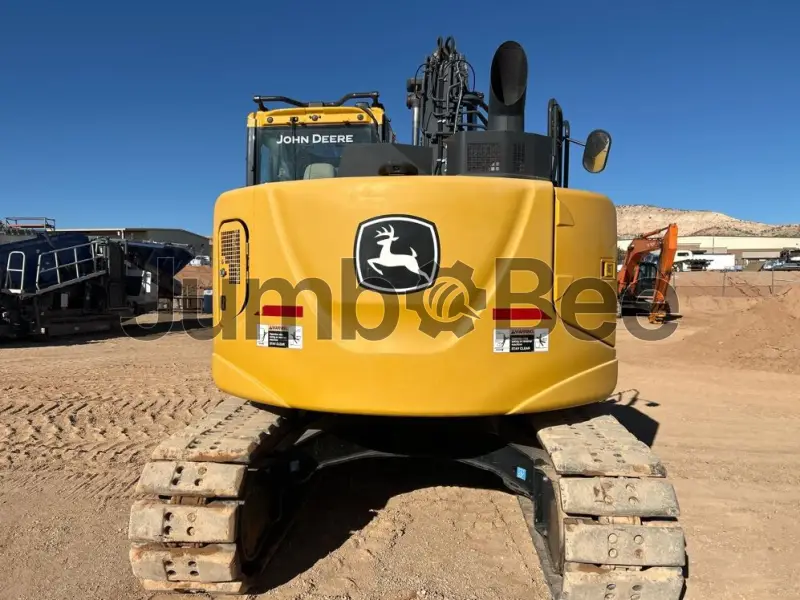

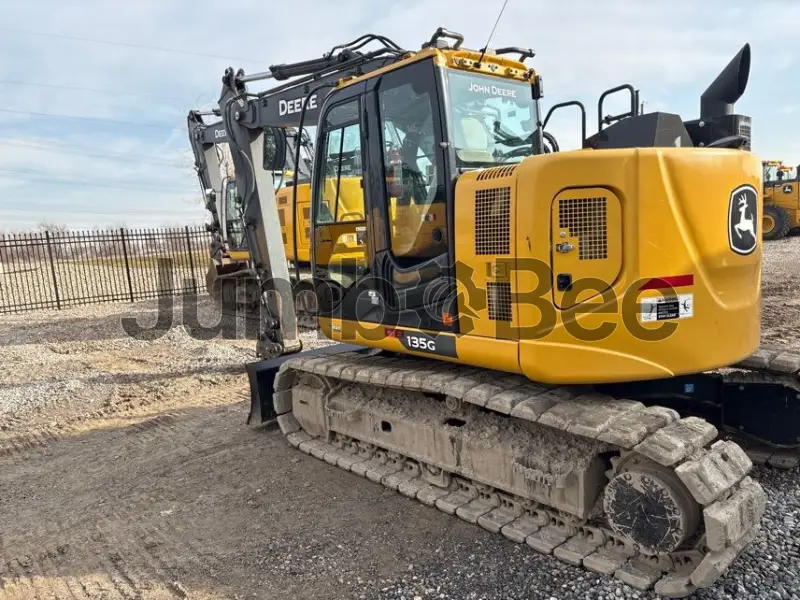

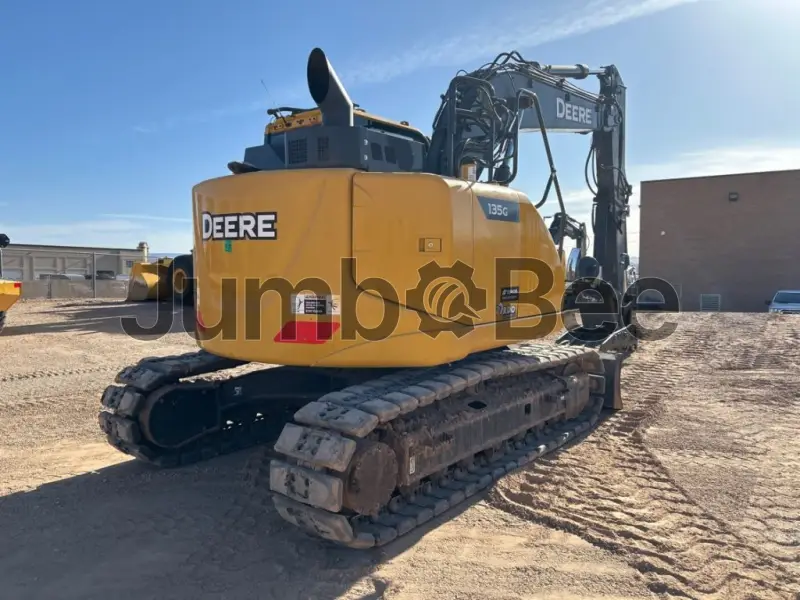

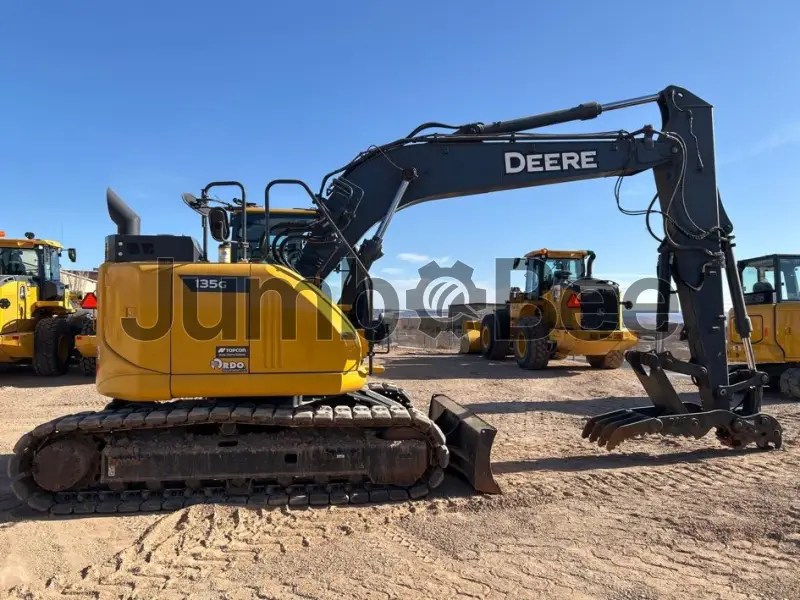

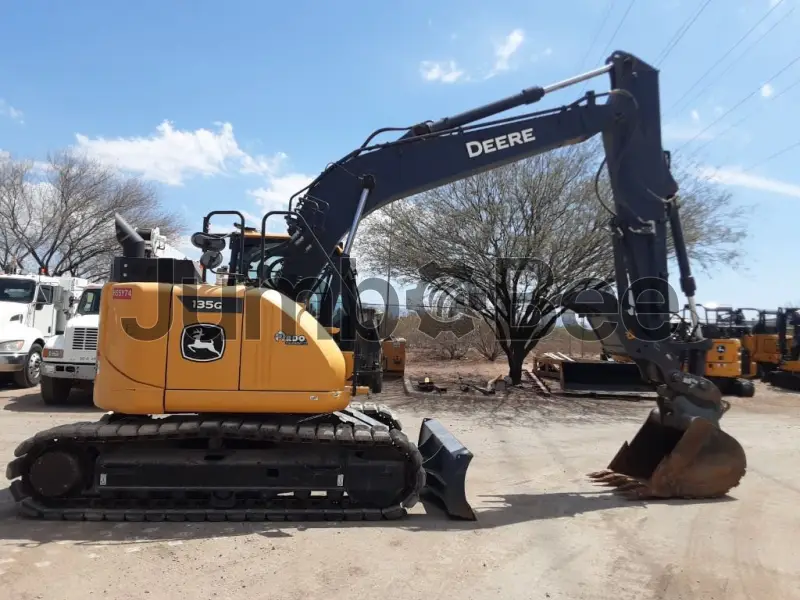

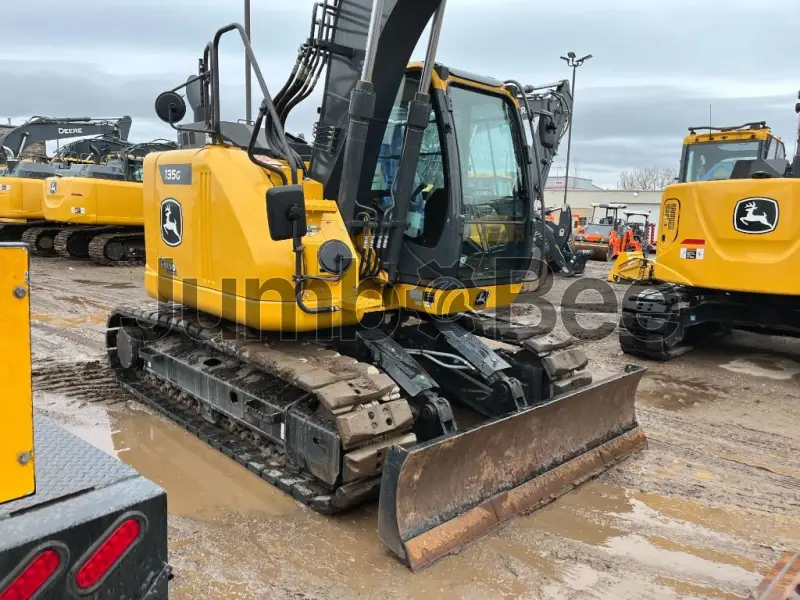

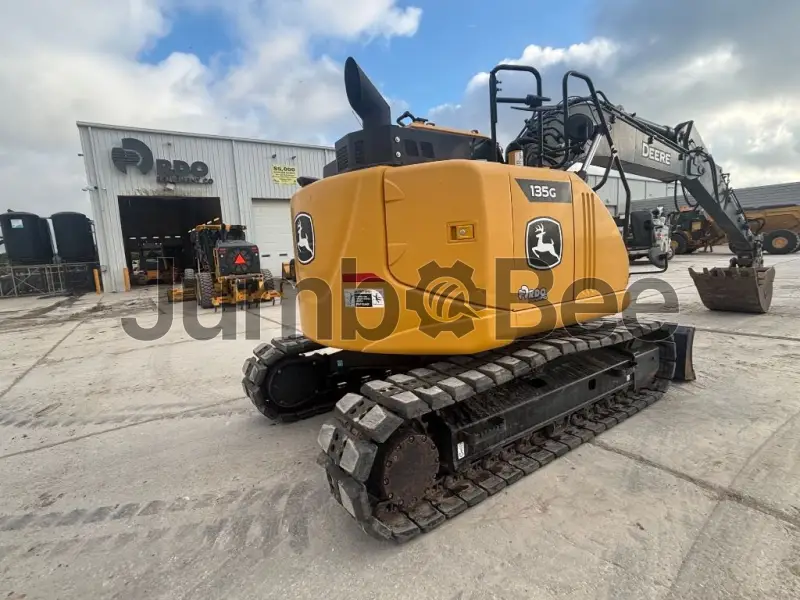

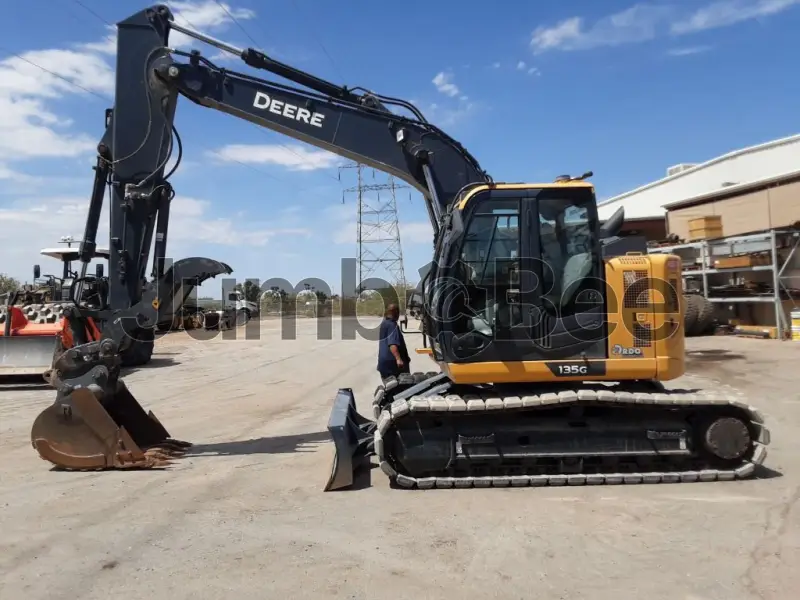

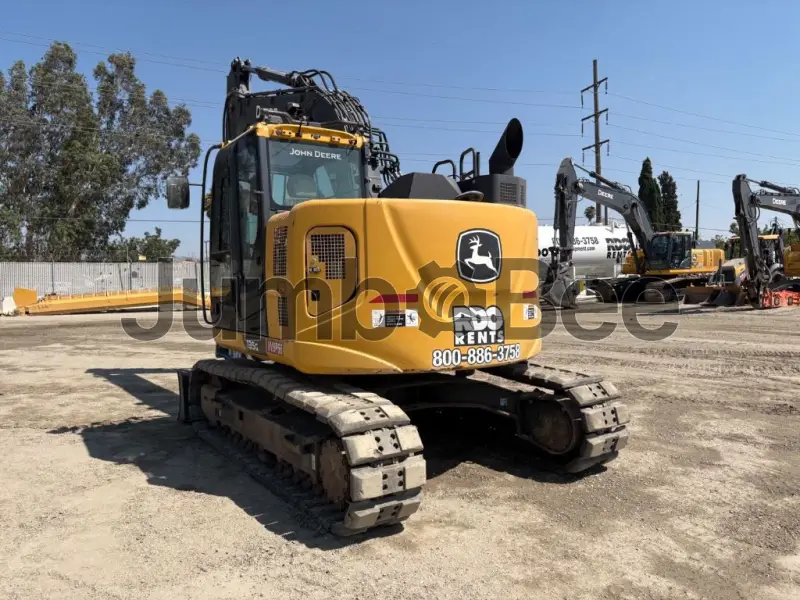

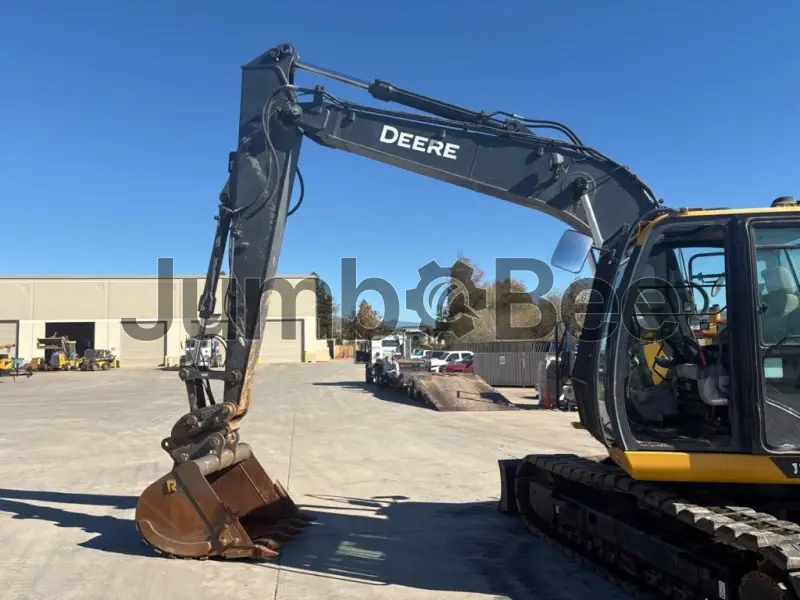

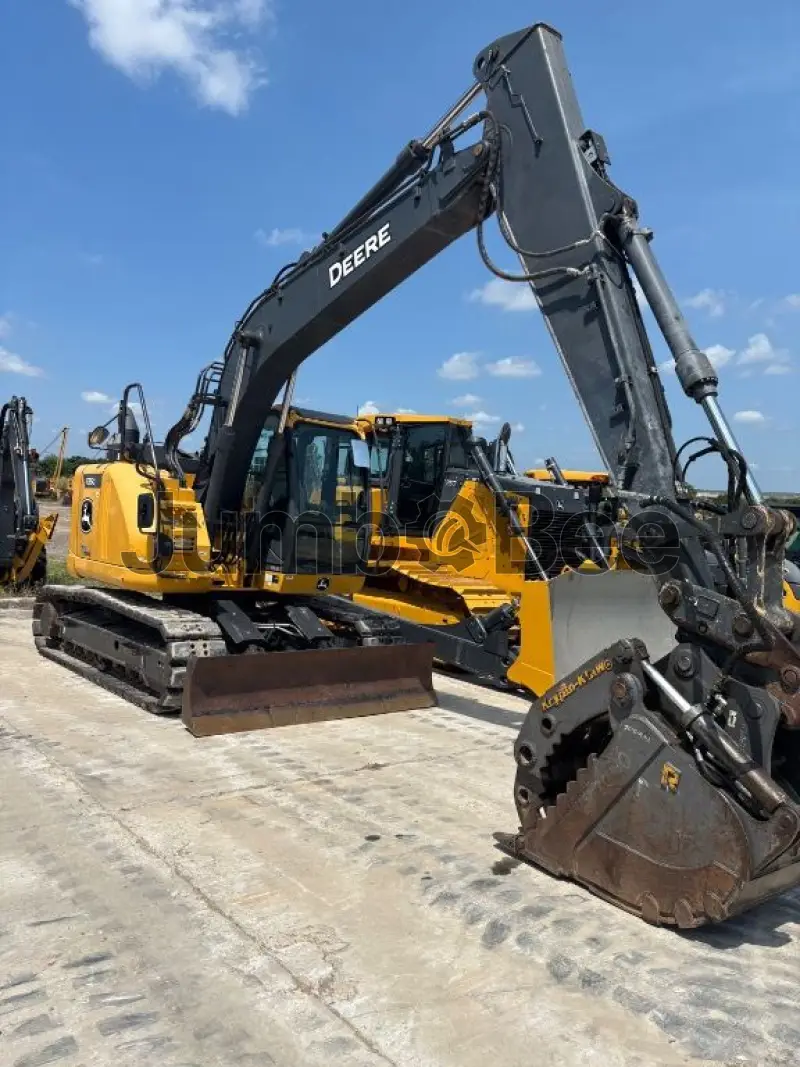

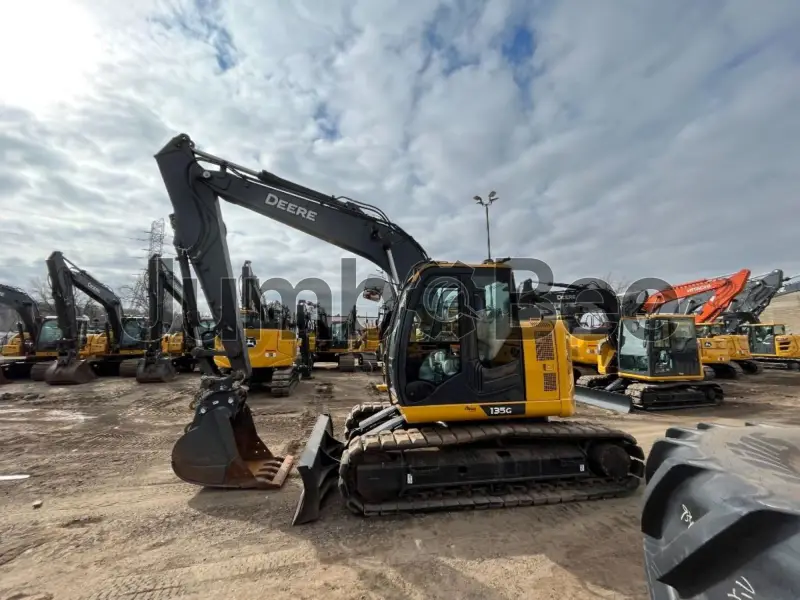

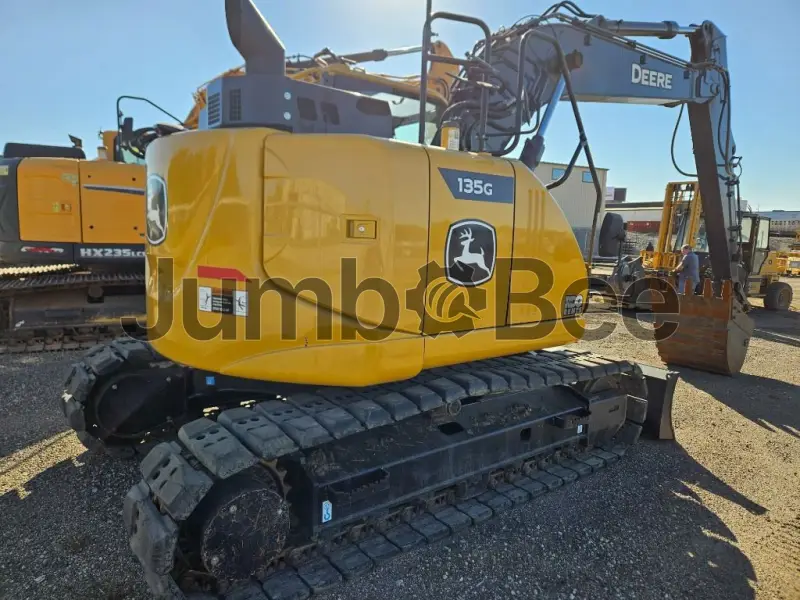

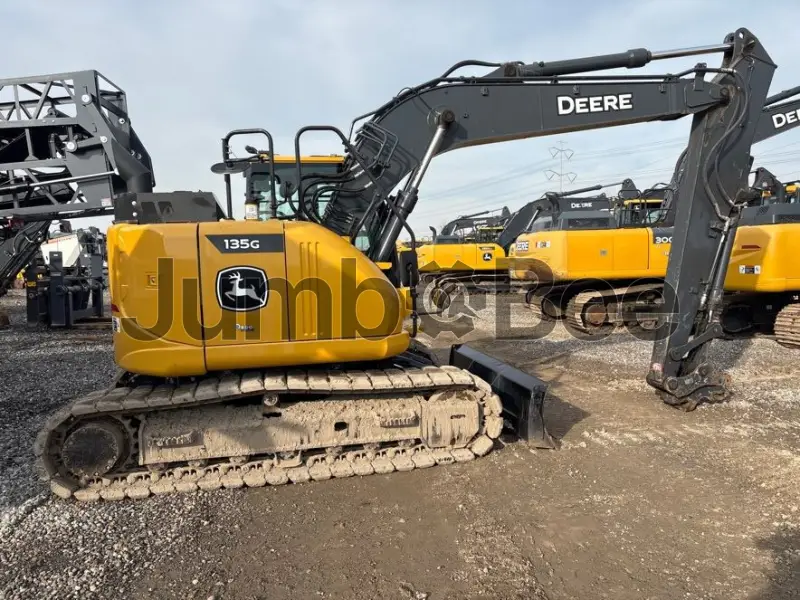

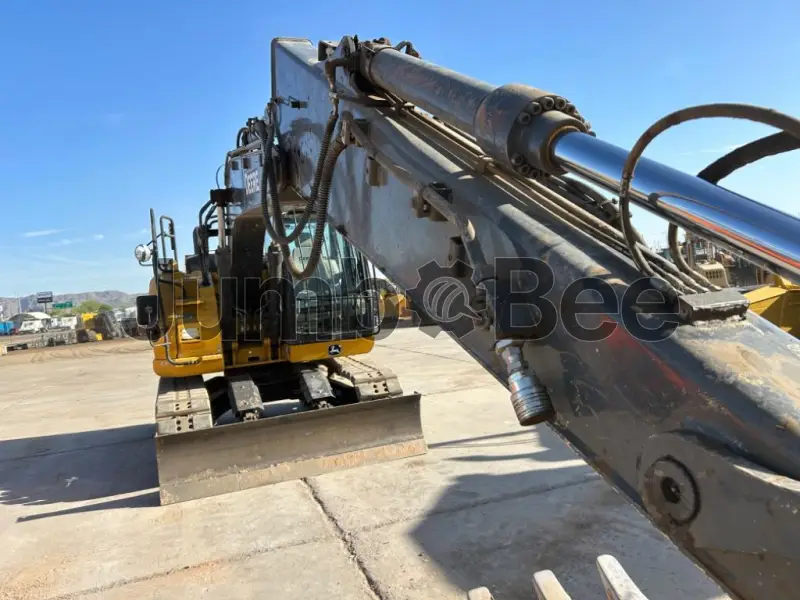

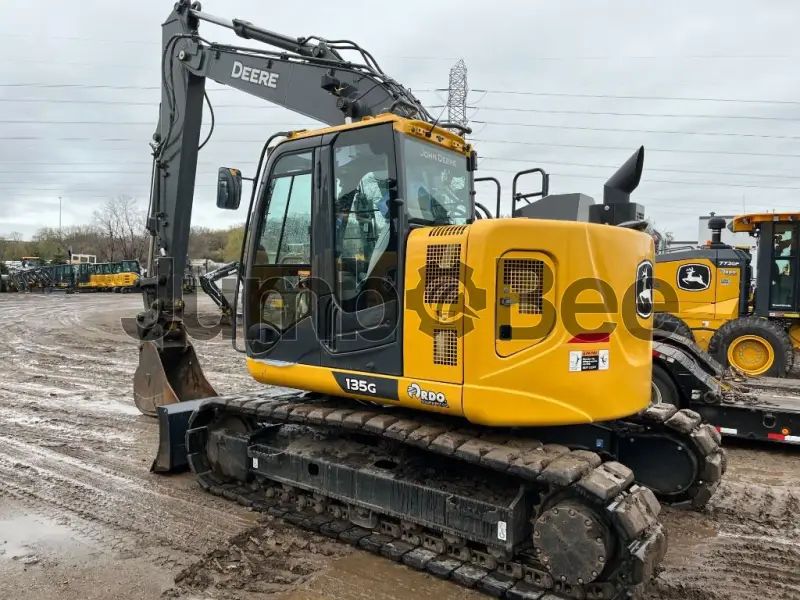

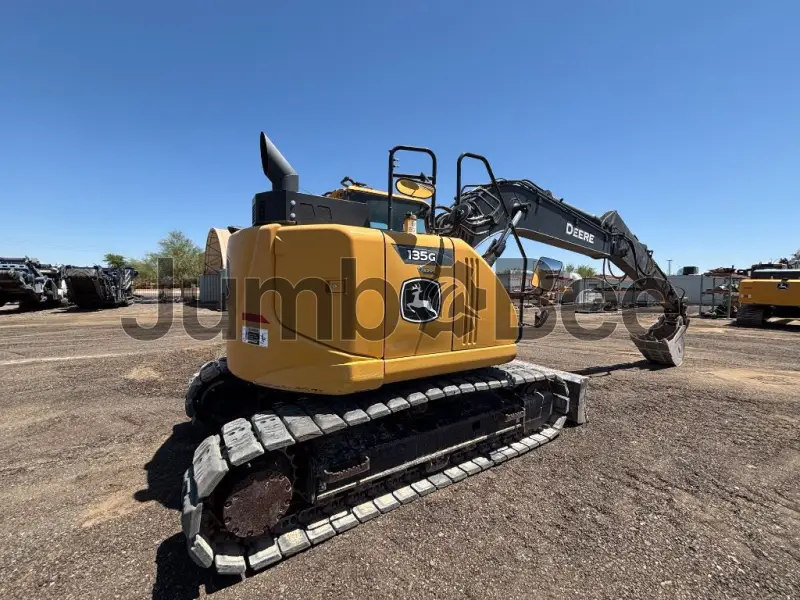

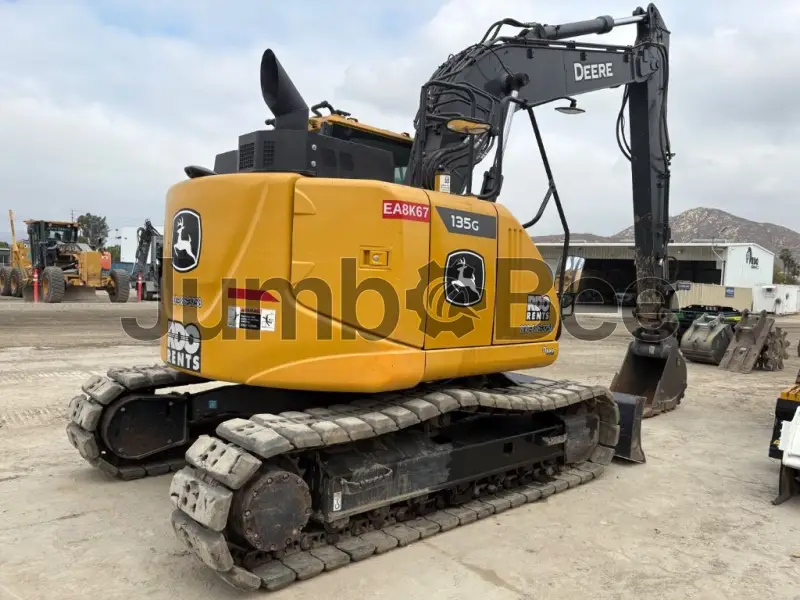

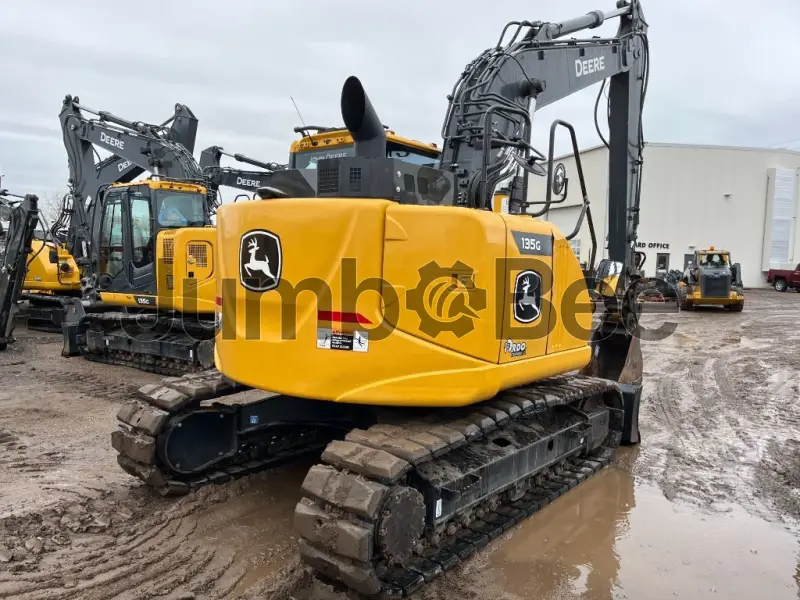

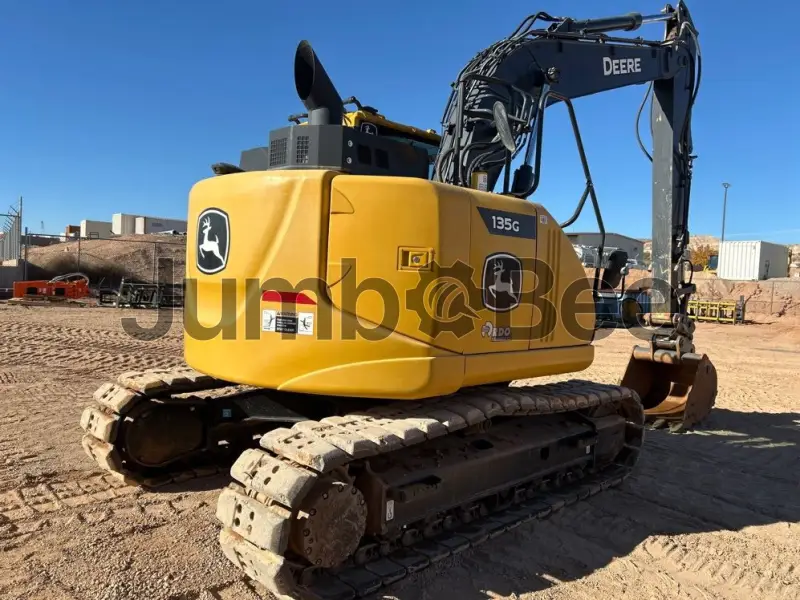

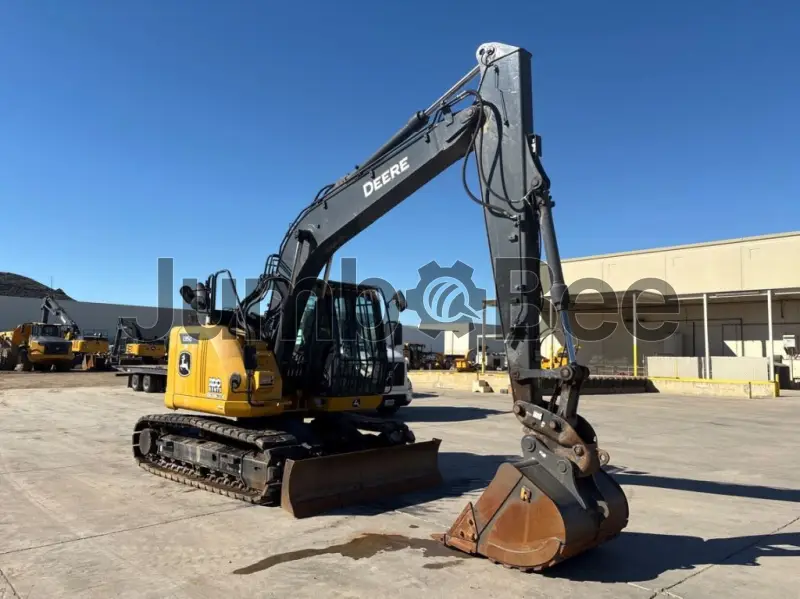

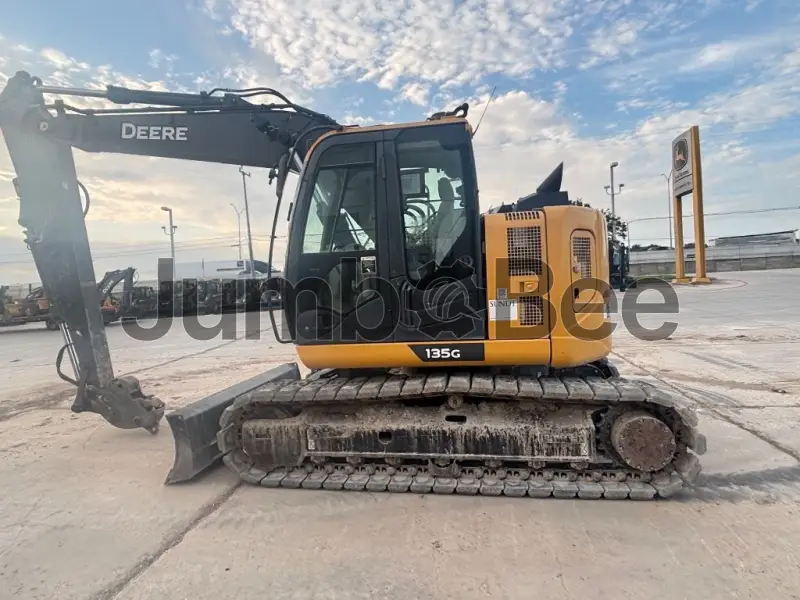

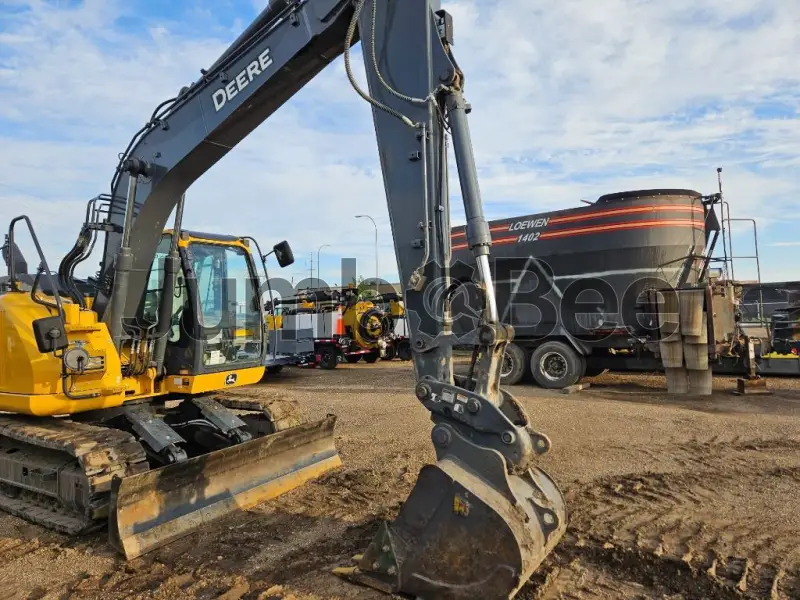

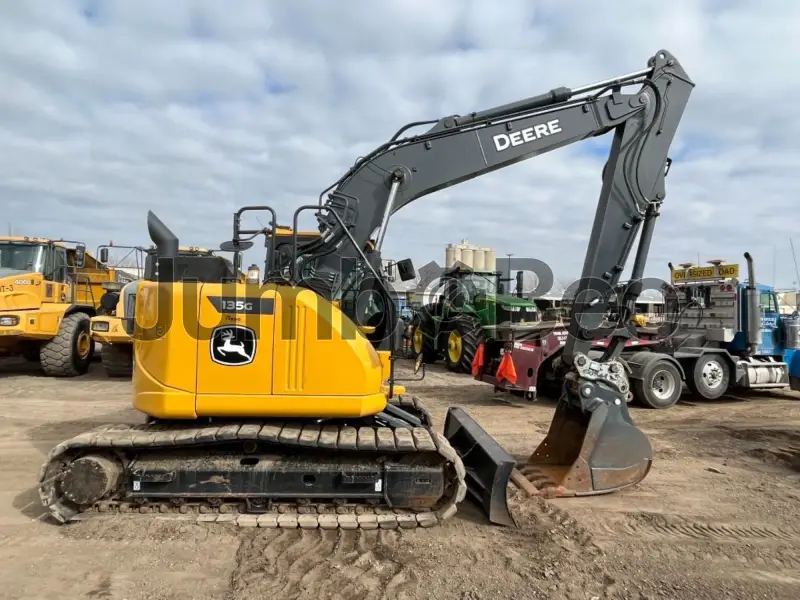

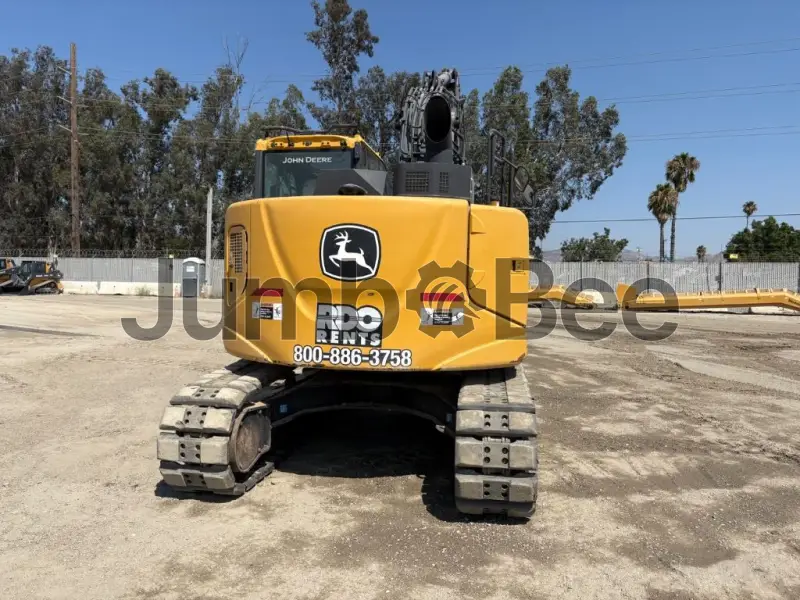

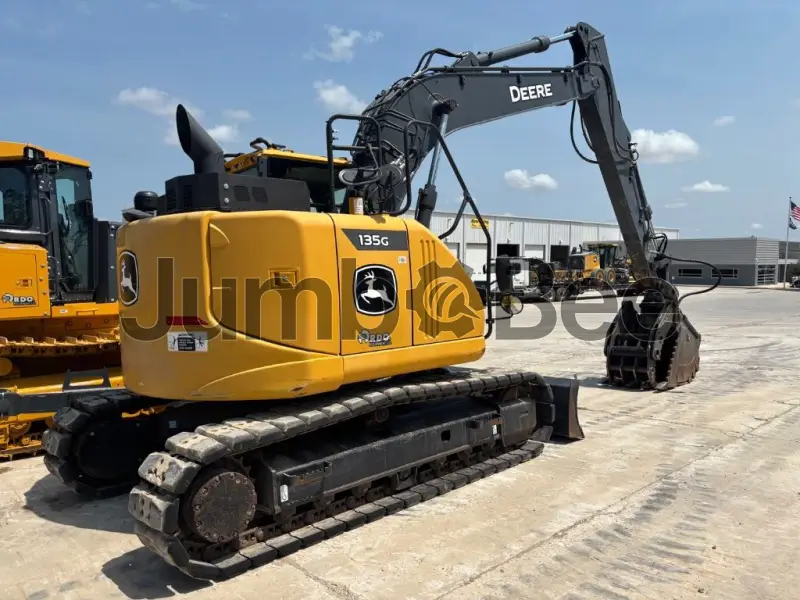

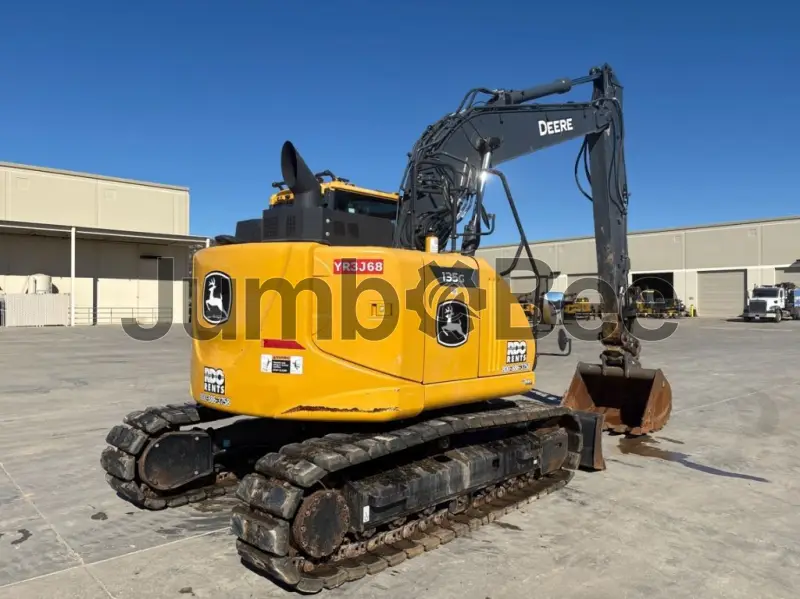

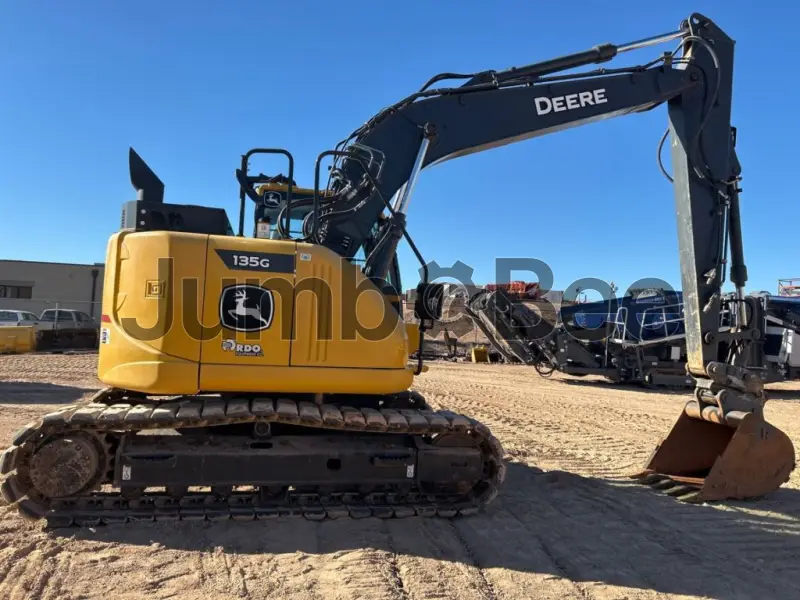

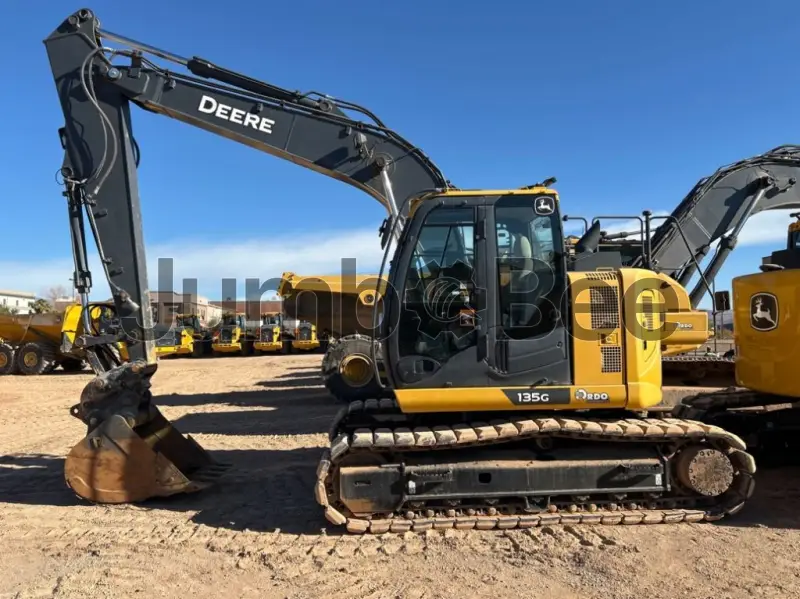

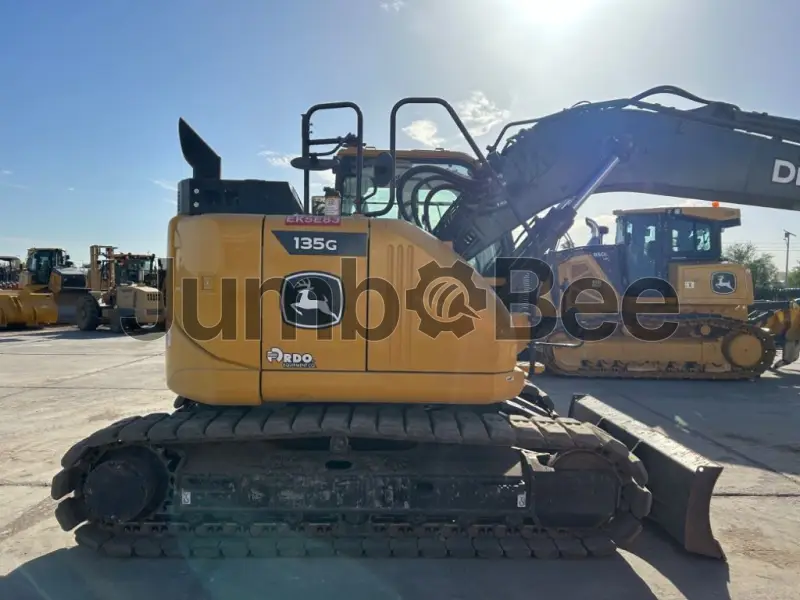

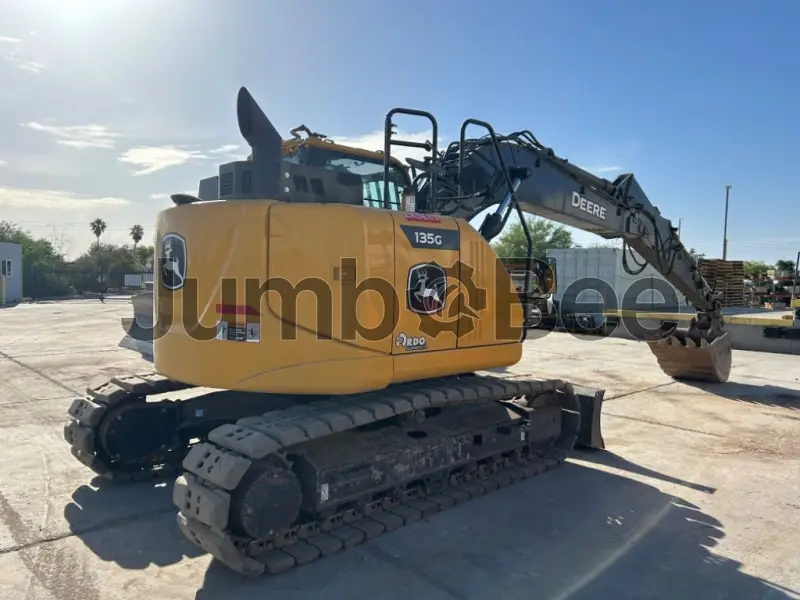

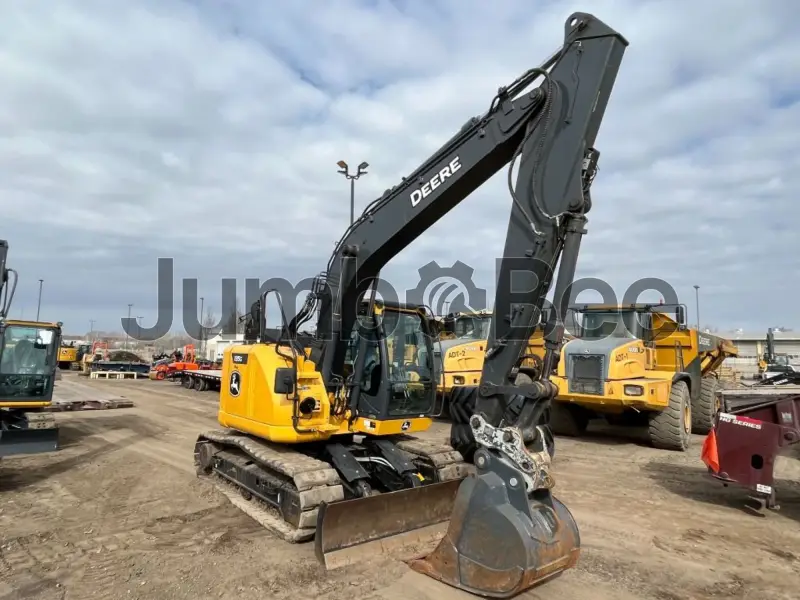

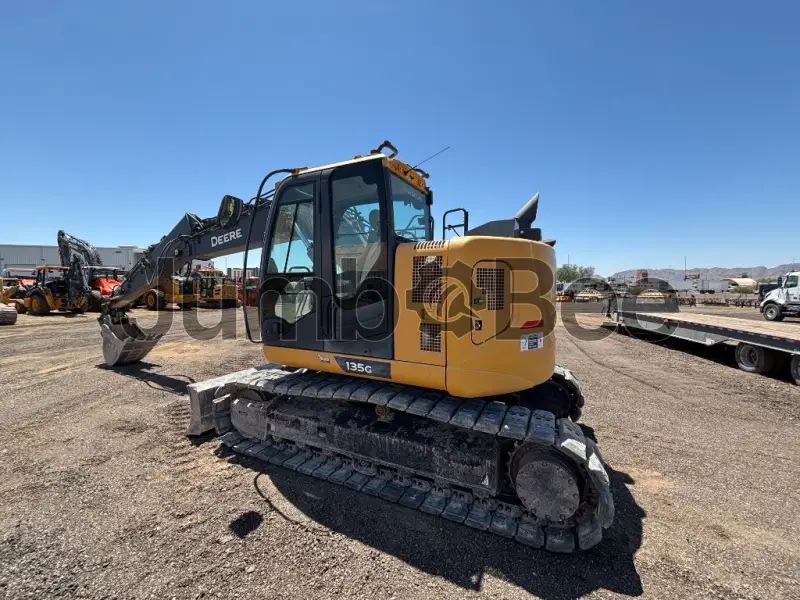

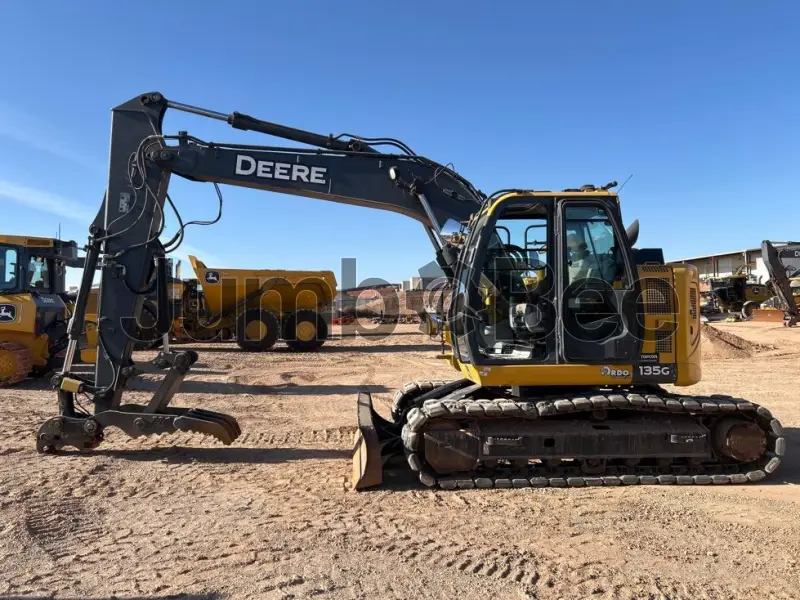

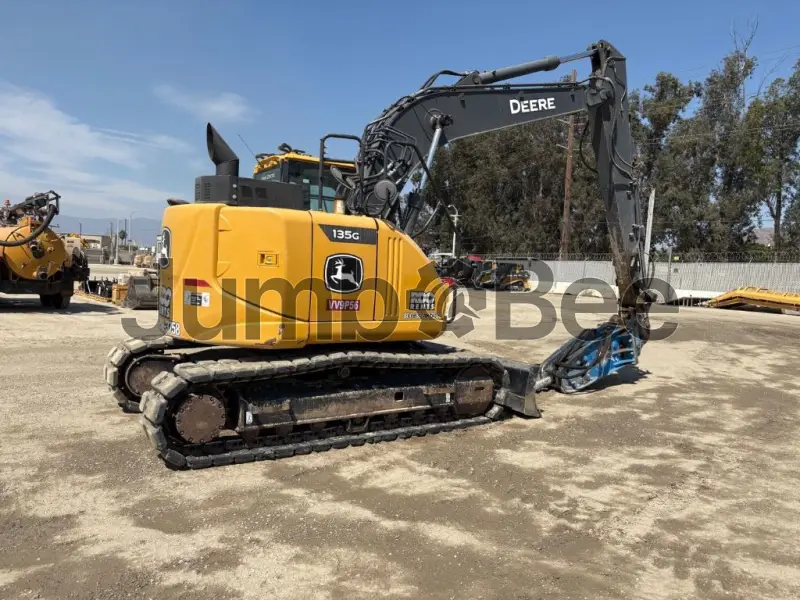

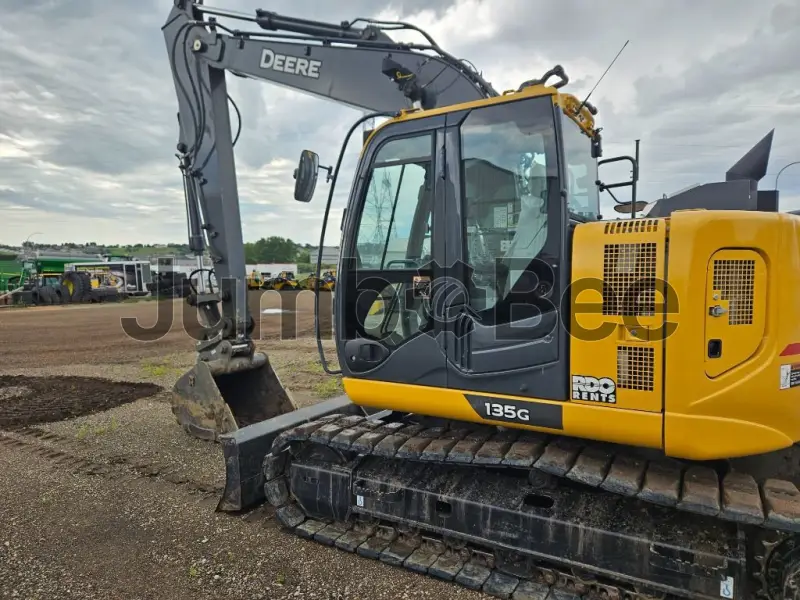

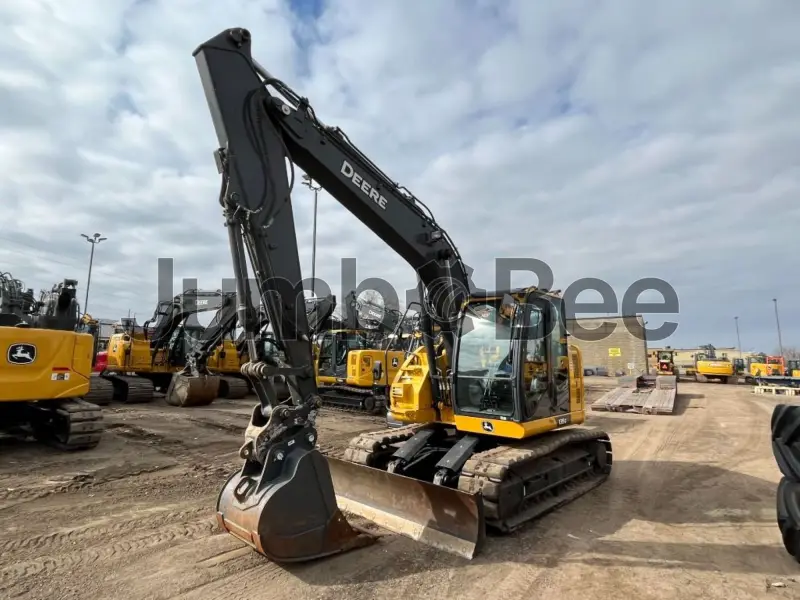

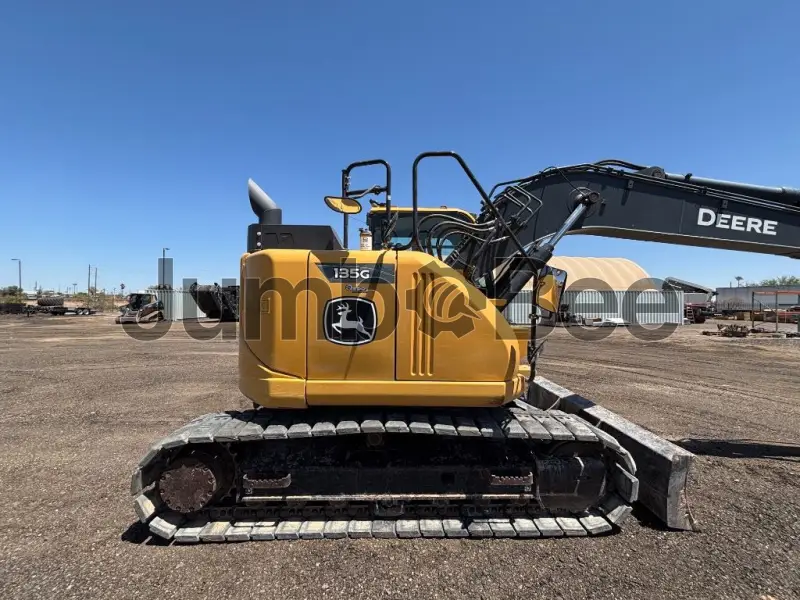

John Deere 135G Tracked Excavators Listings

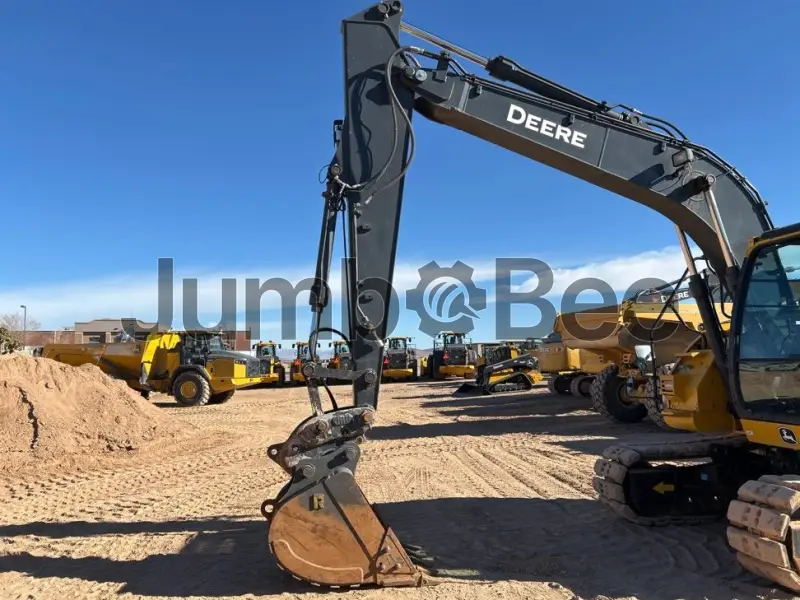

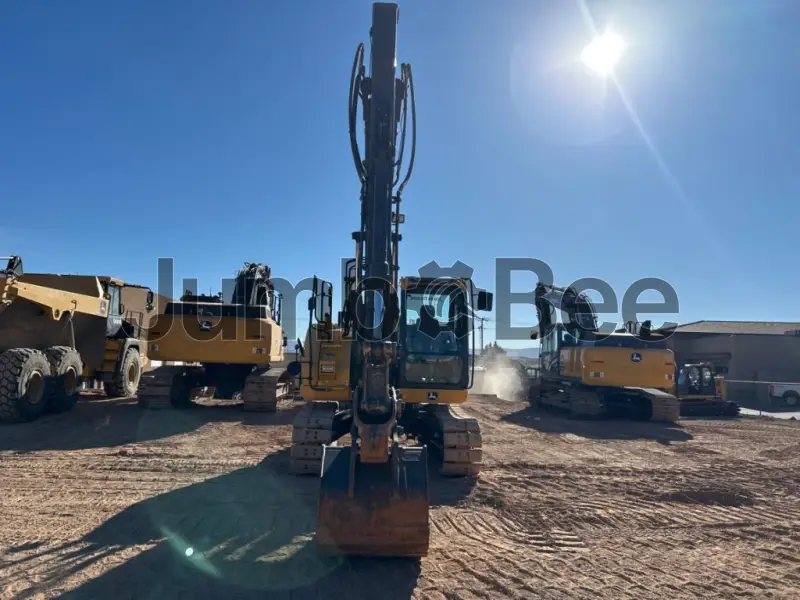

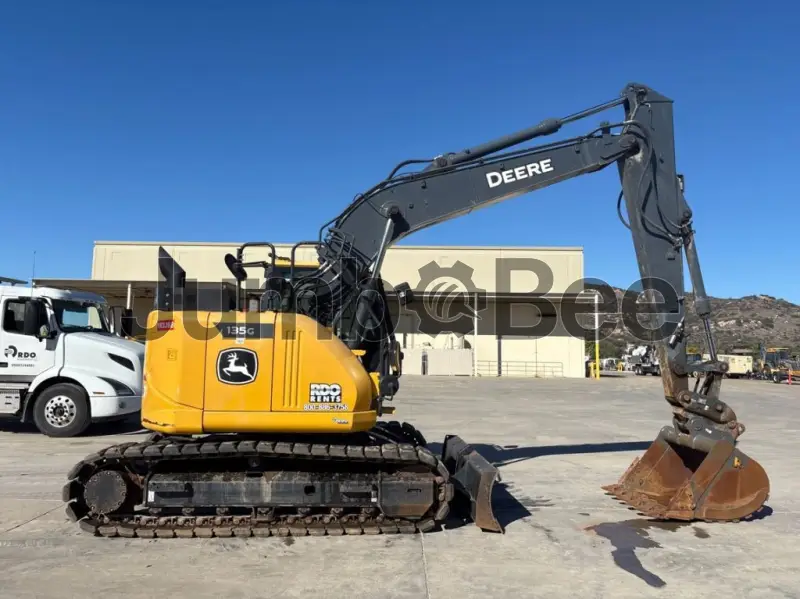

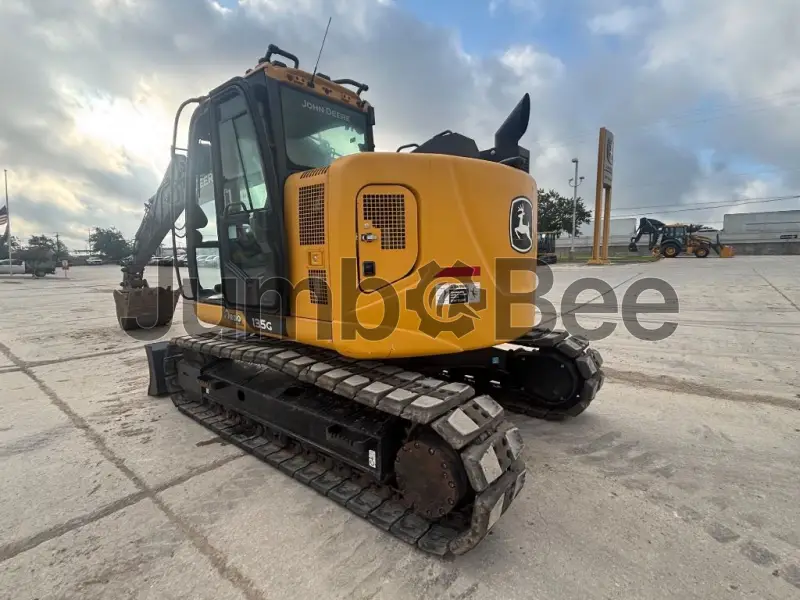

$78,000
101 hp
13900 kg
Isuzu 4JJ1
6550 hours
Phoenix, United States

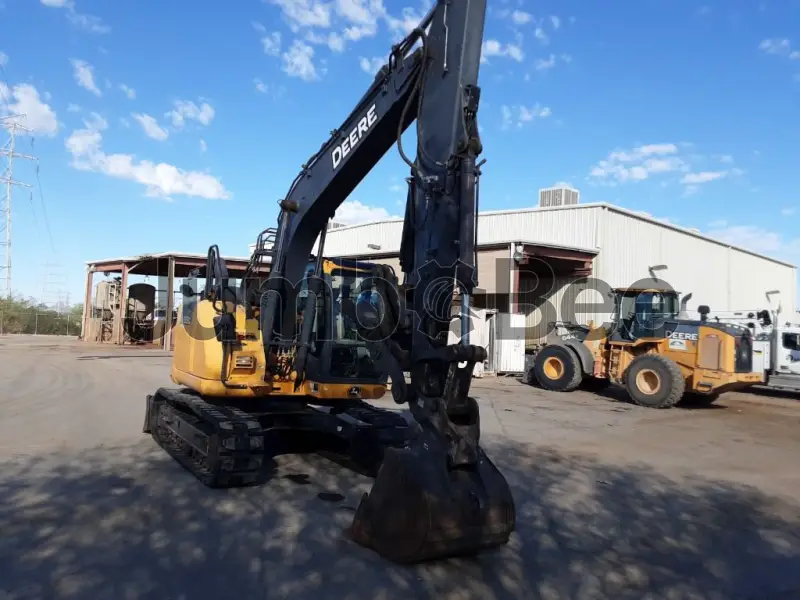

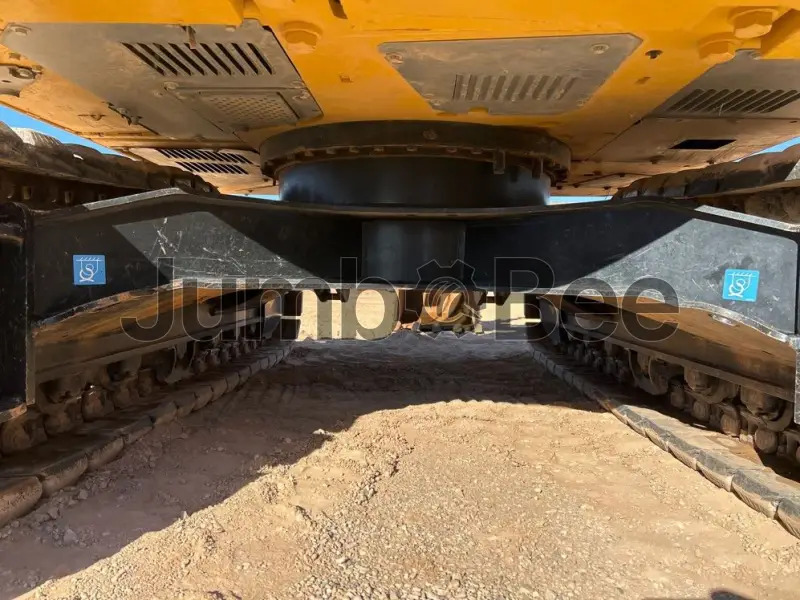

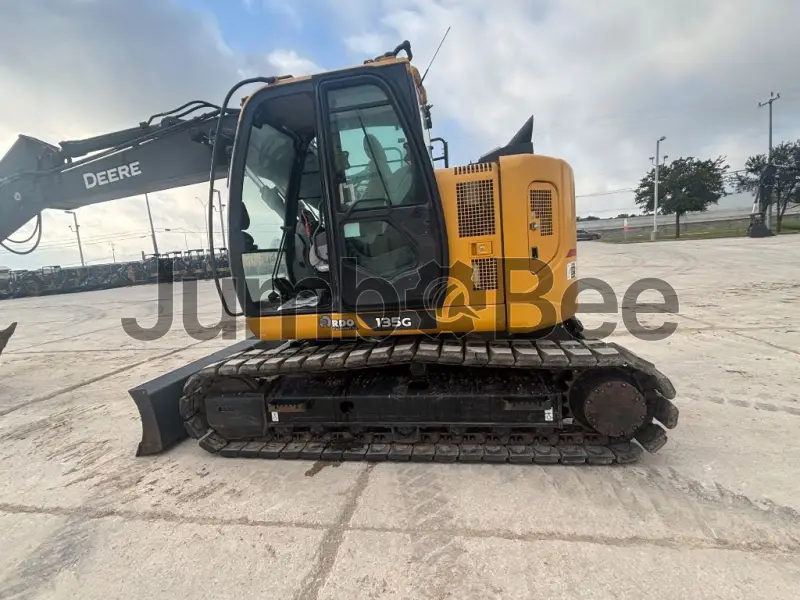

$127,790
101 hp
13900 kg
Isuzu 4JJ1
4476 hours
Phoenix, United States

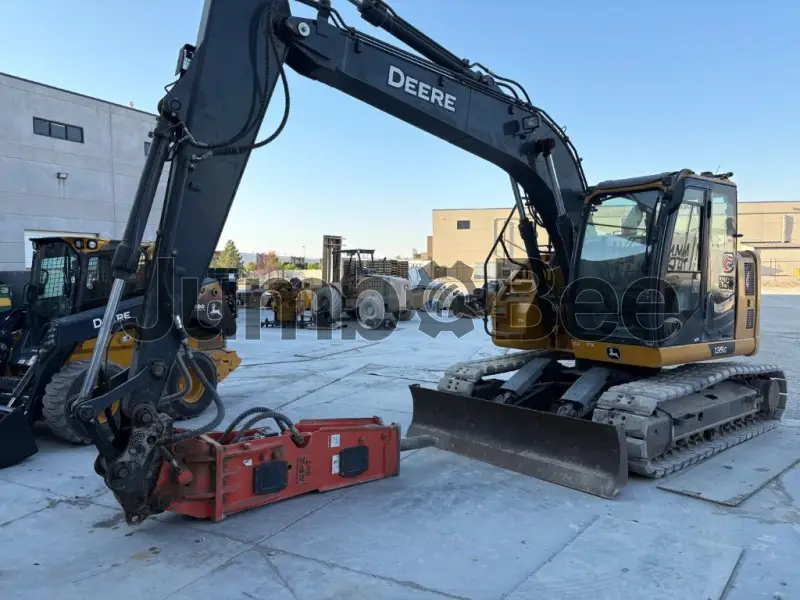

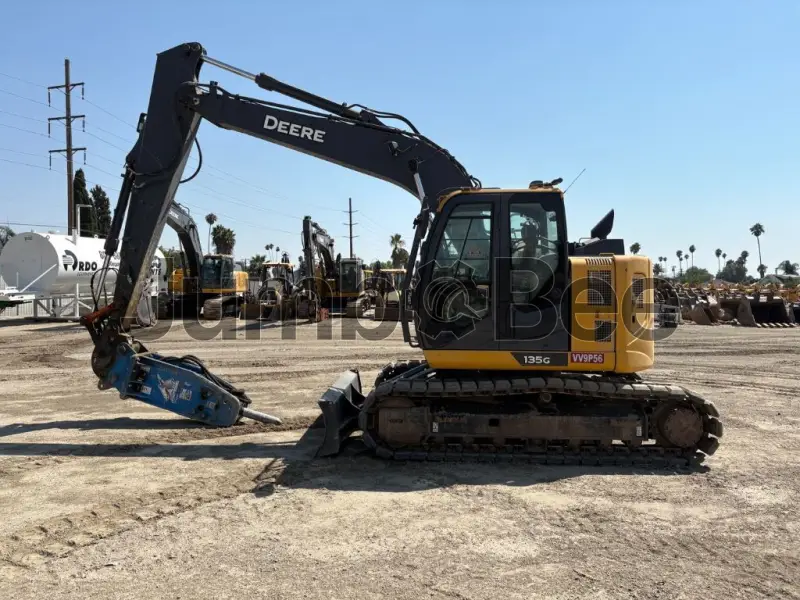

$183,090
101 hp
13900 kg
Isuzu 4JJ1
3401 hours
Salt Lake City, United States

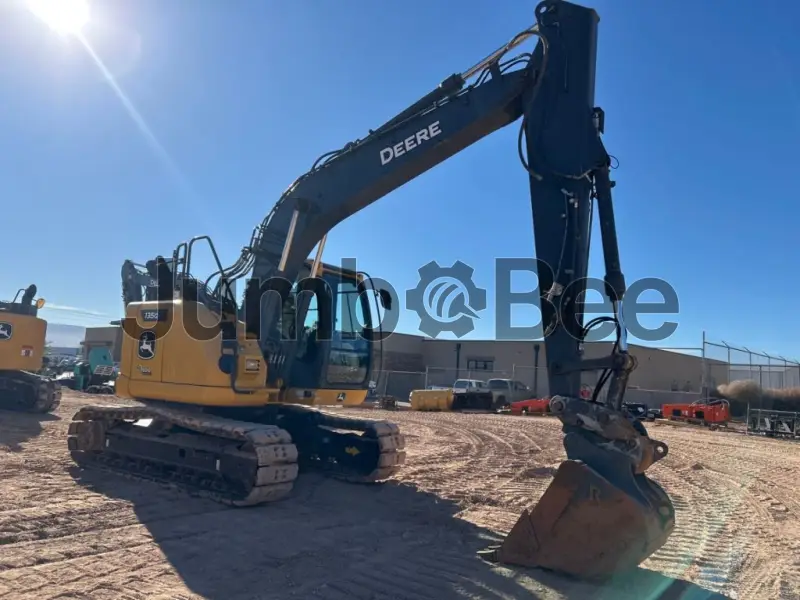

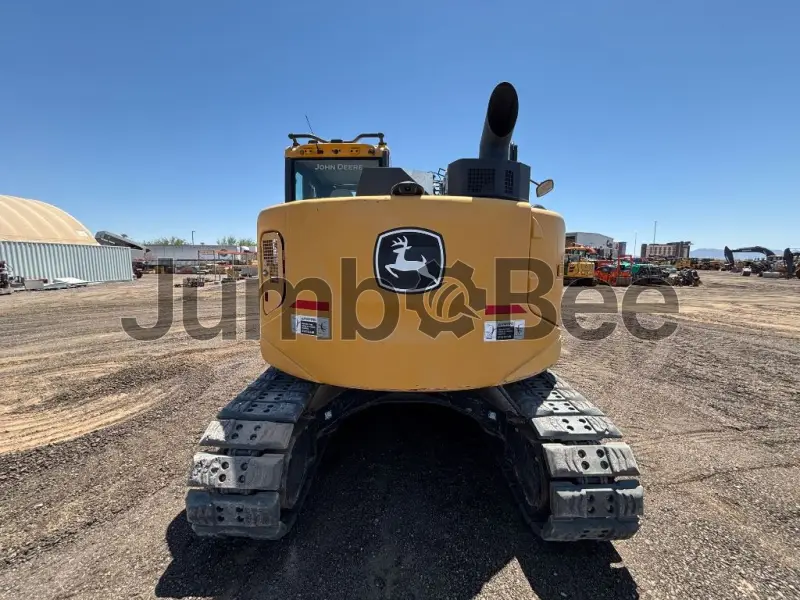

$170,830
101 hp
13900 kg
3 cu(m)
2719 hours
Salt Lake City, United States

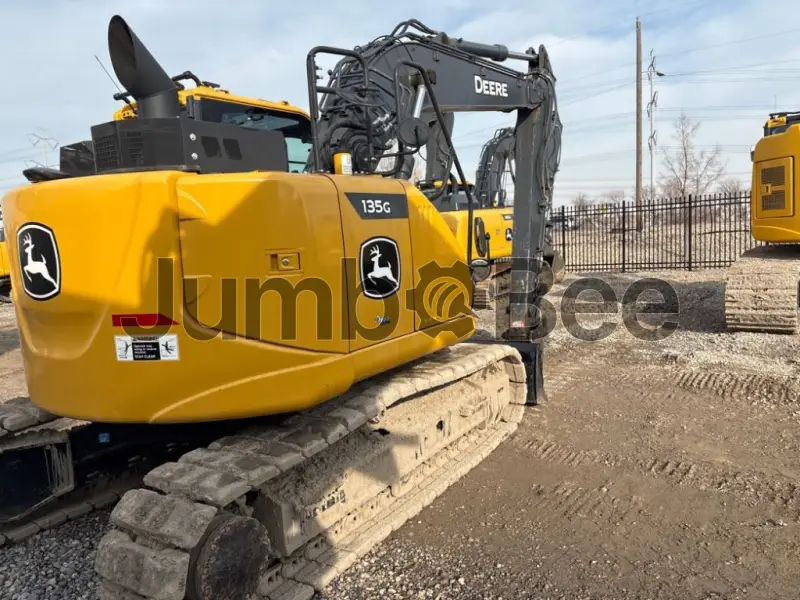

$163,140
110 kN
50
Gear pump
1530 hours
Salt Lake City, United States

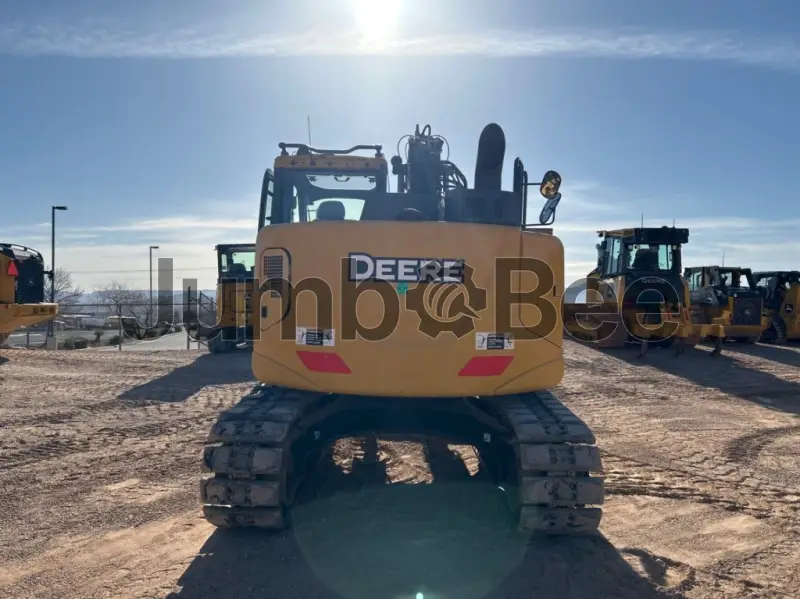

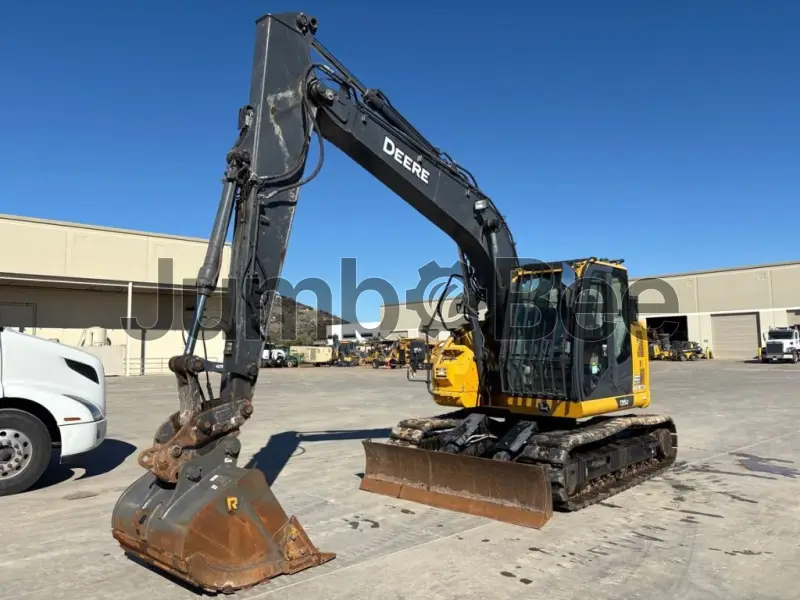

$197,000
210 L/min
34300 kPa
34300 kPa
450 hours
Bismarck, United States

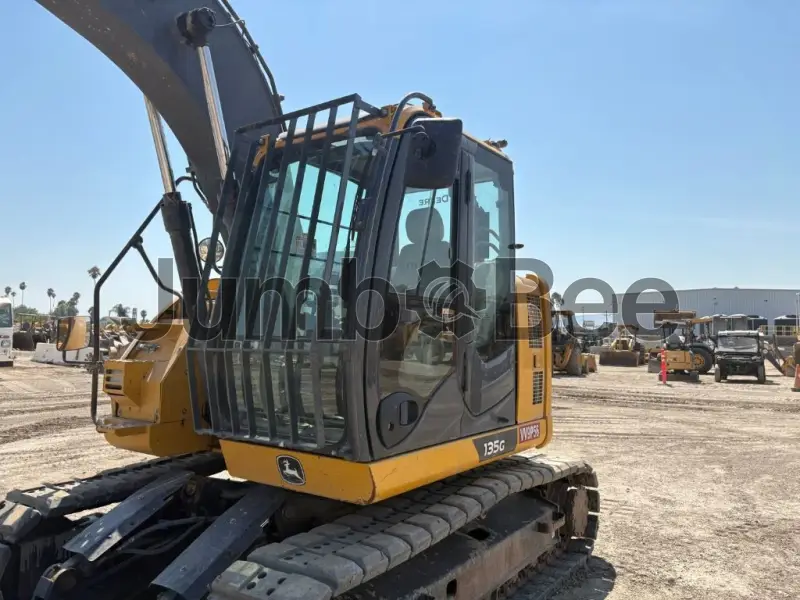

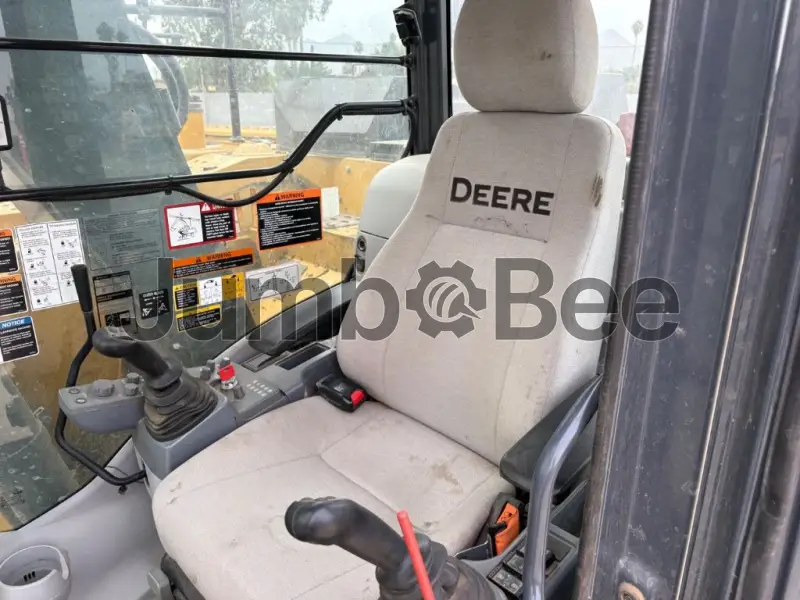

$152,170
101 hp
13900 kg
Isuzu 4JJ1
2933 hours
Riverside, United States

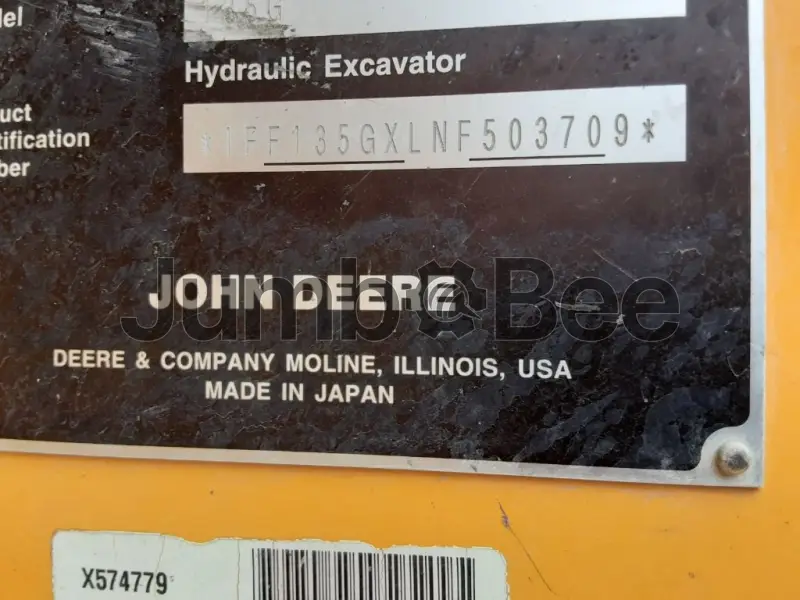

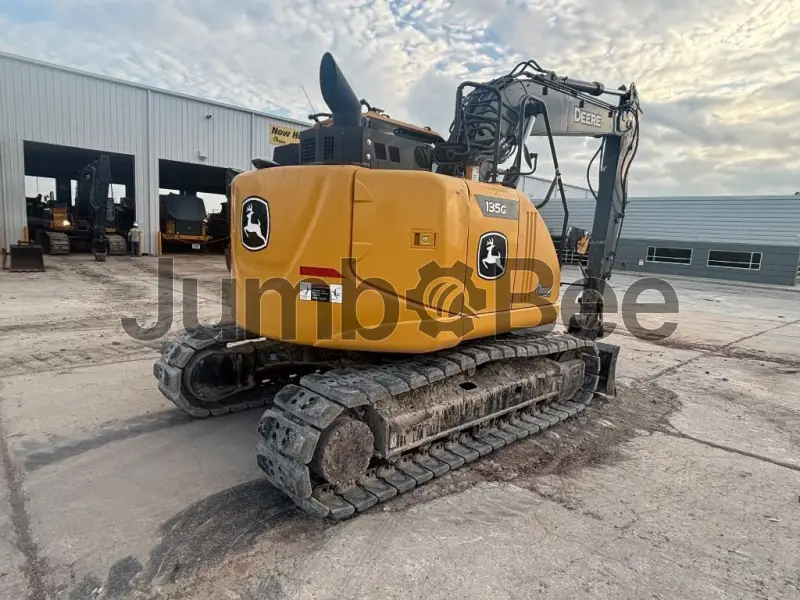

$212,800
101 hp
13900 kg
Isuzu 4JJ1
1092 hours
Dayton, United States
$186,740
1490 mm
101 hp
13900 kg
1779 hours
Phoenix, United States
$161,130
21 L
17 L
155 L
2477 hours
Irving, United States
$199,470
1490 mm
1990 mm
2490 mm
1725 hours
Chandler, United States
$186,850
101 hp
13900 kg
Isuzu 4JJ1
1903 hours
Lakeside, United States
$224,190
3 cu(m)
3 km/h
5 km/h
2978 hours
Lakeside, United States
$182,510
110 kN
101 hp
13900 kg
1785 hours
Rochester, United States
$159,650
36300 kPa
13900 kg
Isuzu 4JJ1
3098 hours
Irving, United States
$176,180
101 hp
13900 kg
Isuzu 4JJ1
2195 hours
Lakeside, United States
$193,880
101 hp
13900 kg
Isuzu 4JJ1
1669 hours
Dayton, United States
$170,170
101 hp
13900 kg
Isuzu 4JJ1
3194 hours
Irving, United States
$164,610
104 kN
101 hp
13900 kg
3670 hours
Lakeside, United States
$157,360
101 hp
13900 kg
Isuzu 4JJ1
4766 hours
Phoenix, United States
Compare John Deere 135G Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
5.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
4.0
Comfort & Ergonomics
5.0
Safety
5.0
Technology & Features
5.0
Douglas Mitchell

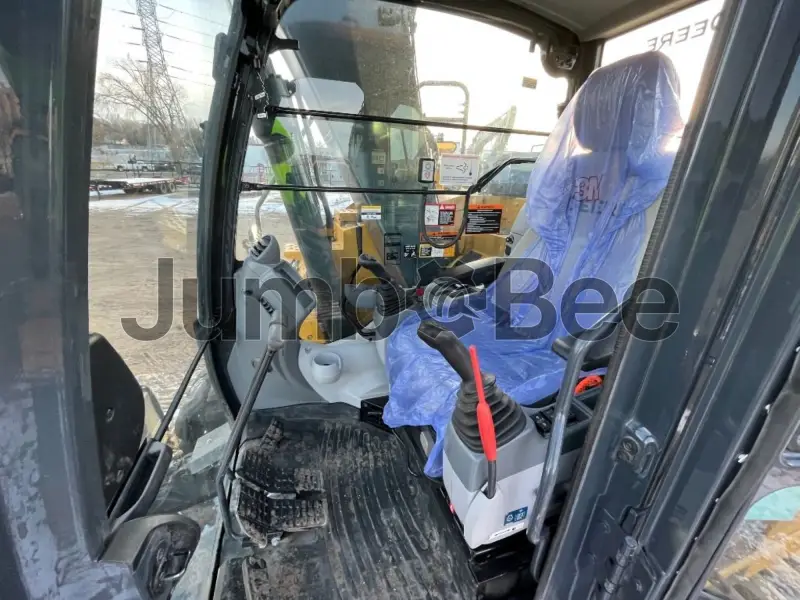

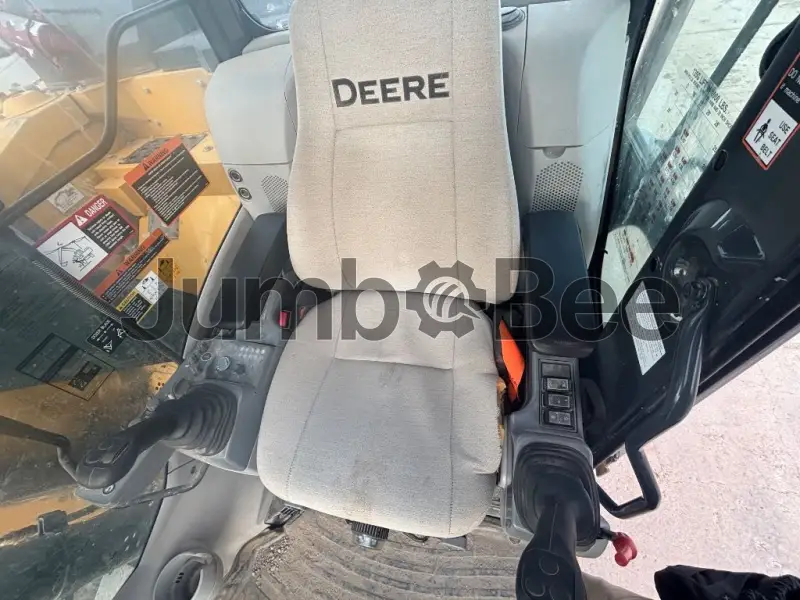

We use it for pipe work day to day. The cab stays comfortable over a 15-hour shift. About the only downside is that pin and bushing wear shows early if you skip maintenance.
