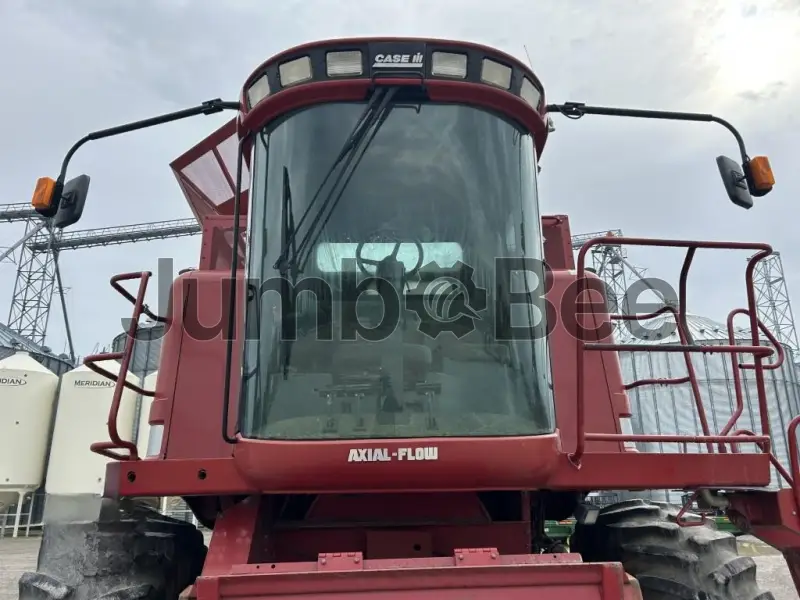

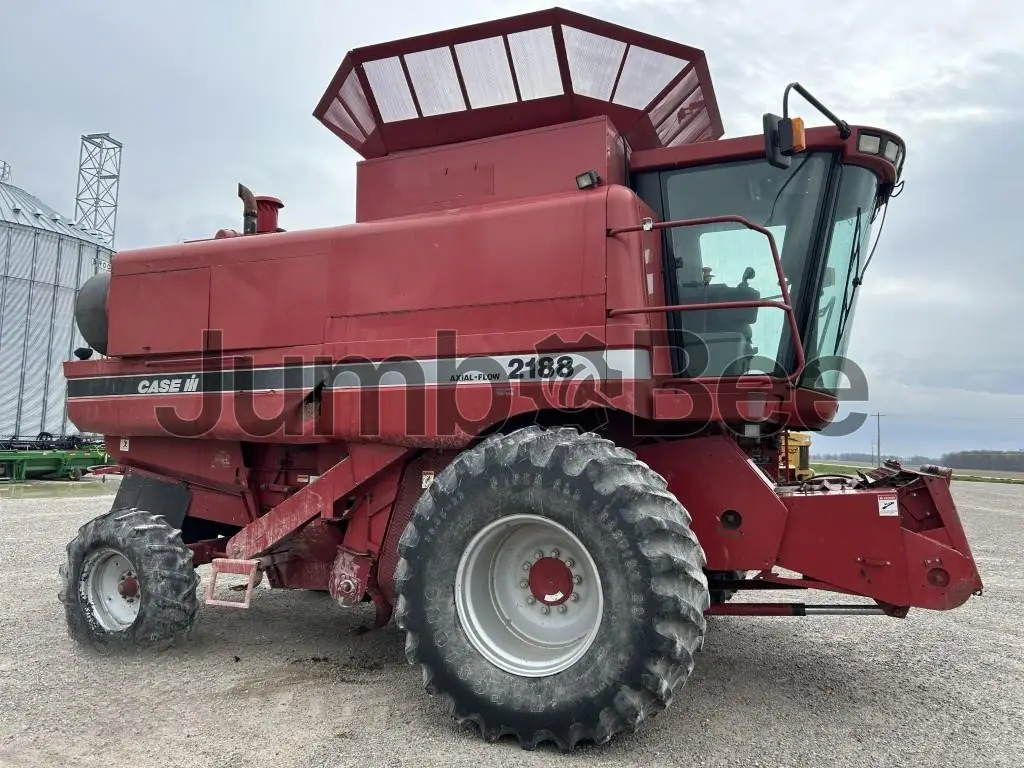

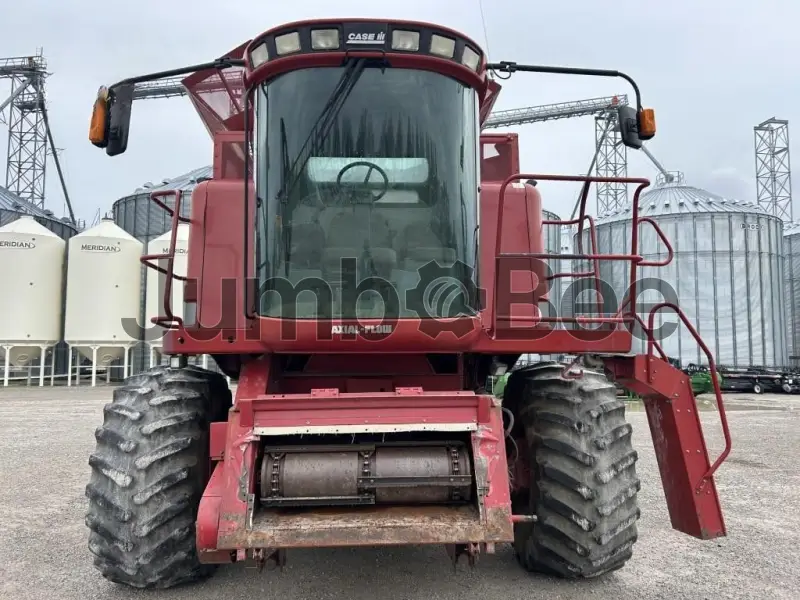

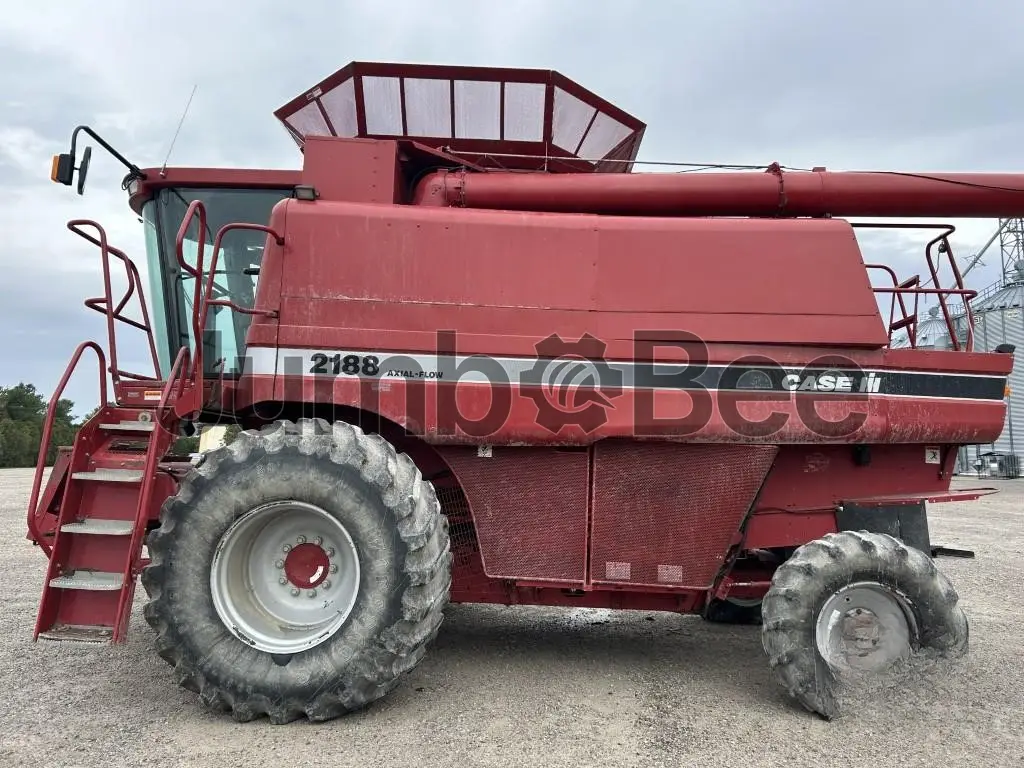

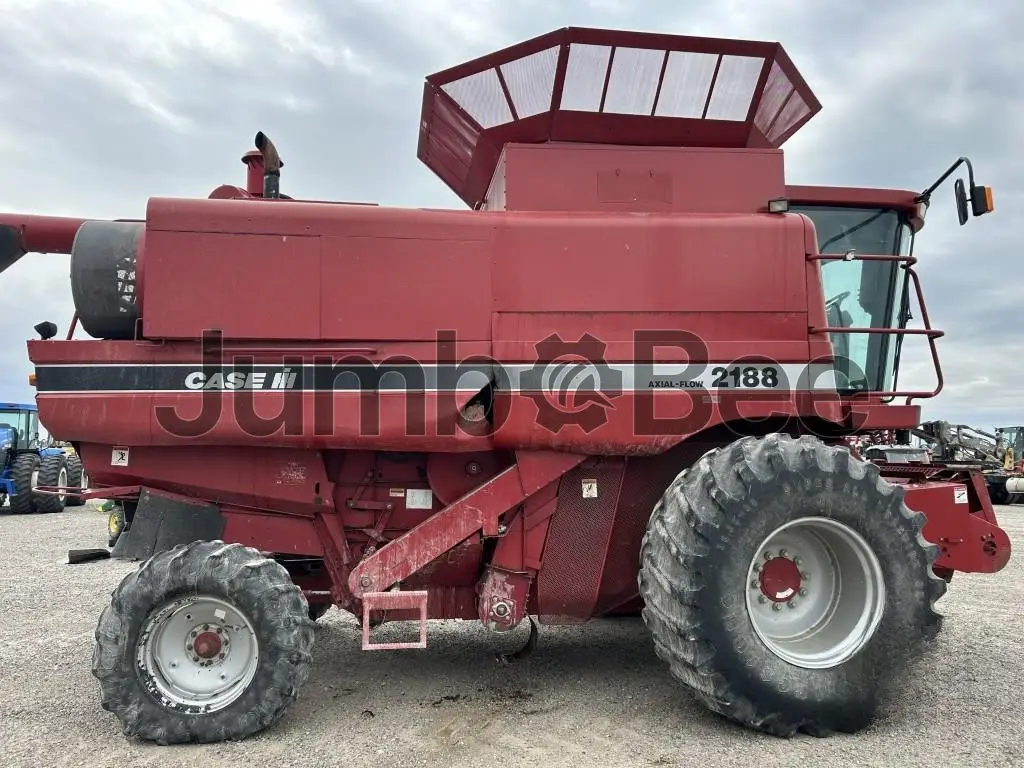

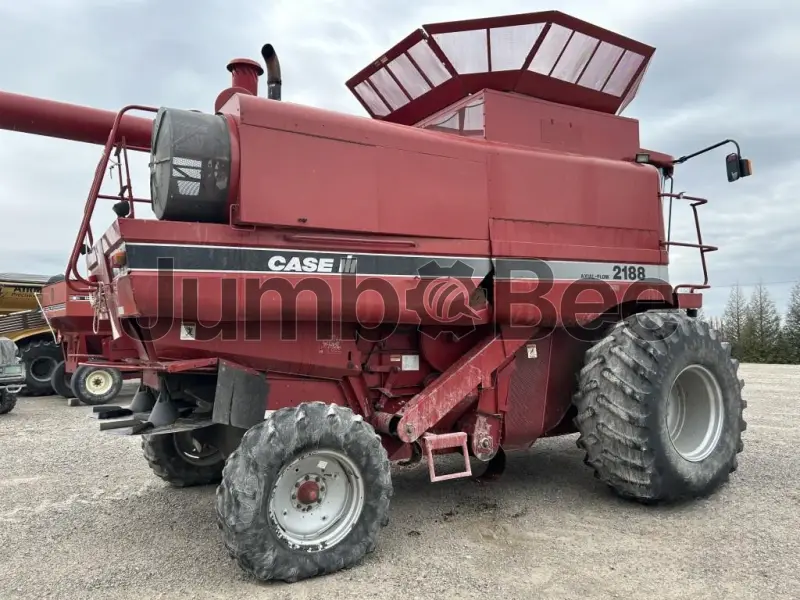

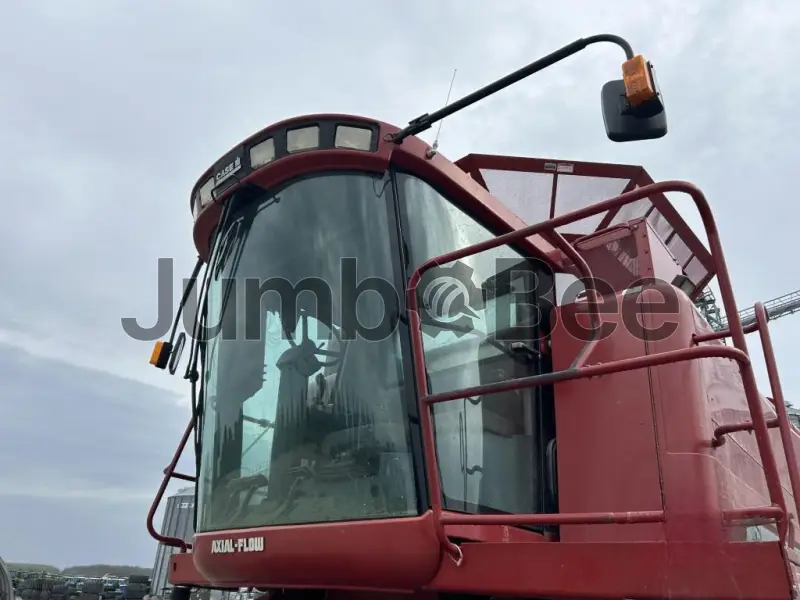

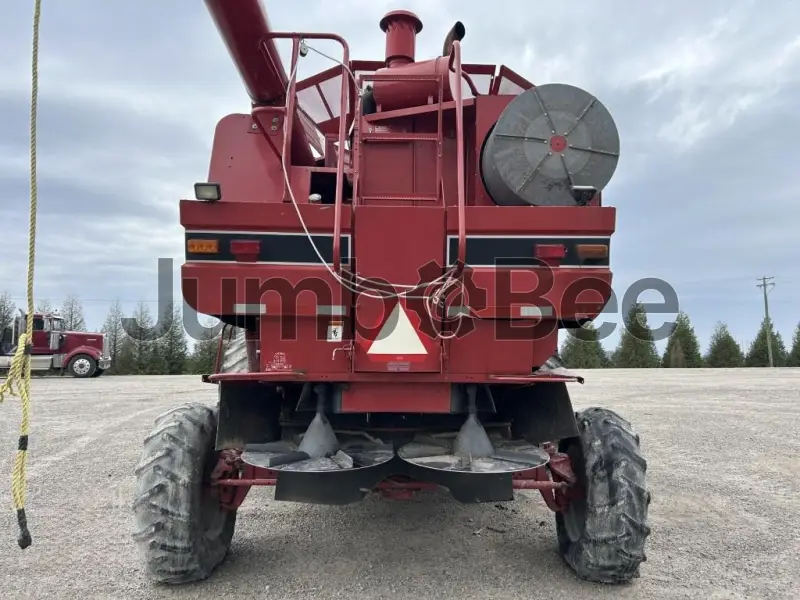

Case IH 2188 Combines
Case IH 2188
Average price
$14,900
5+
sold in last year
General overview
The Case IH 2188 is a self-propelled combine built in the United States for field harvesting. As an axial-flow combine, it is powered by a diesel engine rated at 206 kW (280 hp) with 8 L displacement. It was produced from 1995 to 1998.
It uses hydrostatic drive / hydraulic transmission and an Axial-Flow rotary separator. Available cleaning specifications include a sieve area of 5 m² (53.8 sq ft) and total cleaning area (louvered) of 5 m² (53.8 sq ft). The grain tank size is 7,380 L (1,950 US gal), and the model is listed with a 20–25 ft platform and a 6-row corn head. Air conditioning is listed as an additional option.
Year
1995, 1996, 1997, 1998
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
6,760 mm
~266.1 in
3,940 mm
~155.1 in
3,490 mm
~137.4 in
Engine Power
280 hp
Emission standard level
Tier 1
Peak unloading rate
3,200 L/min
Additional specifications
Engine type
diesel
Displacement
8 cu(m)
Grain tank size
7,380 L
Type of propulsion
self-propelled
Drive type
hydrostatic drive / hydraulic transmission
Separator type
Axial-Flow rotary
Sieve area
5 sq(m)
Total cleaning area (louvered)
5 sq(m)
Header
20–25 ft platform; 6-row corn head
Additional Options
Air conditioning
Combine Type
axial-flow combine
Case IH 2188 Combines Listings
$14,900
Diesel
Self-propelled
Hydrostatic drive / hydraulic transmission
Holgate, United States
Compare Case IH 2188 Combine to other combines
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH 2188?
No confirmed market price is supplied for the Case IH 2188. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Case IH 2188?
The supplied specifications list an axial-flow combine with an Axial-Flow rotary separator, self-propelled hydrostatic drive / hydraulic transmission, 7,380 L (1,949.6 US gal) grain tank, and optional air conditioning.
What type of engine does the 2188 use?
The Case IH 2188 uses a diesel engine.
How much horsepower does the 2188 have?
The Case IH 2188 is rated at 208.8 kW (280 hp) engine power.
What fuel does the Case IH 2188 use?
The Case IH 2188 uses diesel fuel.
What jobs is this Combines best suited for?
The Case IH 2188 is an axial-flow, self-propelled combine for harvesting grain crops. The supplied header information lists a 20–25 ft platform and a 6-row corn head, supporting platform and corn harvesting configurations.
What is the expected lifespan of the 2188?
The supplied data does not confirm an expected lifespan for the Case IH 2188. Assess maintenance records, operating condition, wear in the separator and cleaning system, and the condition of the engine and hydraulic drive.
What should a buyer check when purchasing a used Combines?
Check maintenance records, engine operation, hydrostatic drive / hydraulic transmission performance, and wear in the Axial-Flow rotary separator, sieves, and cleaning system. Inspect the grain tank, headers, tires, belts, electrical systems, and air conditioning if fitted.
