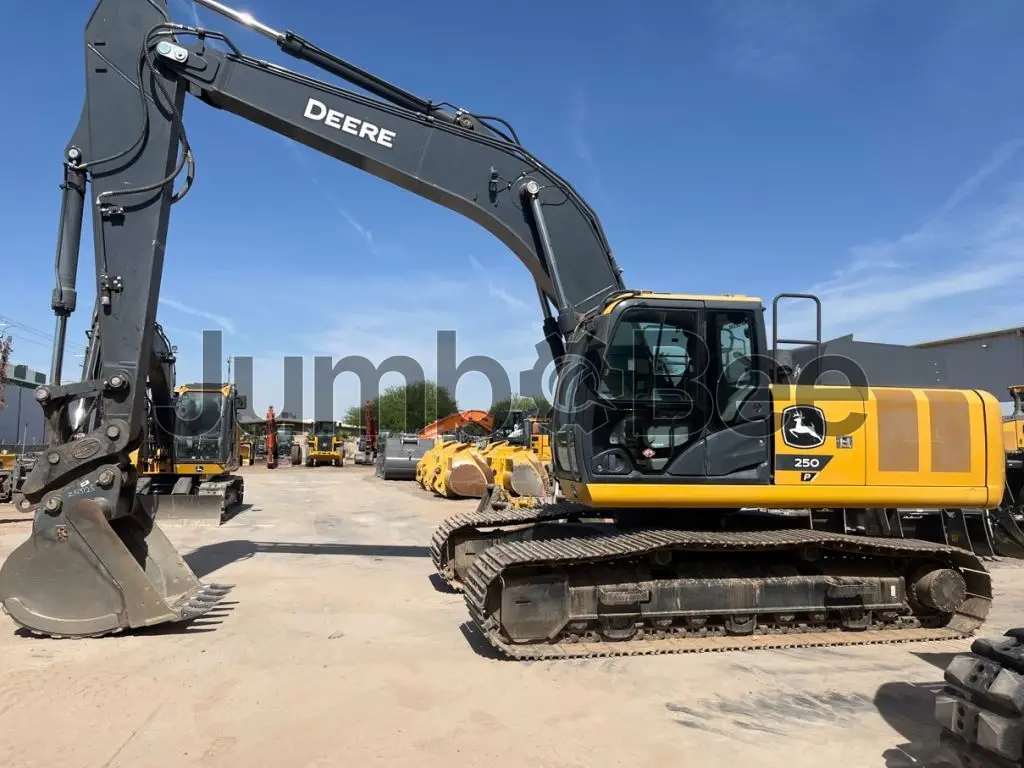

John Deere 250P Tracked Excavators
John Deere 250P
Average price
$257,236.67
5+
sold in last year
General overview
John Deere 250P is a hydraulic excavator for construction work, built in the United States and introduced for 2023 production. It has an operating weight of 27,500 kg (60,630 lb), a reference bucket capacity of 1 m³ (1.3 cu yd), and a John Deere PowerTech PVS 6.8 L engine rated at 138 kW (188 hp) for digging and loading tasks.
With a 6-cylinder, 6 L engine, Tier 4 Final emissions level, and a maximum rated flow of 448 L/min (118.3 gpm), the 250P is configured for hydraulic excavation work. Key working figures include a maximum digging depth of 7,610 mm (25 ft), maximum reach at ground level of 10,750 mm (35 ft 3 in), and bucket digging force - ISO of 189 kN (42,490 lbf).
Year
2023
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
10,410 mm
~409.8 in
3,140 mm
~123.6 in
3,390 mm
~133.5 in
Emission standard level
Tier 4 Final
Displacement
6 cu(m)
Fuel tank
500 L
Alternator output
300
Number of batteries
2
Cooling system
23 L
Number of Cylinders
6
Dimensions
1.06 mm
Width
3,390 mm
Operating Weight
27,500 kg
Reference Bucket Capacity
1 cu(m)
Drawbar Pull
214 kN
Maximum Rated Flow
448 L/min
System Relief Pressure
3,900 kPa
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
147 L
Engine Model
John Deere PowerTech PVS 6.8 L
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
38,000 kPa
Maximum Pressure - Travel
35,000 kPa
Maximum Pressure - Swing
32,400 kPa
Engine Oil
19 L
Hydraulic System - Including Tank
240 L
Shipping Height - Top of Cab
3,010 mm
Tail Swing Radius
3,140 mm
Track Gauge
2,590 mm
Maximum Digging Depth
7,610 mm
Stick working ranges
3,610 mm
Maximum Reach at Ground Level
10,750 mm
Maximum Cutting Height
10,560 mm
Maximum Loading Height
7,580 mm
Maximum Vertical Wall Digging Depth
6,740 mm
Bucket Digging Force - ISO
189 kN
Stick Digging Force - ISO
114 kN
Stick length
3,610 mm
Net Power (ISO 9249)
188 hp
Hydraulic Pump
1 gear
Maximum Operating Pressure
34,300 kPa
Additional specifications
Rated power
140 kW
Ground Pressure
40 kPa
Additional Options
Optional camera array with LED surround, hydraulic coupler ready, grade-reference-ready, cold-weather package, debris package, multiple trim packages

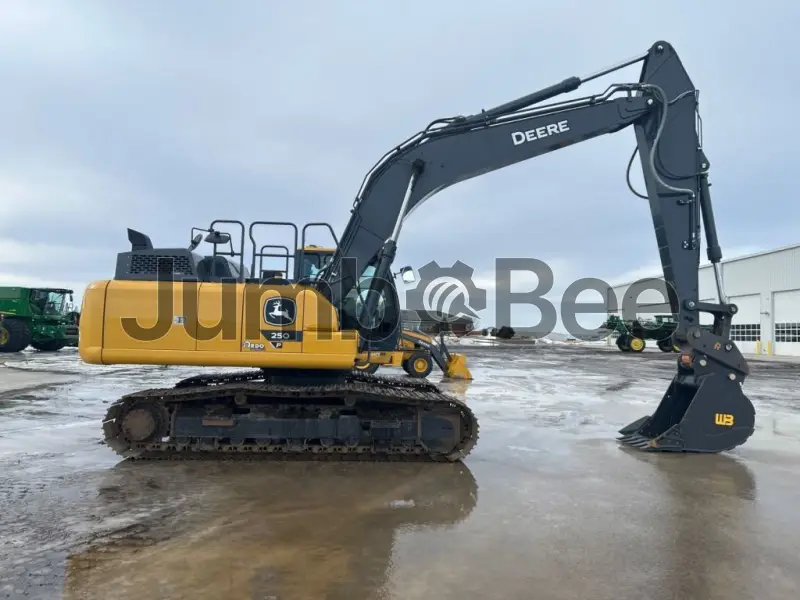

John Deere 250P Tracked Excavators Listings

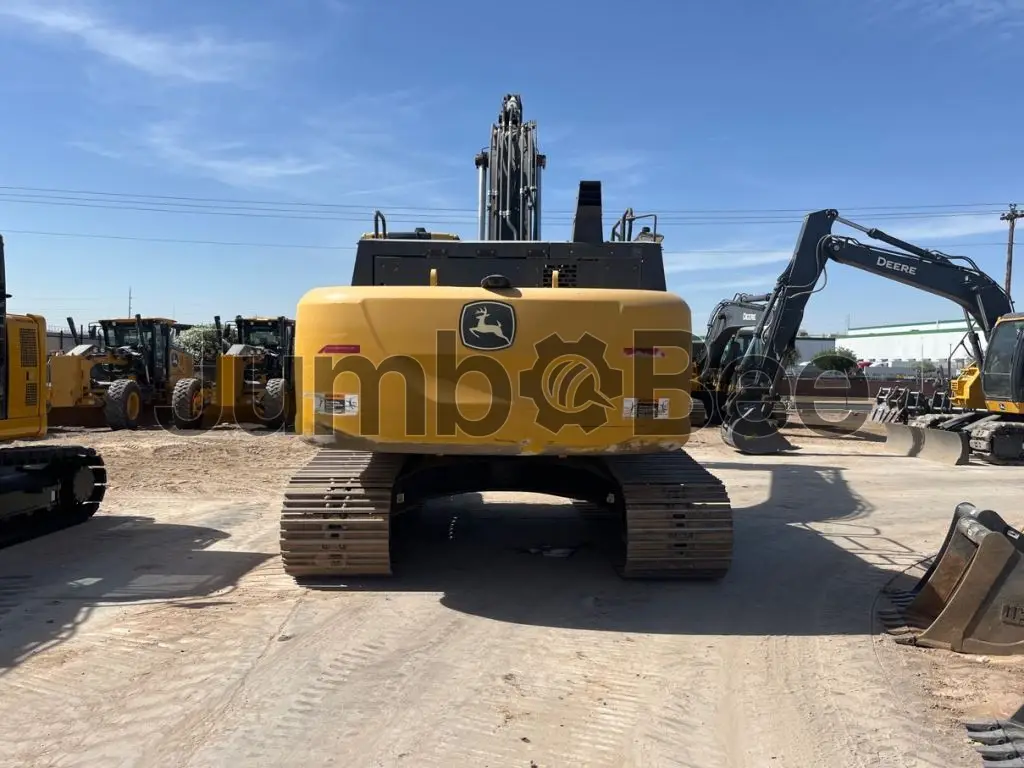

$240,870
Optional camera array with LED surround, hydraulic coupler ready, grade-reference-ready, cold-weather package, debris package, multiple trim packages
189 kN
3610 mm
1399 hours
Chandler, United States

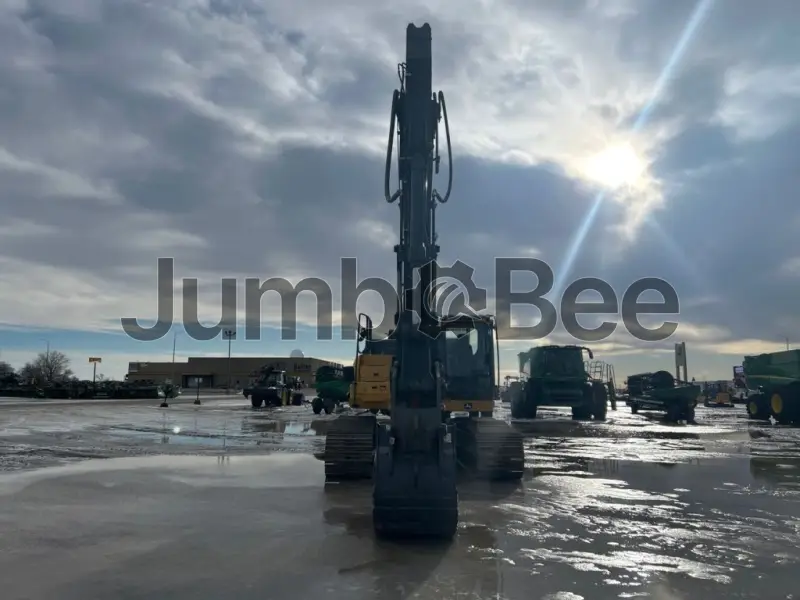

$247,940
6
6 cu(m)
3 km/h
1690 hours
Rock Springs, United States

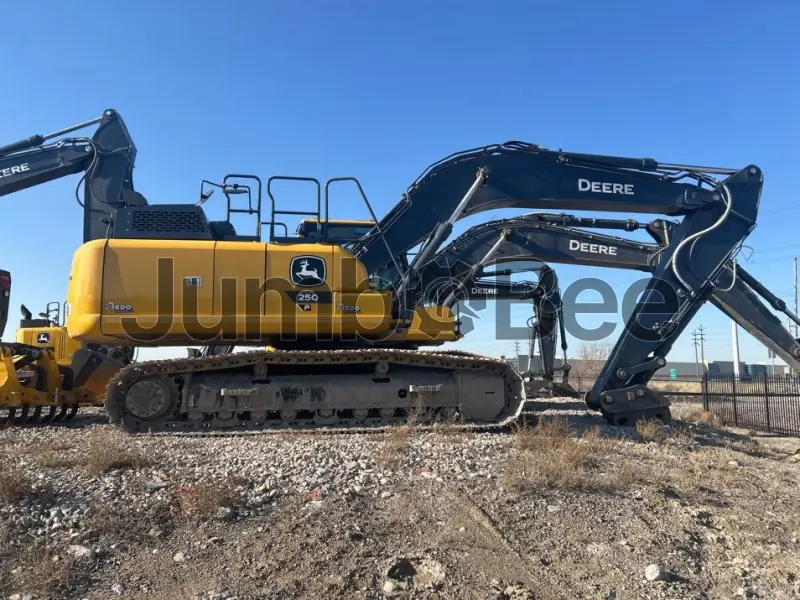

$292,780
1 gear
1 cu(m)
2 cu(cm)
1782 hours
Minot, United States

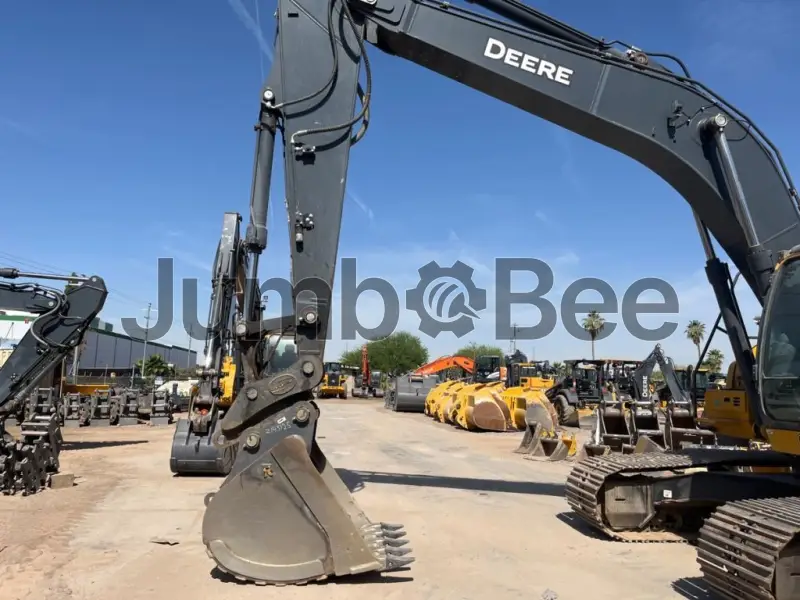

$219,870
John Deere PowerTech PVS 6.8 L
Tier 4 Final
3 km/h
2104 hours
Mckinney, United States

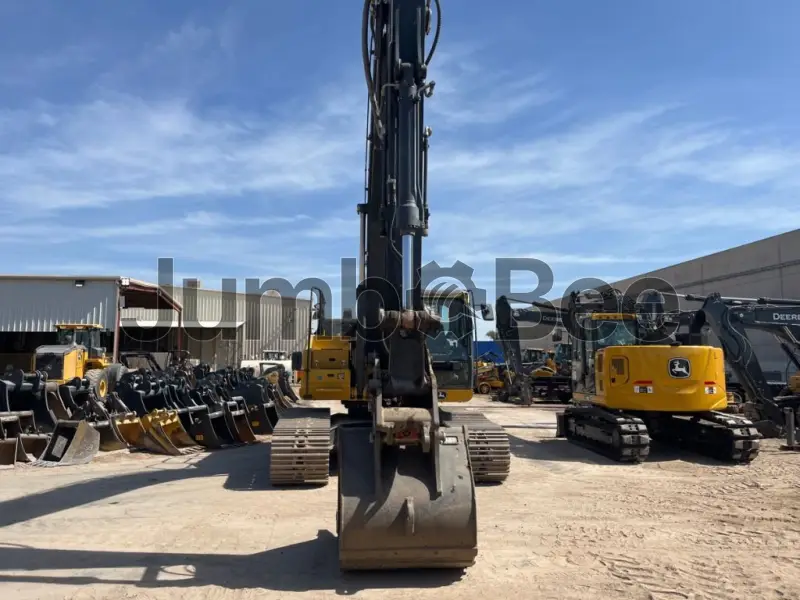

$249,560
