Hagie STS12 Self-Propelled Sprayers
Hagie STS12
Average price
$383,153
5+
sold in last year
General overview

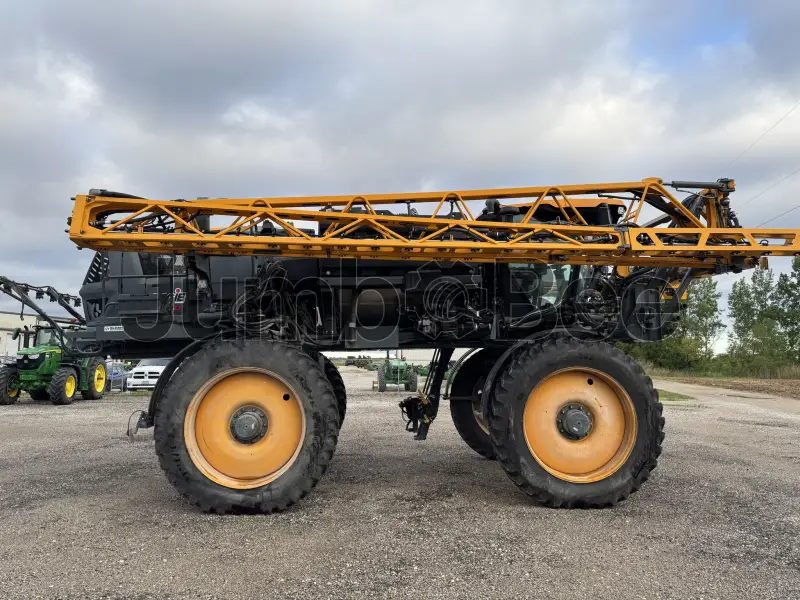

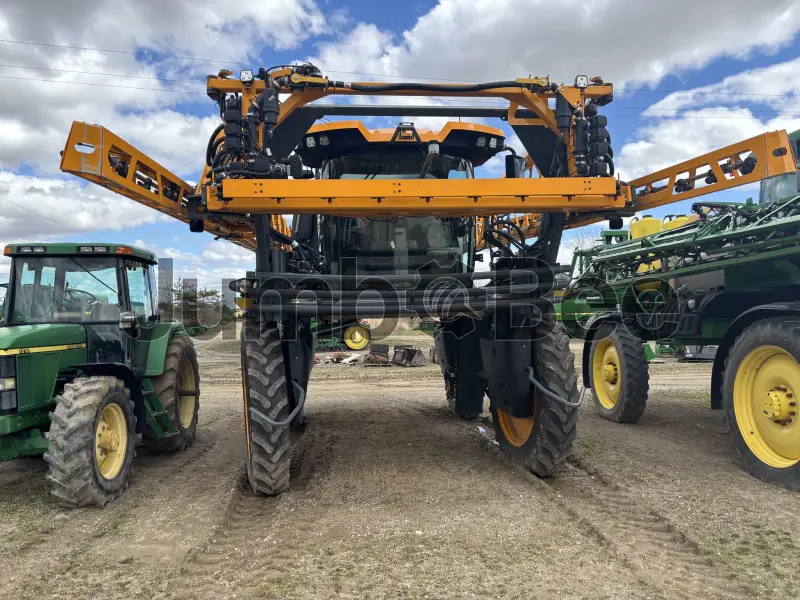

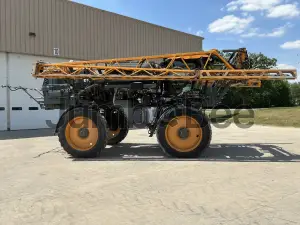

Hagie STS12 is a self-propelled sprayer for field crop application. It is powered by a 221 kW (300 hp) six-cylinder engine with Final Tier 4 (FT4) emissions compliance and a 4,542 L (1,200 US gal) solution system, placing it in a high-capacity class for liquid field application work.
The model uses a hydrostatic, full-time 4WD drivetrain with infinitely variable shifting and independent air-ride suspension. Operating equipment includes a centrifugal, hydraulically driven solution pump, a 380 L (100 US gal) rinse tank, hydraulic tread adjust from 120–152 in, and boom configurations with 9 sections for 120/132 ft. Transport speed reaches 56 km/h (34.8 mph), and ground clearance with standard tires is 183 cm (6 ft).
Year
2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,350 mm
~131.9 in
3,810 mm
~150 in
8,310 mm
~327.2 in
12,546 kg
~27,659.2 lb
Solution System Capacity
4,542 L
Length Options
36.576 m
Additional specifications
Emission standard level
Final Tier 4 (FT4)
Displacement
414 cu(in)
Fuel tank
510 L
Number of Cylinders
6
Transport speed
56 km/h
Rated power
300 hp
Rinse tank capacity
380 L
Breakaway length
457 cm

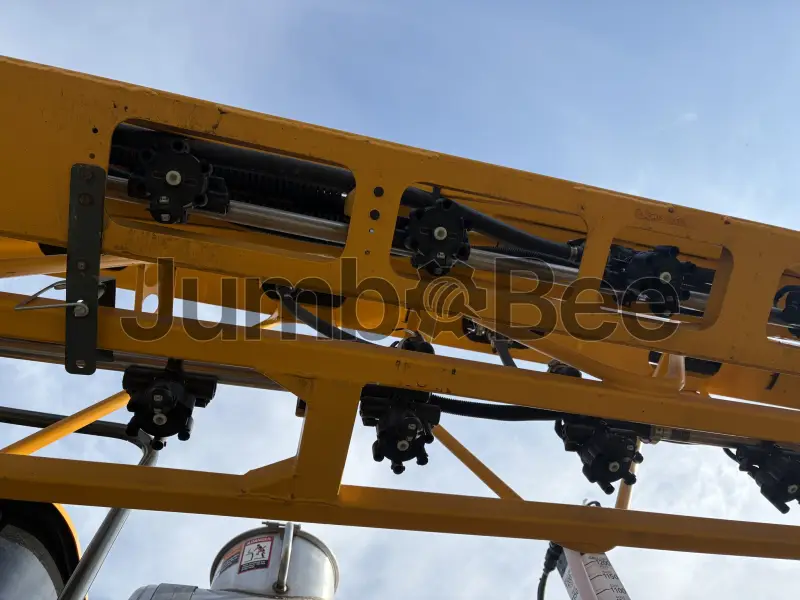

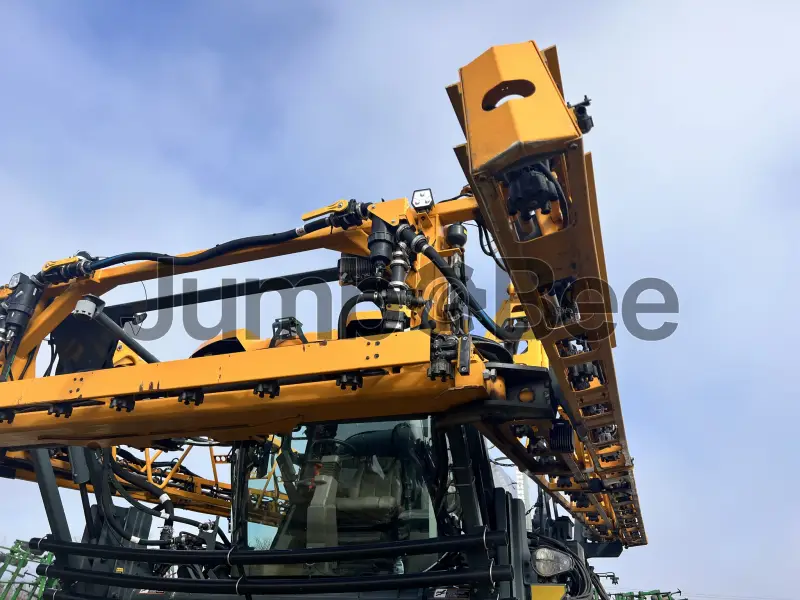

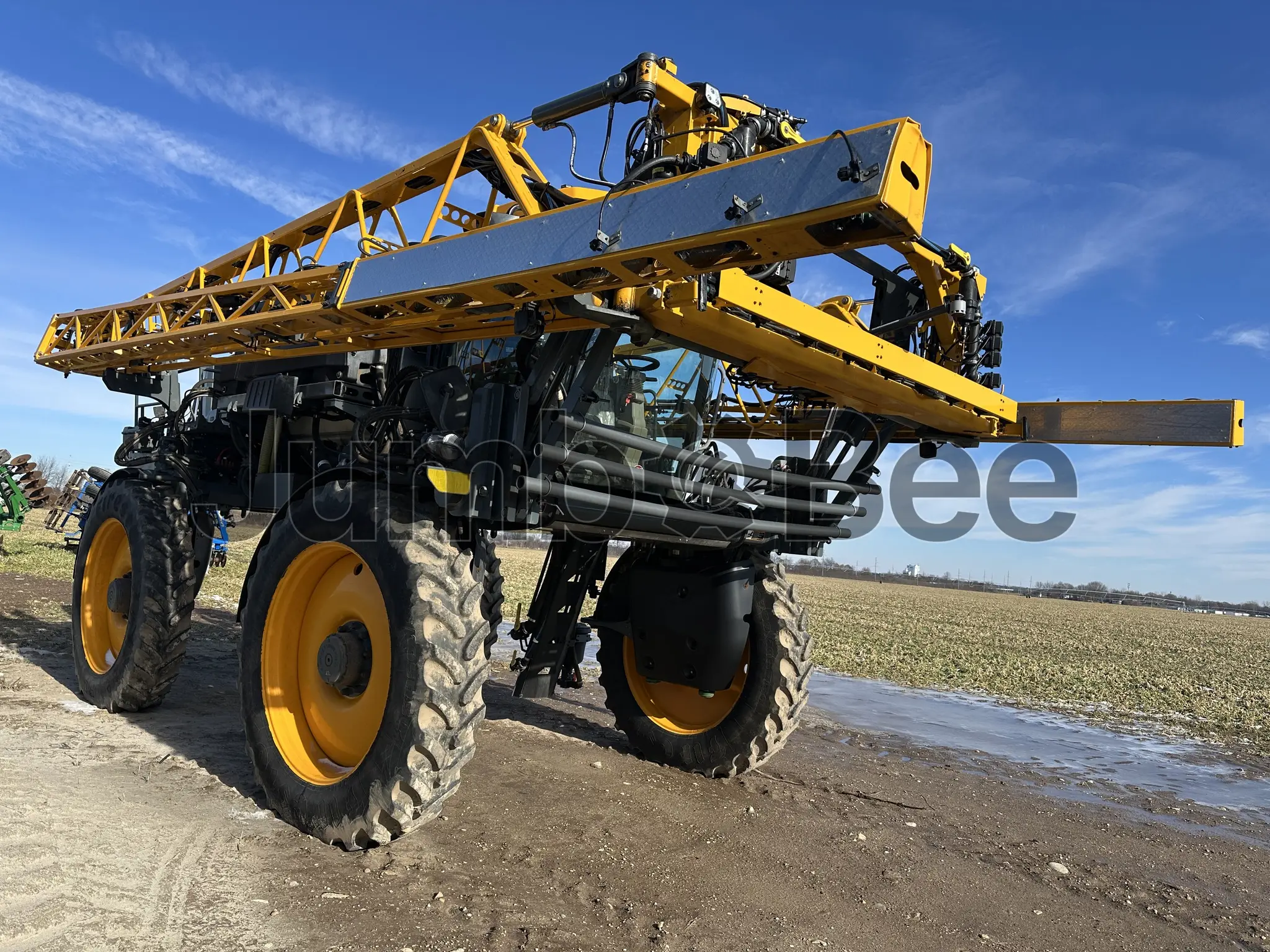

Boom sections
9 sections for 120/132 ft
Type Drive
Hydrostatic, full-time 4WD
Shifting
Infinitely variable
Hydraulic reservoir capacity
190 L

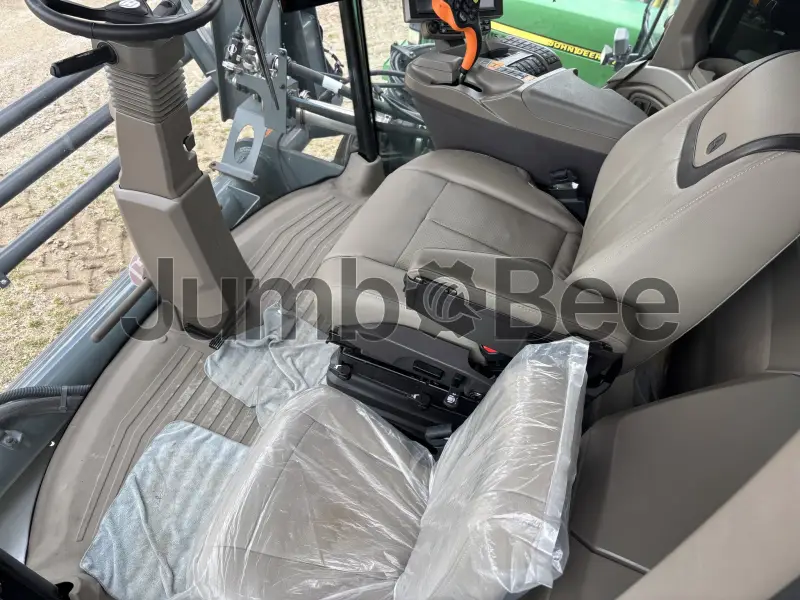

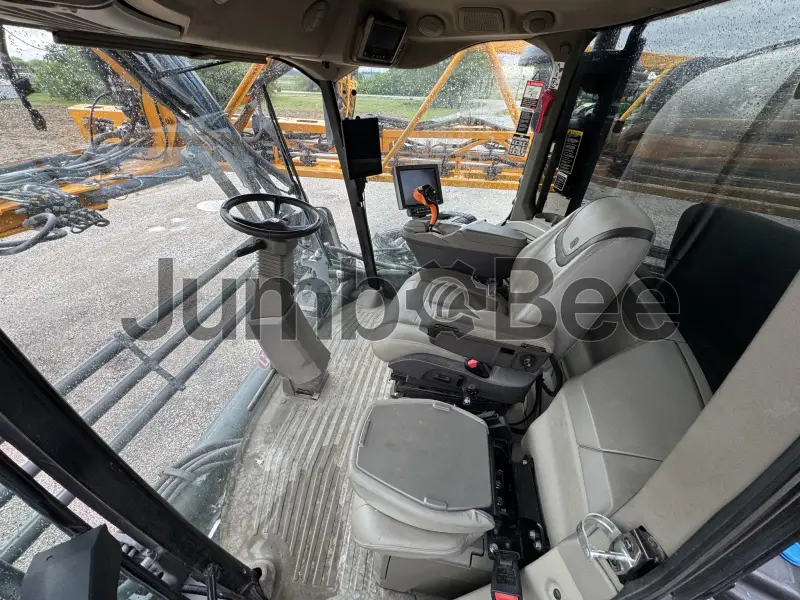

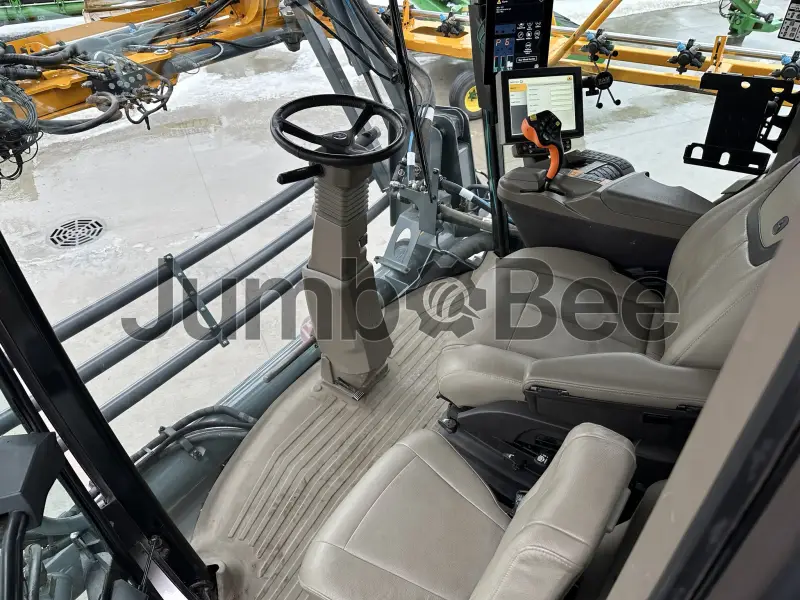

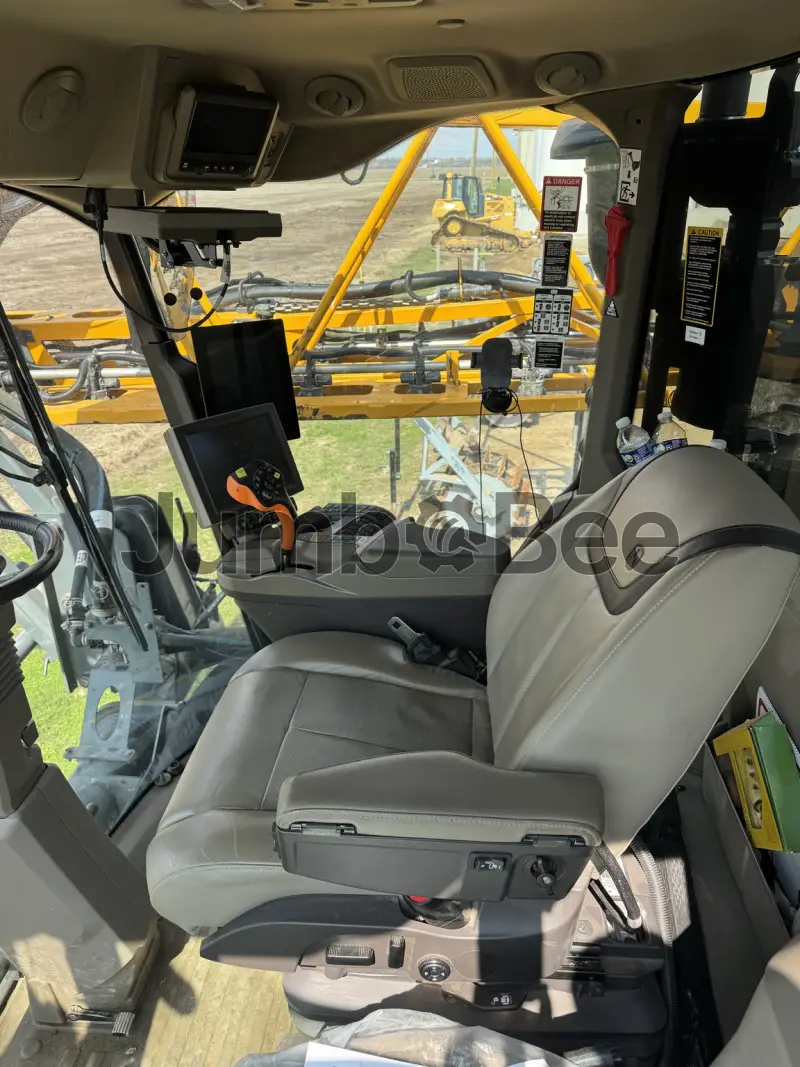

Operator seat description

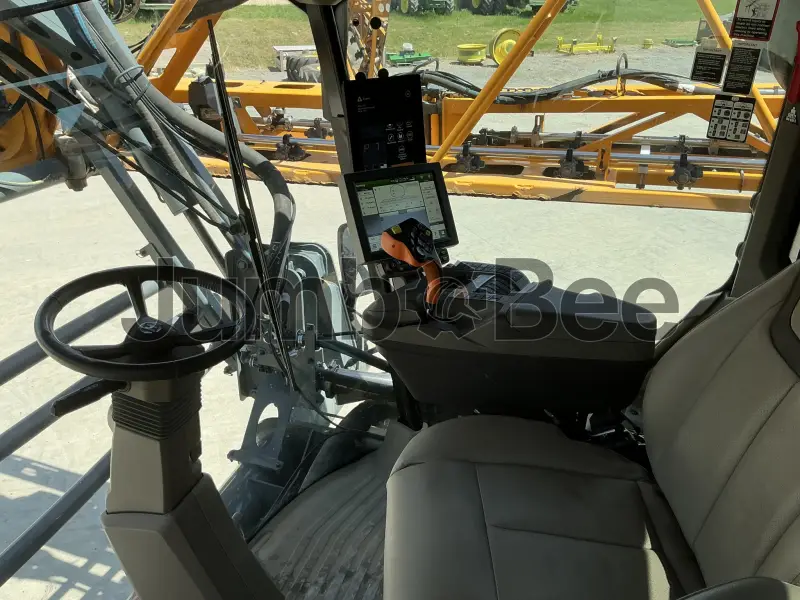

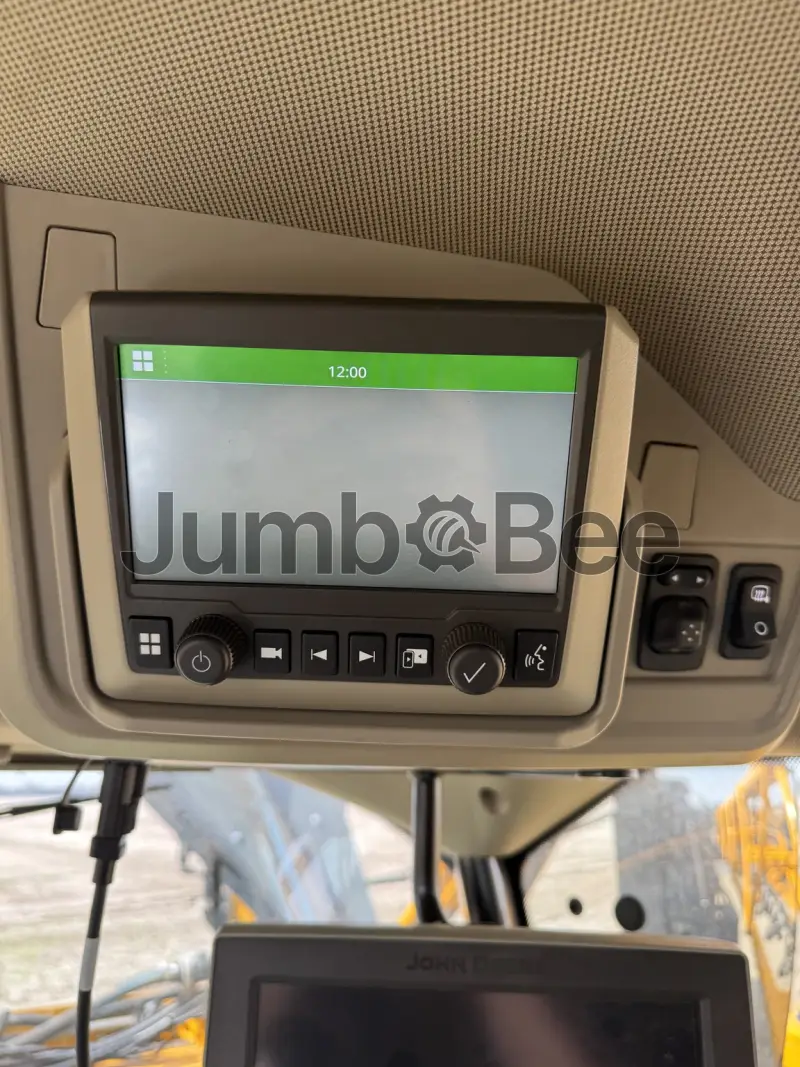

JD Gen4 touchscreen (Premium 3.0), leather Ultimate cab, integrated StarFireâ„¢, JDLinkâ„¢, JD controls

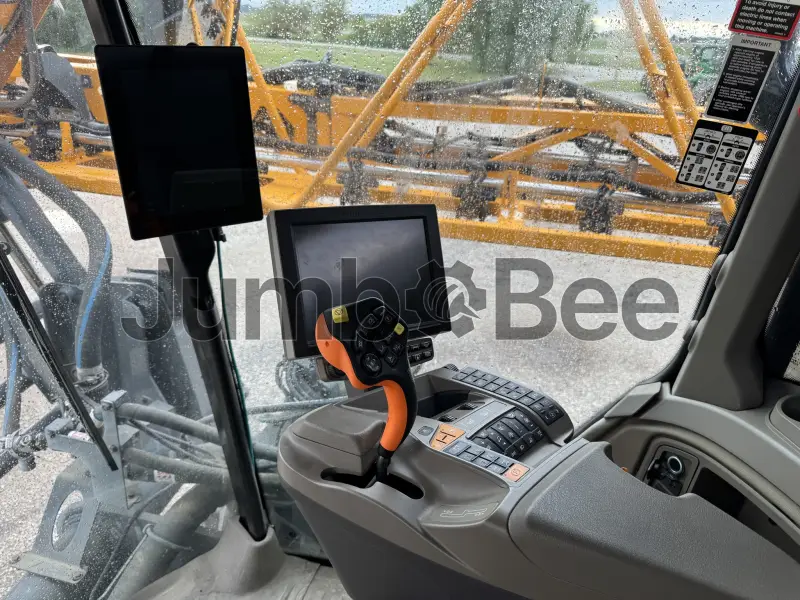

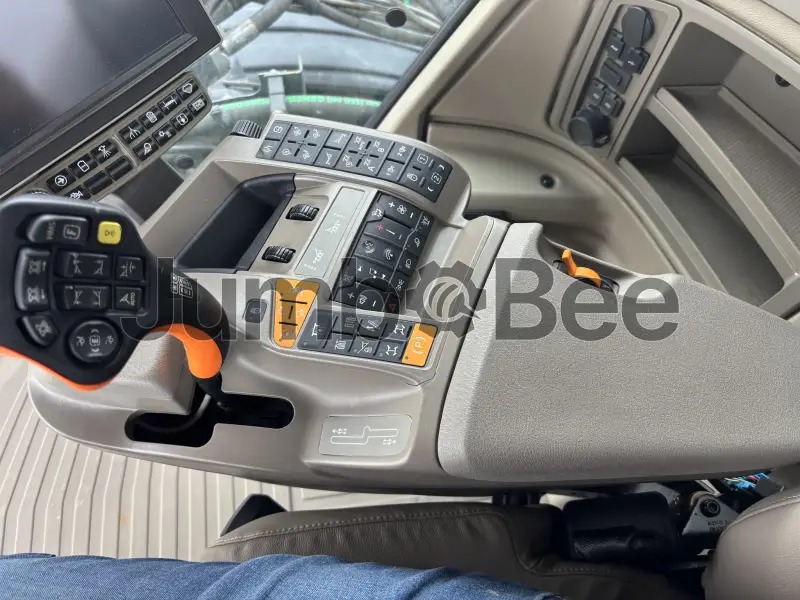

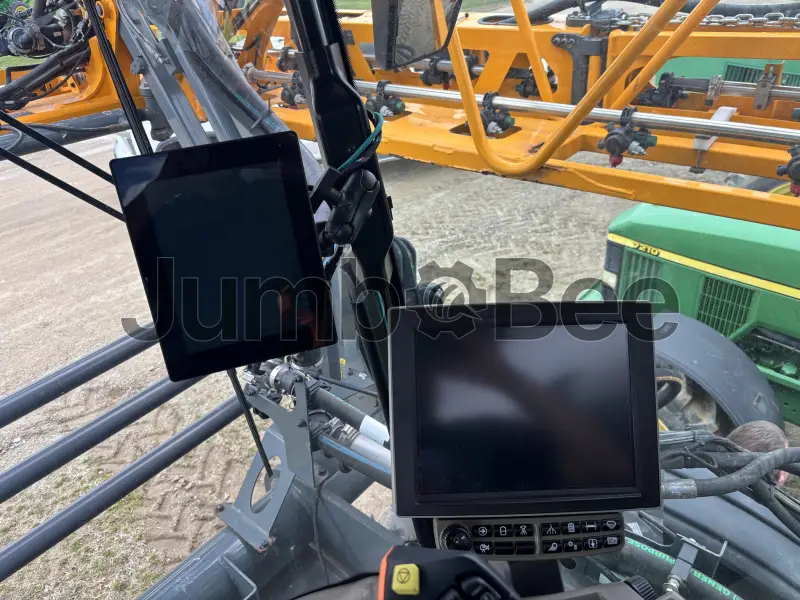

Sprayer control
John Deere/Raven, Gen4 touchscreen with ExactApply, optional section & flow control
Suspension
Independent air-ride suspension

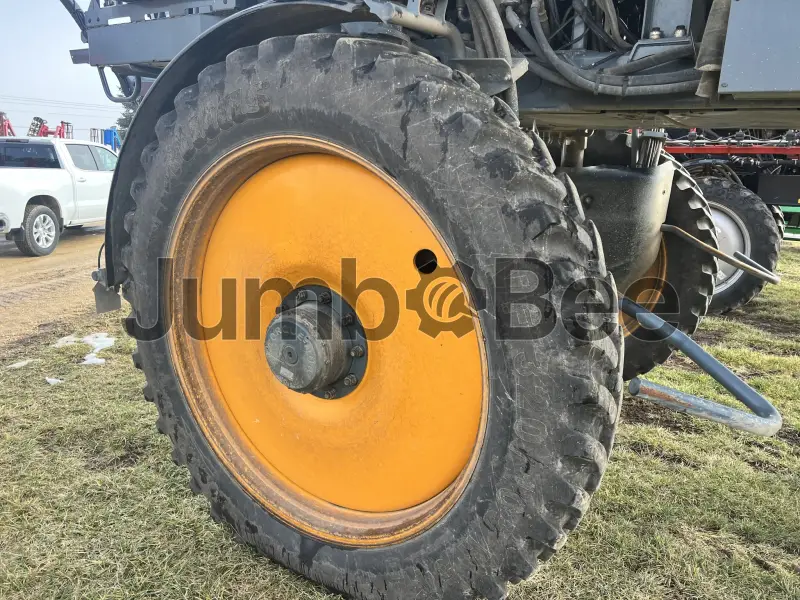

Ground clearance with standard tires
183 cm
Factory-installed
380/105R50 narrow row-crop

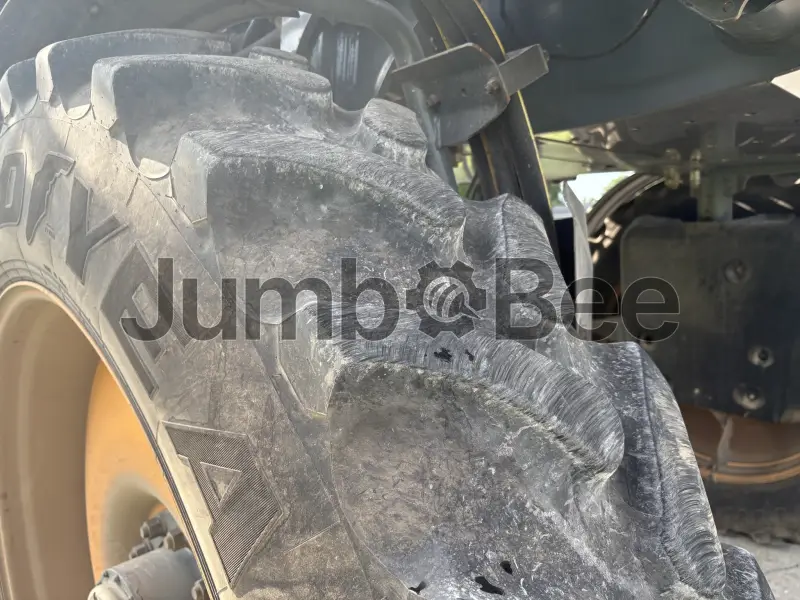

Tire Options
Flotation tires 680/55R42
Turning radius
549 cm

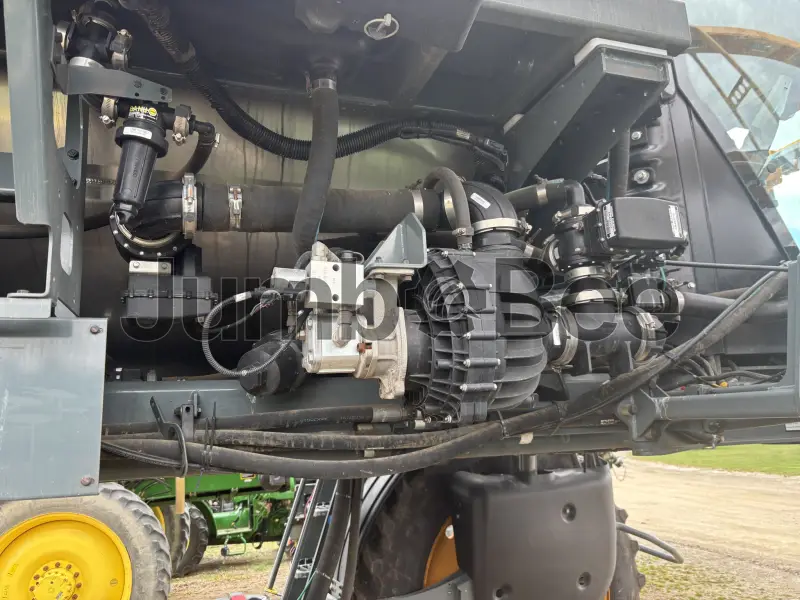

Solution pump
Centrifugal, hydraulically driven
Hydraulic Tread Adjust
Yes, hydraulic tread adjust 120–152 in

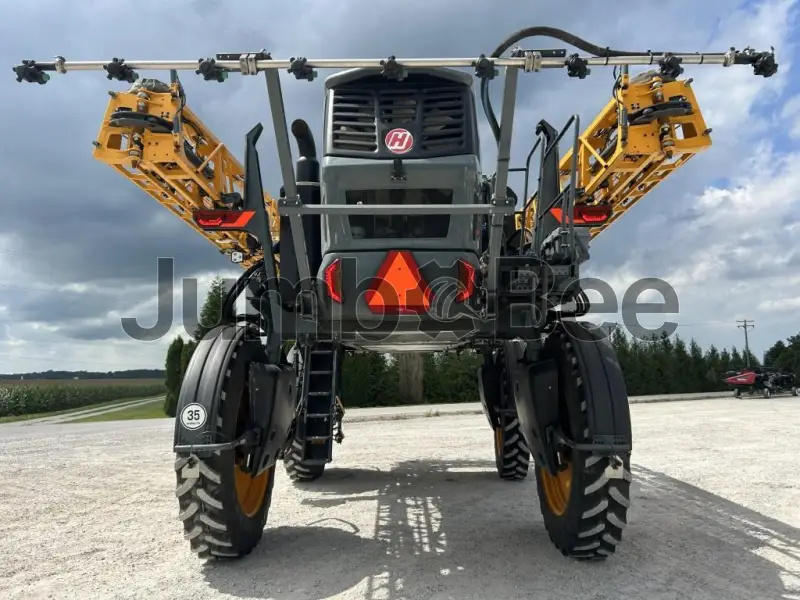

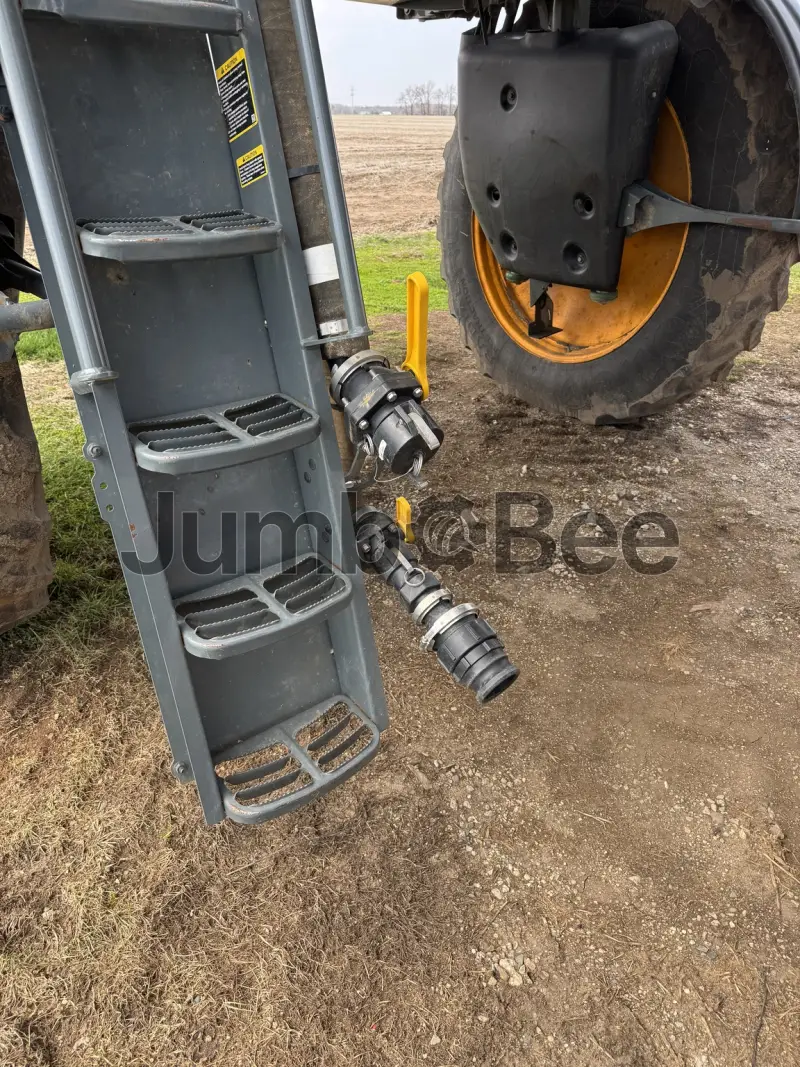

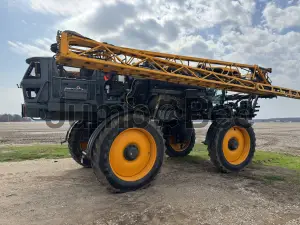

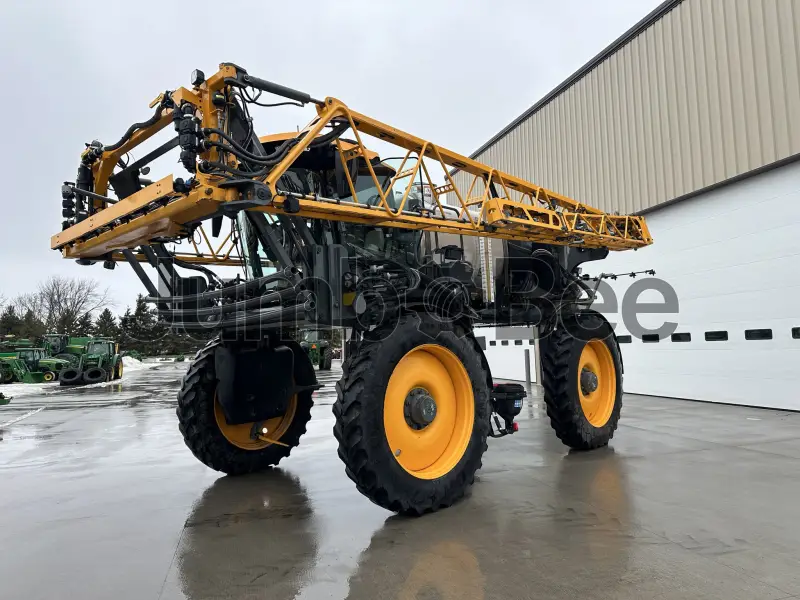

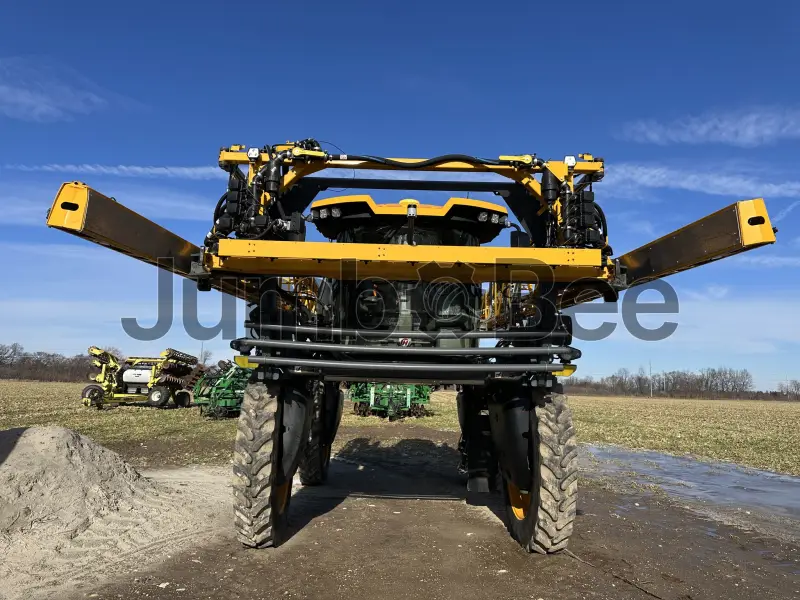

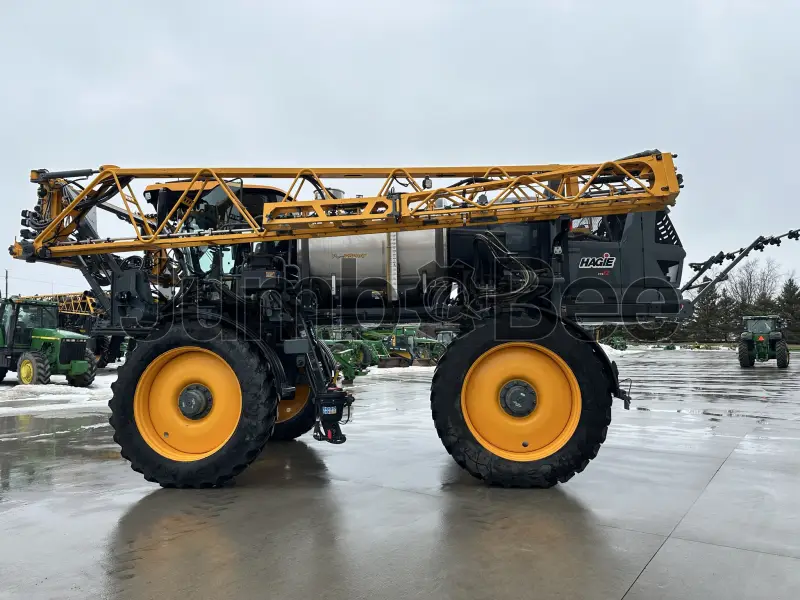

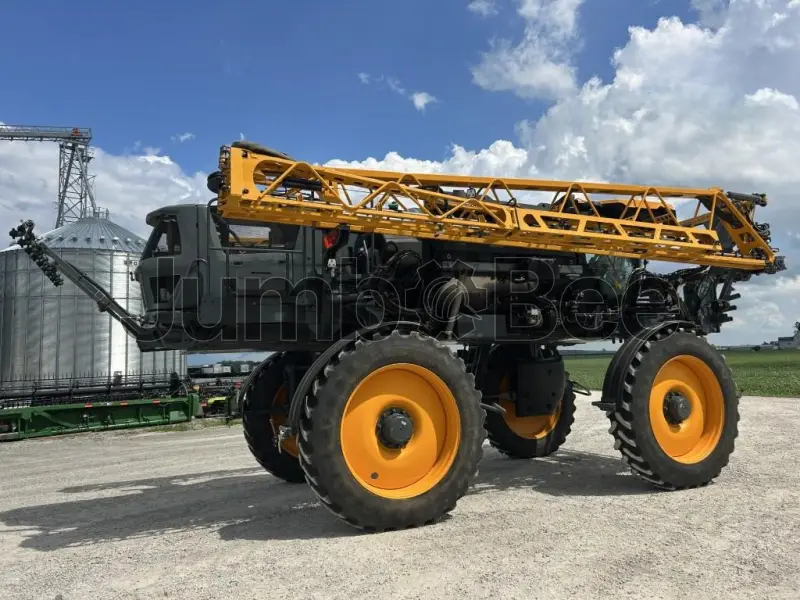

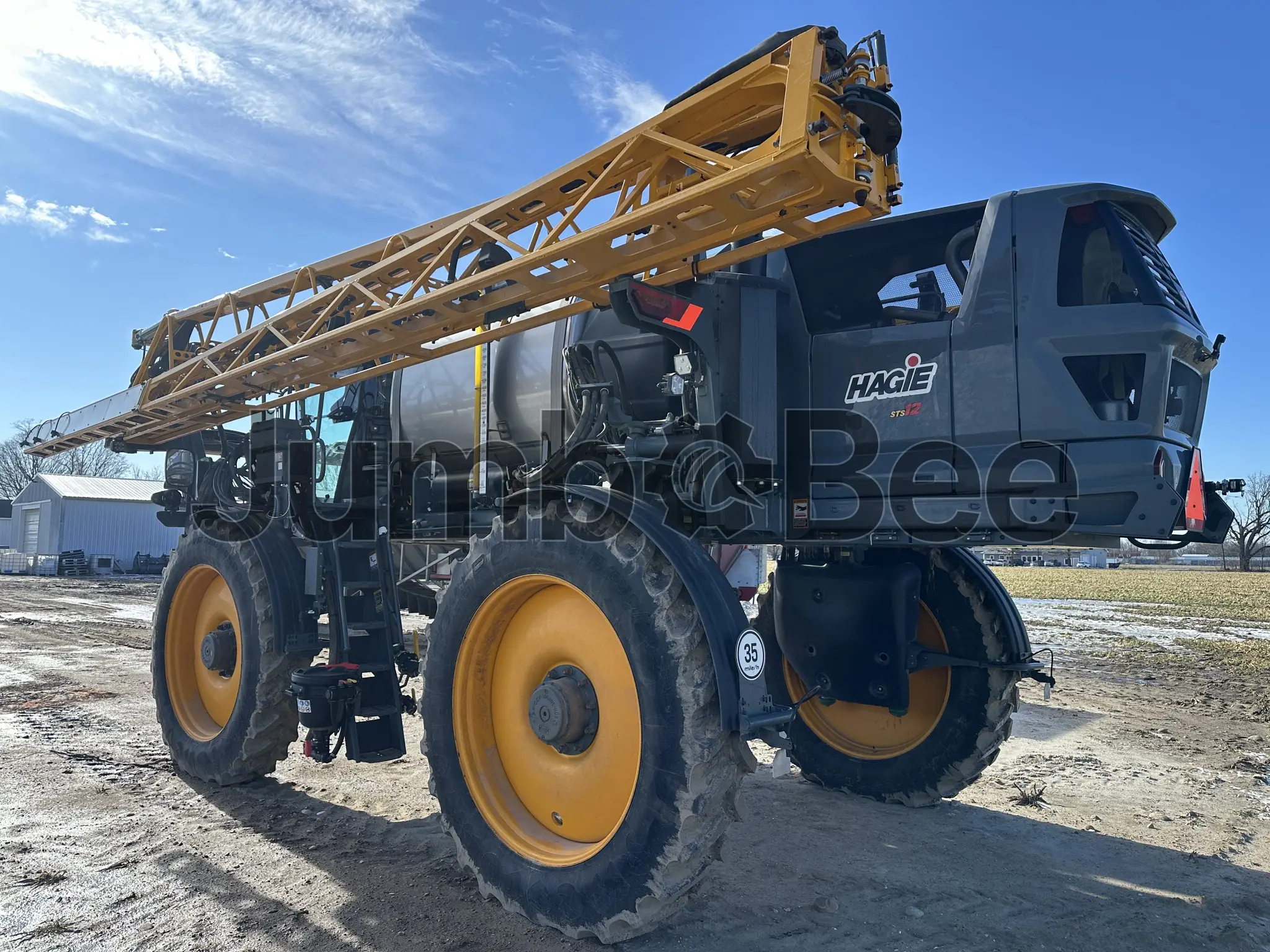

Hagie STS12 Self-Propelled Sprayers Listings
$406,500
4542 L
Yes, hydraulic tread adjust 120–152 in
36.576 m
1541 hours
Three Rivers, United States
$379,500
4542 L
36.576 m
Final Tier 4 (FT4)
610 hours
Holgate, United States
$314,500
4542 L
36.576 m
510 L
2450 hours
Three Rivers, United States
$389,500
4542 L
36.576 m
510 L
1516 hours
Hastings, United States
$349,500
Independent air-ride suspension
4542 L
36.576 m
1096 hours
Kent City, United States
$399,000
4542 L
36.576 m
510 L
1200 hours
Marlette, United States
$529,900
300 hp
Final Tier 4 (FT4)
6
721 hours
Newton, United States
$389,900
4542 L
36.576 m
510 L
1576 hours
Mattoon, United States
$399,900
Yes
4542 L
36.576 m
1085 hours
Lanark, United States
Compare Hagie STS12 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Hagie STS12 Self-Propelled Sprayer
4542 L
12546 kg
8310 mm × 3350 mm × 3810 mm
Add model
Add model
5.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
5.0
Comfort & Ergonomics
4.0
Safety
5.0
Technology & Features
5.0
Jerry Jackson
We bought it used with 900 hours and it's been mostly trouble-free. Tank agitation keeps a 1,200-gallon load mixed without separating. If I'm picky, it's heavy enough to watch in wet fields.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Hagie STS12?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Hagie STS12?
Listed features include 4,542 L (1,199.9 US gal) solution capacity, hydrostatic full-time 4WD, infinitely variable shifting, independent air-ride suspension, hydraulic tread adjustment, and John Deere/Raven sprayer controls with ExactApply.
What type of engine does the STS12 use?
The supplied data confirms a 6-cylinder engine with 414 cu in displacement, rated at 223.7 kW (300 hp), and Final Tier 4 (FT4) emissions compliance. It does not confirm the engine manufacturer or fuel type.
How much horsepower does the STS12 have?
The Hagie STS12 has rated power of 223.7 kW (300 hp).
What fuel does the Hagie STS12 use?
The supplied specifications do not confirm the fuel type for the Hagie STS12.
What jobs is this Sprayers best suited for?
The Hagie STS12 is farm equipment in the sprayer category. Its listed solution system, boom sections, centrifugal solution pump, and John Deere/Raven sprayer controls support agricultural spraying work.
What is the expected lifespan of the STS12?
The supplied data does not provide an expected service life for the Hagie STS12. Assess maintenance records, overall condition, spray-system operation, drivetrain performance, suspension, tires, and control-system functionality.
What should a buyer check when purchasing a used Sprayers?
Check maintenance records, solution and rinse tanks, pump operation, boom sections, hydraulic functions, tires, suspension, steering, drivetrain operation, cab controls, and sprayer-control functions. Inspect for leaks, corrosion, structural damage, and signs of uneven spray performance.
