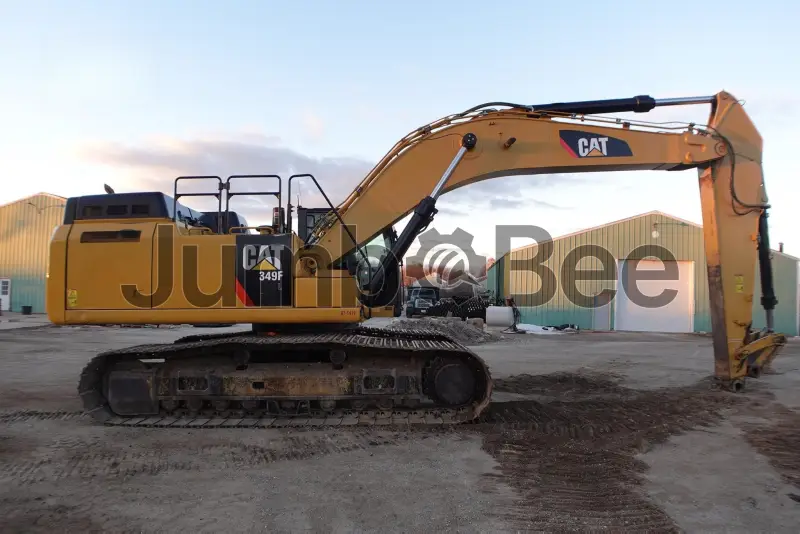

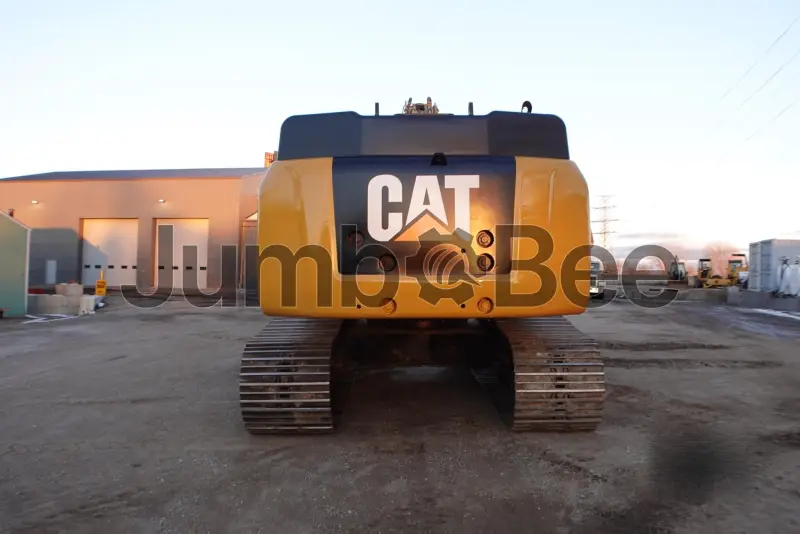

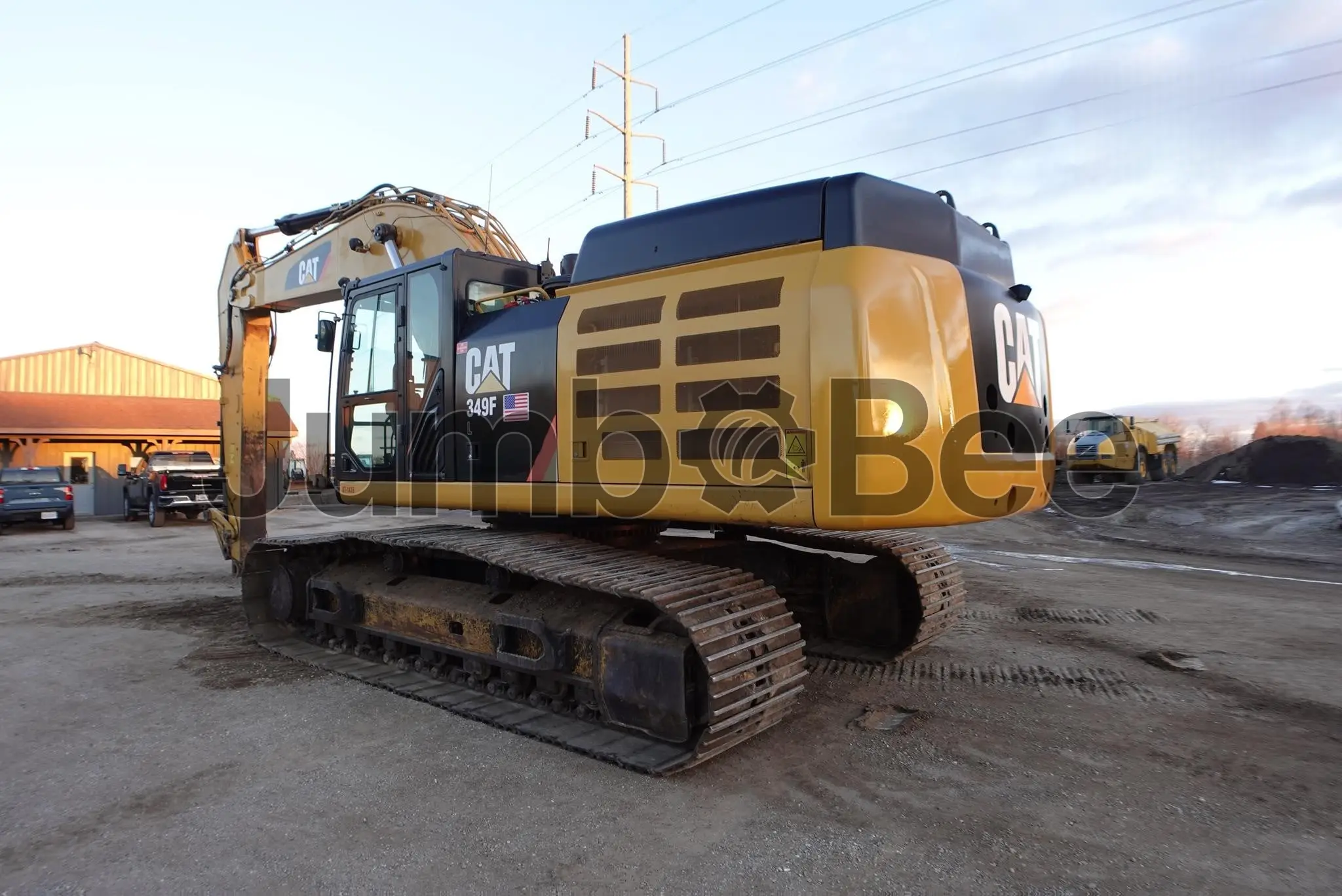

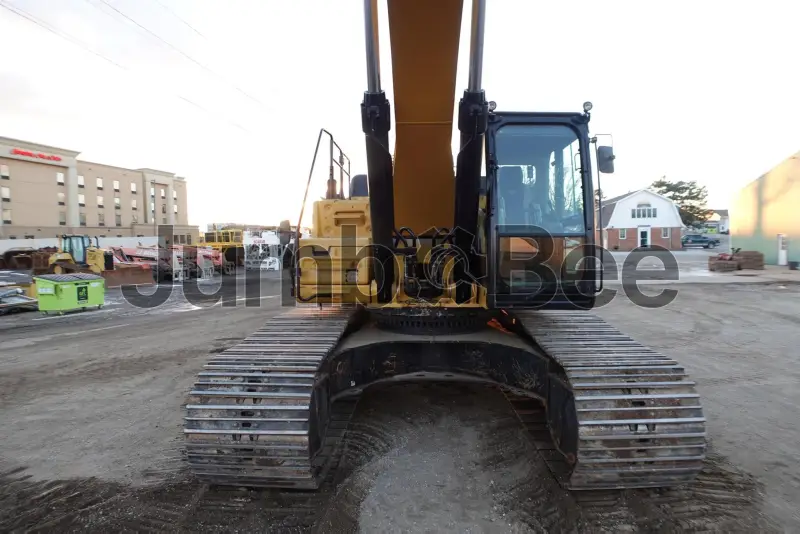

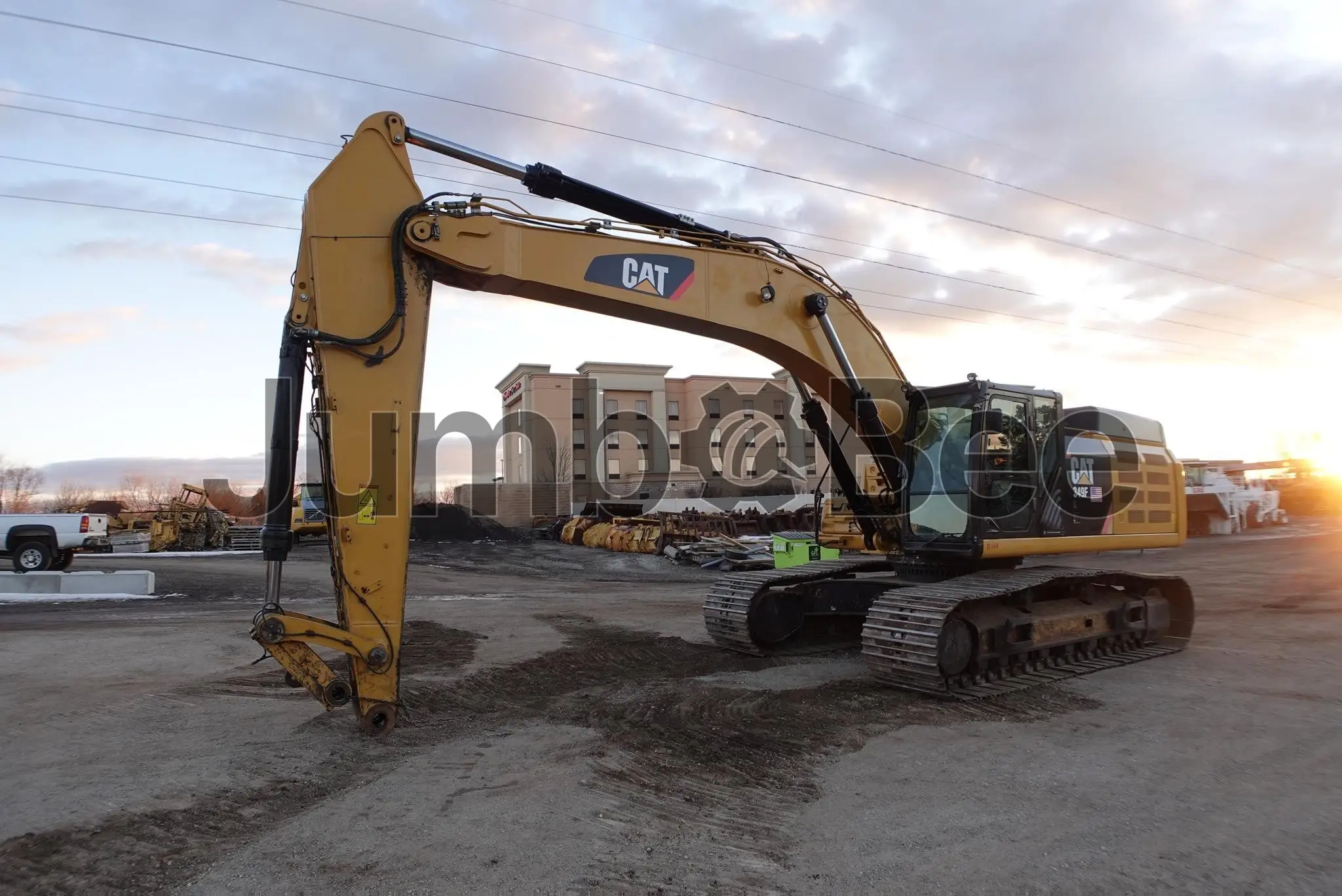

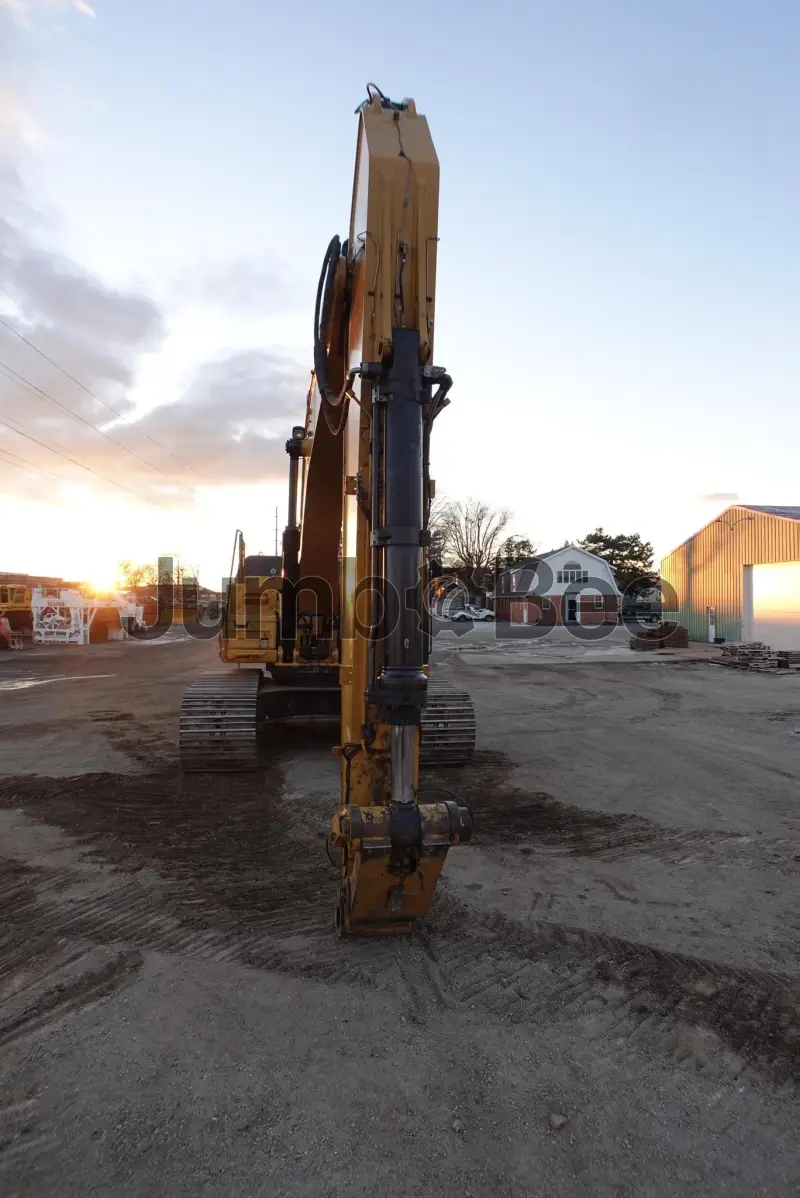

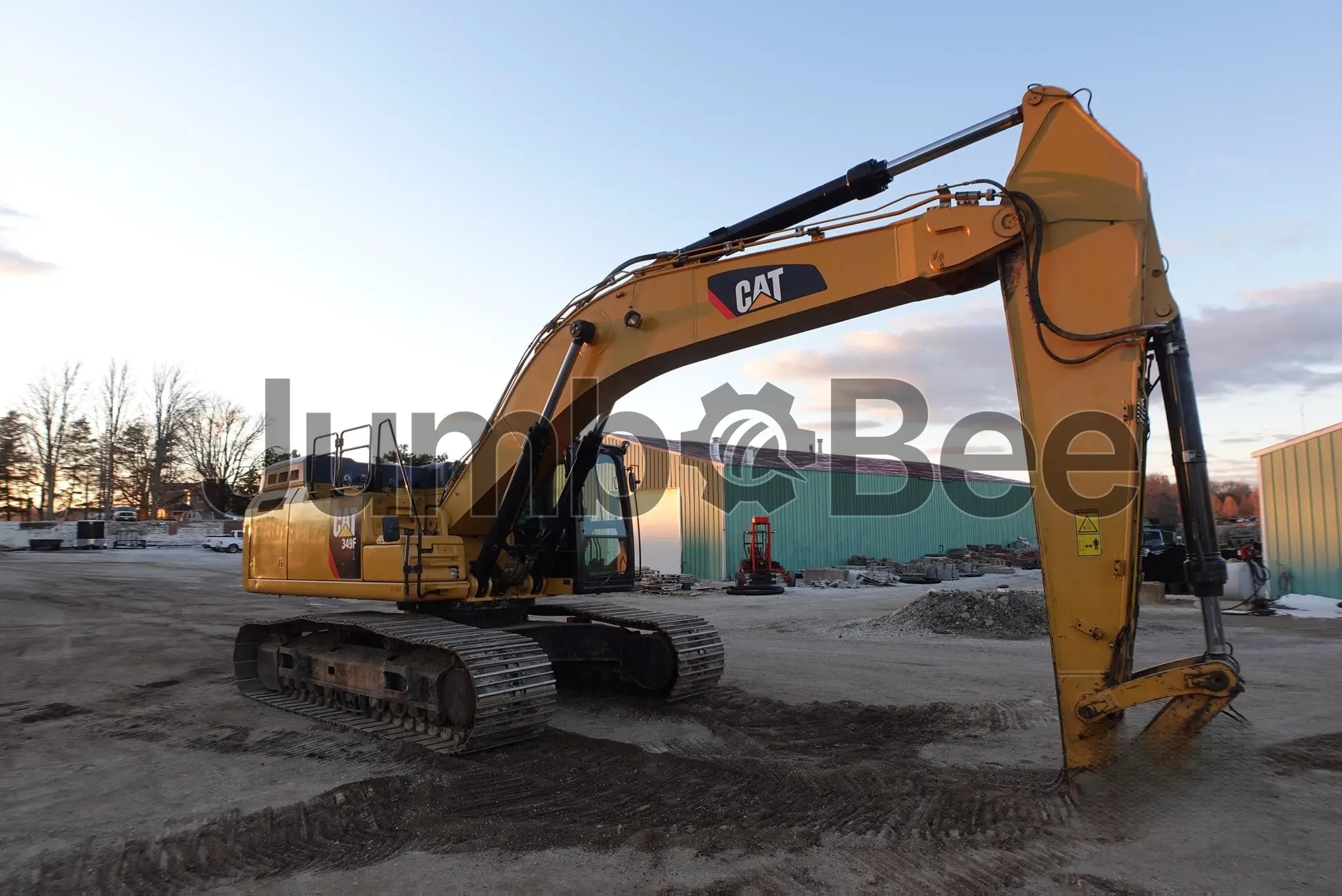

Caterpillar 349FL Tracked Excavators
Caterpillar 349FL
Average price
$93,500
5+
sold in last year
General overview
Caterpillar 349FL is a hydraulic excavator used for heavy earthmoving and excavation in construction environments. It is powered by a Caterpillar C13 ACERT engine rated at 318 kW (432 hp) and has an operating weight of 53,300 kg (117,510 lb), placing it in a large excavator class for demanding digging and loading work.
The machine uses a crawler undercarriage with two track frames and a reference bucket capacity of 1 m³ (1.3 cu yd). Its digging envelope includes a maximum digging depth of 8,200 mm (26 ft 11 in), a maximum reach at ground level of 12,140 mm (39 ft 10 in), and a maximum loading height of 8,080 mm (26 ft 6 in). Bucket digging force is 267 kN (60,020 lbf), and stick digging force is 211 kN (47,430 lbf).
Year
2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
12,500 mm
~492.1 in
3,710 mm
~146.1 in
3,340 mm
~131.5 in
Engine Power
432 hp
Emission standard level
Tier 4 Final
Displacement
12 cu(m)
Fuel tank
720 L
Alternator output
90
Number of batteries
2
Cooling system
50 L
Number of Cylinders
6
Dimensions
mm
Width
3,340 mm
Operating Weight
53,300 kg
Reference Bucket Capacity
1 cu(m)
Drawbar Pull
335 kN
Maximum Rated Flow
770 L/min
System Relief Pressure
35,000 kPa
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
407 L
Engine Model
Caterpillar C13 ACERT
Maximum Travel Speed - High
4 km/h
Maximum Pressure - Equipment
35,000 kPa
Maximum Pressure - Travel
35,000 kPa
Maximum Pressure - Swing
27,500 kPa
Battery Capacity
52
Engine Oil
38 L
Hydraulic System - Including Tank
570 L
Shipping Height - Top of Cab
3,475 mm
Handrail Height
3,708 mm
Tail Swing Radius
3,760 mm
Track Gauge
2,946 mm
Maximum Digging Depth
8,200 mm
Maximum Reach at Ground Level
12,140 mm
Maximum Cutting Height
10,720 mm
Maximum Loading Height
8,080 mm
Bucket Digging Force - ISO
267 kN
Stick Digging Force - ISO
211 kN
Boom length
6,900 mm
Stick length
3,500 mm
Hydraulic Pump
gear pump
Maximum Operating Pressure
35,000 kPa
Additional specifications
Rated power
283 kW
Axles
N/A - crawler undercarriage with two track frames
Additional Options
Boom options: reach boom 6.9 m or ME boom 6.5 m; stick options R2.9 m, R3.5 m, R3.9 m, ME2.5 m; undercarriage shoe widths 600, 700, 800, 900 mm; cab/camera/cold-weather/high-ambient/tool-control/guarding/quick-coupler options
Caterpillar 349FL Tracked Excavators Listings
$93,500
432 hp
Caterpillar C13 ACERT
Tier 4 Final
Peoria, United States
Compare Caterpillar 349FL Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Caterpillar 349FL Tracked Excavator
432 hp
12500 mm × 3340 mm × 3710 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Caterpillar 349FL?
No confirmed market price is supplied. Check current listings and compare machine condition, location, configuration, service records, and included attachments.
What are the key advantages of the Caterpillar 349FL?
Key stated capabilities include 322.1 kW (432 hp), an operating weight of 53,300 kg (117,506 lb), 8,200 mm (322.8 in) maximum digging depth, and 267 kN (60,024 lbf) ISO bucket digging force. It also has a 720 L (190.2 US gal) fuel tank.
What type of engine does the 349FL use?
The 349FL uses a Caterpillar C13 ACERT engine. The supplied specification lists 6 cylinders and Tier 4 Final emissions.
How much horsepower does the 349FL have?
The 349FL is rated at 432 hp (322.1 kW).
What fuel does the Caterpillar 349FL use?
The supplied data confirms a 720 L (190.2 US gal) fuel tank but does not specify the fuel type.
What jobs is this Excavators best suited for?
Based on its stated digging depth, reach, loading height, and digging forces, this excavator is suited to excavation, trenching, material loading, and other earthmoving work where those capabilities fit the job requirements.
What is the expected lifespan of the 349FL?
The supplied data does not confirm an expected service life. For a used machine, condition depends on maintenance history, operating environment, hydraulic condition, undercarriage wear, engine condition, and repair quality.
What should a buyer check when purchasing a used Excavators?
Check service records, engine operation, hydraulic leaks and function, pump performance, track frames and undercarriage wear, boom and stick play, bucket condition, cab controls, and the condition of included attachments. Verify that the machine’s configuration matches the intended work.
