Caterpillar 140M3 Motor Graders
Caterpillar 140M3
Average price
$123,000
5+
sold in last year
General overview
Year
2013, 2019
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
10,136 mm
~399.1 in
3,308 mm
~130.2 in
2,511 mm
~98.9 in
19,346.36 kg
~42,651.5 lb
Additional specifications
Engine Power
200 hp
Emission standard level
Tier 4 Final
Displacement
9.3 L
Fuel tank
394 L
Length
8,912 mm
Operating Weight
20,827 kg
Engine Oil
30 L
Net Power (ISO 9249)
252 hp
Manufacturer and Model
Cat C9.3 ACERT
Hydraulic System
100 L
Cab Height
3,308 mm
Lights
roof-mounted roading, reversing, LED stop and tail; night-time cab lights
Front Axle Oscillation (total)
32 deg
Front Axle Wheel Lean Angle (each direction)
18 deg
Steering (Articulation)
20 deg
Maximum Pump Flow
210 L/min
Maximum System Pressure
24,150 kPa
Blade Range - Lift Above Ground
480 mm
Pitch at Ground Line - Forward
40 deg
Pitch at Ground Line - Back
5 deg
Height to Top of Exhaust
3,256 mm
Height to Top of Blade-Lift Cylinders
3,040 mm
Tandem Axle Spacing
1,523 mm
Blade Base
3,658 mm
Overall Length With Scarifier
9,943 mm
Overall Length With Push Block and Ripper
10,136 mm
Mainframe Type
articulated frame with safety lock
Mainframe Width (minimum)
2,140 mm
Circle Rotation
90 deg
Moldboard Type
standard moldboard, 3,658 × 610 × 22 mm
Moldboard Thickness
22 mm
Cutting Edge - Type
curved DH-2 steel
Cutting Edge - Thickness
16 mm
Cutting Edge - Width
152 mm
Scarifiers - Type
front V-type; mid V-type; rear scarifier/ripper
Rear Ripper/Scarifier - Type
ripper
Rear Ripper/Scarifier - Width of Cut
2,133 mm
Rear Ripper/Scarifier - Number of Shanks/Teeth
5
Rear Ripper/Scarifier - Maximum Depth
426 mm
Ground Clearance (front axle)
596 mm
Moldboard Width
3,700 mm
Circle Diameter
1,530 mm
Blade range
Circle centershift: right 728 mm, left 695 mm; moldboard sideshift: right 660 mm, left 510 mm; maximum blade position angle 90°; blade tip range forward 40°, backward 5°
Dimensions wheel base
6,123 mm
Electrical alternator rating
150
Hydraulics pump type
Variable Piston
Moldboard height arc
610 mm
Powertrain transmission
APECS, direct drive, powershift
Rear ripper scarifier force penetration
9,440 kg
Rear ripper scarifier force pry out
12,607 kg
Service refill cooling system
57 L
Tires wheels overall width
2,511 mm

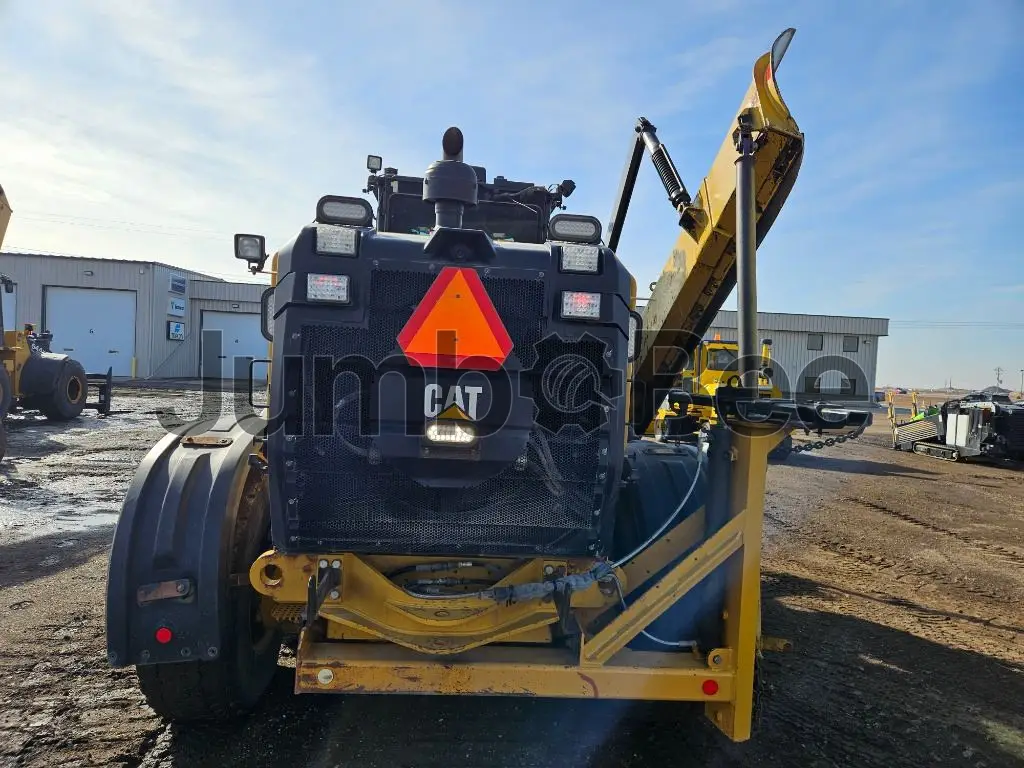

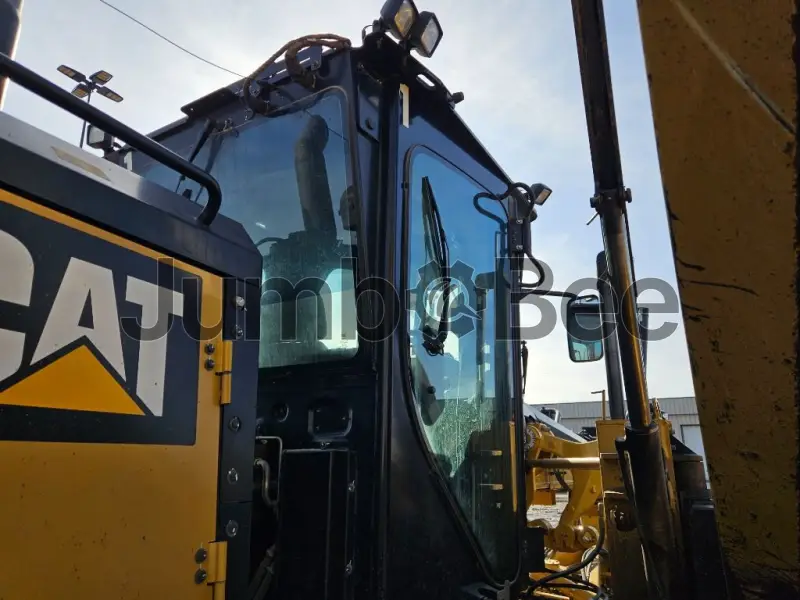

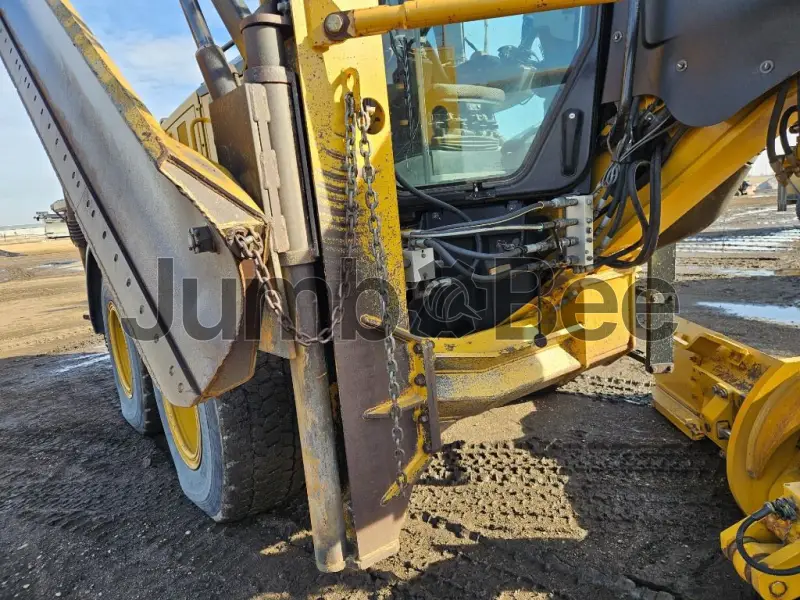

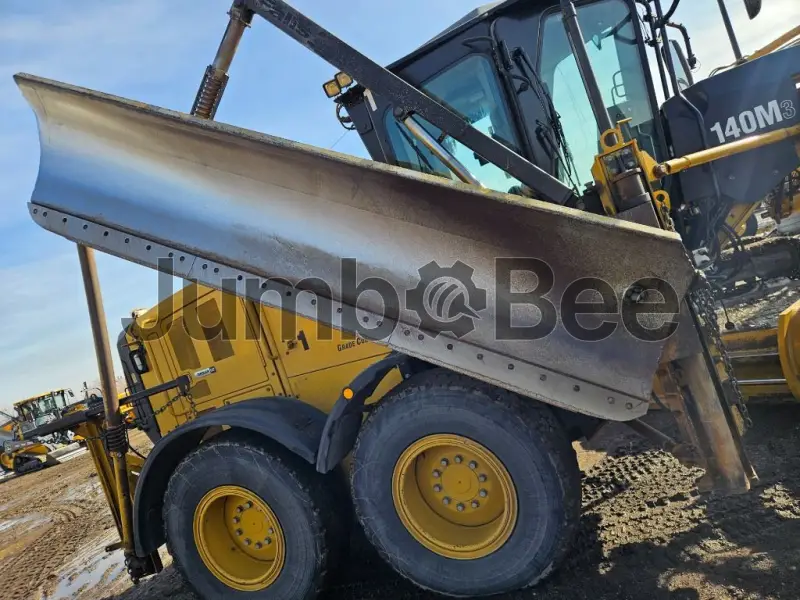

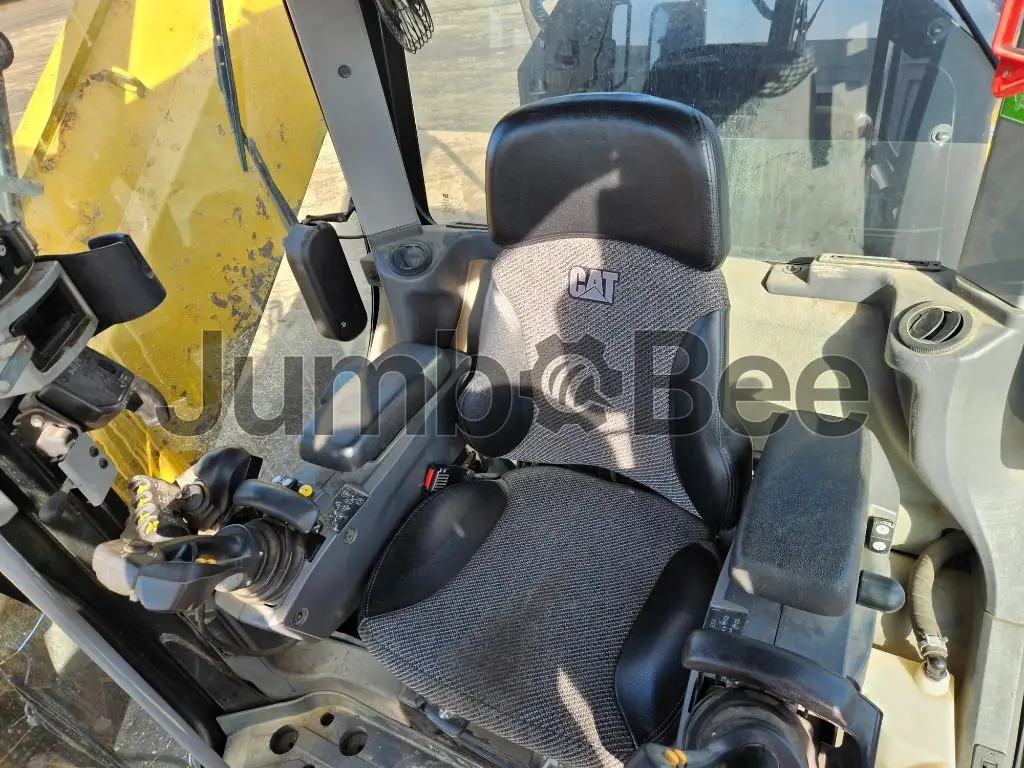

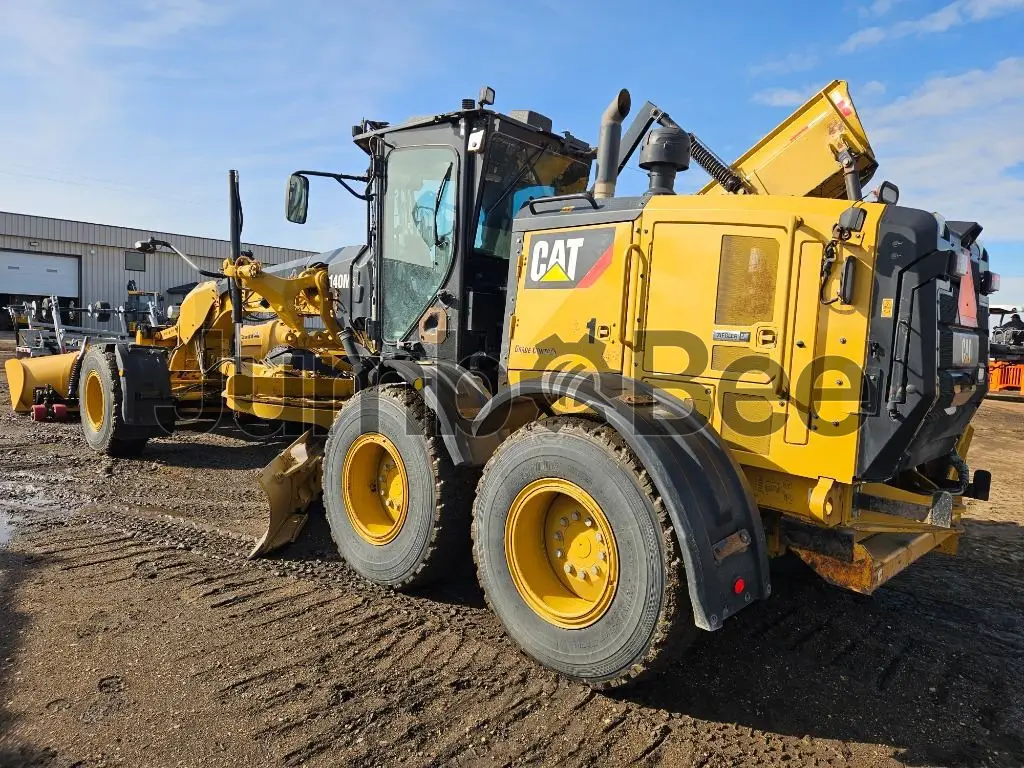

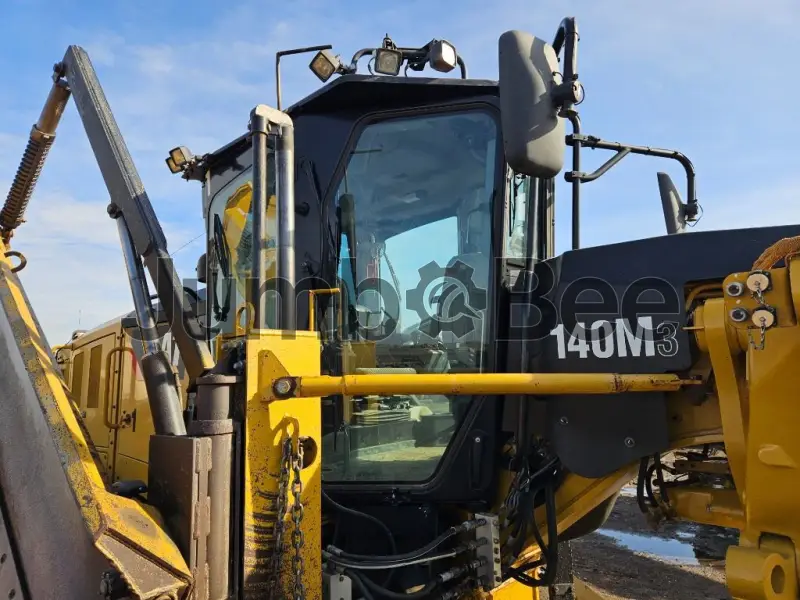

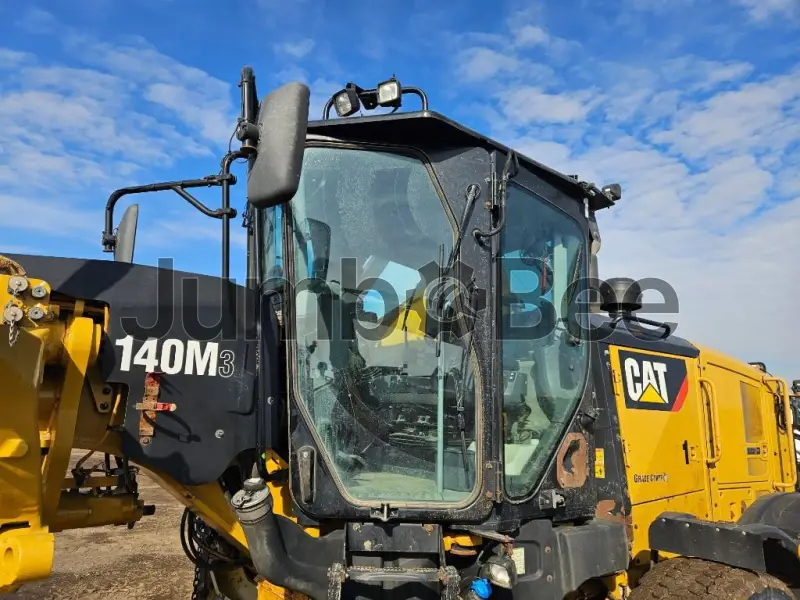

Caterpillar 140M3 Motor Graders Listings
$123,000
200 hp
3700 mm
20827 kg
7432 hours
Grand Forks, United States
