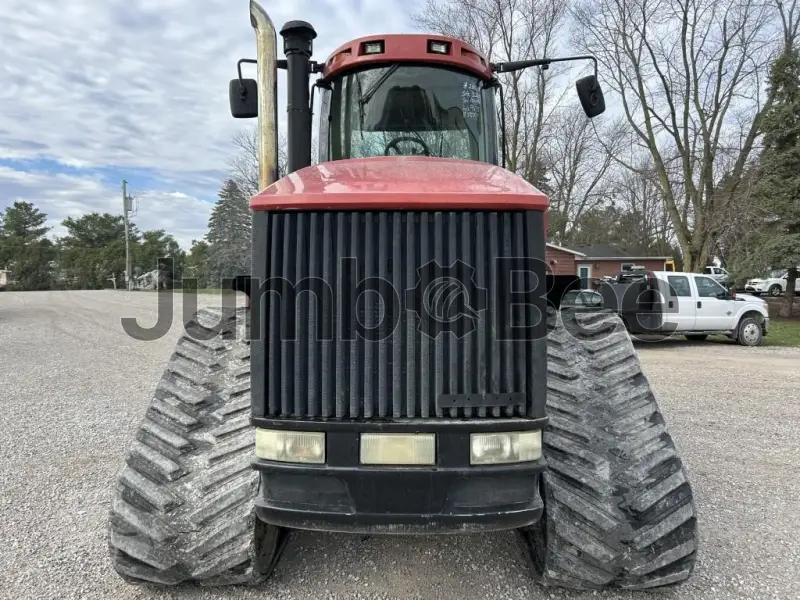

Case IH STX450 QUAD Tracked Tractors (4 Tracks)
Case IH STX450 QUAD
Average price
$78,000
5+
sold in last year
General overview
The Case IH STX450 QUAD is a four-track tractor built for demanding farm work in large-scale crop production. Powered by a 14 L diesel engine rated at 331 kW (450 hp), it is intended for high-drawbar tasks that require sustained power and traction.
Key features include a 16-speed full powershift transmission, articulated main frame with front track modules, and a rear PTO. Its PTO output is rated at 290 kW (395 hp), with maximum PTO power of 331 kW (450 hp). An optional rear 3-point hitch with Category 3 hitching and a maximum lift capacity behind lift points of 8,845 kg (19,500 lb) extends its implement range, while the pressure-flow compensated (PFC) closed-center load-sensing hydraulic system provides a pump rated output of 151 L/min (39.9 gpm).
Year
2002, 2003, 2004, 2005
Country of manufacturing
United States
General specifications
Dimensions
Weight
23,285 kg
~51,334.7 lb
Tire or Track Type
4_tracks
Engine Power
450 hp
Track Width
0.76 m
Additional specifications
Engine type
diesel
Displacement
14 cu(m)
Maximum PTO power
450 hp
Rated PTO power
395 hp
Transmission type
16-speed full powershift
Maximum lift capacity behind lift points
8,845 kg
Fuel tank
1,135 L
Hydraulic system type
pressure-flow compensated (PFC) closed-center load-sensing system
Pump rated output
151 L/min
Hitch type
3
Track size
30-inch tracks
Rear PTO
yes
Front Axle
articulated main frame with front track modules
Rear 3-Point Hitch
optional rear 3-point hitch
Additional Options
optional high-flow hydraulics (208.2 L/min), optional 3-point hitch, 30-inch tracks
PTO speed
["1,000"]
Case IH STX450 QUAD Tracked Tractors (4 Tracks) Listings

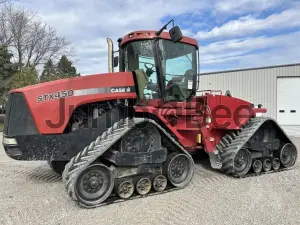

$96,500
4_tracks
450 hp
Diesel
6865 hours
Hastings, United States
Compare Case IH STX450 QUAD Tracked Tractors (4 Tracks) to other tracked tractors (4 tracks)
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Case IH STX450 QUAD Tracked Tractors (4 Tracks)
4_tracks
23285 kg
Add model
Add model
1.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
1.0
Reliability & Durability
1.0
Comfort & Ergonomics
1.0
Safety
2.0
Technology & Features
1.0
Billy Thompson
It came home from a dealer auction with 6,500 hours and runs clean. Cab comfort and visibility hold up over an 11-hour day in wet spring soil. Auto-steer with RTK keeps us inside an inch pass to pass on the disk harrow.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH STX450 QUAD?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Case IH STX450 QUAD?
Key listed features include four tracks, 335.6 kW (450 hp) engine power, a 16-speed full powershift transmission, and a pressure-flow compensated closed-center load-sensing hydraulic system. It also has rear PTO capability and optional high-flow hydraulics.
What type of engine does the STX450 QUAD use?
The STX450 QUAD uses a diesel engine.
How much horsepower does the STX450 QUAD have?
The STX450 QUAD has 335.6 kW (450 hp) of engine power.
What fuel does the Case IH STX450 QUAD use?
The Case IH STX450 QUAD uses diesel fuel.
What jobs is this Tractors best suited for?
The supplied data does not specify particular jobs. Its listed four-track configuration, articulated main frame, 335.6 kW (450 hp) engine, PTO, and hydraulic system indicate a tractor configuration for demanding farm-equipment applications.
What is the expected lifespan of the STX450 QUAD?
No expected service-life figure is supplied. Lifespan depends on maintenance, operating conditions, and the condition of the engine, transmission, tracks, hydraulics, and PTO components.
What should a buyer check when purchasing a used Tractors?
Inspect track condition and undercarriage components, engine operation, transmission shifting, hydraulic performance, PTO operation, hitch components, and signs of leaks. Confirm service records, test the machine under load where possible, and verify installed options such as the rear 3-point hitch or high-flow hydraulics.
