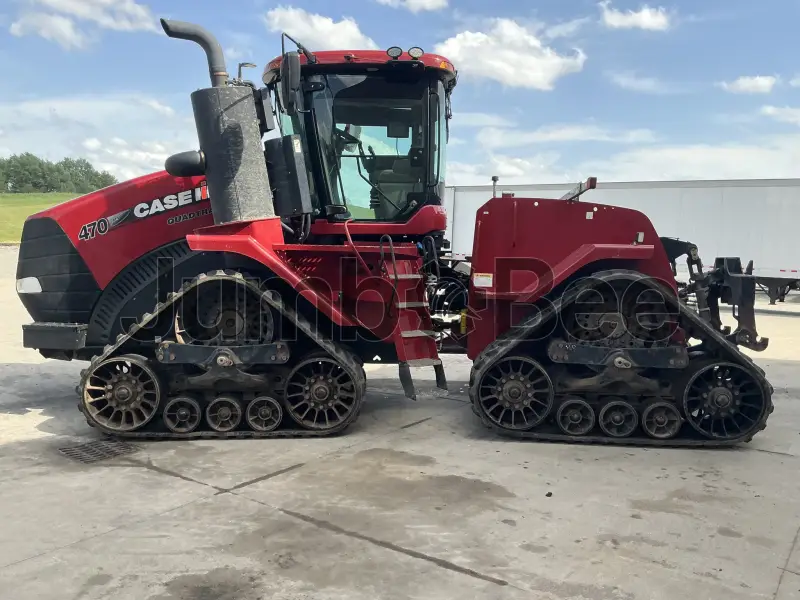

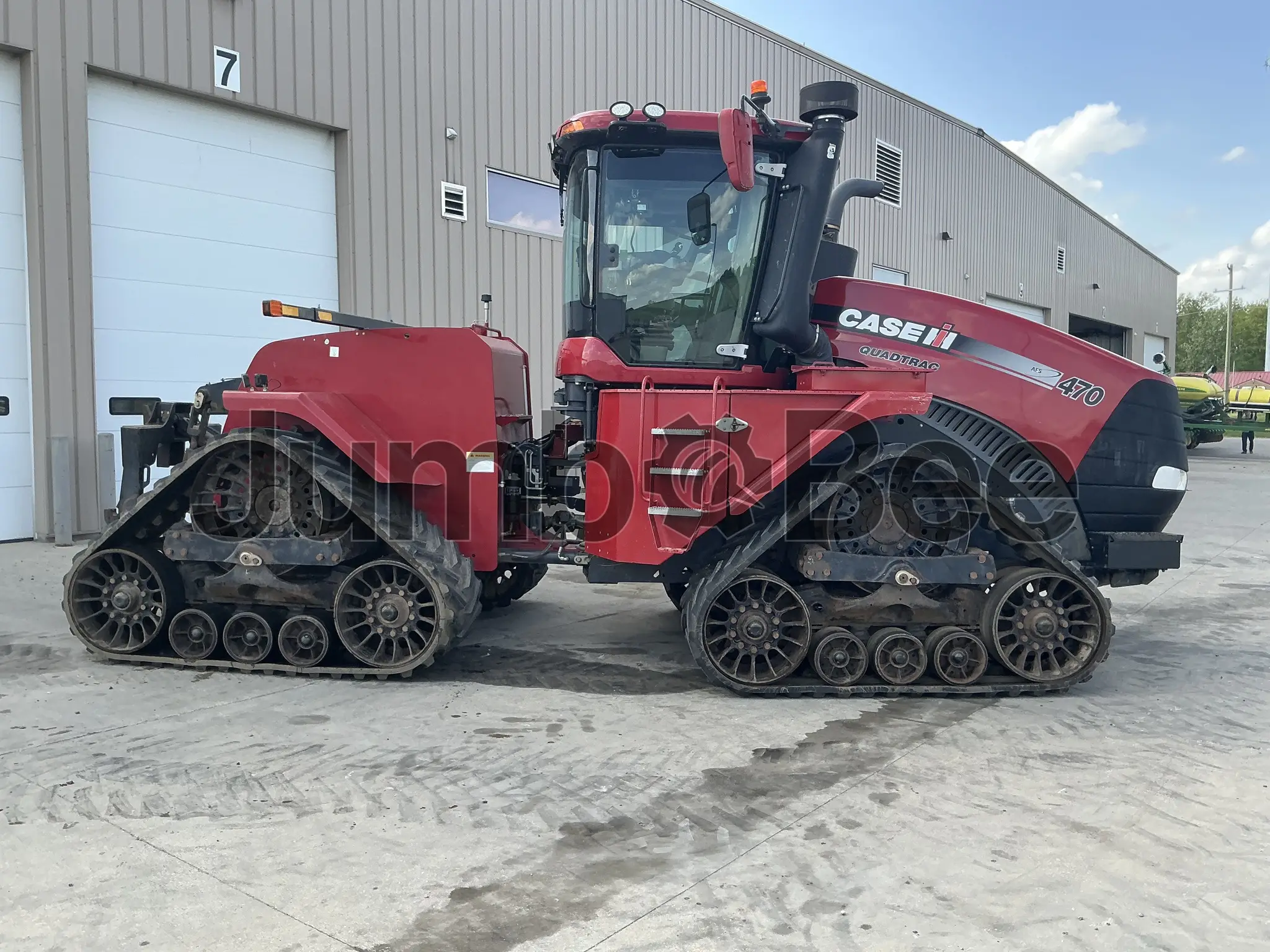

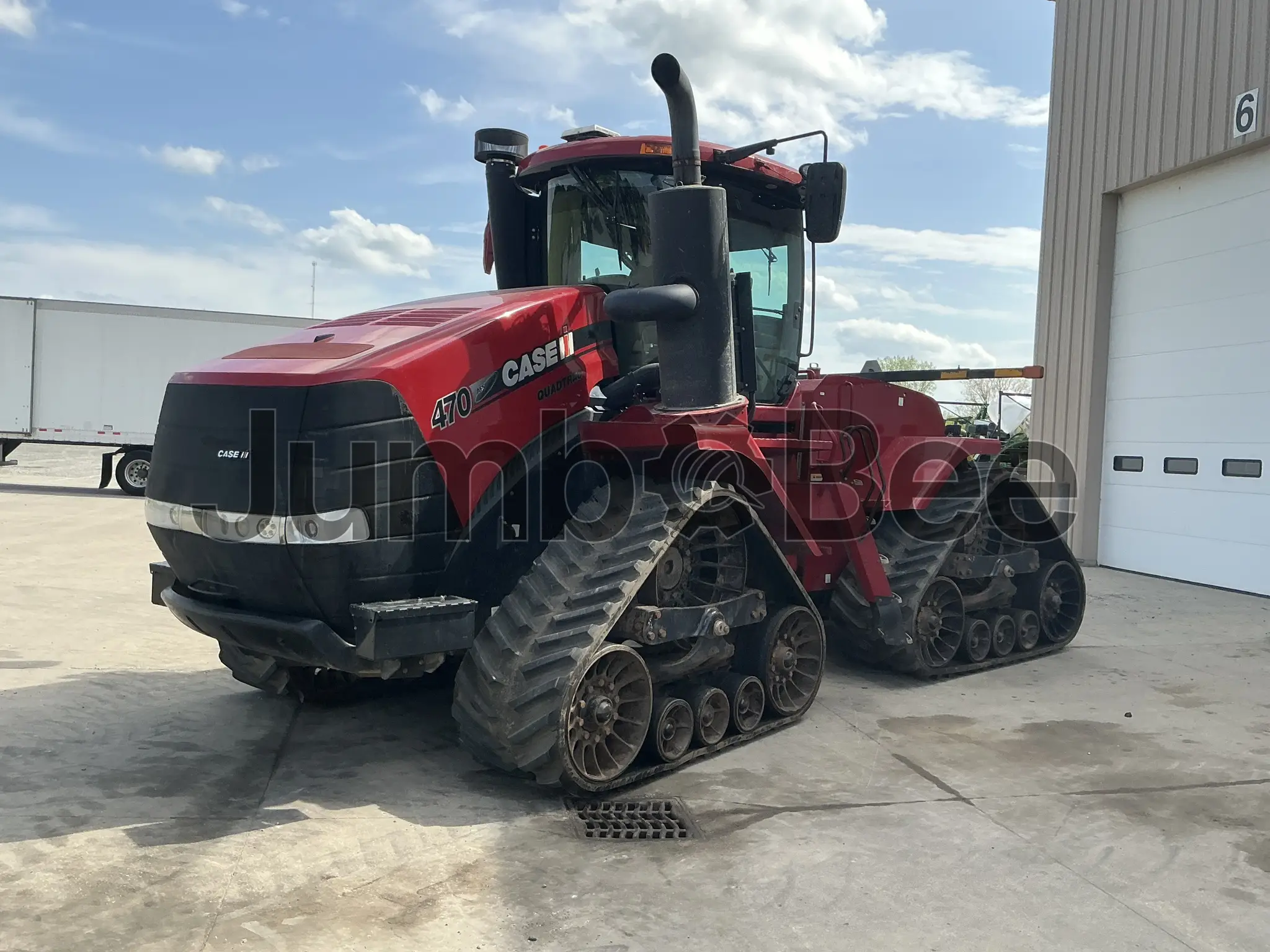

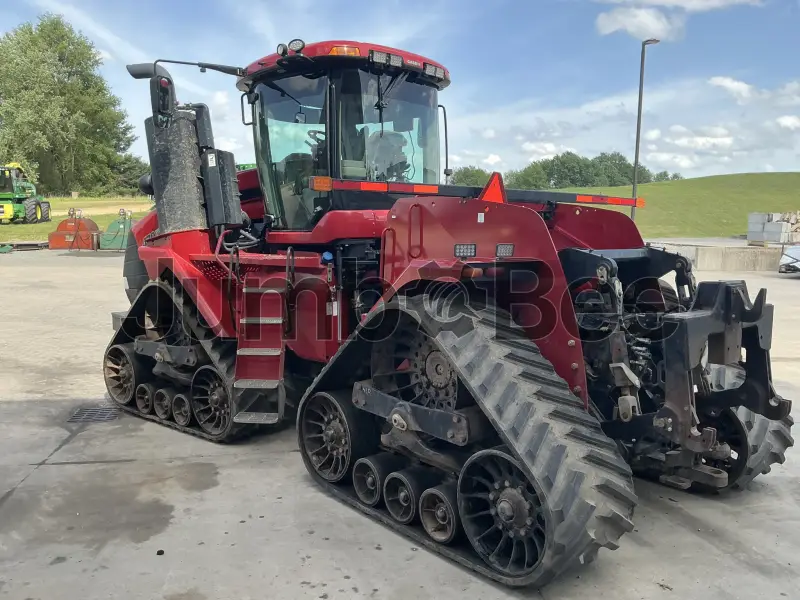

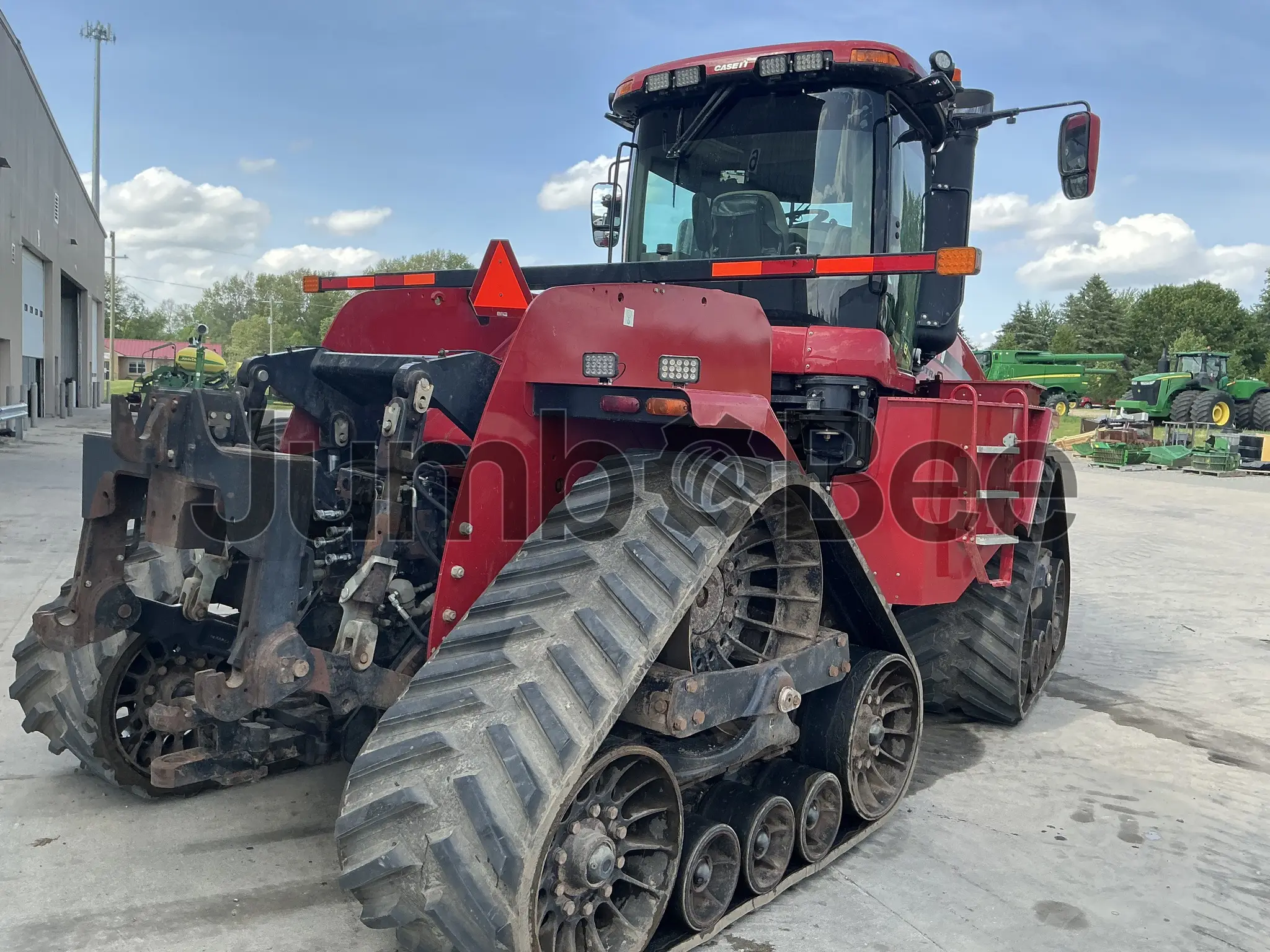

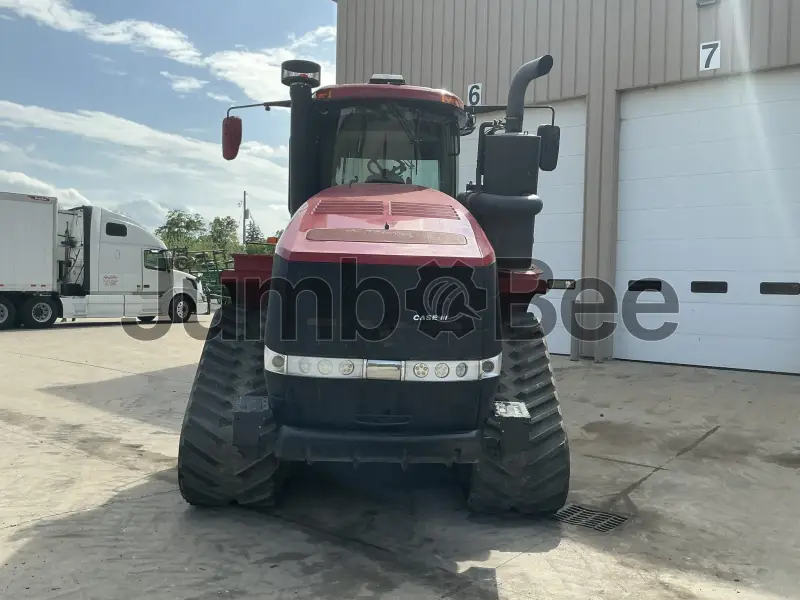

Case IH STEIGER 470 QUADTRAC Tracked Tractors (4 Tracks)
Case IH STEIGER 470 QUADTRAC
Average price
$154,500
5+
sold in last year
General overview
Case IH STEIGER 470 QUADTRAC is an articulated 4-track tractor built for high-horsepower field work in crop production. It is equipped with a diesel engine rated at 345 kW (470 hp), a 12 L displacement, and Tier 4 Final emissions compliance. The frame articulated chassis and 4 tracks support traction in demanding field conditions.
This model pairs a 16F x 2R full powershift transmission with a rated PTO power of 298 kW (405 hp) and an optional rear PTO 1000 rpm. Hydraulic equipment includes a Pressure-Flow Compensated (PFC) system, 216 L/min (57.1 gpm) pump output, 4 rear SCVs, and an optional Category 4N rear hitch with a maximum lift capacity behind lift points of 9,072 kg (20,000 lb).
Year
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Country of manufacturing
United States
General specifications
Dimensions
Height
Weight
2,997 mm
~118 in
21,092 kg
~46,499.9 lb
Tire or Track Type
4_tracks
Engine Power
470 hp
Track Width
0.76 m
Additional specifications
Emission standard level
Tier 4 Final
Engine type
diesel
Displacement
12 cu(m)
Rated PTO power
405 hp
Transmission type
16F x 2R full powershift
Maximum lift capacity behind lift points
9,072 kg
Fuel tank
1,173 L
Hydraulic system type
Pressure-Flow Compensated (PFC)
Pump rated output
216 L/min
Available flow at a single rear SCV
159 L/min
Number of rear selective control valves
4
SCV control
electro-hydraulic
Sensing type
position
Hitch type
4N
Track size
30 in or 36 in tracks
Rear PTO
optional
Front Axle
frame articulated
Rear 3-Point Hitch
optional
Tire width
762 mm
Guidance Ready
installed
Additional Options
Track width options 762 or 914 mm; optional TwinFlow hydraulic pump 428 L/min; optional rear PTO 1,000 rpm; optional Category 4N rear hitch; up to 8 rear SCVs
Tire type
4 tracks
PTO speed
["1,000"]
Tire Size
30 in or 36 in tracks
Case IH STEIGER 470 QUADTRAC Tracked Tractors (4 Tracks) Listings
$154,500
4_tracks
470 hp
Tier 4 Final
5690 hours
Hastings, United States
Compare Case IH STEIGER 470 QUADTRAC Tracked Tractors (4 Tracks) to other tracked tractors (4 tracks)
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Case IH STEIGER 470 QUADTRAC Tracked Tractors (4 Tracks)
4_tracks
21092 kg
2997 mm
Add model
Add model
3.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
4.0
Reliability & Durability
3.0
Comfort & Ergonomics
3.0
Safety
4.0
Technology & Features
3.0
Jonathan Watson
We stepped up from a 225-horse trade-in and the difference is night and day. Fuel burn came in lower than our old powershift. The one knock is that the sticker price stung even with solid resale.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH STEIGER 470 QUADTRAC?
No confirmed market price is supplied. Check current listings and compare the machine’s condition, location, and configuration.
What are the key advantages of the Case IH STEIGER 470 QUADTRAC?
Key listed features include four tracks, 350.5 kW (470 hp) engine power, a 16F x 2R full powershift transmission, Pressure-Flow Compensated (PFC) hydraulics, and installed guidance readiness. Track width options include 762 or 914 mm.
What type of engine does the STEIGER 470 QUADTRAC use?
The STEIGER 470 QUADTRAC uses a diesel engine with a Tier 4 Final emission standard level.
How much horsepower does the STEIGER 470 QUADTRAC have?
The STEIGER 470 QUADTRAC has 350.5 kW (470 hp) of engine power. Its rated PTO power is 302 kW (405 hp).
What fuel does the Case IH STEIGER 470 QUADTRAC use?
The Case IH STEIGER 470 QUADTRAC uses diesel fuel.
What jobs is this Tractors best suited for?
The supplied specifications do not confirm specific jobs. Its four-track configuration, articulated frame, and hydraulic system may be relevant when matching the tractor to implement and field requirements.
What is the expected lifespan of the STEIGER 470 QUADTRAC?
The supplied data does not provide an expected lifespan. Inspect service records, engine condition, track condition, hydraulic performance, transmission operation, and signs of wear before purchase.
What should a buyer check when purchasing a used Tractors?
Check service records, engine operation, track condition, articulated-frame wear, transmission shifting, hydraulic performance, SCVs, PTO and hitch equipment if fitted, guidance equipment, and fuel-system condition. Confirm the installed track width and optional equipment match the listing.
