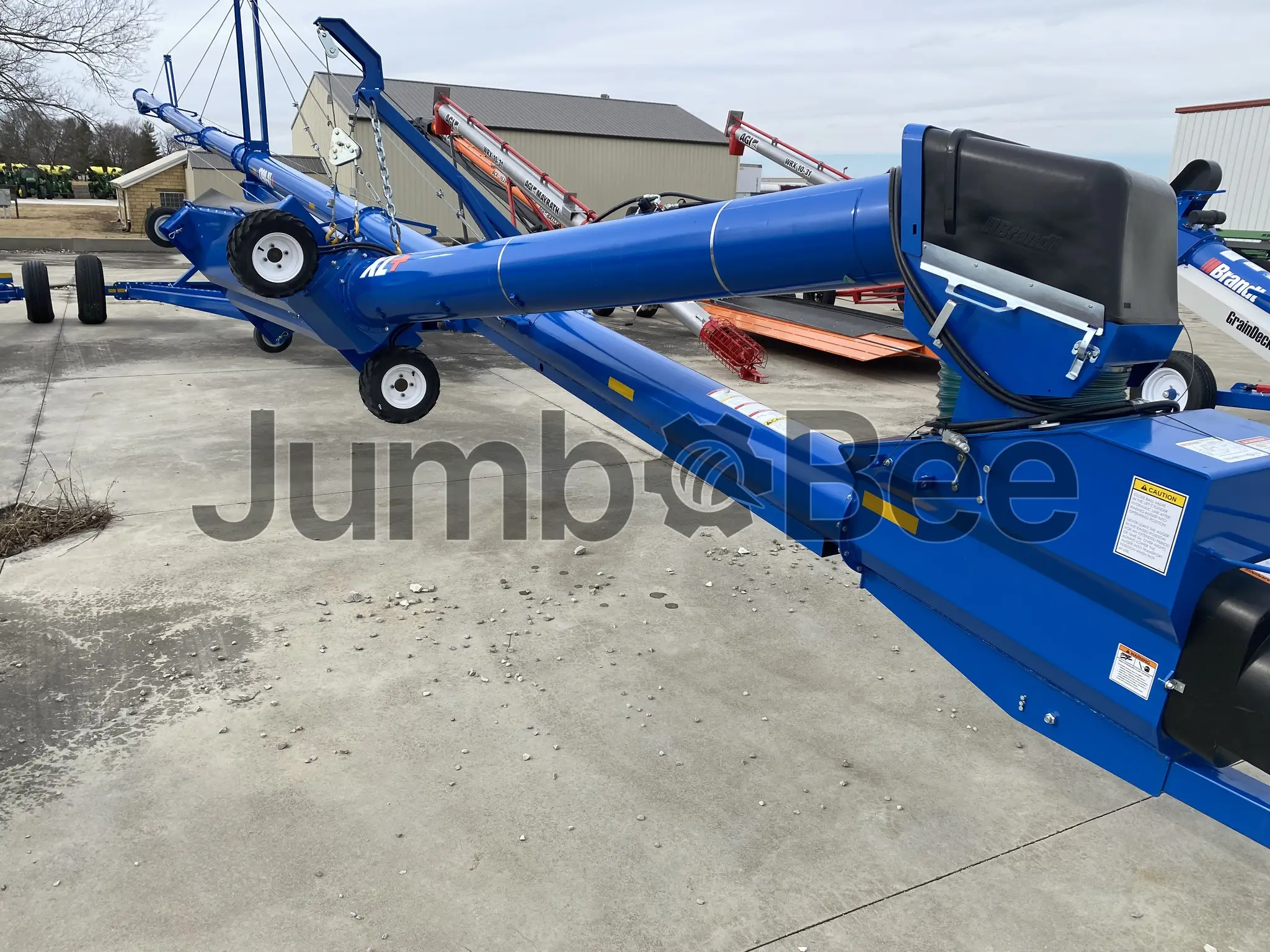

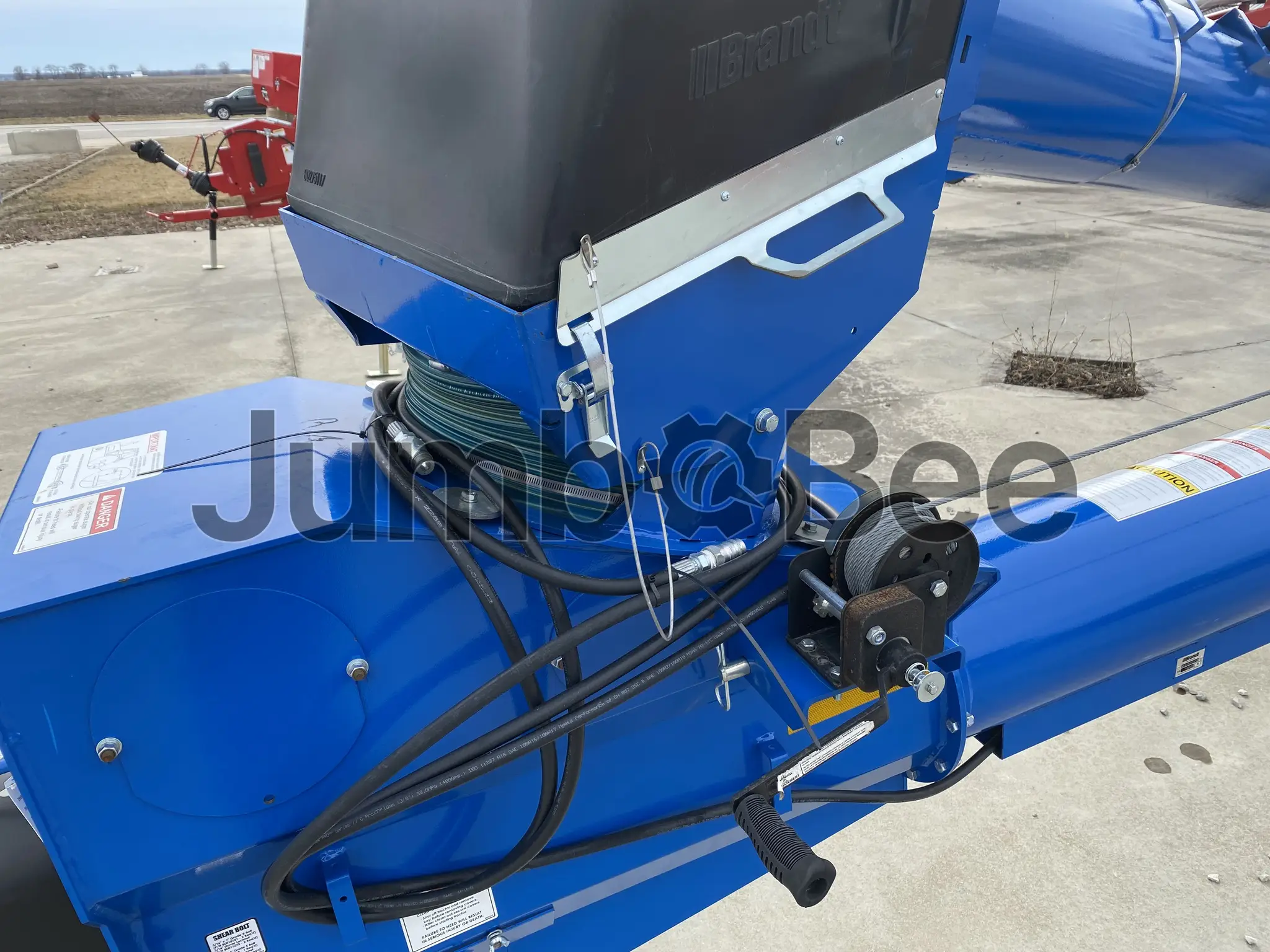

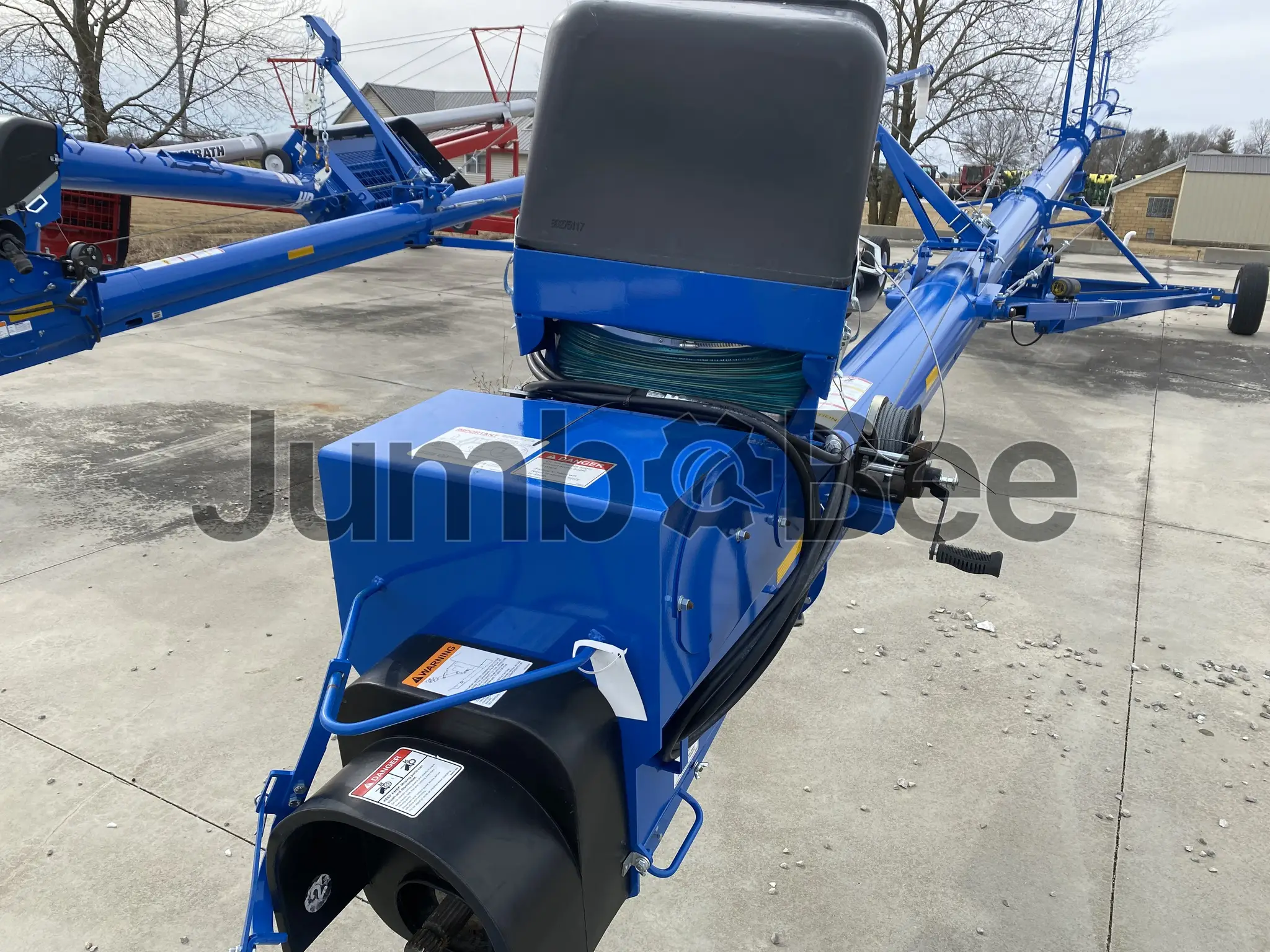

Brandt 1390XL Grain Auger
Brandt 1390XL
5+
sold in last yearGeneral overview
Brandt 1390XL is a grain auger manufactured in Canada for farm grain handling operations. It is designed for a 540 PTO and a recommended 125 kW (170 hp) tractor PTO rating, with a stated capacity of 11,000 bu/h. The auger uses a 330 mm (13 in) hopper intake diameter for bulk grain transfer during harvest and storage work.

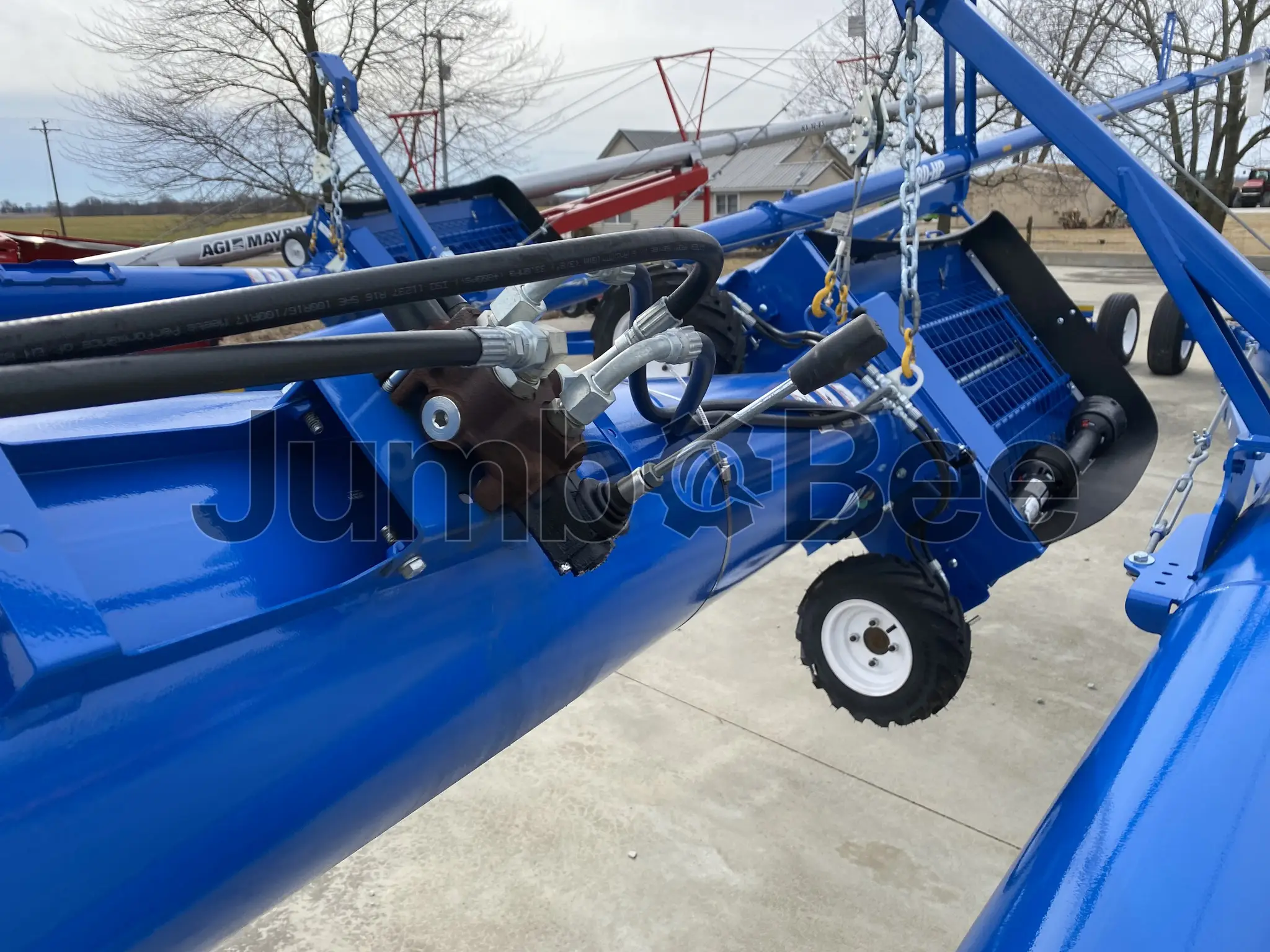

Key operating features include a scissor lift mechanism with 2 hydraulic cylinders and hydraulic requirements of 1,600 psi. Structural details include 12 ga tube thickness, 6.35 mm main flighting, 76 mm (3 in) core diameter, 44 mm (2 in) lower bearing size, 44 mm (2 in) gearbox shaft diameter, fabricated frame arms, and 2 horizontal flights.
Year
2023
Country of manufacturing
Canada
General specifications
Dimensions
Width
Height
Length
Weight
3,759 mm
~148 in
4,166 mm
~164 in
28,270 mm
~1,113 in
3,220 kg
~7,098.9 lb
Capacity (bushels per hour)
11,000 bu/h
Recommended PTO Horsepower
170 hp
Tractor PTO RPM
540 PTO
Additional specifications
Drive type
PTO
HP Intake Diameter
330 mm
Height - Raised
18.872 mm
Reach - Lowered
16.154 mm
Reach - Raised
11.252 mm
Tube Thickness
12 ga
Flighting - Main
6.35 mm
1/4" Core Diameter
76 mm
Transport Length
28.27 mm
Transport Height
4.166 mm
Wheel Track Width
3.759 mm
Lower Bearing Size
44 mm
Gearbox Shaft Diameter
44 mm
Weight - Hitch
1.05 lb
Frame Arms
Fabricated
Undercarriage Axle
4.5"x4.5"x3/16"
Number of Hydraulic Cylinders
2
Hydraulic Requirements
1,600 psi
Tire Size
ST,235/85R16
Tire Ply Rating
8 Ply
Length x Width x Height
70"x 40"x10"
Height w/ Extension
431 mm
Number of Horizontal Flights
2
Number of Wheels
4
Hopper Wheel Size
254 mm
Lift Mechanism
Scissor
Brandt 1390XL Grain Auger Listings
Looking for Brandt 1390XL Grain Auger?
See similar listingsCompare Brandt 1390XL Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Brandt 1390XL?
No confirmed market price is supplied for the Brandt 1390XL. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Brandt 1390XL?
Listed features include 11,000 bu/h capacity, a scissor lift mechanism, 2 hydraulic cylinders, 4 wheels, and 2 horizontal flights. It requires 540 PTO and recommends 126.8 kW (170 hp).
What type of engine does the 1390XL use?
No engine type is specified. The Brandt 1390XL is listed with a 540 PTO requirement.
How much horsepower does the 1390XL have?
The recommended PTO power is 126.8 kW (170 hp).
What fuel does the Brandt 1390XL use?
No fuel type is specified for the Brandt 1390XL. The supplied specifications list a 540 PTO requirement rather than an onboard engine.
What jobs is this Grain Auger best suited for?
The Brandt 1390XL is a Grain Auger, so it is suited to grain-handling applications. The supplied specifications list a capacity of 11,000 bu/h, but do not identify specific recommended jobs or crop types.
What is the expected lifespan of the 1390XL?
The supplied data does not provide an expected lifespan for the Brandt 1390XL. Service life depends on maintenance, operating conditions, wear of flighting and bearings, and inspection history.
What should a buyer check when purchasing a used Grain Auger?
Inspect the auger tube, flighting, lower bearing, gearbox shaft, hydraulic cylinders, hoses, tires, wheels, hitch, frame arms, and undercarriage axle. Verify that the lift mechanism operates correctly and that the PTO and hydraulic requirements match the intended tractor.
