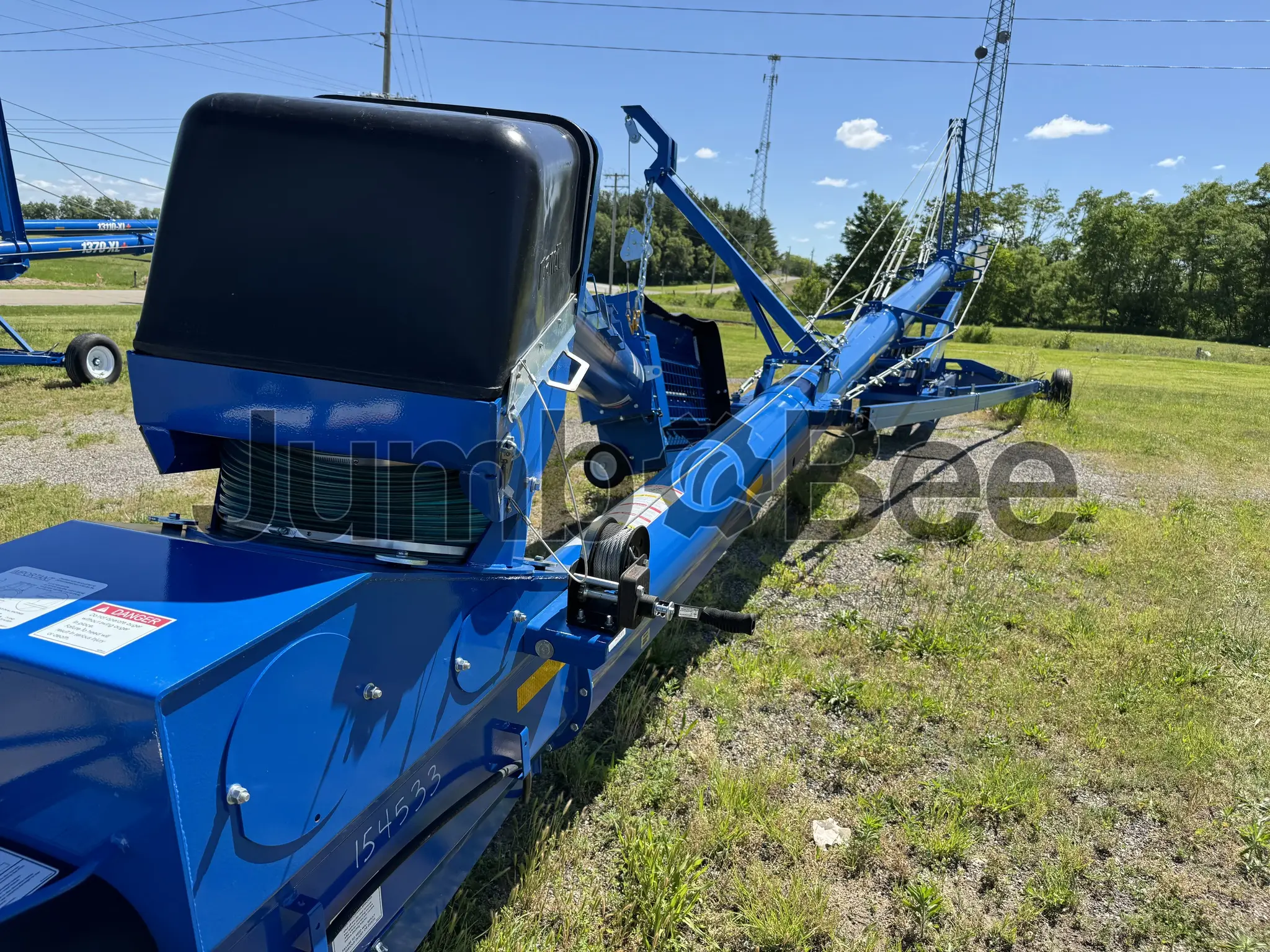

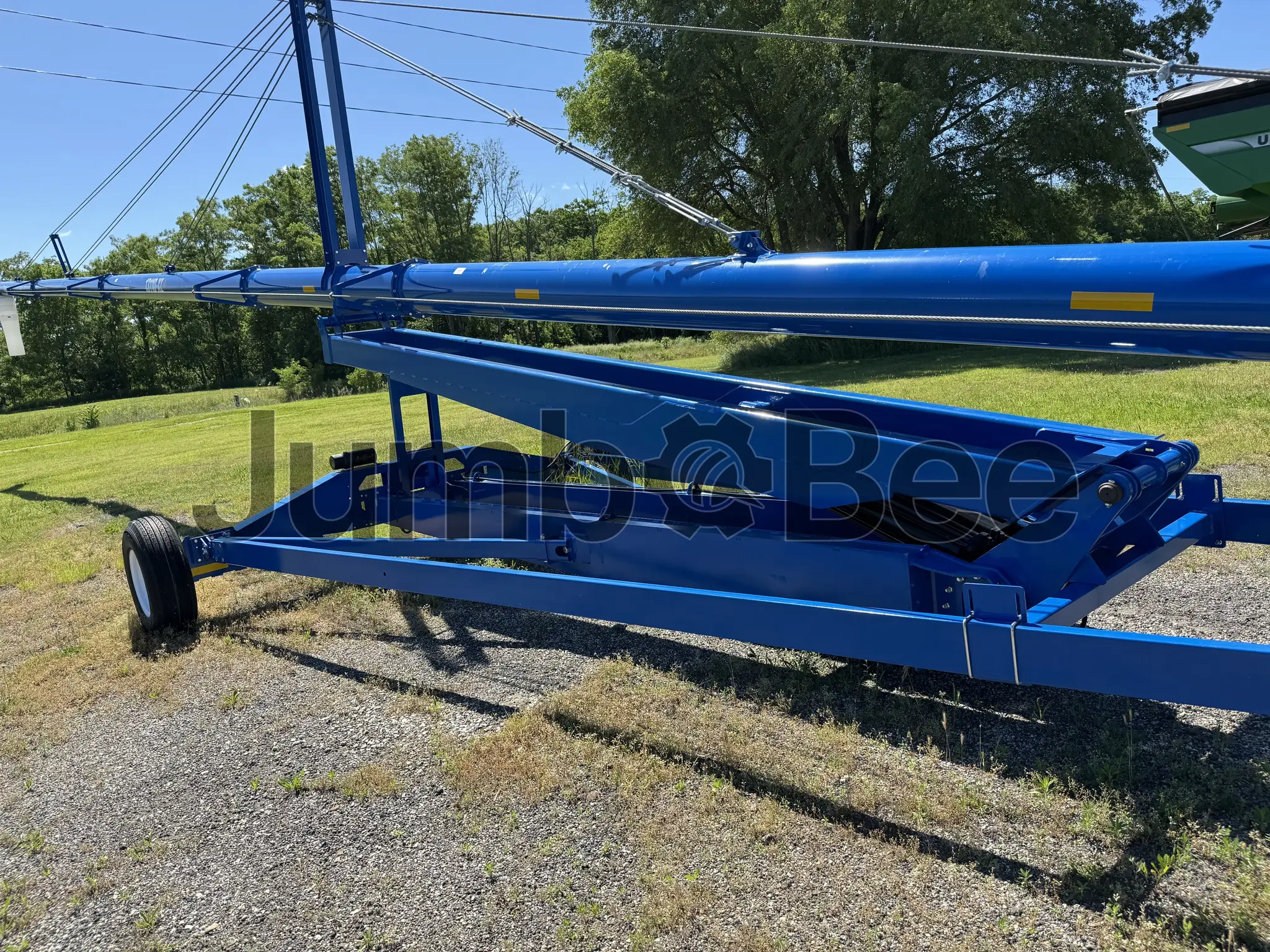

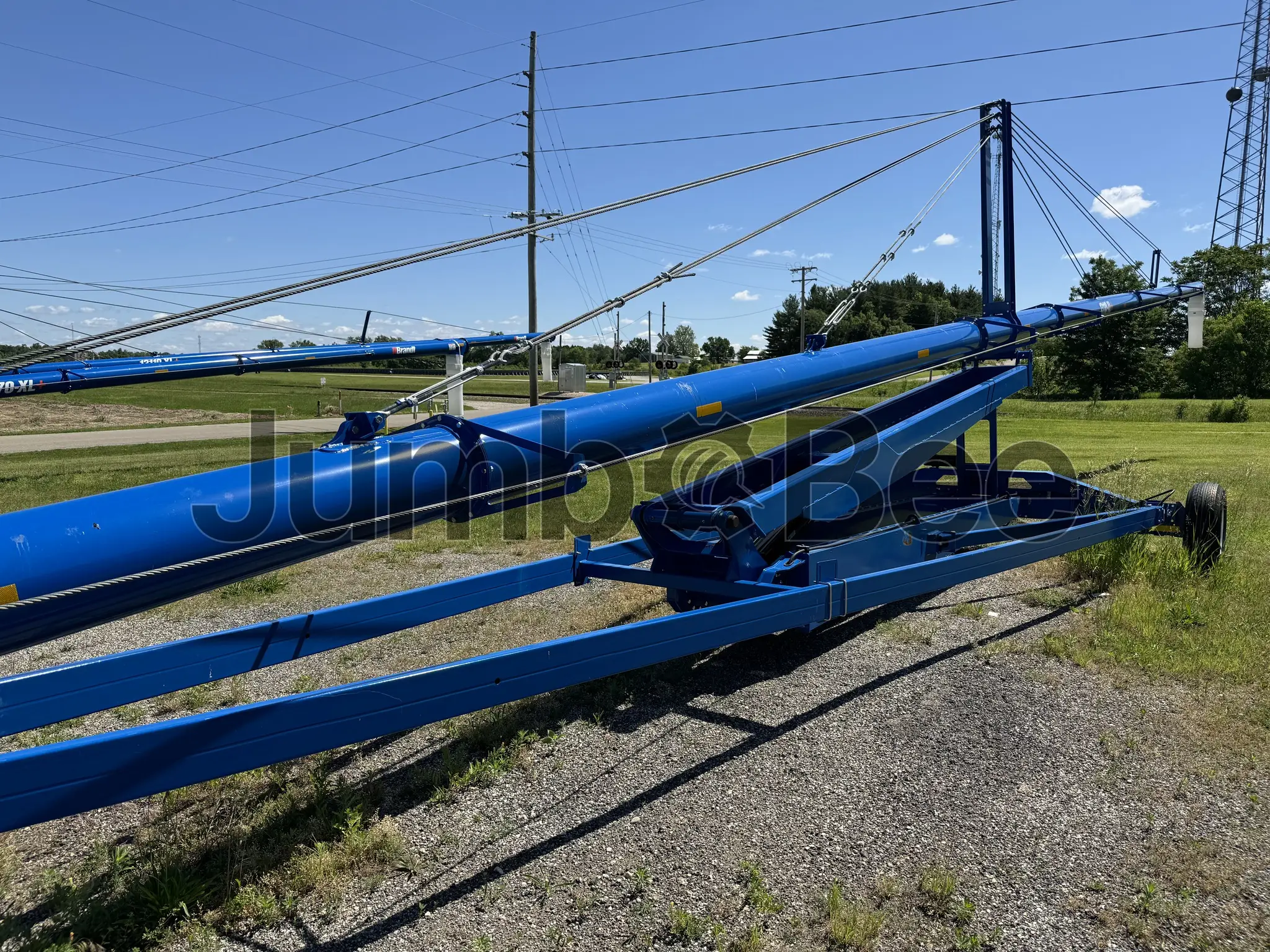

Brandt 13110XL Grain Auger
Brandt 13110XL
5+
sold in last yearGeneral overview
Brandt 13110XL is a grain auger for moving grain in farm operations, with PTO-driven operation and a stated capacity of 11,000 bu/h. It is configured for 540 PTO and a recommended 132 kW (180 hp).
Its HP intake diameter is 330 mm (13 in), and the lift system uses a scissor mechanism with fabricated frame arms. The hydraulic system is rated at 1,950 psi. Other listed details include 12 ga tube thickness, 6.35 mm main flighting, a lower bearing size of 44 mm (2 in), and a gearbox shaft diameter of 44 mm (2 in). Transport dimensions are 33,525 mm (110 ft) in length and 4,650 mm (15 ft 3 in) in height.
Year
2023, 2024
Country of manufacturing
Canada
General specifications
Dimensions
Width
Height
Length
Weight
4,060 mm
~159.8 in
4,653 mm
~183.2 in
33,535 mm
~1,320.3 in
4,218 kg
~9,299.1 lb
Capacity (bushels per hour)
11,000 bu/h
Recommended PTO Horsepower
180 hp
Tractor PTO RPM
540 PTO
Additional specifications
Drive type
Direct Drive PTO
HP Intake Diameter
330 mm
Height - Raised
22.25 mm
Reach - Lowered
18.821 mm
Reach - Raised
14.071 mm
Tube Thickness
12 ga
Flighting - Main
6.35 mm
1/4" Core Diameter
76 mm
Transport Length
33,525 mm
Transport Height
4,650 mm
Wheel Track Width
4.064 mm
Lower Bearing Size
44 mm
Gearbox Shaft Diameter
44 mm
Weight - Hitch
1.51 lb
Frame Arms
Fabricated
Undercarriage Axle
4.5"x4.5"x3/16"
Number of Hydraulic Cylinders
2
Hydraulic Requirements
1,950 psi
Tire Size
ST,235/85R16
Tire Ply Rating
12 Ply
Length x Width x Height
70"x40"x10"
Height w/ Extension
431 mm
Number of Horizontal Flights
2
Number of Wheels
4
Hopper Wheel Size
254 mm
Lift Mechanism
Scissor
Brandt 13110XL Grain Auger Listings
Looking for Brandt 13110XL Grain Auger?
See similar listingsCompare Brandt 13110XL Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Brandt 13110XL?
No confirmed market price is supplied for the Brandt 13110XL. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Brandt 13110XL?
Listed features include 11,000 bu/h capacity, 540 PTO operation, a scissor lift mechanism, 2 hydraulic cylinders, 4 wheels, and 2 horizontal flights. Recommended PTO power is 134.2 kW (180 hp).
What type of engine does the 13110XL use?
No engine type is confirmed in the supplied information. The 13110XL is specified for 540 PTO operation.
How much horsepower does the 13110XL have?
The Brandt 13110XL has a recommended PTO requirement of 134.2 kW (180 hp).
What fuel does the Brandt 13110XL use?
The supplied information does not confirm a fuel type. It specifies 540 PTO operation rather than an onboard engine.
What jobs is this Grain Auger best suited for?
As a Grain Auger with 11,000 bu/h capacity, the Brandt 13110XL is suited to grain-transfer work where a tractor with 540 PTO and 134.2 kW (180 hp) recommended PTO power is available.
What is the expected lifespan of the 13110XL?
The supplied information does not provide an expected service life for the Brandt 13110XL. Inspect flighting, bearings, gearbox components, hydraulic cylinders, tires, and the frame to assess a specific machine's condition.
What should a buyer check when purchasing a used Grain Auger?
Check the flighting, tube, lower bearing, gearbox shaft, hydraulic cylinders, scissor lift, frame arms, axle, tires, wheels, hitch, and PTO operation. Look for wear, damage, leaks, corrosion, and signs of poor maintenance.
