John Deere HPX 4X4 UTVs
John Deere HPX 4X4
5+
sold in last yearGeneral overview

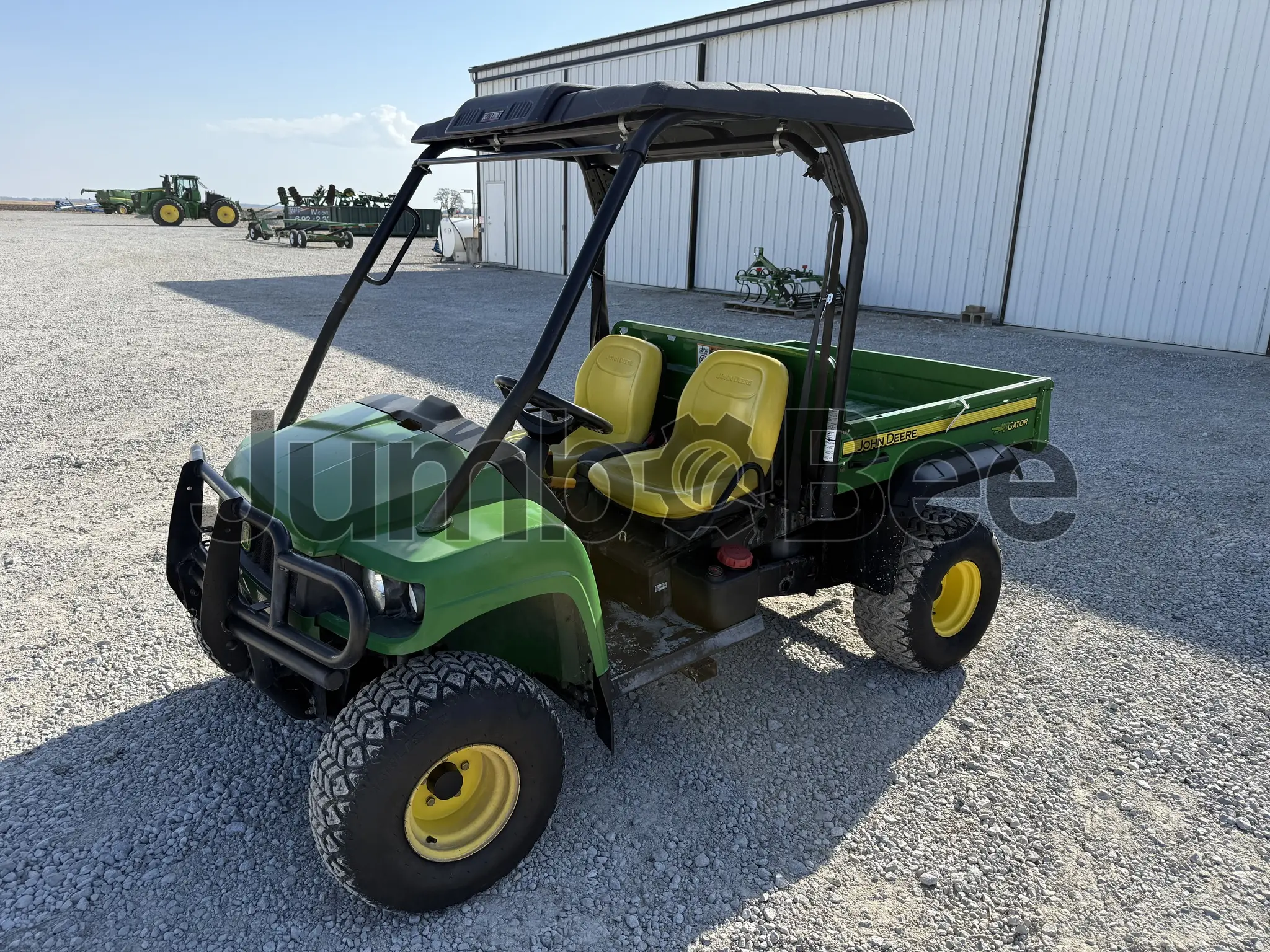

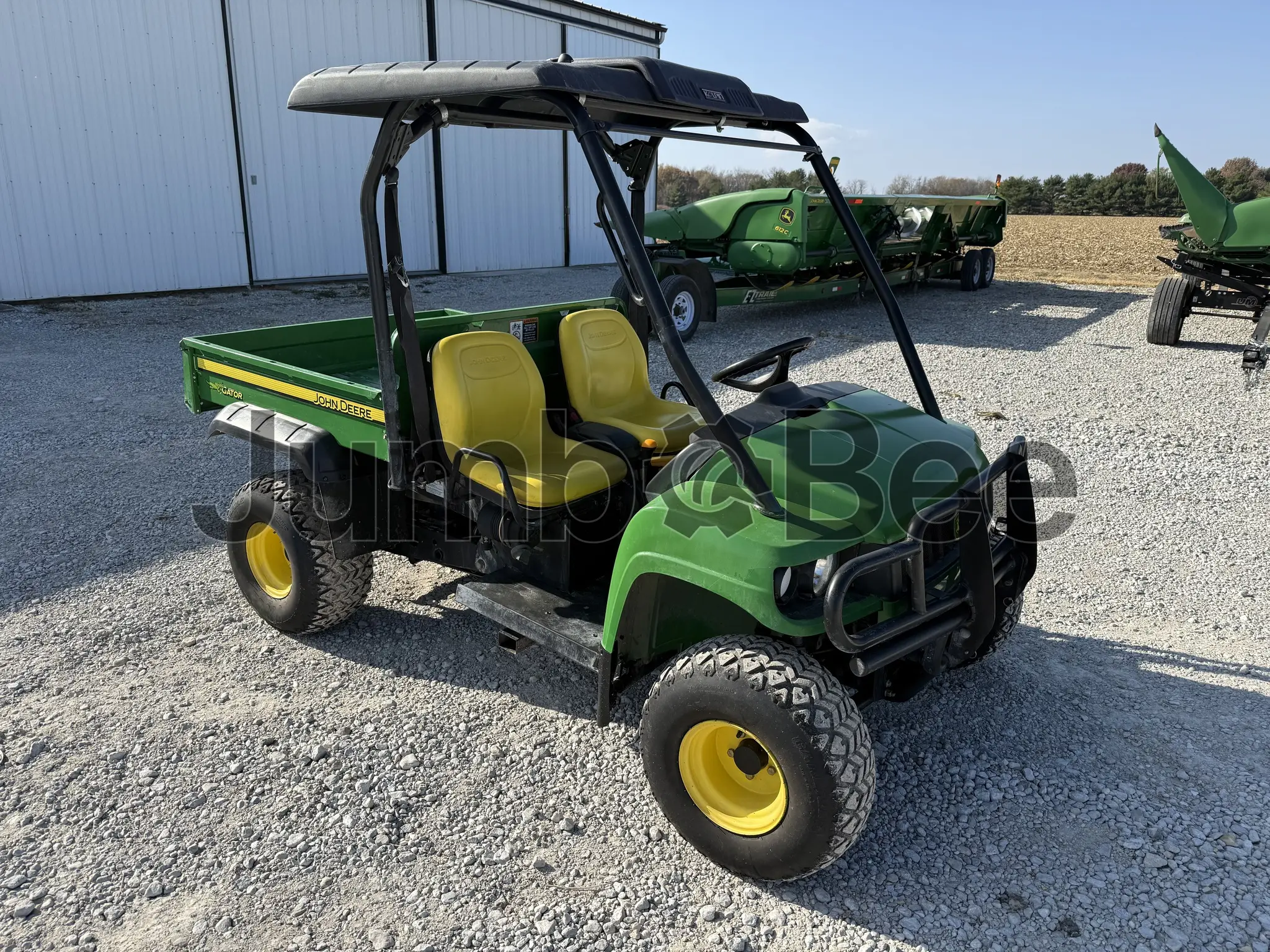

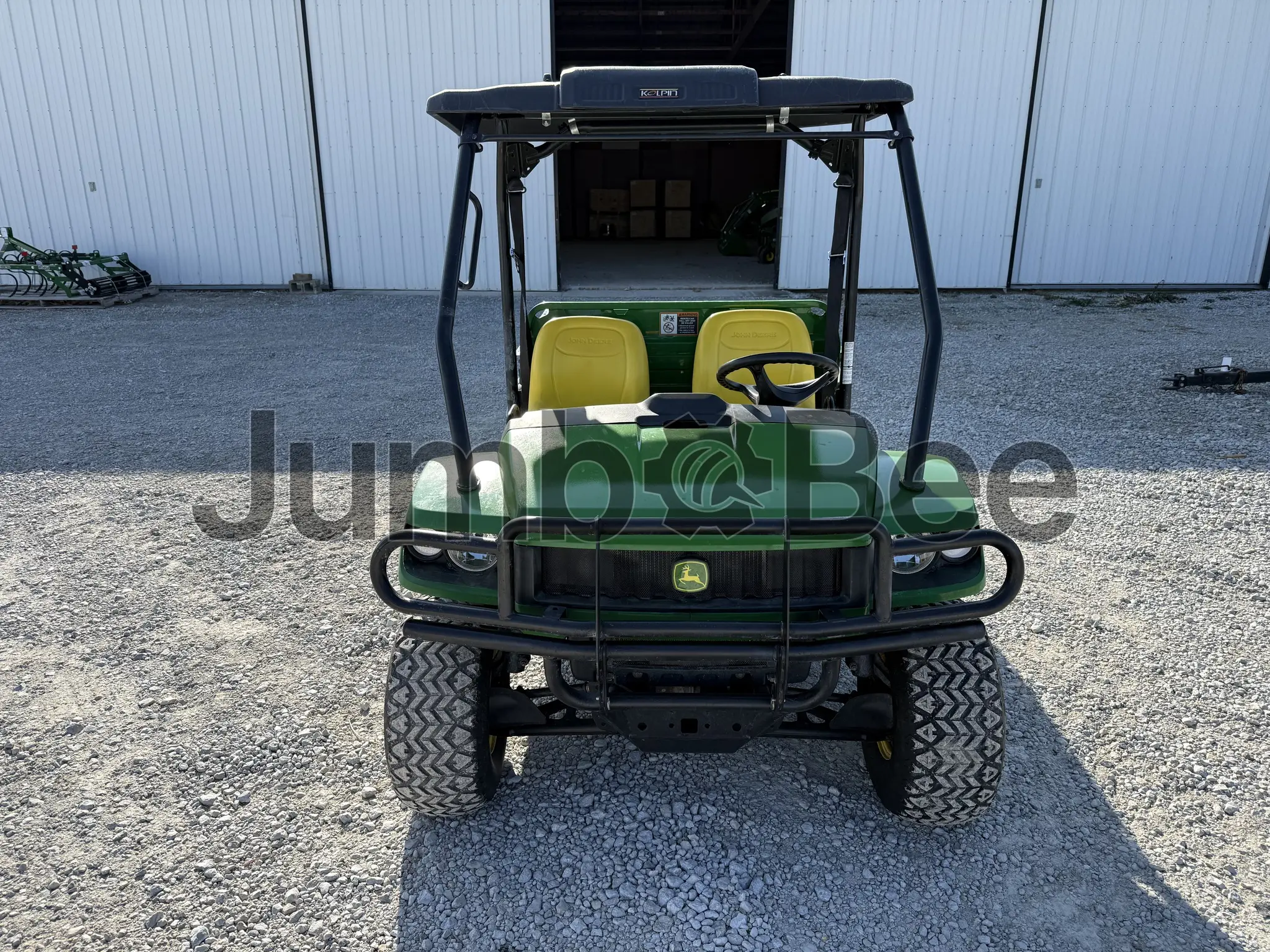

John Deere HPX 4X4 is a utility vehicle in the ATVs and Gators category, designed for farm transport and work support. It is equipped with a 13 kW (18 hp) 3-cylinder, 4-cycle diesel engine from Yanmar, giving it a light-duty power class for use around agricultural properties.
It uses a Continuously Variable Transmission (CVT) with a two-speed oil-bath transaxle and selectable 4x2 / 4x4 drive. A dash-mounted electronic switch controls selectable 4WD, while positive locking, mechanically actuated traction assist adds extra drive support when needed. The model is rated for a 590 kg (1,300 lb) towing capacity and a 454 kg (1,000 lb) capacity.
Year
2004, 2010
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,022 mm
~119 in
1,867 mm
~73.5 in
1,486 mm
~58.5 in
Engine Power
18 hp
Engine type
3-cylinder, 4-cycle diesel
Displacement
cu(m)

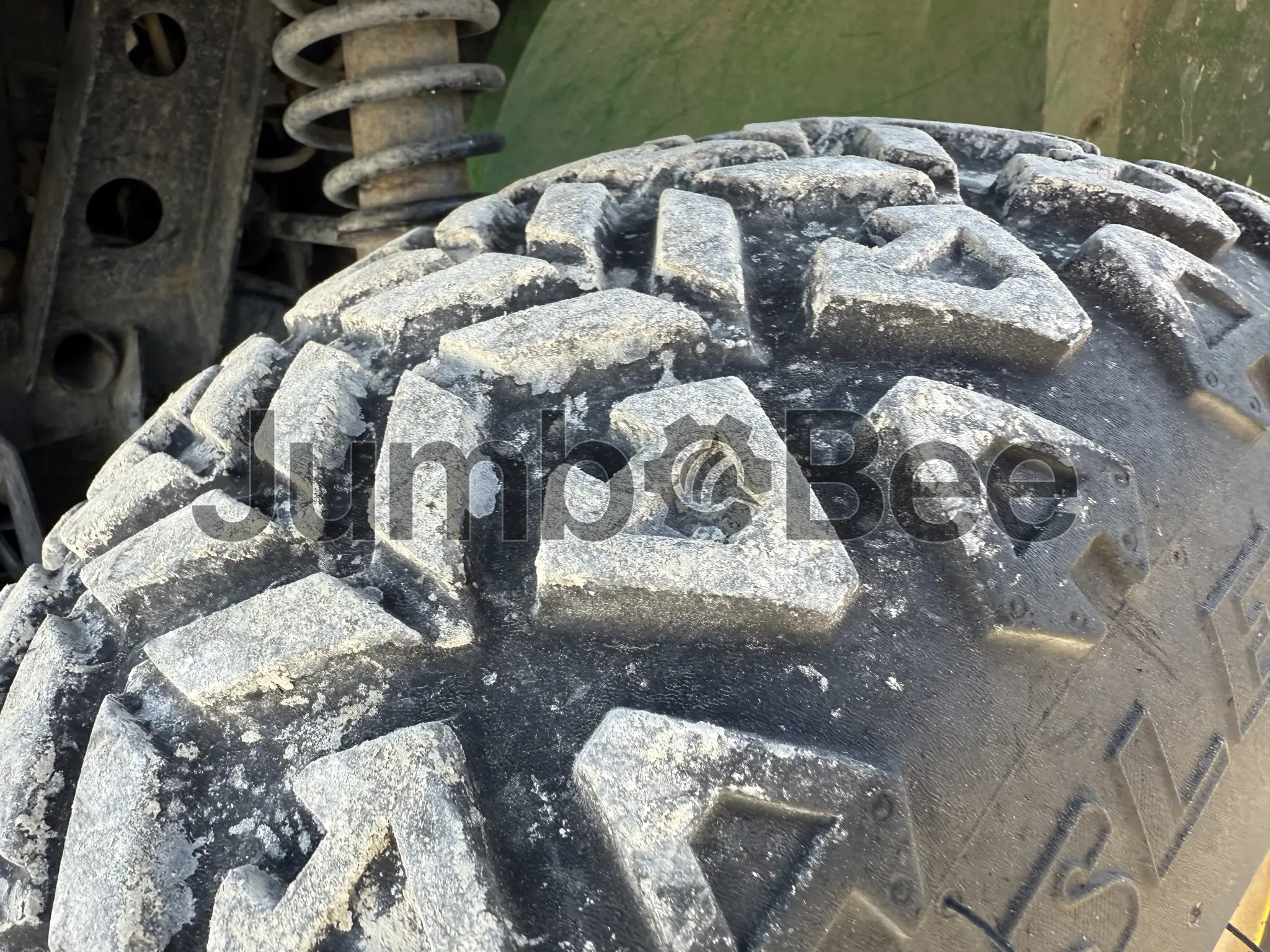

Tires front
24 x 9.5-10
Transmission type
Continuously Variable Transmission (CVT) with clutch enclosure
Electrical system type
12 V DC accessory outlet
Alternator output
40
Fuel capacity
20 L
Cooling system
5 L
Wheelbase
1,910 mm
Drive type
Selectable 4x2 / 4x4
Box length
1,143 mm
Manufacturer
Yanmar
Battery Voltage
12
Volume
460 L
Capacity (weight)
454 kg
Towing capacity
590 kg
Brakes type
Hydraulic disc brakes
Park brake
Rear mechanical disk, hand operated
Drivetrain
Continuously Variable Transmission (CVT)
Final drive
Two-speed oil-bath transaxle
Four wheel drive
Selectable 4WD (dash-mounted electronic switch)
Traction assist
Positive locking, mechanically actuated (hand-operated)
Descent control
No
Cab Height
304 mm
Final Drive
Park, high, low, neutral, reverse transaxle
Boom Width
1,320 mm
Rakes Wheel tread
24 mm
Cargo box dimensions
1,143 x 305 x 1,320 mm (45 x 12 x 52 in.)
Cargo box capacity (weight)
454 kg
Front suspension
Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension
Independent rear suspension (IRS) with adjustable camber; 231 mm (9 in.) of travel
Additional specifications
Color
Green/Yellow
Additional Options
Deluxe cargo box (gas-assist tilt), OPS/ROPS or deluxe cab frame available, standard receiver hitch (2 in) option/dealer-installed accessories possible
John Deere HPX 4X4 UTVs Listings
Looking for John Deere HPX 4X4 UTVs?
See similar listingsCompare John Deere HPX 4X4 UTV to other utvs
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere HPX 4X4?
No confirmed market price is supplied. Check current listings and compare the vehicle’s condition, location, configuration, and installed accessories.
What are the key advantages of the John Deere HPX 4X4?
Key listed features include selectable 4x2 / 4x4 drive, a dash-mounted selectable 4WD system, positive locking traction assist, hydraulic disc brakes, a 590 kg (1,301 lb) towing capacity, and a 454 kg (1,001 lb) weight capacity. A deluxe cargo box and cab-frame options are also listed.
What type of engine does the HPX 4X4 use?
The HPX 4X4 uses a Yanmar 3-cylinder, 4-cycle diesel engine.
How much horsepower does the HPX 4X4 have?
The HPX 4X4 is rated at 18 hp (13.4 kW).
What fuel does the John Deere HPX 4X4 use?
The John Deere HPX 4X4 uses diesel fuel. Its listed fuel capacity is 20 L (5.3 US gal).
What jobs is this ATVs and Gators best suited for?
Its listed cargo and towing capacities, selectable 4x2 / 4x4 drive, and traction assist make it suitable for carrying materials and towing equipment where those capabilities are needed. The supplied data does not specify particular job types or operating environments.
What is the expected lifespan of the HPX 4X4?
The supplied data does not confirm an expected service life. For a used unit, assess maintenance records, engine condition, drivetrain operation, brakes, cargo box condition, and signs of damage or corrosion.
What should a buyer check when purchasing a used ATVs and Gators?
Check the engine starting and running condition, CVT and selectable 4x2 / 4x4 operation, traction assist, brakes, steering, tires, battery, fuel system, cargo box, hitch, and frame. Review maintenance records and inspect for leaks, corrosion, damage, or worn components.
