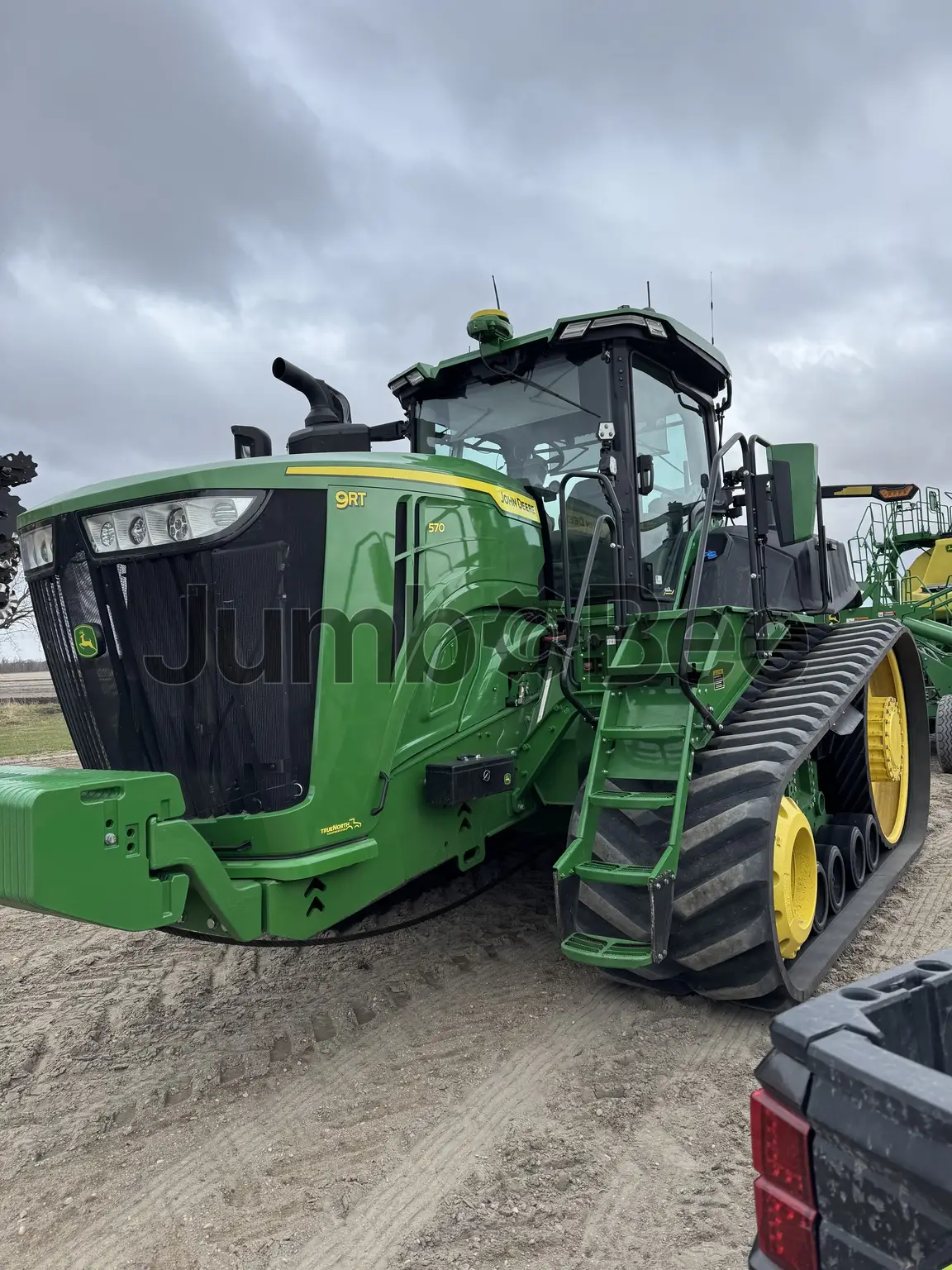

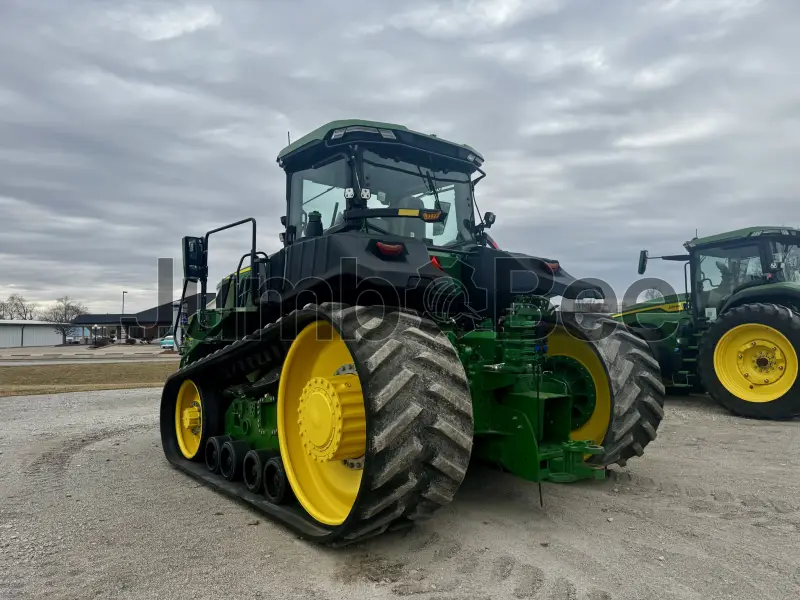

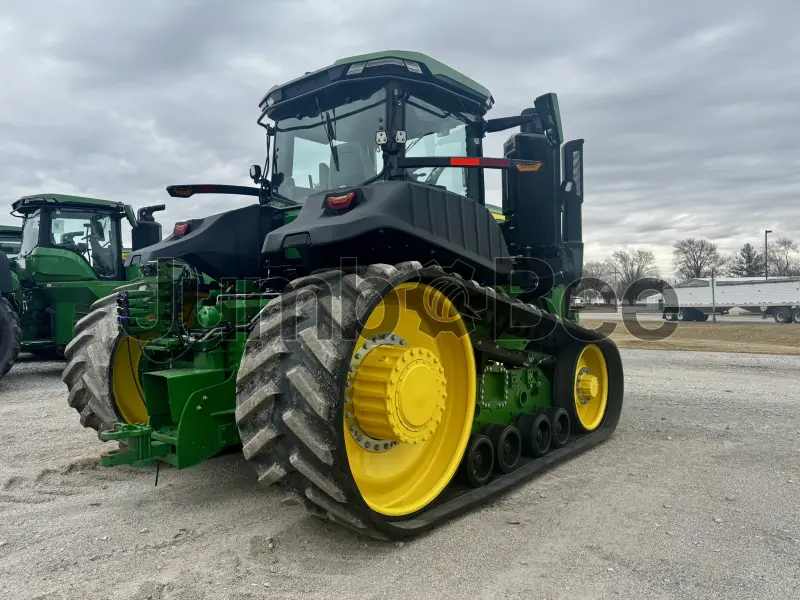

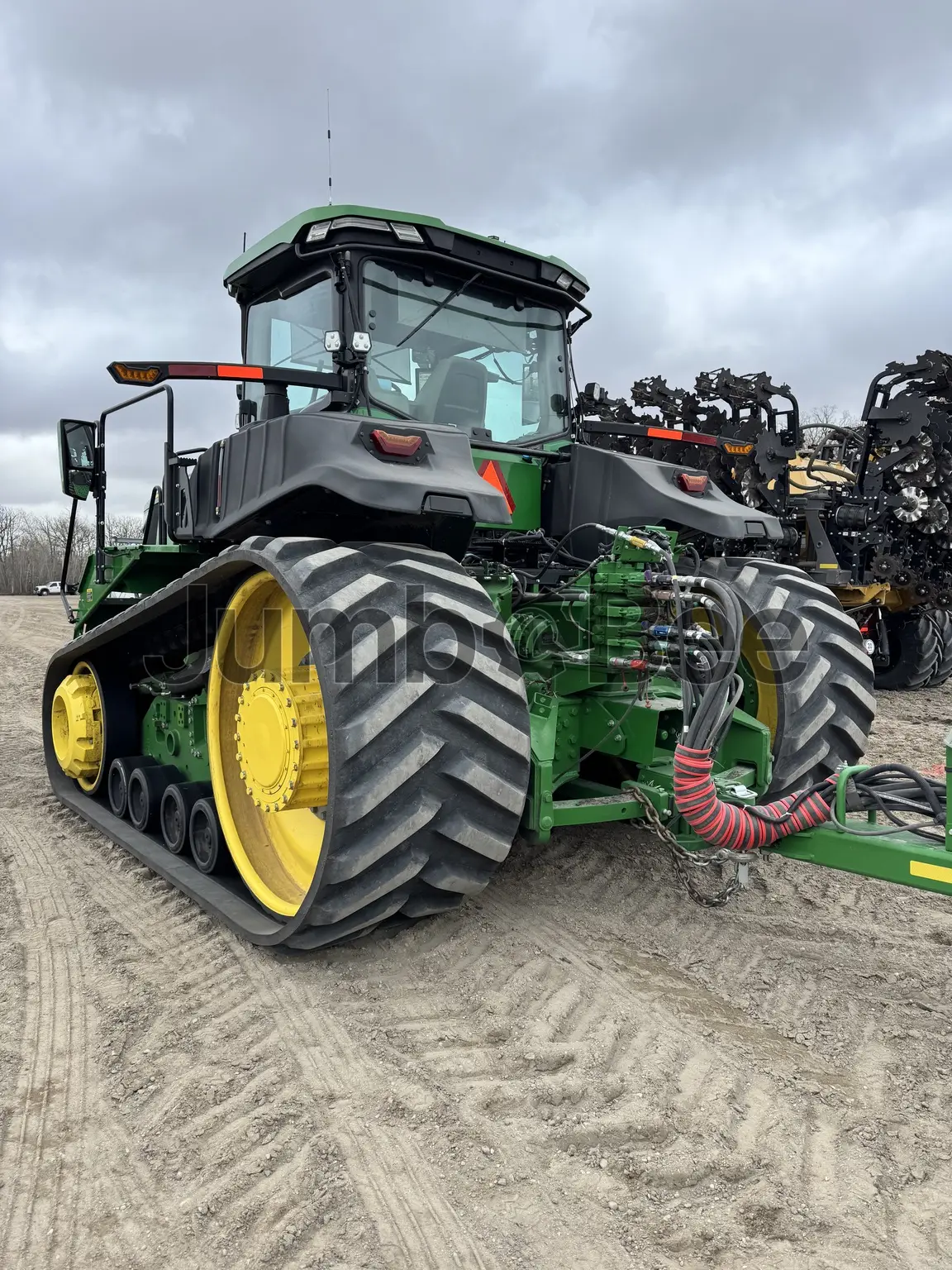

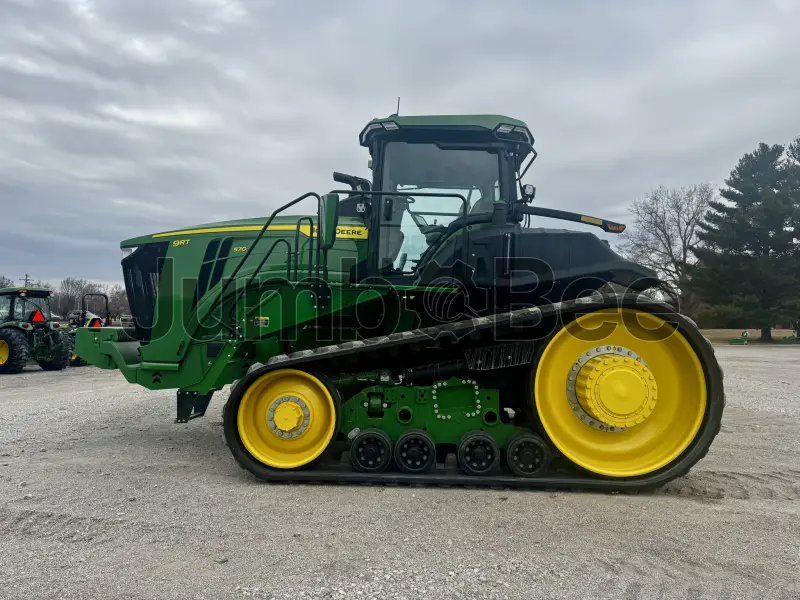

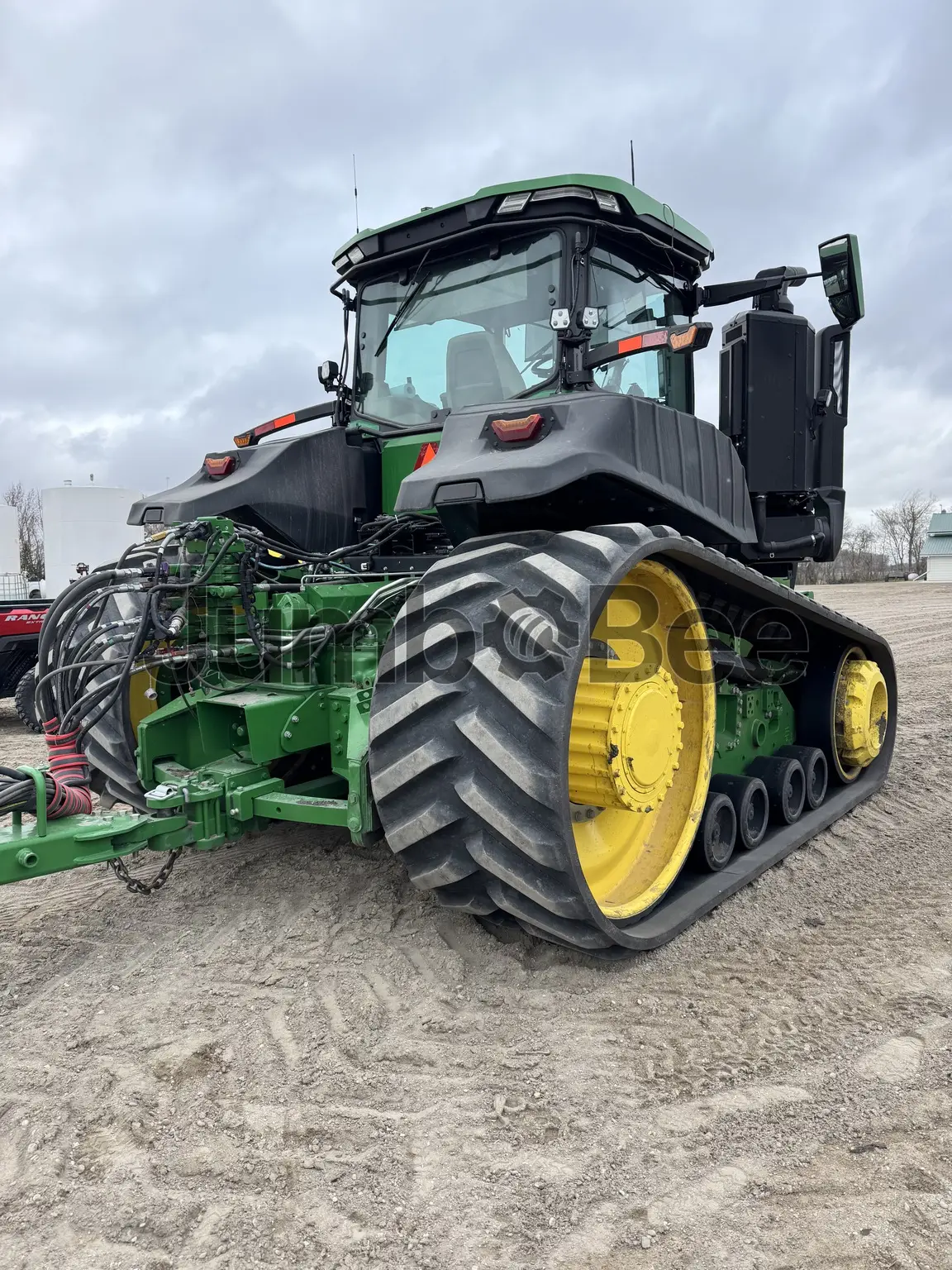

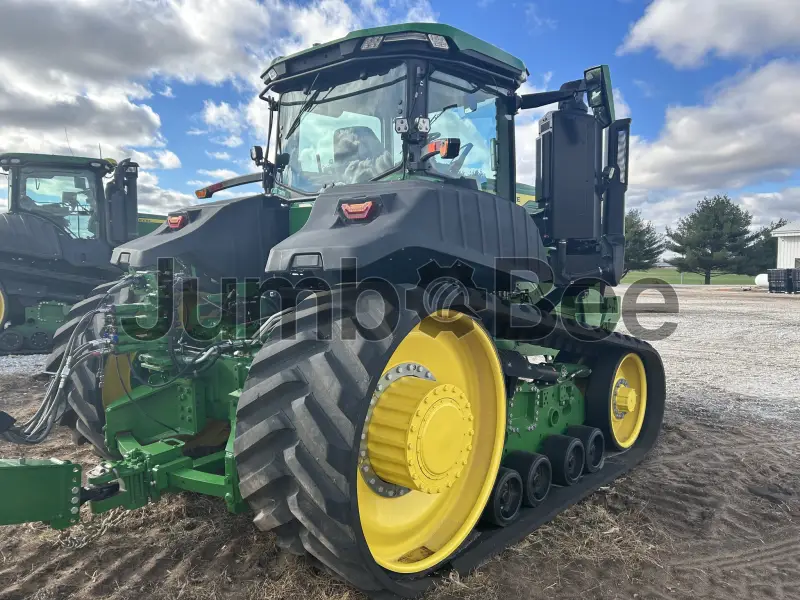

John Deere 9RT 570 Tracked Tractors (2 Tracks)
John Deere 9RT 570
Average price
$505,066.67
5+
sold in last year
General overview
John Deere 9RT 570 is a tractor built for field operations that depend on high traction and sustained pulling power. It is powered by a diesel engine rated at 419 kW (570 hp) with a displacement of 13.6 L (830 cu in), and it meets Final Tier 4 (FT4) emission standards.
The drivetrain pairs the John Deere e18™ 18-speed PowerShift with Efficiency Manager (40 km/h) transmission with an articulated crawler drive and 2 Tracks. The model is rated for 242 kW (329 hp) at the PTO, uses a rear hitch category (SAE designation) Category 4N, and has a maximum lift capacity behind lift points of 9,072 kg (20,000 lb). Its closed-center, pressure-and-flow-compensated hydraulic system is rated at 208 L/min (54.9 gpm), with available flow at a single rear SCV of 132 L/min (34.9 gpm) and 4–8 rear selective control valves.
Year
2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,032 mm
~80 in
7,201 mm
~283.5 in
6,965 mm
~274.2 in
20,582 kg
~45,375.6 lb
Tire or Track Type
2 Tracks
Engine Power
570 hp
Track Width
2.73 m
Additional specifications
Emission standard level
Final Tier 4 (FT4)
Engine type
Diesel
Displacement
830 cu(in)
Maximum PTO power
329 hp
Rated PTO power
329 hp
Transmission type
John Deere e18â„¢ 18-speed PowerShift with Efficiency Manager (40 km/h)

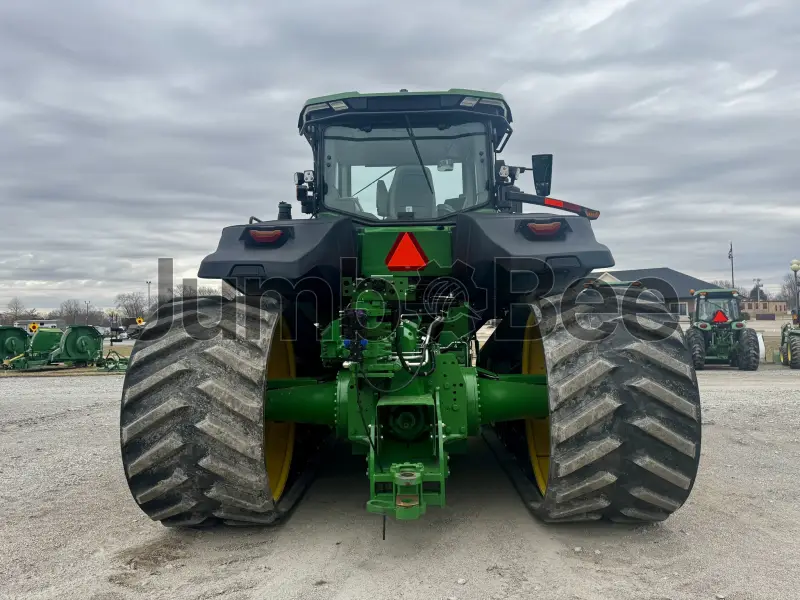

Rear hitch category (SAE designation)
Category 4N
Maximum lift capacity behind lift points
9,072 kg
Fuel tank
1,324 L

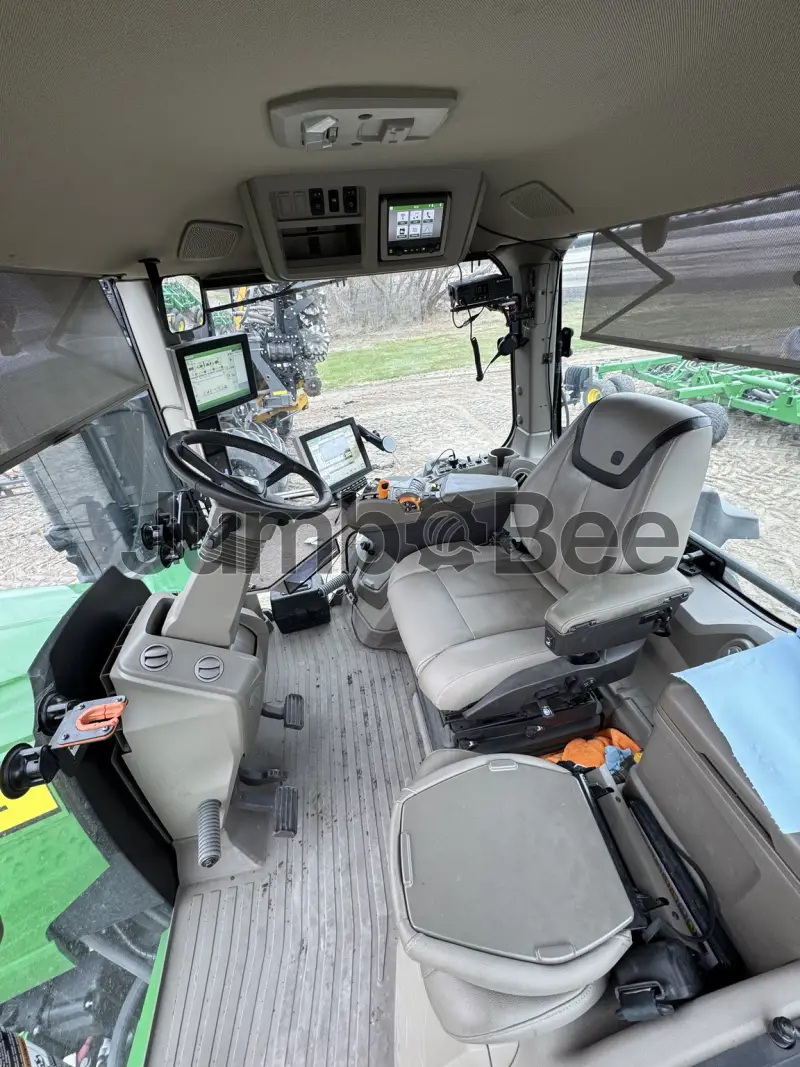

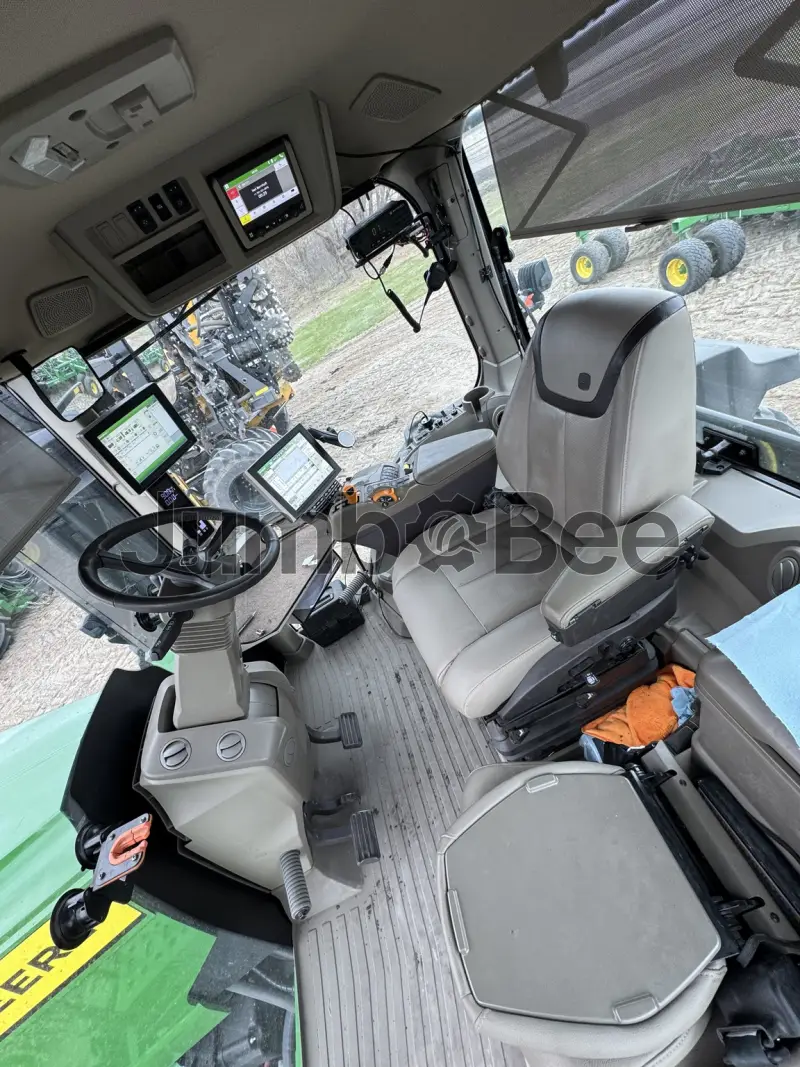

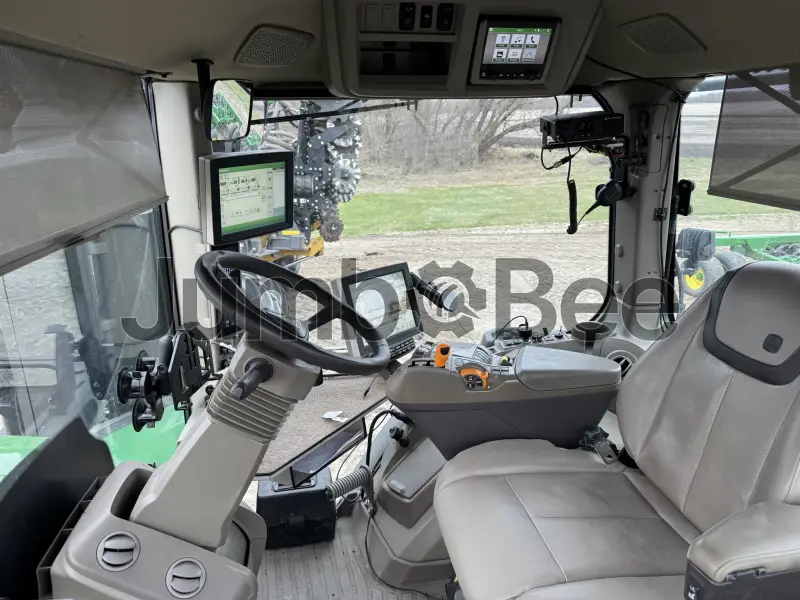

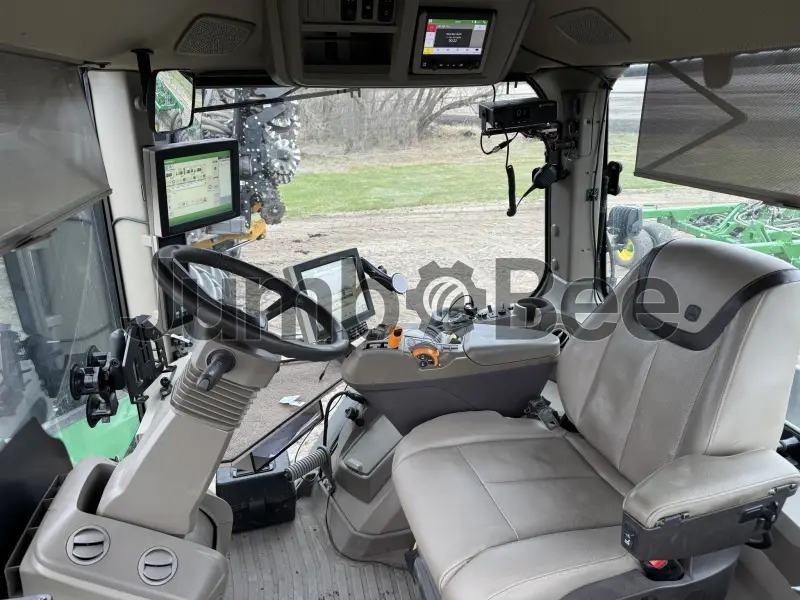

Cab glass area
6.64 sq(m)
Hydraulic system type
Closed-center, pressure-and-flow-compensated
Pump rated output
208 L/min

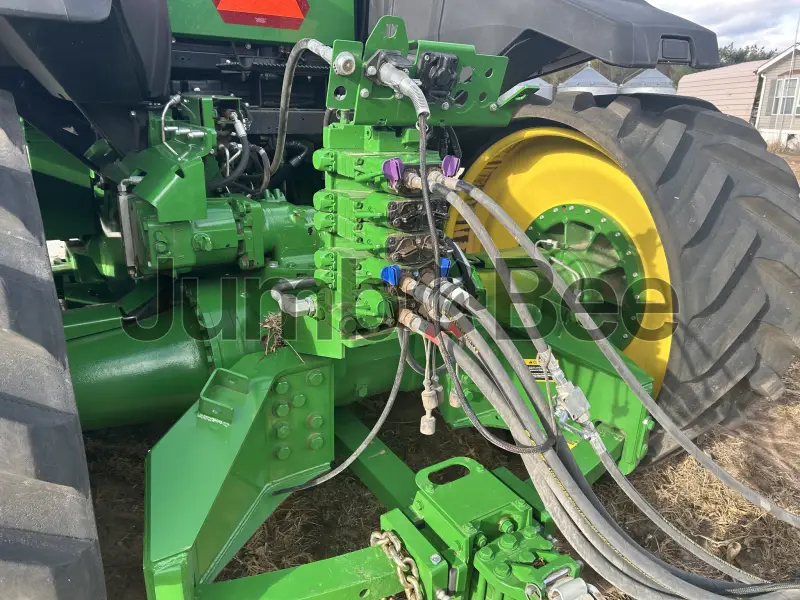

Available flow at a single rear SCV
132 L/min

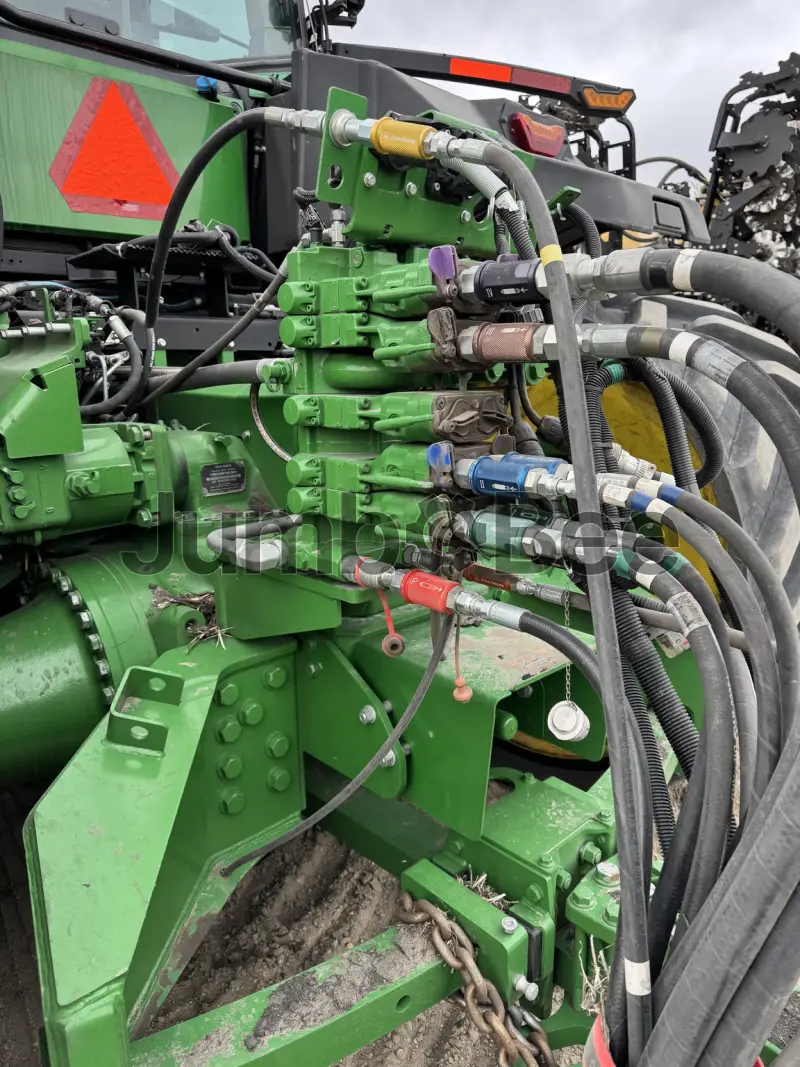

Number of rear selective control valves
4–8
Sensing type
Guidance-ready
Tires

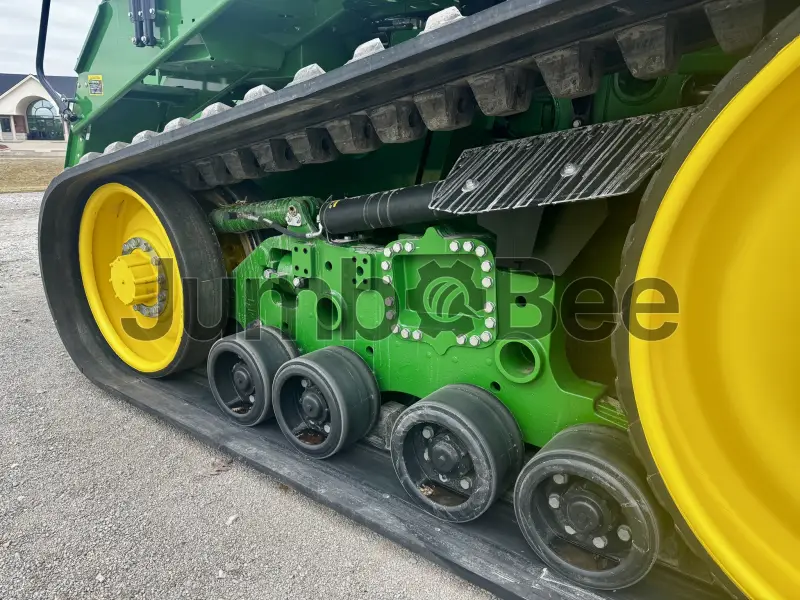

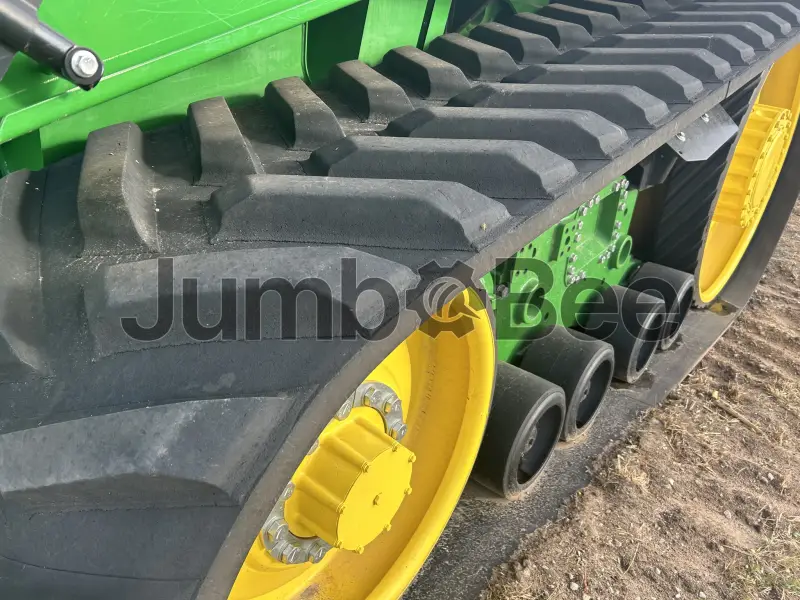

762 mm (36 in) Camso 6,500 tracks
Front Axle
Articulated crawler drive
John Deere 9RT 570 Tracked Tractors (2 Tracks) Listings
$545,400
208 L/min
570 hp
2 Tracks
1507 hours
Kennedy, United States
$529,900
570 hp
2 Tracks
Final Tier 4 (FT4)
828 hours
Havana, United States
$439,900
132 L/min
329 hp
Power Shift
831 hours
Winchester, United States
Compare John Deere 9RT 570 Tracked Tractors (2 Tracks) to other tracked tractors (2 tracks)
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9RT 570 Tracked Tractors (2 Tracks)
570 hp
20582 kg
6965 mm × 2032 mm × 7201 mm
Add model
Add model
4.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
4.0
Reliability & Durability
4.0
Comfort & Ergonomics
4.0
Safety
4.0
Technology & Features
4.0
Mason Green
About 2,400 hours on ours now and it's still tight. Headland turn automation saves a real amount of steering effort. There's enough hydraulic flow to run a 50-foot disk harrow wide open.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9RT 570?
No confirmed market price is supplied. Check current listings while considering the tractor’s condition, location, and configuration.
What are the key advantages of the John Deere 9RT 570?
Supplied specifications include 425 kW (570 hp) engine power, two tracks, a John Deere e18â„¢ 18-speed PowerShift with Efficiency Manager (40 km/h) transmission, and a closed-center, pressure-and-flow-compensated hydraulic system. It also has up to 9,072 kg (20,000 lb) lift capacity behind the lift points.
What type of engine does the 9RT 570 use?
The 9RT 570 uses a Diesel engine with 830 cu in displacement and a Final Tier 4 (FT4) emission standard level.
How much horsepower does the 9RT 570 have?
The 9RT 570 has 425 kW (570 hp) of engine power. Its maximum and rated PTO power are 245.3 kW (329 hp).
What fuel does the John Deere 9RT 570 use?
The John Deere 9RT 570 uses Diesel fuel. Its fuel tank capacity is 1,324 L (349.8 US gal).
What jobs is this Tractors best suited for?
The supplied data does not identify specific jobs. Its 425 kW (570 hp) engine, two-track configuration, Category 4N rear hitch, and 9,072 kg (20,000 lb) maximum lift capacity indicate equipment suited to applications requiring substantial power, hydraulic flow, and rear-hitch capacity.
What is the expected lifespan of the 9RT 570?
The supplied data does not confirm an expected service life. For a used unit, inspect maintenance records, engine and transmission operation, track condition, hydraulic performance, hitch function, and signs of leaks or damage.
What should a buyer check when purchasing a used Tractors?
Check maintenance records, engine operation, transmission shifting, track wear and condition, hydraulic system performance, rear SCVs, hitch operation, and guidance-ready equipment. Inspect for fluid leaks, structural damage, and verify that the tractor’s configuration matches the intended implements.
