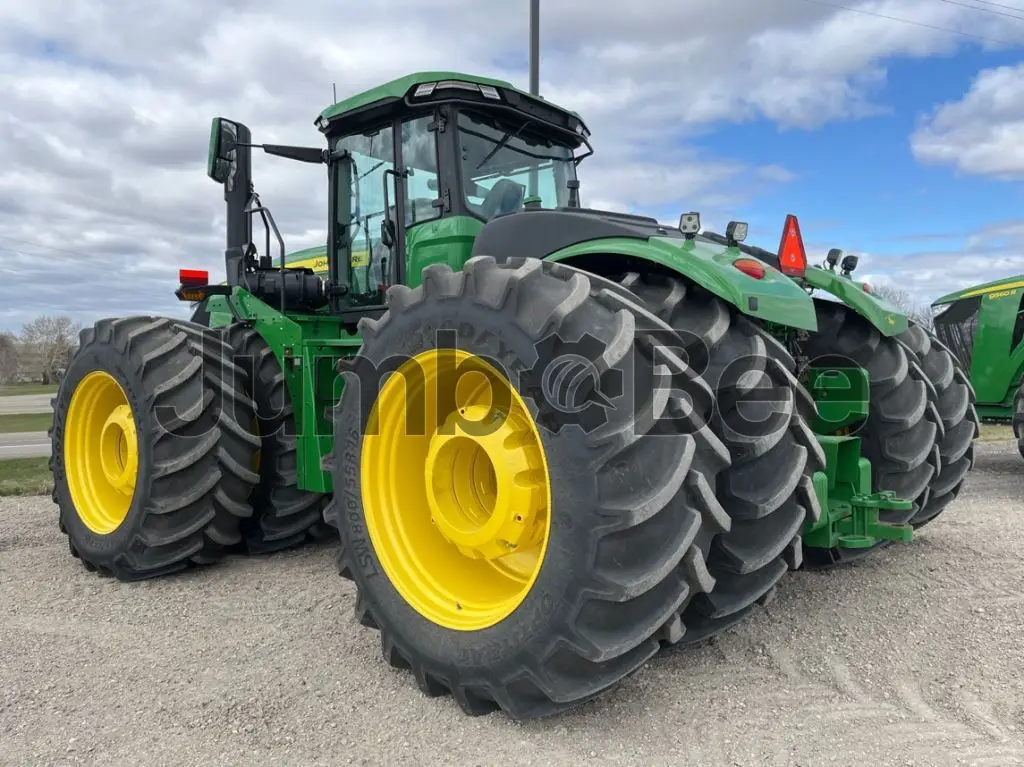

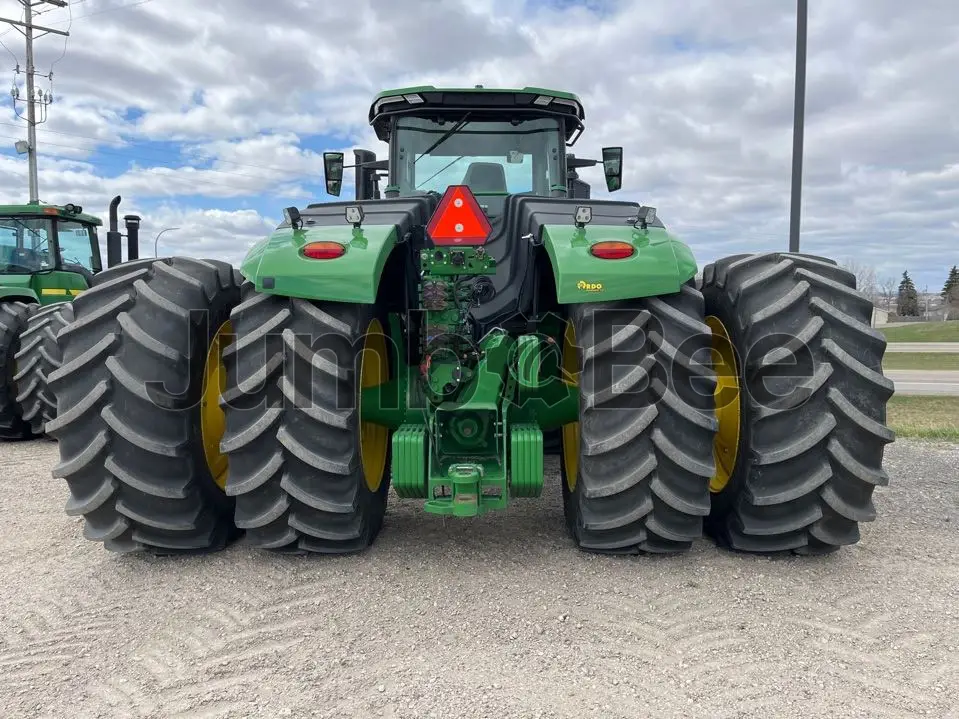

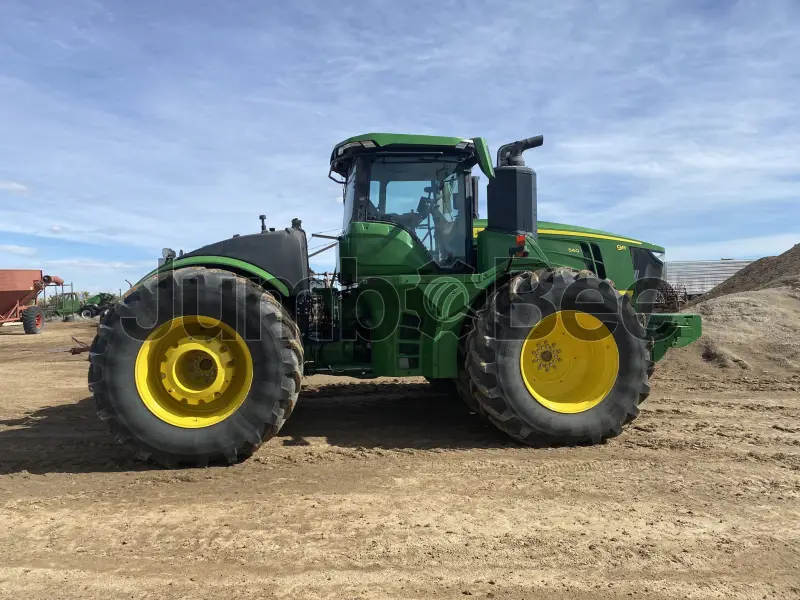

John Deere 9R 540 Articulated 4WD Tractors
John Deere 9R 540
Average price
$480,146.44
5+
sold in last year
General overview

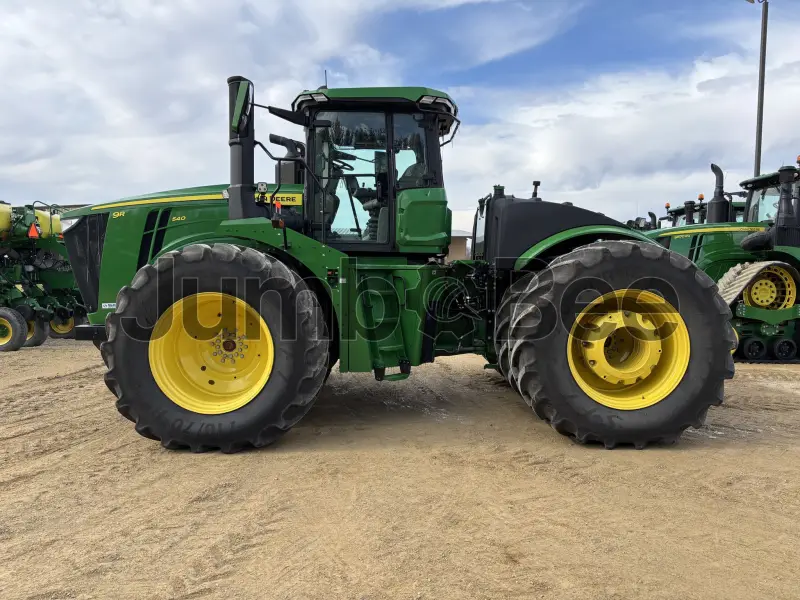

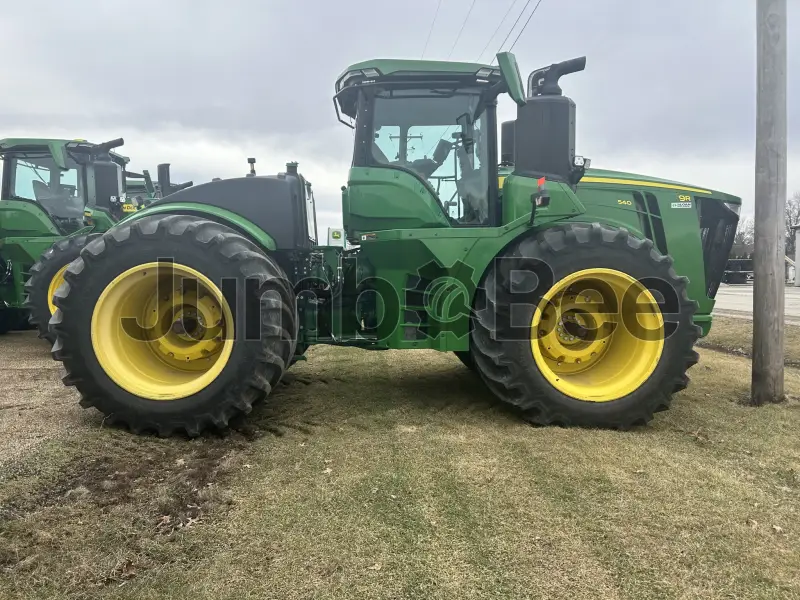

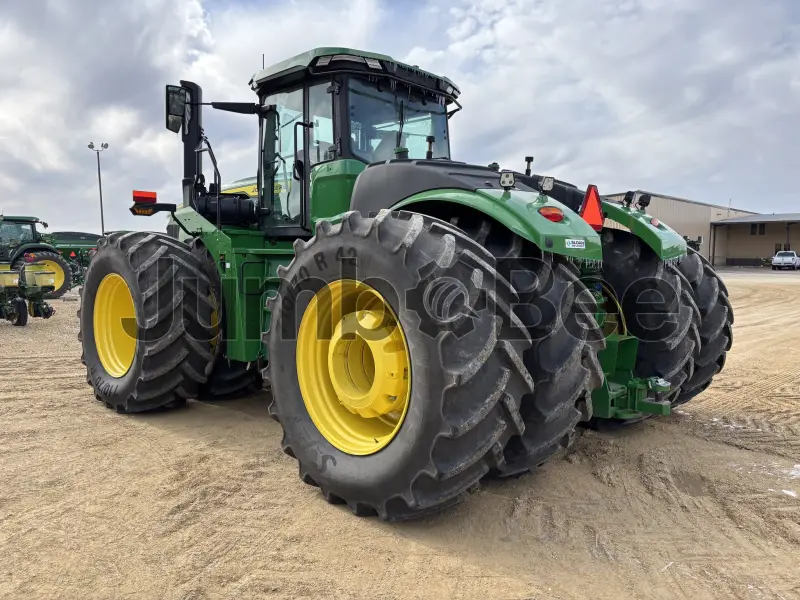

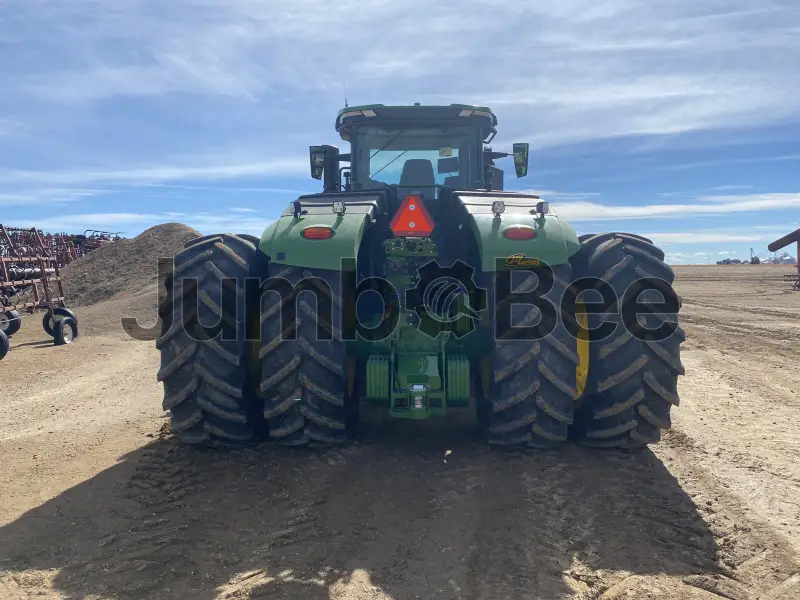

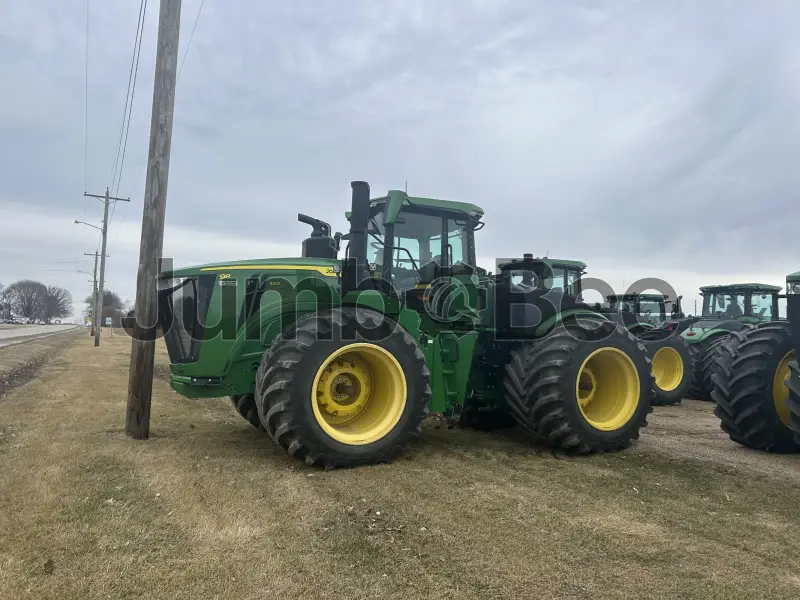

John Deere 9R 540 is a wheeled tractor built for heavy farm work where high engine output and implement control matter. It is powered by a 397 kW (540 hp) diesel engine that meets Final Tier 4 emissions requirements and suits large-scale field operations.
The model uses a John Deere e18 18-speed PowerShift with Efficiency Manager (40 km/h), a rear PTO rated at 246 kW (335 hp) with an independent, 44 mm (1.75 in.) 20-spline, 1000 rpm configuration. An electrohydraulic 4N rear hitch, 9,072 kg (20,000 lb) lift capacity, and a closed-center, pressure-and-flow compensated hydraulic system with 208 L/min (54.9 gpm) pump output support demanding implement work.
Year
2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Length
Weight
7,945 mm
~312.8 in
20,856 kg
~45,979.6 lb
Tire or Track Type
wheels
Engine Power
540 hp
Additional specifications
Emission standard level
Final Tier 4
Engine type
diesel
Displacement
13 cu(m)
Rated PTO power
335 hp
Transmission type
John Deere e18 18-speed PowerShift with Efficiency Manager (40 km/h)
Maximum lift capacity behind lift points
9,072 kg
Fuel tank
1,514 L

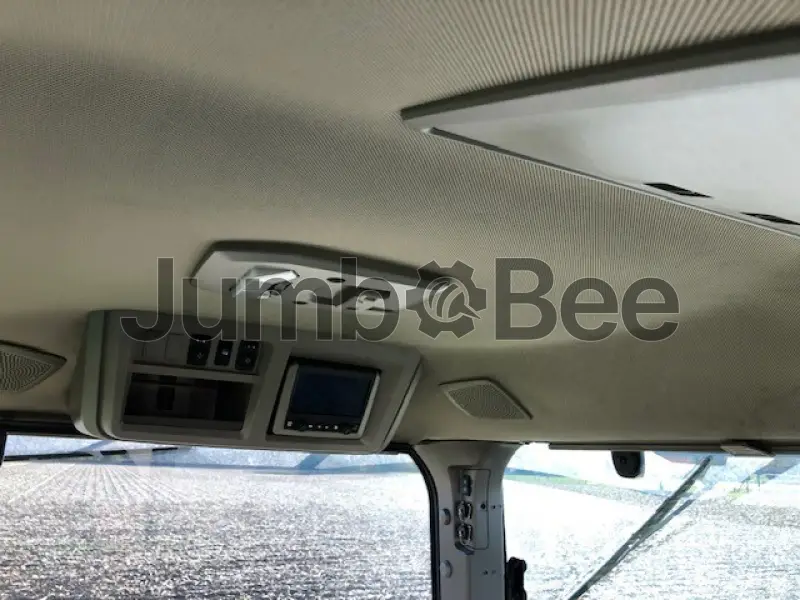

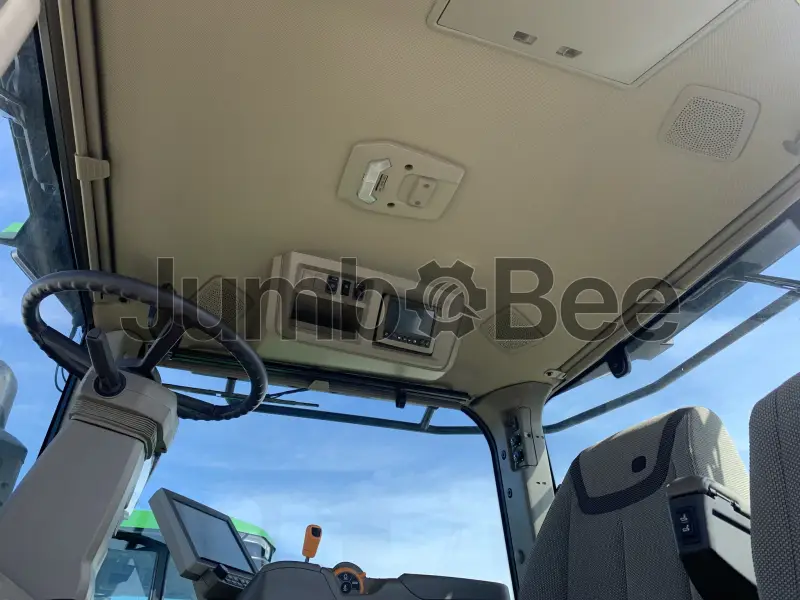

Cab glass area
6 sq(m)

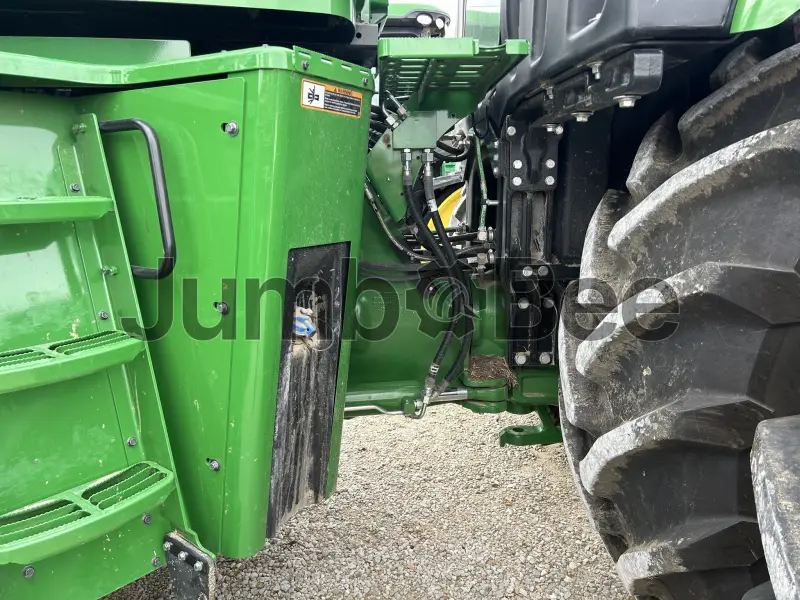

Hydraulic system type
Closed-center, pressure-and-flow compensated
Pump rated output
208 L/min
Available flow at a single rear SCV
132 L/min

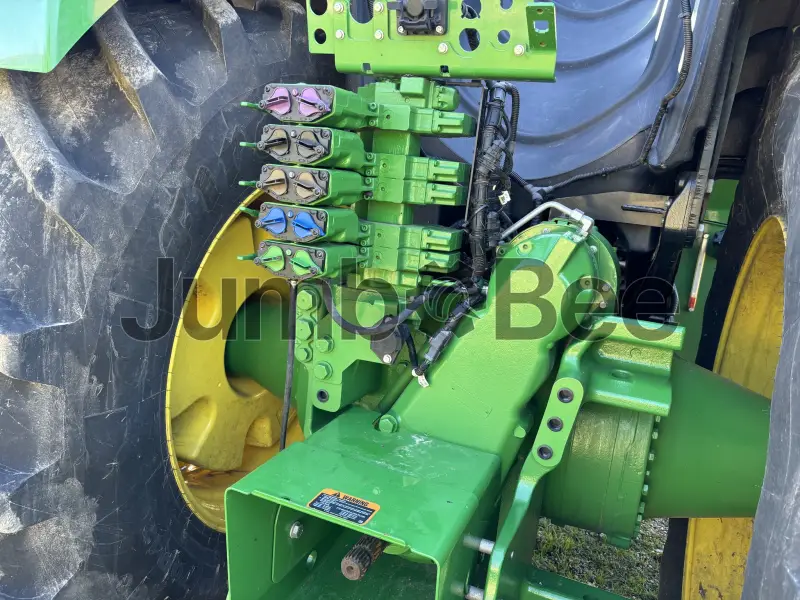

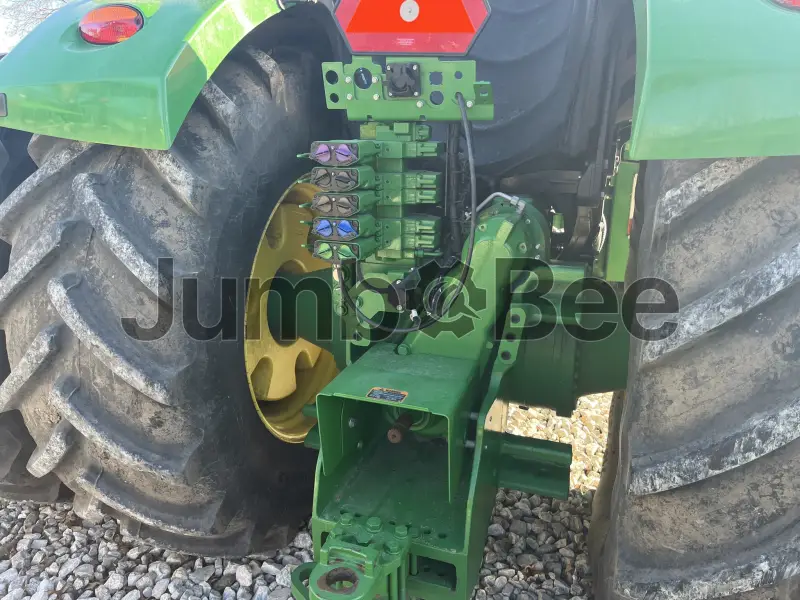

Number of rear selective control valves
4
SCV control
Electronic
Sensing type
Electrohydraulic with draft sensing
Hitch type
4N
Rear PTO
Independent, 44 mm (1.75 in.) 20-spline, 1,000 rpm
Front Axle
Diameter: 120 x 3,048 mm; full-locking electrohydraulic differential lock

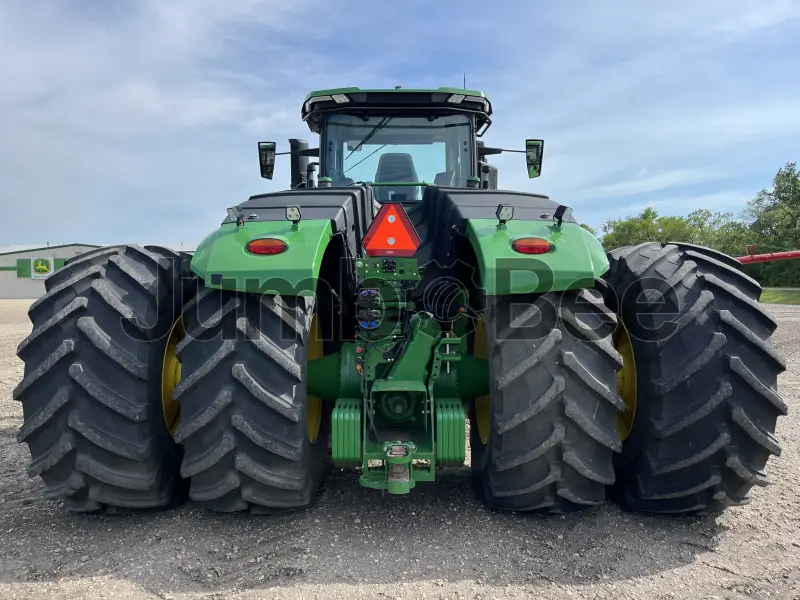

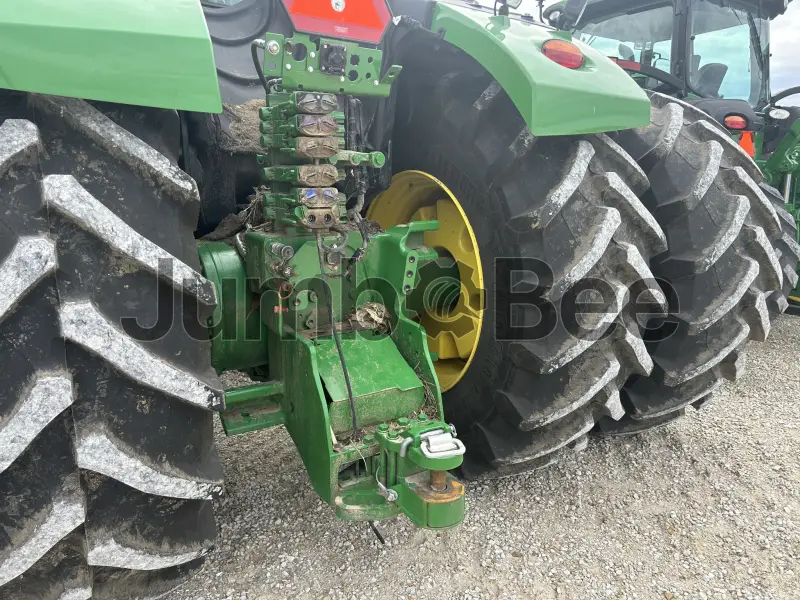

Rear 3-Point Hitch
Electrohydraulic with draft sensing
Guidance Ready
installed
Additional Options
Optional hydraulic pump 416 L/min; optional SCV configurations (up to 8); multispeed PTO and ground-speed PTO options; various cab and visibility packages.

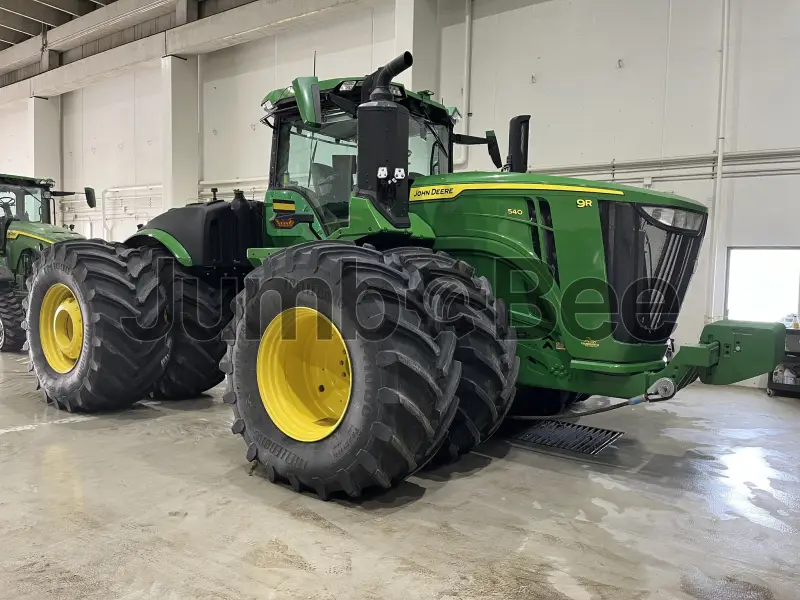

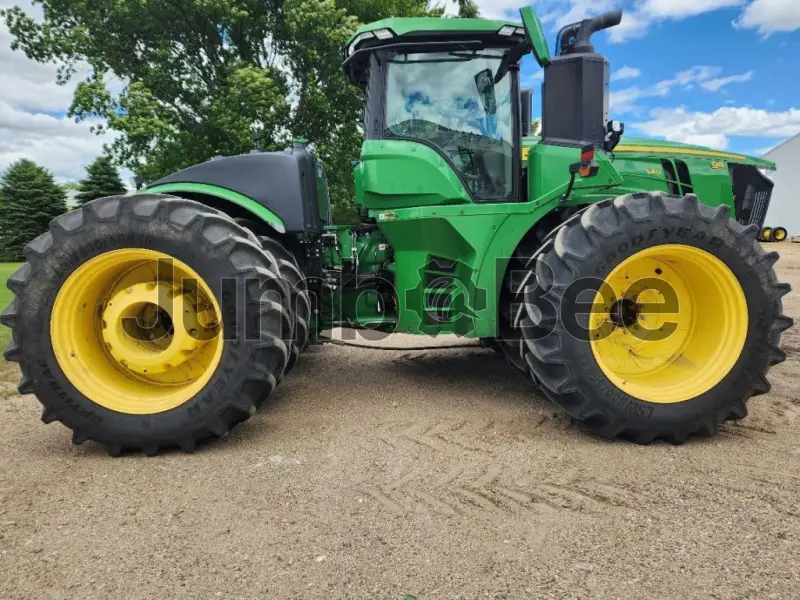

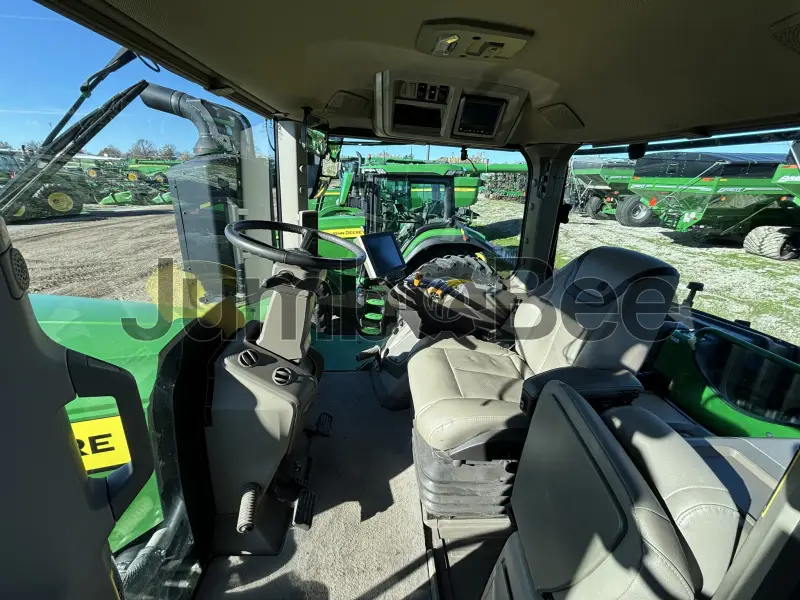

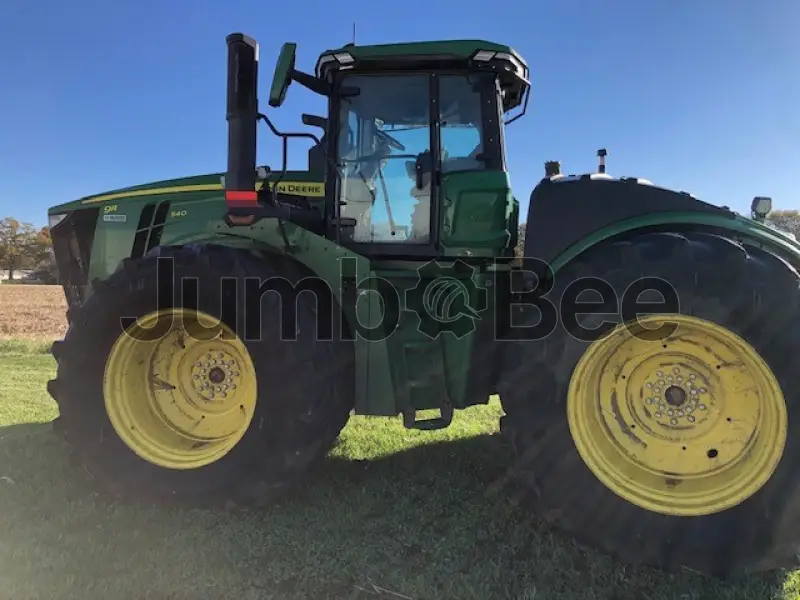

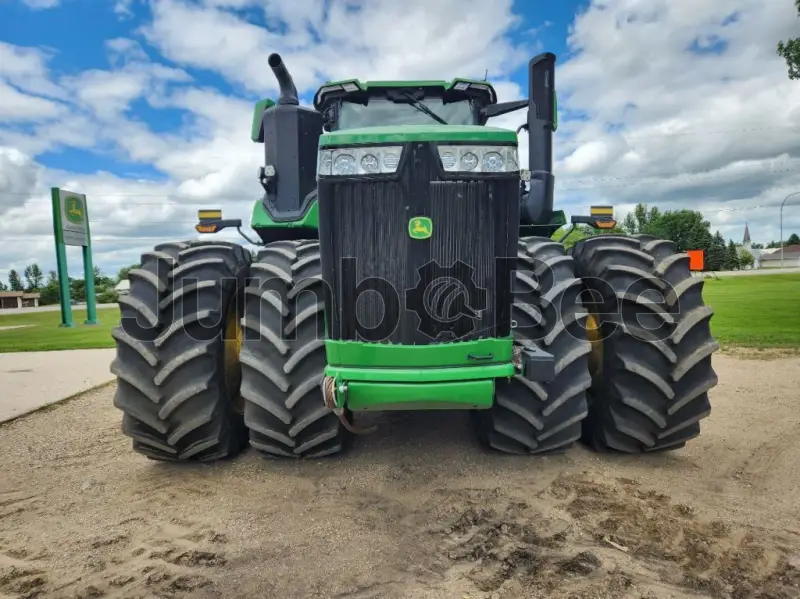

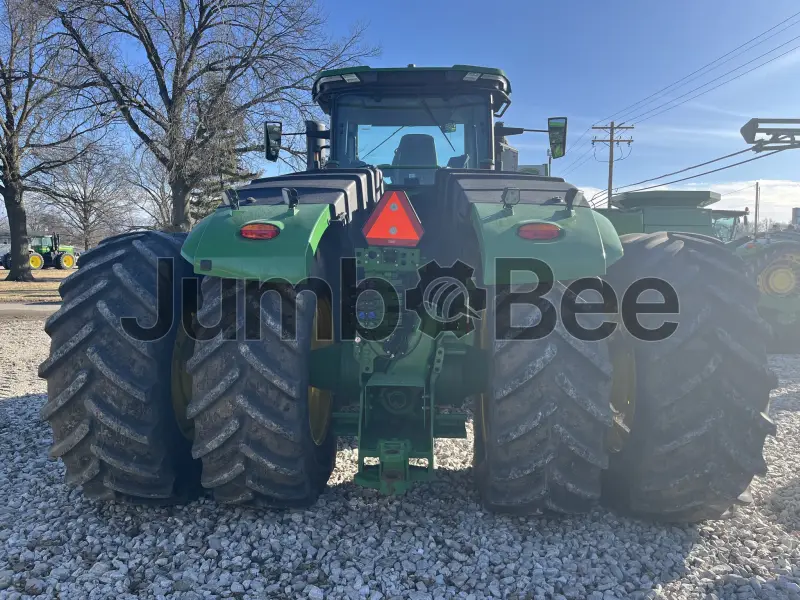

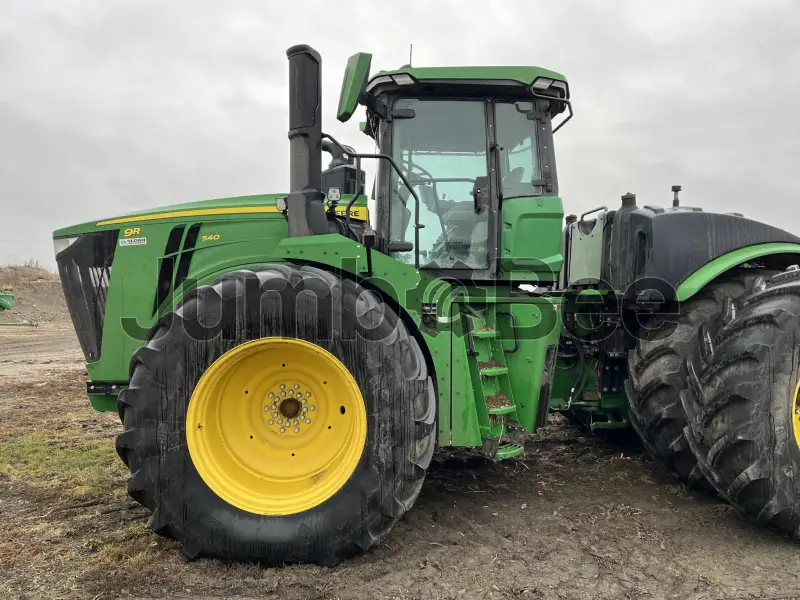

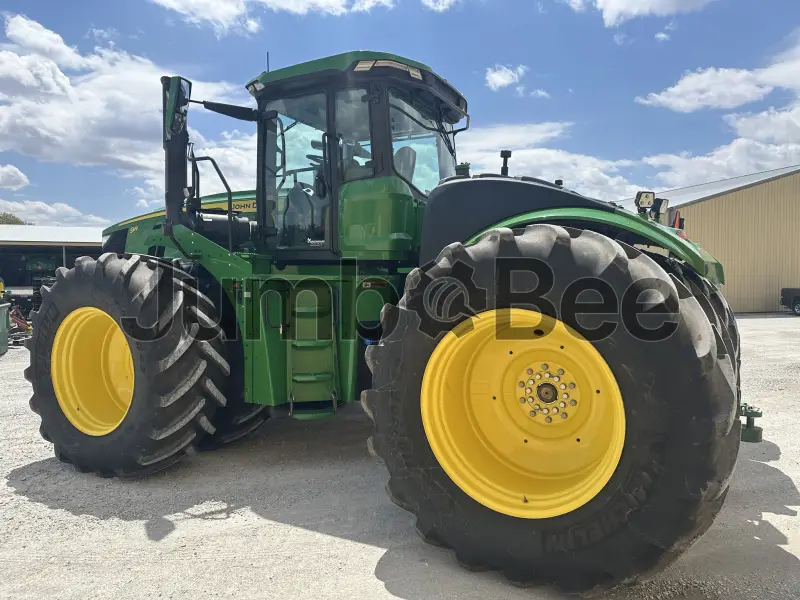

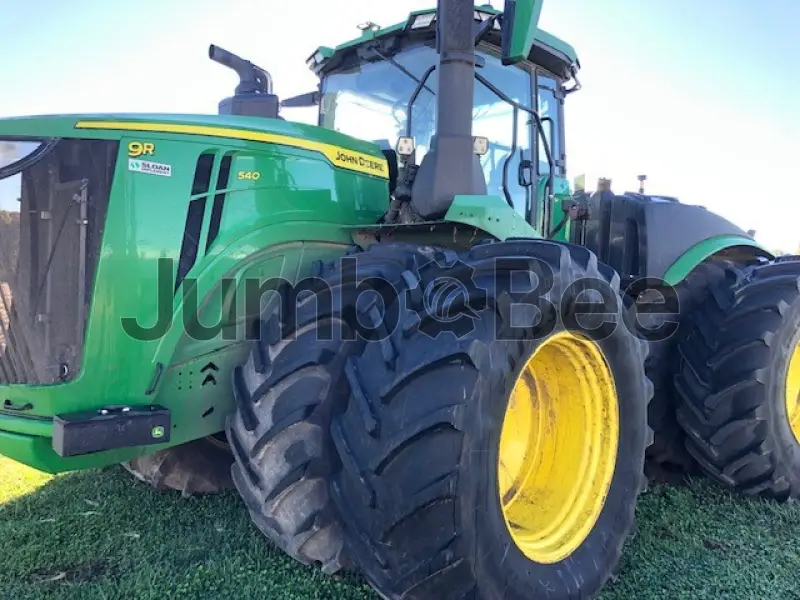

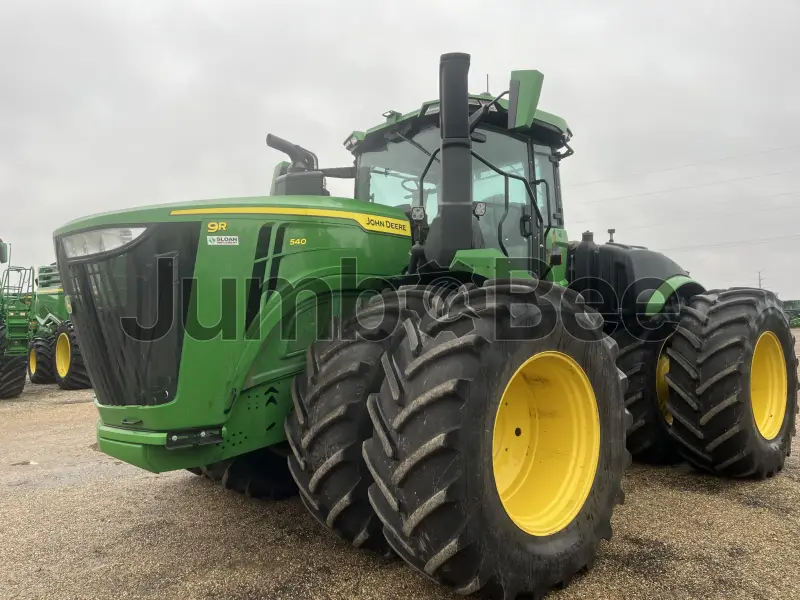

John Deere 9R 540 Articulated 4WD Tractors Listings
$583,210
Wheels
540 hp
Final Tier 4
348 hours
Bismarck, United States
$455,080
Wheels
540 hp
Final Tier 4
1524 hours
Grafton, United States
$552,500
540 hp
Final Tier 4
Diesel
458 hours
Winamac, United States
$576,880
Diameter: 120 x 3048 mm; full-locking electrohydraulic differential lock
Electrohydraulic with draft sensing
9072 kg
661 hours
Webster, United States
$503,652
Wheels
208 L/min
540 hp
354 hours
Strasburg, United States
$469,021
335 hp
Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm
Diameter: 120 x 3048 mm; full-locking electrohydraulic differential lock
617 hours
Fort Morgan, United States
$445,900
540 hp
4
Wheels
1320 hours
Montfort, United States
$436,900
Wheels
540 hp
Final Tier 4
1235 hours
Mattoon, United States
$434,900
Wheels
540 hp
Final Tier 4
1219 hours
Perry, United States
$469,900
Wheels
540 hp
Final Tier 4
880 hours
Assumption, United States
$409,900
Wheels
540 hp
Final Tier 4
1114 hours
Lanark, United States
$489,900
4N
Electronic
Yes
272 hours
Vincennes, United States
$489,900
Wheels
540 hp
Final Tier 4
532 hours
Vandalia, United States
$425,900
Closed-center, pressure-and-flow compensated
208 L/min
132 L/min
1347 hours
Havana, United States
$479,900
Diesel
13 cu(m)
335 hp
665 hours
Vandalia, United States
$458,900
Duals
Wheels
540 hp
1131 hours
White Hall, United States
Compare John Deere 9R 540 Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9R 540 Articulated 4WD Tractor
wheels
20856 kg
7945 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9R 540?
No confirmed market price is supplied. Check current listings and compare the tractor’s condition, location, and configuration.
What are the key advantages of the John Deere 9R 540?
Key listed features include 402.7 kW (540 hp) engine power, John Deere e18 18-speed PowerShift with Efficiency Manager (40 km/h), guidance readiness, and a closed-center pressure-and-flow compensated hydraulic system. It also has four electronic rear SCVs and an electrohydraulic rear hitch with draft sensing.
What type of engine does the 9R 540 use?
The 9R 540 uses a diesel engine meeting the Final Tier 4 emission standard.
How much horsepower does the 9R 540 have?
The 9R 540 has 402.7 kW (540 hp) of engine power. Its rated PTO power is 249.8 kW (335 hp).
What fuel does the John Deere 9R 540 use?
The John Deere 9R 540 uses diesel fuel. Its fuel tank capacity is 1,514 L (400 US gal).
What jobs is this Tractors best suited for?
The supplied specifications support use with high-demand implements requiring substantial engine power, PTO capability, rear-hitch lift, and hydraulic flow. Suitability for a specific job depends on the implement, hydraulic requirements, hitch needs, and selected options.
What is the expected lifespan of the 9R 540?
The supplied data does not confirm an expected service life. For a used tractor, assess maintenance records, engine and transmission operation, hydraulic performance, PTO function, hitch operation, tire condition, and guidance equipment.
What should a buyer check when purchasing a used Tractors?
Check service records, diesel engine operation, John Deere e18 transmission shifting, hydraulic output and SCVs, rear PTO engagement, rear-hitch lift and draft sensing, tire condition, fuel system condition, and installed guidance or optional equipment.
