John Deere 9620R Articulated 4WD Tractors
John Deere 9620R
Average price
$243,000
5+
sold in last year
General overview
John Deere 9620R is a 4 Tracks tractor designed for demanding agricultural field work in large-scale crop production. It is powered by a diesel engine rated at 456 kW (620 hp) with 14.9 L displacement and is Final Tier 4 compliant, placing it in a high-horsepower class for heavy pulling and extended field operation.
The model uses an e18 Full PowerShift with Efficiency Manager transmission with 18 forward / 6 reverse speeds. It also offers 246 kW (335 hp) of rated PTO power, a Rear hitch category (SAE designation): Category IV/IVN, and Maximum lift capacity behind lift points: 6,804 kg (15,000 lb). Hydraulic features include a Closed-center, pressure/flow-compensated @2900 psi system, Available flow at a single rear SCV: 132.5 L/min (35 gpm), and 4–8 rear selective control valves with Electronic SCV control.
Year
2015, 2016, 2017, 2018, 2019, 2020, 2021
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
4,900 mm
~192.9 in
3,680 mm
~144.9 in
8,110 mm
~319.3 in
19,754 kg
~43,550.2 lb
Tire or Track Type
Wheels
Engine Power
620 hp
Additional specifications
Emission standard level
Final Tier 4 compliant
Engine type
Diesel
Displacement
14,900 cu(cm)
Maximum PTO power
335 hp
Rated PTO power
335 hp
Speeds
18 forward / 6 reverse
Transmission type
e18 Full PowerShift with Efficiency Manager
Rear hitch category (SAE designation)
Category IV/IVN
Base machine weight
19,754 kg
Maximum lift capacity behind lift points
6,804 kg
Fuel tank
1,514 L
Hydraulic system type
Closed-center, pressure/flow-compensated @2,900 psi
Pump rated output
220 gpm
Available flow at a single rear SCV
132.5 L/min
Number of rear selective control valves
4–8
SCV control
Electronic
Sensing type
Electro-hydraulic draft sensing; load-sensing hydraulics
Tires
800/70R38 radials; duals
Guidance
AutoTrac‑ready; dual-beam radar sensor
John Deere 9620R Articulated 4WD Tractors Listings

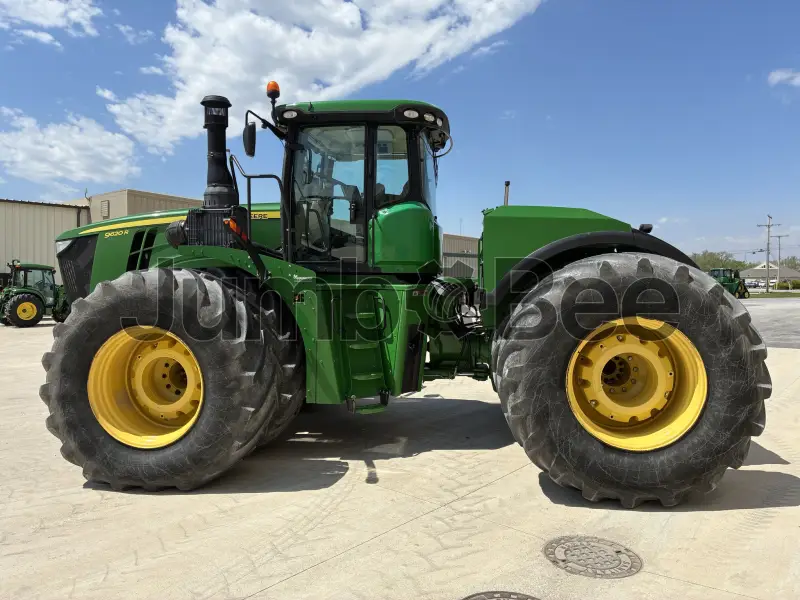

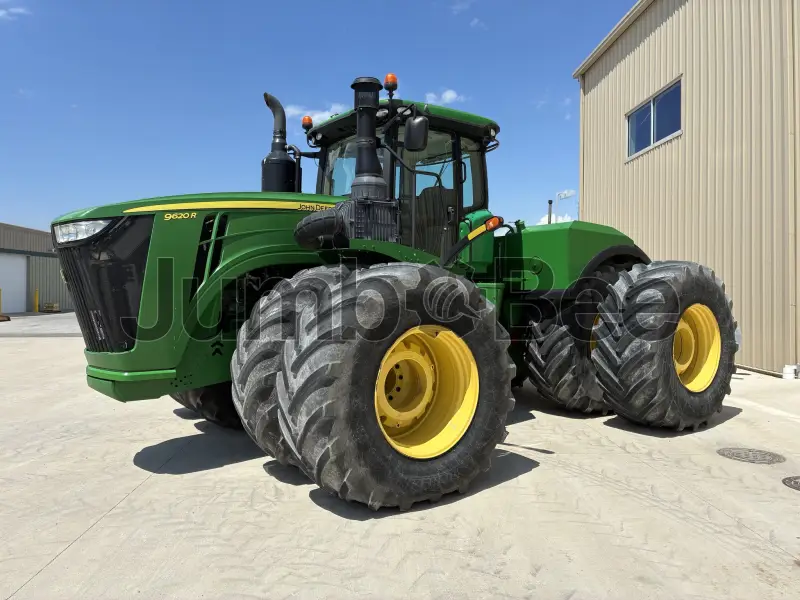

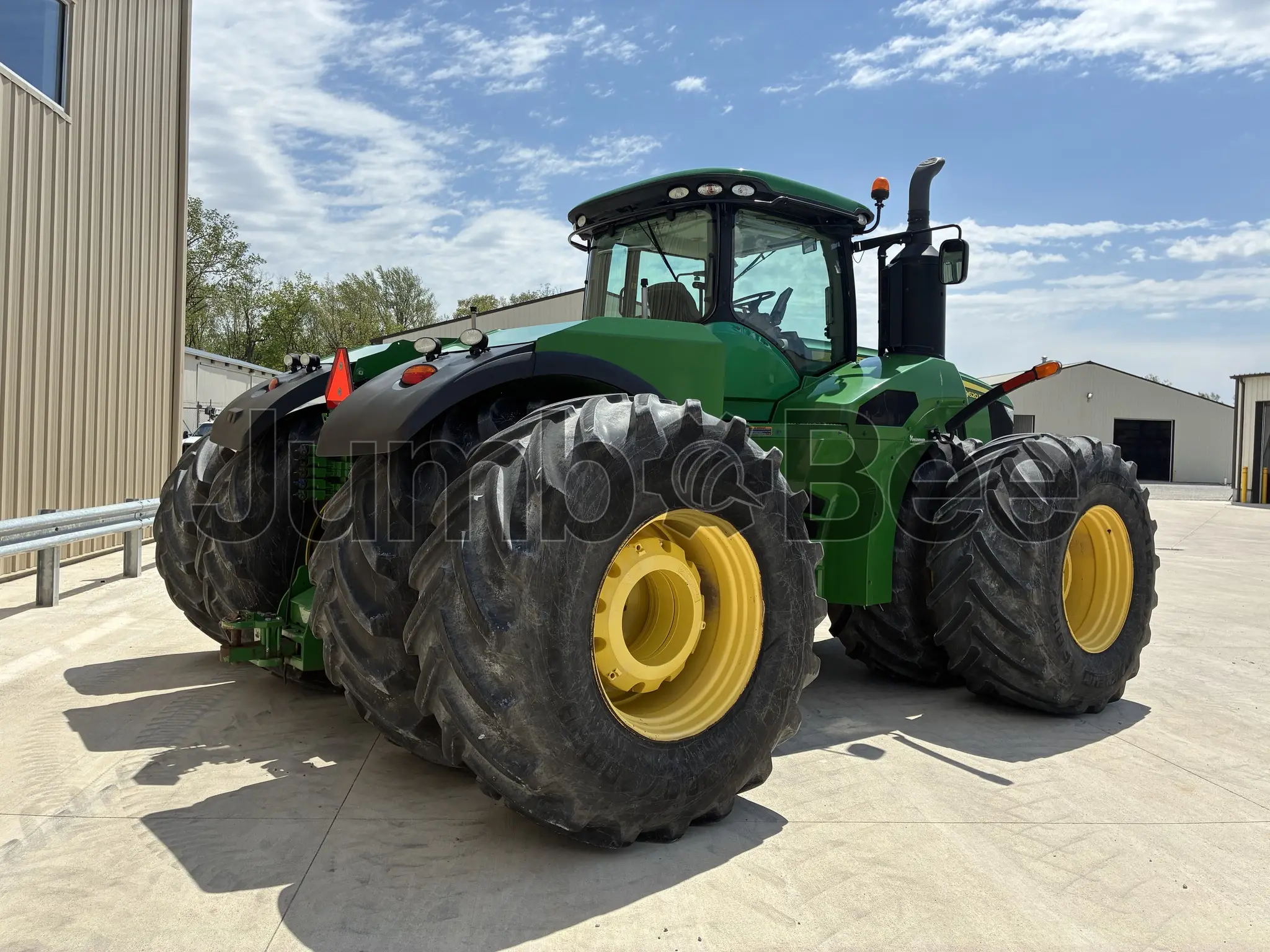

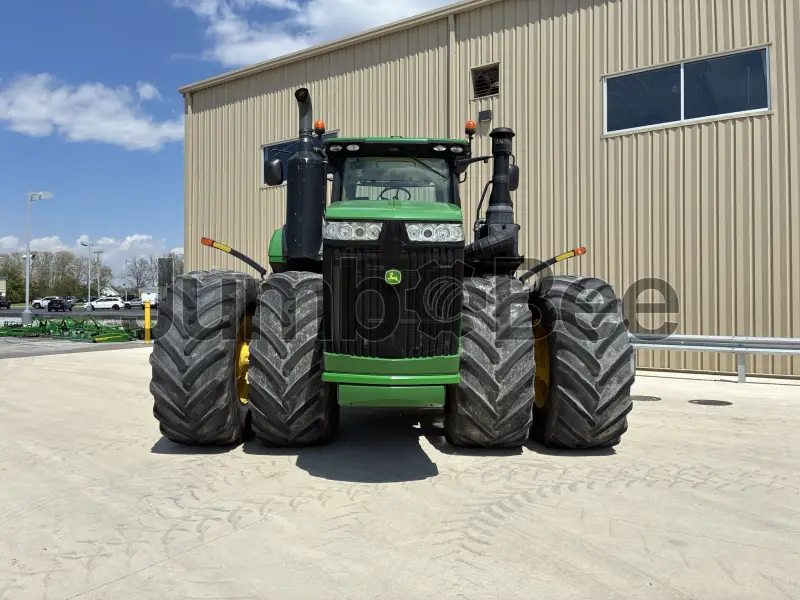

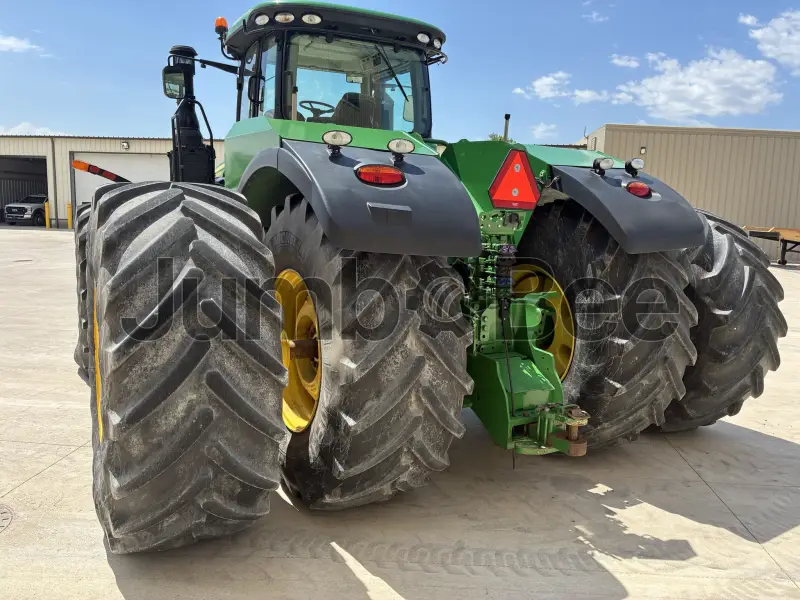

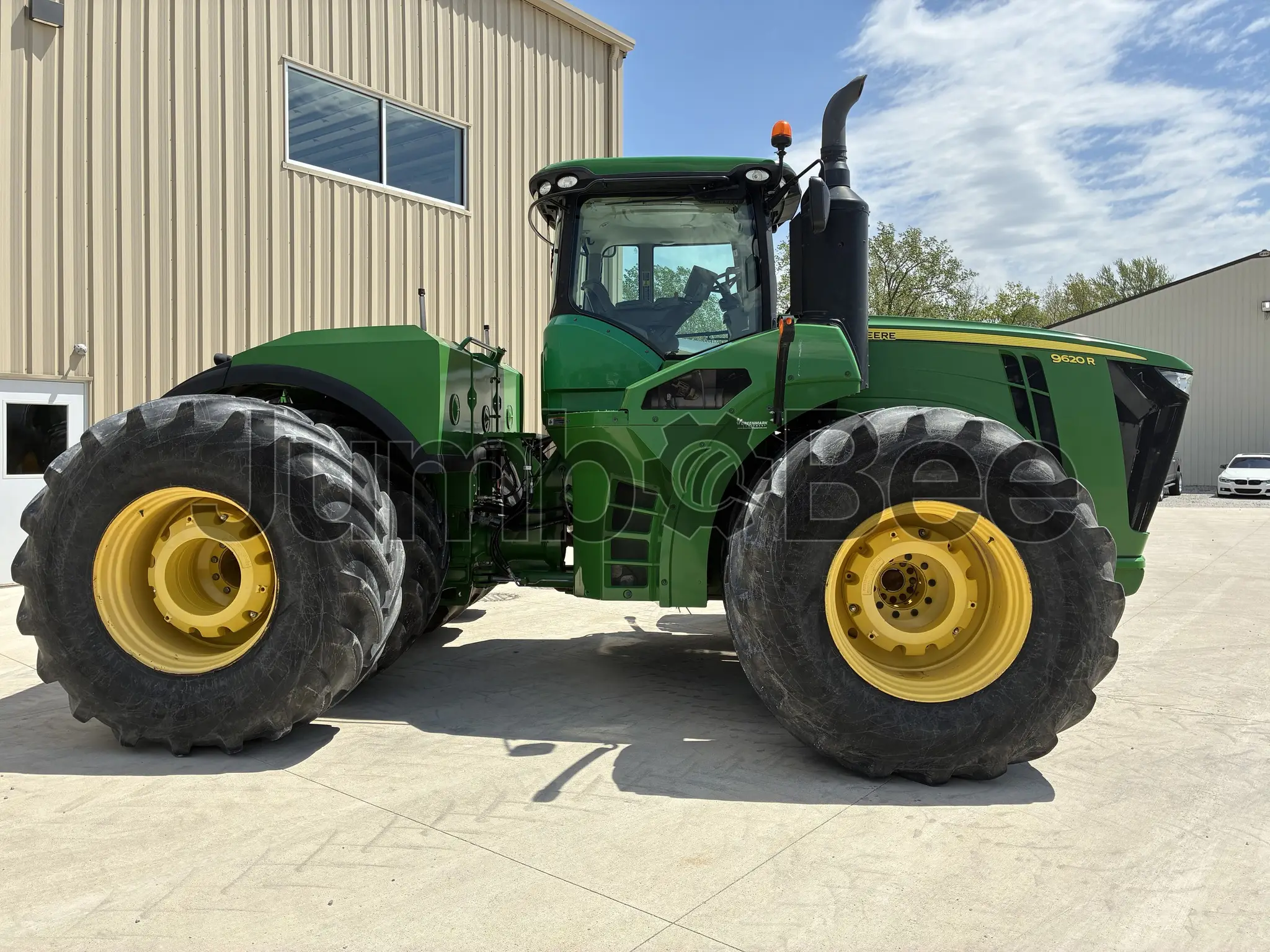

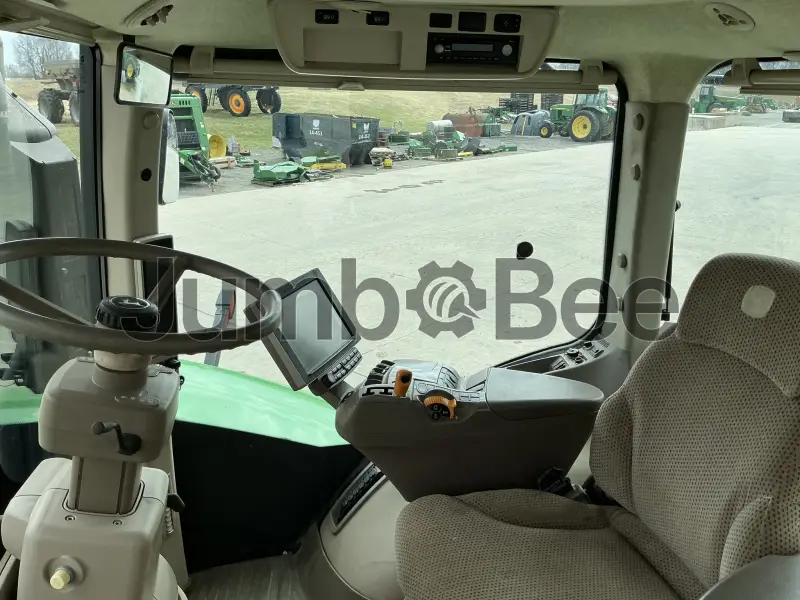

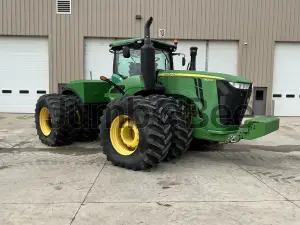

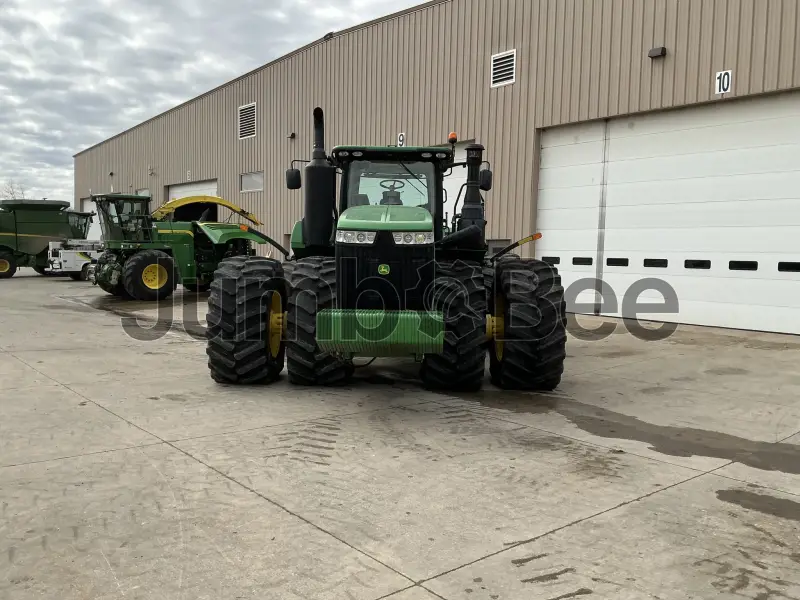

$286,500
620 hp
14900 cu(cm)
18 forward / 6 reverse
2920 hours
Monticello, United States

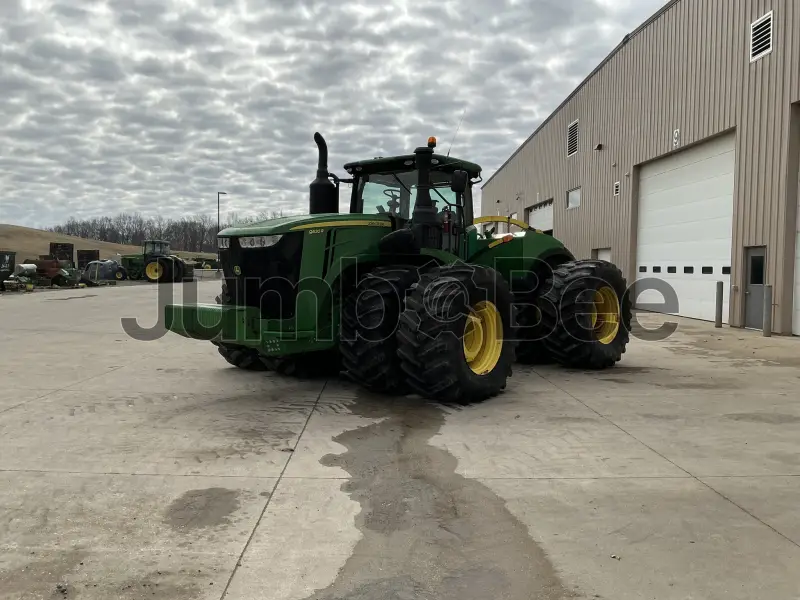

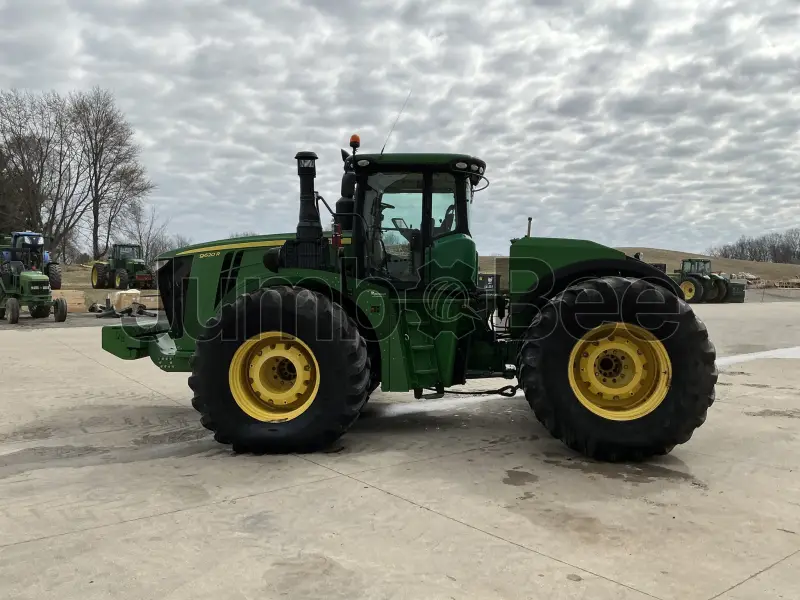

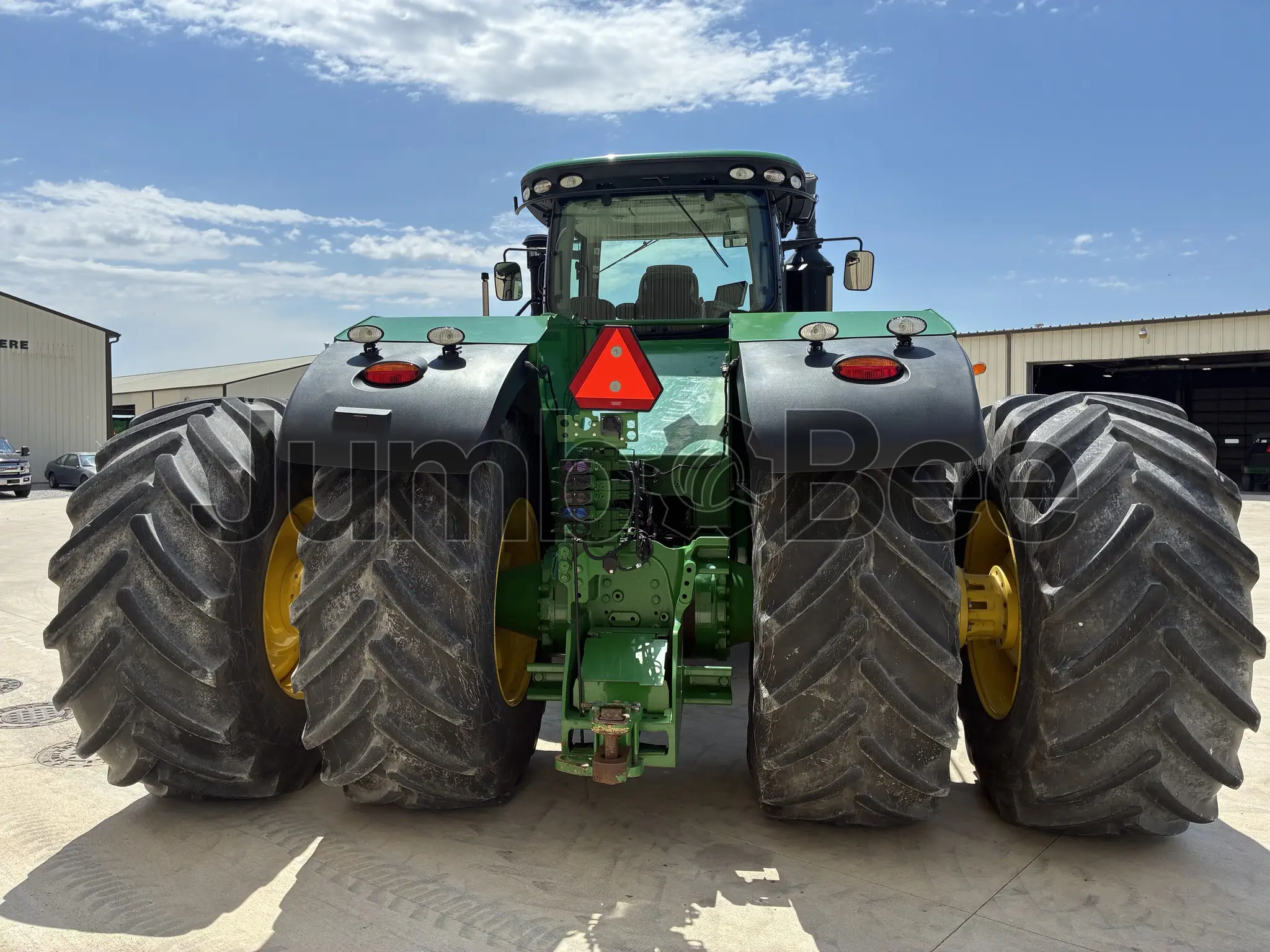

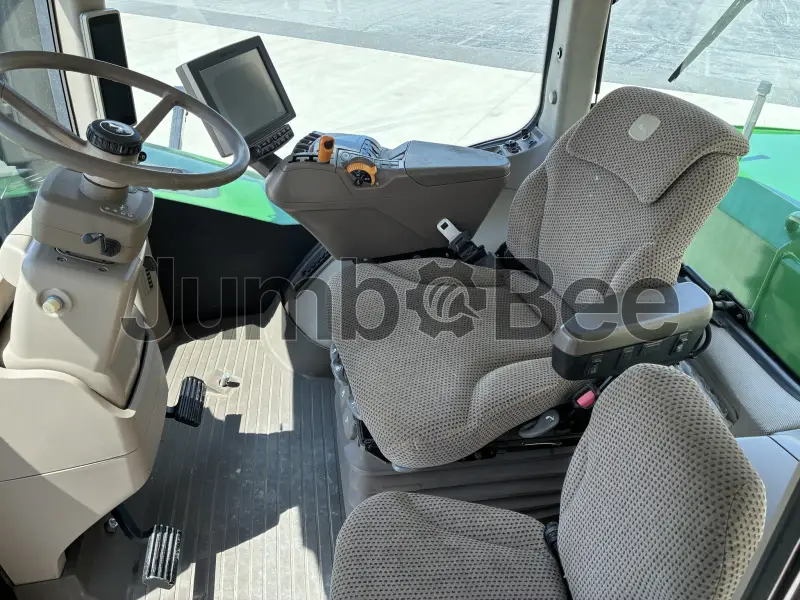

$199,500
18 forward / 6 reverse
Final Tier 4 compliant
AutoTrac‑ready; dual-beam radar sensor
4811 hours
Hastings, United States
Compare John Deere 9620R Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9620R Articulated 4WD Tractor
620 hp
19754 kg
8110 mm × 4900 mm × 3680 mm
Add model
Add model
5.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
5.0
Comfort & Ergonomics
5.0
Safety
4.0
Technology & Features
4.0
Dwayne Morgan
We put roughly 1,400 acres across it every season. The cab suspension takes the edge off a long highway run. If I'm picky, a hydraulic line let go on us mid-season.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9620R?
No confirmed market price is supplied for the John Deere 9620R. Check current listings and compare the machine’s condition, location, and configuration.
What are the key advantages of the John Deere 9620R?
Key listed features include 462.3 kW (620 hp) engine power, 4 Tracks, an e18 Full PowerShift with Efficiency Manager transmission, AutoTrac‑ready guidance, and closed-center pressure/flow-compensated hydraulics. It also has electronic SCV control and Category IV/IVN rear hitch capability.
What type of engine does the 9620R use?
The 9620R uses a Diesel engine with 14,900 cc displacement and Final Tier 4 compliant emissions equipment.
How much horsepower does the 9620R have?
The 9620R has 462.3 kW (620 hp) of engine power. Its maximum and rated PTO power are both 249.8 kW (335 hp).
What fuel does the John Deere 9620R use?
The John Deere 9620R uses Diesel fuel. Its fuel tank capacity is 1,514 L (400 US gal).
What jobs is this Tractors best suited for?
The supplied specifications do not confirm particular jobs. Relevant capabilities include 4 Tracks, 462.3 kW (620 hp), a Category IV/IVN rear hitch, and hydraulic flow of 832.8 L/min (220 gpm).
What is the expected lifespan of the 9620R?
The supplied data does not provide an expected service life for the 9620R. Assess maintenance records, operating condition, engine condition, hydraulics, transmission operation, tracks, and electronic systems when evaluating an individual machine.
What should a buyer check when purchasing a used Tractors?
Check maintenance records, engine condition, transmission shifting, hydraulic operation, rear hitch function, SCVs, tracks and tires, and guidance electronics. Confirm the configuration, including the number of rear selective control valves, and inspect for leaks, damage, and warning indicators.
