John Deere 755K Crawler Loaders
John Deere 755K
Average price
$286,461.67
5+
sold in last year
General overview
John Deere 755K is a crawler loader for construction earthmoving and material handling. It is powered by a John Deere PowerTech™ PVS 6068 engine rated at 143 kW (194 hp) and meets EPA Final Tier 4 emissions requirements. The machine is built around tracked operation and a heaped bucket capacity of 2.5 m³ (3.3 cu yd).
With an operating weight of 20,492 kg (45,180 lb), the 755K combines a hydrostatic drive with loader performance. It uses an automatic, dual-path, hydrostatic (HST) transmission, single-lever steering with speed, direction control, and counter-rotation, and a load-sense, piston-pump hydraulic system delivering 246 L/min (65 gpm). The undercarriage includes a 1,880 mm (6 ft 2 in) track gauge and 560 mm (22 in) grouser width, and net peak torque is 1,277 Nm (942 lb-ft).
Year
2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,591 mm
~102 in
3,330 mm
~131.1 in
6,824 mm
~268.7 in
20,486 kg
~45,163.9 lb
Engine Power
194 hp
Operating Weight
20,492 kg
Bucket Capacity - Heaped
2 cu(m)
Additional specifications
Emission standard level
EPA Final Tier 4
Displacement
414 cu(in)
Transmission type
Automatic, dual-path, hydrostatic (HST) drive
Fuel tank
326 L
Hydraulic system type
Load sense, piston pump
Number of batteries
2
Cooling system
32 L
Number of Cylinders
6
Battery Voltage
24 volts
System Relief Pressure
26,028 kPa
Undercarriage Ground Pressure
76.5 kPa
Length of Track on Ground
2,588 mm
Hydraulic controls
Dual-axis joystick with optional multipurpose bucket function, or 2- or 3-lever stackable
Battery Capacity
950 CCA
Engine Oil
24.6 L
Hydraulic System - Including Tank
103 L
Track Gauge
1,880 mm
Net Power (ISO 9249)
194 hp
Manufacturer and Model
John Deere PowerTechâ„¢ PVS 6,068
Net Peak Torque
942 ft-lb
Powertrain System Relief Pressure
45,850 kPa
Travel Speeds
10 km/h
Steering
Single-lever steering, speed, direction control, and counter-rotation
Drawbar Pull Maximum
345 lbf
Drawbar Pull at 1.9 km/h (1.2 mph)
173 lbf
Drawbar Pull at 3.2 km/h (2.0 mph)
118 lbf
Pump Flow
246 L/min
Differential Pressure
1,896 kPa
Maximum Flow at Unloaded High Idle
256 L/min
Lift Cylinders
140 mm
Bucket-Dump Cylinder
180 mm
Alternator Rating
100 amp
Grouser Width
560 mm
Track Rollers, Each Side
6
Ground Contact Area
26,294 sq(cm)
Track Pitch
203 mm
Width of Bucket (General Purpose)
2,591 mm
Capacity Heaped
2.5 cu(m)
Bucket Weight
1,544 kg
Breakout Force
197 lbf
Static Tipping Load
15,362 kg
Width of Bucket (Multipurpose)
2,591 mm
Capacity Heaped Multipurpose
2 cu(m)
Bucket Weight (Multipurpose)
1,830 kg
Breakout Force (Buckets Multipurpose)
197 lbf
Static Tipping Load (Buckets Multipurpose)
14,901 kg
Maximum Clamping Force (Buckets Multipurpose)
Lift-Cylinder Guards
25 kg
Full-Length Rock Guards
218 kg
Final-Drive Trash Guards
70 kg
Clam-Cylinder Protection for Multipurpose Bucket
50 kg
Retrieval Hitch
67 kg
Double-Bar Grousers
-141 kg
Rated Operating Capacity
20,400 kg
Shoes, Each Side
38
John Deere 755K Crawler Loaders Listings

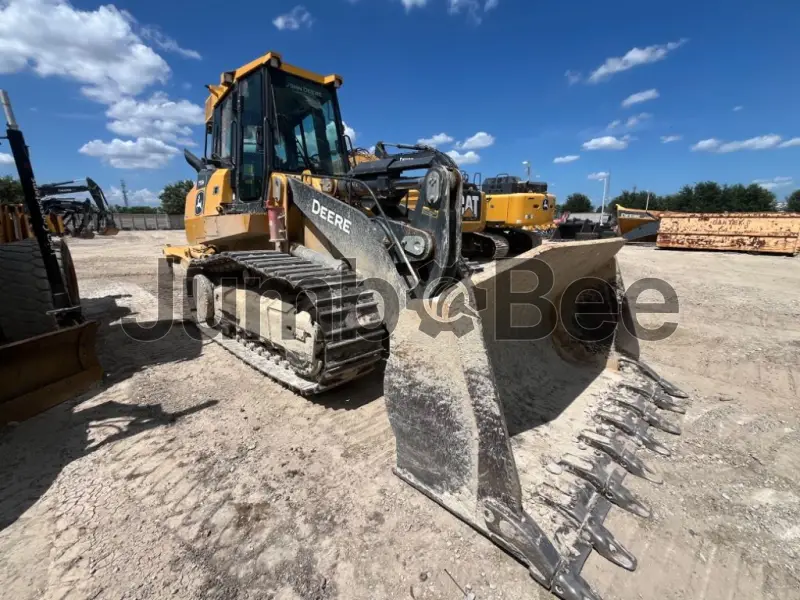

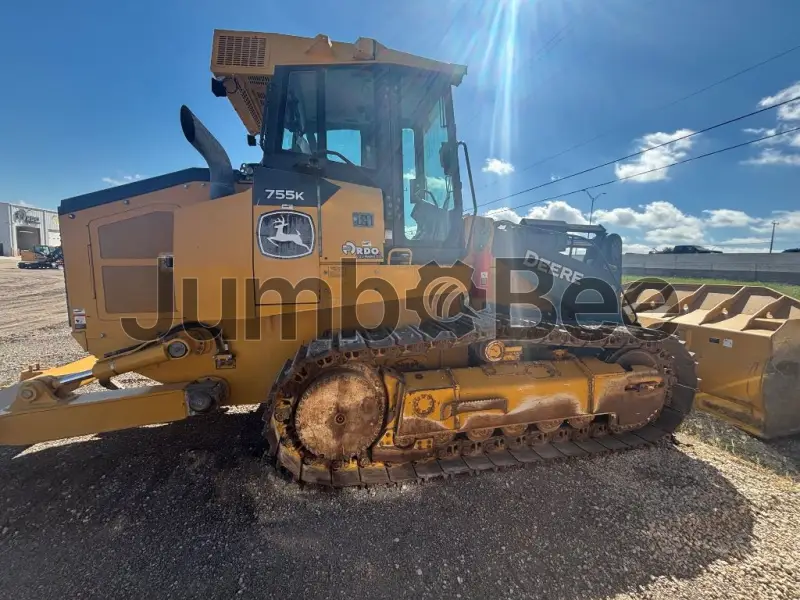

$64,990
2 cu(m)
194 hp
20492 kg
12185 hours
Mckinney, United States

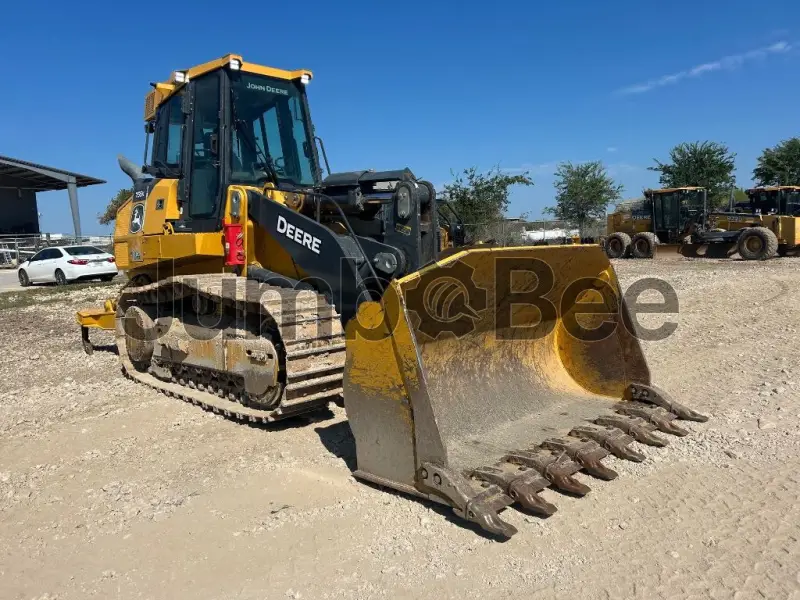

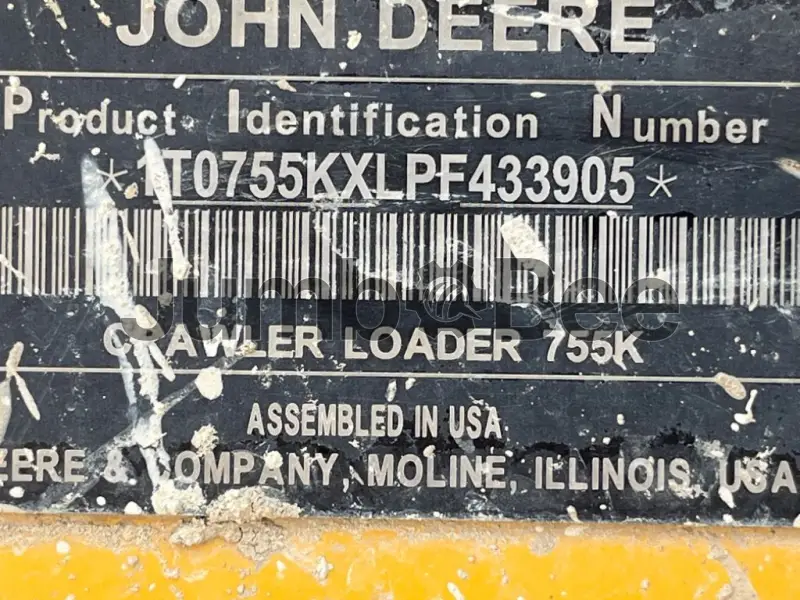

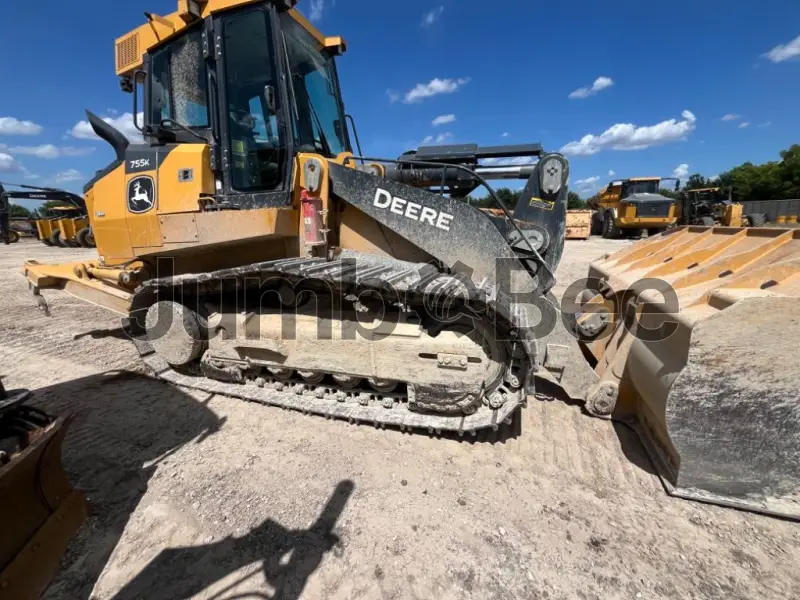

$331,440
2 cu(m)
942 ft-lb
180 mm
1477 hours
Riverside, United States
$64,990
EPA Final Tier 4
6
2591 mm
11922 hours
Mckinney, United States

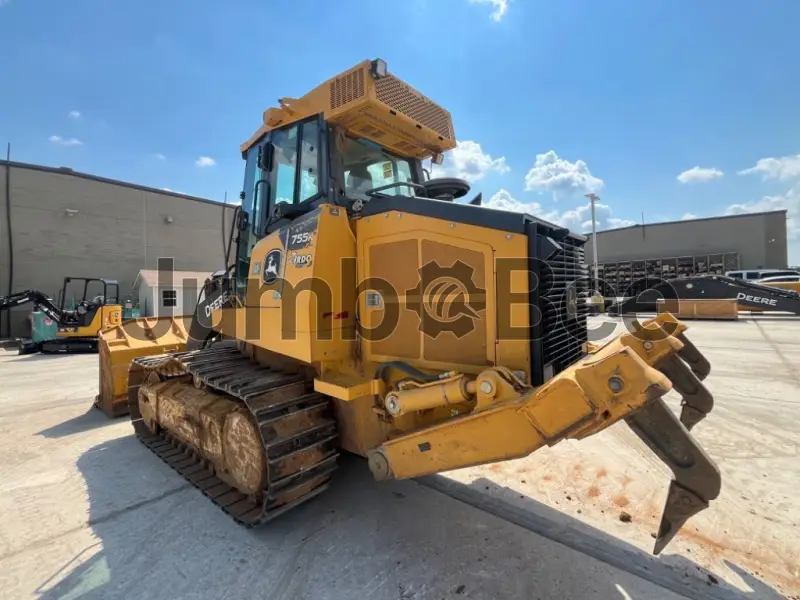

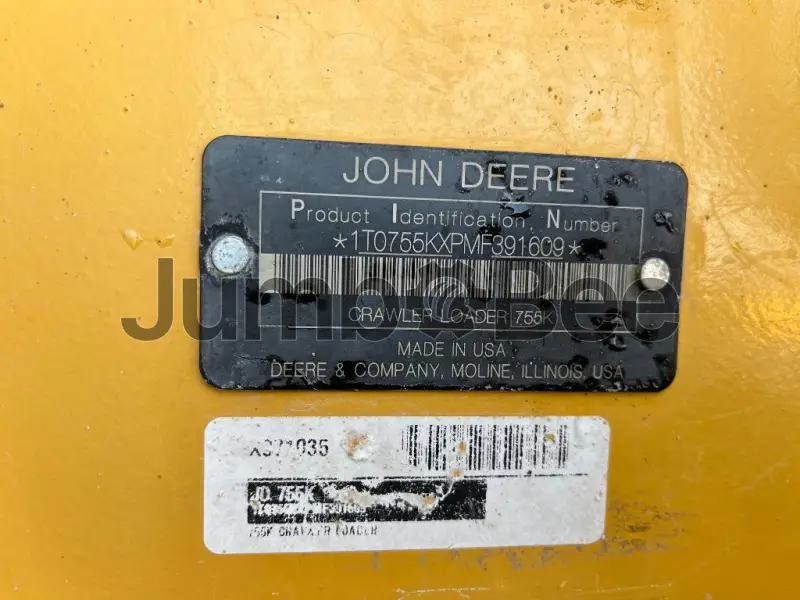

$292,180
6
John Deere PowerTechâ„¢ PVS 6068
EPA Final Tier 4
2560 hours
Buda, United States

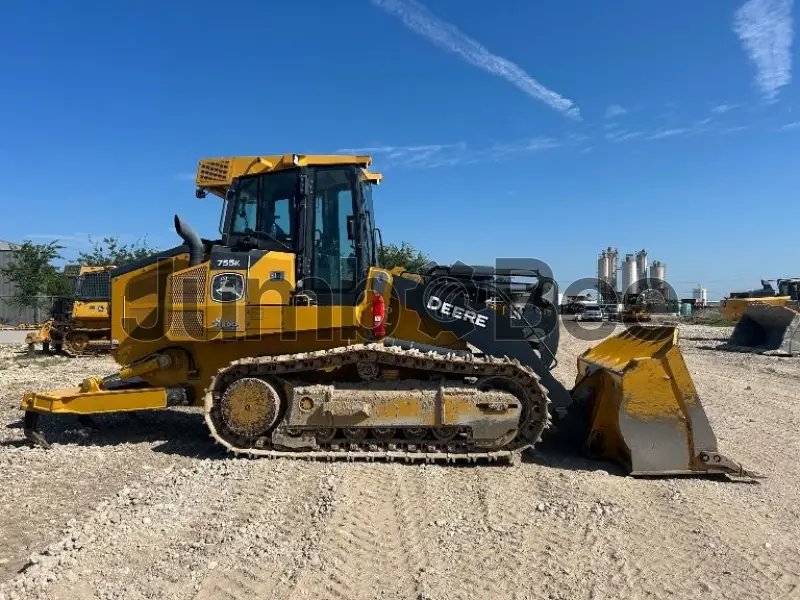

$316,400
