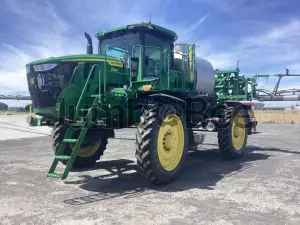

John Deere 616R Self-Propelled Sprayers
John Deere 616R
Average price
$463,457.07
5+
sold in last year
General overview

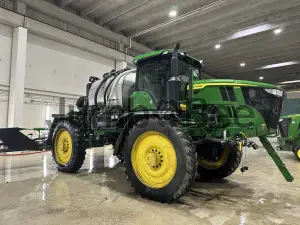

John Deere 616R is a self-propelled sprayer for farm equipment applications, built in the United States and produced from 2021 to 2025. It is powered by a 276 kW (375 hp) six-cylinder engine with 9 L (549 cu in) displacement and Final Tier 4 (FT4) emissions compliance, supporting large-scale field spraying.

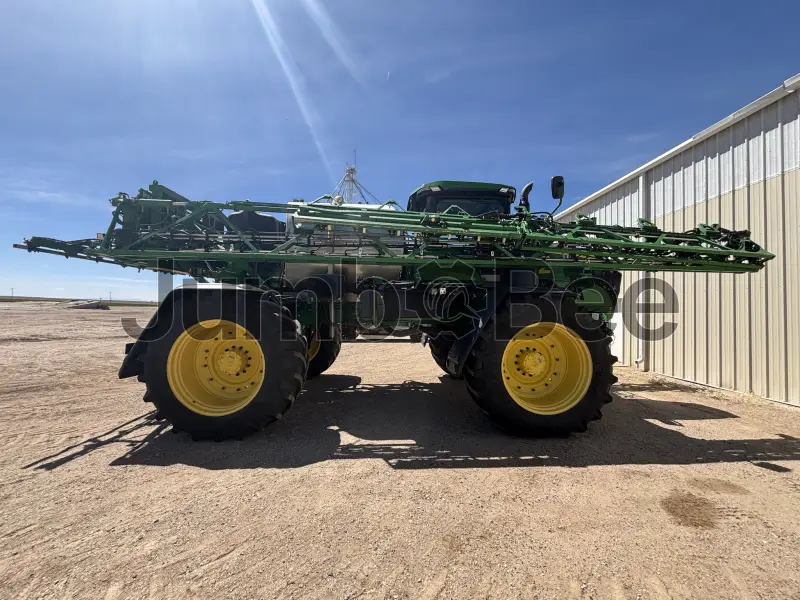

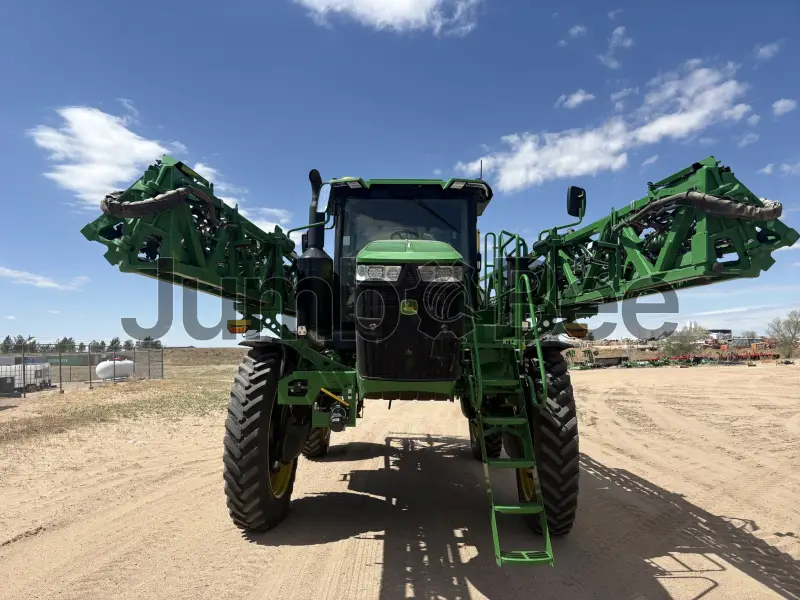

The 616R uses a Hydrostatic, full-time four-wheel drive (4WD) drivetrain with Electrohydraulic shifting and Dual-strut independent wheel air-ride suspension. It carries a 6,057 L (1,600 US gal) solution system capacity and a 605 L (160 US gal) rinse tank capacity, with boom sections available as 132 ft (40.2 m) Boom: 13 sections, 120 ft (36.6 m) Boom: 11 sections, 100 ft (30.5 m) Boom: 9 sections, and 90 ft (27.4 m) Boom: 7 sections. Operator controls use the G5 Plus CommandCenterâ„¢ Display, and the cab includes ActiveSeatâ„¢ II; heated/ventilated; 24-degree swivel.
Year
2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,291 mm
~129.6 in
3,810 mm
~150 in
27,432 mm
~1,080 in
16,337 kg
~36,016.9 lb
Solution System Capacity
6,057 L
Length Options
28 m
Additional specifications
Emission standard level
Final Tier 4 (FT4)
Displacement
549 cu(in)
Fuel tank
565 L
Number of Cylinders
6
Drive type
Hydrostatic, full-time four-wheel drive (4WD)
Rated power
375 hp
Rinse tank capacity
605 L
Breakaway length
3.3 m
Boom sections
"132 ft (40.2 m) Boom: 13 sections 120 ft (36.6 m) Boom: 11 sections 100 ft (30.5 m) Boom: 9 sections 90 ft (27.4 m) Boom: 7 sections"
Shifting
Electrohydraulic
Hydraulic reservoir capacity
98.4 L
Operator seat description
ActiveSeatâ„¢ II; heated/ventilated; 24-degree swivel
Sprayer control

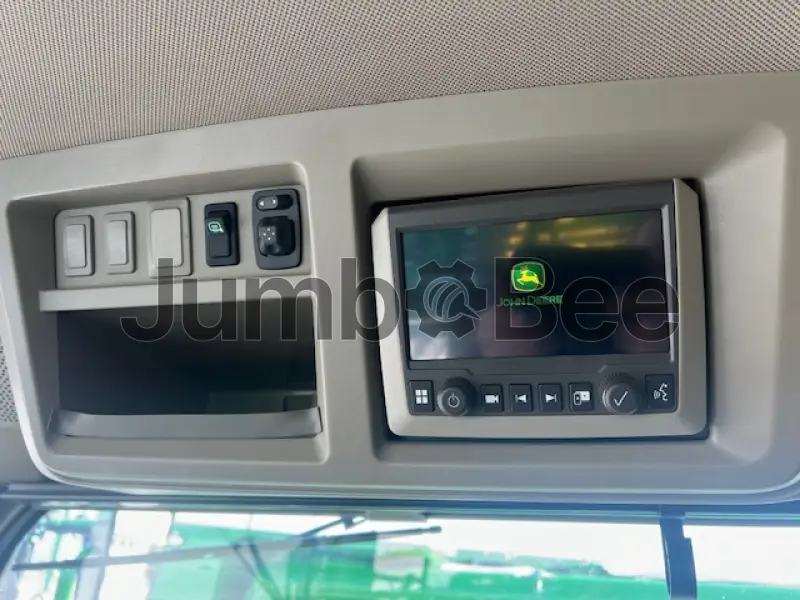

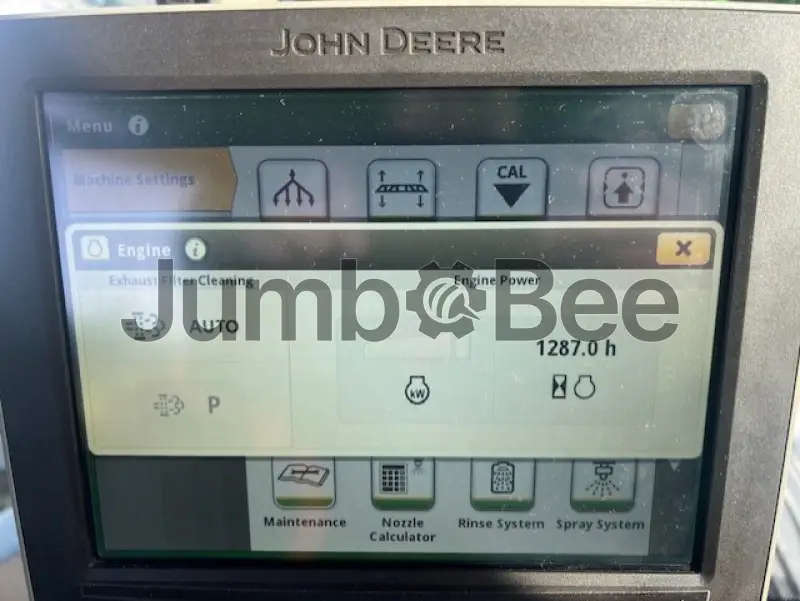

G5 Plus CommandCenterâ„¢ Display
Suspension

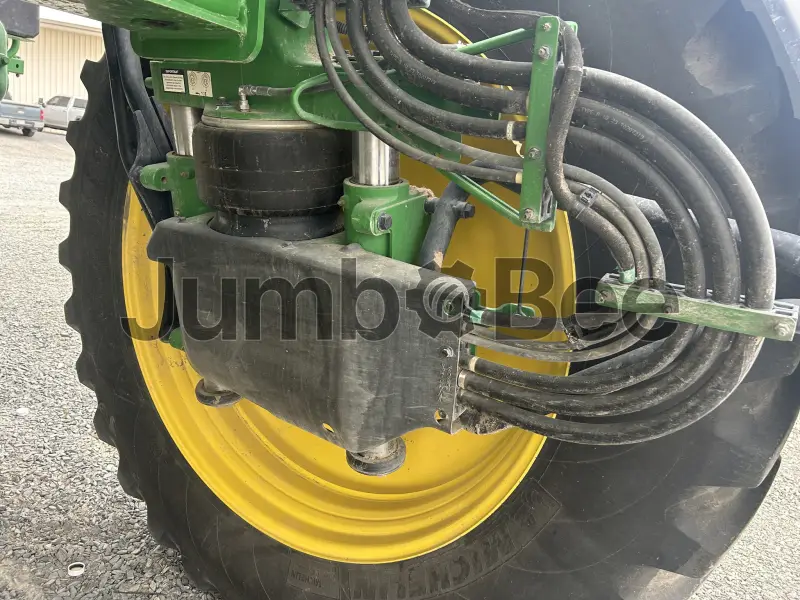

Dual-strut independent wheel air-ride suspension
Ground clearance with standard tires
147.3 cm
Factory-installed

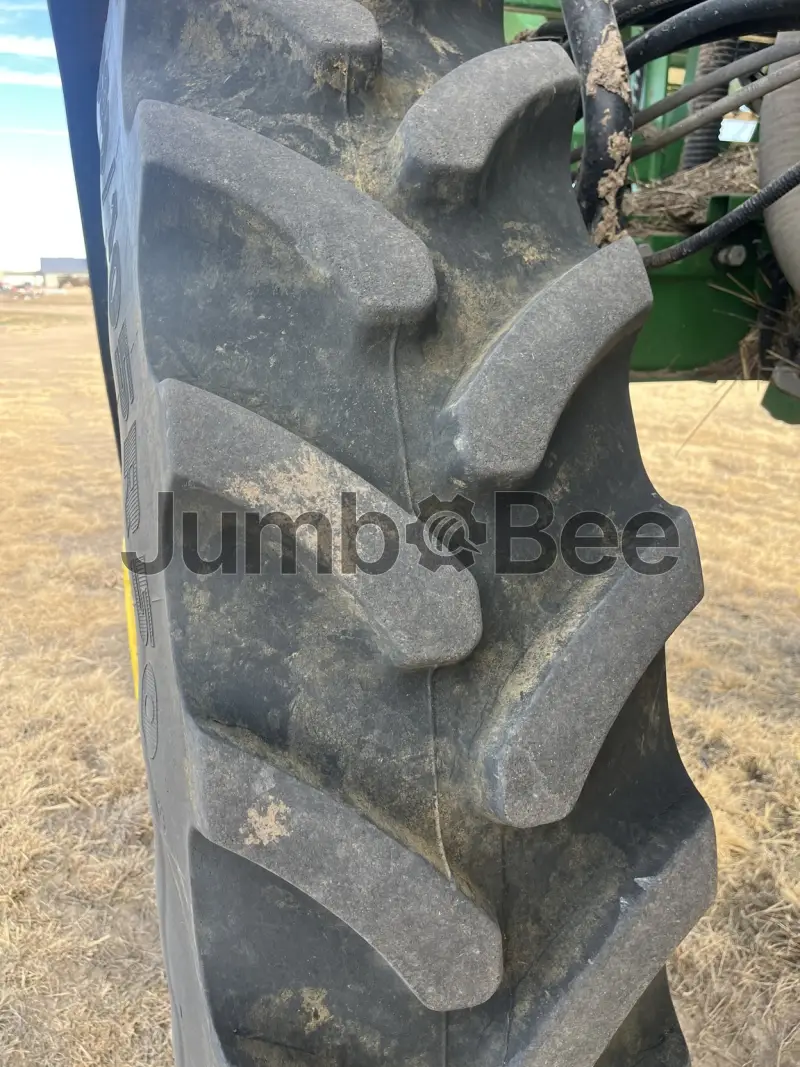

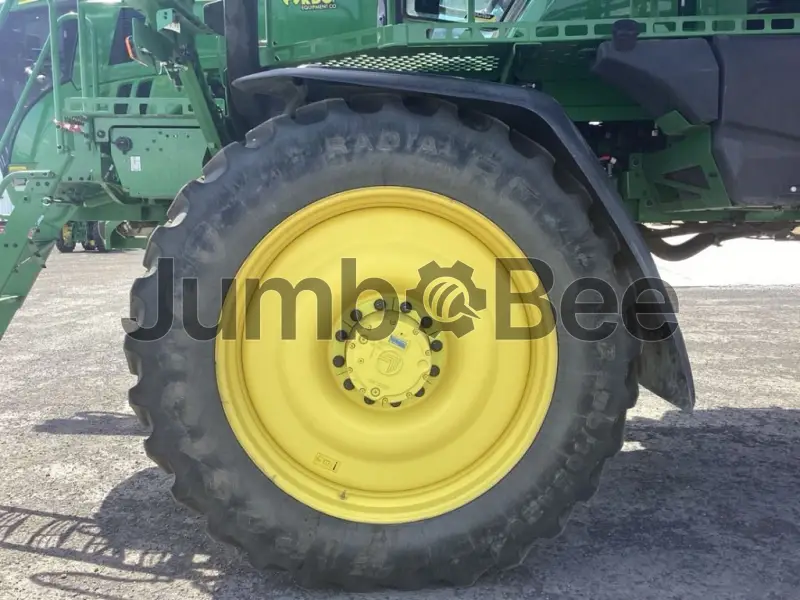

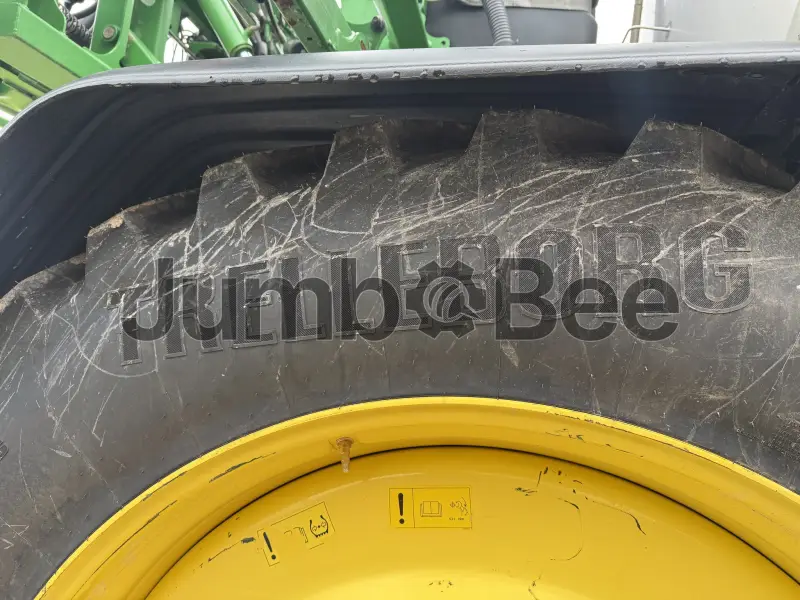

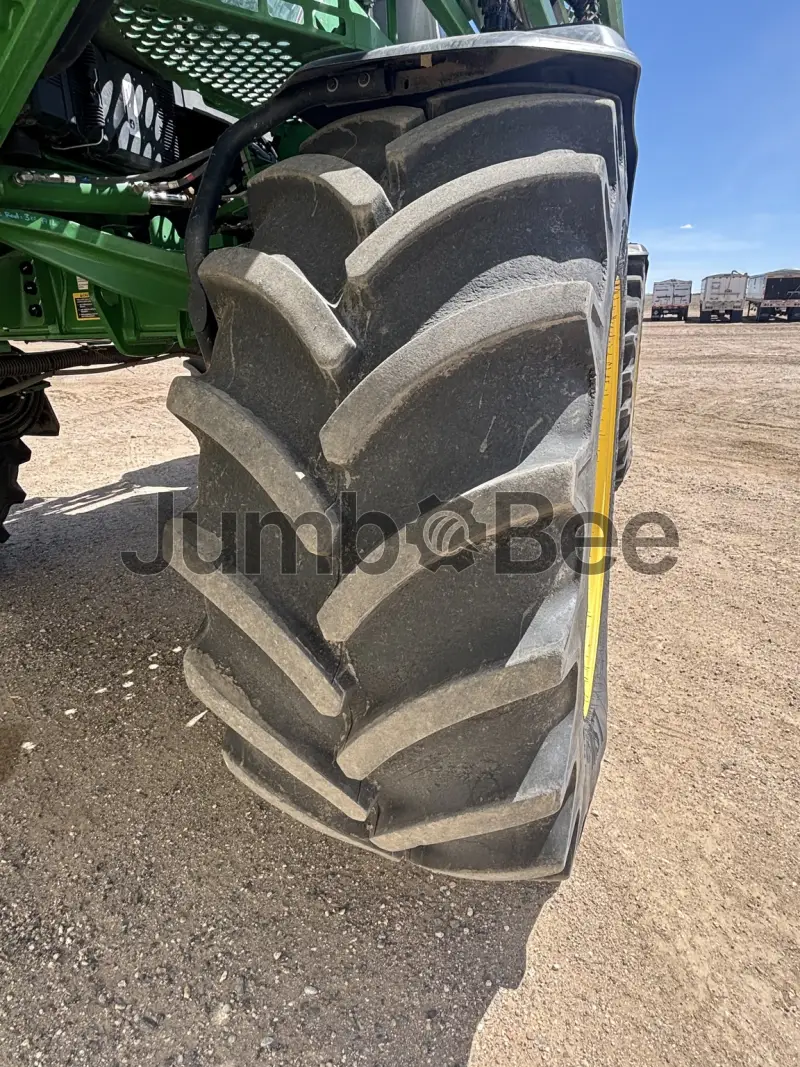

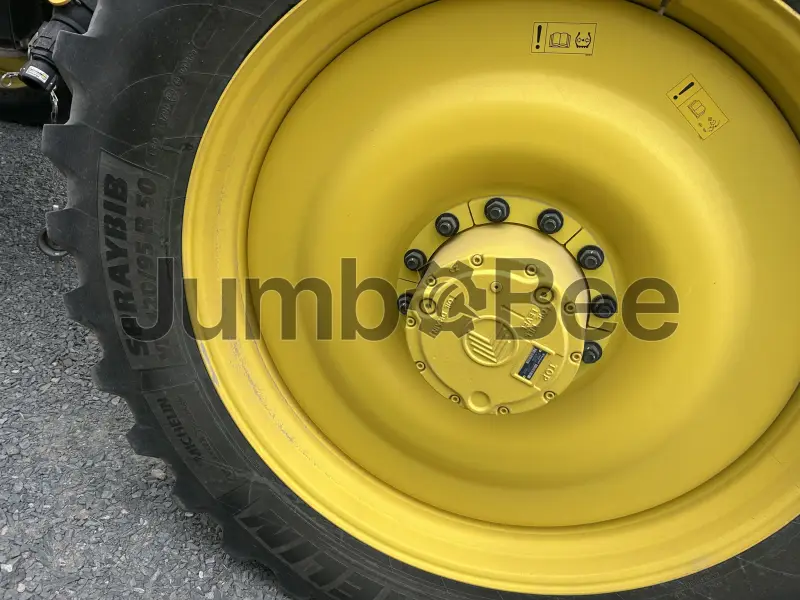

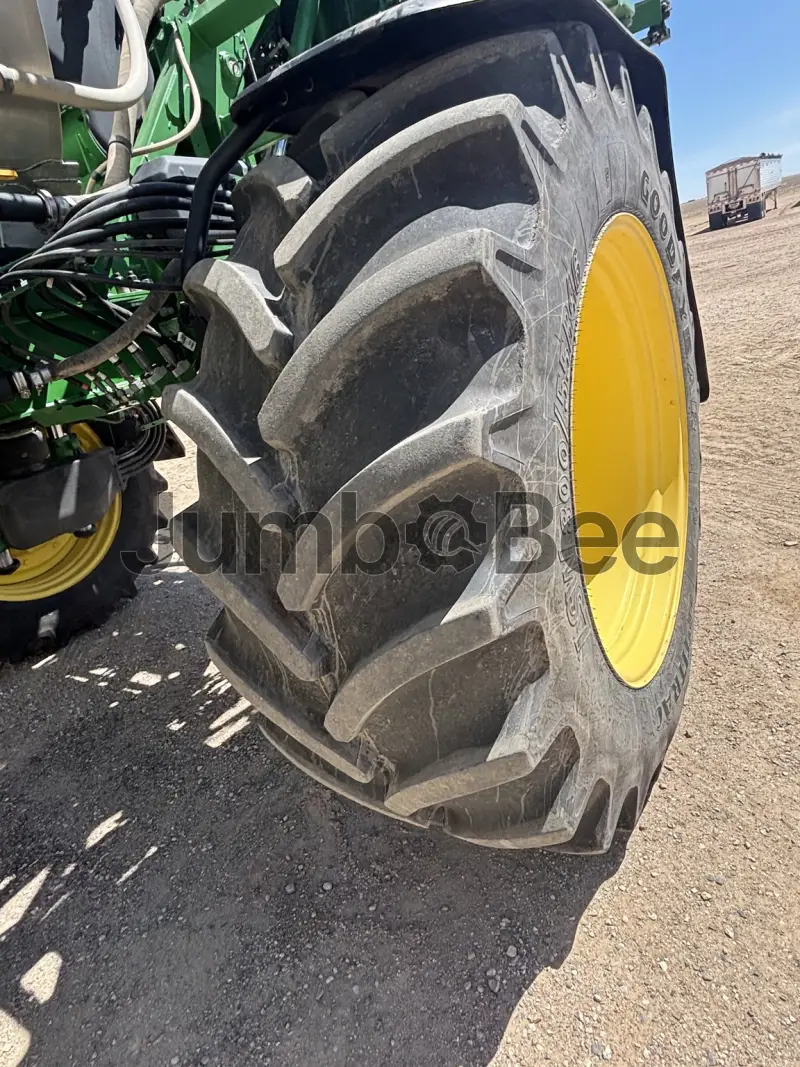

380/105 R50, 420/95 R50, or 480/80 R50.
Tire Options
620/70 R46 or 800/55 R46.
Solution pump
Standard flow with a capacity ranging from 4 to 170 gallons per minute (GPM) at 40 PSI
Air Boom length options
28 m
Maximum transport speed
56.3 km/h
Turning Radius - Inside Tire
9.2 m

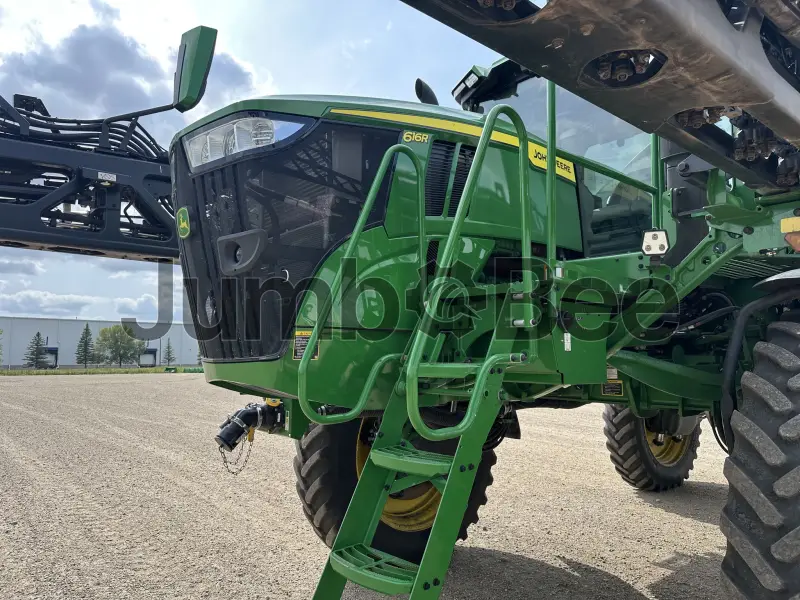

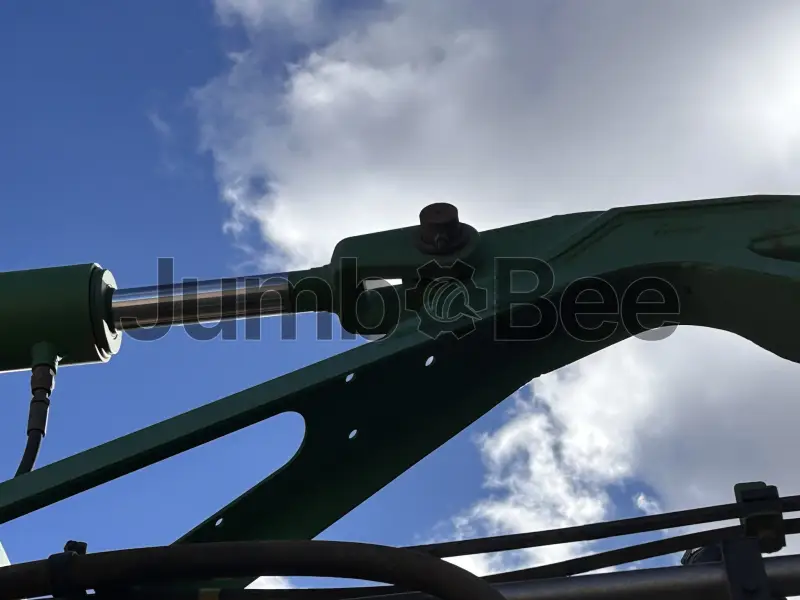

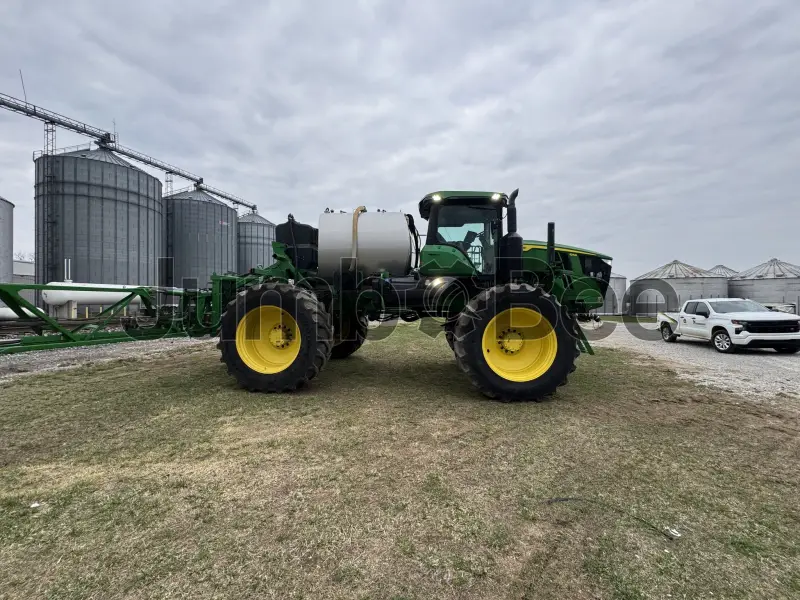

John Deere 616R Self-Propelled Sprayers Listings
$428,936
147.3 cm
6057 L
28 m
842 hours
Yuma, United States
$595,080
6057 L
380/105 R50, 420/95 R50, or 480/80 R50.
620/70 R46 or 800/55 R46.
723 hours
Warren, United States
$314,500
6057 L
28 m
565 L
2391 hours
Holland, United States
$486,320
620/70 R46 or 800/55 R46.
Standard flow with a capacity ranging from 4 to 170 gallons per minute (GPM) at 40 PSI
132-Foot carbon fiber
923 hours
Moses Lake, United States
$510,000
375 hp
Final Tier 4 (FT4)
28 m
1287 hours
Caro, United States
$312,900
6
549 cu(in)
605 L
1673 hours
Casey, United States
$575,600
565 L
375 hp
549 cu(in)
547 hours
Sterling, United States
$573,400
6057 L
565 L
6
583 hours
Burlington, United States
$581,600
"132 ft (40.2 m) Boom: 13 sections 120 ft (36.6 m) Boom: 11 sections 100 ft (30.5 m) Boom: 9 sections 90 ft (27.4 m) Boom: 7 sections"
ActiveSeatâ„¢ II; heated/ventilated; 24-degree swivel
G5 Plus CommandCenterâ„¢ Display
537 hours
Strasburg, United States
$309,217
6
549 cu(in)
3.3 m
1951 hours
Yuma, United States
$505,070
6057 L
28 m
565 L
877 hours
Sidney, United States
$429,314
6
549 cu(in)
"132 ft (40.2 m) Boom: 13 sections 120 ft (36.6 m) Boom: 11 sections 100 ft (30.5 m) Boom: 9 sections 90 ft (27.4 m) Boom: 7 sections"
1390 hours
Scottsbluff, United States
Compare John Deere 616R Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 616R Self-Propelled Sprayer
6057 L
16337 kg
27432 mm × 3291 mm × 3810 mm
Add model
Add model
4.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
4.0
Comfort & Ergonomics
4.0
Safety
5.0
Technology & Features
3.0
Wendell Morris
We cover about 1,400 acres a season with ours. The solution system is easy to run from the seat. The one knock is that it was down on power until about 150 hours of break-in.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 616R?
No confirmed market price is supplied for the John Deere 616R. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 616R?
Listed features include 279.6 kW (375 hp), hydrostatic full-time four-wheel drive (4WD), dual-strut independent wheel air-ride suspension, and the G5 Plus CommandCenterâ„¢ Display. It also has an ActiveSeatâ„¢ II with heating, ventilation, and a 24-degree swivel.
What type of engine does the 616R use?
The supplied specifications confirm a 6-cylinder engine with 549 cu in displacement and Final Tier 4 (FT4) emissions level. They do not identify the engine make or model.
How much horsepower does the 616R have?
The 616R is rated at 279.6 kW (375 hp).
What fuel does the John Deere 616R use?
The supplied specifications do not confirm the fuel type for the John Deere 616R. They list a 565 L (149.3 US gal) fuel tank but do not identify the fuel.
What jobs is this Sprayers best suited for?
The supplied data identifies the 616R as a sprayer. Its 6,057 L (1,600.1 US gal) solution system capacity, boom options, and solution pump support spraying work, but the supplied data does not specify particular crops, field conditions, or application jobs.
What is the expected lifespan of the 616R?
The supplied data does not provide an expected service life for the 616R. For a used machine, assess maintenance history, operating condition, the solution system, boom operation, tires, suspension, hydraulics, and controls.
What should a buyer check when purchasing a used Sprayers?
Inspect maintenance records and test the solution system, pump, rinse tank, boom sections, breakaway function, hydraulics, tires, suspension, steering, and display controls. Check for leaks, corrosion, structural damage, and uneven spray performance.
