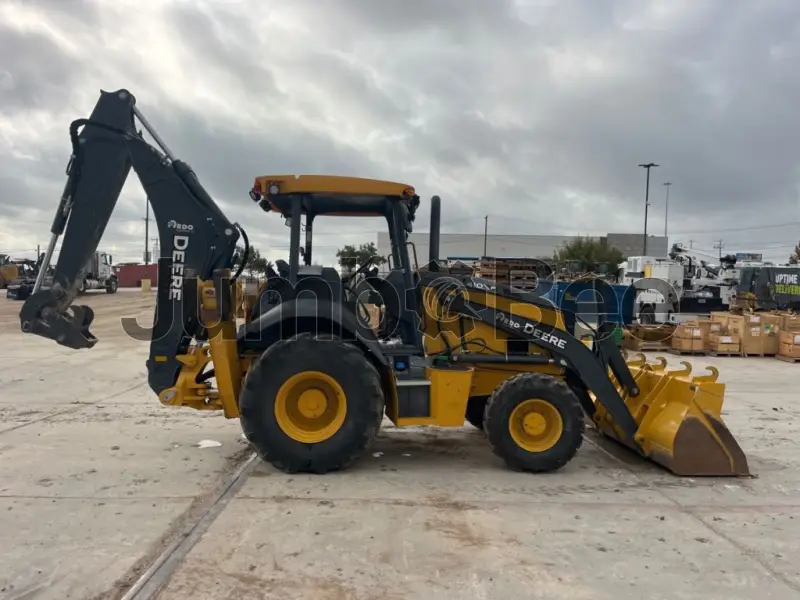

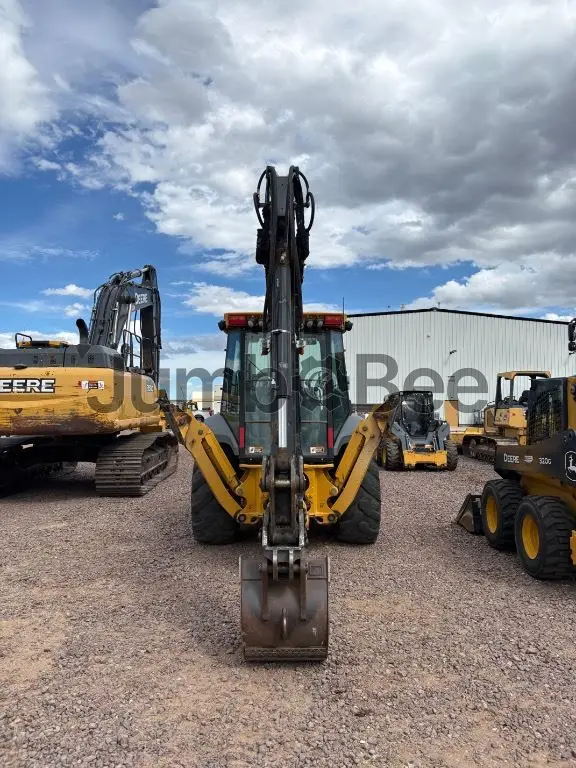

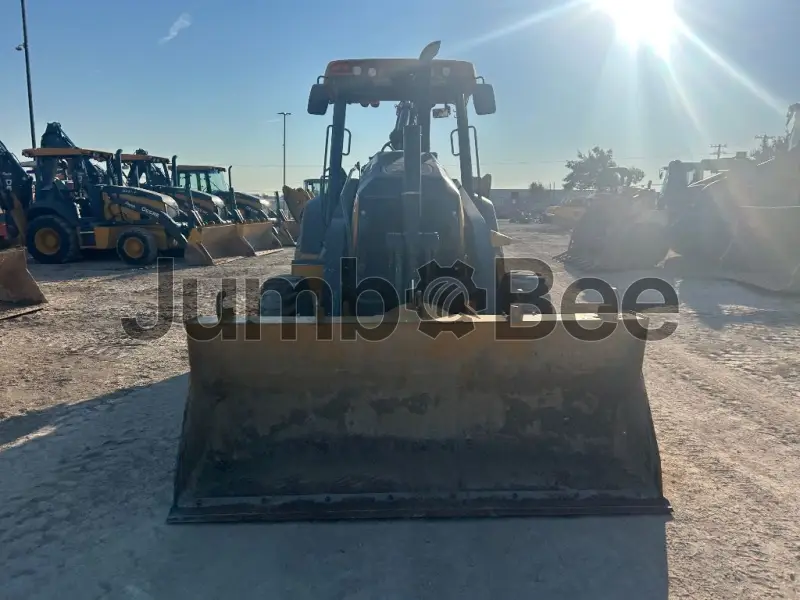

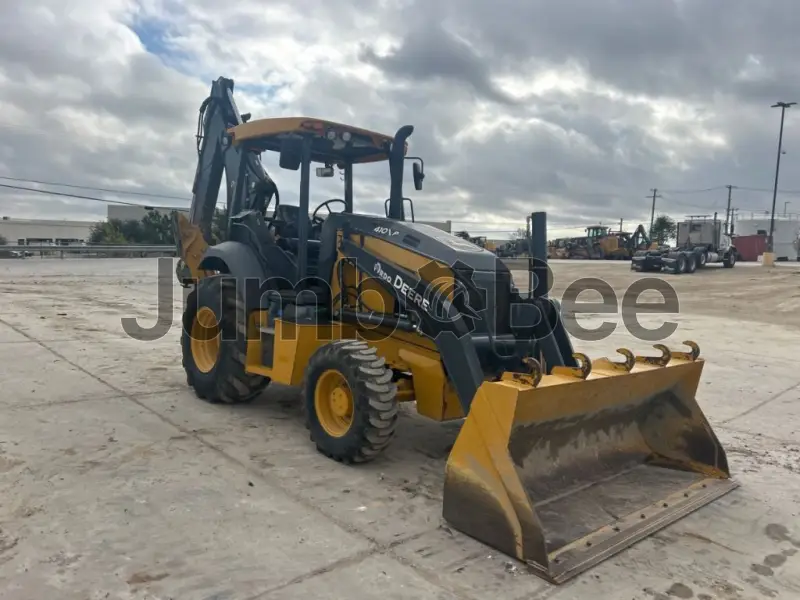

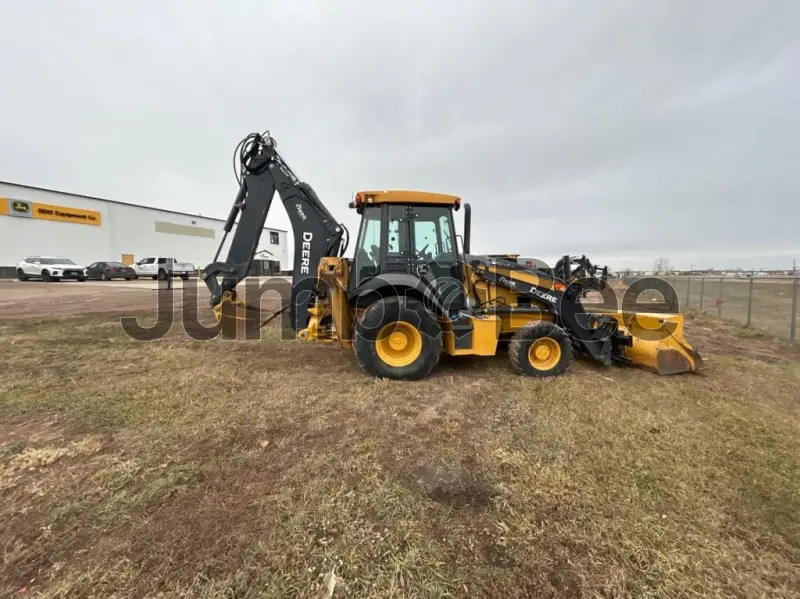

John Deere 410P Backhoe Loaders
John Deere 410P
Average price
$157,435
5+
sold in last year
General overview
John Deere 410P is a backhoe loader manufactured in the United States for excavation and loading on construction sites. It is powered by an 85 kW (116 hp) John Deere PowerTech EWL 4.5 4045HL052 four-cylinder engine and has an operating weight of 8,460 kg (18,650 lb). The engine meets Tier 4 Final emission requirements.
The model uses a Power Shift transmission, pilot controls for both the loader and backhoe, and an axial piston pump with 163 L/min (43.1 gpm) flow for each circuit. Working figures include a dig depth of 4,850 mm (15 ft 11 in), a backhoe swing arc of 190°, a loader bucket capacity of 1 m³ (1.3 cu yd), a bucket range of 2,346 mm (7 ft 8 in), and a typical operating weight with cab, extendable dipperstick and counterweight of 8,875 kg (19,570 lb).
Year
2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
7,580 mm
~298.4 in
3,910 mm
~153.9 in
2,340 mm
~92.1 in
Engine Power
116 hp
Operating Weight
8,460 kg
Dig Depth
4,850 mm

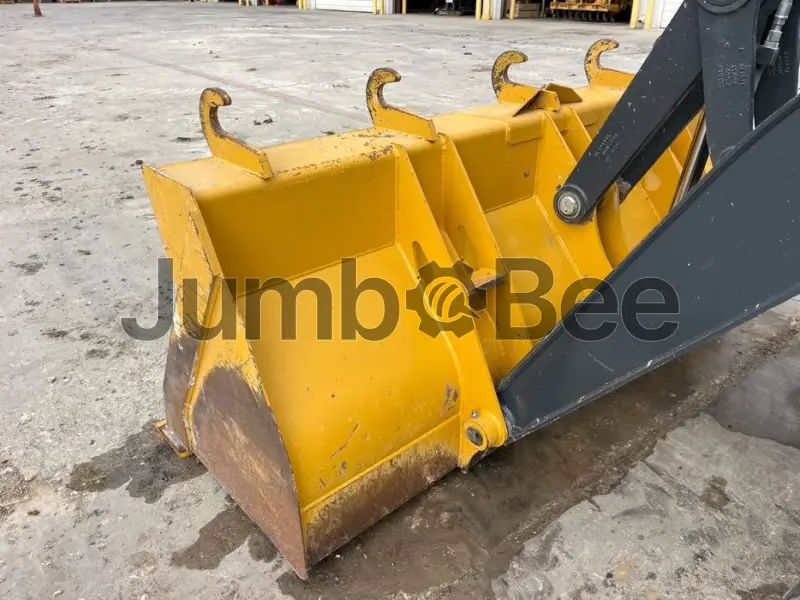

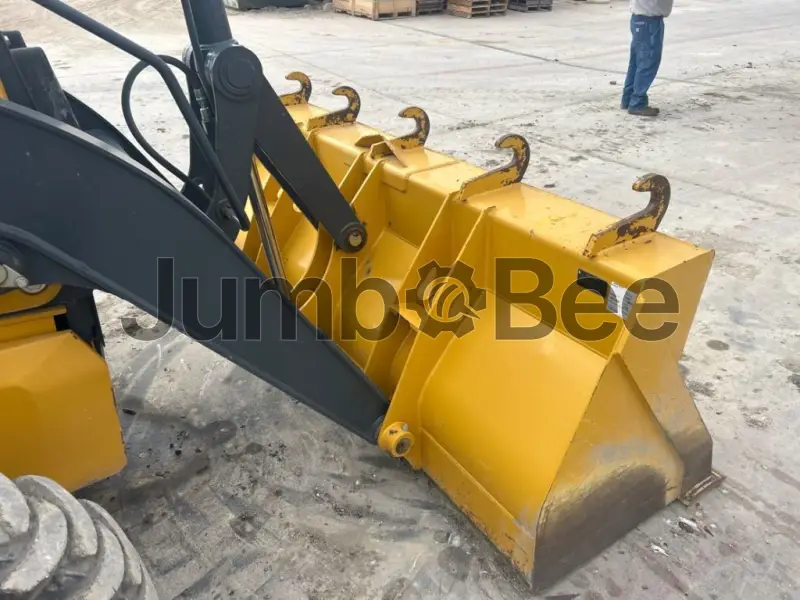

Capacity Bucket (loader)
1 cu(m)
Capacity Bucket (backhoe)
cu(m)
Digging Depth (SAE)
4.85 m
Additional specifications
Emission standard level
Tier 4 Final
Displacement
4 cu(m)
Tires front
12.5/80-18 R4 (10)
Transmission type
Power Shift
Fuel tank
128 L
Overall length w/header
7,580 mm
Height to top of cab
3,910 mm
Wheelbase
2,190 mm
Number of Cylinders
4
Tires rear
21L-24 R4 (12)
Ground clearance with standard tires
329 mm
Battery Voltage
12
Bucket Width
610 mm
Hydraulic Capacity
45 L
Engine Model
PowerTech EWL 4.5 4,045HL,052
Engine Oil
13 L
Maximum Digging Depth
134 mm
Power - Net
116 hp
Net Power (ISO 9249)
116 hp
Alternator Rating
145
Bucket Weight
120 kg
Bucket Range
2,346 mm
Swing Arc
190 deg
Pump flow backhoe
163 L/min
Pump flow loader
163 L/min
System Relief Pressure backhoe
24,993 kPa
System Relief Pressure loader
24,993 kPa
Controls backhoe
Pilot controls
Controls loader
Pilot controls
Lights
10 halogen: 4 front, 4 rear, and 2 side docking (HB3 [high-beam] bulb)
Operating Weights with Full Fuel Tank, Standard Equipment
8,460 kg
Operating Weights typical with Cab, Extendable Dipperstick and Counterweight
8,875 kg
Length From Axle to Axle
2,190 mm
Loading Height, Truck Loading Position
3,970 mm
Reach From Center of Swing Pivot
6,020 mm
Digging Depth (SAE maximum)
4,850 mm
Stabilizer Spread, Operating
3,450 mm
Stabilizer Overall Width, Operating
4,030 mm
Bucket Dump Angle, Maximum
45 deg
Rollback Angle at Ground Level
40 deg
Height to Bucket Hinge Pin, Maximum
3,470 mm
Reach at Full Height, Bucket at 45 deg.
785 mm
Length From Front Axle Centerline to Bucket Cutting Edge
2,030 mm
Dump Clearance
2,700 mm
Main Pump Type
Axial piston pump
Rated Operating Capacity
4,009 kg

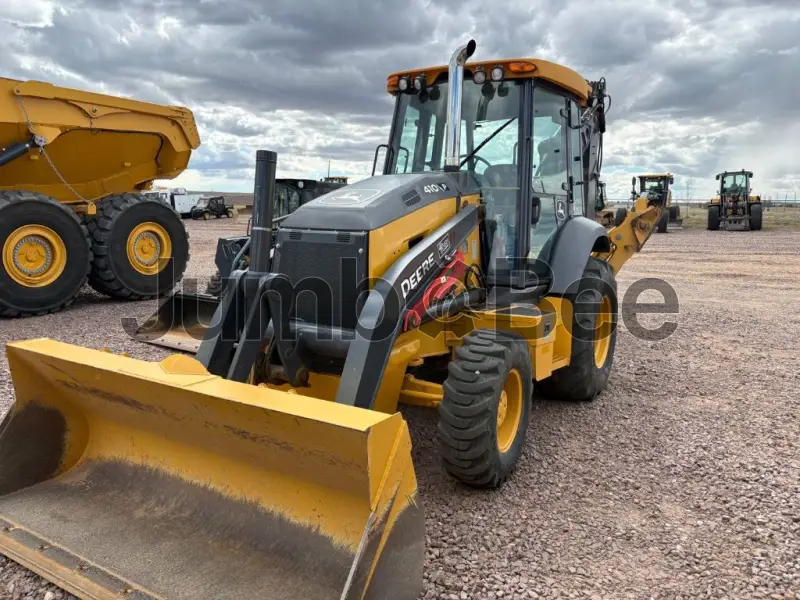

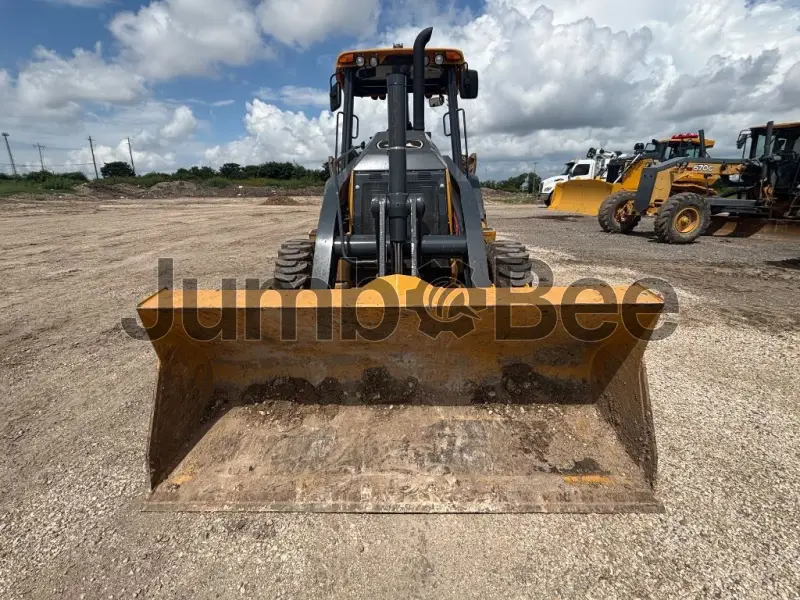

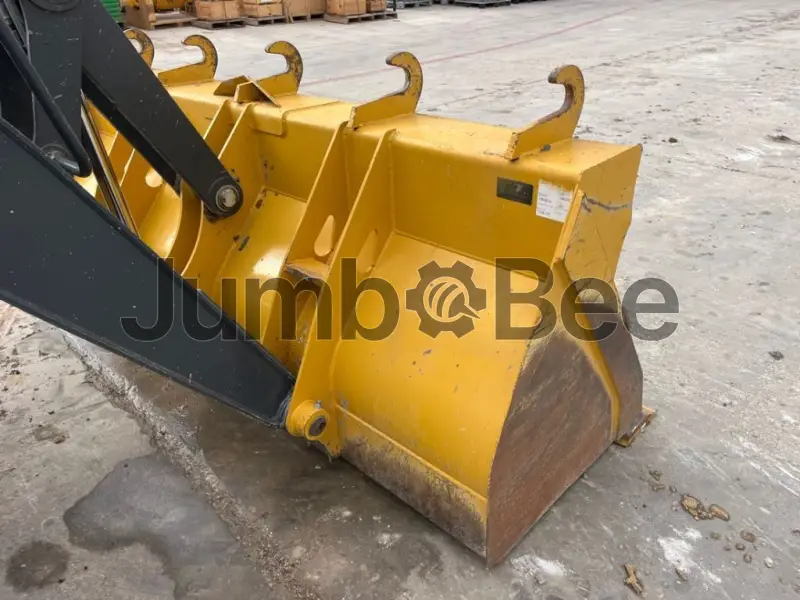

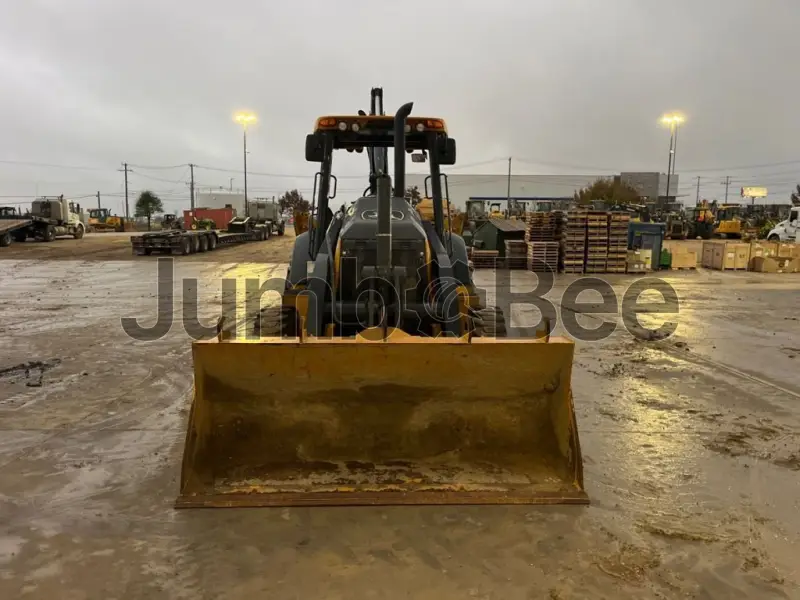

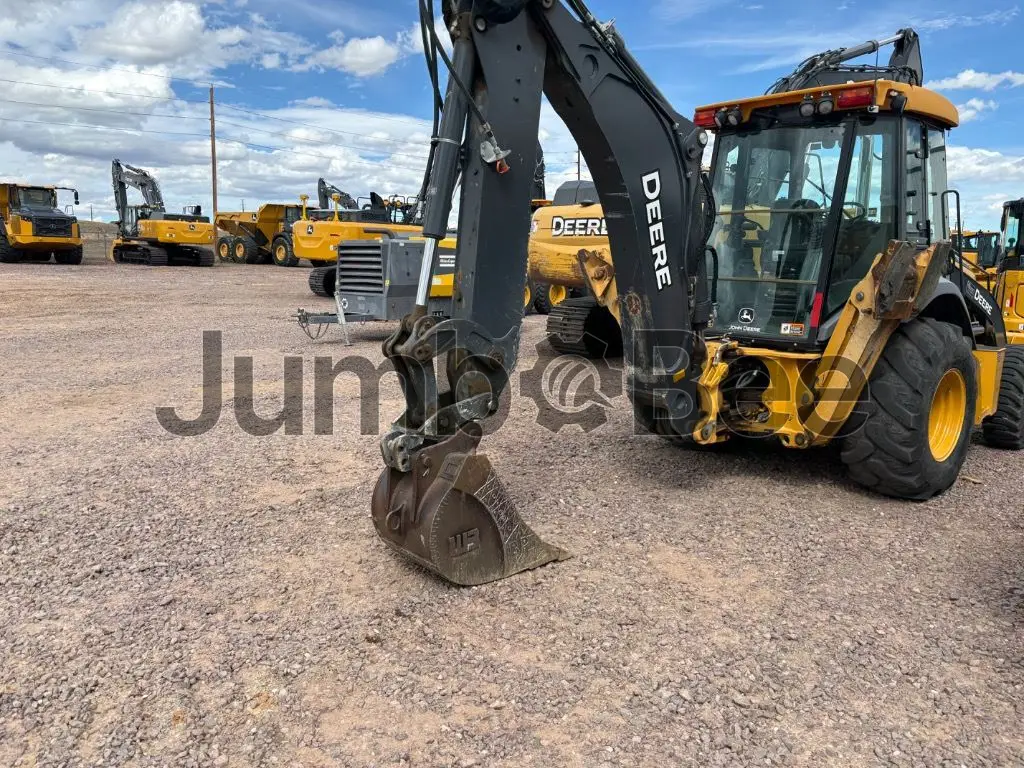

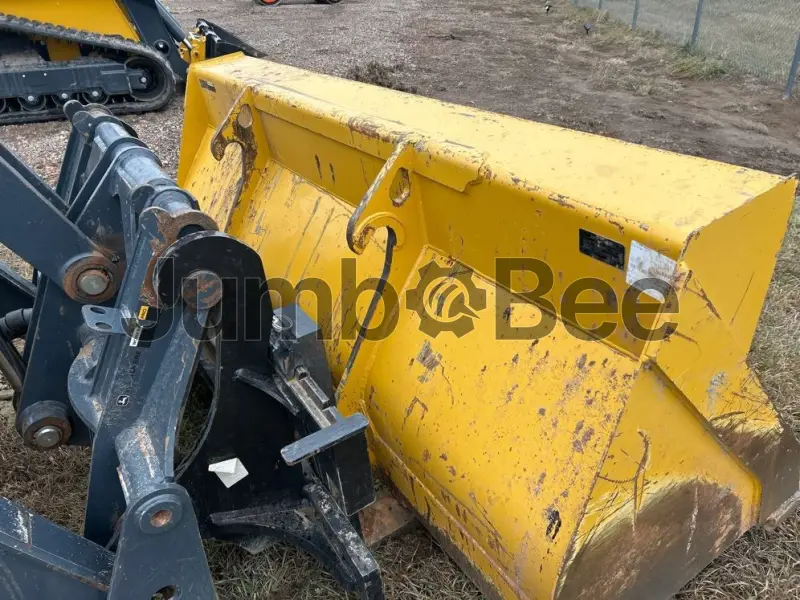

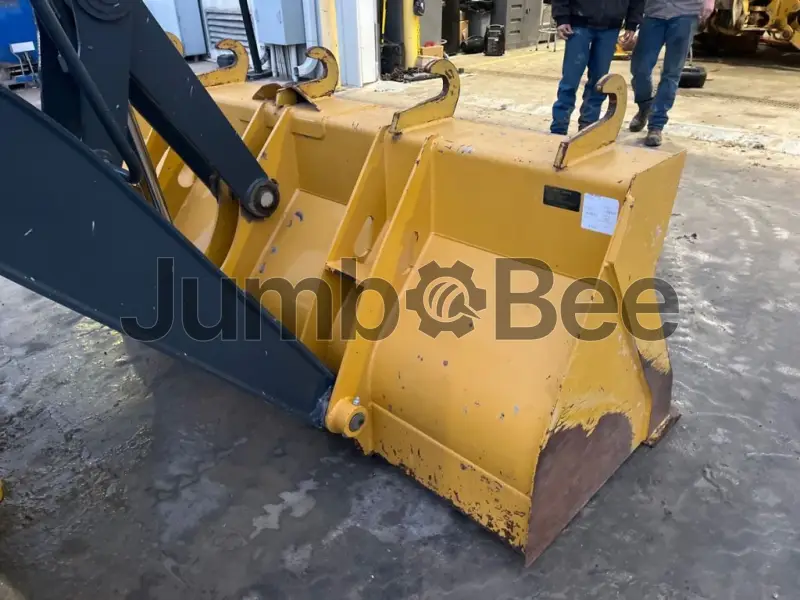

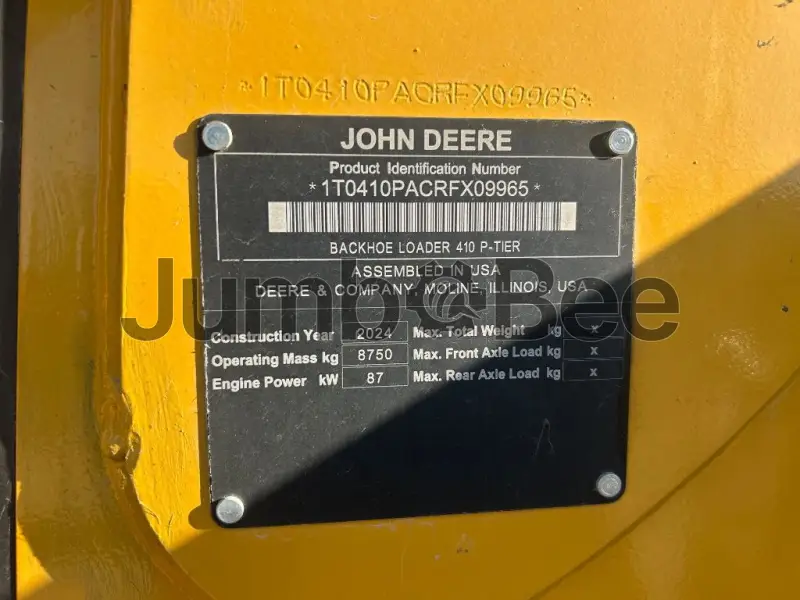

John Deere 410P Backhoe Loaders Listings

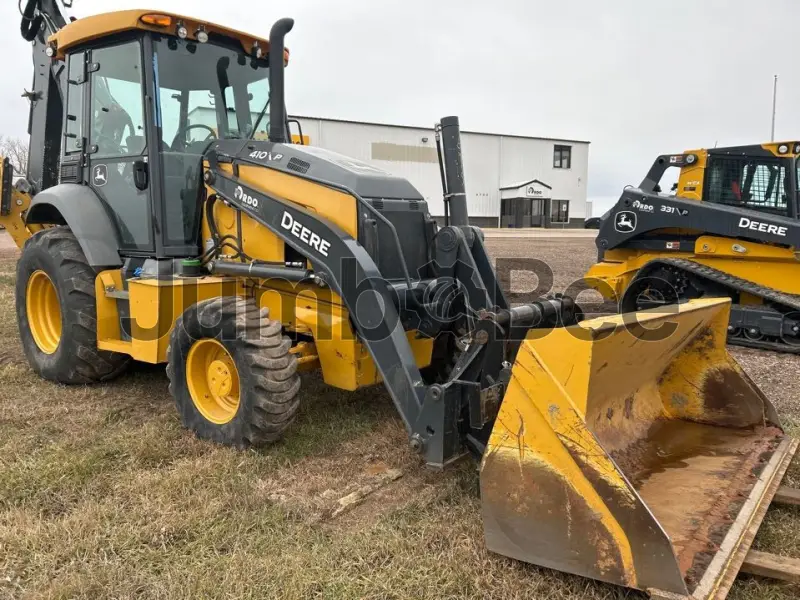

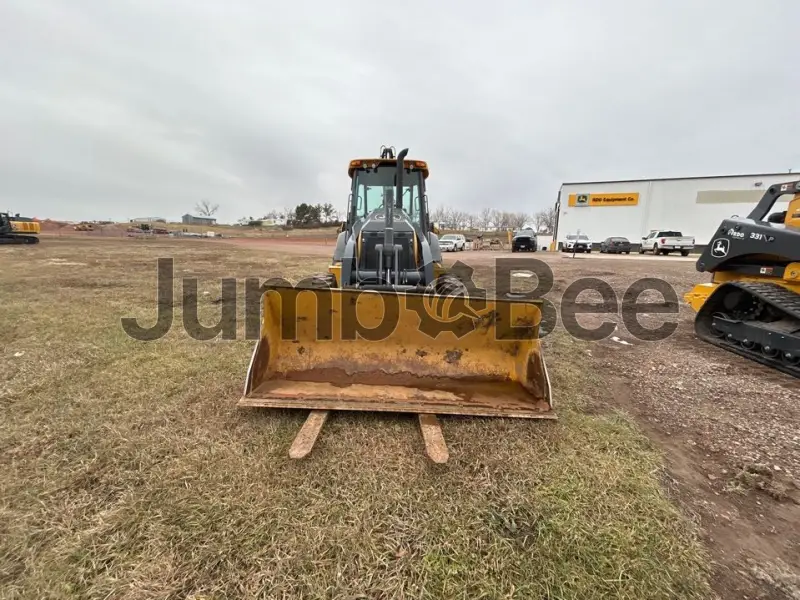

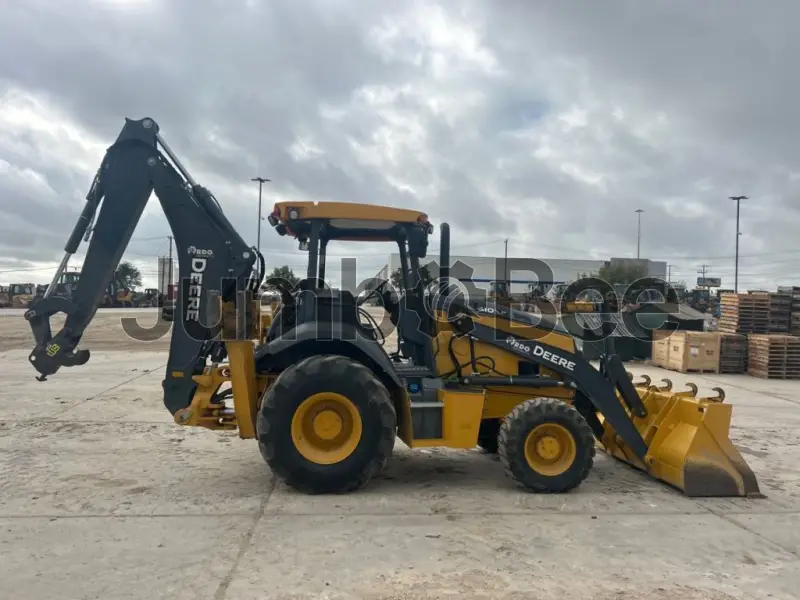

$123,020
4850 mm
116 hp
Tier 4 Final
1364 hours
Cheyenne, United States

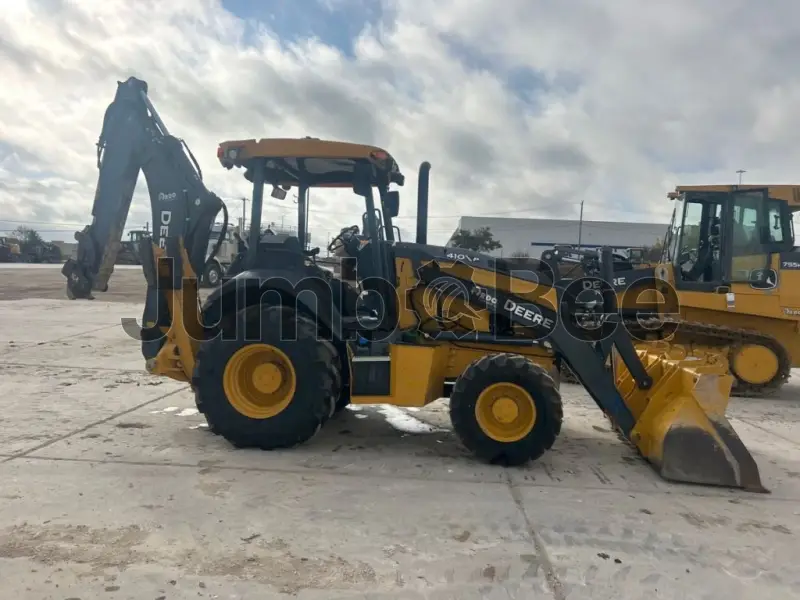

$101,000
Tier 4 Final
116 hp
4
1363 hours
New Braunfels, United States
$154,370
Pilot controls
10 halogen: 4 front, 4 rear, and 2 side docking (HB3 [high-beam] bulb)
8875 kg
1435 hours
Idaho Falls, United States

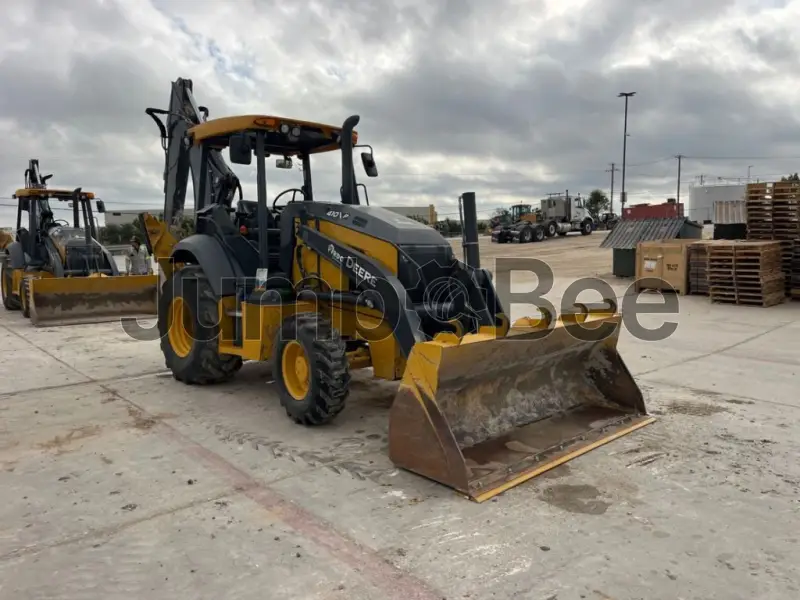

$136,080
4
8875 kg
4850 mm
1504 hours
New Braunfels, United States

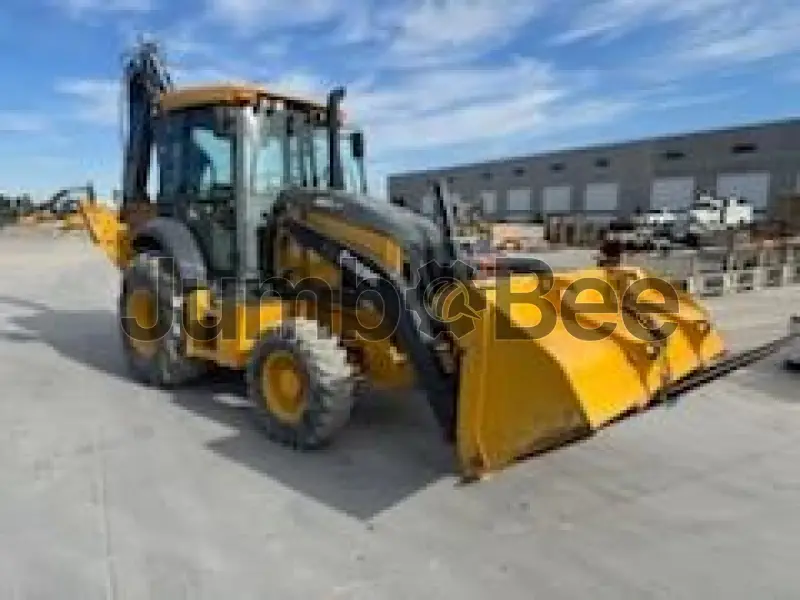

$136,580
12.5/80-18 R4 (10)
4850 mm
8460 kg
1118 hours
Pflugerville, United States

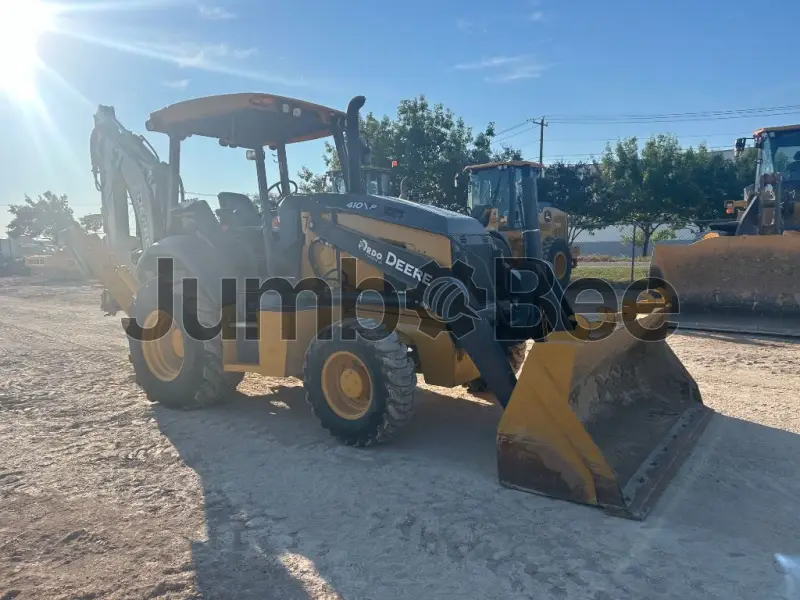

$126,780
Axial piston pump
163 L/min
163 L/min
2629 hours
Pflugerville, United States

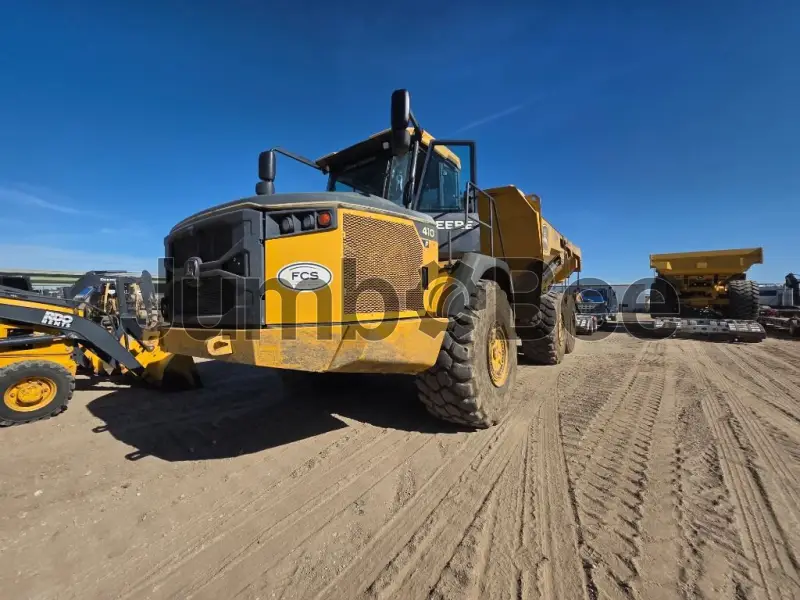

$397,830
4030 mm
45 deg
4850 mm
4294 hours
Fort Worth, United States

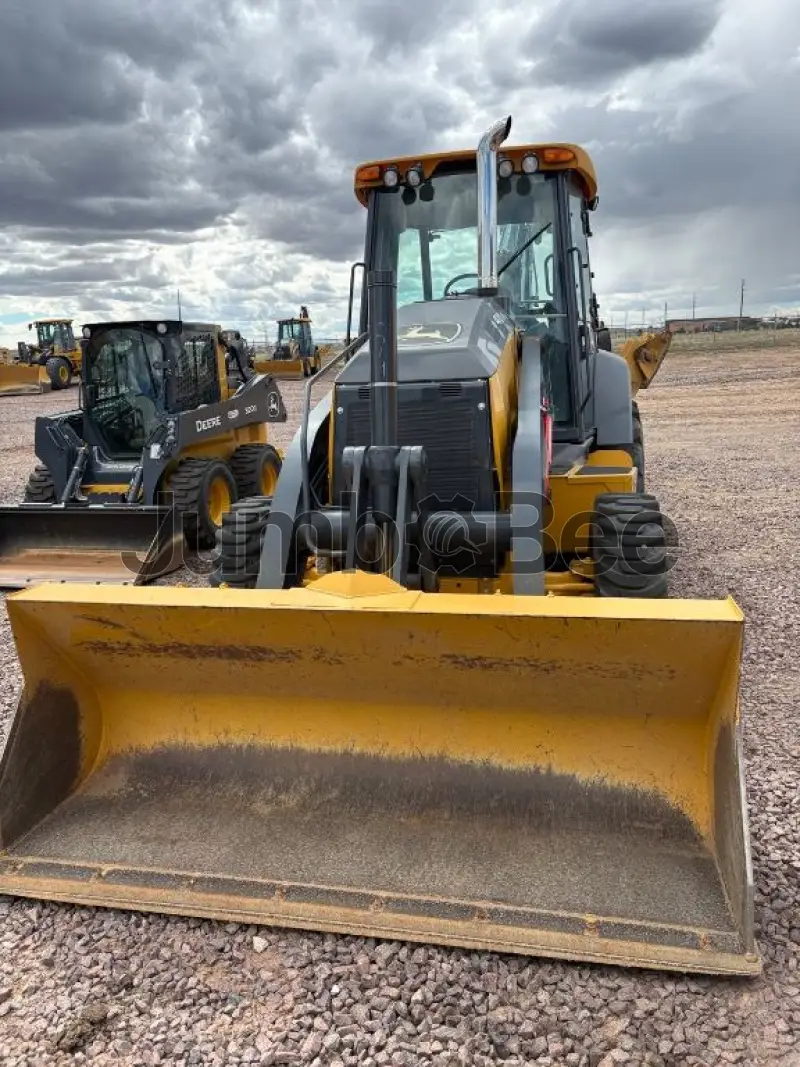

$138,800
4850 mm
116 hp
1 cu(m)
2080 hours
Idaho Falls, United States
$144,640
116 hp
4850 mm
8460 kg
1527 hours
Salt Lake City, United States
$144,430
4
116 hp
Pilot controls
678 hours
Pflugerville, United States
$118,750
4850 mm
8460 kg
Power Shift
2243 hours
Pflugerville, United States
Compare John Deere 410P Backhoe Loader to other backhoe loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 410P?
No confirmed market price is supplied for the John Deere 410P. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 410P?
The supplied specifications list 86.5 kW (116 hp) net power, Power Shift transmission, pilot controls for the loader and backhoe, a 4,850 mm (190.9 in) SAE maximum digging depth, and 163 L/min (43.1 gpm) pump flow for both functions.
What type of engine does the 410P use?
The 410P uses a PowerTech EWL 4.5 4045HL052 engine. It has 4 cylinders and meets Tier 4 Final emissions requirements.
How much horsepower does the 410P have?
The 410P has 86.5 kW (116 hp) engine power. Net Power (ISO 9249) is also listed as 86.5 kW (116 hp).
What fuel does the John Deere 410P use?
The supplied data does not confirm the fuel type for the John Deere 410P. Its fuel tank capacity is listed as 128 L (33.8 US gal).
What jobs is this Backhoe Loaders best suited for?
The supplied specifications support use where loader and backhoe functions are needed, including digging, loading, and truck loading. Relevant listed capabilities include a 4,850 mm (190.9 in) digging depth, 3,970 mm (156.3 in) truck-loading height, and 1 m³ (1.31 cu yd) loader bucket capacity.
What is the expected lifespan of the 410P?
The supplied data does not provide an expected service life for the 410P. Evaluate maintenance records, operating hours, hydraulic performance, engine condition, transmission operation, tires, bucket wear, and structural damage when assessing a specific machine.
What should a buyer check when purchasing a used Backhoe Loaders?
Check maintenance records, engine starting and operation, transmission shifting, hydraulic leaks and function, loader and backhoe controls, bucket and linkage wear, tires, stabilizers, lights, cab condition, and signs of frame or boom damage. Test all functions under load where practical.
