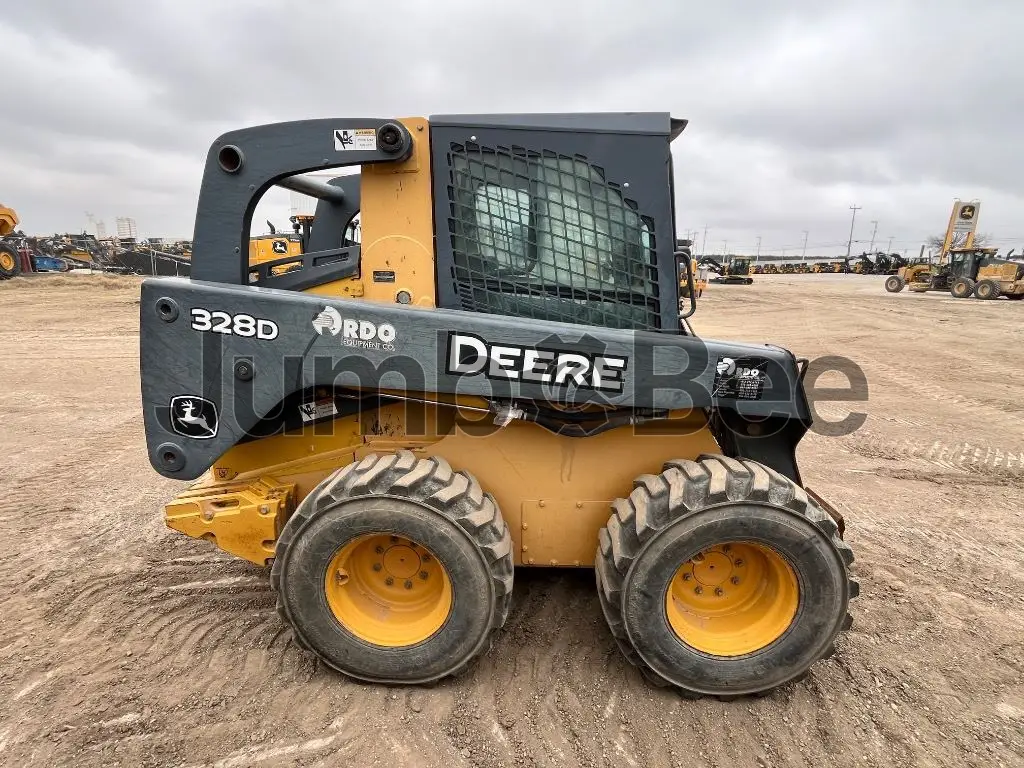

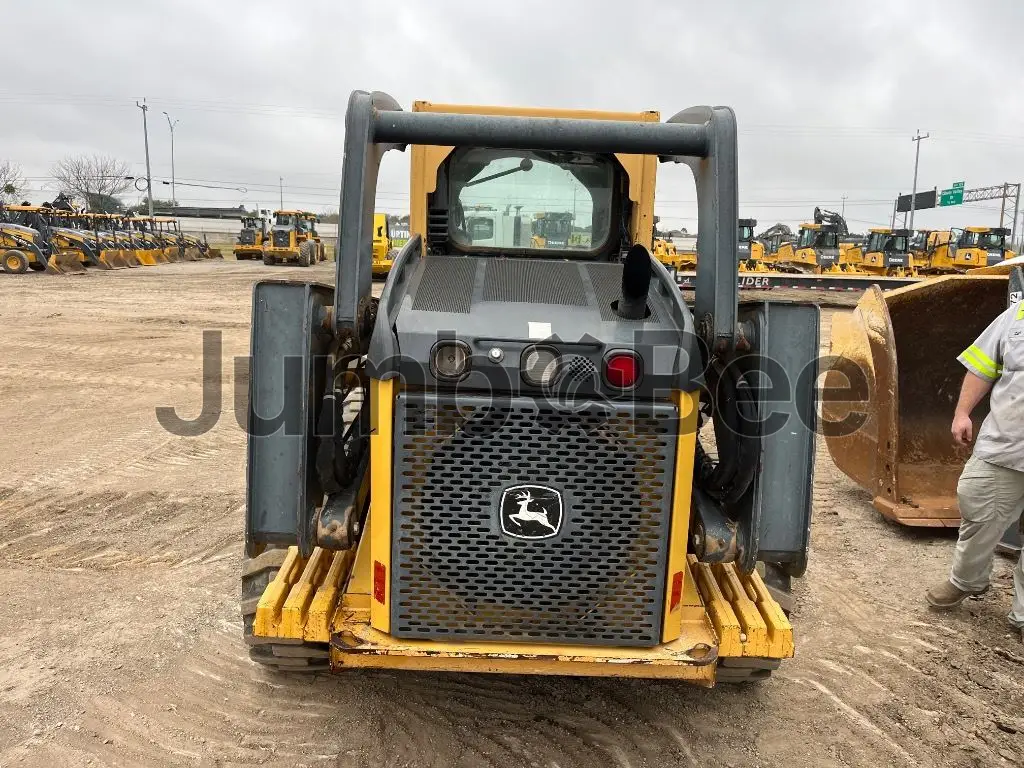

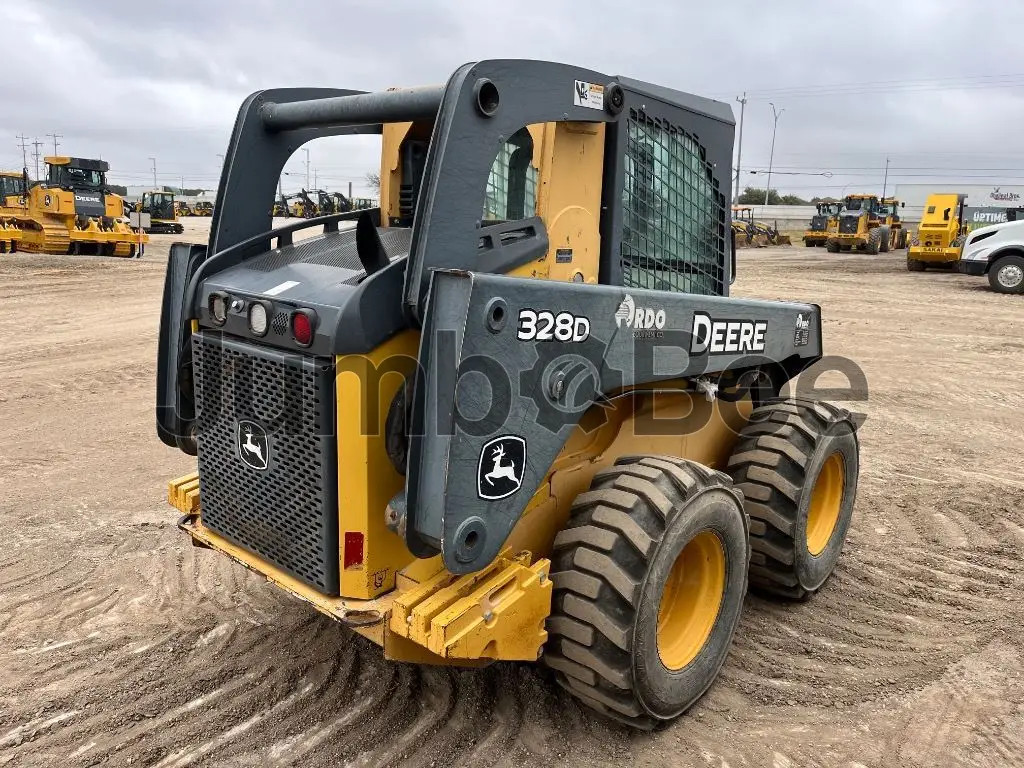

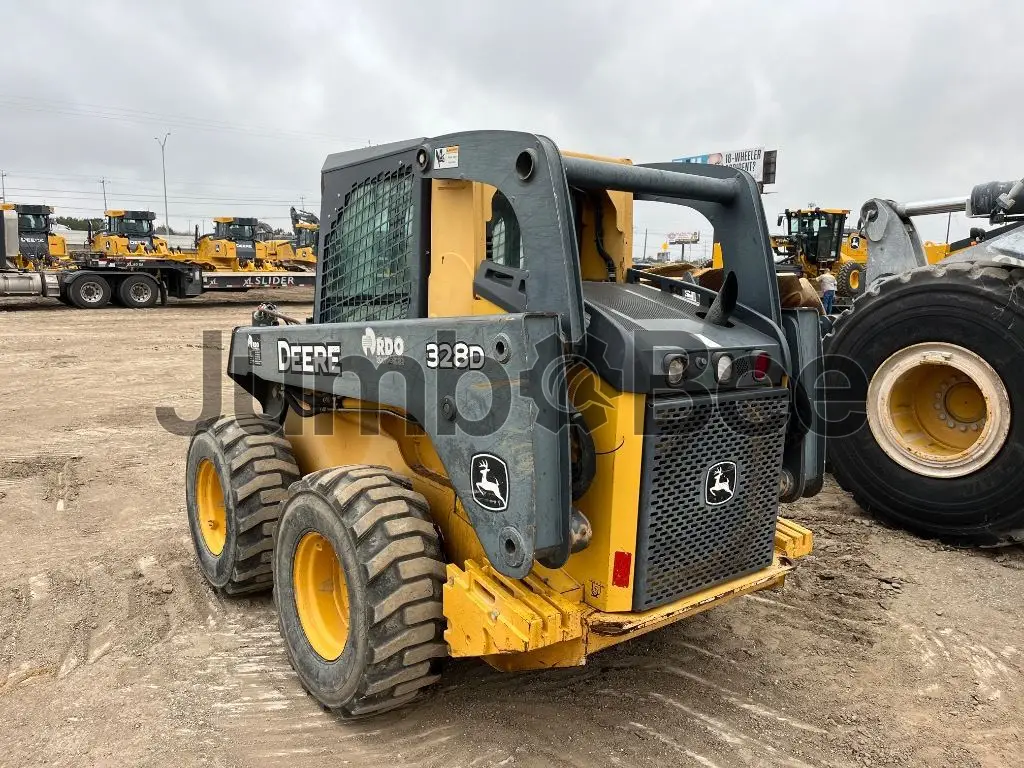

John Deere 328D Skid Steer / CTL
John Deere 328D
5+
sold in last yearGeneral overview
John Deere 328D is a skid steer loader from John Deere, designed for construction loading and material-handling work in compact jobsite conditions. The 2011 model uses a John Deere PowerTech E 5030HT engine rated at 62 kW (85 hp), with a net power of 59 kW (80 hp). It has 5 cylinders, 3 L displacement, and meets EPA Tier 3 / EU Stage IIIA emissions requirements.
Its rated operating capacity is 1,271 kg (2,800 lb), with a tipping load of 2,542 kg (5,600 lb), a dump height of 2,570 mm (8 ft 5 in), and a tractive effort of 38 kN (8,540 lbf). The loader is listed with a single-speed transmission and optional two-speed (high-speed) travel up to 19 km/h (11.8 mph), plus hydraulic flow of 80 L/min (21.1 gpm) at 237.9 bar (3,450 psi) for loader work.
Year
2011
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,600 mm
~141.7 in
2,150 mm
~84.6 in
1,950 mm
~76.8 in
Engine Power
85 hp
Operating Weight
3,814 kg
Rated Operating Capacity
1,271 kg
Dump Height
2,570 mm
Bucket volume
500 cu(m)
Max. speed
19 km/h
Additional specifications
Emission standard level
EPA Tier 3 / EU Stage IIIA
Displacement
3 cu(m)
Speeds
Single-speed; optional two-speed (high-speed)
Fuel tank
111 L
Wheelbase
1,230 mm
Battery Voltage
12
Net Power (ISO 9249)
80 hp
Manufacturer and Model
John Deere PowerTech E 5,030HT
Alternator Rating
70
Pump flow loader
80 L/min
2 Speed High
19 km/h
Maximum Axle Torque
8,460 Nm
Tractive Effort
38 kN
System Pressure at Couplers
23,790 kPa
Hydraulic Horsepower Flow
46 hp
Length Without Bucket
2,990 mm
Length With Foundry Bucket
3,600 mm
Width Without Bucket
1,950 mm
Height to Top of ROPS
2,150 mm
Height to Hinge Pin
3,220 mm
Dump Height With Foundry Bucket
2,570 mm
Dump Reach With Foundry Bucket
795 mm
Ground Clearance
295 mm
Angle of Departure
31 deg
Dump Angle (full lift height)
45 deg
Bucket Rollback (ground level)
35 deg
Tipping Load
2,542 kg
Boom Breakout Force With Foundry Bucket
22 kg
Bucket Breakout Force With Foundry Bucket
34 kg
Operating Weight - Rear
3,814 kg
Standard features
14 x 17.5 12 PR Extra Wall
Seed spacing
11 mm
Cylinders
5
