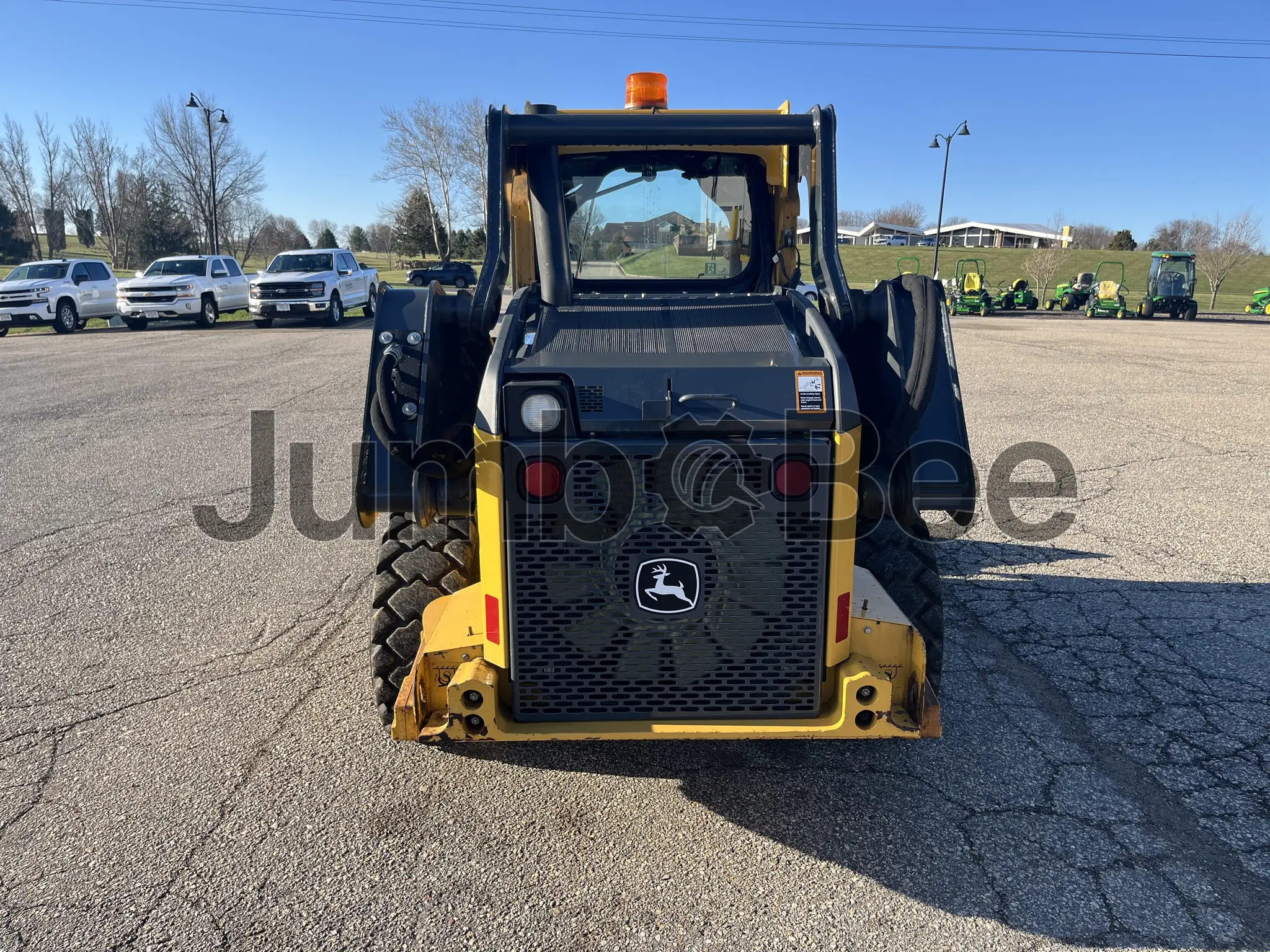

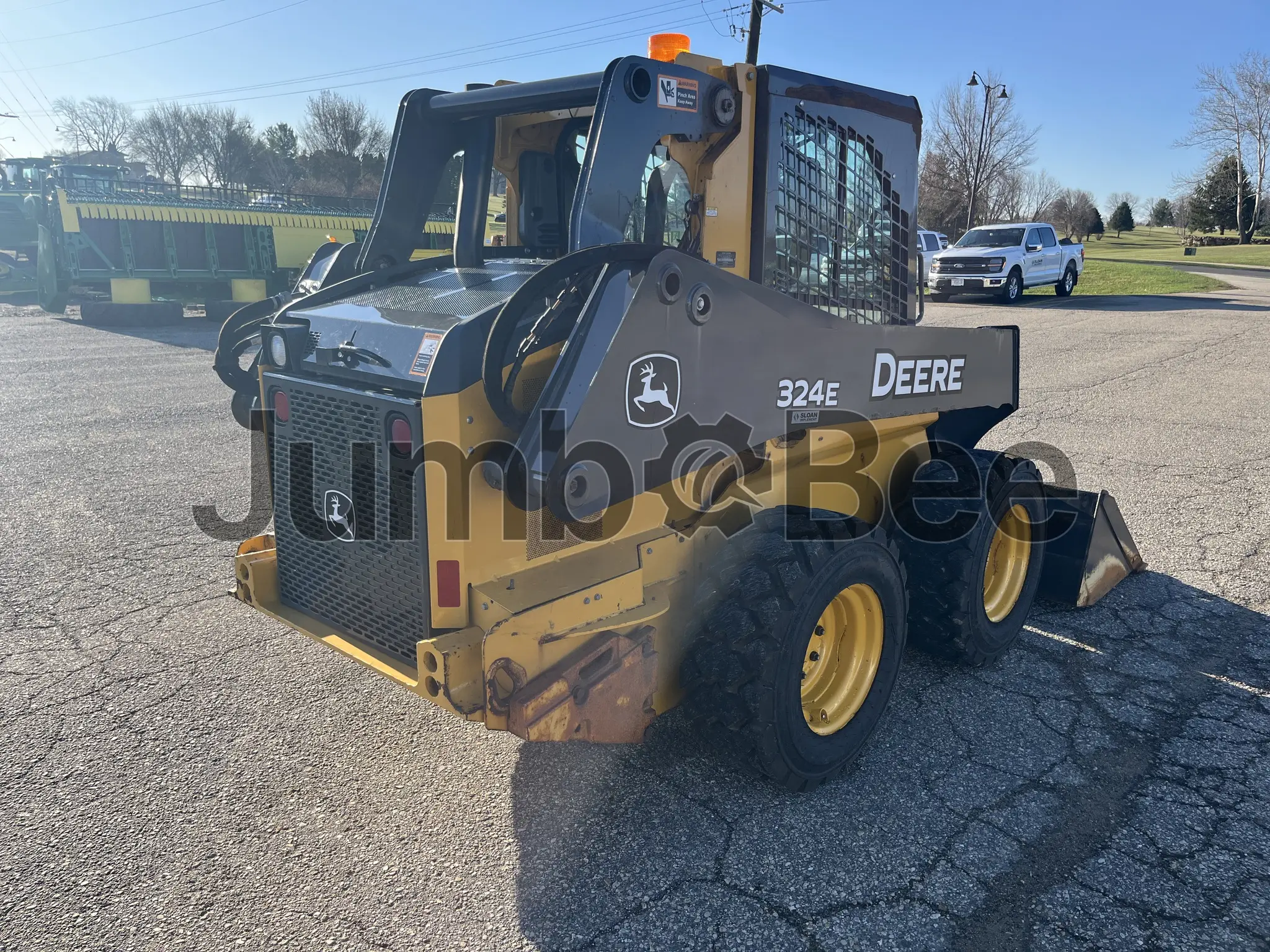

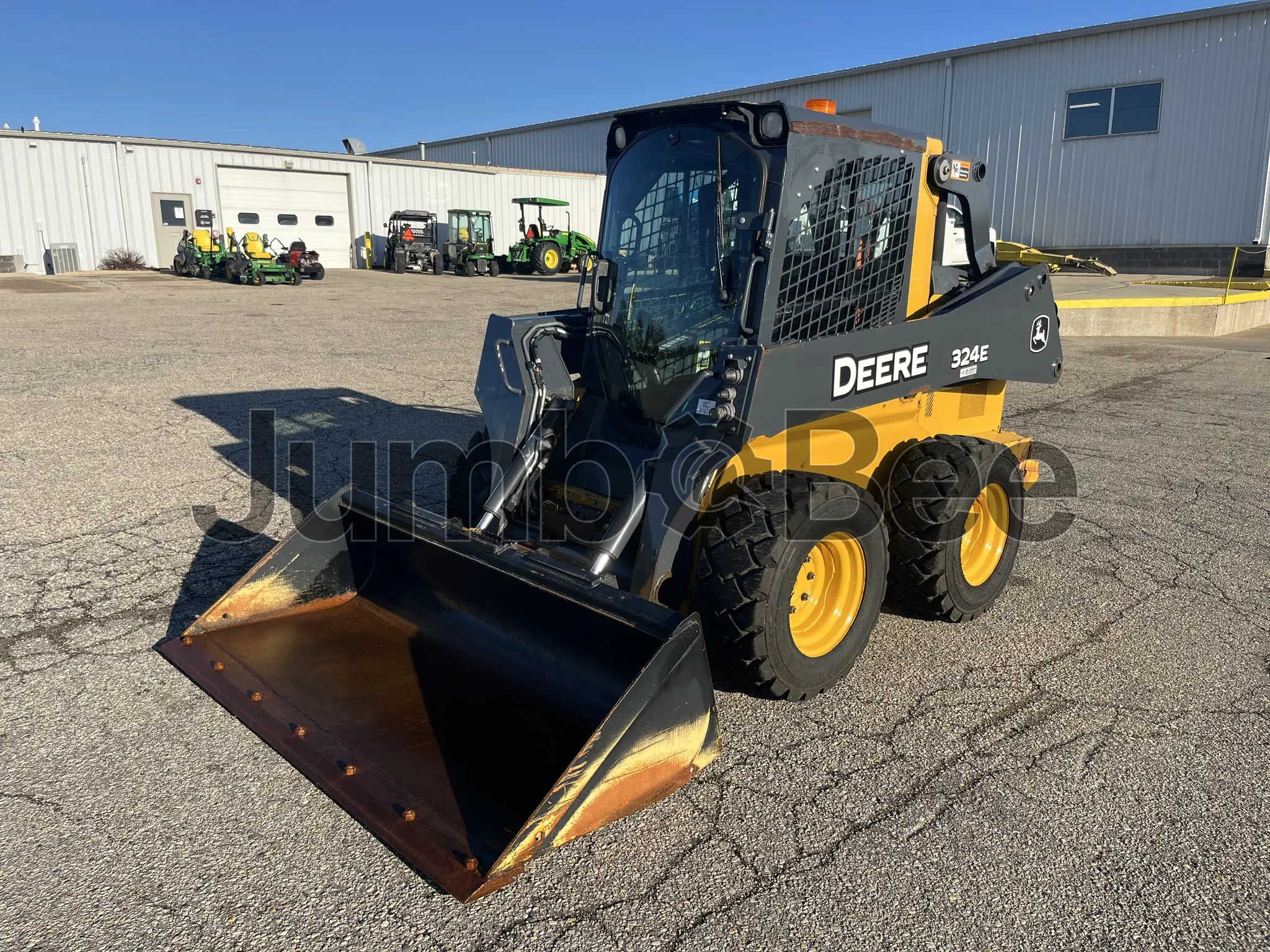

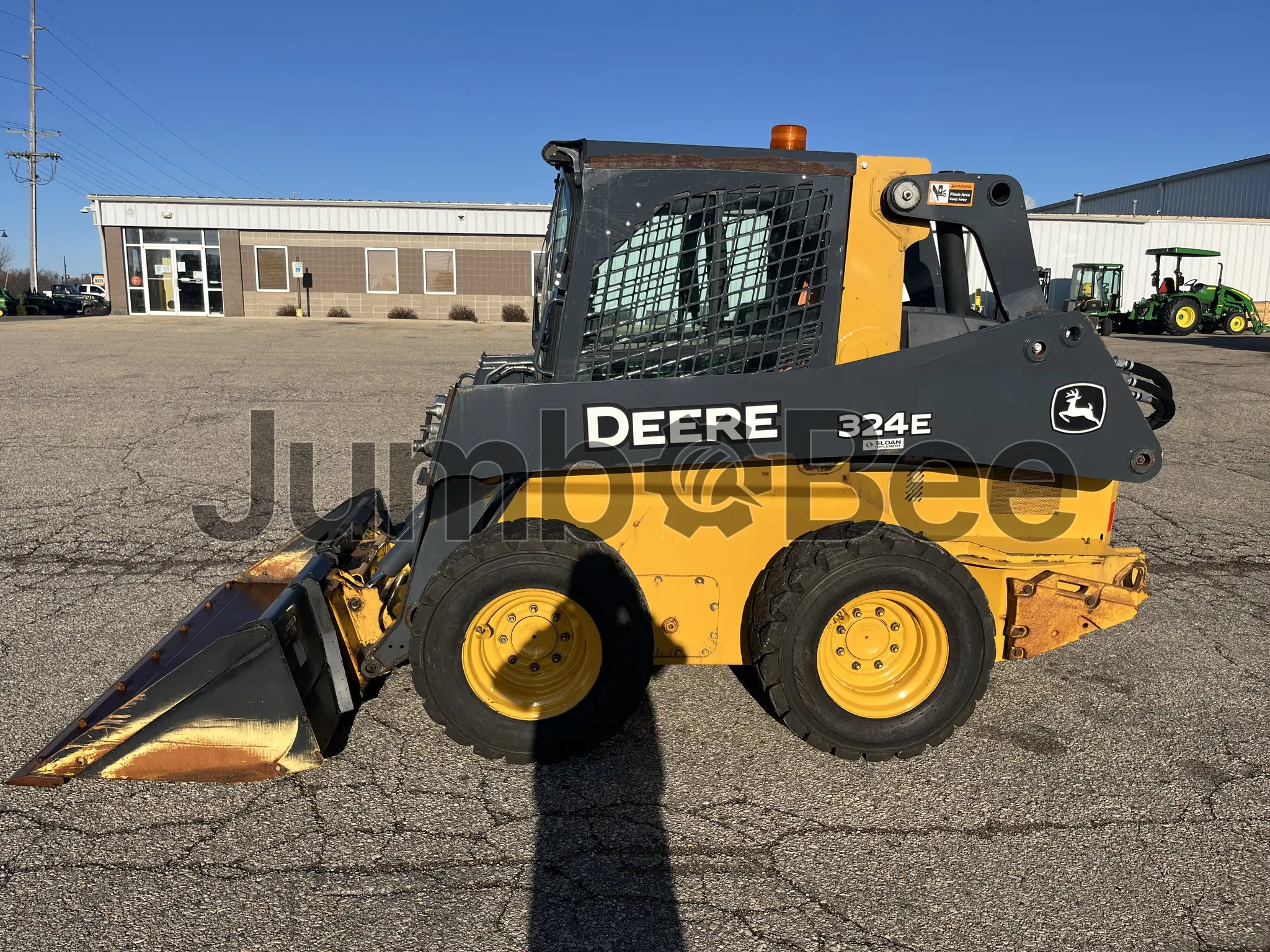

John Deere 324E Skid Steer / CTL
John Deere 324E
5+
sold in last yearGeneral overview
Produced from 2014 to 2018, the John Deere 324E is a skid steer loader for compact construction work. It uses a Yanmar 4TNV98CT four-cylinder engine rated at 54 kW (74 hp) and meeting EPA Tier 4 Final emissions requirements. The model is built for material handling and loading tasks in confined job sites.
A hydrostatic powertrain with single-speed operation and a maximum travel speed of 17 km/h (10.6 mph) defines its drive characteristics. The listed operating weight is 3,405 kg (7,510 lb), and rated operating capacity is 1,221 kg (2,690 lb), or 1,361 kg (3,000 lb) with counterweight. Hydraulic flow at 79 L/min (20.9 gpm) and system pressure at couplers of 237.9 bar (3,450 psi) support loader work.
Year
2014, 2015, 2016, 2017, 2018
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,050 mm
~120.1 in
2,020 mm
~79.5 in
1,780 mm
~70.1 in
Engine Power
74 hp
Operating Weight
3,405 kg
Rated Operating Capacity
1,221 kg
Dump Height
2,560 mm
Bucket volume
440 cu(m)
Max. speed
17 km/h
Additional specifications
Emission standard level
EPA Tier 4 Final
Displacement
3 cu(m)
Speeds
Single speed
Fuel tank
78 L
Number of batteries
1
Wheelbase
1,224 mm
Axles
2
Battery Voltage
12
Battery Capacity
80
Net Power (ISO 9249)
70 hp
Manufacturer and Model
Yanmar 4TNV98CT
Alternator Rating
90
Pump flow loader
79 L/min
2 Speed High
12 km/h
Maximum Axle Torque
6,771 Nm
Tractive Effort
31 kN
Brakes
Hydrostatic, dynamic braking (multi-disc)
System Pressure at Couplers
23,789 kPa
Hydraulic Horsepower Flow
42 hp
Length Without Bucket
3,050 mm
Length With Foundry Bucket
3,660 mm
Width Without Bucket
1,780 mm
Height to Top of ROPS
2,020 mm
Height to Hinge Pin
2,997 mm
Dump Height With Foundry Bucket
2,449 mm
Dump Reach With Foundry Bucket
737 mm
Ground Clearance
203 mm
Angle of Departure
27 deg
Front Turn Radius With Foundry Bucket
1,321 mm
Dump Angle (full lift height)
43 deg
Bucket Rollback (ground level)
33 deg
Tipping Load
2,443 kg
SAE Rated Operating Capacity With Counterweight
1,361 kg
Boom Breakout Force With Foundry Bucket
15 kg
Bucket Breakout Force With Foundry Bucket
38 kg
Bucket Breakout Force With Construction Bucket
42 kg
Powertrain Type
Hydrostatic
Operating Weight - Rear
3,405 kg
Standard features
12 x 16.5 - 10PR
Seed spacing
17 mm
Cylinders
4
