John Deere 320D Skid Steer / CTL
John Deere 320D
Average price
$16,500
5+
sold in last year
General overview
John Deere 320D is a skid steer loader designed for construction material handling and loading work. It was produced from 2009 to 2021 and is powered by a John Deere PowerTech E 4024HT engine rated at 50 kW (68 hp) with Interim Tier 4 emissions. In this size class, it is a compact machine with a base weight of 2,996 kg (6,610 lb).
The 320D uses a hydrostatic-manual powertrain and reaches a maximum speed of 10.9 km/h (6.8 mph). It is rated at 908 kg (2,000 lb) operating capacity, with a tipping load of 1,816 kg (4,000 lb) and a bucket volume of 0.57 m³ (0.7 cu yd). Hydraulic flow is 76 L/min (20.1 gpm), and dump height is 2.42 m (7 ft 11 in), supporting loading and transfer tasks in confined construction areas.
Year
2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
1,760 mm
~69.3 in
2,010 mm
~79.1 in
3,360 mm
~132.3 in
2,996 kg
~6,605.1 lb
Engine Power
68 hp
Operating Weight
2,996 kg
Rated Operating Capacity
908 kg
Dump Height
2.42 m
Bucket volume
0.57 cu(m)
Max. speed
10.9 km/h
Additional specifications
Emission standard level
Interim Tier 4 emissions
Displacement
146 cu(in)
Base machine weight
2,996 kg
Fuel tank
70 L
Number of batteries
2
Wheelbase
1.07 m
Number of Cylinders
4
Battery Voltage
12V
Tires
12 x 16.5 10 PR SKS
Battery Capacity
750 CCA
Net Power (ISO 9249)
68 hp
Manufacturer and Model
John Deere PowerTech E 4,024HT
Pump Flow
76 L/min
Alternator Rating
70 amp
Single
10.9 km/h
Maximum Axle Torque
6,426 Nm
Tractive Effort
7,100 lbf
Final Drive
Chains, high strength, adjustment free
Brakes
Integral, automatic, spring applied, hydraulically released wet-disc park brake
System Pressure at Couplers
21,374 kPa
Hydraulic Horsepower Flow
38 kW
Length Without Bucket
2.74 m
Length With Foundry Bucket
3.36 m
Width Without Bucket
1.76 m
Height to Top of ROPS
2.01 m
Height to Hinge Pin
3.02 m
Dump Height With Foundry Bucket
2.42 m
Dump Reach
0.728 m
Dump Reach With Foundry Bucket
0.728 m
Dump Reach With Construction Bucket
0.92 m
Ground Clearance
0.254 m
Angle of Departure
27.5 deg
Front Turn Radius With Foundry Bucket
2.01 m
Dump Angle (full lift height)
42.0 deg.
Bucket Rollback (ground level)
32.0 deg.
Tipping Load
1,816 kg
SAE Rated Operating Capacity
908 kg
SAE Rated Operating Capacity With Counterweight
976 kg
Boom Breakout Force With Foundry Bucket
1,589 kg
Boom Breakout Force With Construction Bucket
Bucket Breakout Force With Foundry Bucket
2,329 kg
Bucket Breakout Force With Construction Bucket
Powertrain Type
Hydrostatic-manual

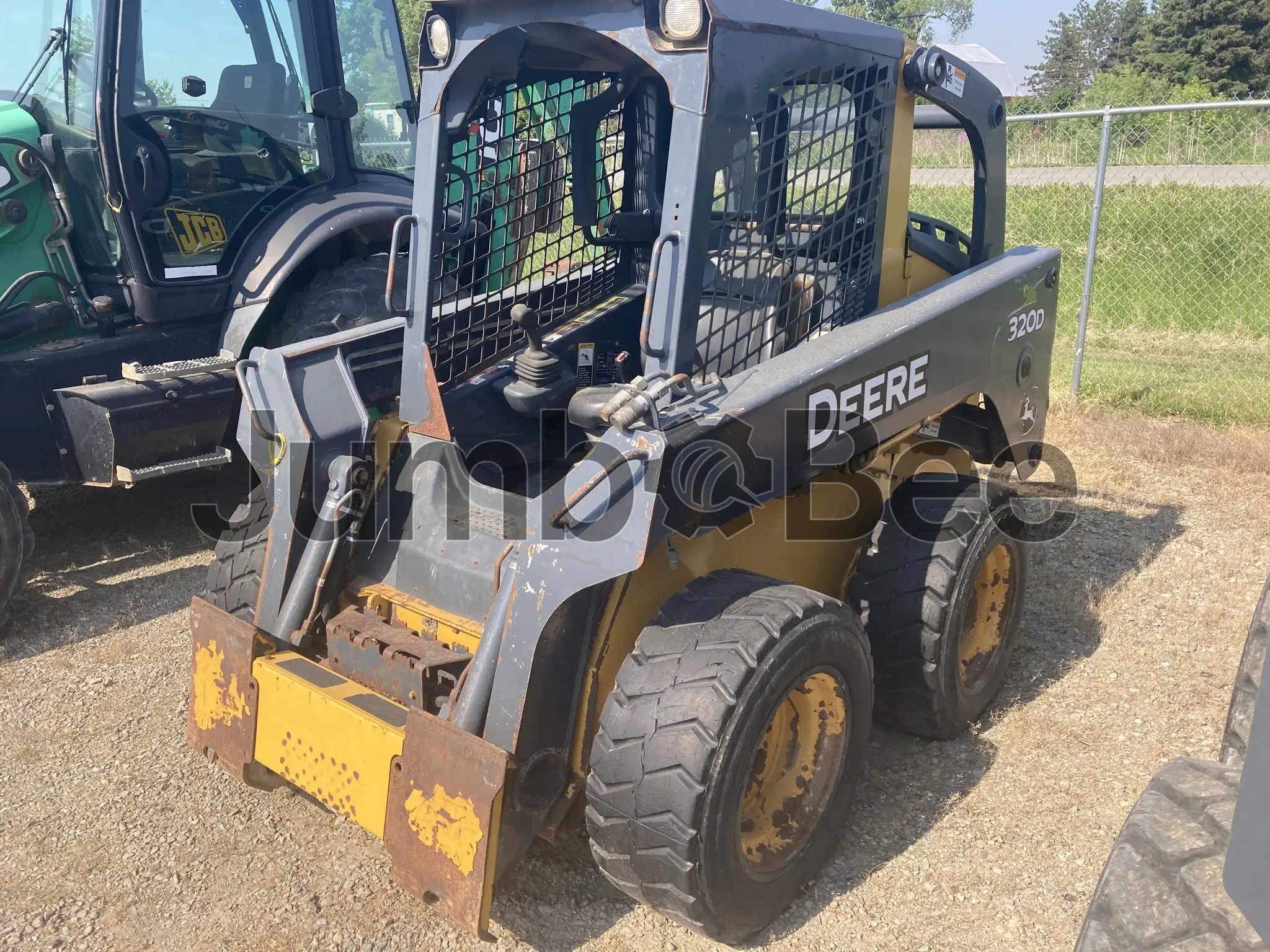

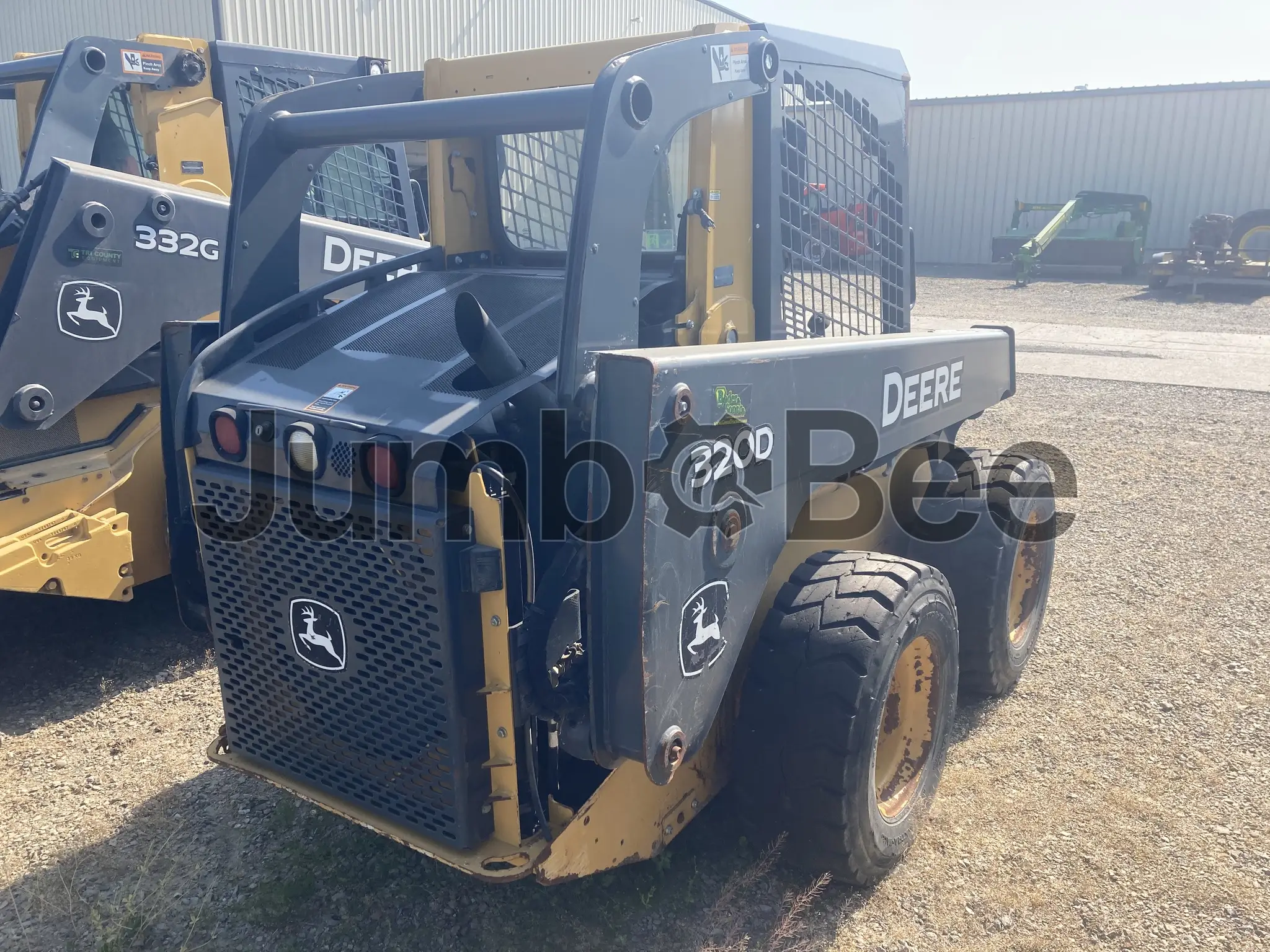

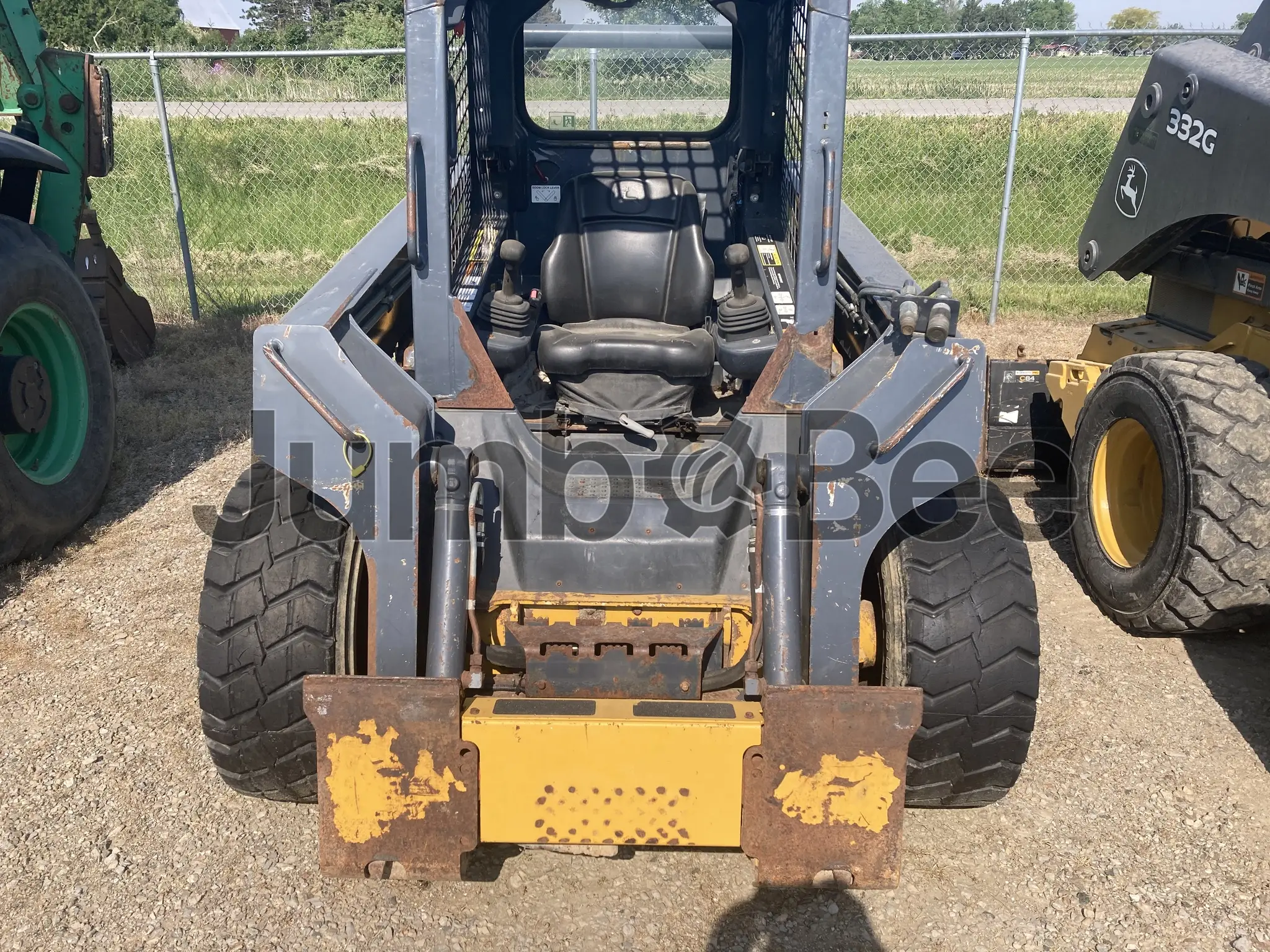

John Deere 320D Skid Steer / CTL Listings
$16,500
750 CCA
70 L
3.36 m
3939 hours
Sandusky, United States
Compare John Deere 320D Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 320D Skid Steer / CTL
0.57 cu(m)
2996 kg
3360 mm × 1760 mm × 2010 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 320D?
No confirmed market price is supplied for the John Deere 320D. Check current listings and compare machine condition, location, configuration, attachments, and service history.
What are the key advantages of the John Deere 320D?
Listed strengths include a 908 kg (2,002 lb) SAE rated operating capacity, 50.7 kW (68 hp) net power, 76 L/min (20.1 gpm) pump flow, and a 2.42 m (7.94 ft) dump height. It also has hydrostatic-manual powertrain and high-strength, adjustment-free chain final drives.
What type of engine does the 320D use?
The 320D uses a John Deere PowerTech E 4024HT engine. It has 4 cylinders, 146 cu in displacement, 50.7 kW (68 hp) net power, and an Interim Tier 4 emissions level.
How much horsepower does the 320D have?
The John Deere 320D has 50.7 kW (68 hp) of engine power. Net Power (ISO 9249) is also listed as 50.7 kW (68 hp).
What fuel does the John Deere 320D use?
The supplied specifications do not confirm the fuel type for the John Deere 320D. They list a 70 L (18.5 US gal) fuel tank, but do not identify the fuel.
What jobs is this Skid Steer Loaders best suited for?
The supplied data supports use where its bucket capacity, lift, and hydraulic capability fit the task. Key figures include a 0.57 m³ (0.75 cu yd) bucket volume, 908 kg (2,002 lb) rated operating capacity, 2.42 m (7.94 ft) dump height, and 76 L/min (20.1 gpm) pump flow.
What is the expected lifespan of the 320D?
The supplied data does not provide an expected service life for the 320D. For a used machine, assess maintenance records, operating hours, engine condition, hydraulic performance, final drives, brakes, tires, and structural wear.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check maintenance records, operating hours, engine starting and operation, hydraulic leaks and function, pump performance, chain final drives, brakes, tires, bucket condition, lift operation, ROPS condition, and structural cracks or repairs. Verify that the machine’s capacity and hydraulic flow match the intended attachments and work.
