John Deere 320 P Backhoe Loaders
John Deere 320 P
Average price
$129,253.33
5+
sold in last year
General overview
John Deere 320 P is a backhoe loader for excavation and loading work on construction sites. It uses a John Deere PowerTechâ„¢ EWL 4.5L turbocharged 4-cylinder engine rated at 83 kW (113 hp) and has an operating weight of 7,748 kg (17,080 lb). Manufactured in the United States, it is intended for general earthmoving and site work.
The model is equipped with a Power Shift, 4-speed forward / 4-speed reverse with PowerShift+ modulation transmission and a pressure-compensated, load-sensing (PCLS) hydraulic system. Its backhoe digging depth is 4,330 mm (14 ft 2 in), and the loader bucket capacity is 1 m³ (1.3 cu yd). A swing arc of 40° and a reach from center of swing pivot of 5,570 mm (18 ft 3 in) define its working range.
Year
2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
5,950 mm
~234.3 in
3,620 mm
~142.5 in
2,430 mm
~95.7 in
Engine Power
113 hp
Operating Weight
7,748 kg
Dig Depth
4,330 mm
Capacity Bucket (loader)
1 cu(m)
Capacity Bucket (backhoe)
cu(m)
Digging Depth (SAE)
4.27 m
Additional specifications
Emission standard level
Tier 4 Final
Displacement
4 cu(m)
Tires front
340/80R18
Transmission type
Power Shift, 4-speed forward / 4-speed reverse with PowerShift+ modulation
Fuel tank
155 L
Cooling system
20 L
Overall length w/header
5,950 mm
Height to top of cab
3,620 mm
Wheelbase
2,140 mm
Number of Cylinders
4
Tires rear
19.5L-24
Ground clearance with standard tires
380 mm
Battery Voltage
12
Bucket Width
610 mm
Hydraulic Capacity
62 L
Engine Model
John Deere PowerTechâ„¢ EWL 4.5L turbocharged 4-cylinder
Engine Oil
13 L
Maximum Digging Depth
-127 mm
Power - Net
113 hp
Net Power (ISO 9249)
113 hp
Alternator Rating
150
Bucket Weight
204 kg
Bucket Range
2,134 mm
Swing Arc
40 deg
Pump flow backhoe
162 L/min
Pump flow loader
162 L/min
System Relief Pressure backhoe
27,580 kPa
System Relief Pressure loader
27,580 kPa
Controls backhoe
Pilot-operated joystick controls with PCLS (Pressure Compensating Load Sensing)
Controls loader
Pilot-operated joystick with selective flow and auxiliary proportional roller
Lights
6 halogen work lights (2 front, 2 rear, 2 side); optional LED upgrades
Operating Weights with Full Fuel Tank, Standard Equipment
7,143 kg
Operating Weights typical with Cab, Extendable Dipperstick and Counterweight
7,907 kg
Length From Axle to Axle
2,140 mm
Loading Height, Truck Loading Position
3,886 mm
Reach From Center of Swing Pivot
5,570 mm
Digging Depth (SAE maximum)
5,530 mm
Stabilizer Spread, Operating
3,651 mm
Stabilizer Overall Width, Operating
2,438 mm
Bucket Dump Angle, Maximum
45 deg
Rollback Angle at Ground Level
40 deg
Height to Bucket Hinge Pin, Maximum
3,429 mm
Reach at Full Height, Bucket at 45 deg.
991 mm
Length From Front Axle Centerline to Bucket Cutting Edge
1,830 mm
Dump Clearance
2,692 mm
Main Pump Type
Pressure-compensated, load-sensing (PCLS) hydraulic system
Rated Operating Capacity
907 kg
John Deere 320 P Backhoe Loaders Listings

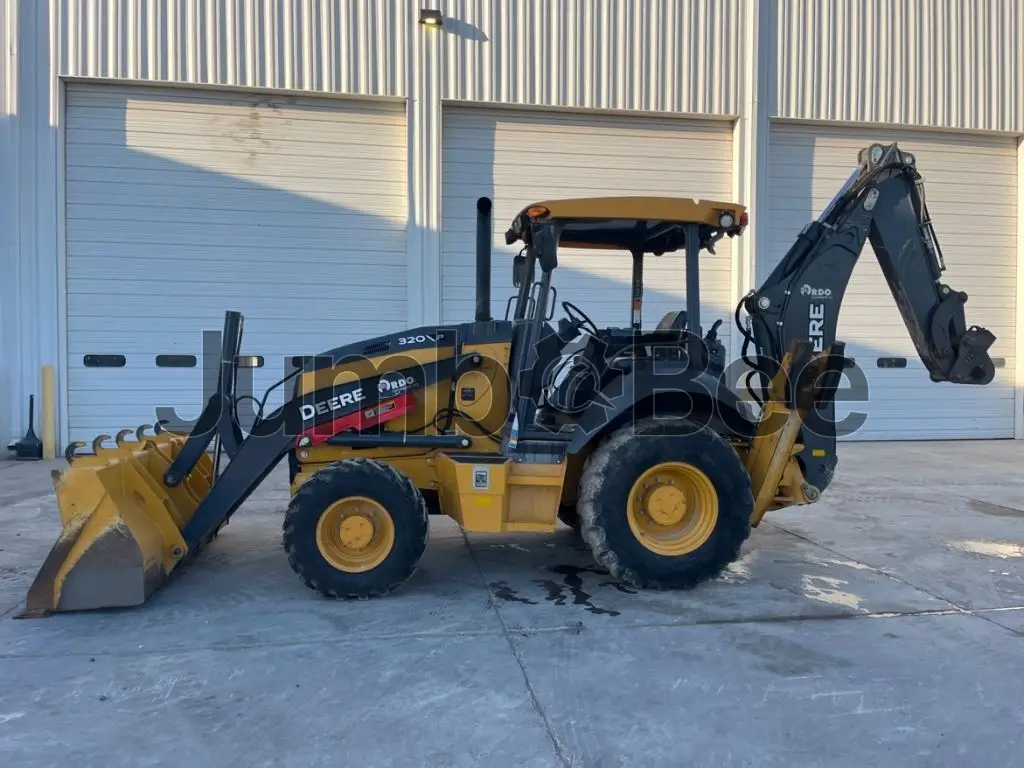

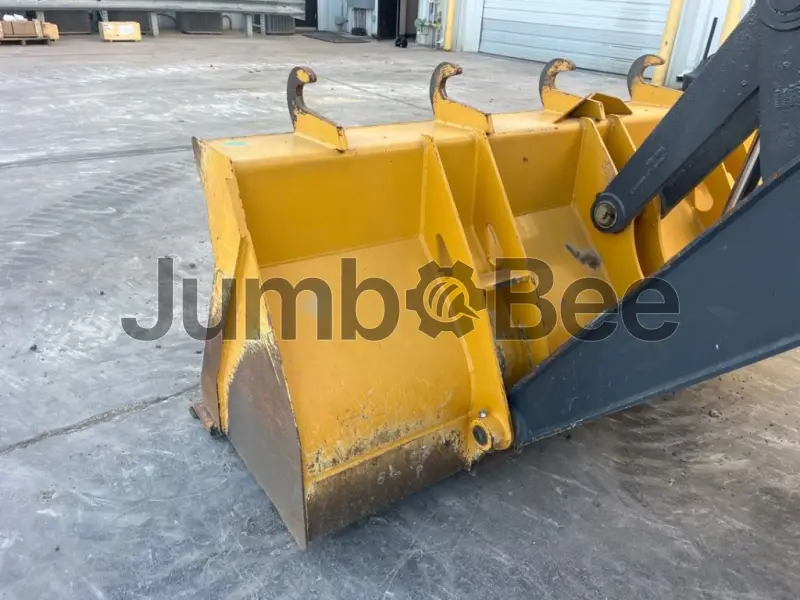

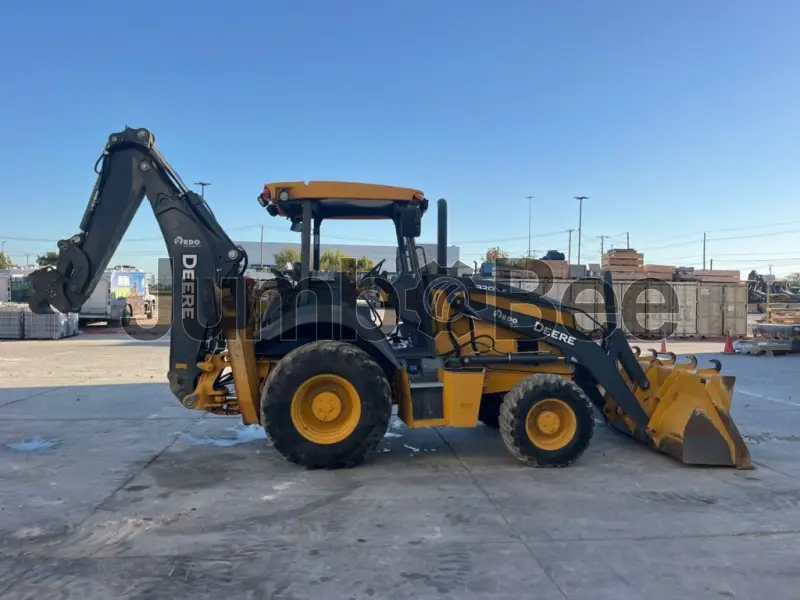

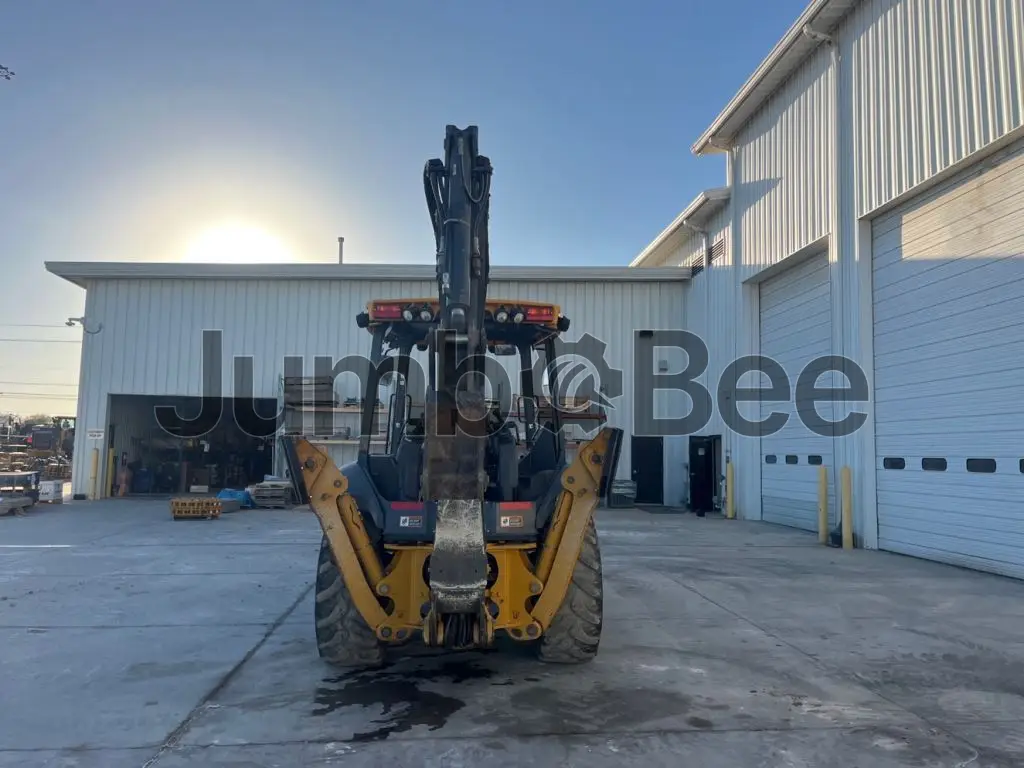

$100,200
4
John Deere PowerTechâ„¢ EWL 4.5L turbocharged 4-cylinder
Tier 4 Final
2508 hours
Pflugerville, United States

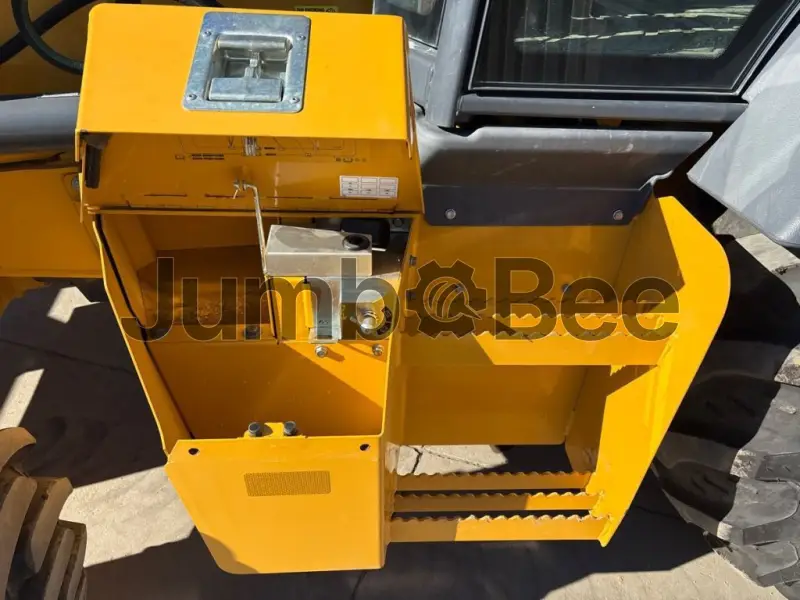

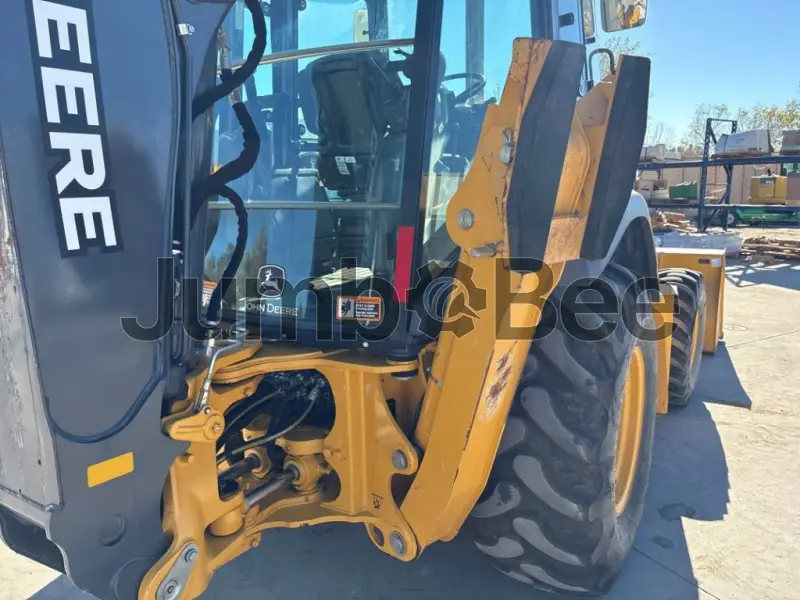

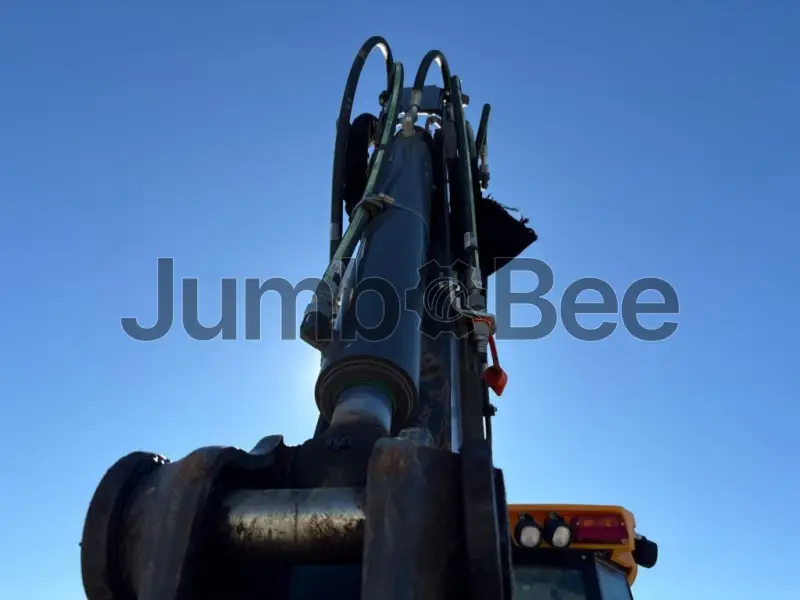

$143,780
4330 mm
7748 kg
Tier 4 Final
359 hours
Riverside, United States

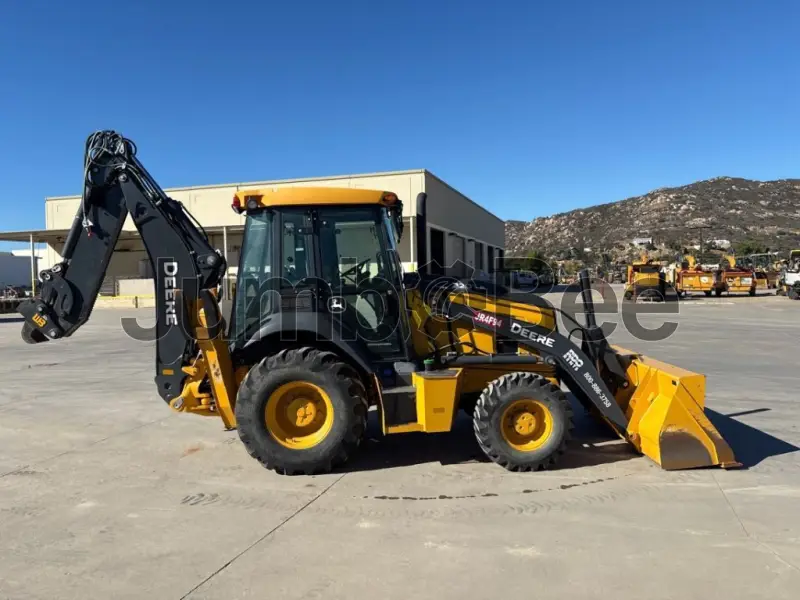

$143,780
