John Deere 317G Skid Steer / CTL
John Deere 317G
Average price
$46,895.15
5+
sold in last year
General overview
John Deere 317G is a crawler loader for construction work where traction and maneuverability matter. It has a heaped bucket capacity of 0.76 m³ (1 cu yd) and an operating weight of 3,824 kg (8,430 lb), and it is set up for loading and material-moving tasks on job sites.
The model is powered by a Yanmar 4TNV86CHT engine rated at 48 kW (65 hp), with net power of 45 kW (61.1 hp) and EPA Final Tier 4/EU Stage IV emissions compliance. A hydrostatic drive with two-speed travel, differential steering with dual-lever control, and a 3-spool open-center hydraulic valve support operation, while the undercarriage uses a 1,330 mm (4 ft 4 in) track gauge and 320 mm (13 in) grouser width.
Year
2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
1,650 mm
~65 in
1,990 mm
~78.3 in
3,240 mm
~127.6 in
3,824 kg
~8,430.5 lb
Engine Power
65 hp
Operating Weight
3,824 kg
Bucket Capacity - Heaped
0.76 cu(m)
Rated Operating Capacity
965 kg
Additional specifications
Emission standard level
EPA Final Tier 4/EU Stage IV
Displacement
128 cu(in)
Transmission type
Hydrostatic drive with two-speed travel
Fuel tank
71 L
Hydraulic system type
3-spool open-center valve
Cooling system
12 L
Number of Cylinders
4
Battery Voltage
12 volt
System Relief Pressure
23,787 kPa
Undercarriage Ground Pressure
38 kPa
Length of Track on Ground
2,630 mm

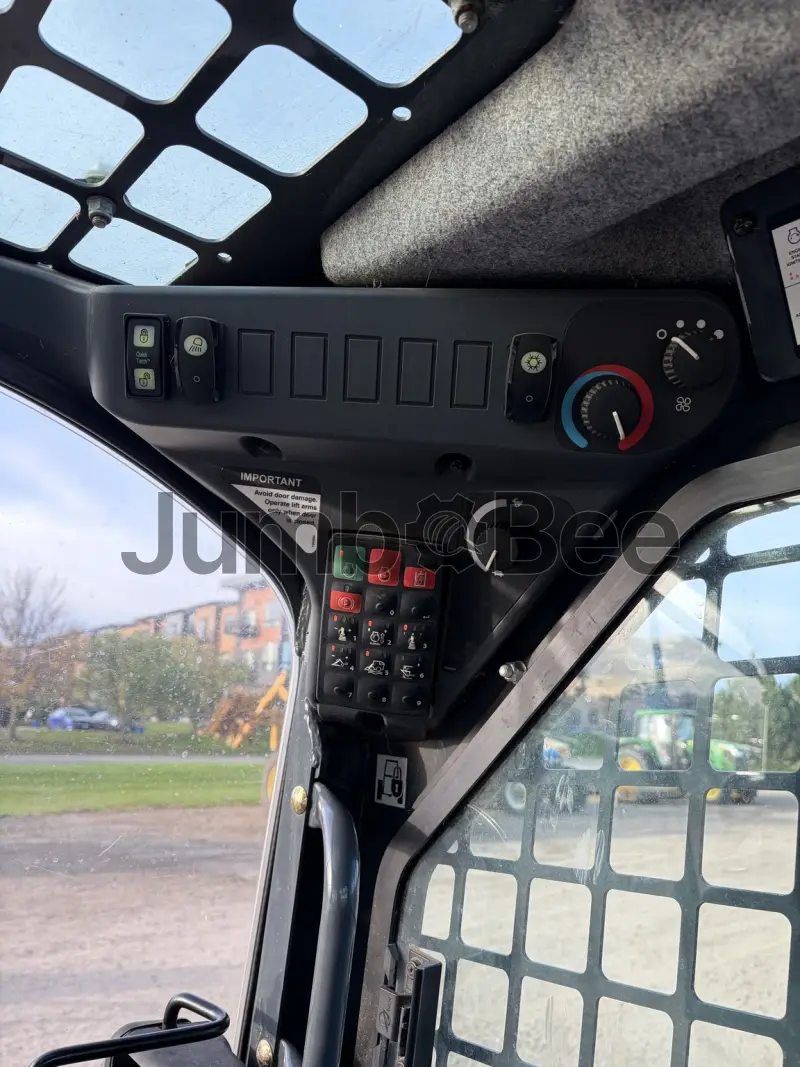

Hydraulic controls

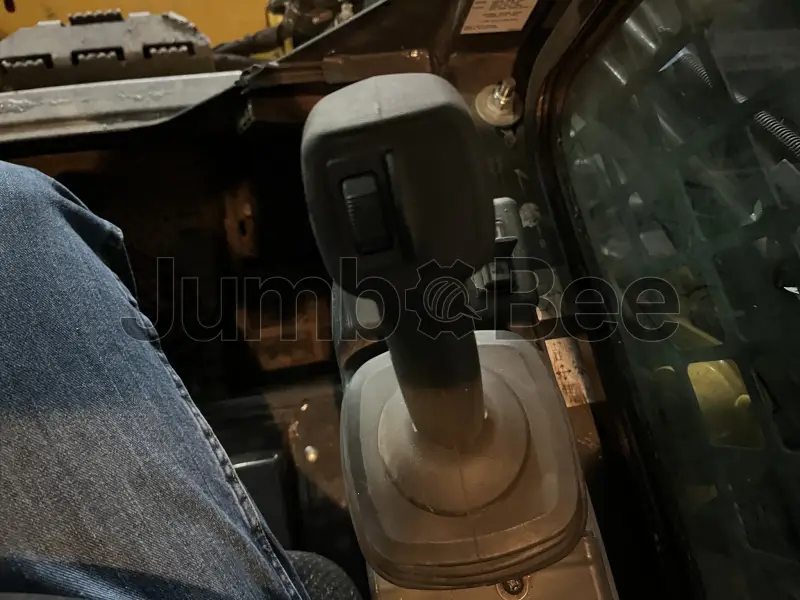

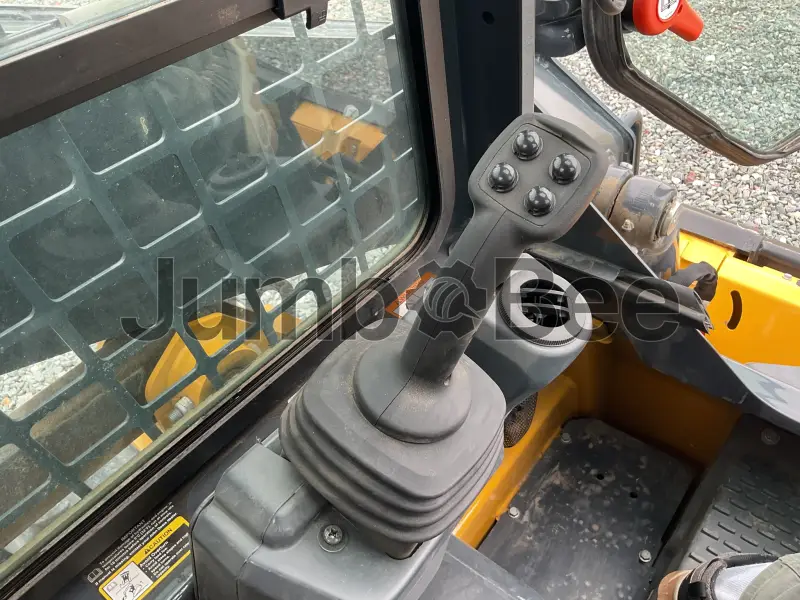

Electrohydraulic (EH) controls with low-effort joysticks
Battery Capacity
750 CCA
Hydraulic System - Including Tank
68.1 L
Track Gauge
1,330 mm
Net Power (ISO 9249)
61.1 hp
Manufacturer and Model
Yanmar 4TNV86CHT
Net Peak Torque
207 Nm
Powertrain System Relief Pressure
3,450 psi
Travel Speeds
11.3 km/h
Steering
Differential steering with dual-lever control for precise maneuverability
Drawbar Pull at 1.9 km/h (1.2 mph)
33.5 kN
Drawbar Pull at 3.2 km/h (2.0 mph)
21.9 kN
Pump Flow
63 L/min
Alternator Rating
70 - 90 amp

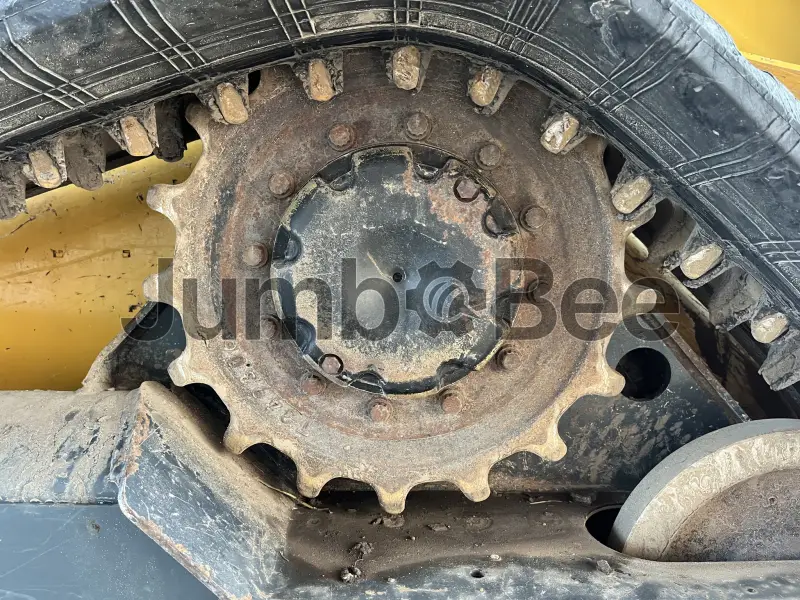

Grouser Width
320 mm
Track Rollers, Each Side
4
Width of Bucket (General Purpose)
1,880 mm
Capacity Heaped
0.76 cu(m)
Bucket Weight
454 kg
Breakout Force
26.6 kN
Static Tipping Load
2,756 kg

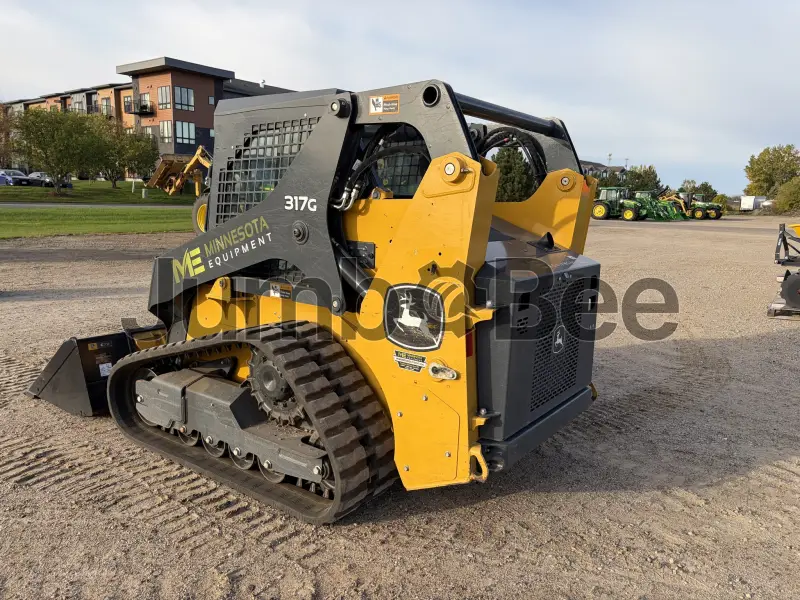

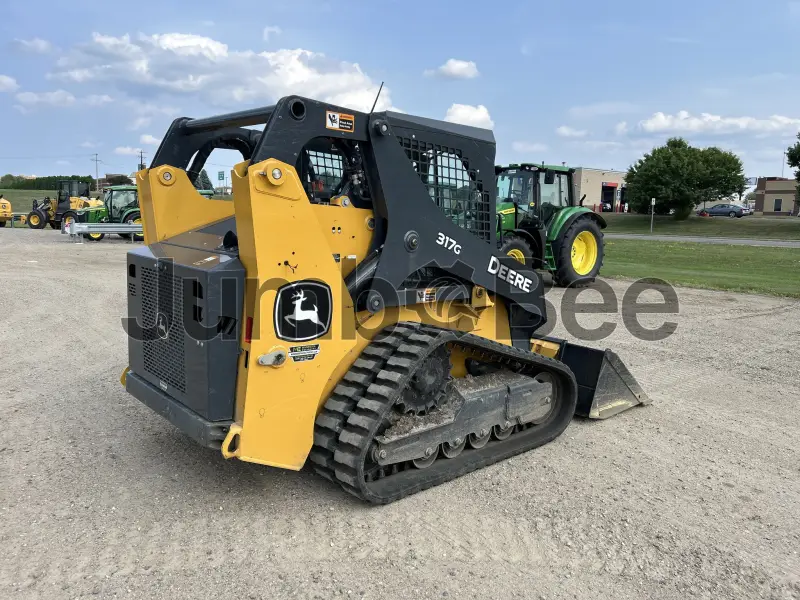

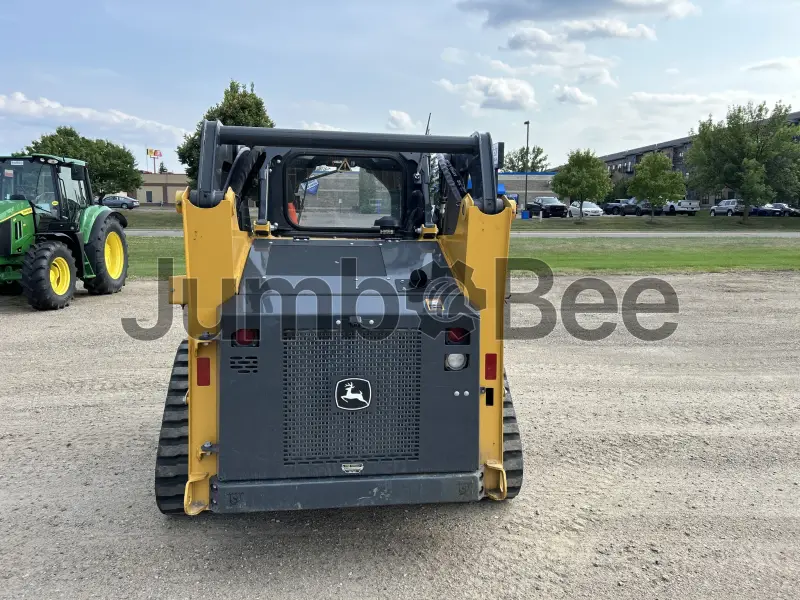

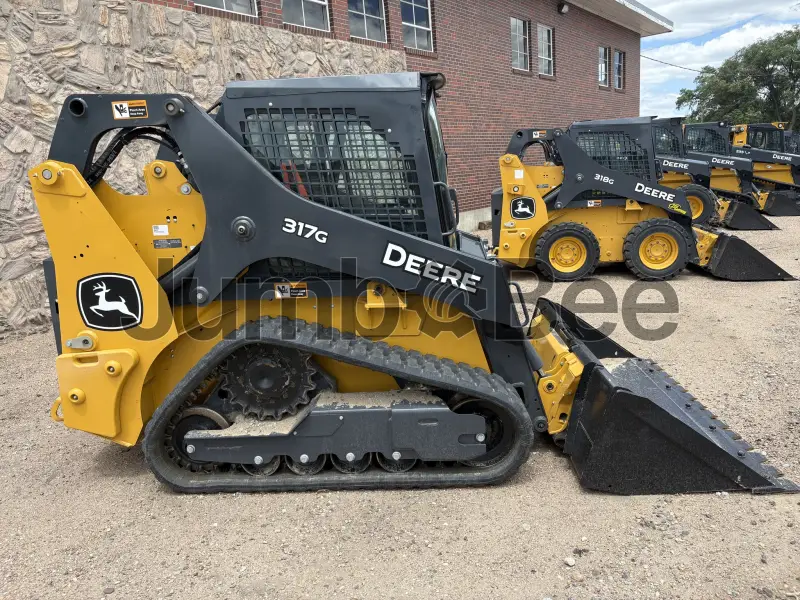

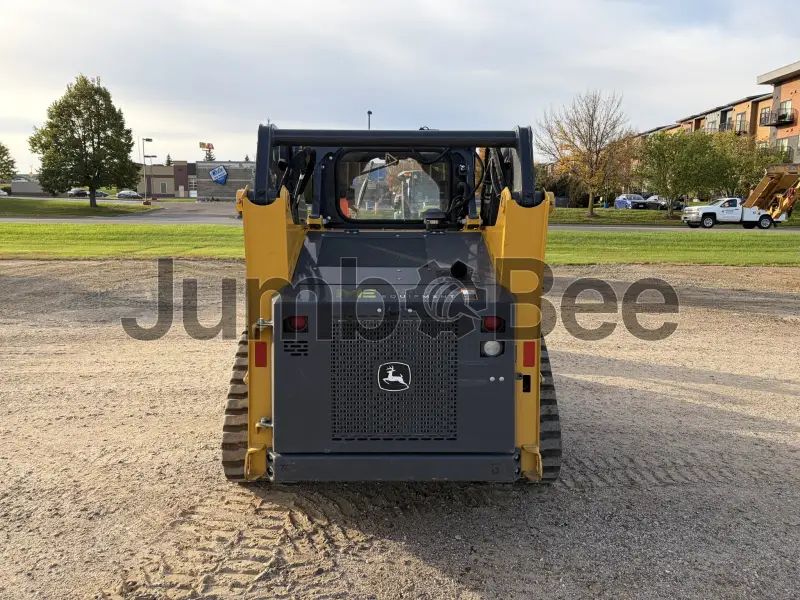

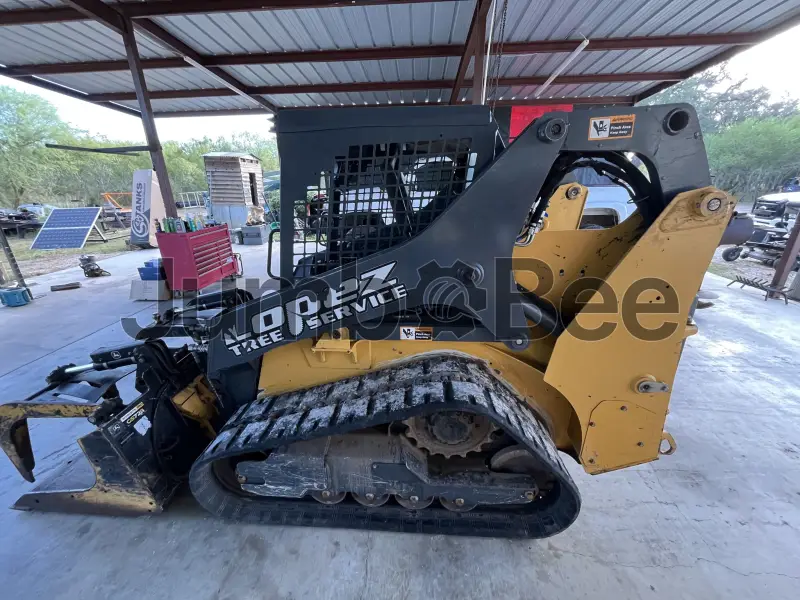

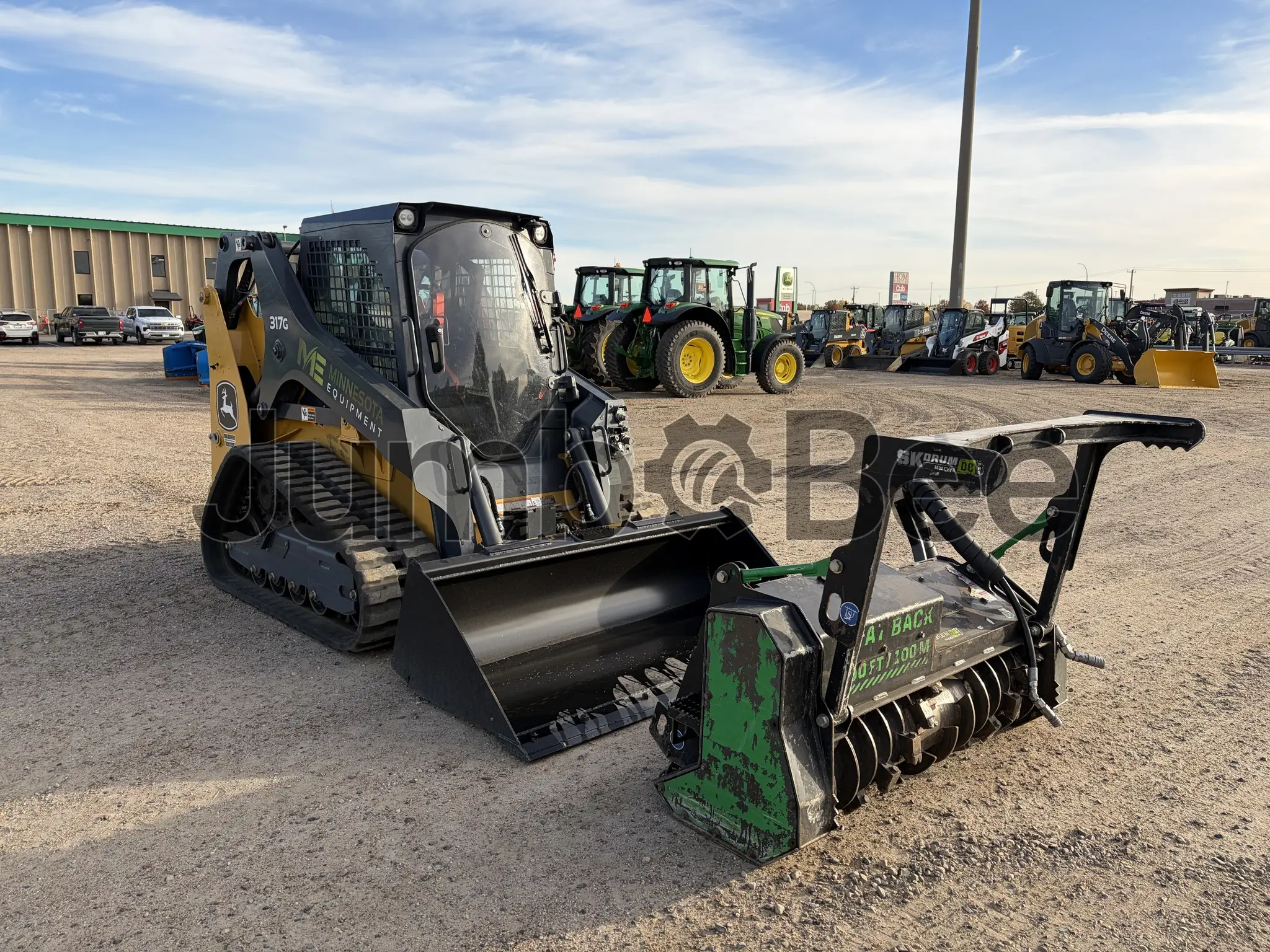

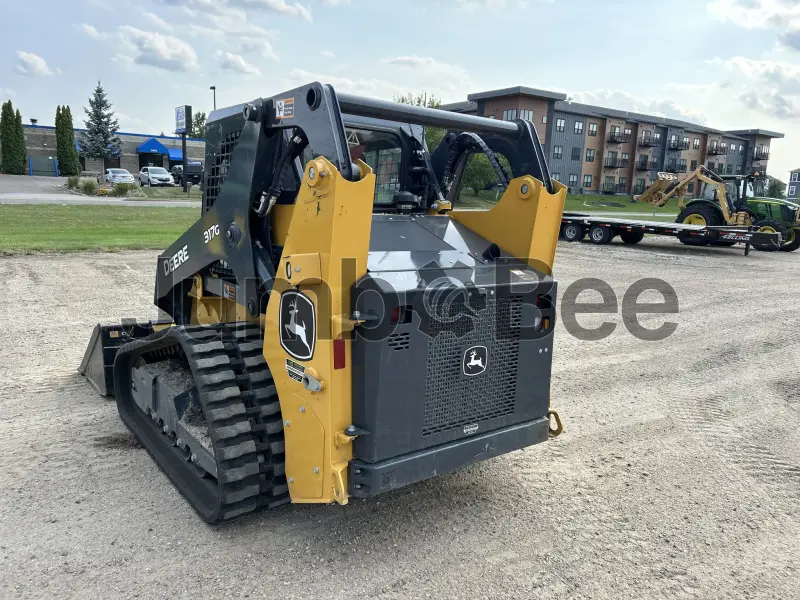

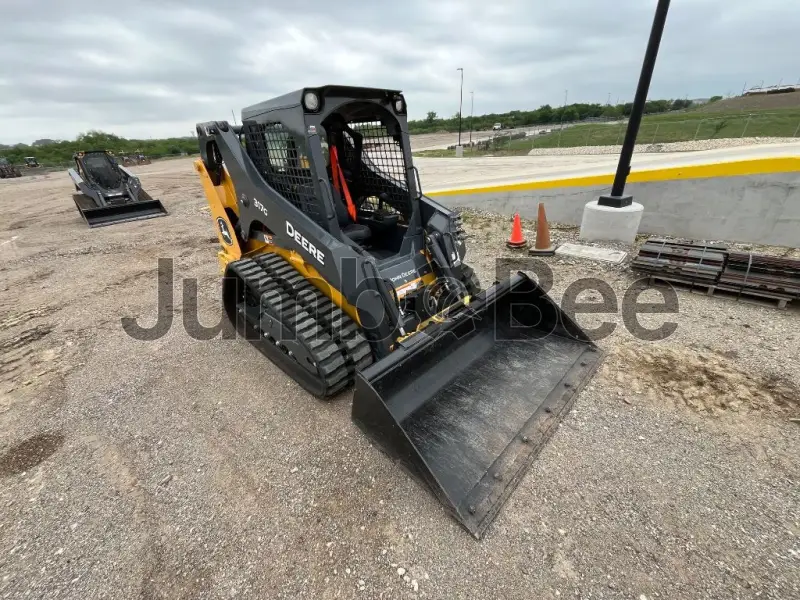

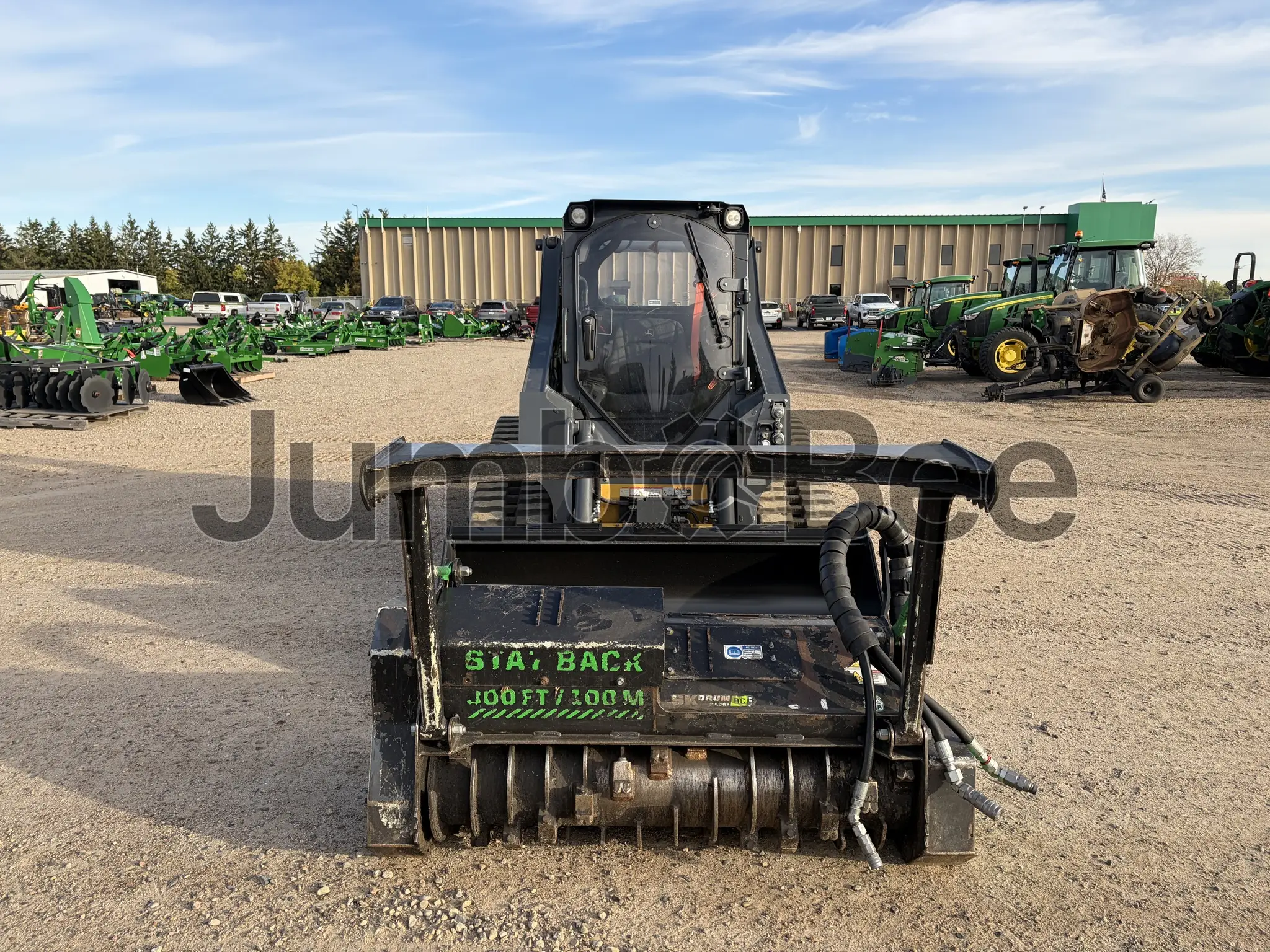

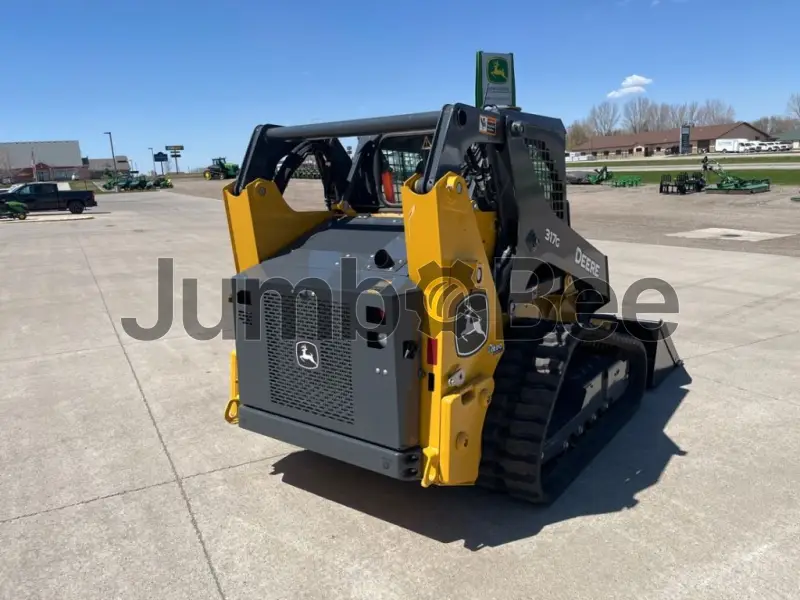

John Deere 317G Skid Steer / CTL Listings

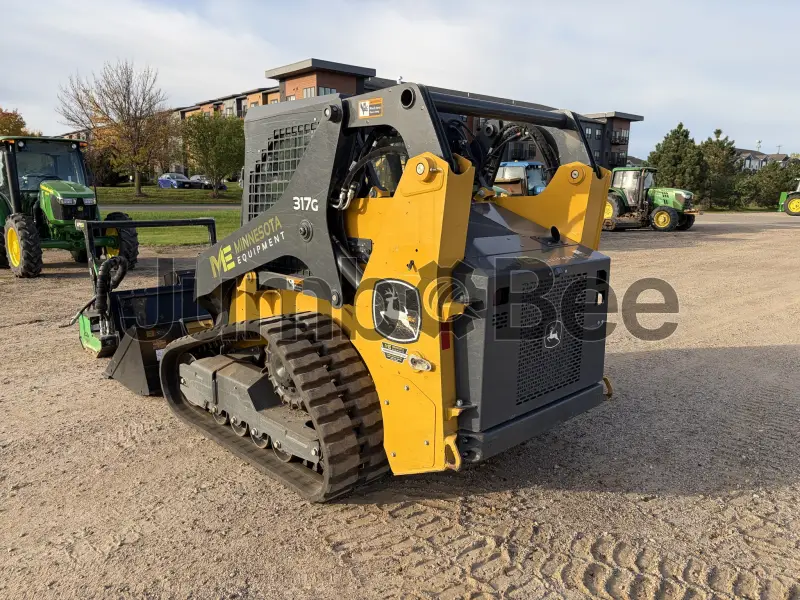

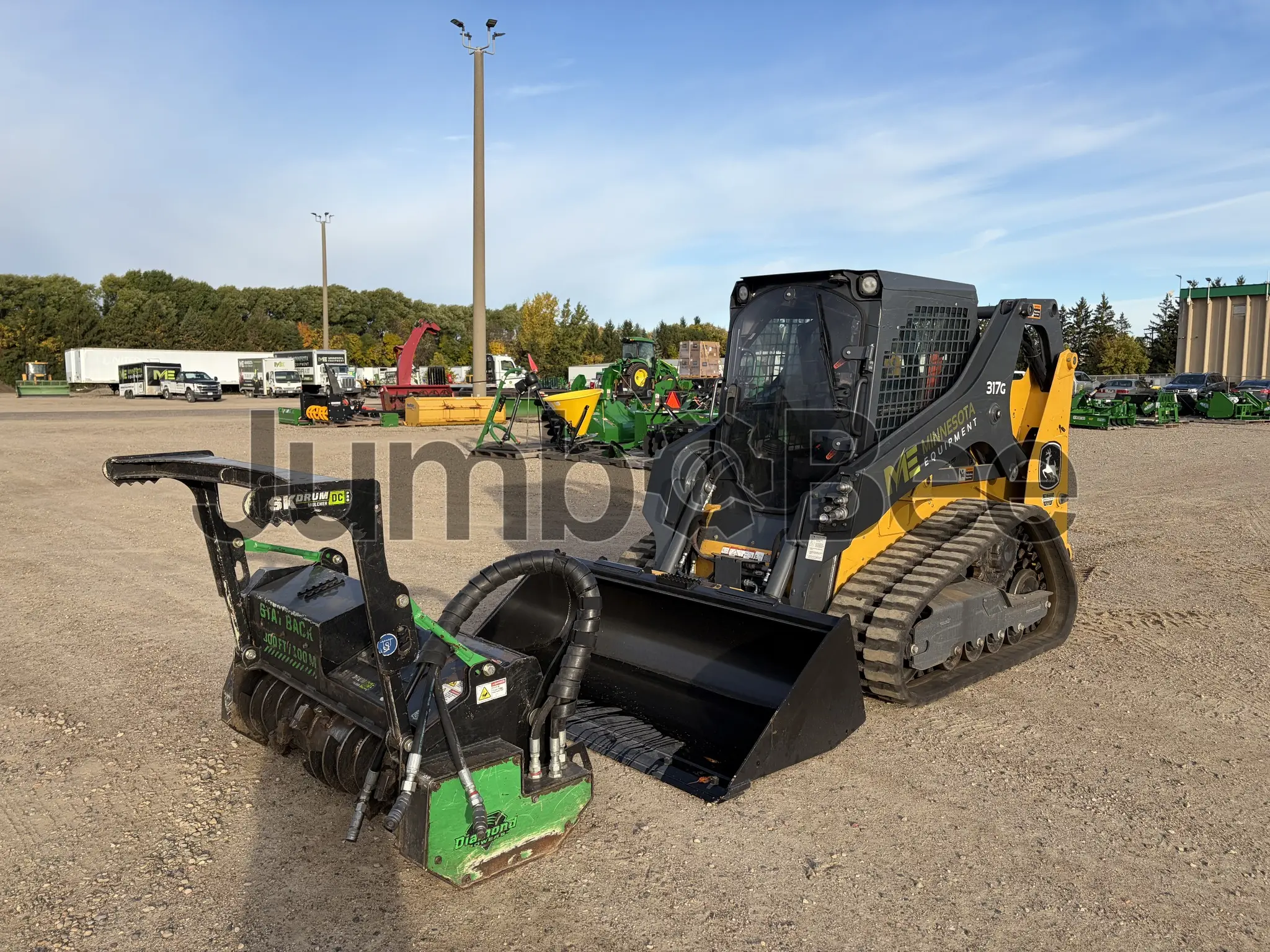

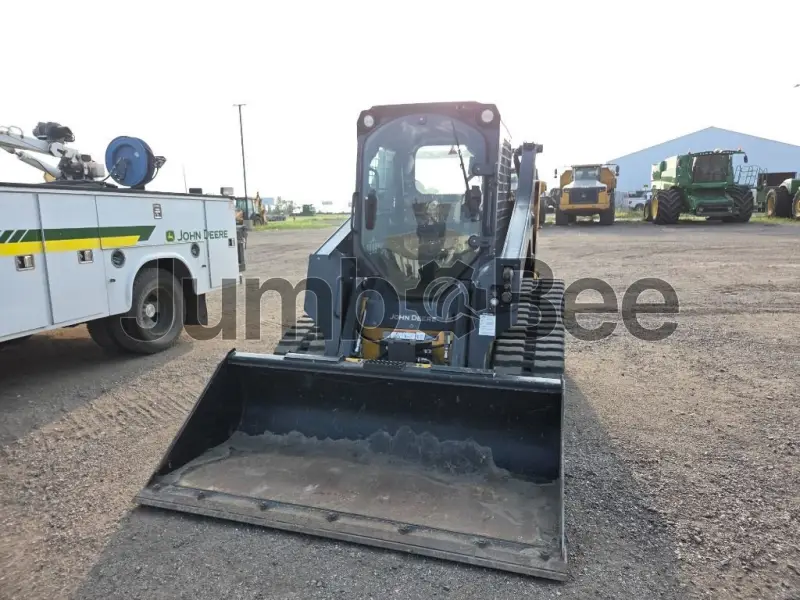

$64,900
Yanmar 4TNV86CHT
EPA Final Tier 4/EU Stage IV
4
289 hours
Rogers, United States

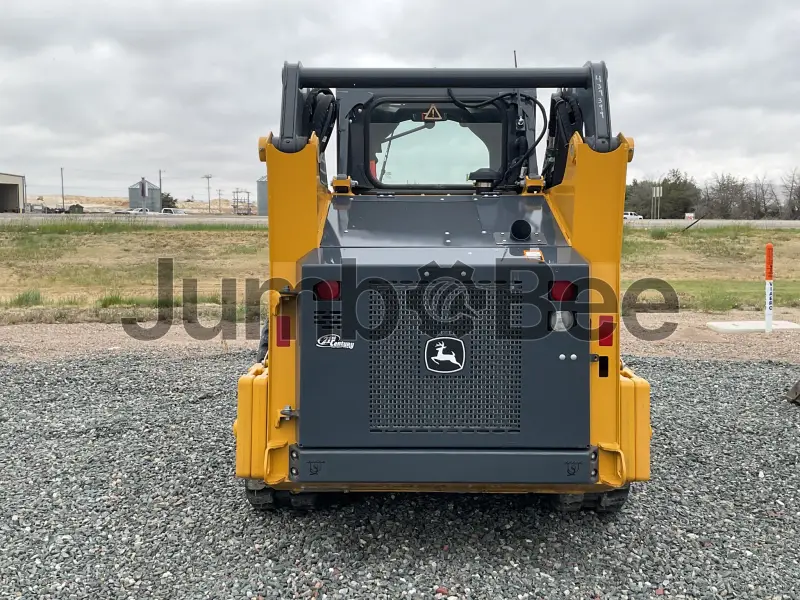

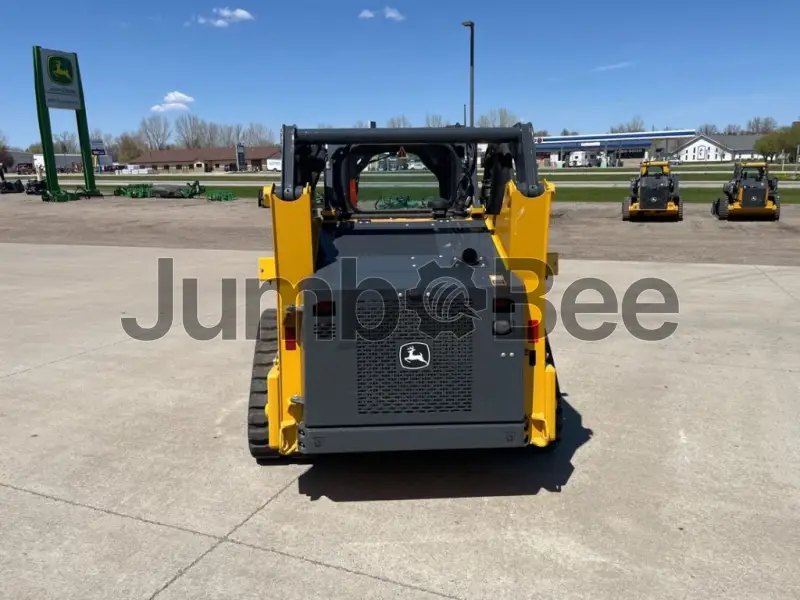

$49,900
128 cu(in)
Hydrostatic drive with two-speed travel
11.3 km/h
289 hours
Rogers, United States

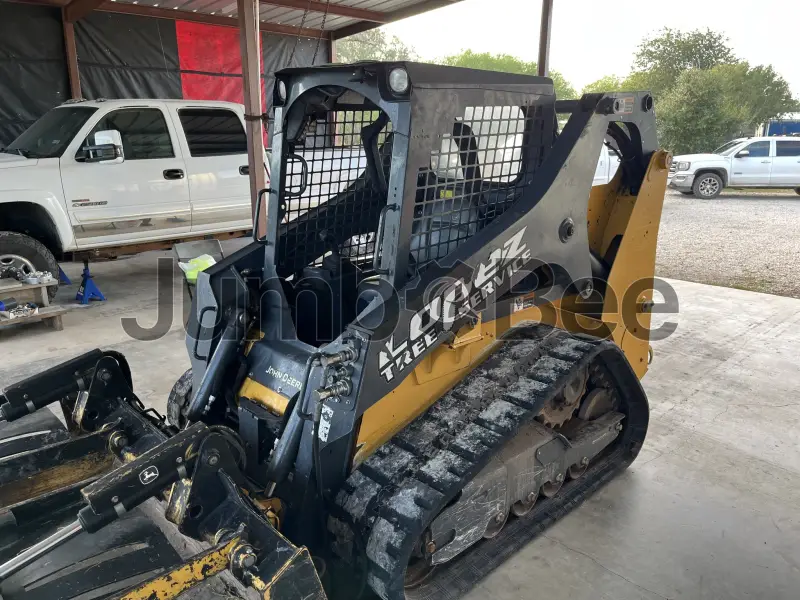

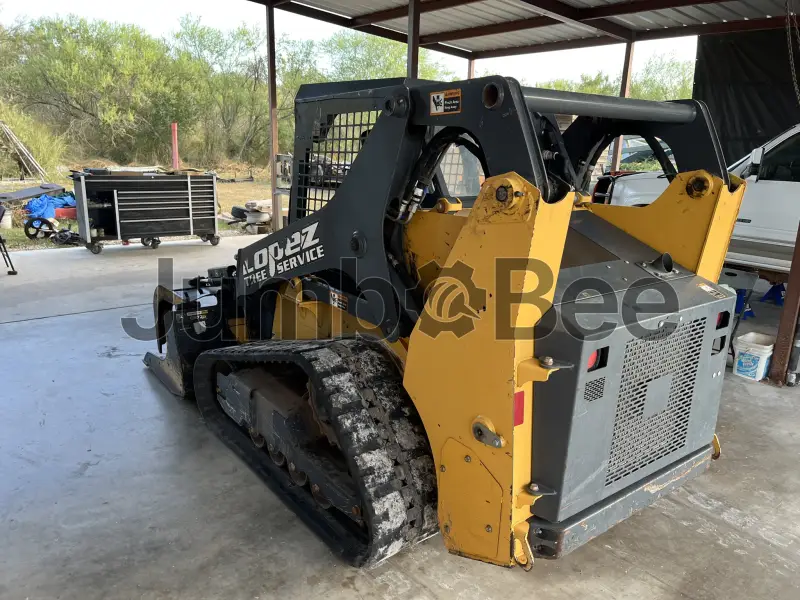

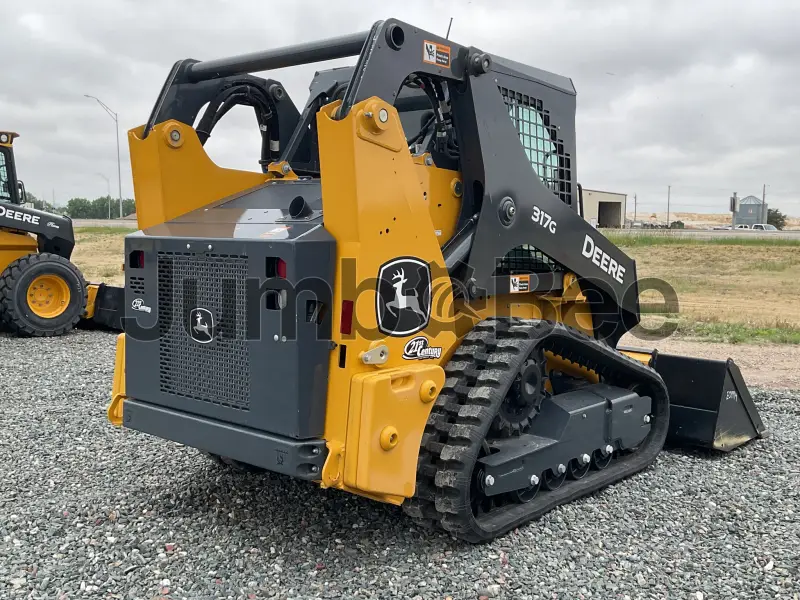

$29,999
23787 kPa
207 Nm
0.76 cu(m)
2415 hours
Victoria, United States

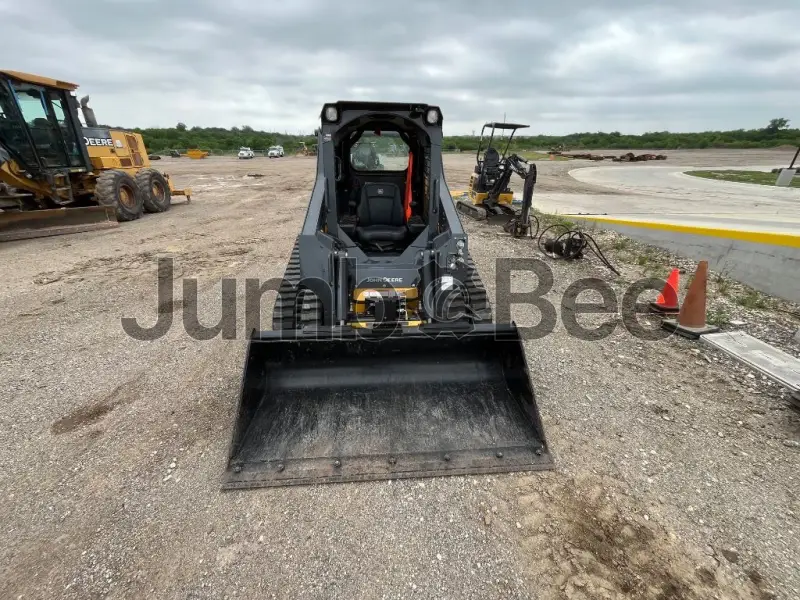

$27,990
3824 kg
0.76 cu(m)
65 hp
2041 hours
New Braunfels, United States
$33,990
EPA Final Tier 4/EU Stage IV
0.76 cu(m)
61.1 hp
1652 hours
New Braunfels, United States
$56,900
0.76 cu(m)
65 hp
3824 kg
89 hours
Rogers, United States
$36,990
0.76 cu(m)
65 hp
3824 kg
1523 hours
New Braunfels, United States
$30,990
3824 kg
65 hp
Yanmar 4TNV86CHT
1885 hours
New Braunfels, United States
$50,913
EPA Final Tier 4/EU Stage IV
4
128 cu(in)
624 hours
Thief River Falls, United States
$48,027
23787 kPa
3450 psi
1330 mm
500 hours
Baudette, United States
$63,000
0.76 cu(m)
65 hp
3824 kg
479 hours
Moorhead, United States
$61,990
2756 kg
63 L/min
12 volt
315 hours
Moorhead, United States
$31,570
12 volt
750 CCA
70 - 90 amp
2052 hours
New Braunfels, United States
$60,099
65 hp
3824 kg
Yanmar 4TNV86CHT
22 hours
Sterling, United States
$60,348
4
0.76 cu(m)
Hydrostatic drive with two-speed travel
19 hours
Fort Morgan, United States
$55,180
Yanmar 4TNV86CHT
61.1 hp
4
10 hours
Fort Worth, United States
Compare John Deere 317G Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 317G Skid Steer / CTL
0.76 cu(m)
3824 kg
3240 mm × 1650 mm × 1990 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 317G?
No confirmed market price is supplied for the John Deere 317G. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 317G?
Listed features include a hydrostatic drive with two-speed travel, differential steering with dual-lever control, electrohydraulic controls with low-effort joysticks, and a 3-spool open-center hydraulic valve. Its general-purpose bucket has a heaped capacity of 0.76 m³ (0.99 cu yd).
What type of engine does the 317G use?
The 317G uses a Yanmar 4TNV86CHT engine. It has 4 cylinders, 128 cu in displacement, and an EPA Final Tier 4/EU Stage IV emission standard level.
How much horsepower does the 317G have?
Engine power is 48.5 kW (65 hp). Net Power (ISO 9249) is 45.6 kW (61.1 hp).
What fuel does the John Deere 317G use?
The supplied specifications do not confirm the fuel type for the John Deere 317G. They list a fuel tank capacity of 71 L (18.8 US gal).
What jobs is this Crawler Loaders best suited for?
The supplied data does not specify particular jobs. Its listed bucket capacity, breakout force, travel system, and ground pressure may be relevant when comparing it for loading, material-handling, and grading work.
What is the expected lifespan of the 317G?
The supplied data does not provide an expected lifespan for the 317G. Assess service records, engine condition, hydraulic performance, undercarriage wear, track condition, and signs of leaks before purchase.
What should a buyer check when purchasing a used Crawler Loaders?
Check service records, engine operation, hydraulic response, bucket condition, undercarriage and track wear, steering and travel operation, leaks, and battery and electrical condition. Test the machine under load when possible and verify that its configuration suits the intended work.
