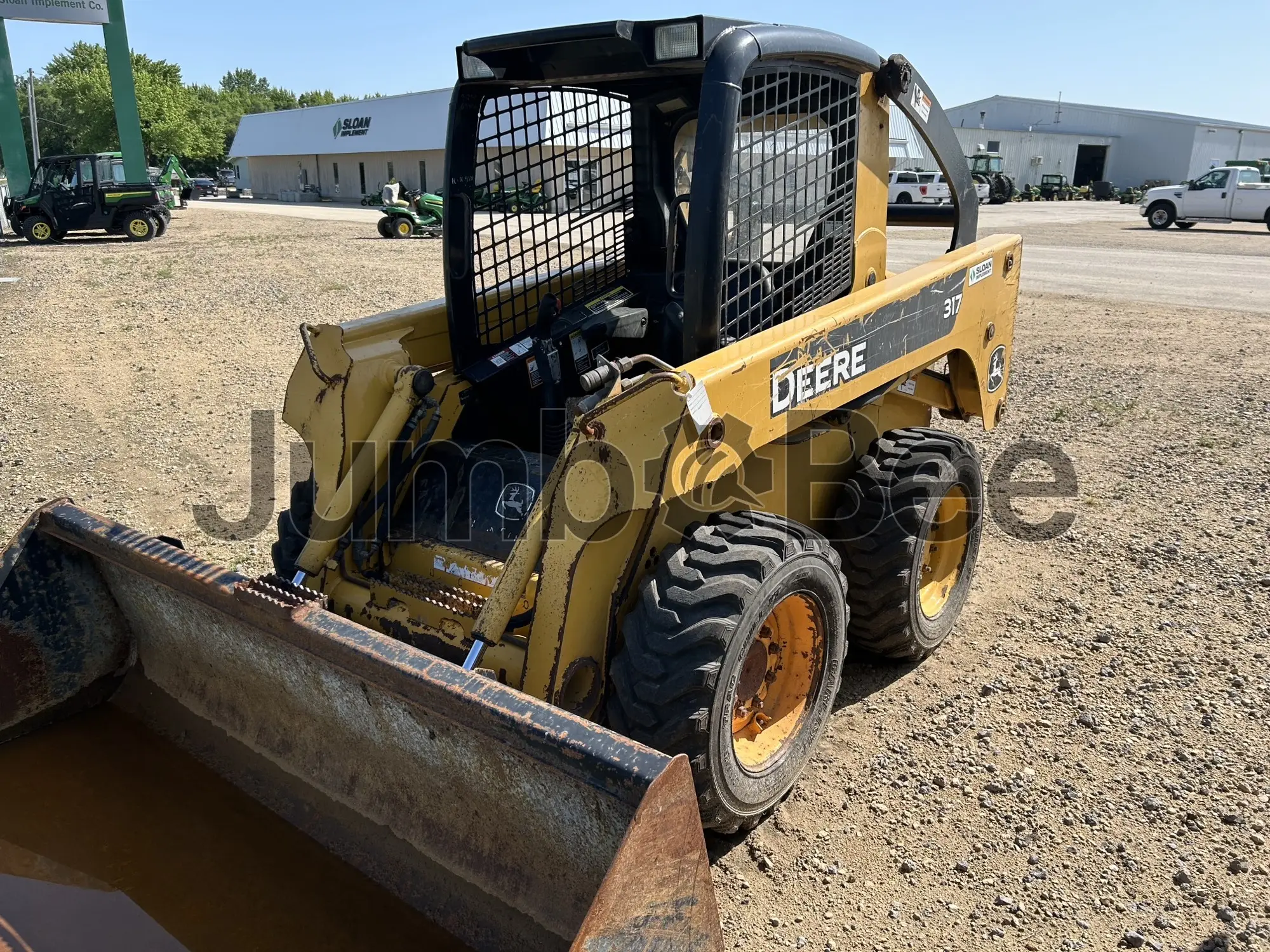

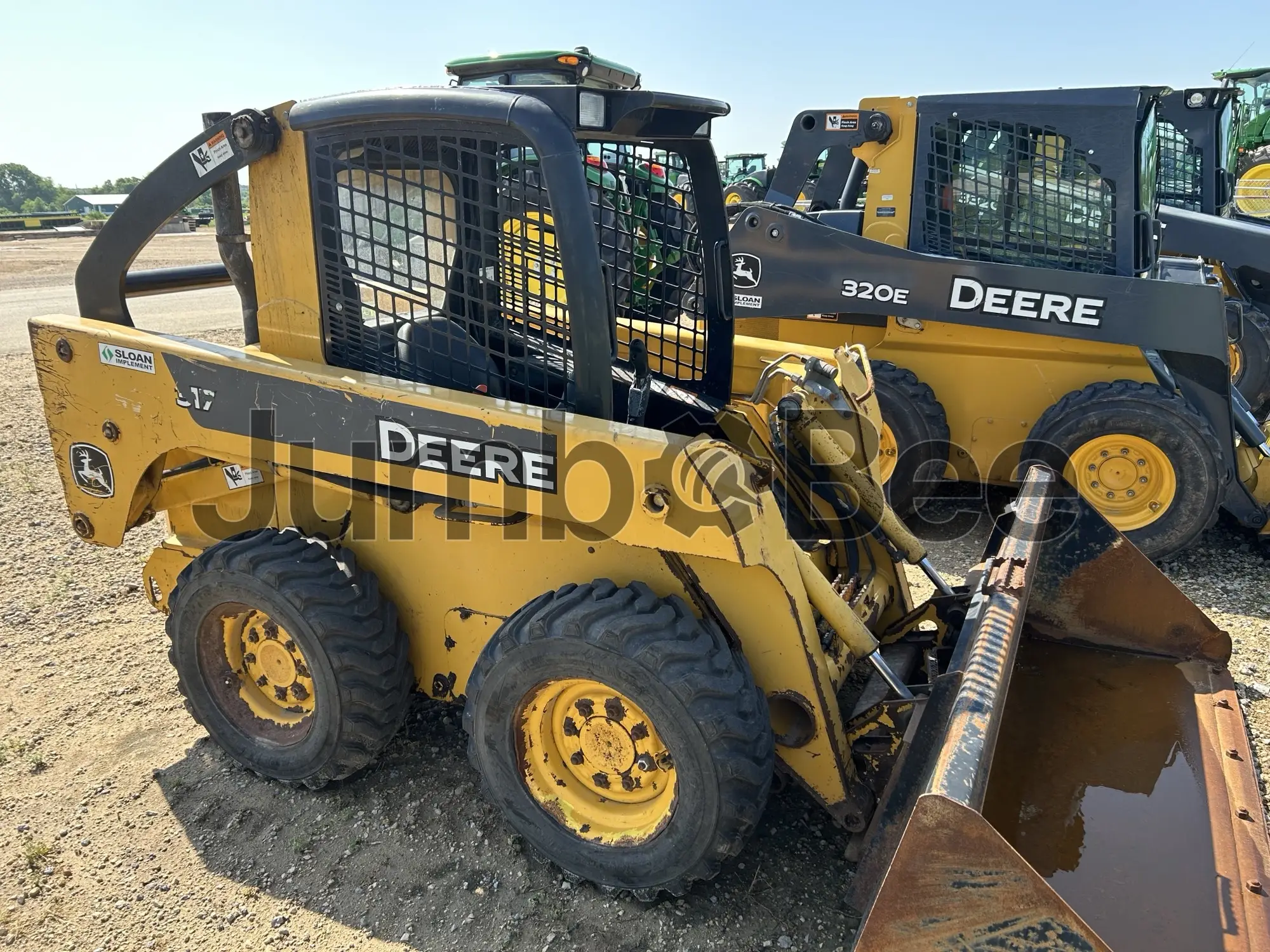

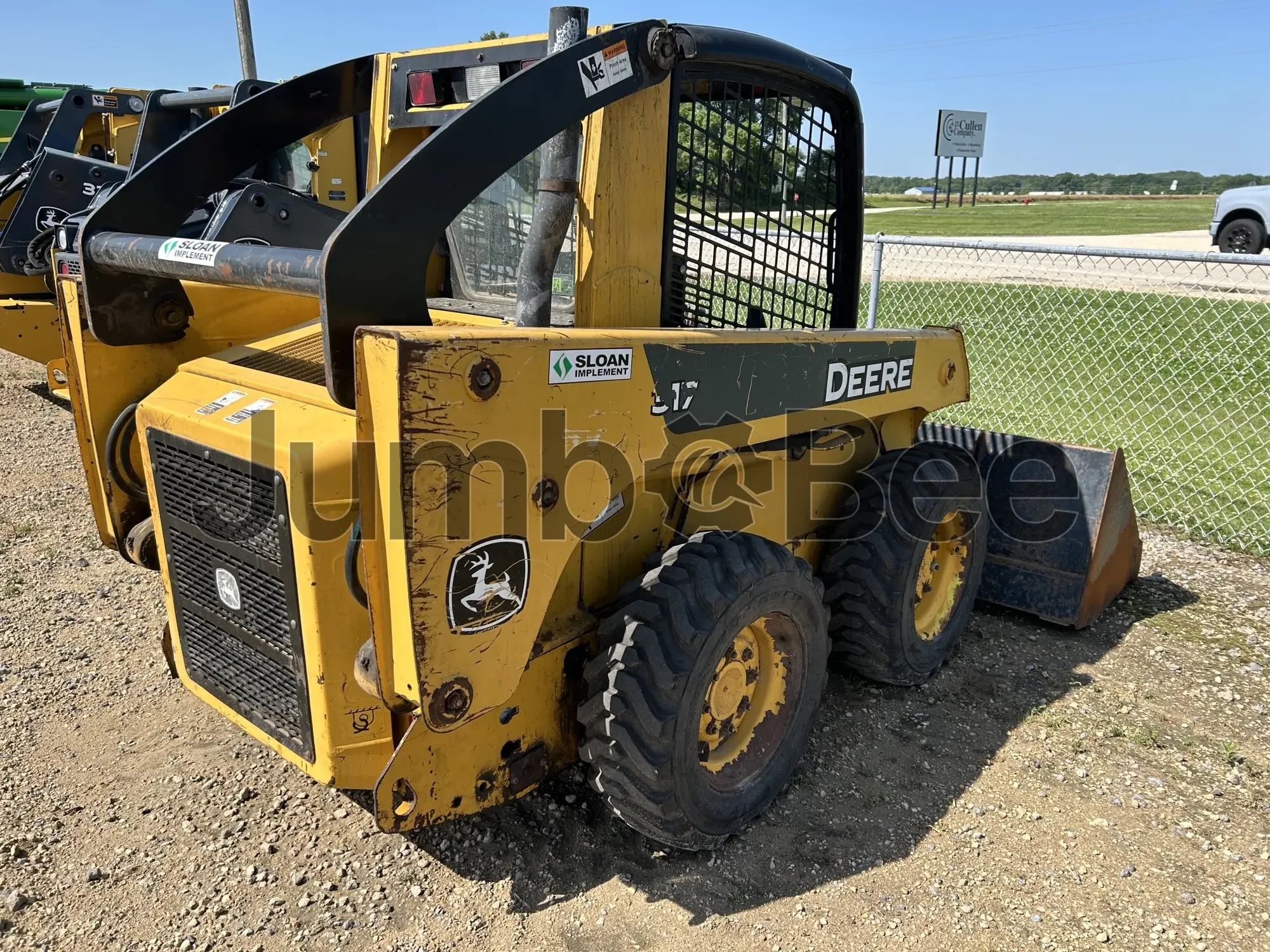

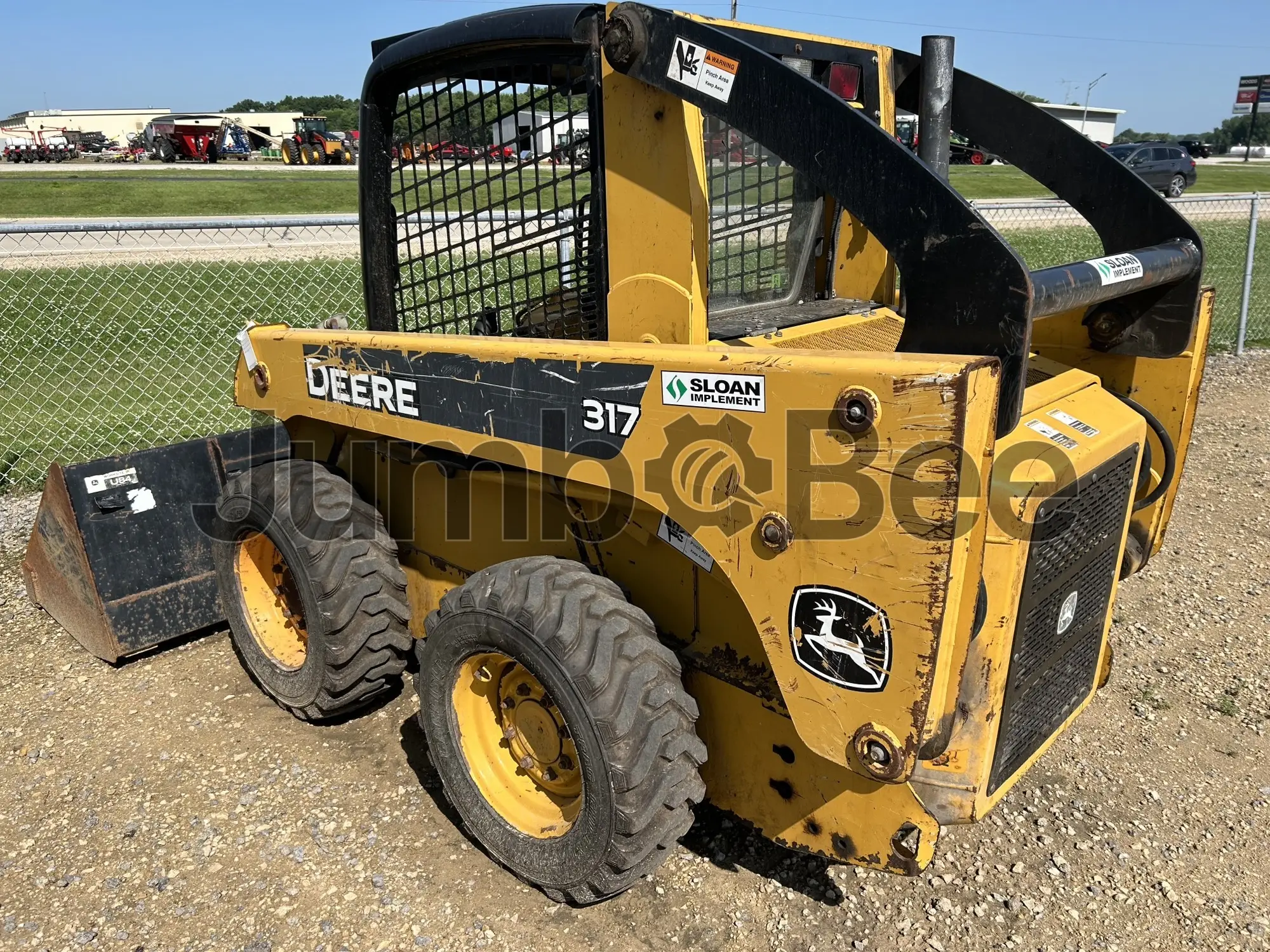

John Deere 317 Skid Steer / CTL
John Deere 317
5+
sold in last yearGeneral overview
John Deere 317 is a skid steer loader designed for compact loading and material-handling work in construction environments. It is powered by a John Deere PowerTechTM 4024T, a 4-cylinder engine rated at 42 kW (57 hp) and meeting EPA Tier 2 emissions. The base machine weight is 2,860 kg (6,310 lb).
The 317 uses a hydrostatic-manual powertrain with chains, high strength, adjustment free final drive and an integral, automatic, spring-applied, hydraulically released wet-disc park brake. Hydraulic output is supported by a pump flow of 64 L/min (16.9 gpm) and system pressure at couplers of 237.9 bar (3,450 psi). It has an SAE rated operating capacity of 795 kg (1,750 lb) and a dump height of 2.26 m (7 ft 5 in).
Year
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
1,628 mm
~64.1 in
1,915 mm
~75.4 in
3,195 mm
~125.8 in
2,860 kg
~6,305.2 lb
Engine Power
57 hp
Operating Weight
3,824 kg
Rated Operating Capacity
794 kg
Dump Height
2.26 m
Bucket volume
0.5 cu(m)
Max. speed
10.9 km/h
Additional specifications
Emission standard level
EPA Tier 2 emissions
Displacement
146 cu(in)
Base machine weight
2,860 kg
Fuel tank
61 L
Number of batteries
1
Wheelbase
1.07 m
Number of Cylinders
4
Battery Voltage
12V
Tires
10 x 16.5 8 PR Extra Wall
Battery Capacity
750 CCA
Net Power (ISO 9249)
57 hp
Manufacturer and Model
John Deere PowerTechTM 4,024T
Pump Flow
64 L/min
Alternator Rating
70 amp
Single
6.8 km/h
Maximum Axle Torque
6,052 Nm
Tractive Effort
7,315 lbf
Final Drive
chains, high strength, adjustment free
Brakes
integral, automatic, spring-applied, hydraulically released wet-disc park brake
System Pressure at Couplers
23,787 kPa
Hydraulic Horsepower Flow
34 hp
Length Without Bucket
2.59 m
Length With Foundry Bucket
3.2 m
Width Without Bucket
1.6 m
Height to Top of ROPS
1.92 m
Height to Hinge Pin
2.9 m
Dump Height With Foundry Bucket
2.26 m
Dump Reach
0.9 m
Dump Reach With Foundry Bucket
0.739 m
Dump Reach With Construction Bucket
0.91 m
Ground Clearance
0.208 m
Angle of Departure
27 deg.
Front Turn Radius With Foundry Bucket
2 m
Dump Angle (full lift height)
45 deg.
Bucket Rollback (ground level)
35 deg.
Tipping Load
1,680 kg
SAE Rated Operating Capacity
795 kg
SAE Rated Operating Capacity With Counterweight
953 kg
Boom Breakout Force With Foundry Bucket
1,407 kg
Boom Breakout Force With Construction Bucket
kg
Bucket Breakout Force With Foundry Bucket
2,497 kg
Bucket Breakout Force With Construction Bucket
1,771 kg
Powertrain Type
Hydrostatic-manual
