John Deere 17 P Compact & Mini (Tracked) Excavators
John Deere 17 P
Average price
$32,078
5+
sold in last year
General overview
Year
2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
3,580 mm
~140.9 in
2,370 mm
~93.3 in
980 mm
~38.6 in
1,680 kg
~3,703.8 lb
Additional specifications
Engine Power
14.5 hp
Displacement
0.99 L
Rated power
14.5 hp
Operating Weight
1,778 kg
Reference Bucket Capacity
0.05 cu(m)
Maximum Rated Flow
29.9 L/min
Hydraulic Capacity
14.01 L
Ground Pressure
26.6 kPa
Length of Track on Ground
1,210 mm
Maximum Travel Speed - Low
2.4 km/h
Maximum Travel Speed - High
4.2 km/h
Engine Oil
3.1 L
Shipping Height - Top of Cab
2,380 mm
Tail Swing Radius
680 mm
Maximum Digging Depth
2,390 mm
Maximum Reach at Ground Level
3,810 mm
Maximum Cutting Height
3,540 mm
Maximum Loading Height
2,510 mm
Bucket Digging Force - ISO
16 kN
Stick Digging Force - ISO
8.6 kN
Pilot Pump
1 pilot pump
Boom length
1,820 mm
Stick length
930 mm
Net Power (ISO 9249)
14.5 hp
Additional Options
Factory auxiliary hydraulic lines: 1 or 2 sets; standard variable-width undercarriage; fixed-pin coupler; dealer-installed wedge coupler/adapter availability; optional attachments and accessories; optional front glass/four-season cab; hydraulic track-width adjustment; auxiliary flow adjustment; auxiliary controls on joystick rollers.
Dimensions bucket
406 mm (16 in.) bucket
Electrical system alternator output
40
Engine brand model
Yanmar 3TNV74F
Hydraulics main pumps
2 variable-displacement pumps and 1 fixed-gear pump
Refill cooling system
2.7 L
Track shoe width
230 mm
Working ranges boom working ranges
1.82 m (6 ft. 0 in.) standard boom
Working ranges bucket working ranges
406 mm (16 in.) bucket
Working ranges stick working ranges
0.93 m (3 ft. 1 in.) standard arm
John Deere 17 P Compact & Mini (Tracked) Excavators Listings

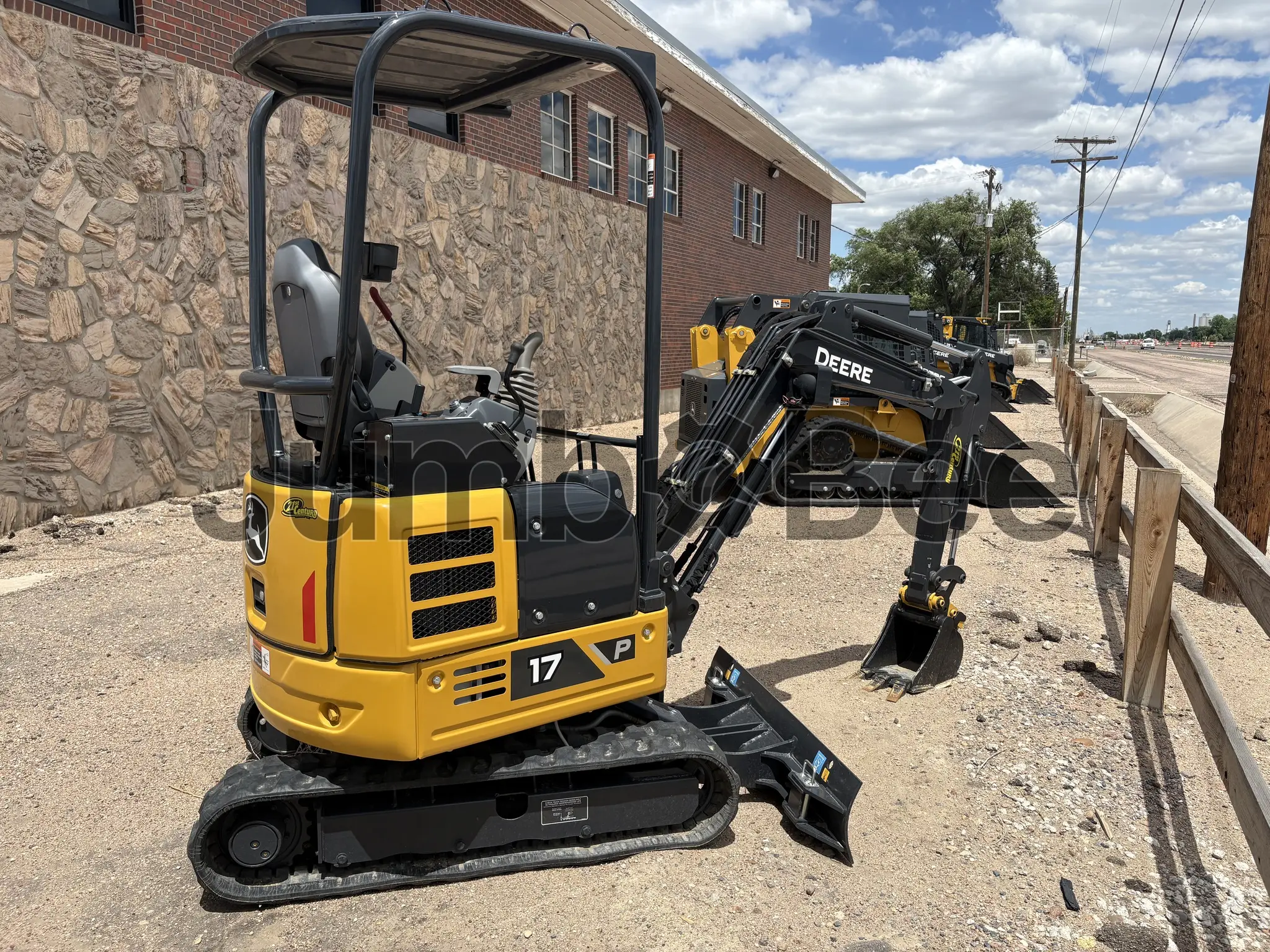

$30,804
14.5 hp
1778 kg
0.05 cu(m)
8 hours
Sterling, United States

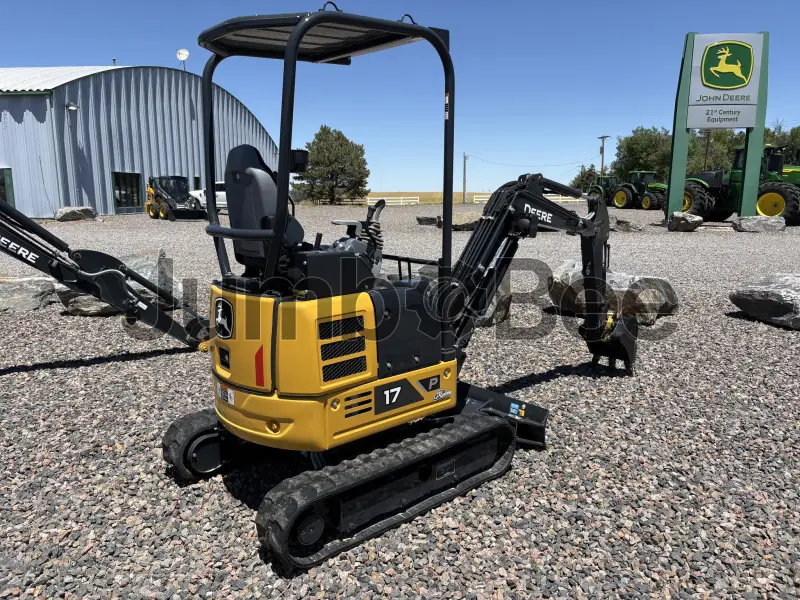

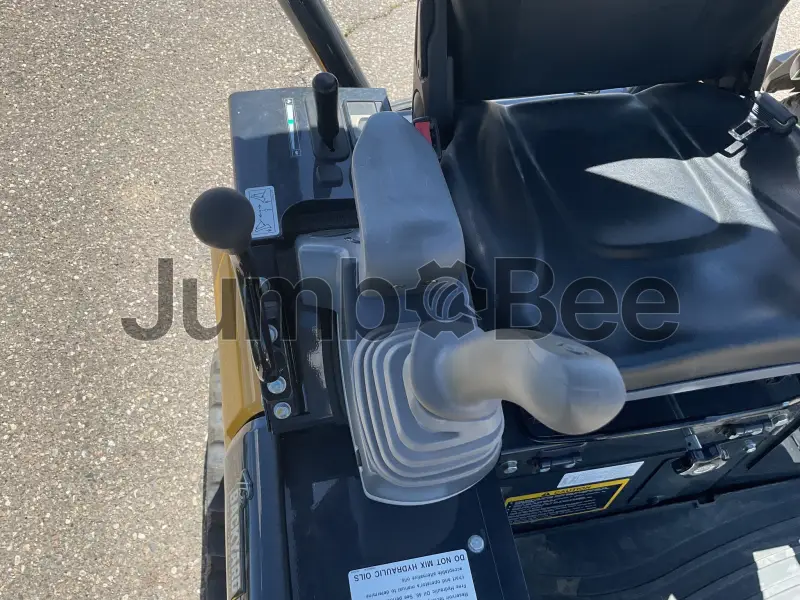

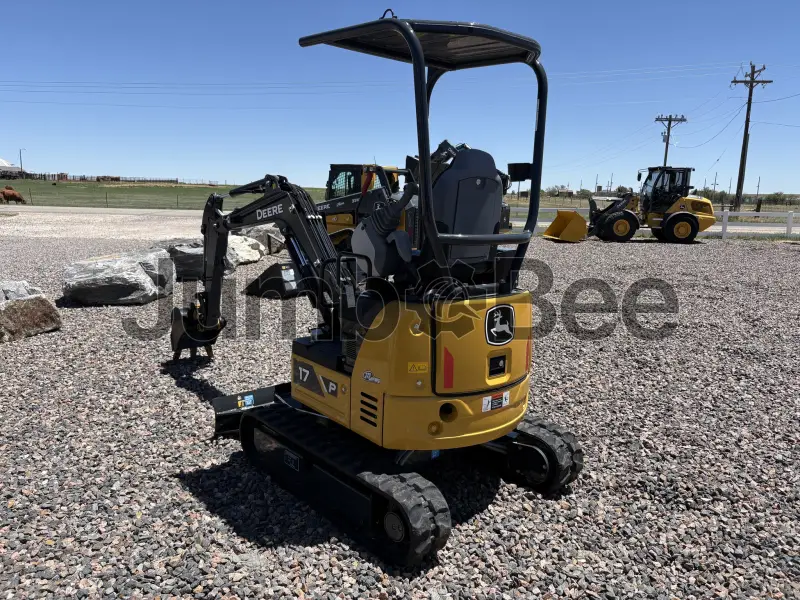

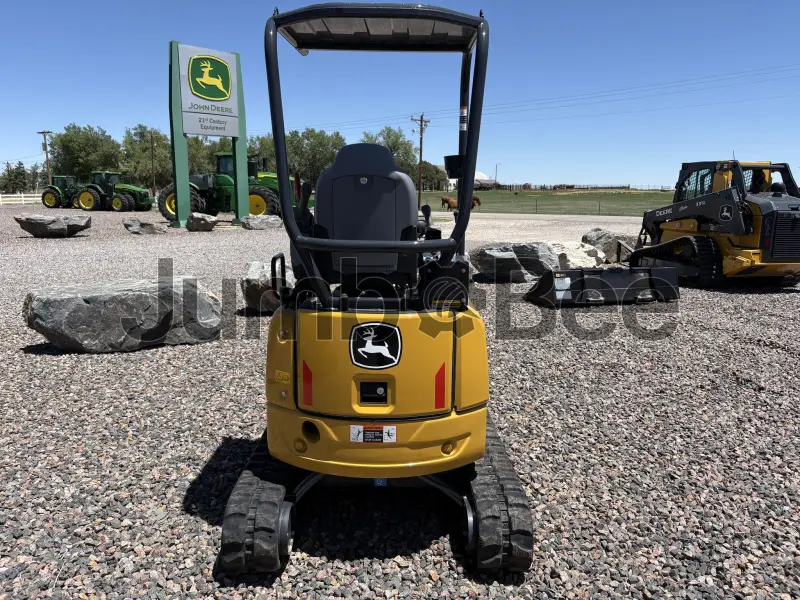

$33,400
0.93 m (3 ft. 1 in.) standard arm
14.5 hp
40
45 hours
Pueblo, United States
$33,335
Factory auxiliary hydraulic lines: 1 or 2 sets; standard variable-width undercarriage; fixed-pin coupler; dealer-installed wedge coupler/adapter availability; optional attachments and accessories; optional front glass/four-season cab; hydraulic track...
12" Bucket
14.01 L
44 hours
Loveland, United States
$30,773
0.05 cu(m)
1820 mm
930 mm
16 hours
Strasburg, United States
