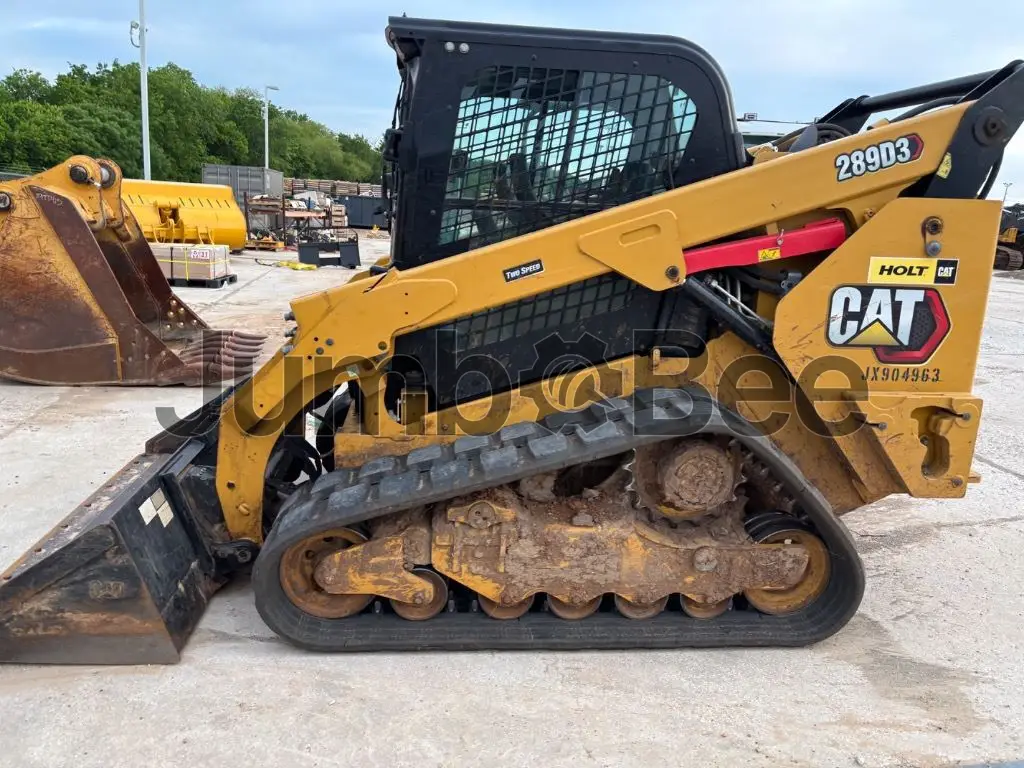

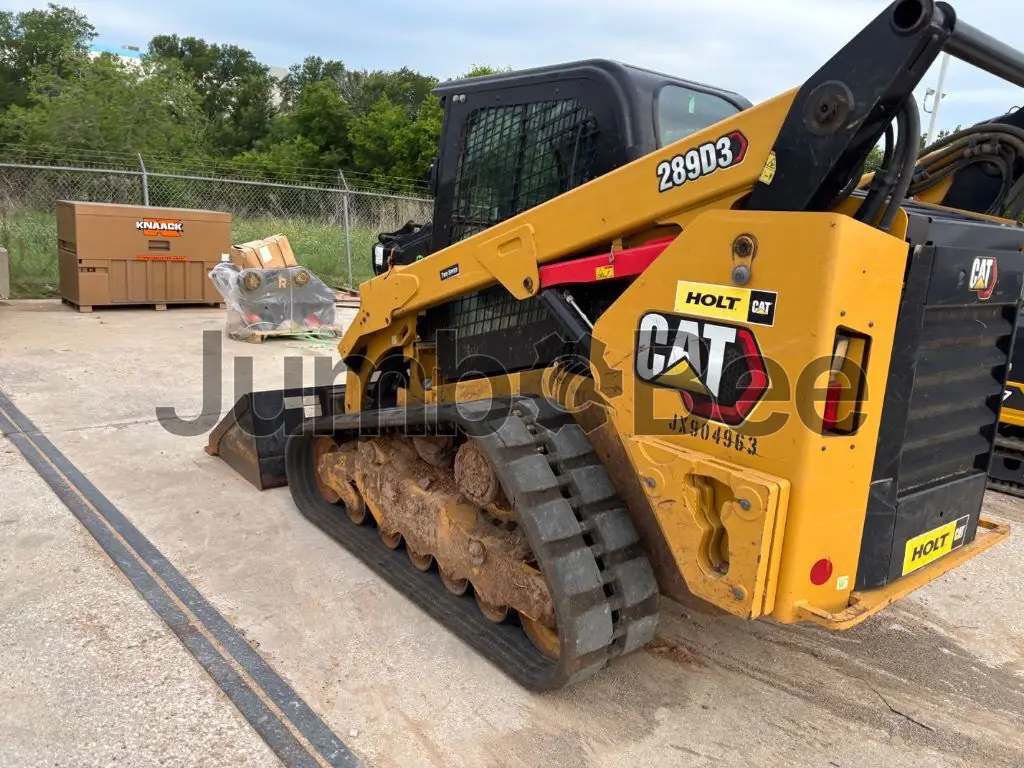

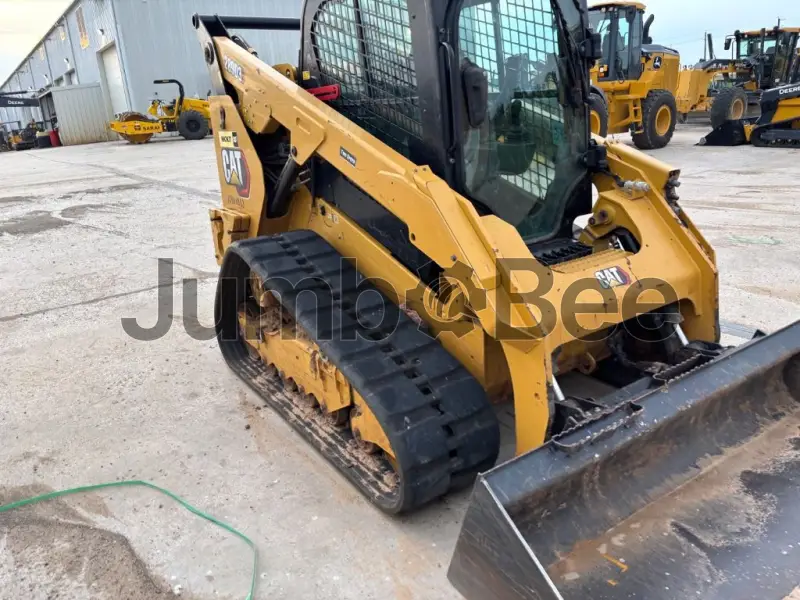

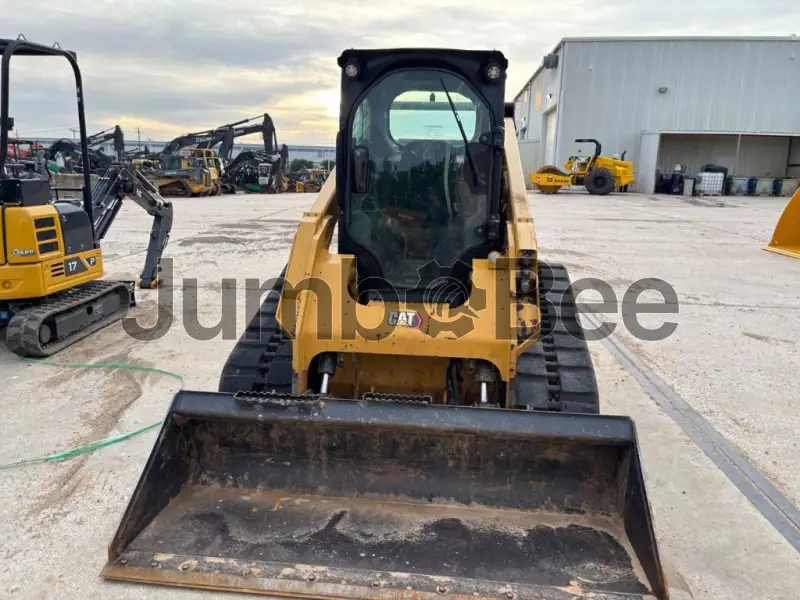

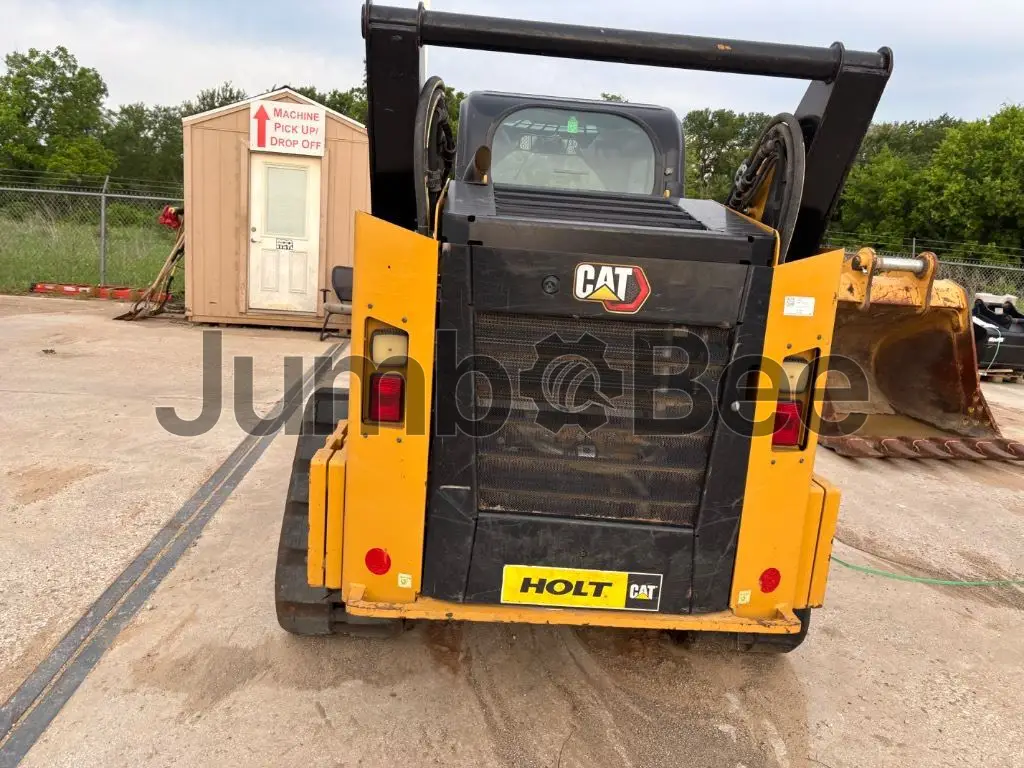

Caterpillar 289D3 Skid Steer / CTL
Cat 289D3
Average price
$61,150
5+
sold in last year
General overview
The Caterpillar 289D3 is a crawler loader for construction work, designed for loading and material-handling tasks in confined or uneven jobsite conditions. It is powered by a Cat C3.3B DIT (turbo) four-cylinder engine rated at 55 kW (74.3 hp) and meets EPA Tier 4 Final emissions requirements. The operating weight is 4,848 kg (10,690 lb).
The model uses a hydrostatic drive with two-speed transmission and reaches a travel speed of 13.3 km/h (8.3 mph). Its open-center, load sensing hydraulic system has a pump flow of 86 L/min (22.7 gpm), and the machine is equipped with pilot-operated joystick controls. Key operating figures include a heaped bucket capacity of 1.4 m³ (1.8 cu yd), a maximum drawbar pull of 32.5 kN (7,310 lbf), and a static tipping load of 3,750 kg (8,270 lb).
Year
2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Height
Length
Weight
Width
2,113 mm
~83.2 in
3,714 mm
~146.2 in
4,848 kg
~10,688 lb
1,981 mm
~78 in
Engine Power
74.3 hp
Operating Weight
4,848 kg
Bucket Capacity - Heaped
1.4 cu(m)
Rated Operating Capacity
1,315 kg
Additional specifications
Emission standard level
EPA Tier 4 Final
Displacement
201.4 cu(in)
Transmission type
Hydrostatic drive with two-speed transmission
Fuel tank
105 L
Hydraulic system type
Open-center, load sensing
Cooling system
14 L
Number of Cylinders
4
Battery Voltage
12 volt
Drawbar Pull
System Relief Pressure
23,000 kPa
Undercarriage Ground Pressure
32.2 kPa
Length of Track on Ground
1,630 mm

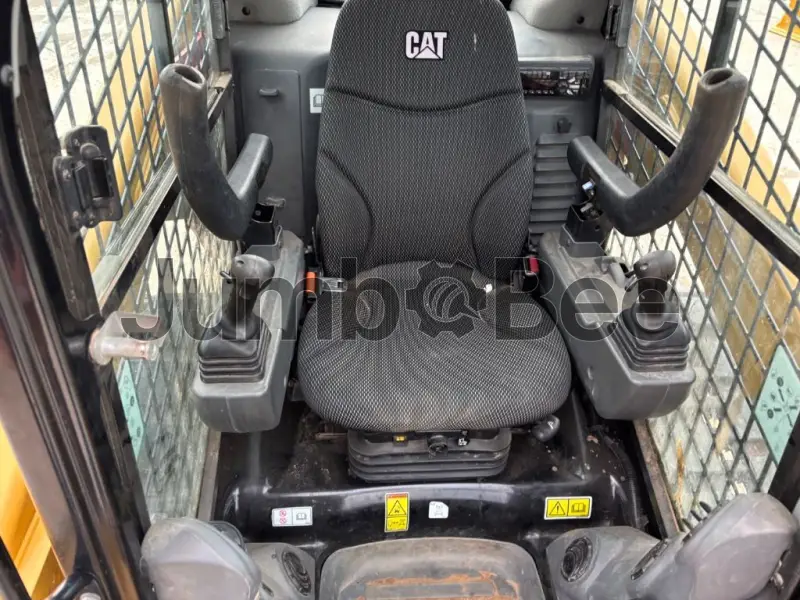

Hydraulic controls
Pilot-operated joystick controls with optional electro-hydraulic controls for auxiliary hydraulics
Battery Capacity
850 CCA
Hydraulic System - Including Tank
52 L
Net Power (ISO 9249)
73.6 hp
Manufacturer and Model
Cat C3.3B DIT (turbo)
Net Peak Torque
265 Nm
Powertrain System Relief Pressure
3,335 psi
Travel Speeds
13.3 km/h
Drawbar Pull Maximum
32.5 kN
Drawbar Pull at 1.9 km/h (1.2 mph)
22.2 kN
Drawbar Pull at 3.2 km/h (2.0 mph)
15.6 kN
Pump Flow
86 L/min
Alternator Rating
80 ampere
Grouser Width
400 mm
Ground Contact Area
1.47 sq(m)
Track Pitch
Hydraulic Tank
39 L
Width of Bucket (General Purpose)
1,829 mm
Capacity Heaped
1.4 cu(m)
Bucket Weight
1.394 kg
Breakout Force
32.5 kN
Static Tipping Load
3,750 kg
Caterpillar 289D3 Skid Steer / CTL Listings
$56,000
Cab w/ AC
1.4 cu(m)
74.3 hp
1074 hours
Fort Worth, United States
