Case IH 5100 Grain Drills
Case IH 5100
5+
sold in last yearGeneral overview

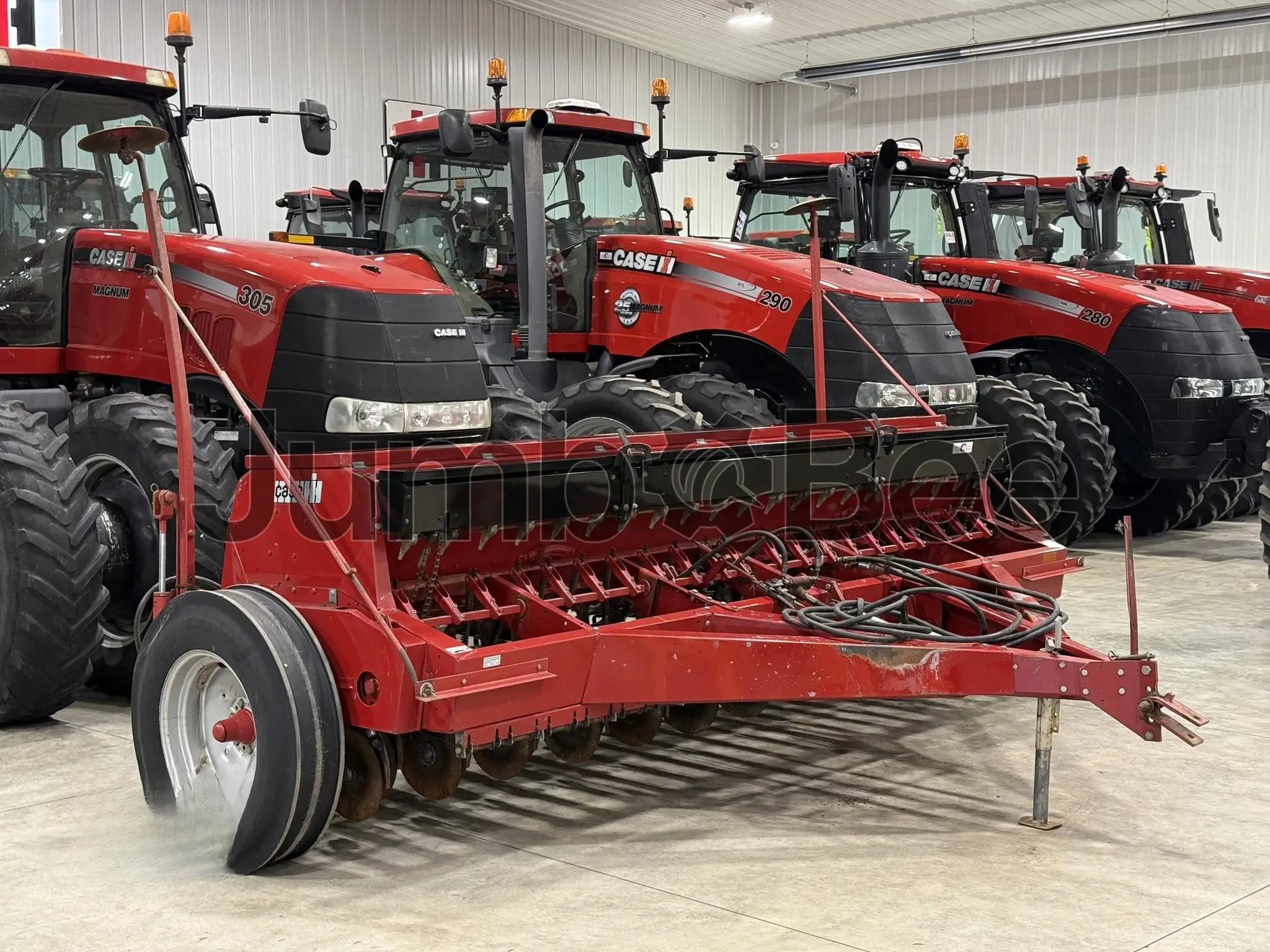

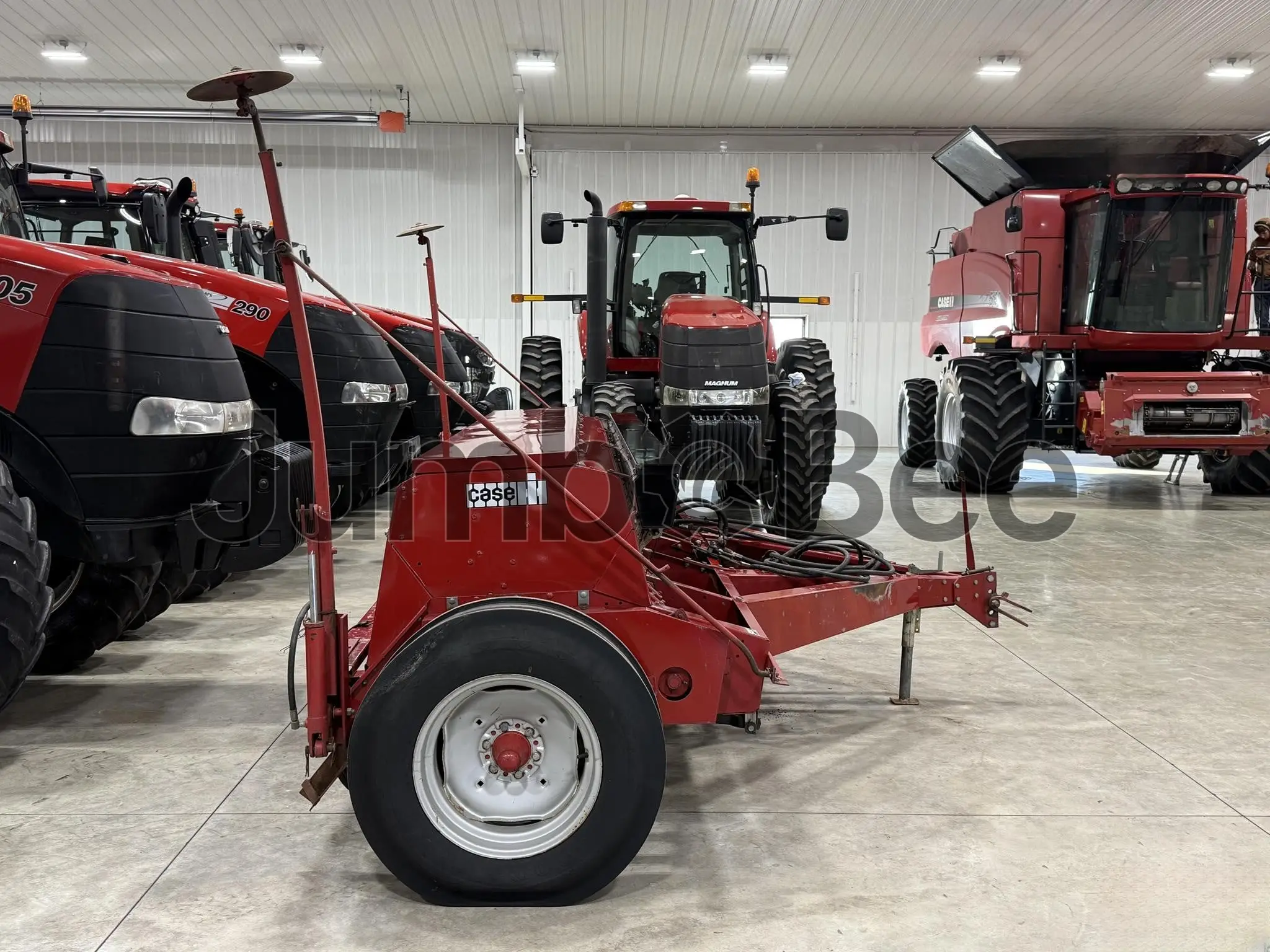

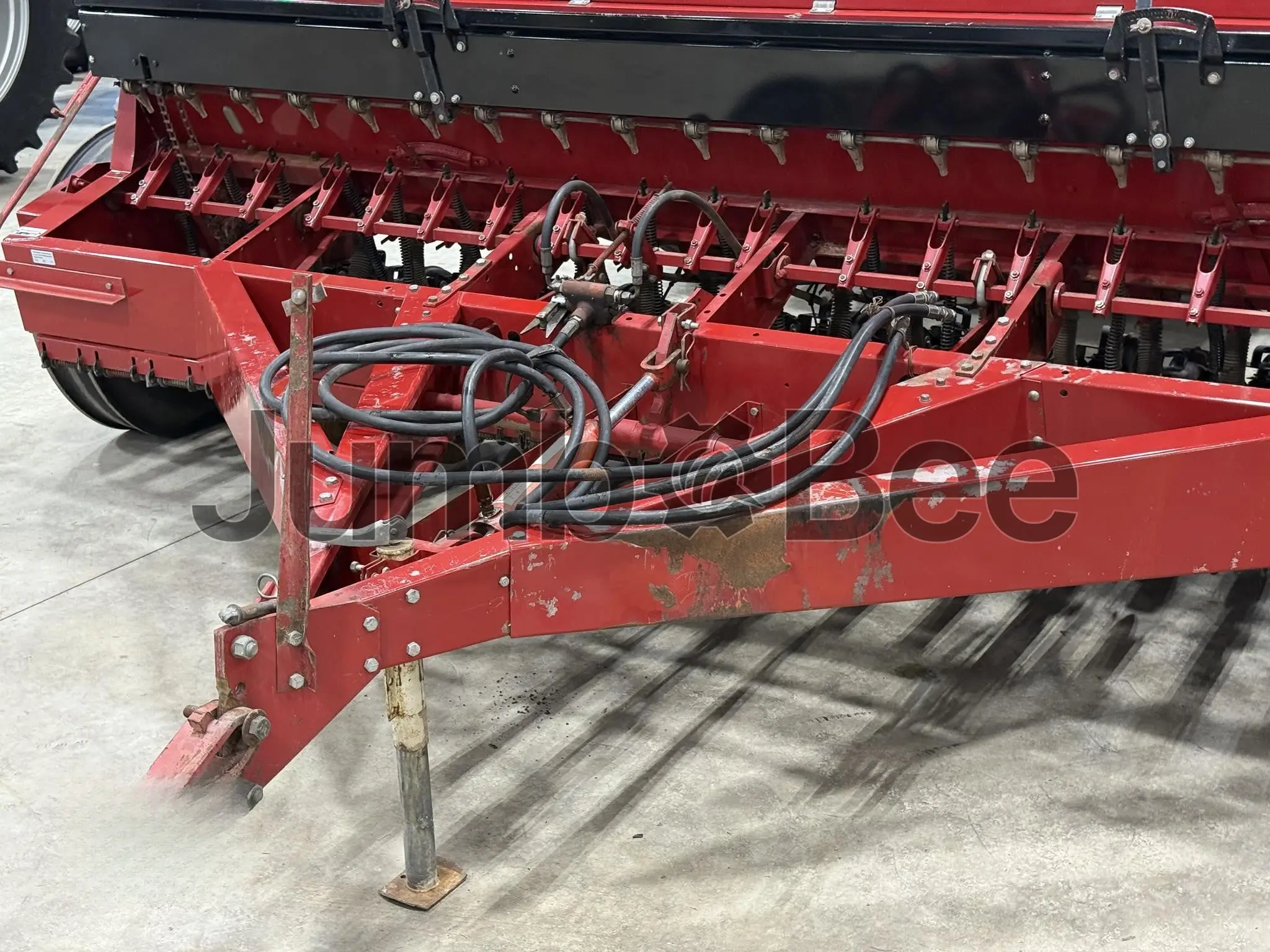

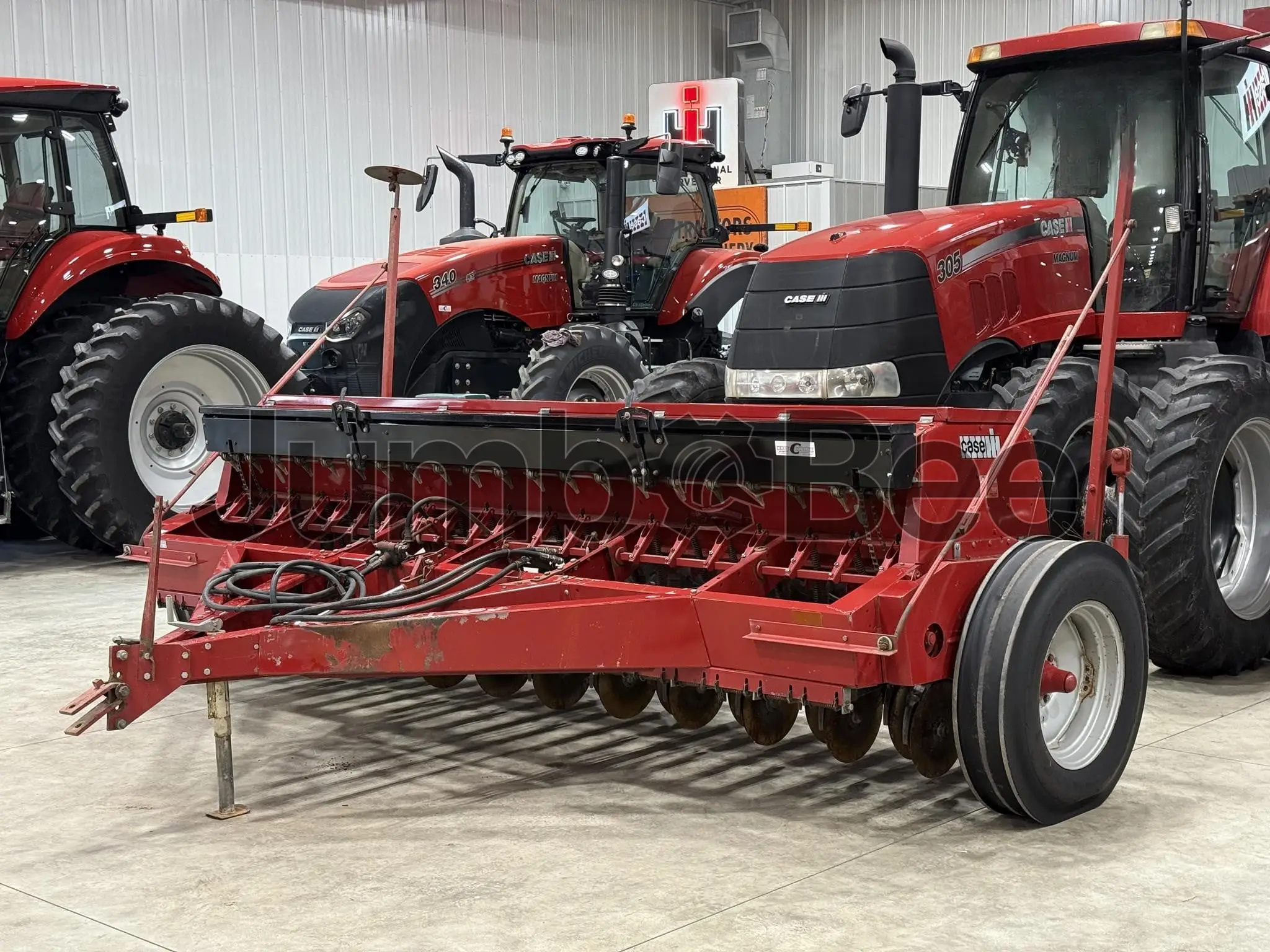

Case IH 5100 is an end wheel grain drill in the Air Drills and Seeders category. Built in the United States from 1985 to 1994, it is intended for field seeding of grain and legume or grass seed mixes. The drill uses double-disc openers and 21 openers at 177 mm (7 in) spacing, giving it a row-based layout for prepared seed beds.
Standard features include a plain grain box, fertilizer box, legume/grass seed attachment, and mechanical ground drive. Fertilizer openers are present, so the machine is configured for seeding and fertilizer placement in the same pass. The 177 mm (7 in) row spacing and 21 ranks define a narrow, evenly spaced planting pattern suited to conventional drill operations.
Year
1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Country of manufacturing
United States
General specifications
Grain drill spacing
7.5 in (19.05 cm)
Grain/Fertilizer Capacity
1,600 L
Plain Grain Capacity
1,600 L
Press wheels
Rubber press wheels
Number of Openers
24
Disk
Double-disc opener, 13.5-inch diameter
Down Pressure
Adjustable spring down pressure
Meters Type
Fluted-feed cup meters
Additional specifications
Row Spacing
177 mm
Openers system
End wheel grain drill; double-disc openers
Standard features
Plain grain box, fertilizer box, legume/grass seed attachment, mechanical ground drive
Number of openers
21
Number of ranks
21
Seed spacing
177 mm
Seed openers
double-disc openers
Fertilizer openers
present
Case IH 5100 Grain Drills Listings
Looking for Case IH 5100 Grain Drills?
See similar listingsCompare Case IH 5100 Grain Drill to other grain drills
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH 5100?
No confirmed market price is supplied for the Case IH 5100. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Case IH 5100?
The Case IH 5100 has 21 double-disc openers, 177 mm (7 in) row spacing, and mechanical ground drive. Its listed equipment includes a plain grain box, fertilizer box, legume/grass seed attachment, and fertilizer openers.
What type of engine does the 5100 use?
The supplied specifications do not confirm an engine type for the Case IH 5100.
How much horsepower does the 5100 have?
The supplied specifications do not confirm a horsepower rating for the Case IH 5100.
What fuel does the Case IH 5100 use?
The supplied specifications do not confirm the fuel type for the Case IH 5100.
What jobs is this Air Drills and Seeders best suited for?
The Case IH 5100 is equipped for grain seeding, fertilizer application, and legume or grass seed work. It uses an end wheel grain drill arrangement with double-disc openers and 21 ranks at 177 mm (7 in) spacing.
What is the expected lifespan of the 5100?
The supplied data does not provide an expected service life for the Case IH 5100. Inspect the opener system, boxes, mechanical ground drive, and fertilizer components, and review maintenance history when available.
What should a buyer check when purchasing a used Air Drills and Seeders?
Check the double-disc openers, opener alignment, mechanical ground drive, grain and fertilizer boxes, legume/grass seed attachment, and fertilizer openers. Verify that all 21 openers and 21 ranks operate consistently, and inspect for wear, damage, and corrosion.
