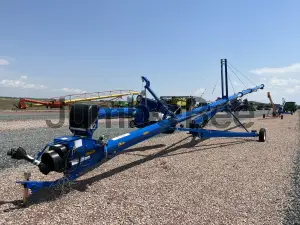

Brandt 1070HP Grain Auger
Brandt 1070HP
Average price
$23,050
5+
sold in last year
General overview

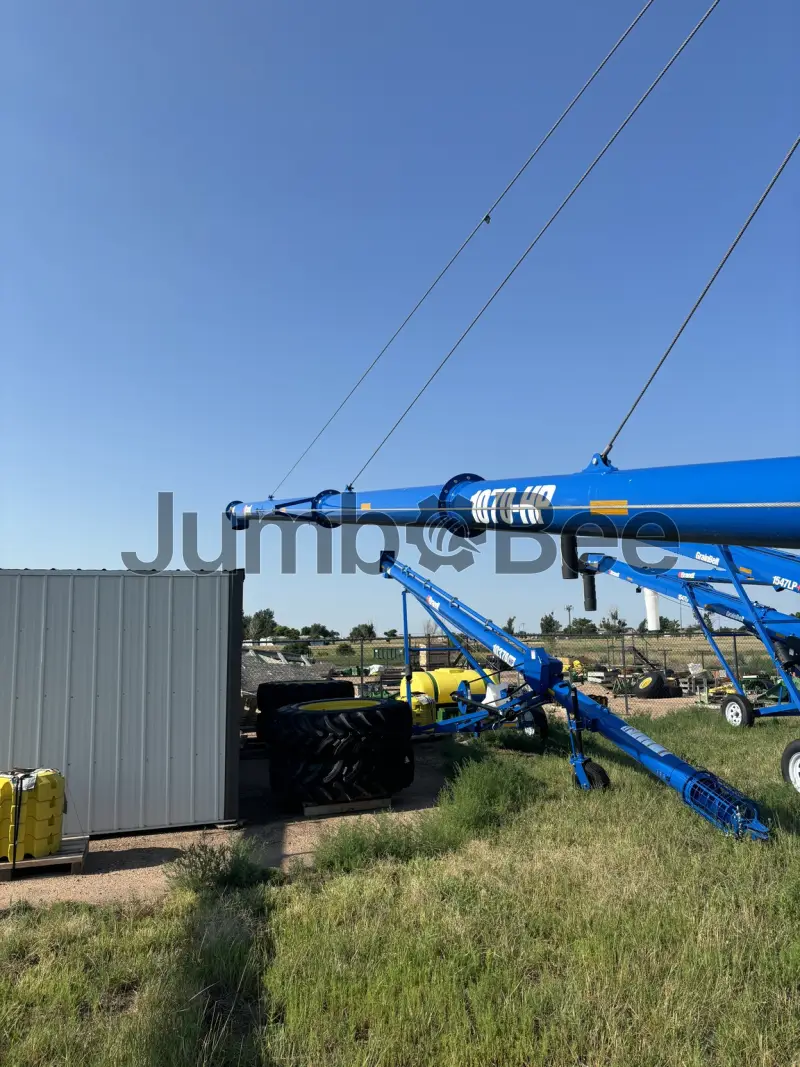

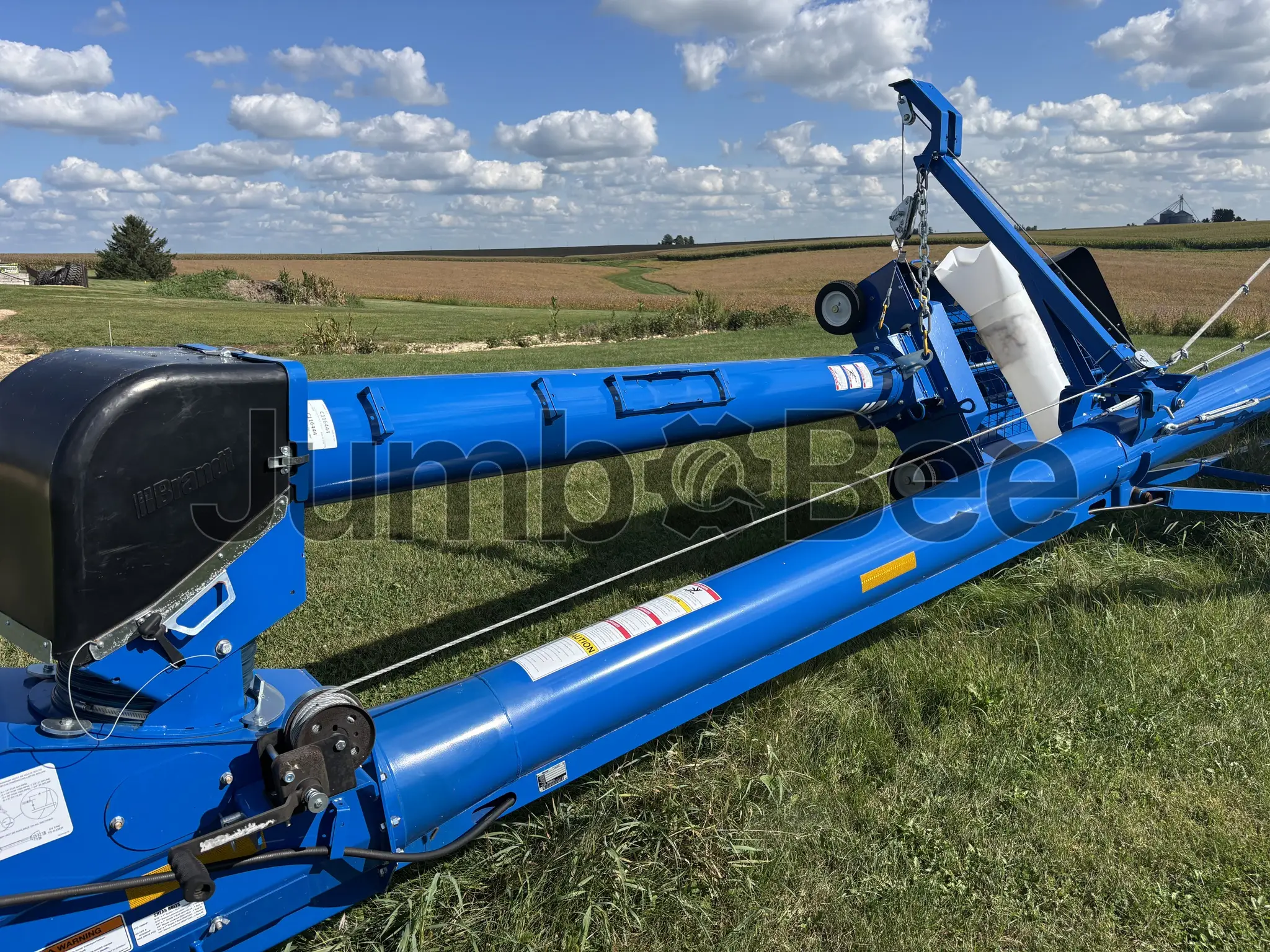

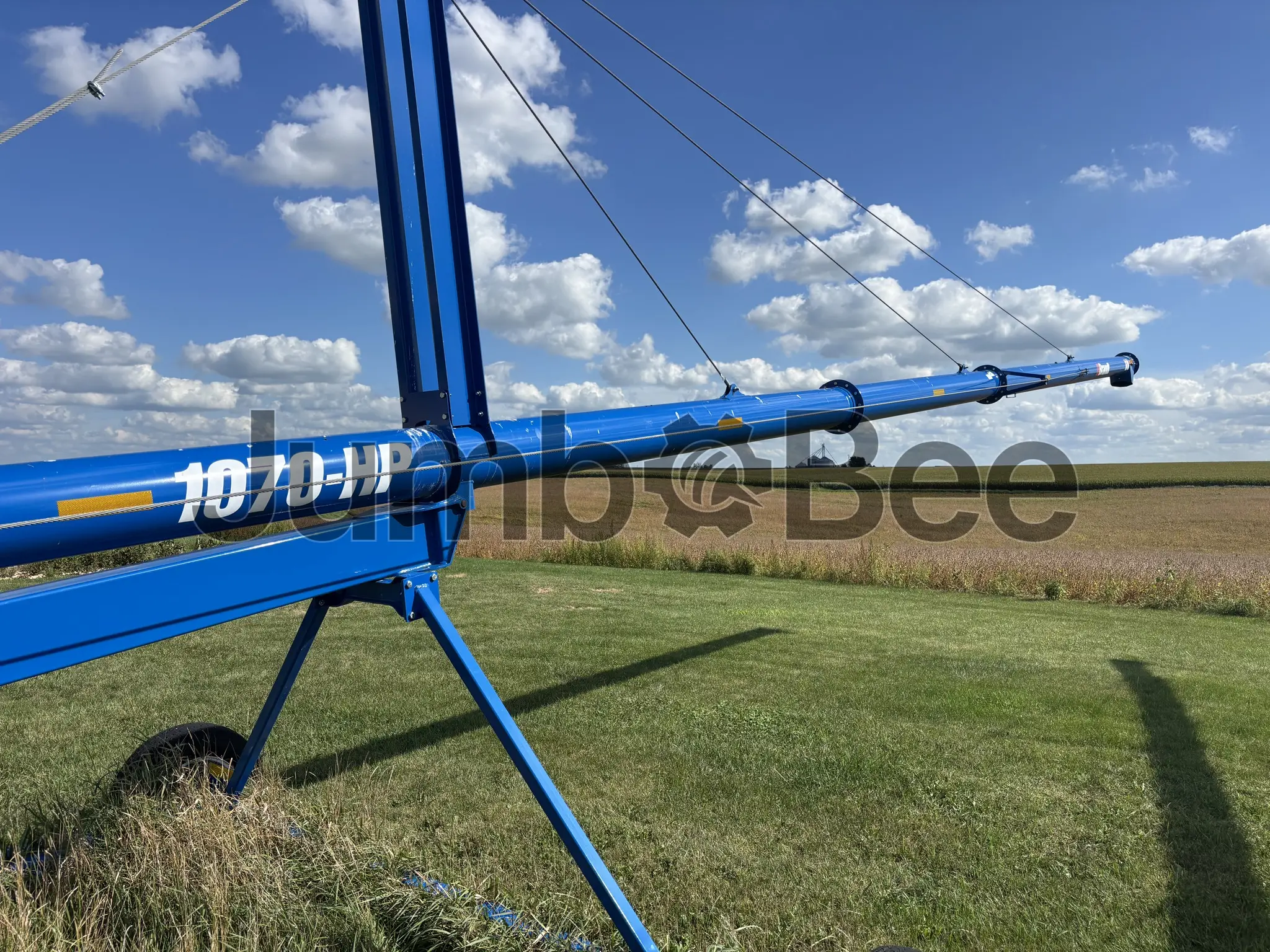

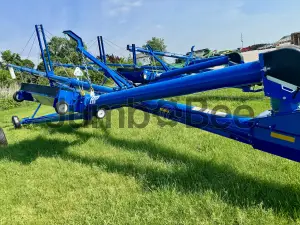

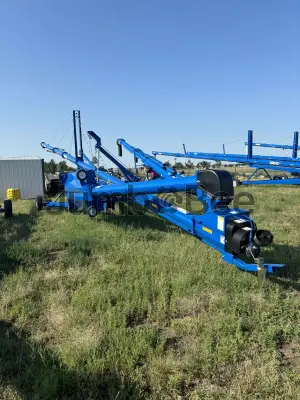

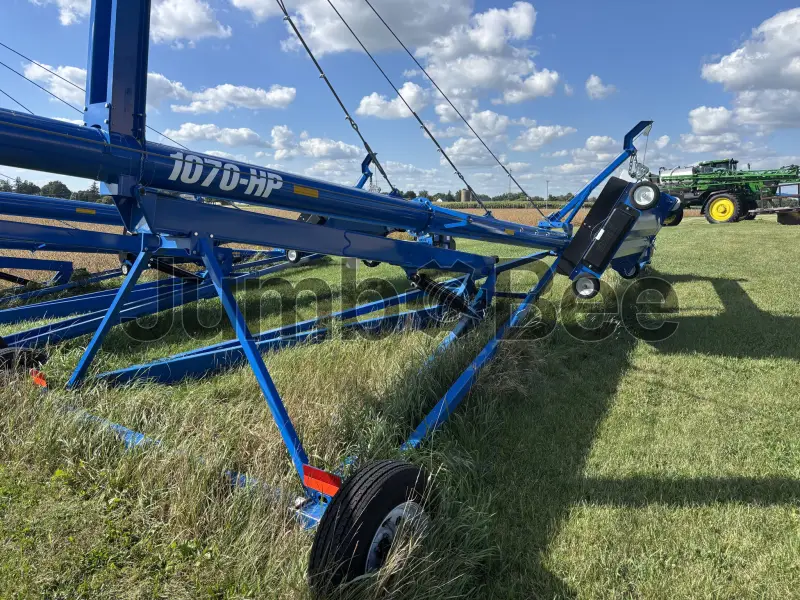

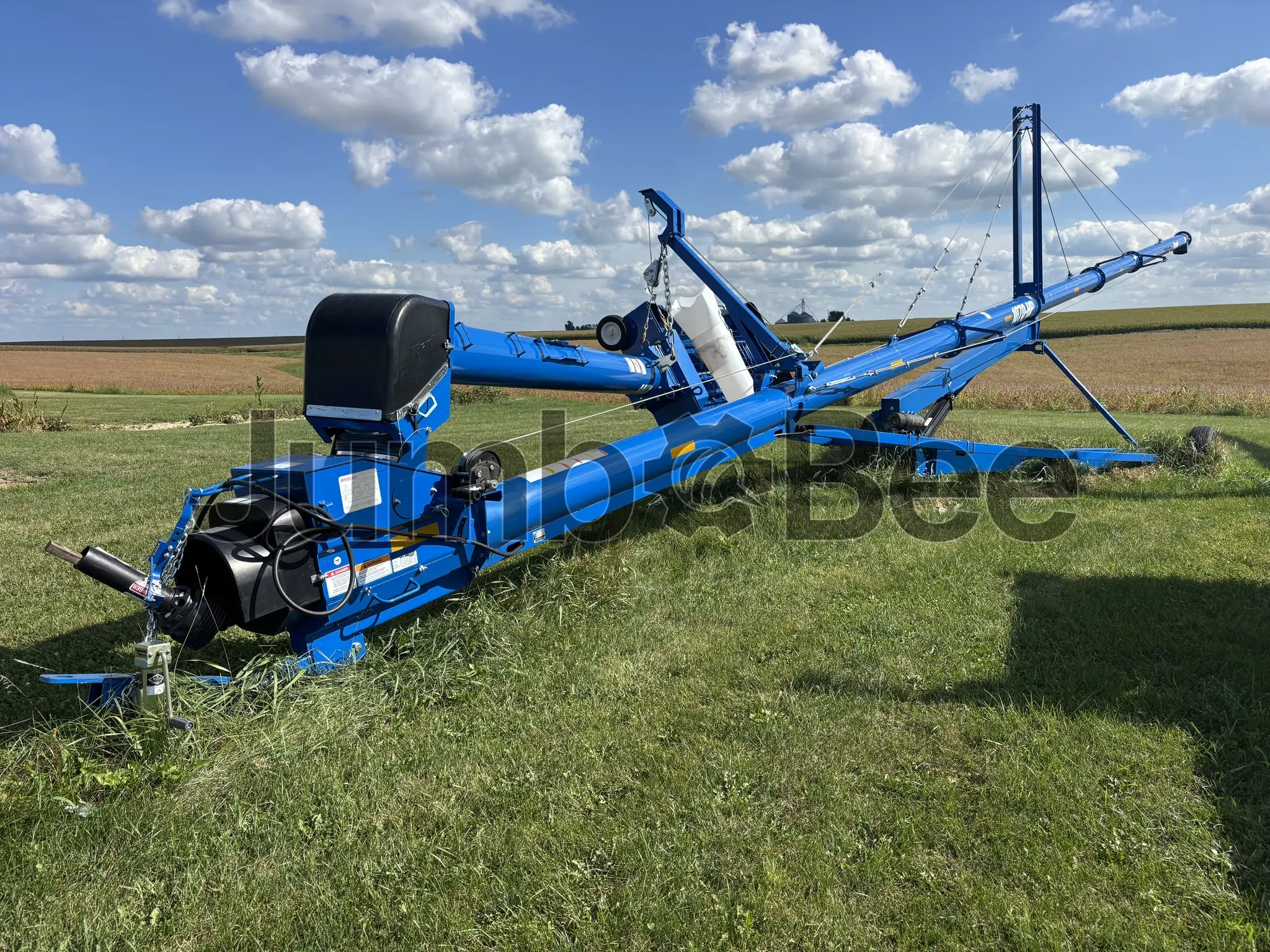

Brandt 1070HP is a grain auger attachment for farm equipment applications, built in Canada for grain transfer work. It is designed to run from a 540 PTO and requires 77 kW (105 hp), linking the auger to tractor PTO operation in material-handling tasks. With a listed capacity of 7,200 bu/h, it is suited to moving grain during loading and storage operations.
Key specifications define a large-capacity auger with a transport length of 22,000 mm (72 ft 2 in) and a scissor lift mechanism. The machine uses one hydraulic cylinder with hydraulic requirements of 1,400 psi, and it has four wheels, ST205/75R15 tires, and a 6 Ply rating. Additional structural details include a 254 mm (10 in) intake diameter, 13 ga tube thickness, and two horizontal flights.
Year
2022, 2023, 2024
Country of manufacturing
Canada
General specifications
Dimensions
Width
Height
Length
Weight
3,610 mm
~142.1 in
3,810 mm
~150 in
22,000 mm
~866.1 in
1,632 kg
~3,597.9 lb
Capacity (bushels per hour)
7,200 bu/h
Recommended PTO Horsepower
105 hp
Tractor PTO RPM
540 PTO
Additional specifications
Drive type
PTO
HP Intake Diameter
254 mm
Height - Raised
14.783 mm
Reach - Lowered
10.82 mm
Reach - Raised
6.858 mm
Tube Thickness
13 ga

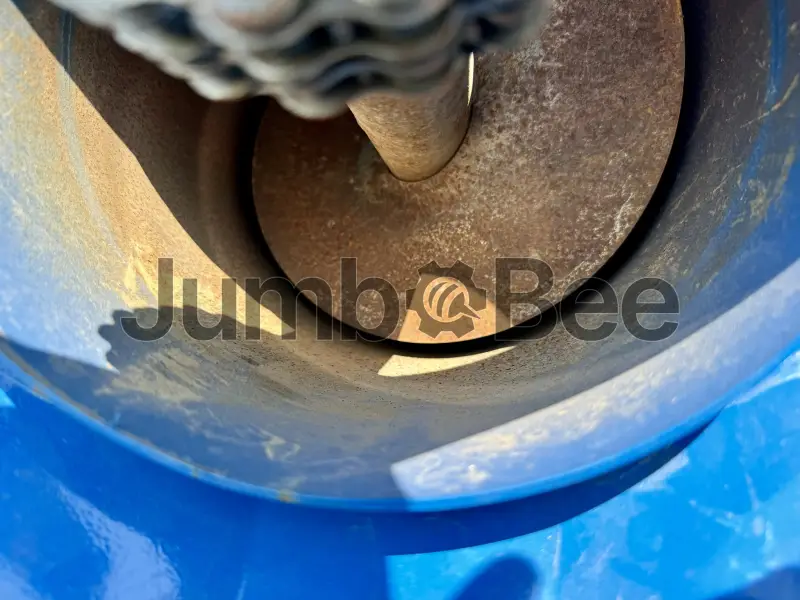

Flighting - Main
4.76 mm
1/4" Core Diameter
50.8 mm
Transport Length
22,000 mm
Transport Height
3.81 mm
Wheel Track Width
3.606 mm
Lower Bearing Size
34.93 mm

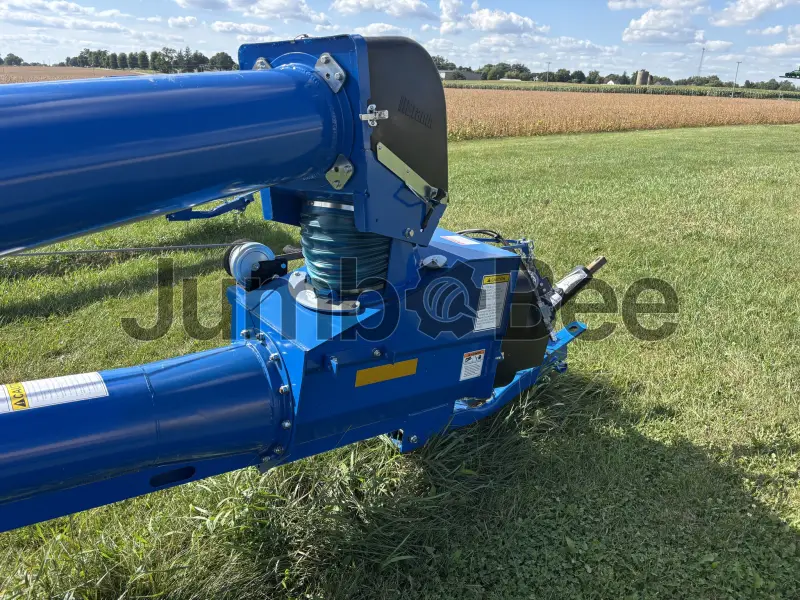

Gearbox Shaft Diameter
31.75 mm
Weight - Hitch
850 lb
Frame Arms
6"x8"x3/16"W
Undercarriage Axle
4"x4"x3/16"W

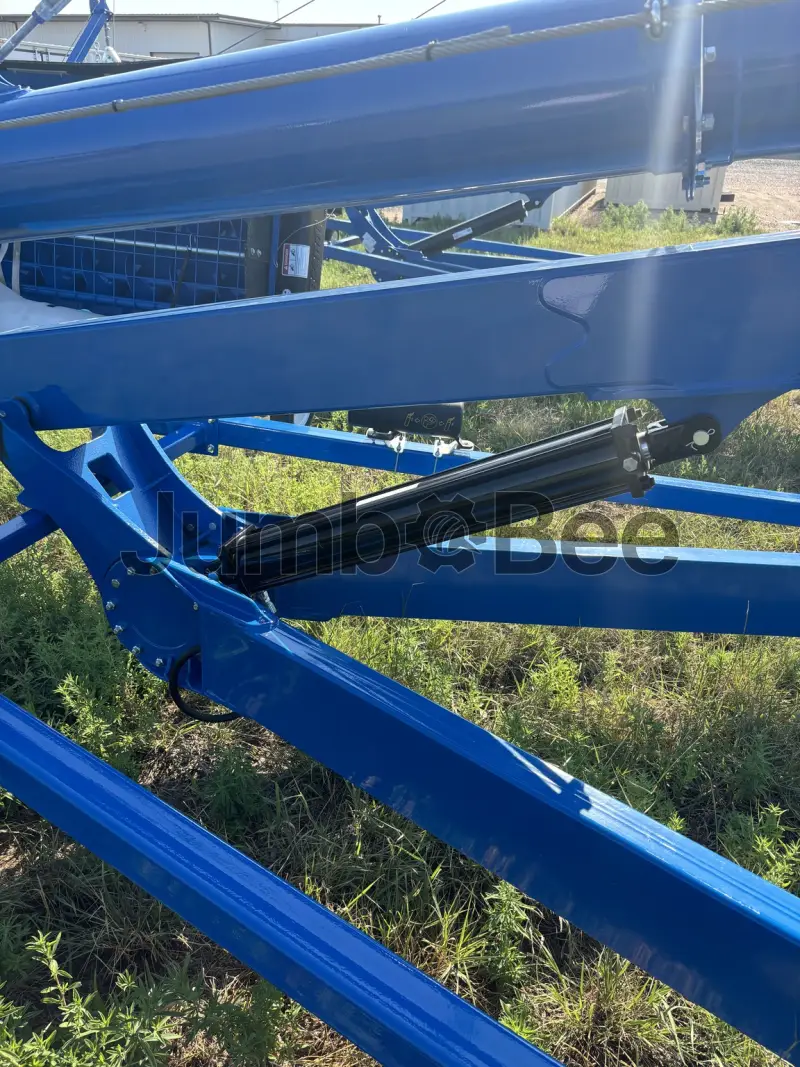

Number of Hydraulic Cylinders
1
Hydraulic Requirements
1,400 psi

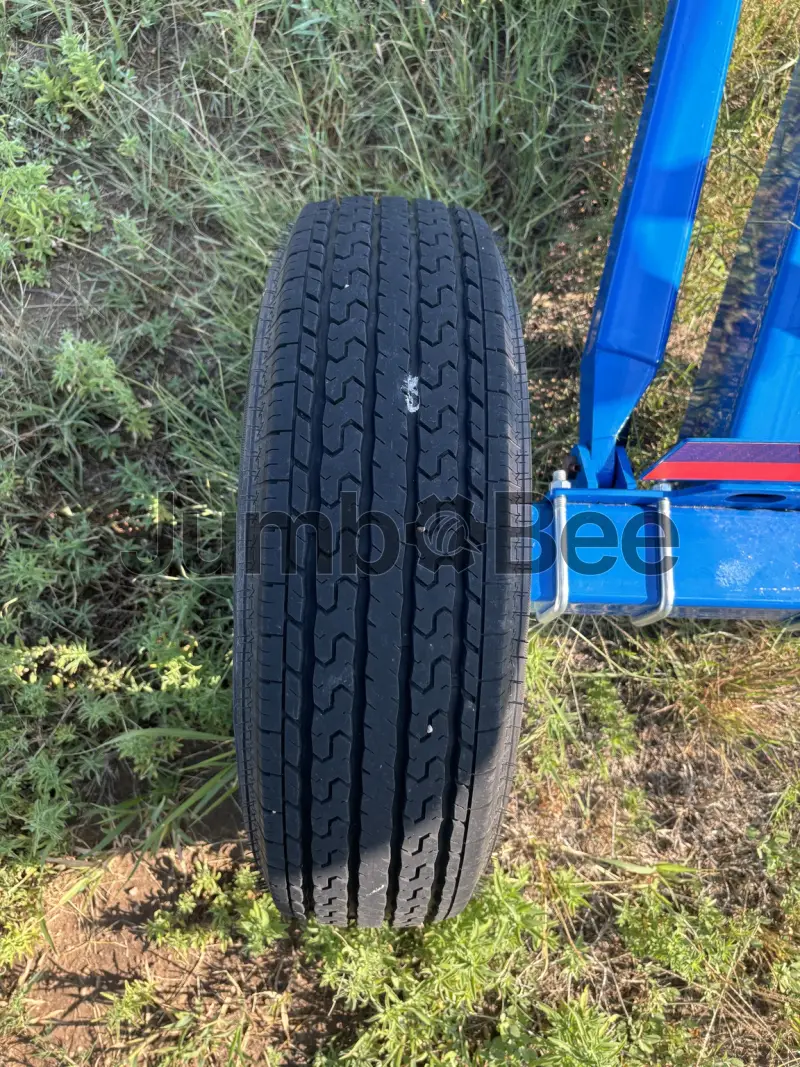

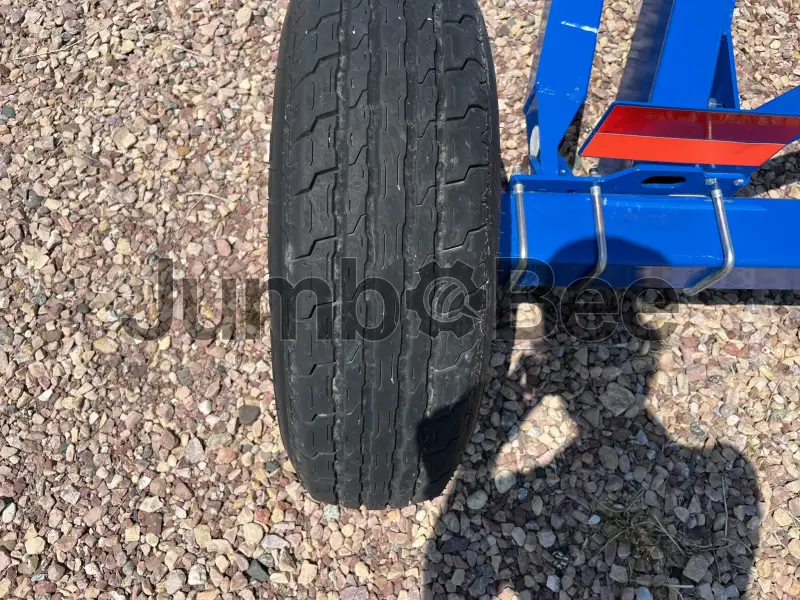

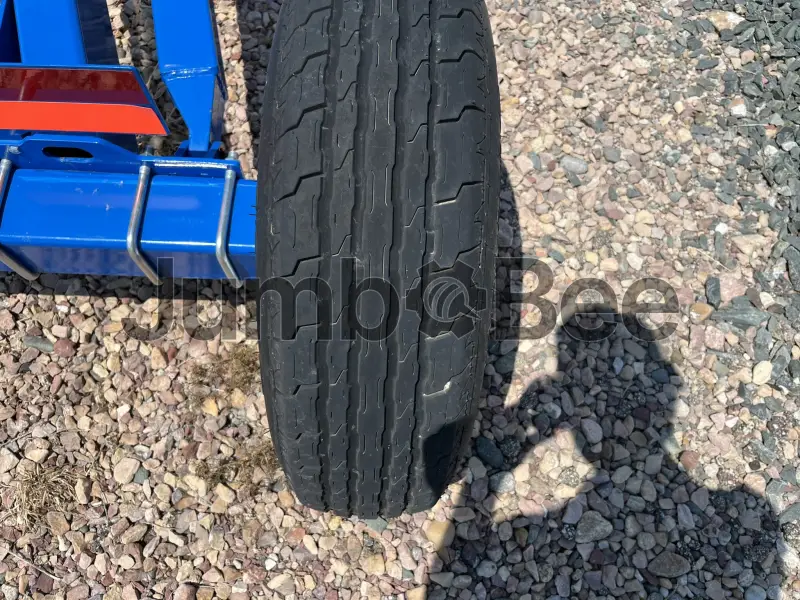

Tire Size
ST,205/75R15
Tire Ply Rating
6 Ply
Length x Width x Height
70"x40"x10"
Height w/ Extension
431 mm
Number of Horizontal Flights
2
Number of Wheels
4
Hopper Wheel Size
254 mm
Lift Mechanism
Scissor
Brandt 1070HP Grain Auger Listings
Compare Brandt 1070HP Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Brandt 1070HP?
No confirmed market price is supplied for the Brandt 1070HP. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Brandt 1070HP?
Supplied features include 7,200 bu/h capacity, 540 PTO operation, a recommended PTO input of 78.3 kW (105 hp), two horizontal flights, four wheels, and a scissor lift mechanism. It also has one hydraulic cylinder requiring 1,400 psi.
What type of engine does the 1070HP use?
No engine type is specified. The Brandt 1070HP is listed with a 540 PTO requirement and a recommended PTO input of 78.3 kW (105 hp).
How much horsepower does the 1070HP have?
The recommended PTO horsepower is 78.3 kW (105 hp).
What fuel does the Brandt 1070HP use?
No fuel type is specified. The Brandt 1070HP operates from a tractor PTO at 540 PTO.
What jobs is this Grain Auger best suited for?
The supplied information identifies the Brandt 1070HP as a Grain Auger with capacity of 7,200 bu/h. Its PTO-driven operation and scissor lift mechanism indicate use for grain-handling work where a compatible tractor and hydraulic supply are available.
What is the expected lifespan of the 1070HP?
No expected service life is supplied for the Brandt 1070HP. Inspect the tube, flighting, bearings, gearbox shaft, hydraulic cylinder, tires, wheels, and lift mechanism, and review maintenance history when available.
What should a buyer check when purchasing a used Grain Auger?
Check the tube and flighting for wear or damage, inspect the lower bearing and gearbox shaft, test the PTO drive and hydraulic cylinder, and examine the scissor lift mechanism. Also check tire condition, wheel assemblies, hopper wheels, frame arms, axle, and any available maintenance records.
