Bobcat T76 Skid Steer / CTL
Bobcat T76
5+
sold in last yearGeneral overview

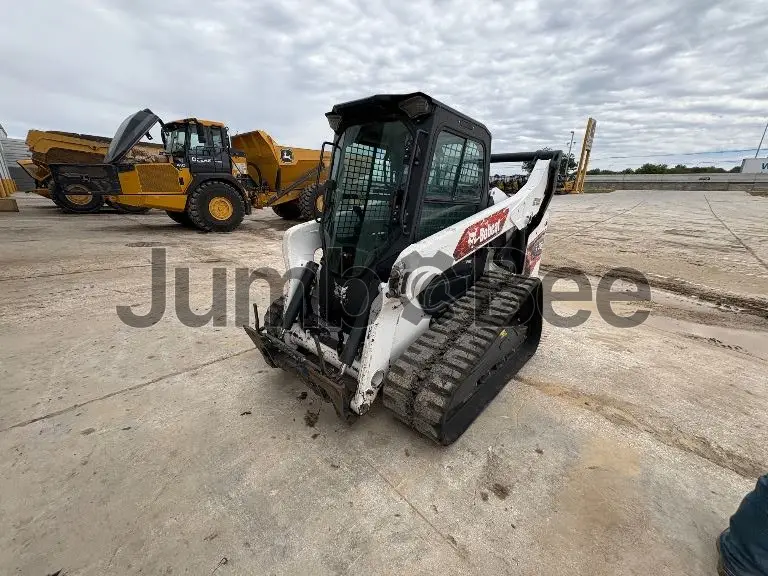

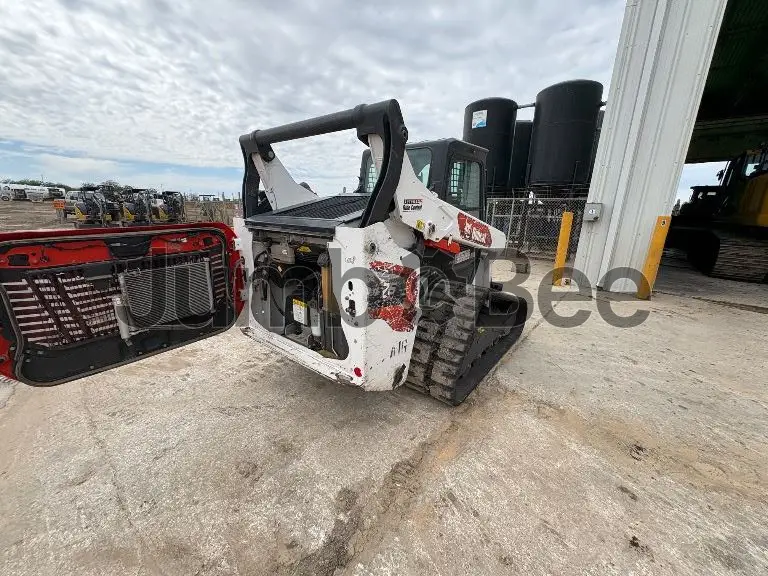

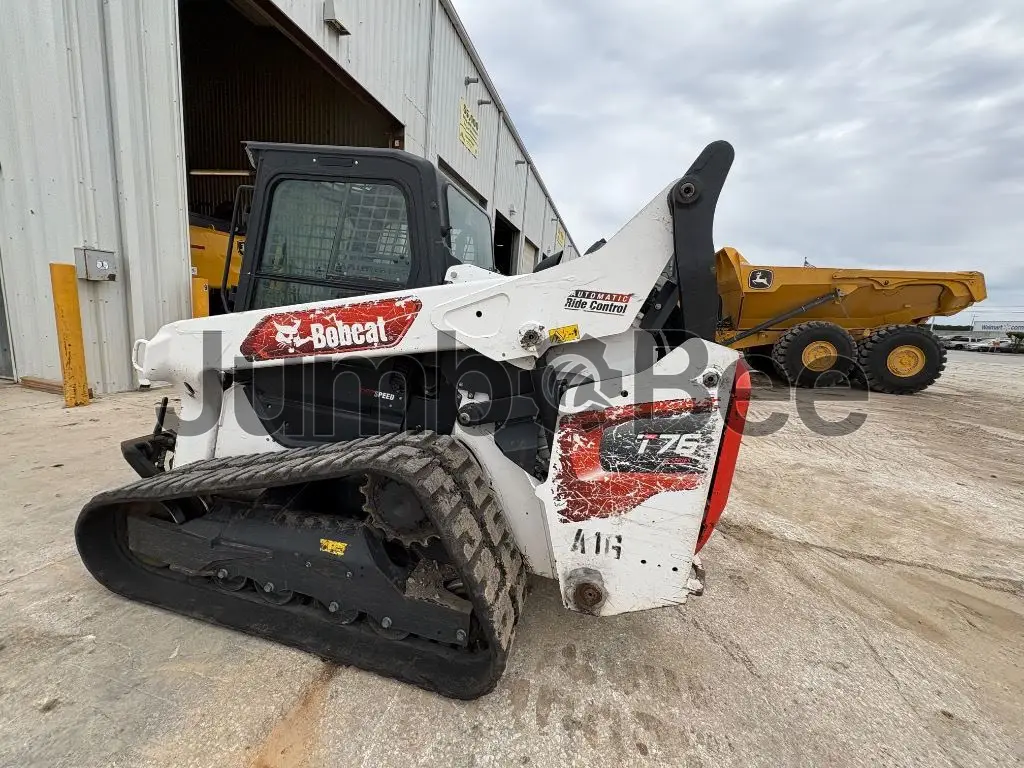

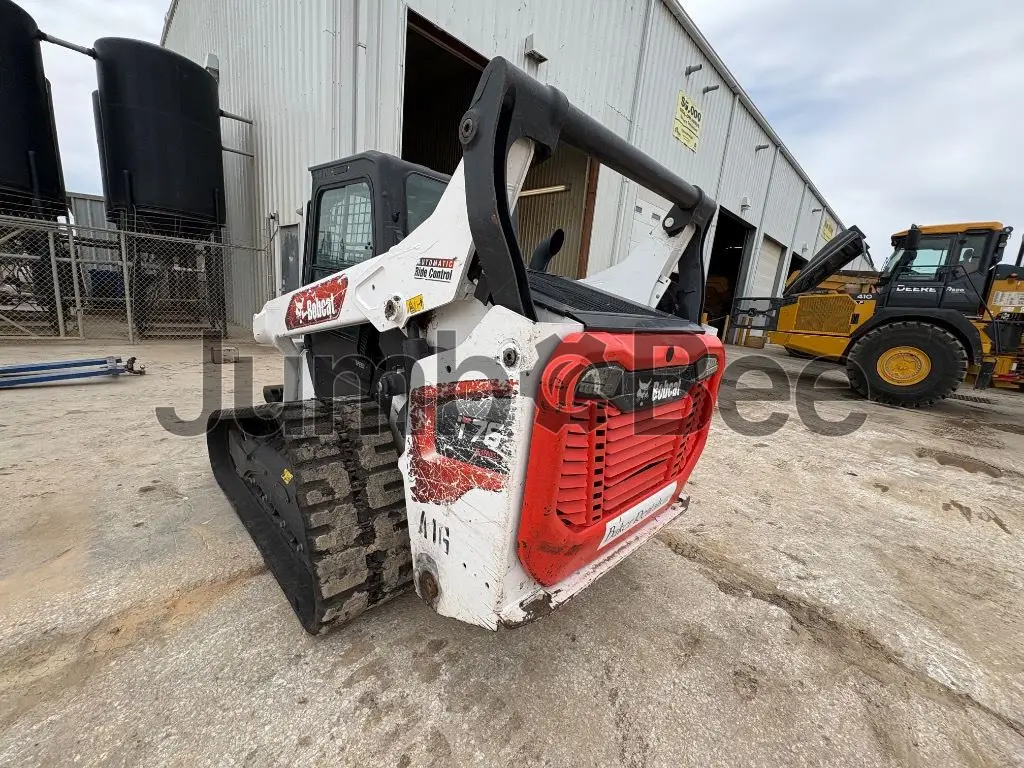

The Bobcat T76 crawler loader is designed for loading and material-handling work on construction sites. It is powered by a Bobcat 2.4L, 97/68 EC engine rated at 54 kW (74 hp) and meets EC Stage V emission standard level. With an operating weight of 4,891 kg (10,780 lb), it is built around a heaped bucket capacity of 0.76 m³ (1 cu yd).
The machine uses infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors, with steering and hydraulic functions controlled by Selectable Joystick Controls (SJC). Its open center hydraulic system provides a pump flow of 88.1 L/min (23.3 gpm) and a system relief pressure of 241.3 bar (3,500 psi). The T76 also has a travel speed of 14.8 km/h (9.2 mph) and a static tipping load of 4,050 kg (8,930 lb).
Year
2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,032 mm
~80 in
2,078 mm
~81.8 in
3,736 mm
~147.1 in
4,898 kg
~10,798.3 lb
Engine Power
74 hp
Operating Weight
4,891 kg
Bucket Capacity - Heaped
0.76 cu(m)
Rated Operating Capacity
1,315.42 kg
Additional specifications
Emission standard level
EC Stage V
Displacement
146.5 cu(in)
Transmission type
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors
Fuel tank
120 L
Hydraulic system type
Open center
Number of batteries
1
Cooling system
11.3 L
Number of Cylinders
4
Battery Voltage
12 v
System Relief Pressure
3,500 psi
Undercarriage Ground Pressure
32 kPa
Length of Track on Ground
1,505 mm
Hydraulic controls
Selectable Joystick Controls (SJC)
Engine Oil
9.2 L
Track Gauge
1,850 mm
Net Power (ISO 9249)
74 hp
Manufacturer and Model
Bobcat 2.4L, 97/68 EC
Net Peak Torque
280 Nm
Powertrain System Relief Pressure
3.5 psi
Travel Speeds
14.8 km/h
Steering
Direction and speed controlled by Selectable Joystick Controls (SJC)
Pump Flow
88.1 L/min
Alternator Rating
90 amp
Grouser Width
320 mm
Ground Contact Area
1.41 sq(m)
Width of Bucket (General Purpose)
1,880 mm
Capacity Heaped
0.76 cu(m)
Bucket Weight
454 kg
Static Tipping Load
4,050 kg
Bobcat T76 Skid Steer / CTL Listings
Looking for Bobcat T76 Skid Steer / CTL?
See similar listingsCompare Bobcat T76 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Bobcat T76 Skid Steer / CTL
0.76 cu(m)
4898 kg
3736 mm × 2032 mm × 2078 mm
Add model
Add model
5.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
5.0
Comfort & Ergonomics
4.0
Safety
5.0
Technology & Features
5.0
Frank Howard
We added high-flow and it runs the mulcher well. It's smooth and quiet with good visibility to the attachment. The tracks give good flotation in soft ground.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
October 9, 2026
Motor Grader Buying Guide: Sizes, Top Brands, and What Contractors Should Look For
This guide helps buyers select the right motor grader for their needs and maximize ROI across construction, mining, and snow removal.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Bobcat T76?
No confirmed market price is supplied for the Bobcat T76. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Bobcat T76?
Supplied specifications indicate 55.2 kW (74 hp) net power, a 0.76 m³ (0.99 cu yd) heaped bucket capacity, Selectable Joystick Controls (SJC), and an infinitely variable tandem hydrostatic transmission. Its undercarriage ground pressure is 32 kPa (4.6 psi).
What type of engine does the T76 use?
The T76 uses a Bobcat 2.4L, 97/68 EC engine. It has 4 cylinders, 146.5 cu in displacement, and an EC Stage V emission standard level.
How much horsepower does the T76 have?
The T76 has 55.2 kW (74 hp) of engine power. Its net power, rated under ISO 9249, is also 55.2 kW (74 hp).
What fuel does the Bobcat T76 use?
The supplied specifications do not confirm the fuel type for the Bobcat T76.
What jobs is this Crawler Loaders best suited for?
The supplied data does not identify specific job applications. Available specifications include a 0.76 m³ (0.99 cu yd) heaped bucket capacity, 4,891 kg (10,783 lb) operating weight, and 32 kPa (4.6 psi) undercarriage ground pressure.
What is the expected lifespan of the T76?
No expected service-life estimate is supplied for the T76. Inspect maintenance records, engine and hydraulic condition, undercarriage wear, controls, and signs of leaks when assessing an individual machine.
What should a buyer check when purchasing a used Crawler Loaders?
Check service records, engine operation, hydraulic performance, leaks, controls, battery and charging system, bucket condition, and undercarriage components. Inspect tracks, grousers, rollers, sprockets, and track tension for wear. Confirm that the machine’s configuration and attachments match the intended work.
