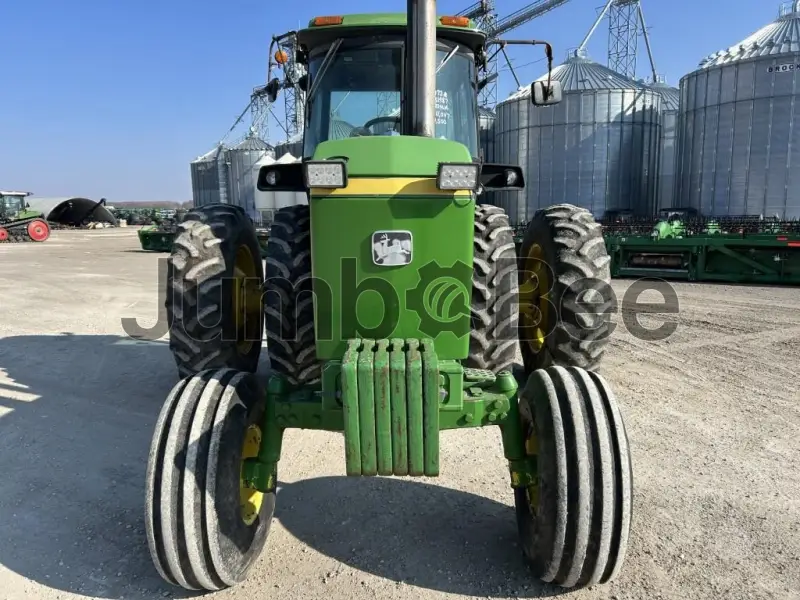

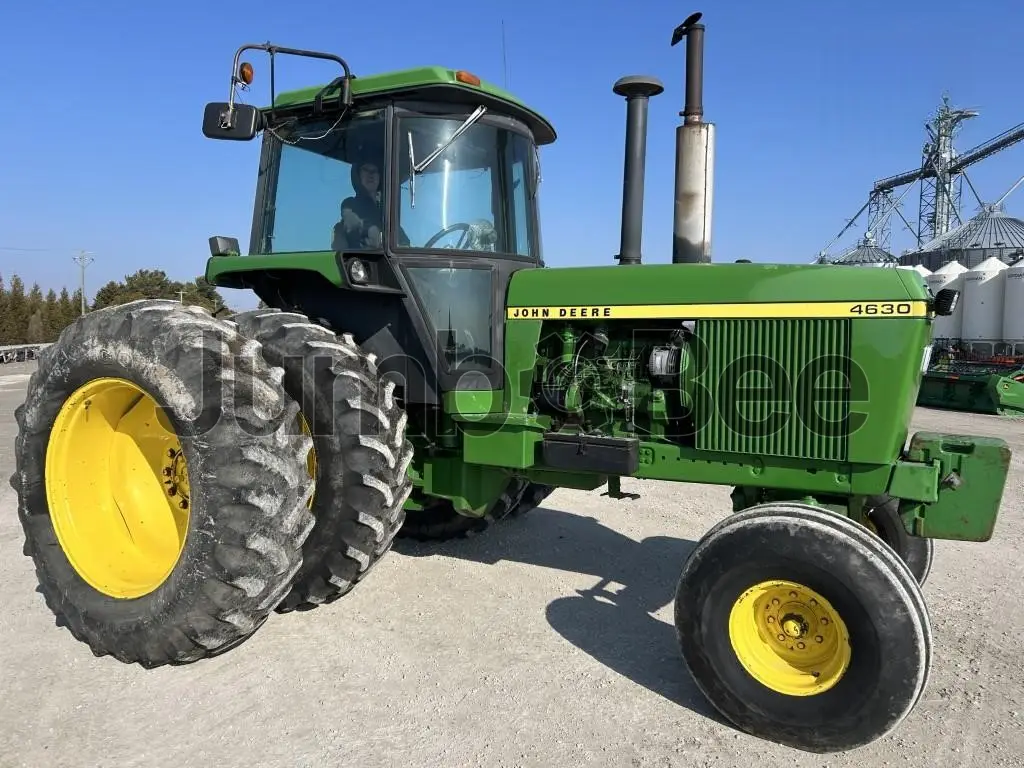

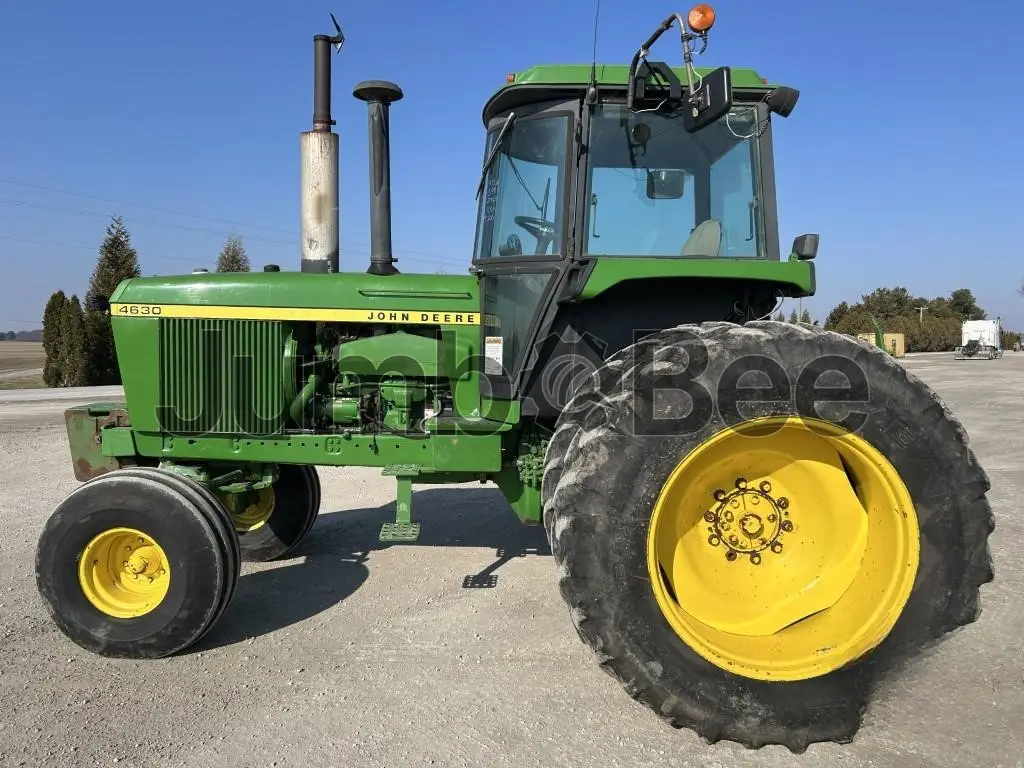

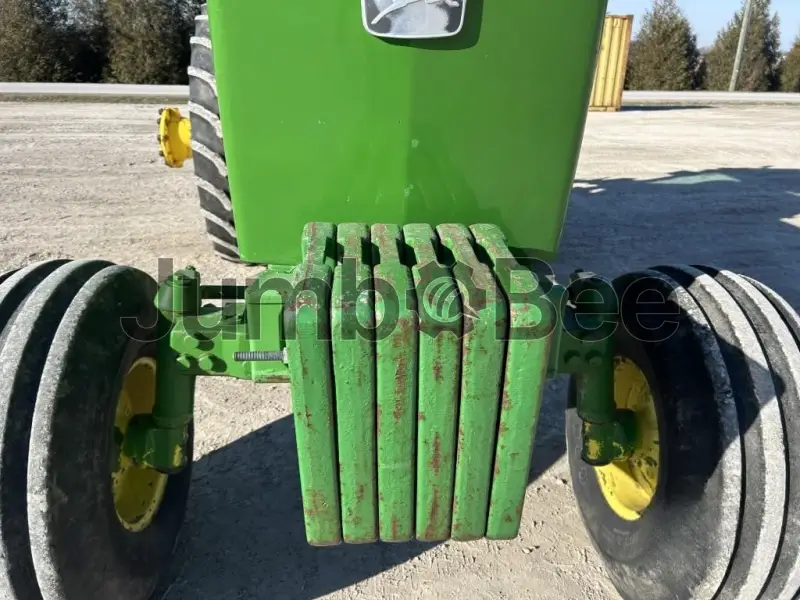

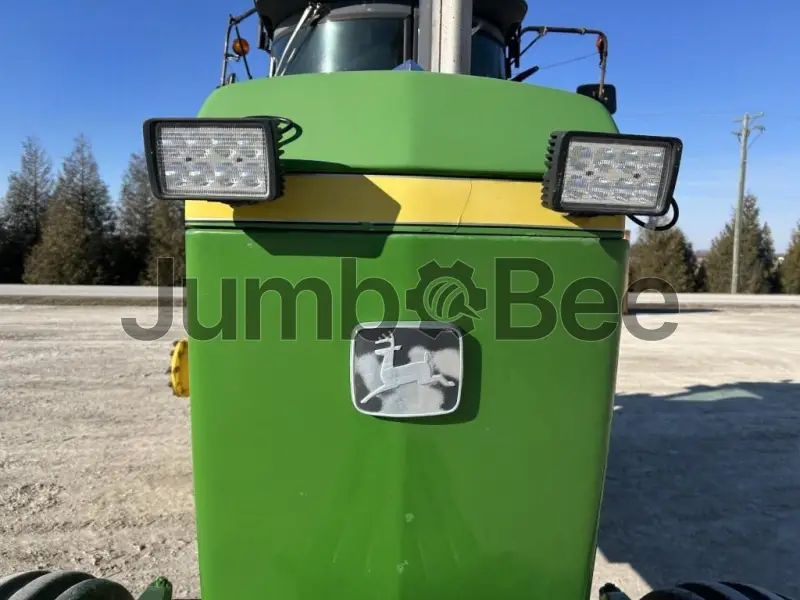

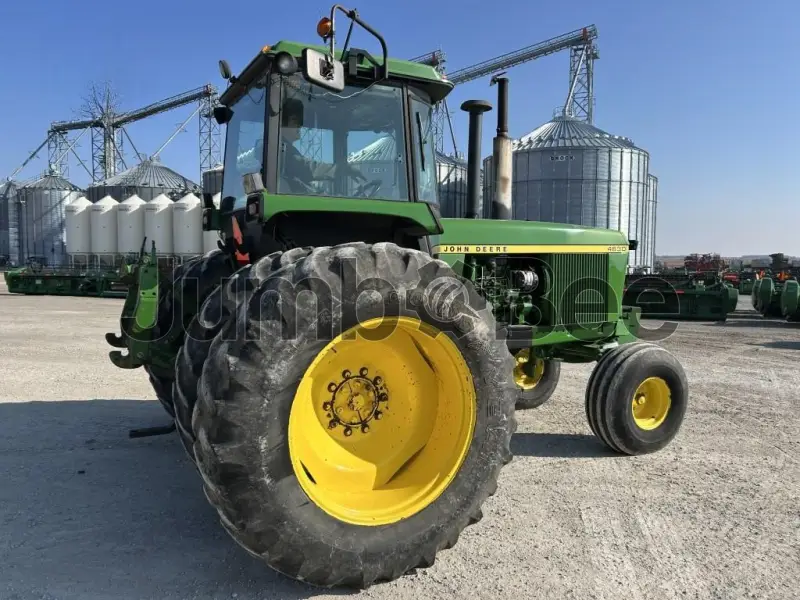

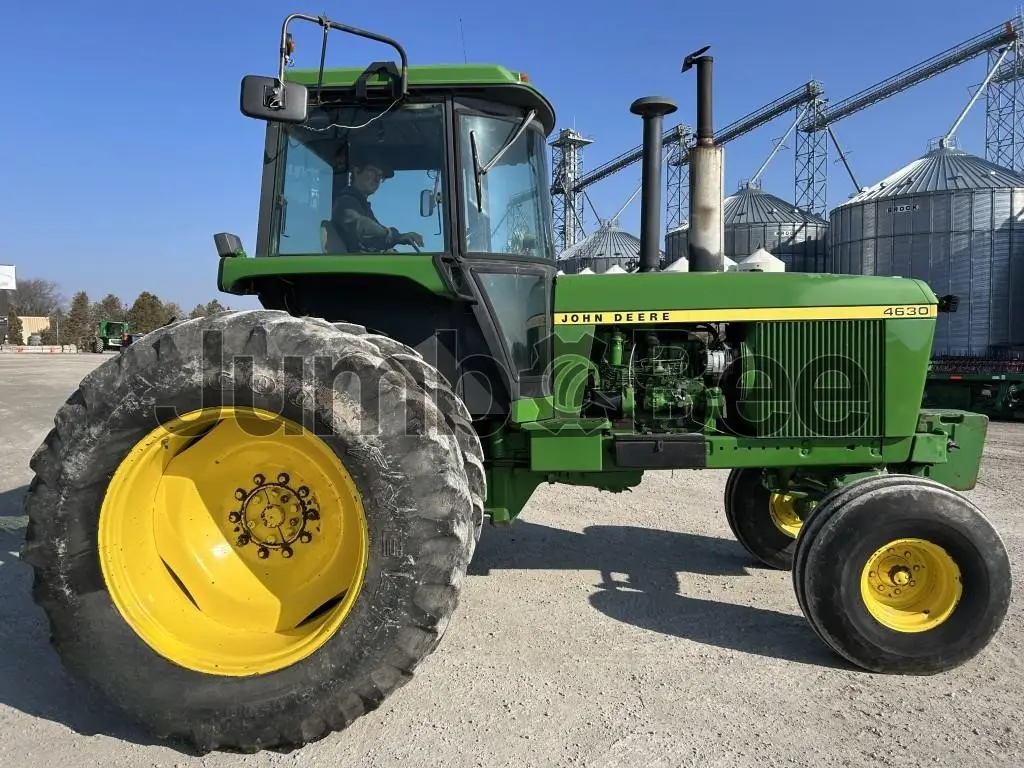

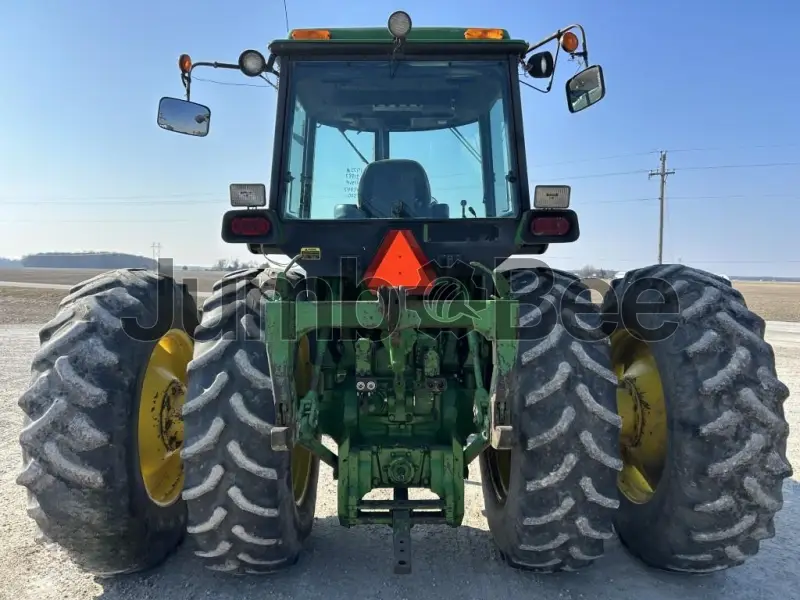

John Deere 4630 Row Crop Tractors
John Deere 4630
Average price
$19,500
5+
sold in last year
General overview
The John Deere 4630 is a wheeled tractor for farm work and general field operations. It uses a diesel engine rated at 165 kW (224 hp), placing it in a high-power class for routine agricultural tasks.
The model is listed with Tier 1 emissions level and a transmission choice of Synchro-Range or Quad-Range. PTO output is rated at 135 kW (184 hp) with a maximum of 150 kW (204 hp), and PTO speeds of 540 rpm / 1000 rpm support a range of implement requirements. A rear Cat-2 hitch and closed-center pressure and flow compensated hydraulics with mechanical SCV control support field implements.
Year
1973, 1974, 1975, 1976, 1977
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,540 mm
~100 in
3,000 mm
~118.1 in
4,877 mm
~192 in
6,078 kg
~13,399.7 lb
Tire or Track Type
Wheels
Engine Power
165 hp
Additional specifications
Emission standard level
Tier 1
Engine type
Diesel
Displacement
414 cu(in)
Maximum PTO power
150 hp
Rated PTO power
135 hp
Speeds
540 rpm / 1,000 rpm
Transmission type
Synchro-Range or Quad-Range
Rear hitch category (SAE designation)
Cat-2
Maximum lift capacity behind lift points
2.994 kg
Fuel tank
246 L
Cab glass area
5.7 sq(m)
Hydraulic system type
Closed-center pressure and flow compensated
Pump rated output
16.9 L/min
Available flow at a single rear SCV
12 L/min
SCV control
Mechanical
Tires rear
380-80R38 R1W Radial
