Westfield MKX21384XTEND Grain Auger
Westfield MKX21384XTEND
5+
sold in last yearGeneral overview

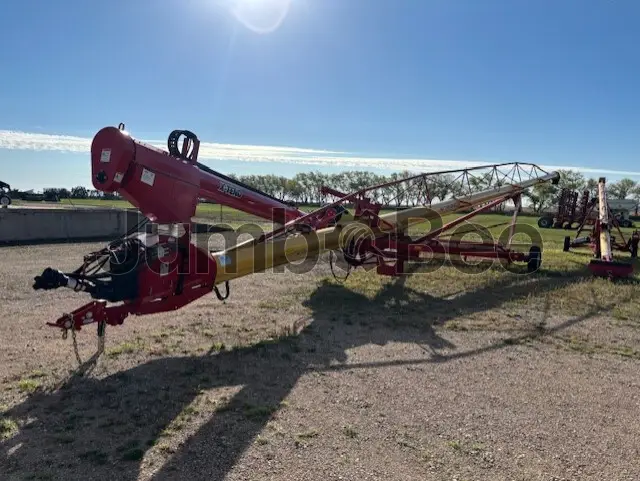

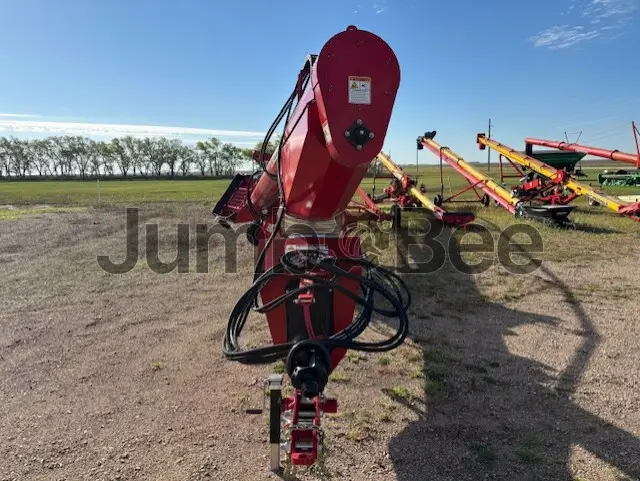

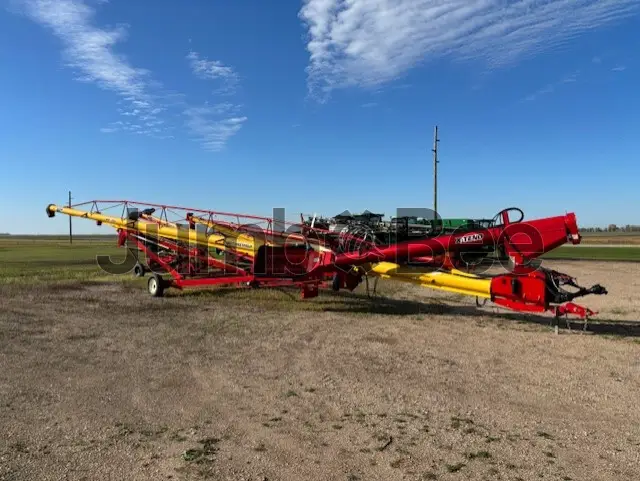

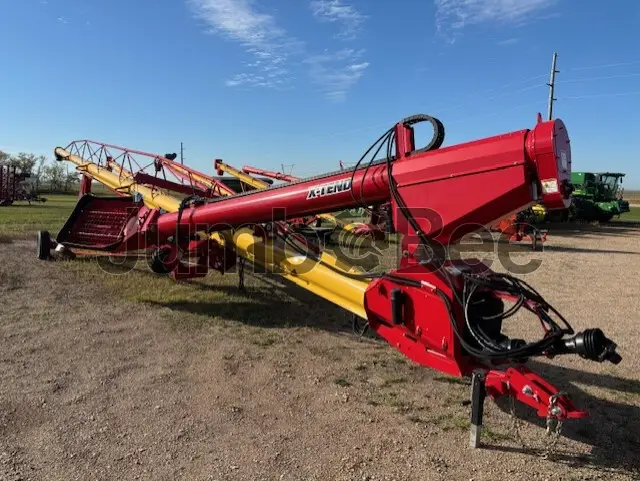

Westfield MKX21384XTEND is a grain auger designed for farm grain handling and transfer tasks. It is specified for 540 rpm tractor PTO operation and recommends 37 kW (50 hp), placing it in a PTO-driven attachment class suited to mid-range tractors. The 330 mm (13 in) intake diameter and hydraulic swing-away with XTEND hopper lift support grain pickup and positioning during loading operations.
Its operating dimensions show a long-reach auger configuration, with a 6,200 mm (20 ft 4 in) raised height, 10,200 mm (33 ft 6 in) lowered reach, and 7,800 mm (25 ft 7 in) raised reach. The 11,900 mm (39 ft 1 in) transport length, 2,800 mm (9 ft 2 in) operating width, and 1,000 kg (2,200 lb) operating weight help define its field setup and transport profile.
Year
2024, 2025, 2026
Country of manufacturing
Canada
General specifications
Dimensions
Length
Width
mm
~ in
3,200 mm
~126 in
Tractor PTO speed
540
Capacity (bushels per hour)
387,629,77 L/min
Recommended PTO Horsepower
50 hp
Tractor PTO RPM
540
Additional specifications
Drive type
PTO
Operating Weight
1,000 kg
Operating width
2,800 mm
Axle
100 mm square beam, adjustable
Wheel Size
16.5 x 16.1 inch
Upper Bar Length
3,000 mm
HP Intake Diameter
330 mm
Height - Raised
6,200 mm
Reach - Lowered
10,200 mm
Reach - Raised
7,800 mm
Reach - Intake
2,500 mm
Tube Thickness
3,5 mm
Flighting - Standard Intake
13" dia., 3/16" wall, tapered boot flight
Flighting - Main
13" dia., 10 ga. wall (3.4 mm), full pitch
1/4" Core Diameter
89 mm
Top Drive Chain
#80 chain
Transport Length
11,900 mm
Transport Height
4,100 mm
Wheel Track Width
3,200 mm
Lower Bearing Size
50 mm
Gearbox Shaft Diameter
38 mm
Weight - Hitch
450 kg
Frame Arms
Square tube, 200x,200x10 mm
Number of Hydraulic Cylinders
4
Hydraulic Requirements
1x remote (45.4 L/min @ 2,000 psi)
Tire Size
16.5L-16.1
Tire Ply Rating
12
Height w/ Extension
1,400 mm
Number of Horizontal Flights
3
Number of Wheels
4
Lift Mechanism
Hydraulic swing-away with XTEND hopper lift
Westfield MKX21384XTEND Grain Auger Listings
Looking for Westfield MKX21384XTEND Grain Auger?
See similar listingsCompare Westfield MKX21384XTEND Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Westfield MKX21384XTEND?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Westfield MKX21384XTEND?
Listed features include a hydraulic swing-away with XTEND hopper lift, four hydraulic cylinders, three horizontal flights, an adjustable 100 mm square-beam axle, and four wheels. It requires one hydraulic remote and a 540 rpm tractor PTO.
What type of engine does the MKX21384XTEND use?
No engine type is supplied. The MKX21384XTEND is specified for tractor PTO operation at 540 rpm.
How much horsepower does the MKX21384XTEND have?
The recommended PTO horsepower is 37.3 kW (50 hp).
What fuel does the Westfield MKX21384XTEND use?
No fuel type is supplied. This grain auger operates from a tractor PTO at 540 rpm.
What jobs is this Grain Auger best suited for?
The supplied data identifies this machine as a Grain Auger. Its listed capacity is 387,629.8 L/min (102,400.9 gpm), with a hydraulic swing-away and XTEND hopper lift for grain-handling work. Specific job applications are not further confirmed.
What is the expected lifespan of the MKX21384XTEND?
No expected lifespan is supplied. Inspect flighting, bearings, drive chain, gearbox shaft, hydraulic components, tires, frame arms, and axle condition, and follow the applicable maintenance guidance.
What should a buyer check when purchasing a used Grain Auger?
Check the flighting, intake, tube, lower bearing, #80 top drive chain, gearbox shaft, hydraulic swing-away and XTEND hopper lift, cylinders, tires, wheels, axle, frame arms, and hitch. Verify that the auger operates correctly from the required tractor PTO and hydraulic remote.
