John Deere XUV835M UTVs
John Deere XUV835M
Average price
$15,735.71
5+
sold in last year
General overview
The John Deere XUV835M is a four-wheel-drive utility vehicle in the ATVs and Gators category, built for farm transport and general work around agricultural properties. It is powered by a 40 kW (54 hp) 4-cycle gas engine with electronic fuel injection (EFI), giving it the output needed for hauling materials and moving between work areas.
This model uses a Continuously Variable Transmission (CVT) with clutch enclosure and a final drive with park, high, low, neutral, reverse transaxle. Traction features include a dash switch actuated four-wheel drive system, limited slip front differential; positive locking, switch-actuated rear differential lock, and descent control. It also offers a 454 kg (1,000 lb) capacity (weight) and a cargo volume of 460 L (122 US gal).
Year
2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,228 mm
~127.1 in
1,981 mm
~78 in
1,618 mm
~63.7 in
Engine Power
54 hp
Engine type
4-cycle gas, electronic fuel injection (EFI)
Displacement
cu(m)
Tires front
27x9-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
Transmission type
Continuously Variable Transmission (CVT) with clutch enclosure
Electrical system type
12 V DC outlet
Alternator output
85
Fuel capacity
42 L
Cooling system
5.7 L
Wheelbase
2,146 mm
Drive type
Four-wheel drive
Box length
1,143 mm
Battery Voltage
12
Caster Wheel Type
Extreme terrain radial
Volume
460 L
Capacity (weight)
454 kg
Towing capacity
1,814 kg
Brakes type
Front/rear hydraulic disc with twin piston front calipers
Park brake
Park in-transmission; optional factory-installed secondary foot-operated with hand release
Drivetrain
Continuously Variable Transmission (CVT) with clutch enclosure
Final drive
Park, high, low, neutral, reverse transaxle
Four wheel drive
Dash switch actuated four-wheel drive system
Traction assist
Limited slip front differential; positive locking, switch-actuated rear differential lock
Descent control
Yes
Cab Height
305 mm
Final Drive
Two speed, oil bath
Boom Width
1,320 mm
Rakes Wheel tread
27 mm
Cargo box dimensions
1,143 x 304.8 x 1,320
Cargo box capacity (weight)
454 kg
Front suspension
25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Rear suspension
25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Additional specifications
Color
Green and yellow; TrueTimber KANATI camo; olive and black

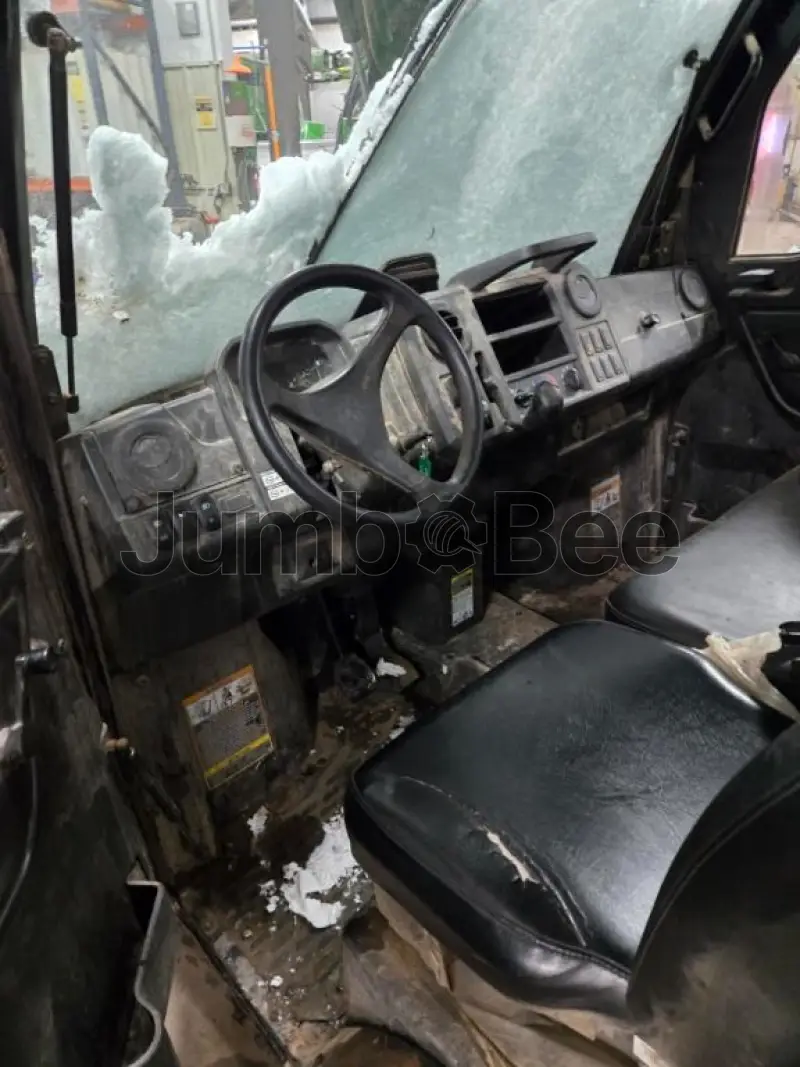

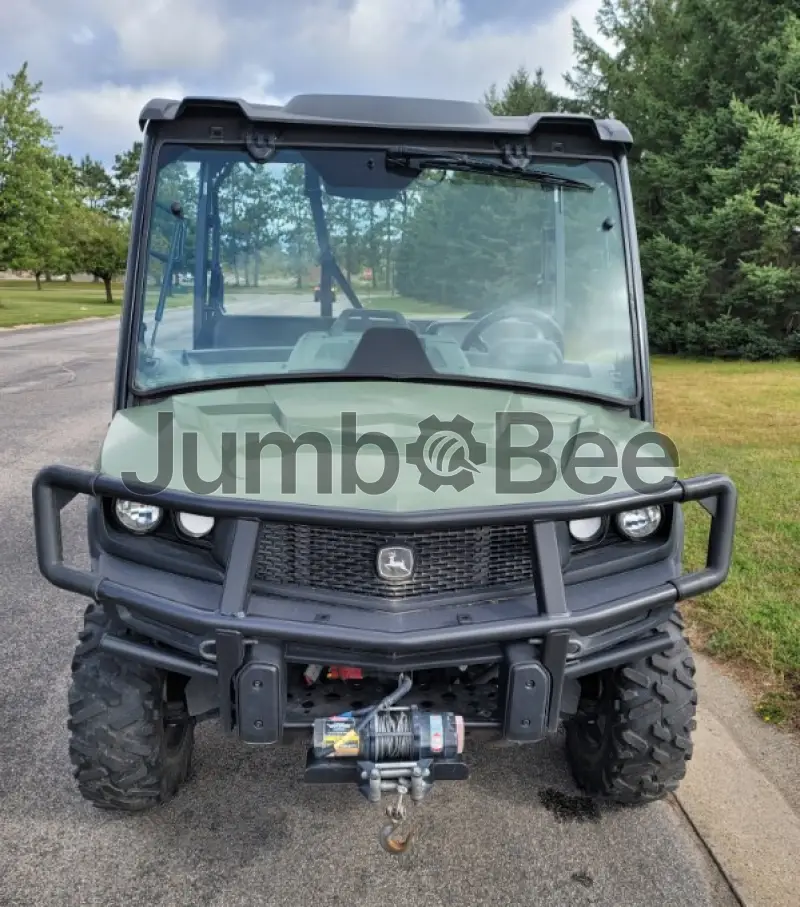

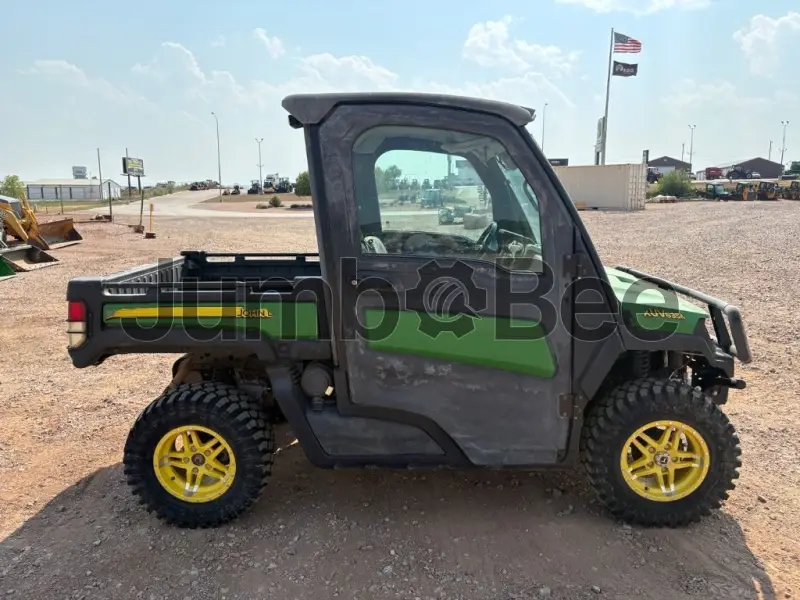

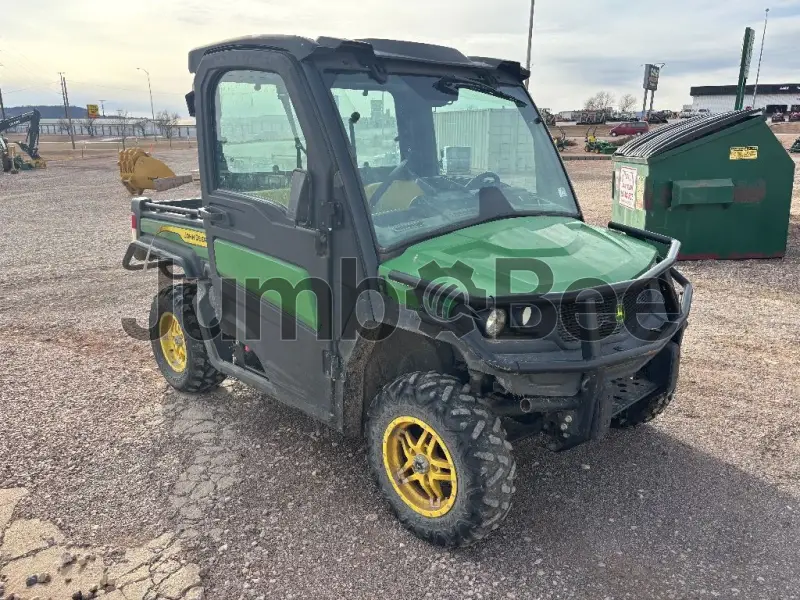

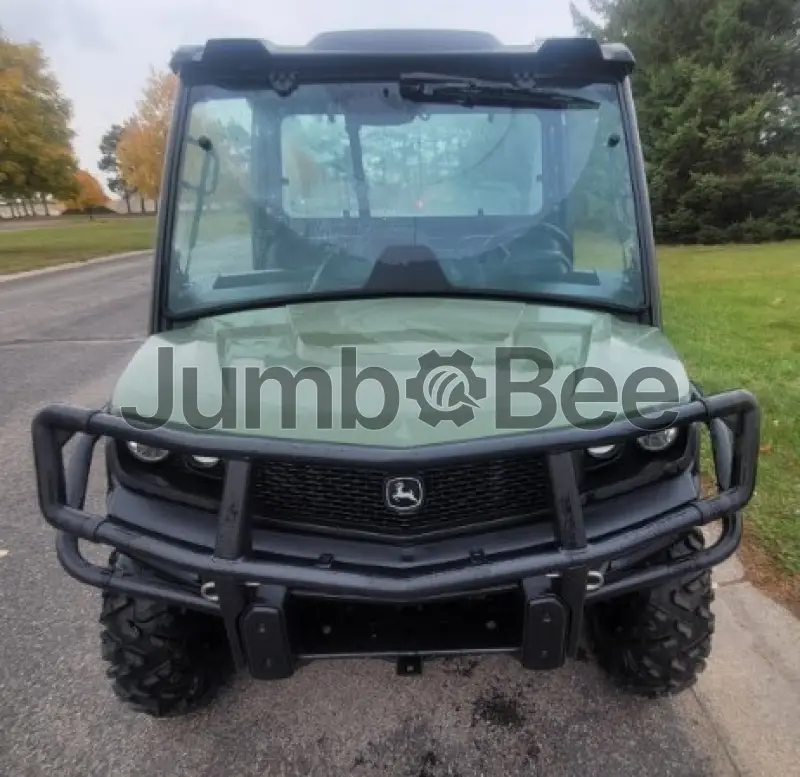

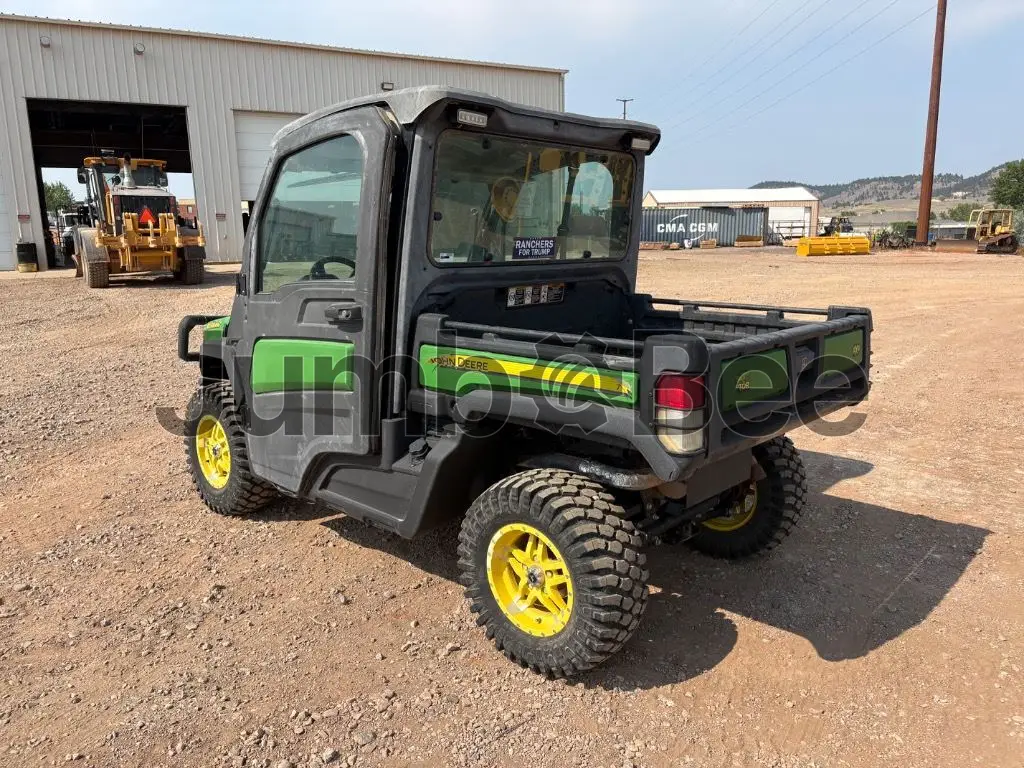

John Deere XUV835M UTVs Listings

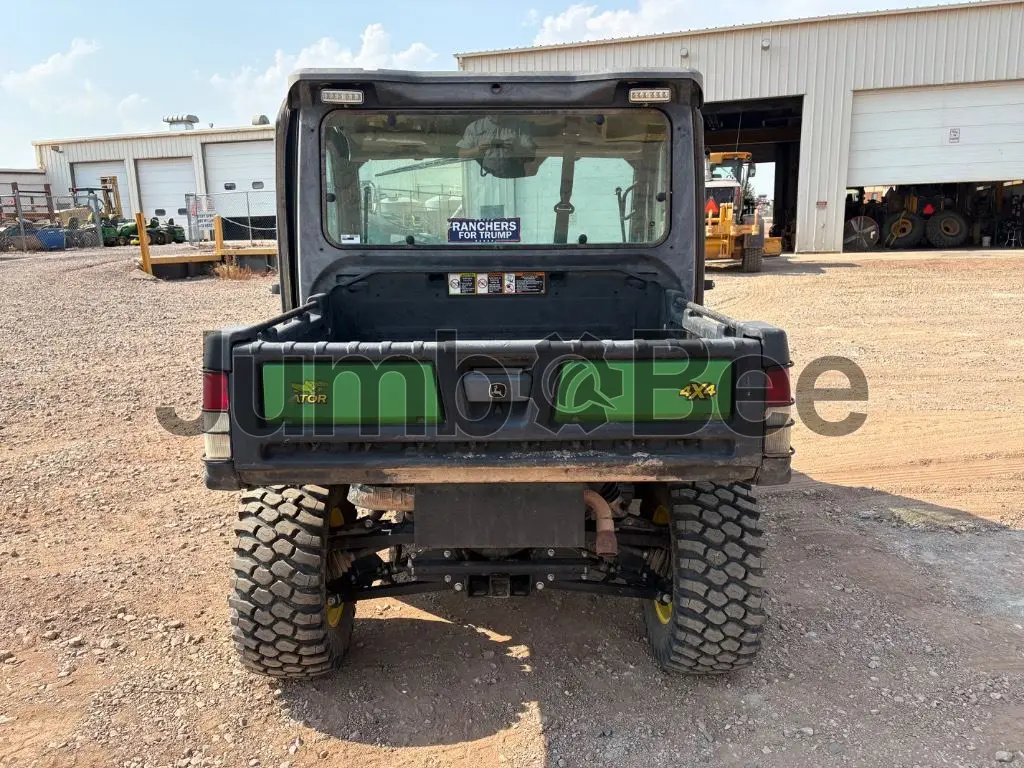

$12,460
54 hp
4-cycle gas, electronic fuel injection (EFI)
460 L
10357 hours
Rapid City, United States

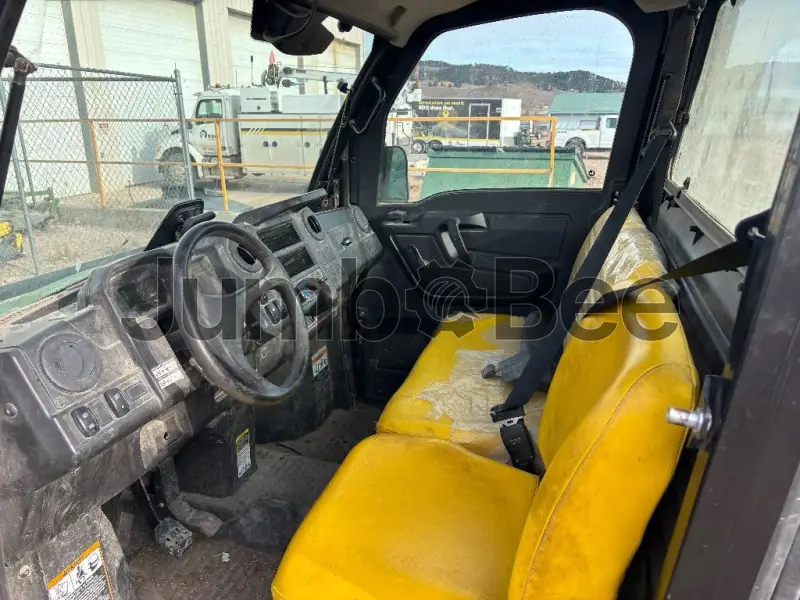

$15,900
Yes
Four-wheel drive
27x9-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
437 hours
Isanti, United States

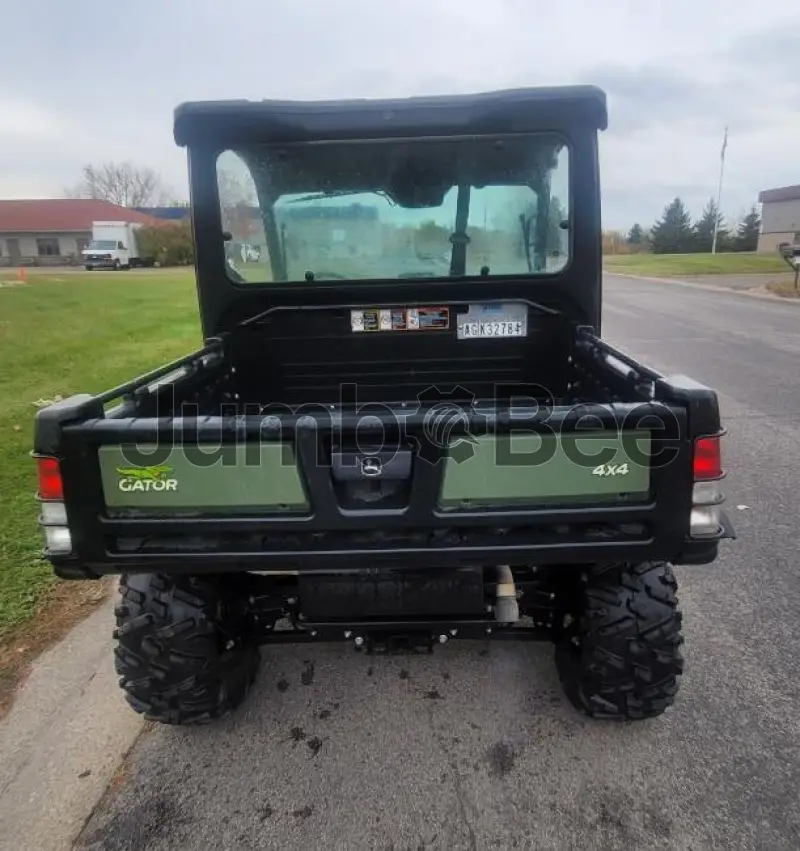

$14,900
27x9-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
27 mm
Extreme terrain radial
448 hours
Isanti, United States
$13,990
54 hp
1320 mm
305 mm
1149 hours
Assumption, United States
$16,880
54 hp
4-cycle gas, electronic fuel injection (EFI)
460 L
1422 hours
Rapid City, United States
$18,130
54 hp
4-cycle gas, electronic fuel injection (EFI)
460 L
394 hours
Bismarck, United States
$17,890
54 hp
4-cycle gas, electronic fuel injection (EFI)
460 L
1231 hours
Hazen, United States
Compare John Deere XUV835M UTV to other utvs
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
October 5, 2026
How to Choose the Right Excavator Bucket: Types, Sizes, and Contractor Buying Guide
This guide covers excavator bucket types, capacities, compatibility, and how to choose the right bucket for your jobsite.
September 28, 2026
Mini Excavator Buying Guide 2026: Best Models, Sizes and How to Choose
This guide breaks down everything you need to know about compact earthmoving equipment.
September 21, 2026
Types of Forklifts: Complete Guide to Classes, Uses, and Applications
This guide covers official forklift classes, physical machine variations, and load capacities.
August 25, 2026
Repair, Rebuild or Replace Heavy Equipment: 2026 Cost-Based Decision Guide
This guide provides a mathematical approach to help you decide what to do with your aging machinery in 2026.
July 31, 2026
How to Inspect Used Heavy Equipment Remotely: Practical Checklist for International Buyers
This article provides a practical, step-by-step guide for evaluating machinery without physical access.
July 10, 2026
New vs Used Heavy Equipment in 2026: Cost, Risk, ROI & When Each Option Wins
This guide explores new vs. used machinery investments, from costs and risks to financing and ROI.
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere XUV835M?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere XUV835M?
Listed features include four-wheel drive, dash-switch actuation, descent control, a limited-slip front differential, and a switch-actuated rear differential lock. It also has a CVT with clutch enclosure, hydraulic disc brakes, 1,814 kg (3,999 lb) towing capacity, and 454 kg (1,001 lb) weight capacity.
What type of engine does the XUV835M use?
The XUV835M uses a 4-cycle gas engine with electronic fuel injection (EFI).
How much horsepower does the XUV835M have?
The XUV835M has 40.3 kW (54 hp) of engine power.
What fuel does the John Deere XUV835M use?
The supplied specifications identify a 4-cycle gas engine with electronic fuel injection (EFI). Fuel capacity is 42 L (11.1 US gal).
What jobs is this ATVs and Gators best suited for?
The supplied data does not confirm specific job applications. Its listed four-wheel drive, traction-assist differentials, descent control, 454 kg (1,001 lb) weight capacity, and 1,814 kg (3,999 lb) towing capacity may be relevant when assessing site-transport and hauling needs.
What is the expected lifespan of the XUV835M?
The supplied data does not provide an expected lifespan. For a used unit, inspect maintenance records, engine operation, CVT function, brakes, tires, drivetrain engagement, differential locks, and signs of damage or corrosion.
What should a buyer check when purchasing a used ATVs and Gators?
Check maintenance records, engine starting and operation, CVT behavior, four-wheel-drive engagement, differential-lock operation, brakes, tires, steering, suspension, towing equipment, cargo area, battery, and electrical outlets. Inspect for leaks, corrosion, frame damage, and excessive wear.
