New Holland TG275 Row Crop Tractors
New Holland TG275
5+
sold in last yearGeneral overview

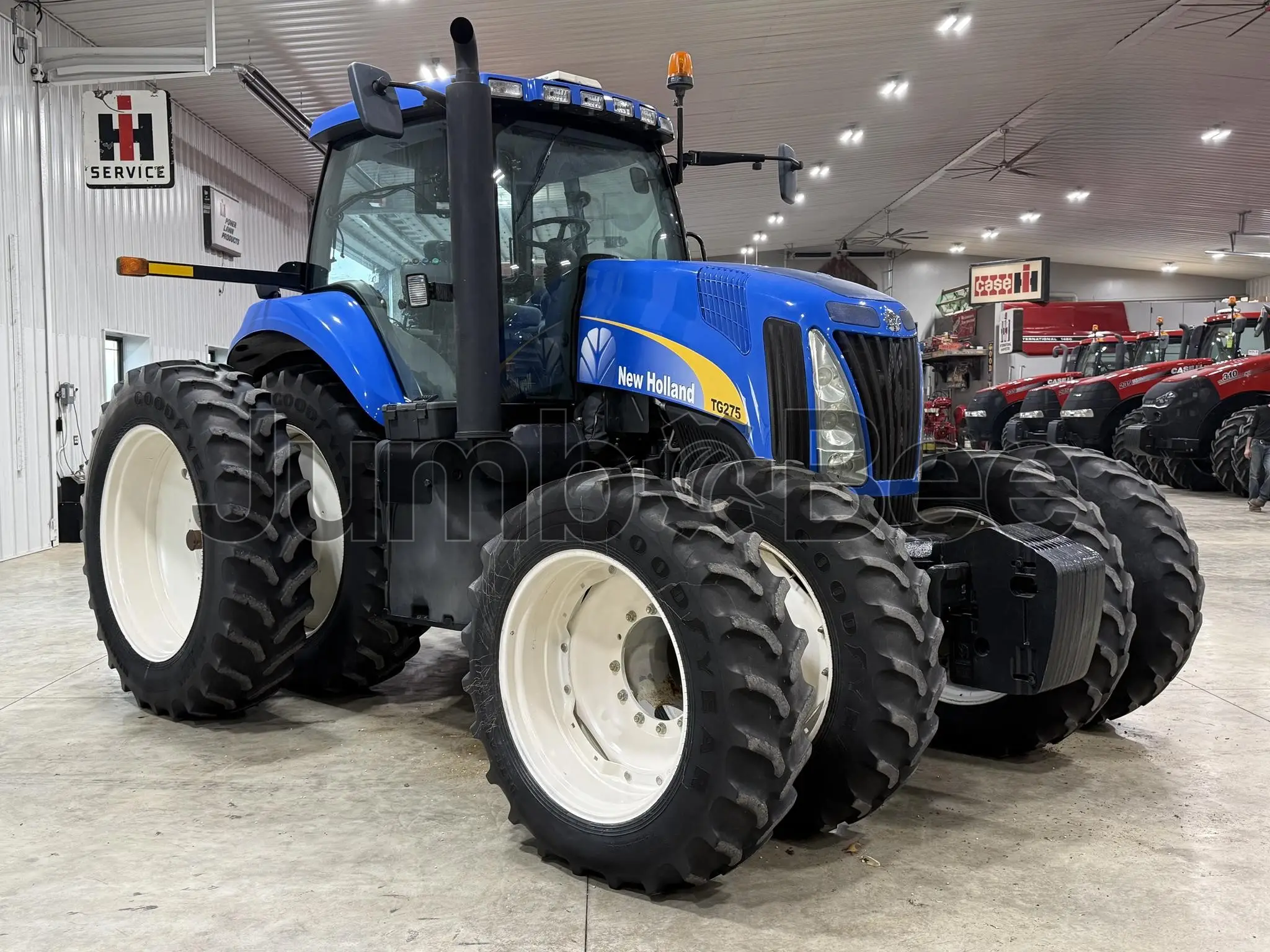

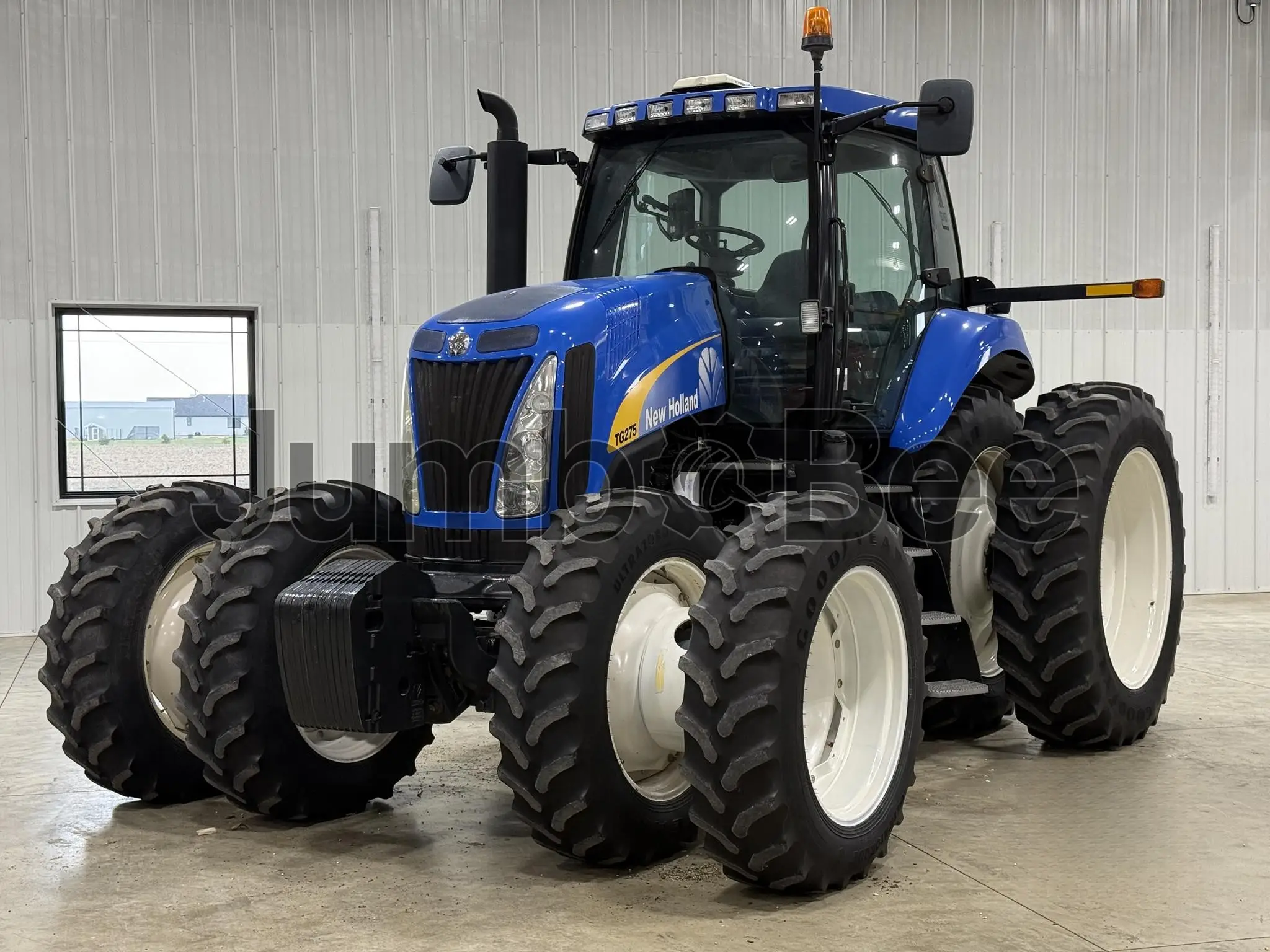

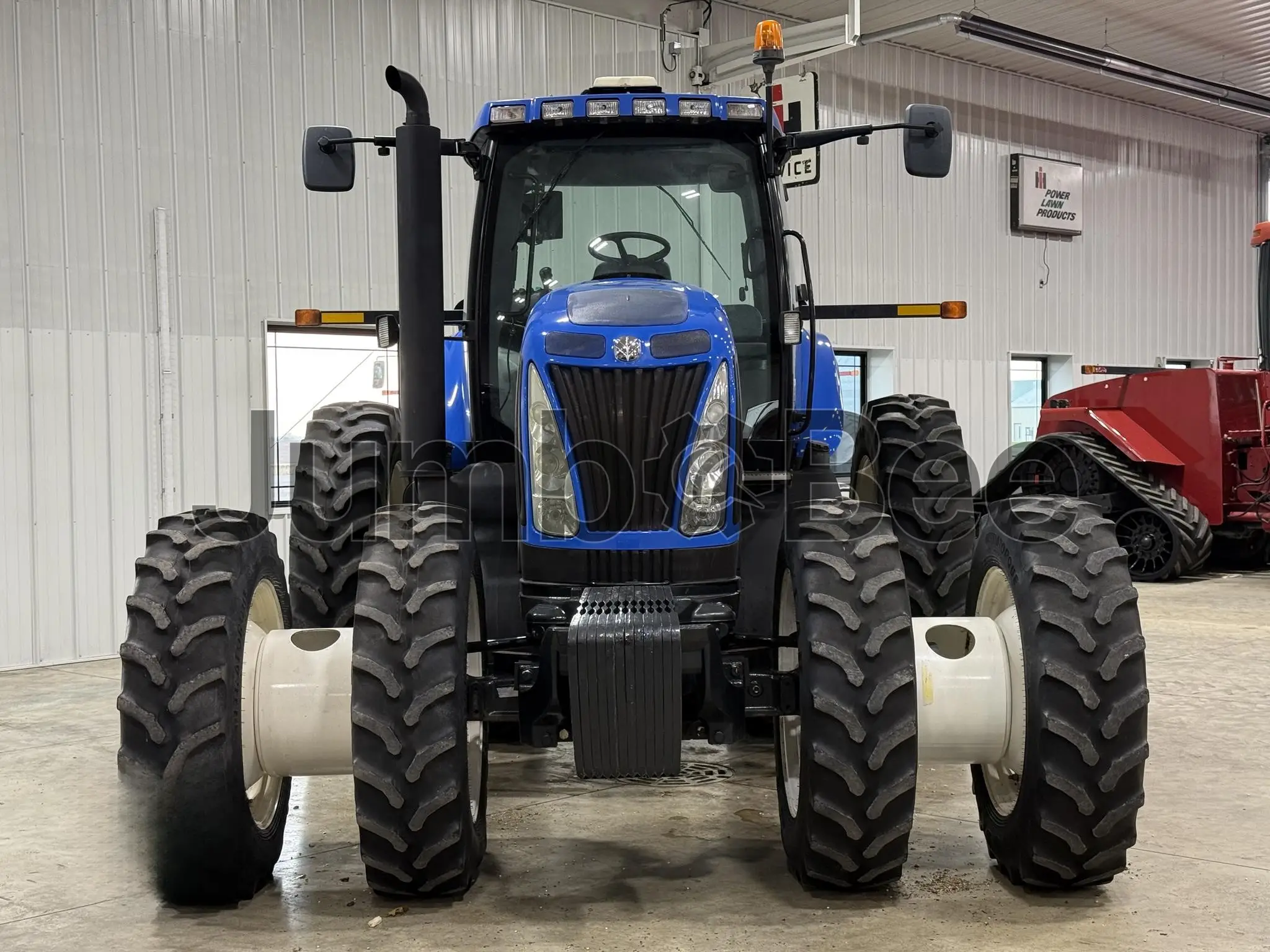

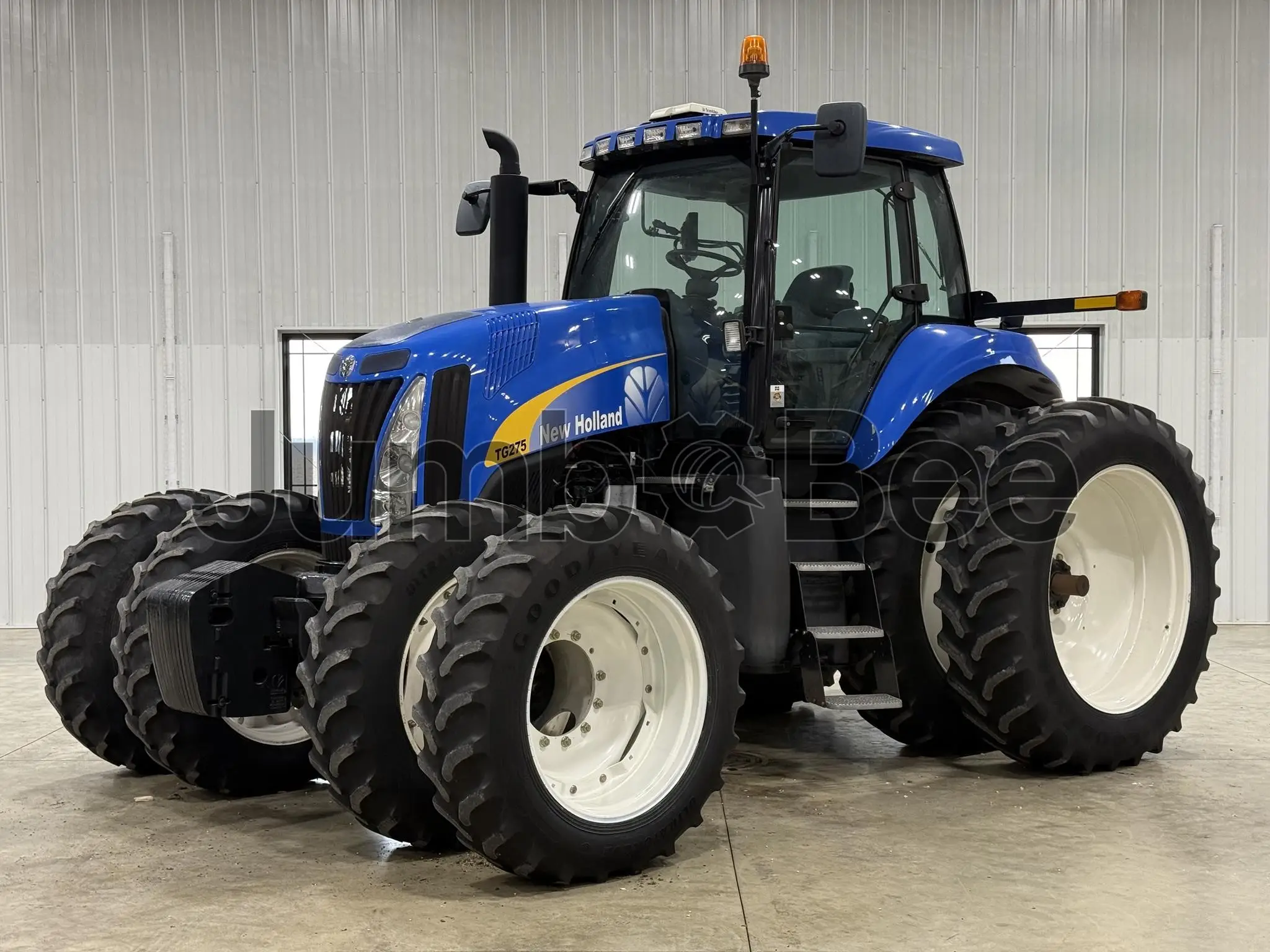

The New Holland TG275 is a wheeled tractor built in the United States for field operations and implement work on farms. With a 202 kW (275 hp) diesel engine and 8 L displacement, it is configured for demanding pulling and PTO-driven tasks. It is listed with a Tier 2 emissions standard.
Key working features include a full powershift transmission with 19 forward / 4 reverse speeds, a rear PTO rated at 165 kW (225 hp), and an independent, electro-hydraulic rear PTO. A Category 3 hitch with electronic draft control and lower-link draft sensing supports mounted implements, while the closed-center, pressure-flow compensated (PFC) hydraulic system provides a pump rated output of 113 L/min (29.9 gpm), available flow at a single rear SCV of 162 L/min (42.8 gpm), and 4 rear selective control valves. Maximum lift capacity behind lift points is 10,900 kg (24,030 lb), and front axle configurations include 2WD, MFWD, and optional SuperSteer MFWD.
Year
2003, 2004, 2005, 2006, 2007
Country of manufacturing
United States
General specifications
Dimensions
Weight
8,520 kg
~18,783.4 lb
Tire or Track Type
wheels
Engine Power
275 hp
Additional specifications
Emission standard level
Tier 2
Engine type
diesel
Displacement
8 cu(m)
Maximum PTO power
225 hp
Rated PTO power
225 hp
Transmission type
Full powershift, 19 forward / 4 reverse
Maximum lift capacity behind lift points
10,900 kg
Fuel tank
247 L
Hydraulic system type
Closed-center, pressure-flow compensated (PFC)
Pump rated output
113 L/min
Available flow at a single rear SCV
162 L/min
Number of rear selective control valves
4
SCV control
Electro-hydraulic
Sensing type
Lower-link draft sensing
Hitch type
3
Rear PTO
Independent, electro-hydraulic
Front Axle
2WD, MFWD, optional SuperSteer MFWD
Rear 3-Point Hitch
Electronic draft control
Guidance Ready
guidance_ready
Loader
Loader-ready; heavy front loader optional
Additional Options
Front axle options: 2WD, MFWD, SuperSteer MFWD; hydraulics: standard vs. MegaFlow; PTO 540/1,000; rear SCVs 3-4; guidance-ready/full factory guidance available
Tire type
Agricultural R1 radials
PTO speed
["540", "1,000"]
Tire Size
14.9R30 front MFWD; 18.4R46 or 20.8R42 rear
New Holland TG275 Row Crop Tractors Listings
Looking for New Holland TG275 Row Crop Tractors?
See similar listingsCompare New Holland TG275 Row Crop Tractor to other row crop tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a New Holland TG275?
No confirmed market price is supplied for the New Holland TG275. Check current listings and compare condition, location, and configuration.
What are the key advantages of the New Holland TG275?
Key listed features include a 205.1 kW (275 hp) diesel engine, full powershift transmission, independent electro-hydraulic rear PTO, closed-center PFC hydraulics, and electronic draft control. Available configurations include MFWD or SuperSteer MFWD, guidance capability, and an optional heavy front loader.
What type of engine does the TG275 use?
The New Holland TG275 uses a diesel engine with a Tier 2 emission standard level.
How much horsepower does the TG275 have?
The TG275 has an engine power rating of 205.1 kW (275 hp). Rated and maximum PTO power are 167.8 kW (225 hp).
What fuel does the New Holland TG275 use?
The New Holland TG275 uses diesel fuel. Its fuel tank capacity is 247 L (65.3 US gal).
What jobs is this Tractors best suited for?
The supplied specifications support use with PTO-driven implements, rear-mounted equipment, and hydraulic attachments. Features such as the Category 3 electronic draft-control hitch, rear SCVs, and optional loader support a range of farm tasks. The supplied data does not specify particular applications.
What is the expected lifespan of the TG275?
The supplied data does not provide an expected service life for the TG275. For a used tractor, inspect maintenance records, engine and transmission operation, hydraulics, PTO function, hitch operation, tires, and signs of leaks or wear.
What should a buyer check when purchasing a used Tractors?
Check maintenance records and test the diesel engine, full powershift transmission, PTO, hydraulic system, rear SCVs, and electronic hitch controls. Inspect tire condition, axle configuration, fuel system, hydraulic leaks, and any fitted guidance or loader equipment. Confirm that the tractor's options match the seller's description.
