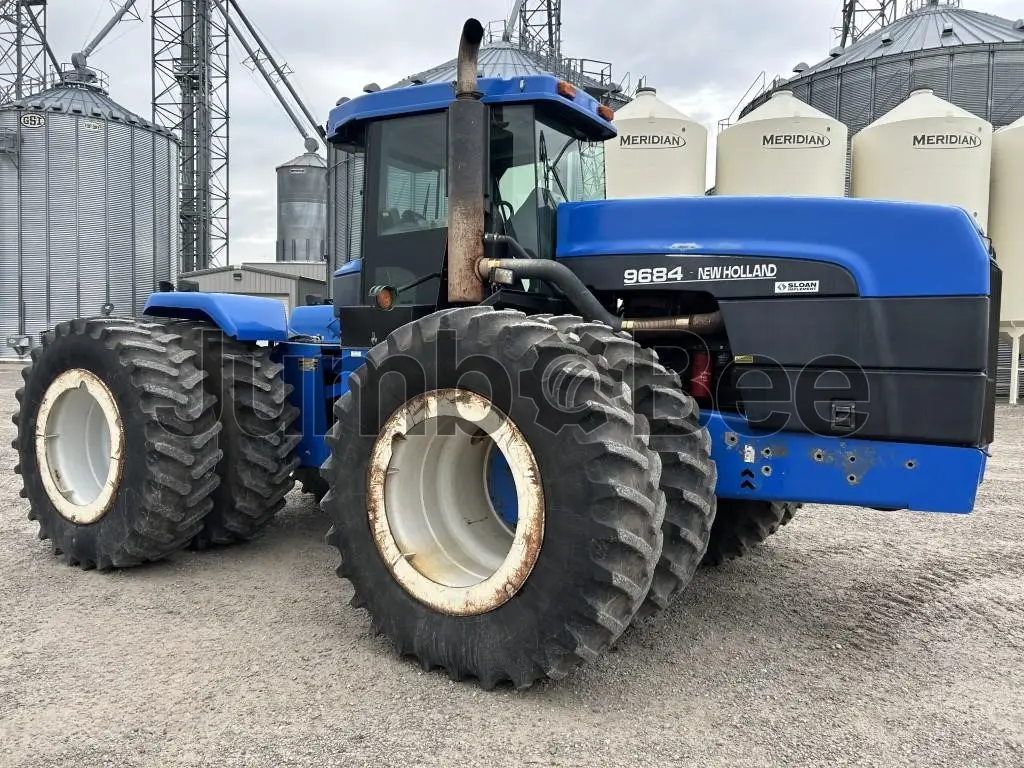

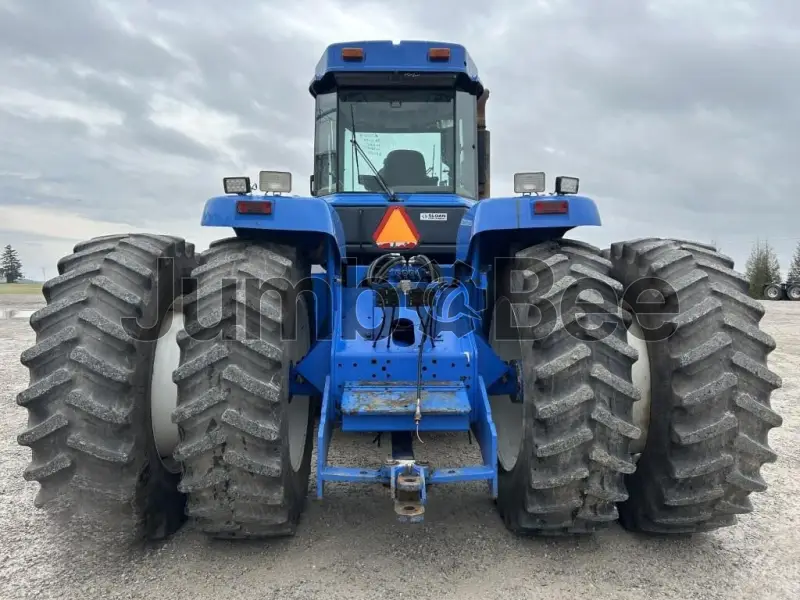

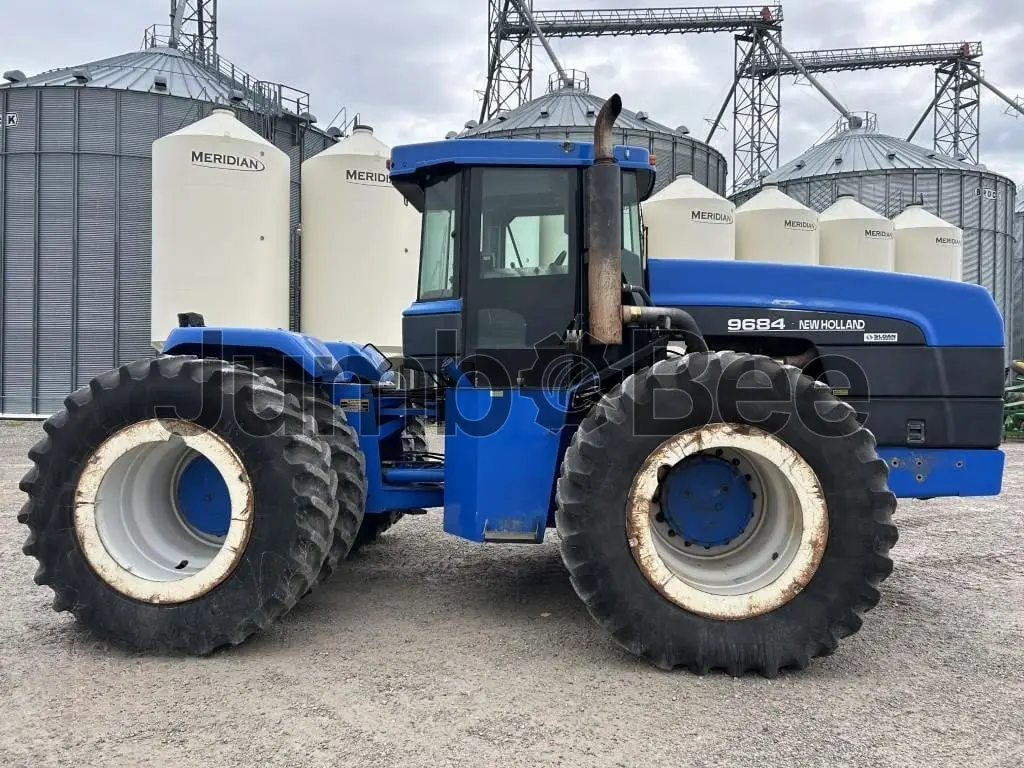

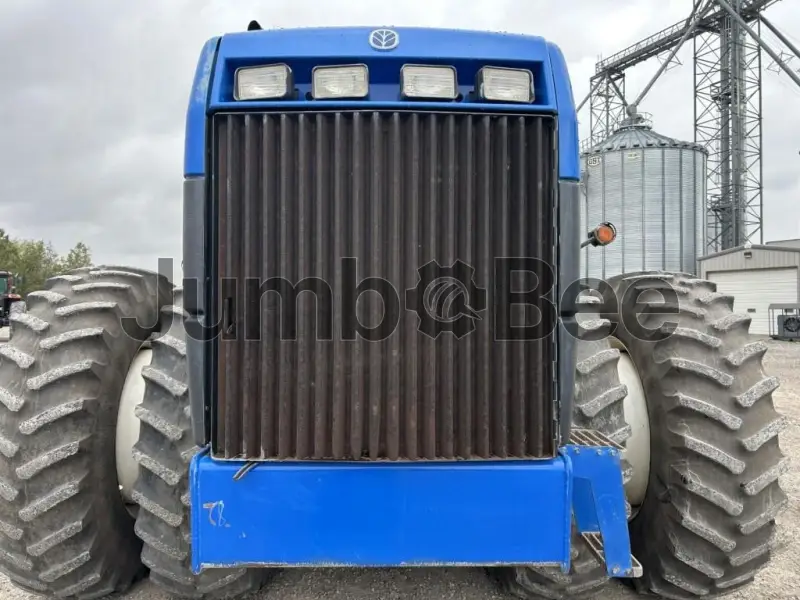

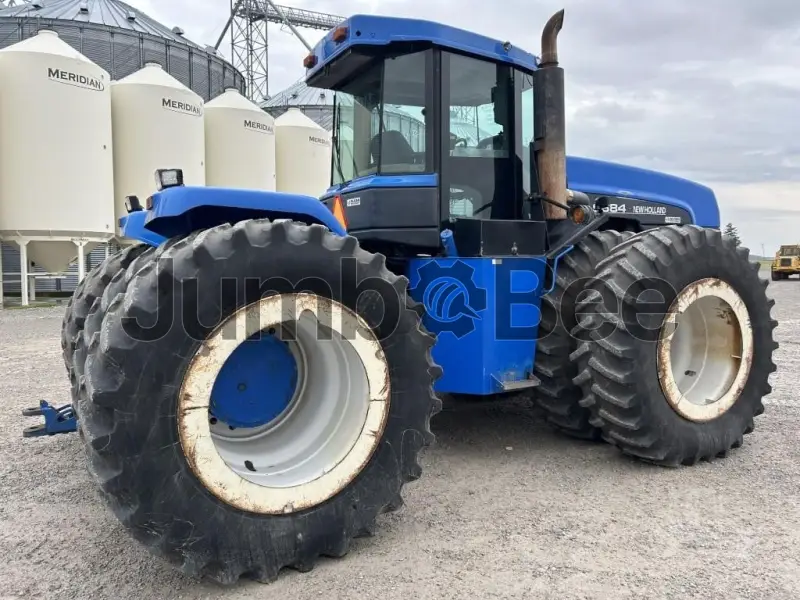

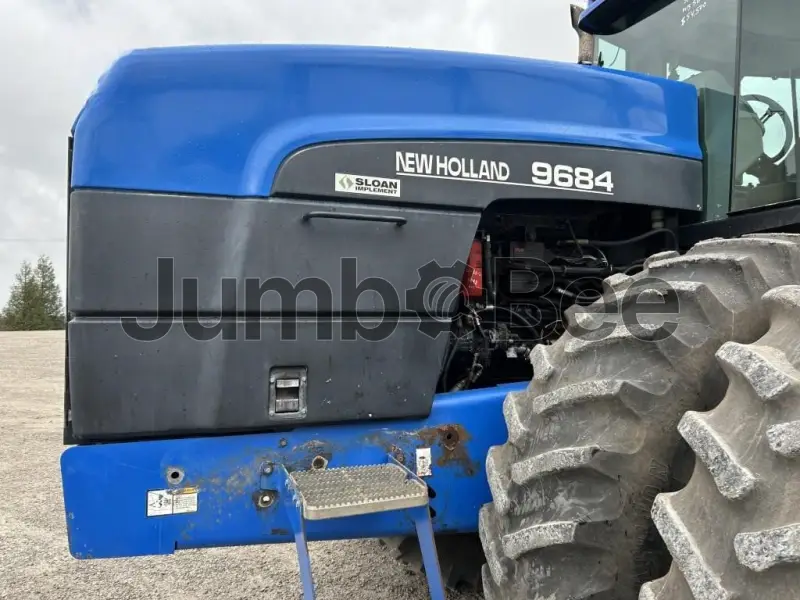

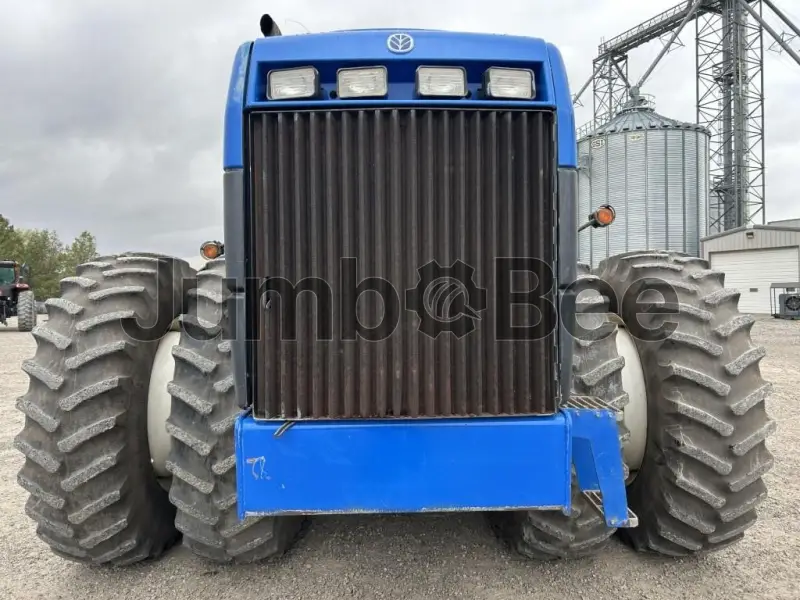

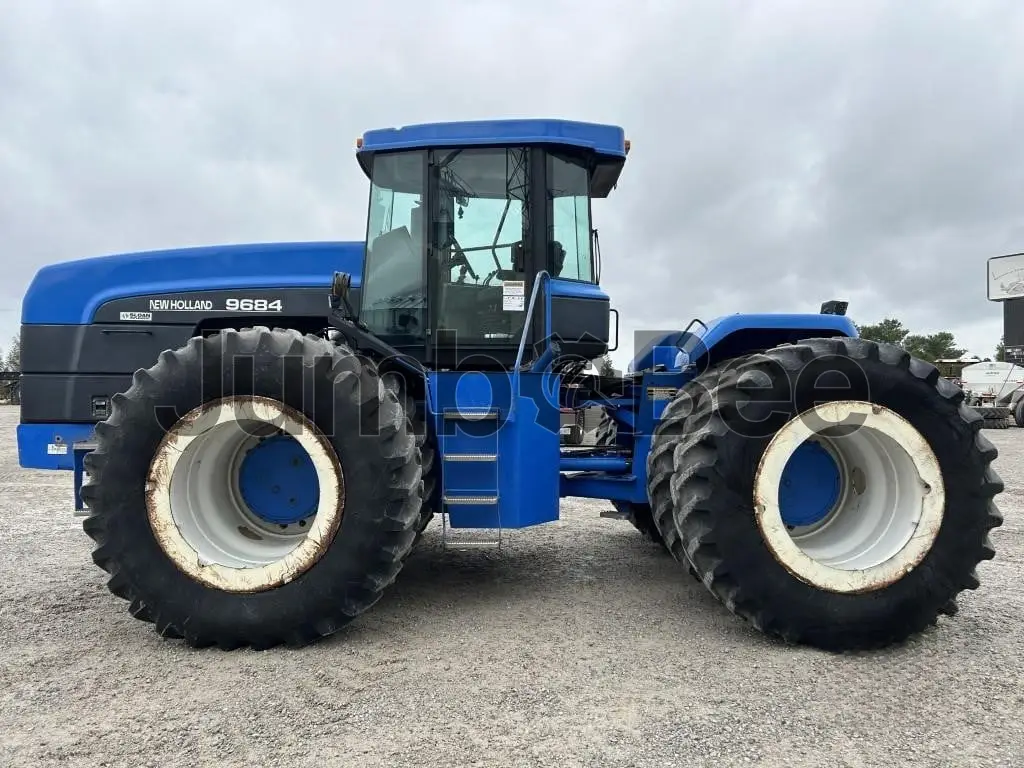

New Holland 9684 Articulated 4WD Tractors
New Holland 9684
Average price
$54,500
5+
sold in last year
General overview
New Holland 9684 is an articulated tractor built in Canada from 1993 to 2000. It is intended for high-power field work and other heavy farm tasks that require strong traction and implement support. The model is powered by a diesel engine rated at 265 kW (360 hp), placing it in a high-output tractor class.
The drivetrain uses a QuadraSync 12-speed partially synchronized transmission, with steering via frame articulation and a planetary final drive front axle. PTO capability is listed at 222 kW (302 hp) rated and 223 kW (303 hp) maximum, with an optional independent 1000 rpm rear PTO. Hydraulic equipment includes a closed-center pressure-flow-compensated system with pump rated output of 110 L/min (29.1 gpm), four rear SCVs, and an optional Category 4 rear 3-point hitch.
Year
1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Country of manufacturing
Canada
General specifications
Dimensions
Length
Height
Width
Weight
8,748 mm
~344.4 in
3,688 mm
~145.2 in
3,048 mm
~120 in
8,950 kg
~19,731.4 lb
Tire or Track Type
wheels
Engine Power
360 hp
Additional specifications
Engine type
diesel
Displacement
14 cu(m)
Maximum PTO power
303 hp
Rated PTO power
302 hp
Transmission type
QuadraSync 12-speed partially synchronized
Fuel tank
1,022 L
Hydraulic system type
Closed-center pressure-flow-compensated
Pump rated output
110 L/min
Available flow at a single rear SCV
110 L/min
Number of rear selective control valves
4
SCV control
Mechanical lever-controlled remote valves
Hitch type
4
Rear PTO
optional independent 1,000 rpm
Front Axle
Planetary final drive axle; steering via frame articulation
Rear 3-Point Hitch
optional
Tire width
528 mm
Loader
No factory loader option documented
Additional Options
Rear PTO; rear Category 4 3-point hitch; 3-5 rear SCVs; ballast; tire options
Tire type
Agricultural radial
PTO speed
["1,000"]
Tire Size
20.8R38
New Holland 9684 Articulated 4WD Tractors Listings
$54,500
No factory loader option documented
Rear PTO; rear Category 4 3-point hitch; 3-5 rear SCVs; ballast; tire options
4WD
Holgate, United States
Compare New Holland 9684 Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
New Holland 9684 Articulated 4WD Tractor
wheels
8950 kg
8748 mm × 3048 mm × 3688 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a New Holland 9684?
No confirmed market price is supplied for the New Holland 9684. Check current listings and compare condition, location, and configuration.
What are the key advantages of the New Holland 9684?
Listed features include 268.5 kW (360 hp) diesel power, a QuadraSync 12-speed partially synchronized transmission, articulated steering, and a closed-center pressure-flow-compensated hydraulic system. It has 4 rear selective control valves, with 110 L/min (29.1 gpm) available at a single rear SCV.
What type of engine does the 9684 use?
The 9684 uses a diesel engine.
How much horsepower does the 9684 have?
The 9684 has 268.5 kW (360 hp) of engine power. Rated PTO power is 225.2 kW (302 hp), and maximum PTO power is 225.9 kW (303 hp).
What fuel does the New Holland 9684 use?
The New Holland 9684 uses diesel fuel. Its fuel tank capacity is 1,022 L (270 US gal).
What jobs is this Tractors best suited for?
The supplied data does not specify intended jobs. Its listed features include 268.5 kW (360 hp), articulated steering, agricultural radial tires, and optional rear PTO and Category 4 3-point hitch equipment.
What is the expected lifespan of the 9684?
No expected service-life figure is supplied for the 9684. Actual lifespan depends on maintenance history, operating conditions, and the condition of major mechanical and hydraulic components.
What should a buyer check when purchasing a used Tractors?
Check service records, engine operation, transmission shifting, articulation steering, hydraulic performance, rear SCVs, PTO operation if fitted, tire condition, and signs of leaks or structural damage. Verify which options are installed, including the rear PTO, Category 4 3-point hitch, ballast, and tire configuration.
