Miller Nitro 5400 Self-Propelled Sprayers
Miller Nitro 5400
5+
sold in last yearGeneral overview

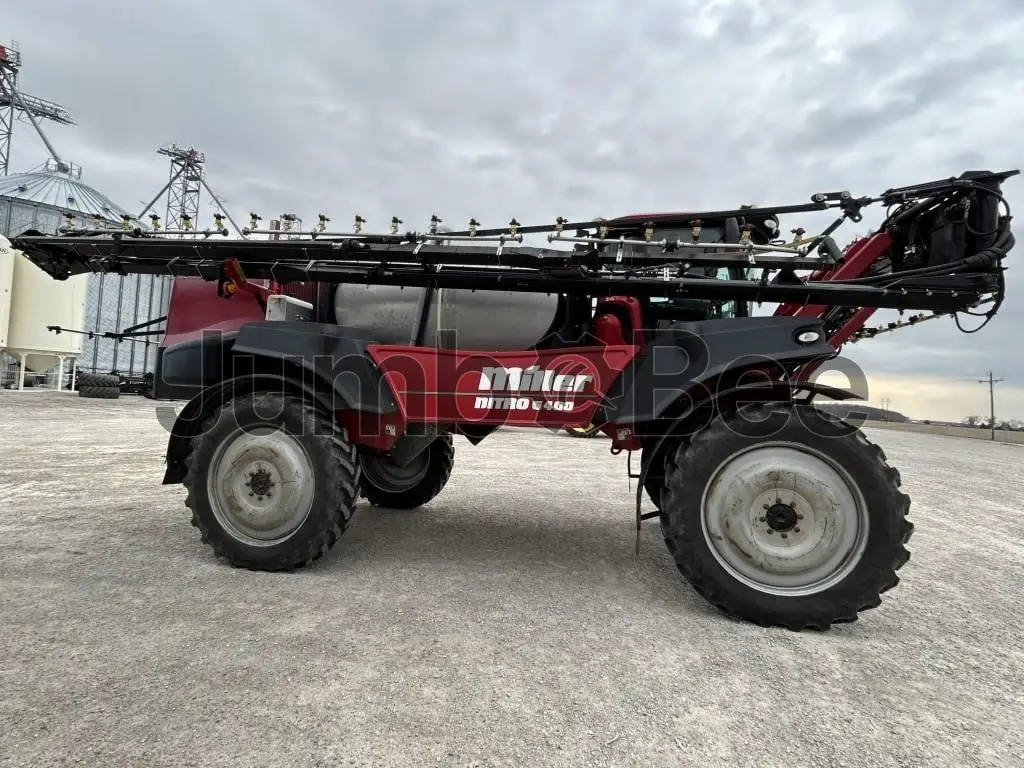

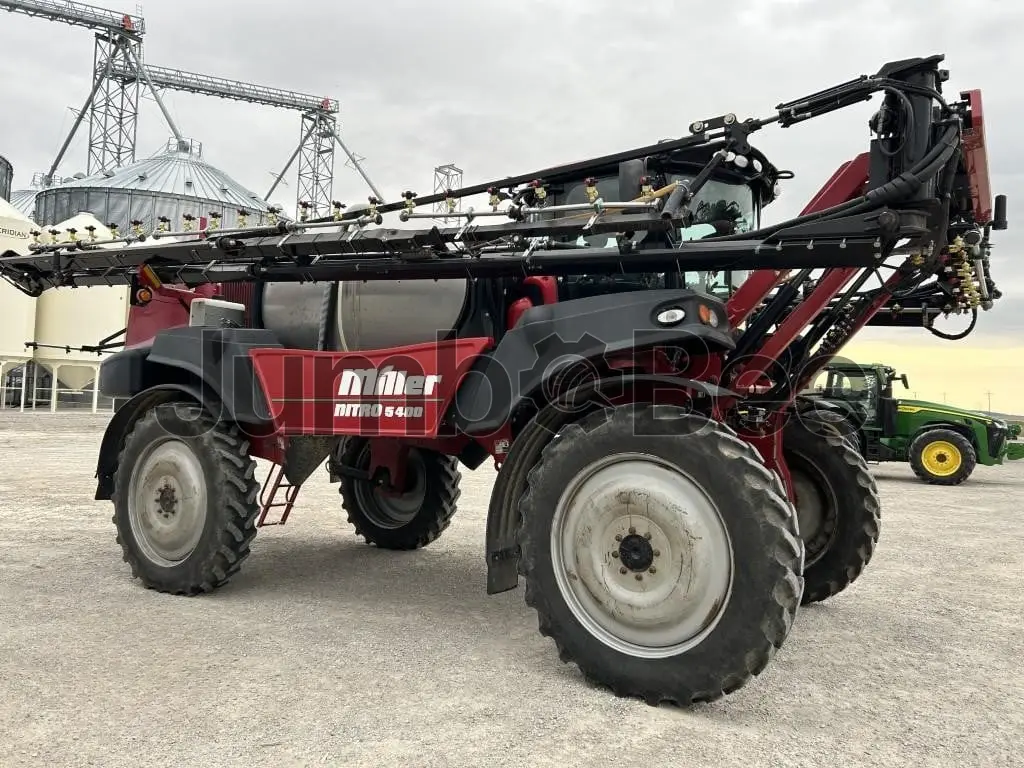

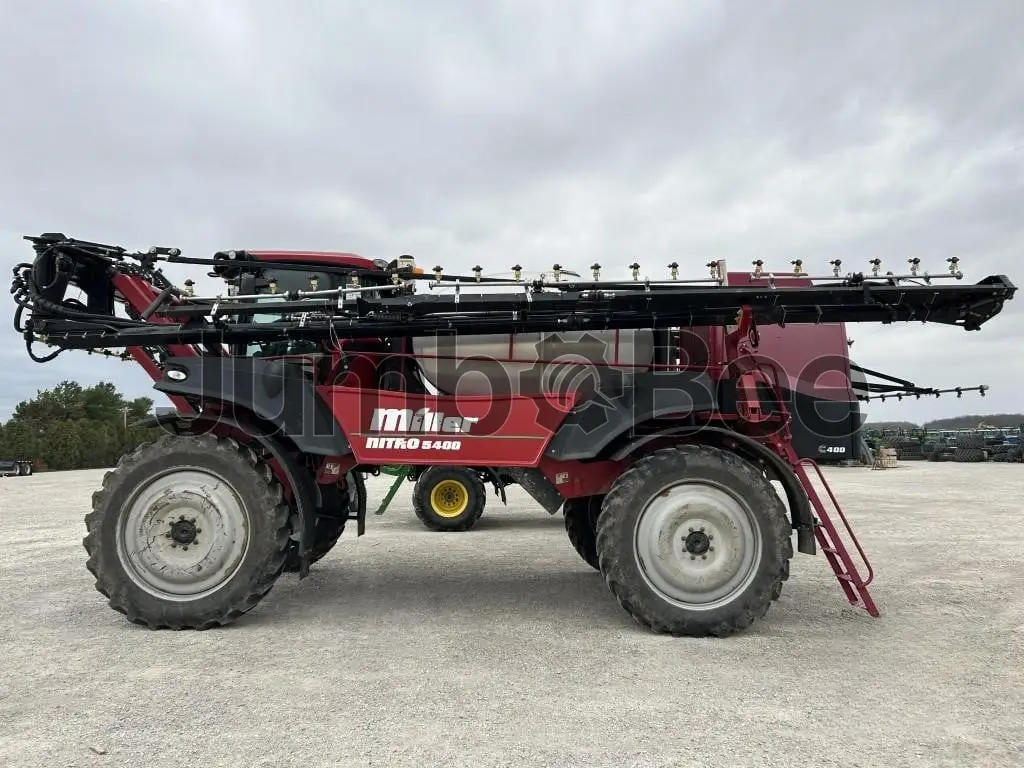

Miller Nitro 5400 is a self-propelled sprayer built in the United States for field crop application work. It uses an 8.9 L (543 cu in) six-cylinder engine rated at 380 kW (517 hp), Tier 4 Interim emissions level, and a solution system capacity of 4,542 L (1,200 US gal).
The Nitro 5400 uses a hydrostatic, twin pumps, direct drive motors drivetrain and 4-wheel independent, hyd. leveling/shock abosrbers suspension. Boom options include 24.4 m (80 ft 1 in) with 5 or 10 sections, and the machine provides 183 cm (6 ft) ground clearance with a 4.57 m (15 ft) turning radius. Control options include Raven SCS 5000, Envizio Pro, Viper Pro or Viper 4, and solution pump options include Hypro 9306C std; Hypro 9307CWS opt.
Year
2013, 2014, 2015
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,920 mm
~154.3 in
4,010 mm
~157.9 in
9,220 mm
~363 in
15,280 kg
~33,686.7 lb
Solution System Capacity
4,542 L
Length Options
24.4 m
Additional specifications
Emission standard level
Tier 4 Interim
Displacement
543 cu(in)
Fuel tank
568 L
Number of Cylinders
6
Transport speed
49.9 psi
Rated power
380 kW
Rinse tank capacity
568 L
Boom sections
5 or 10
Type Drive
Hydrostatic, twin pumps, direct drive motors
Shifting
5
Hydraulic reservoir capacity
106 L
Operator seat description
Air ride suspension std.; Grammer Evolution opt.
Sprayer control
Raven SCS 5,000, Envizio Pro, Viper Pro or Viper 4
Suspension
4-wheel independent, hyd. leveling/shock abosrbers
Ground clearance with standard tires
183 cm
Turning radius
4.57 m
Solution pump
Hypro 9,306C std; Hypro 9,307CWS opt.
Maximum transport speed
Miller Nitro 5400 Self-Propelled Sprayers Listings
Looking for Miller Nitro 5400 Self-Propelled Sprayers?
See similar listingsCompare Miller Nitro 5400 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Miller Nitro 5400 Self-Propelled Sprayer
4542 L
15280 kg
9220 mm × 3920 mm × 4010 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Miller Nitro 5400?
No confirmed market price is supplied. Check current listings and compare machine condition, location, configuration, and maintenance history.
What are the key advantages of the Miller Nitro 5400?
Listed features include a 4,542 L (1,199.9 US gal) solution system, hydrostatic drive with twin pumps and direct-drive motors, independent hydraulic leveling suspension, and Raven control-system options. It also has multiple boom-section and solution-pump configurations.
What type of engine does the Nitro 5400 use?
The supplied specifications confirm a 6-cylinder engine with 543 cu in displacement, Tier 4 Interim emissions level, and rated power of 380 kW (509.6 hp). They do not identify the engine manufacturer or engine model.
How much horsepower does the Nitro 5400 have?
The Miller Nitro 5400 is rated at 380 kW (509.6 hp).
What fuel does the Miller Nitro 5400 use?
The supplied information lists a 568 L (150 US gal) fuel tank but does not confirm the fuel type.
What jobs is this Sprayers best suited for?
As a farm sprayer, the Miller Nitro 5400 is suited to agricultural spraying work. Its listed solution capacity, boom configuration options, Raven sprayer controls, and independent suspension support field-application use.
What is the expected lifespan of the Nitro 5400?
The supplied data does not provide an expected service-life estimate. Lifespan depends on maintenance, operating conditions, application history, and the condition of major systems such as the drive, solution pump, boom, and suspension.
What should a buyer check when purchasing a used Sprayers?
Inspect the solution tank, pump, plumbing, boom sections, controls, drive system, suspension, tires, and hydraulic system for leaks, wear, damage, and proper operation. Review maintenance and application records, and verify that the configured equipment matches the listing.
