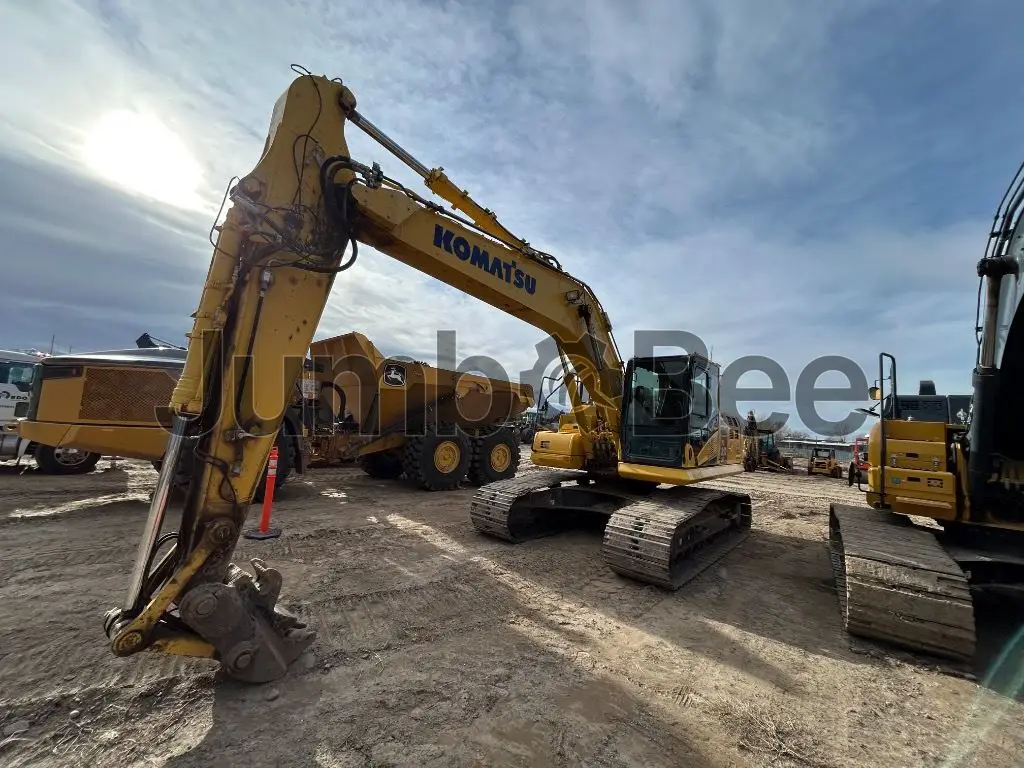

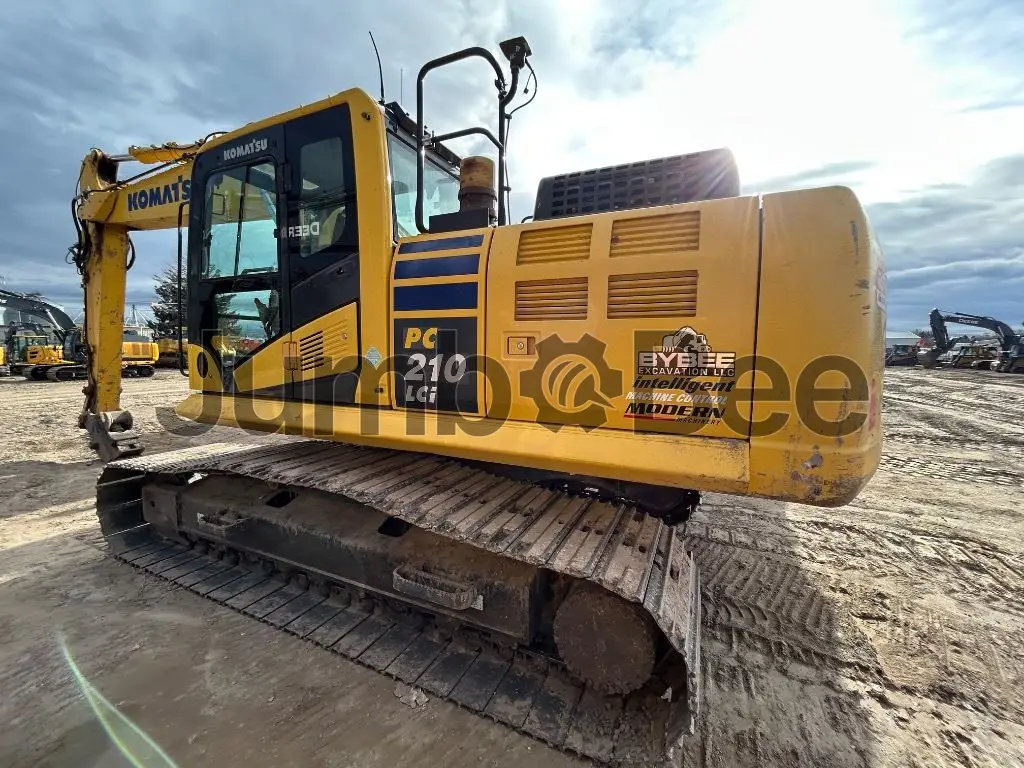

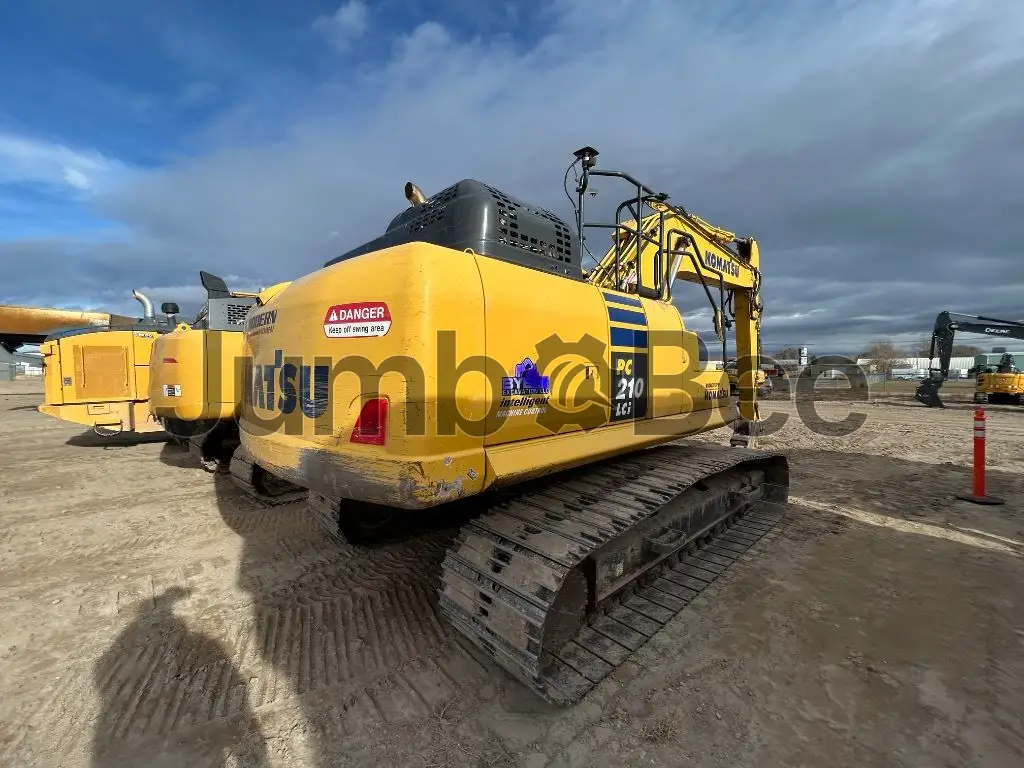

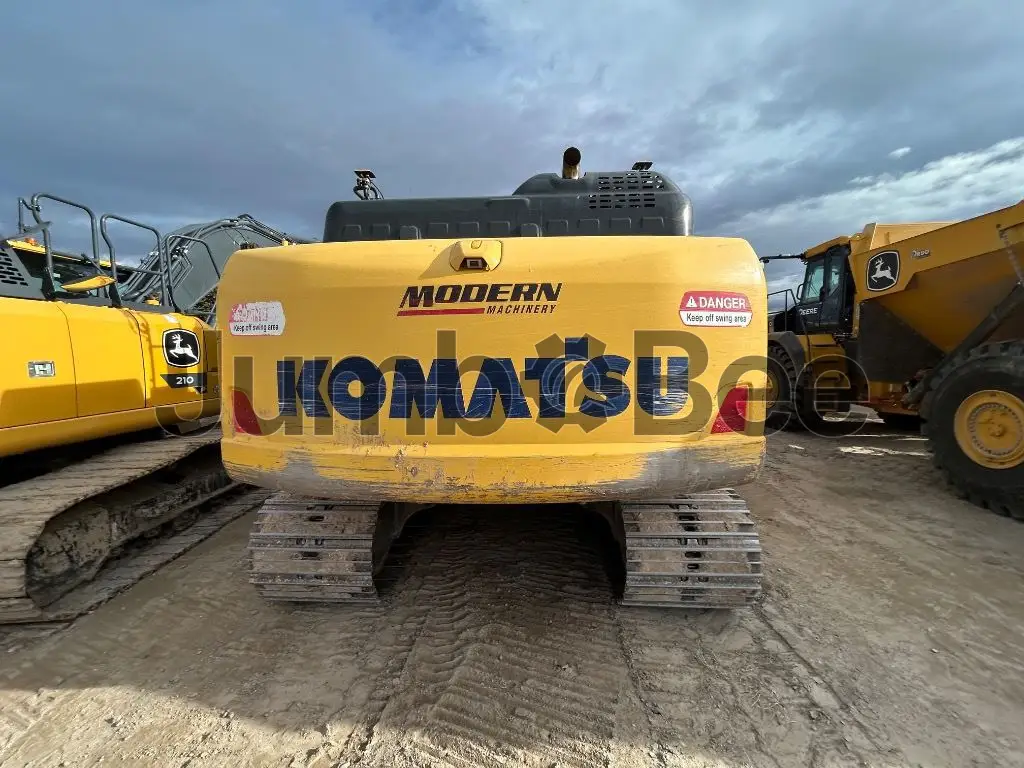

Komatsu PC210LCI-11 Tracked Excavators
Komatsu PC210LCI-11
5+
sold in last yearGeneral overview
Komatsu PC210LCI-11 is an excavator designed for construction and earthmoving work. It has an operating weight of 23,240 kg (51,240 lb) and is powered by a 121 kW (165 hp) Komatsu SAA6D107E-3 engine that meets Tier 4 Final emissions requirements. The reference bucket capacity is 1 m³ (1.3 cu yd), placing it in a mid-size class for general digging and material handling.
This model uses a 6-cylinder, 6 L engine and has a boom length of 5,700 mm (18 ft 8 in) with a stick length of 2,925 mm (9 ft 7 in). Its maximum digging depth is 6,620 mm (21 ft 9 in), and maximum reach at ground level is 9,700 mm (31 ft 10 in). Digging forces are rated at 149 kN (33,500 lbf) for the bucket and 107 kN (24,050 lbf) for the stick.
Year
2019
Country of manufacturing
Japan
General specifications
Engine Power
165 hp
Emission standard level
Tier 4 Final
Displacement
6 cu(m)
Fuel tank
400 L
Alternator output
60
Number of batteries
2
Cooling system
30 L
Number of Cylinders
6
Dimensions
mm
Operating Weight
23,240 kg
Reference Bucket Capacity
1 cu(m)
Drawbar Pull
202 kN
System Relief Pressure
37,300 kPa
Hydraulic Pumps
cu(cm)
Hydraulic Capacity
132 L
Engine Model
Komatsu SAA6D,107E-3
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
37,300 kPa
Maximum Pressure - Travel
37,300 kPa
Maximum Pressure - Swing
28,900 kPa
Engine Oil
23 L
Hydraulic System - Including Tank
234 L
Tail Swing Radius
3,020 mm
Maximum Digging Depth
6,620 mm
Boom working ranges
5 mm
Stick working ranges
2 mm
Bucket working ranges
mm
Maximum Reach at Ground Level
9,700 mm
Bucket Digging Force - ISO
149 kN
Stick Digging Force - ISO
107 kN
Boom length
5,700 mm
Stick length
2,925 mm
Net Power (ISO 9249)
165 hp
Additional specifications
Rated power
123.2 kW
Komatsu PC210LCI-11 Tracked Excavators Listings
Looking for Komatsu PC210LCI-11 Tracked Excavators?
See similar listingsCompare Komatsu PC210LCI-11 Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
4.0
Rating
Based on ratings and reviews from verified buyers.
Overall rating
1 reviews
5
4
3
2
1
Performance & Productivity
5.0
Reliability & Durability
5.0
Comfort & Ergonomics
4.0
Safety
4.0
Technology & Features
4.0
Nathan Halloran
It's our mid-size workhorse on the crew. Grade guidance speeds up the trim work. Eco mode fuel economy is genuinely good.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Komatsu PC210LCI-11?
No confirmed market price is supplied for the Komatsu PC210LCI-11. Check current listings and compare machine condition, location, configuration, maintenance records, and included attachments.
What are the key advantages of the Komatsu PC210LCI-11?
Listed strengths include 123 kW (165 hp) net power, an operating weight of 23,240 kg (51,235 lb), a 1 m³ (1.31 cu yd) reference bucket capacity, and a maximum digging depth of 6,620 mm (260.6 in).
What type of engine does the PC210LCI-11 use?
The PC210LCI-11 uses a Komatsu SAA6D107E-3 engine. It has 6 cylinders, is rated at Tier 4 Final, and has net power of 123 kW (165 hp) under ISO 9249.
How much horsepower does the PC210LCI-11 have?
The PC210LCI-11 has 123 kW (165 hp) of engine power. Its Net Power (ISO 9249) is also listed as 123 kW (165 hp).
What fuel does the Komatsu PC210LCI-11 use?
The supplied specifications do not confirm the fuel type for the Komatsu PC210LCI-11. They list a fuel tank capacity of 400 L (105.7 US gal).
What jobs is this Excavators best suited for?
The supplied data does not specify intended applications. Its listed digging depth of 6,620 mm (260.6 in), maximum reach at ground level of 9,700 mm (381.9 in), and 1 m³ (1.31 cu yd) reference bucket capacity may be relevant when matching it to excavation work.
What is the expected lifespan of the PC210LCI-11?
The supplied data does not provide an expected lifespan for the PC210LCI-11. Evaluate service history, maintenance records, operating condition, hydraulic performance, undercarriage wear, and signs of leaks before purchase.
What should a buyer check when purchasing a used Excavators?
Check maintenance records, engine condition, hydraulic operation and leaks, undercarriage wear, boom and stick play, bucket condition, batteries, and cooling-system condition. Confirm that digging functions, travel speeds, swing operation, and safety equipment operate properly.
