John Deere 470P Tracked Excavators
John Deere 470P
Average price
$450,727.14
5+
sold in last year
General overview

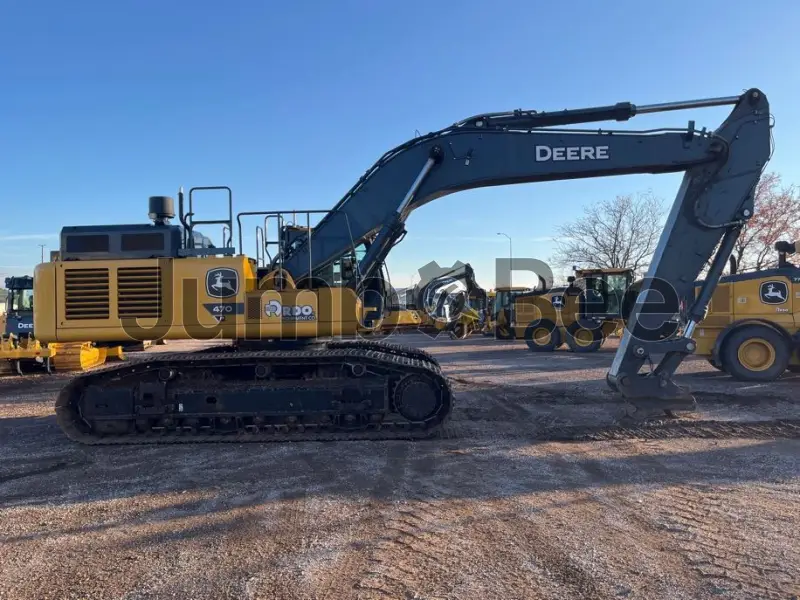

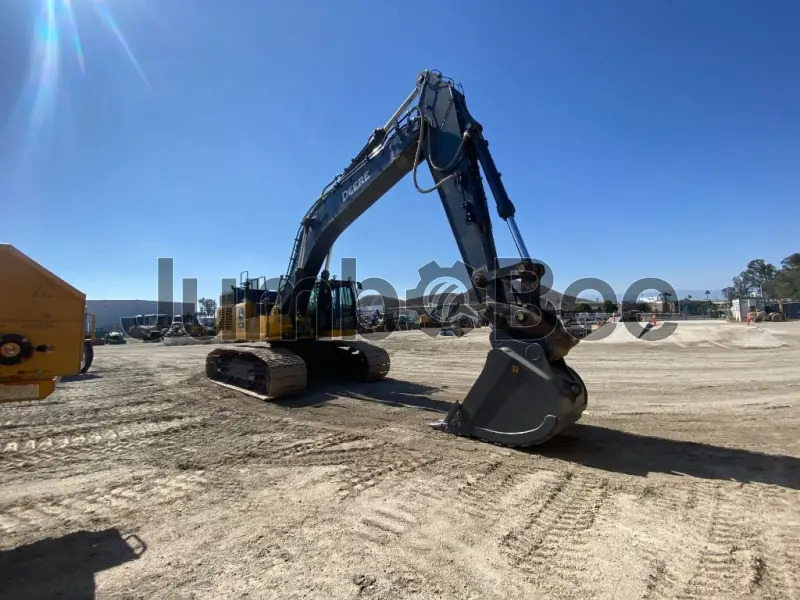

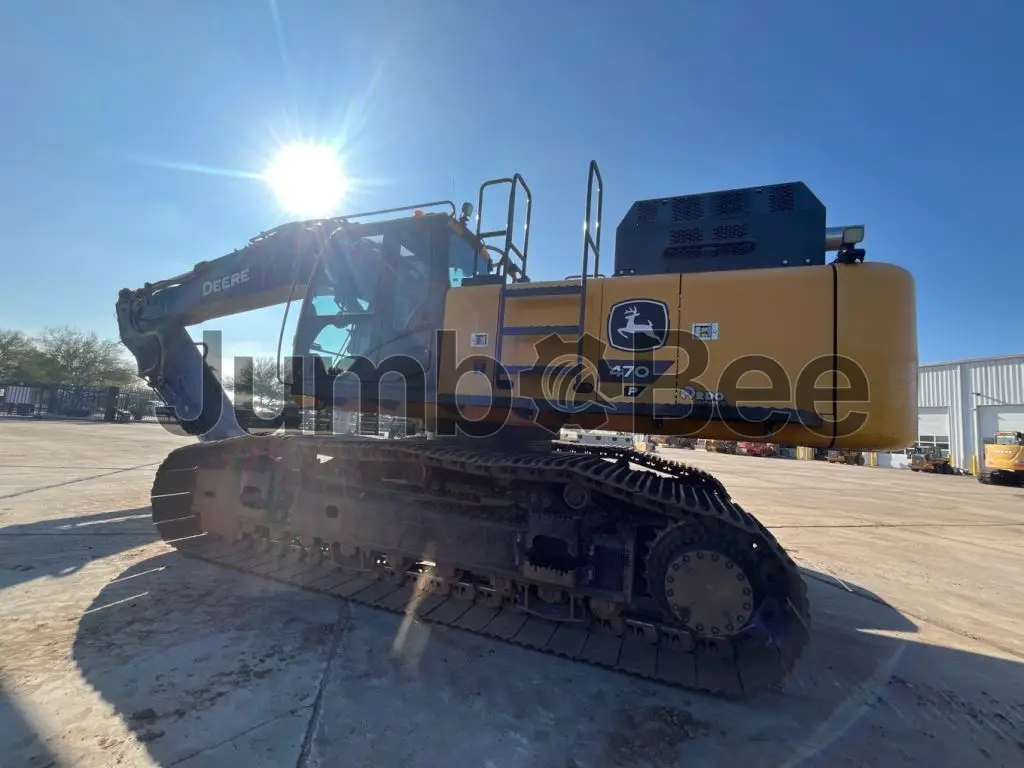

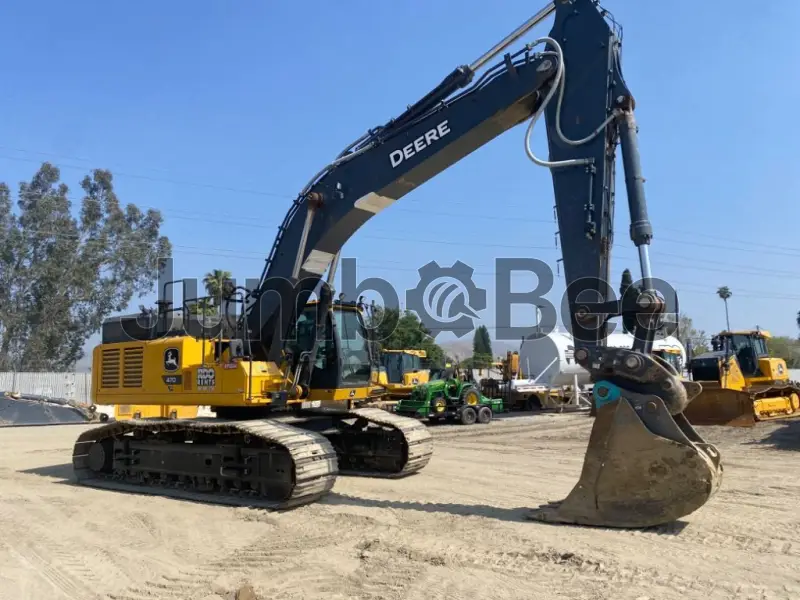

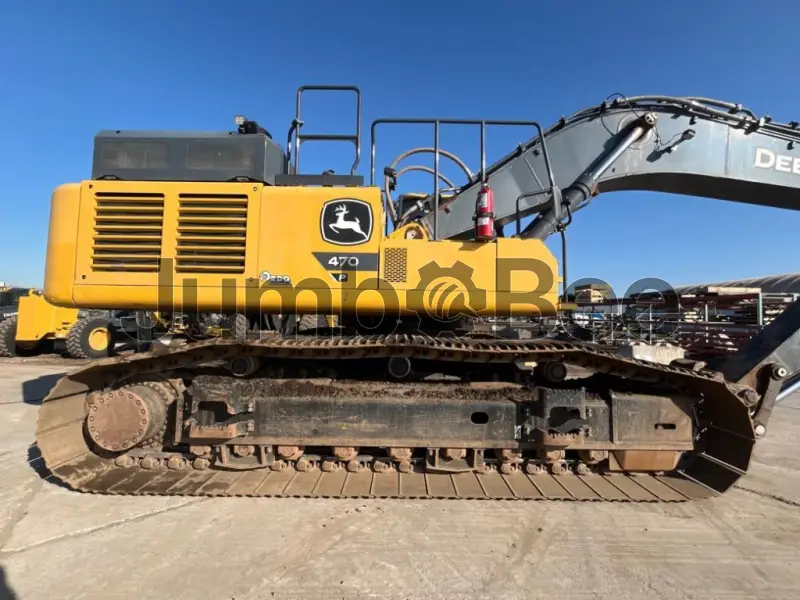

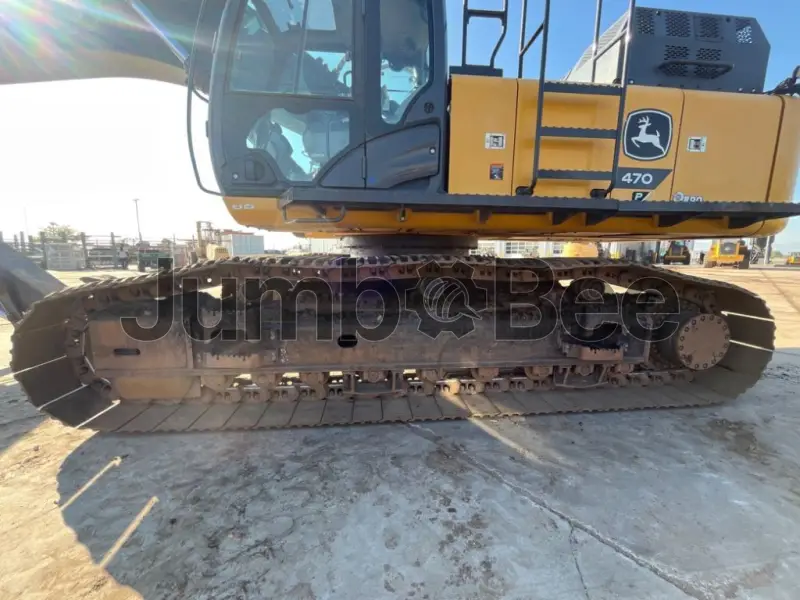

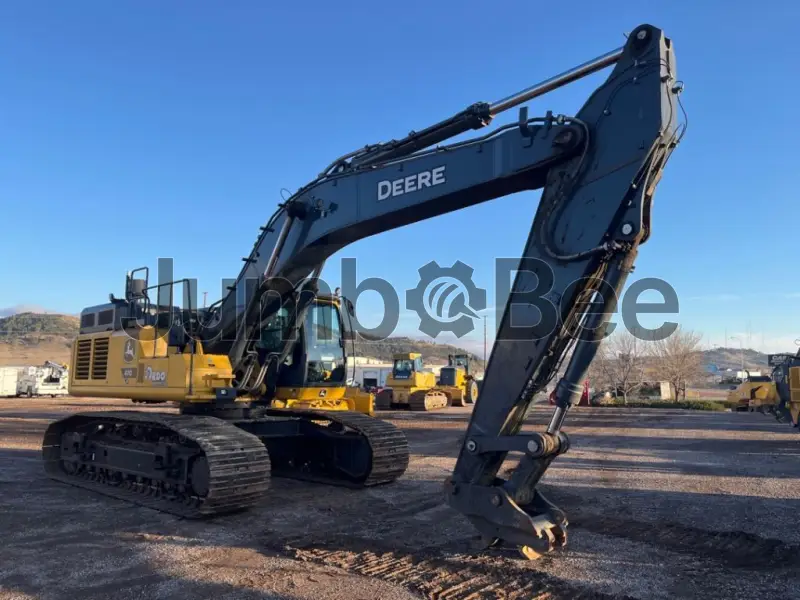

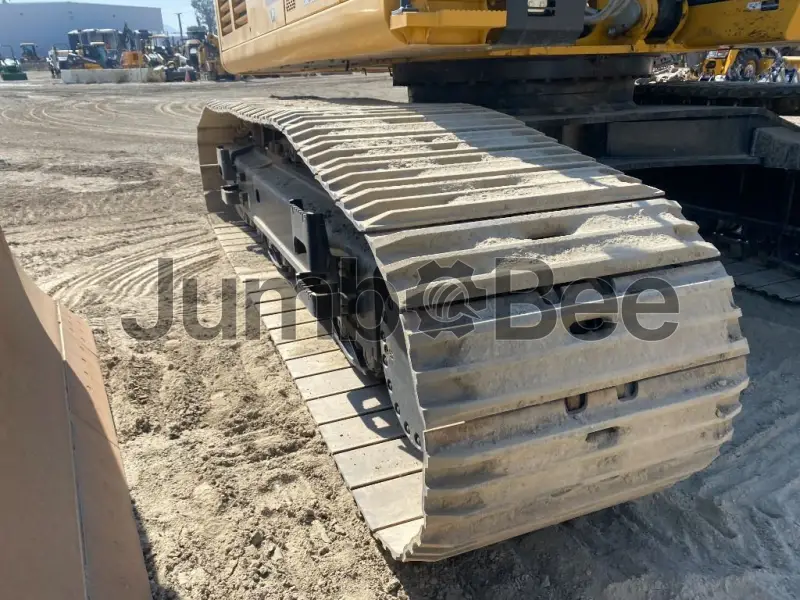

The John Deere 470P is a hydraulic excavator produced for earthmoving and excavation work in construction settings. It is powered by a John Deere PowerTech PSS 6135 engine rated at 270 kW (367 hp) and built to Tier 4 Final emissions standards. With an operating weight of 51,218 kg (112,920 lb), it sits in a large excavator class suited to demanding digging and material-moving tasks.
The machine is configured with a 3,900 mm (12 ft 10 in) stick length, a maximum digging depth of 8,270 mm (27 ft 2 in), and a maximum reach at ground level of 12,280 mm (40 ft 3 in). It also delivers a bucket digging force of 269 kN (60,470 lbf), a stick digging force of 199 kN (44,740 lbf), and a maximum rated flow of 800 L/min (211.3 gpm) from two hydraulic pumps.
Year
2022, 2023
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
12,010 mm
~472.8 in
3,500 mm
~137.8 in
3,790 mm
~149.2 in
Emission standard level
Tier 4 Final
Displacement
13 cu(m)
Fuel tank
675 L
Cooling system
62 L
Number of Cylinders
6
Width
3,790 mm
Operating Weight
51,218 kg
Reference Bucket Capacity
2.34 cu(m)
Drawbar Pull
328 kN
Maximum Rated Flow
800 L/min
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
310 L
Engine Model
John Deere PowerTech PSS 6,135
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
35,300 kPa
Hydraulic System - Including Tank
310 L
Shipping Height - Top of Cab
3,330 mm
Tail Swing Radius
3,670 mm
Track Gauge
2,890 mm
Maximum Digging Depth
8,270 mm
Stick working ranges
3.9 mm
Maximum Reach at Ground Level
12,280 mm
Maximum Cutting Height
11,160 mm
Maximum Loading Height
7,770 mm
Bucket Digging Force - ISO
269 kN
Stick Digging Force - ISO
199 kN
Stick length
3,900 mm
Net Power (ISO 9249)
367 hp
Maximum Operating Pressure
31,900 kPa
Additional specifications
Rated power
274 kW
Ground Pressure
61 kPa

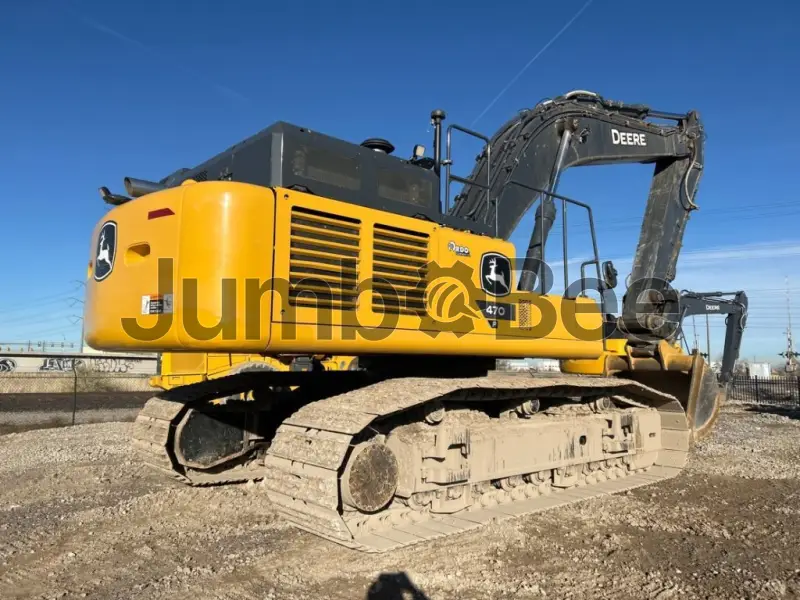

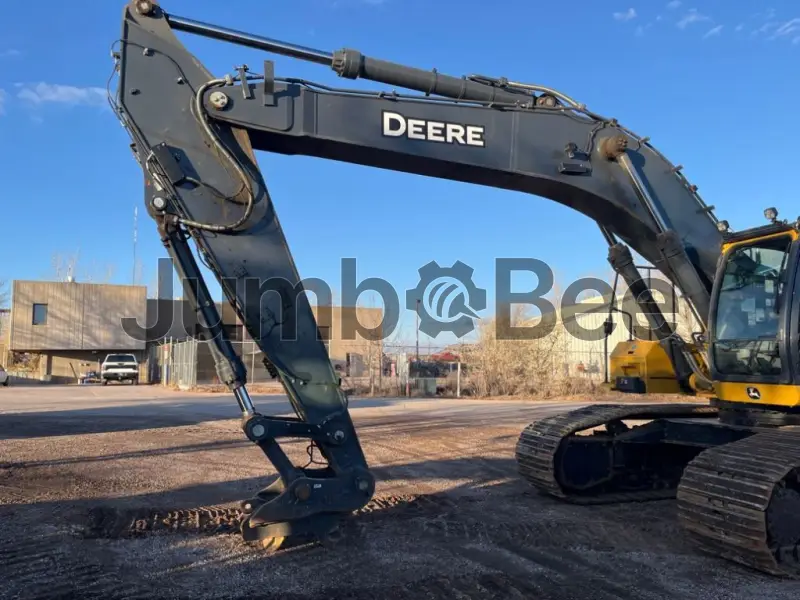

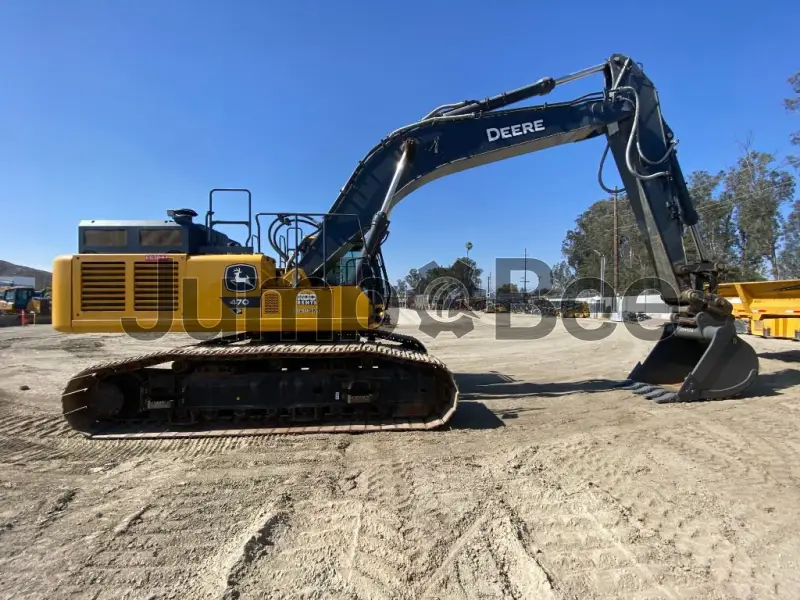

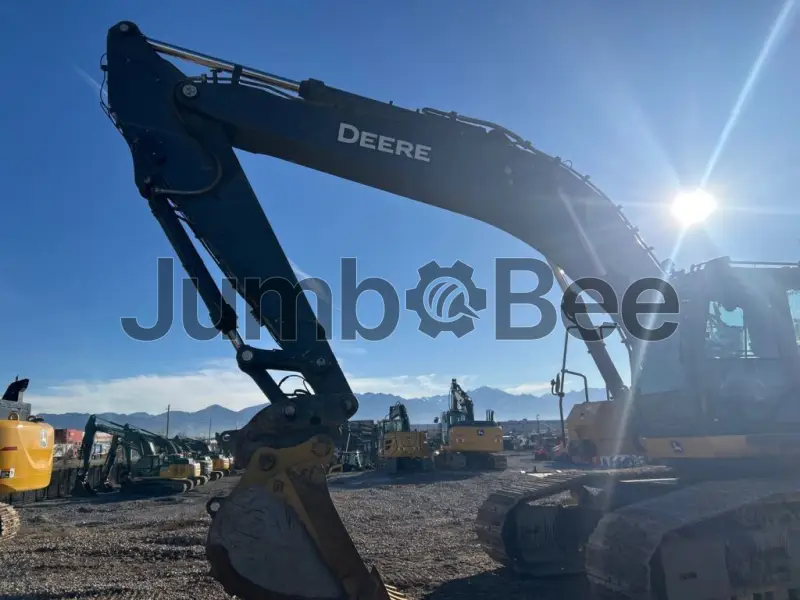

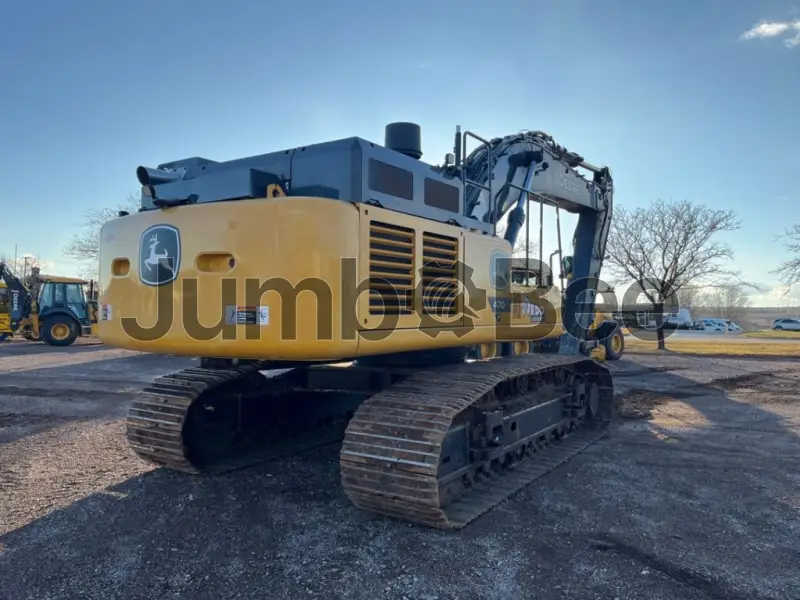

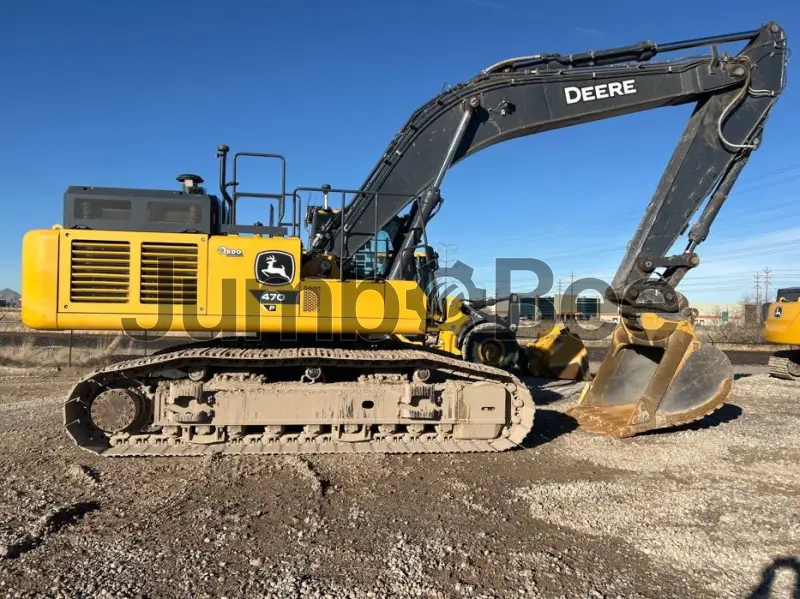

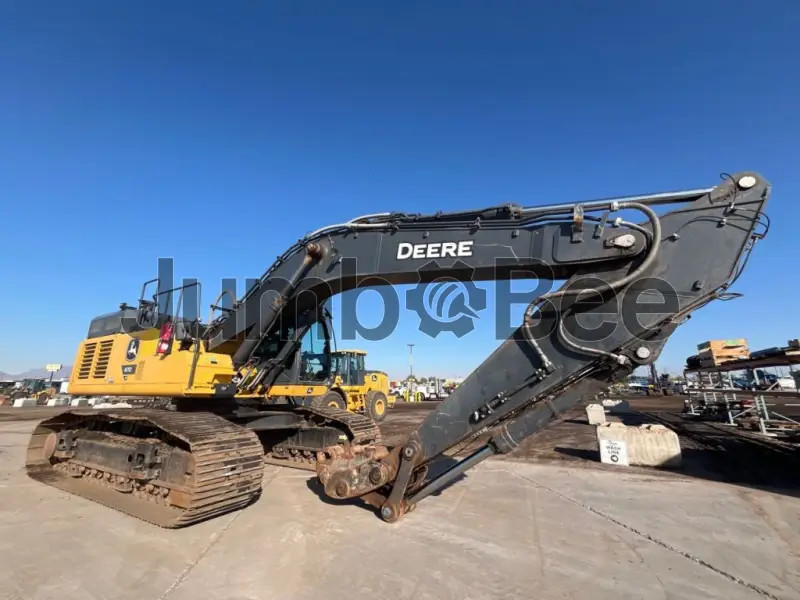

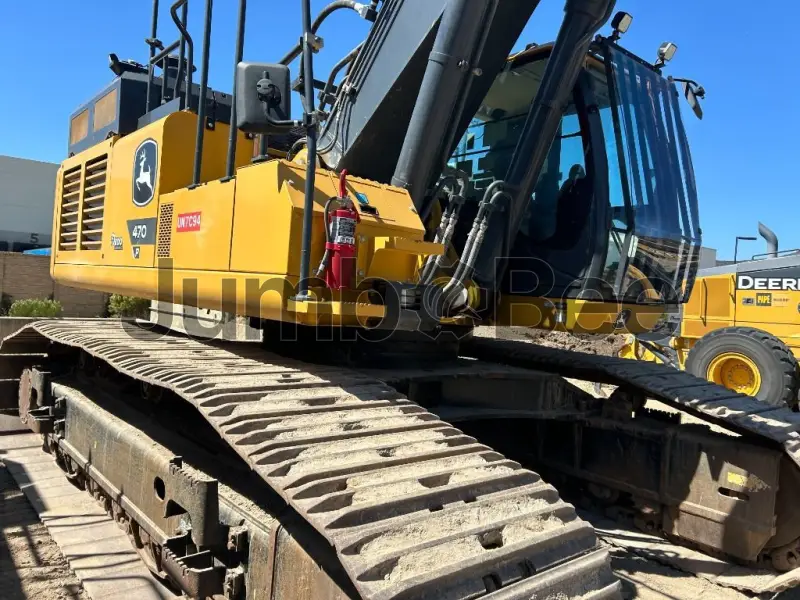

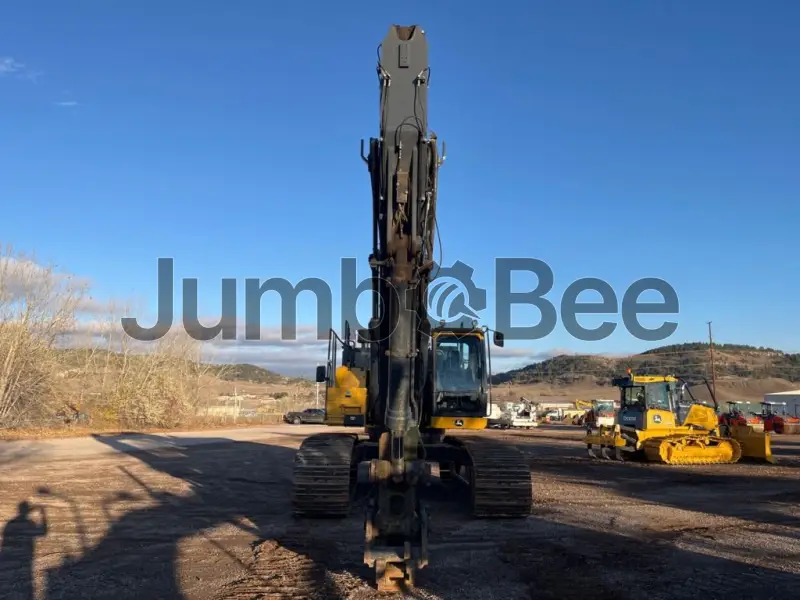

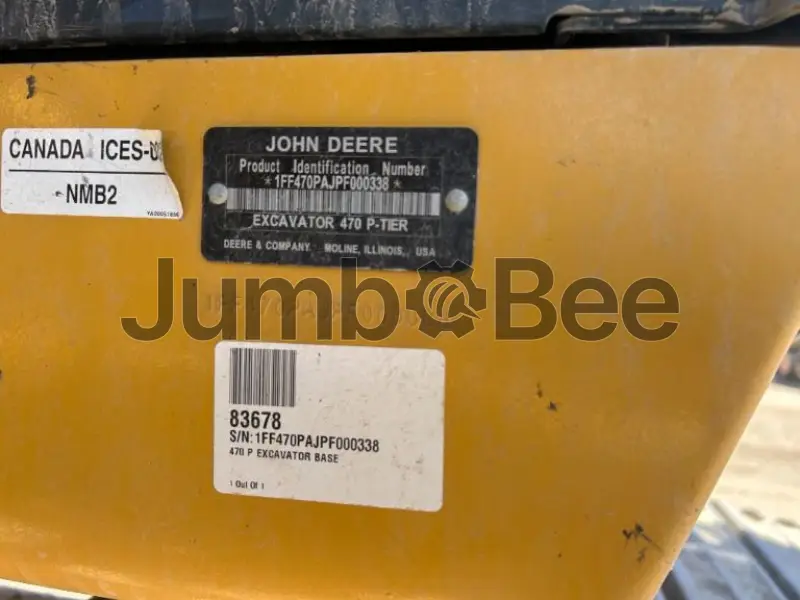

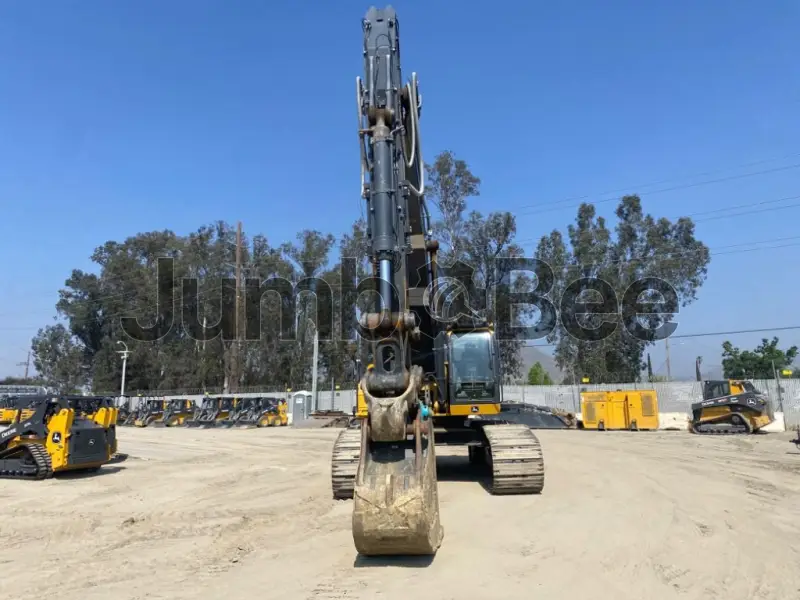

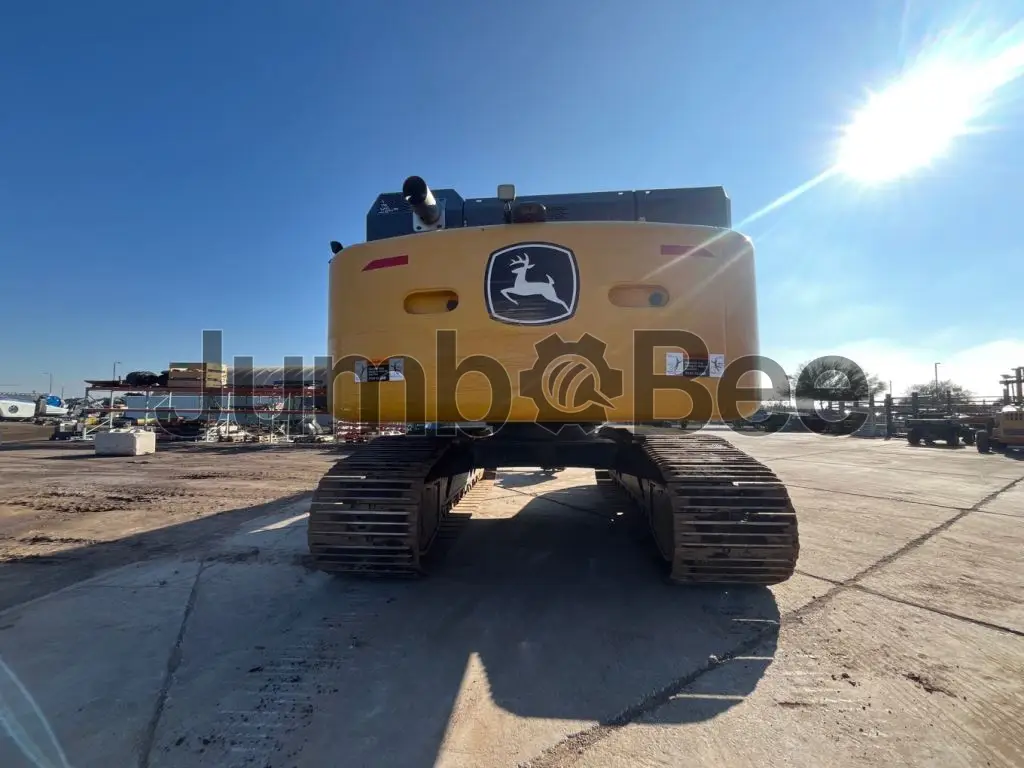

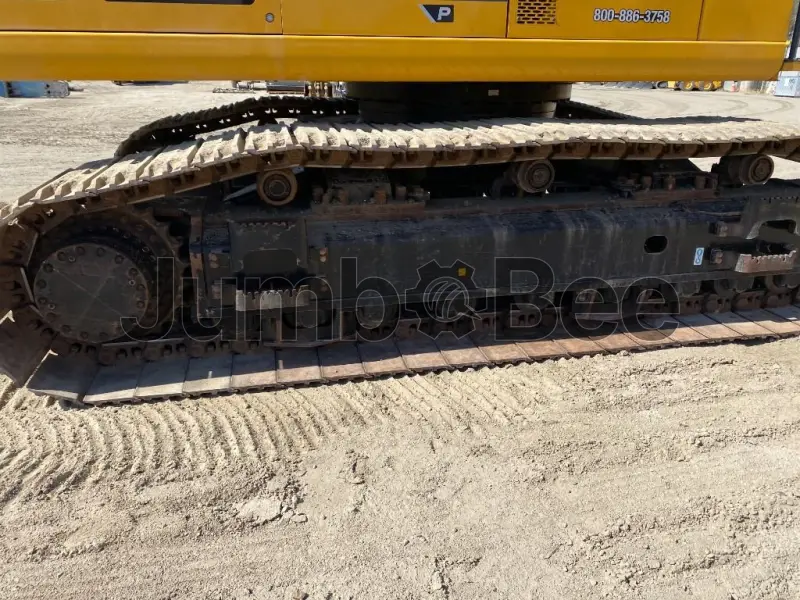

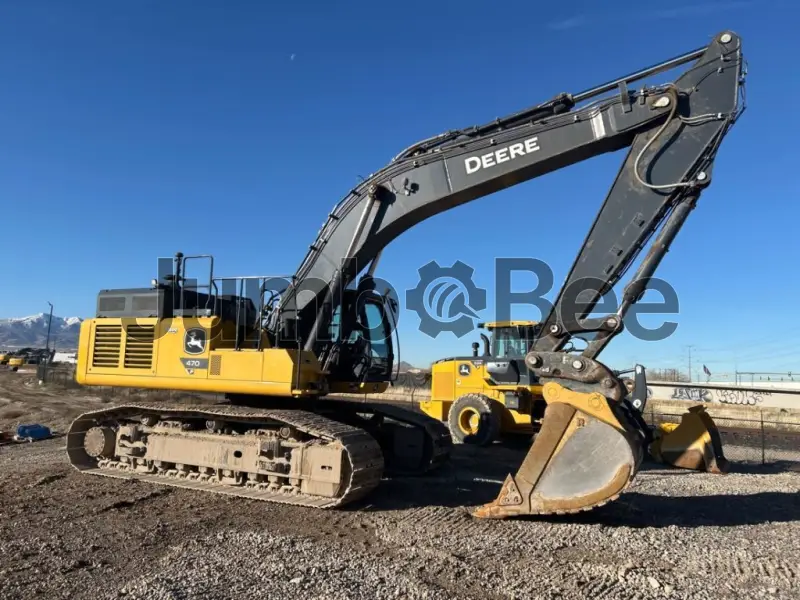

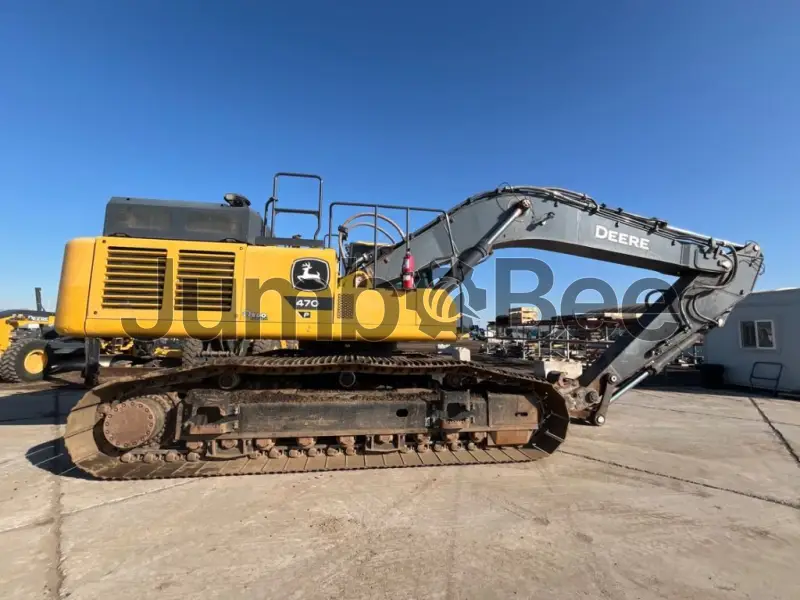

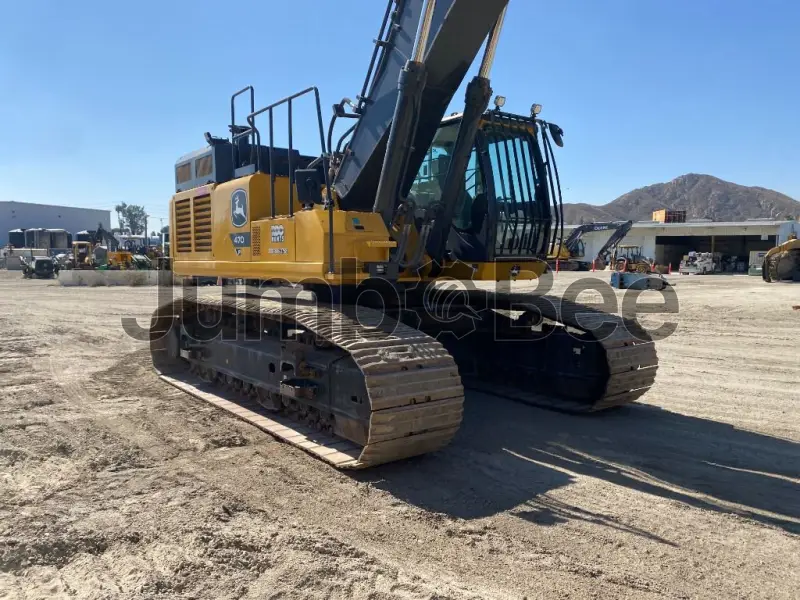

John Deere 470P Tracked Excavators Listings
$368,100
51218 kg
13 cu(m)
3 km/h
4030 hours
Bozeman, United States
$469,480
51218 kg
Tier 4 Final
800 L/min
3406 hours
Cheyenne, United States
$507,630
51218 kg
John Deere PowerTech PSS 6135
Tier 4 Final
2836 hours
Rochester, United States
$596,350
6
675 L
62 L
2801 hours
Fort Worth, United States
$373,410
John Deere PowerTech PSS 6135
6
5 km/h
2949 hours
Lakeside, United States
$394,950
51218 kg
John Deere PowerTech PSS 6135
Tier 4 Final
3299 hours
Phoenix, United States
$445,170
3790 mm
8270 mm
3.9 mm
3589 hours
Riverside, United States
Compare John Deere 470P Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 470P Tracked Excavator
51218 kg
12010 mm × 3790 mm × 3500 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 470P?
No confirmed market price is supplied for the John Deere 470P. Check current listings and compare machine condition, location, hours, maintenance records, and installed configuration.
What are the key advantages of the John Deere 470P?
The supplied specifications list 273.7 kW (367 hp) net power, 269 kN (60,474 lbf) bucket digging force, 8,270 mm (325.6 in) maximum digging depth, and 800 L/min (211.3 gpm) maximum rated hydraulic flow. These figures are useful when comparing excavation capability and hydraulic capacity.
What type of engine does the 470P use?
The 470P uses a John Deere PowerTech PSS 6135 engine. The supplied data lists 6 cylinders and Tier 4 Final emissions compliance.
How much horsepower does the 470P have?
The 470P has 273.7 kW (367 hp) of net power under ISO 9249.
What fuel does the John Deere 470P use?
The supplied specifications do not confirm the fuel type for the John Deere 470P. They list a fuel tank capacity of 675 L (178.3 US gal).
What jobs is this Excavators best suited for?
Based on the supplied digging and reach figures, the 470P can be considered for excavation work requiring substantial digging depth, reach, loading height, and bucket force. Its listed maximum digging depth is 8,270 mm (325.6 in), maximum reach at ground level is 12,280 mm (483.5 in), and bucket digging force is 269 kN (60,474 lbf).
What is the expected lifespan of the 470P?
The supplied data does not provide an expected service life for the 470P. For a used machine, review maintenance records, hydraulic condition, engine operation, undercarriage wear, structural repairs, and evidence of leaks or abnormal noise.
What should a buyer check when purchasing a used Excavators?
Inspect service records, engine starting and operation, hydraulic response and leaks, cylinder condition, boom and stick joints, bucket wear, track and undercarriage condition, cab controls, and signs of structural repairs. Confirm the machine’s configuration and compare its operating condition with the seller’s description.
