John Deere 300P Tracked Excavators
John Deere 300P
Average price
$317,590
5+
sold in last year
General overview

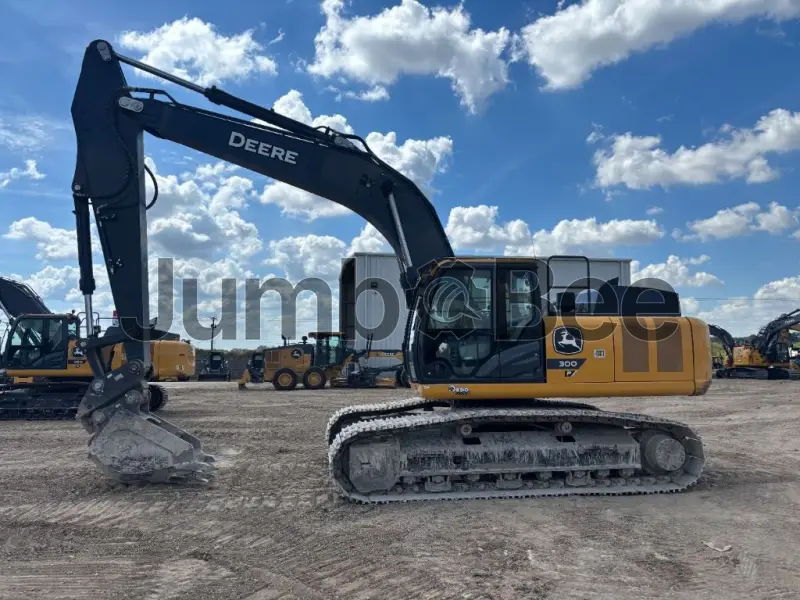

John Deere 300P is a hydraulic excavator for construction-site earthmoving, including excavation and site preparation. It is powered by a John Deere PowerTech PSS 6.8L, 6068HT107 engine rated at 164 kW (223 hp) and is listed with an operating weight of 31,150 kg (68,670 lb). The model also meets Tier 4 Final emission requirements.
Its working setup includes a 1 m³ (1.3 cu yd) reference bucket capacity, 3,760 mm (12 ft 4 in) stick length, and a maximum rated flow of 472 L/min (124.7 gpm). Digging performance is defined by a maximum digging depth of 7,870 mm (25 ft 10 in), maximum reach at ground level of 11,090 mm (36 ft 5 in), and bucket digging force of 202 kN (45,410 lbf).
Year
2023, 2025
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
10,710 mm
~421.7 in
3,380 mm
~133.1 in
3,390 mm
~133.5 in
Engine Power
223 hp
Emission standard level
Tier 4 Final
Displacement
6 cu(m)
Fuel tank
514 L
Alternator output
300
Number of batteries
2
Cooling system
36 L
Number of Cylinders
6
Dimensions
1,067 mm
Width
3,390 mm
Operating Weight
31,150 kg
Reference Bucket Capacity
1 cu(m)
Drawbar Pull
246 kN
Maximum Rated Flow
472 L/min
System Relief Pressure
3,900 kPa
Hydraulic Pumps
2 cu(cm)
Hydraulic Capacity
156 L
Engine Model
John Deere PowerTech PSS 6.8L, 6,068HT,107
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
38,000 kPa
Maximum Pressure - Travel
35,500 kPa
Maximum Pressure - Swing
33,300 kPa
Engine Oil
20 L
Hydraulic System - Including Tank
290 L
Shipping Height - Top of Cab
3,380 mm
Tail Swing Radius
3,250 mm
Track Gauge
2,590 mm
Maximum Digging Depth
7,870 mm
Maximum Reach at Ground Level
11,090 mm
Maximum Cutting Height
10,470 mm
Maximum Loading Height
7,540 mm
Maximum Vertical Wall Digging Depth
7,050 mm
Bucket Digging Force - ISO
202 kN
Stick Digging Force - ISO
127 kN
Stick length
3,760 mm
Net Power (ISO 9249)
223 hp
Hydraulic Pump
1 gear (maximum rated flow 30.2 L/min)
Maximum Operating Pressure
34,300 kPa
Additional specifications
Rated power
166 kW
Ground Pressure
43 kPa
John Deere 300P Tracked Excavators Listings

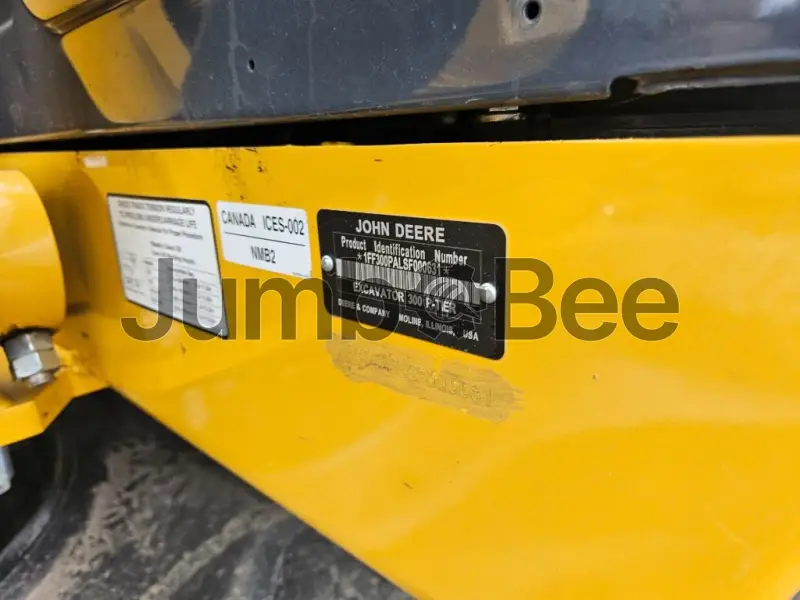

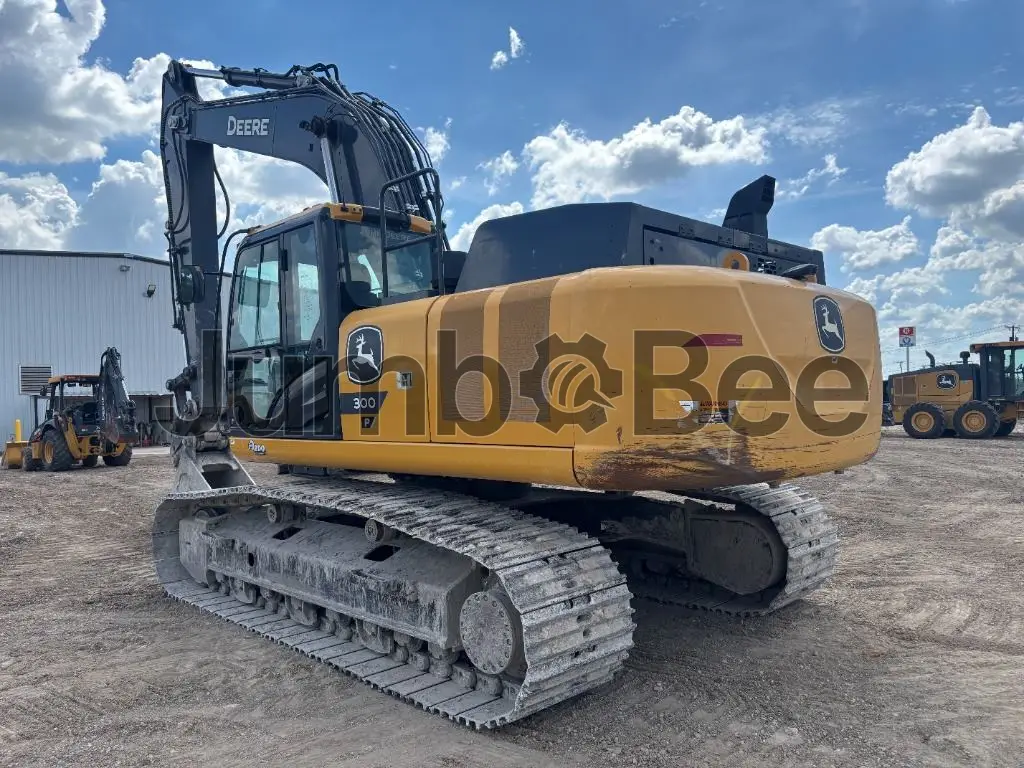

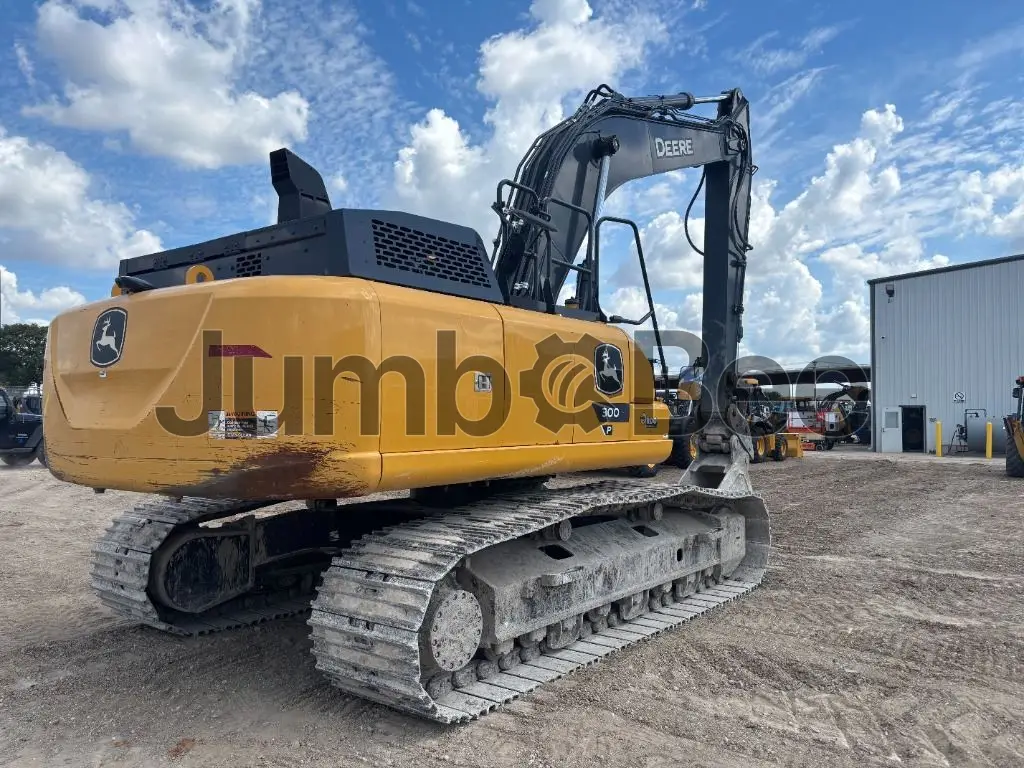

$308,960
6 cu(m)
223 hp
3 km/h
2952 hours
Irving, United States

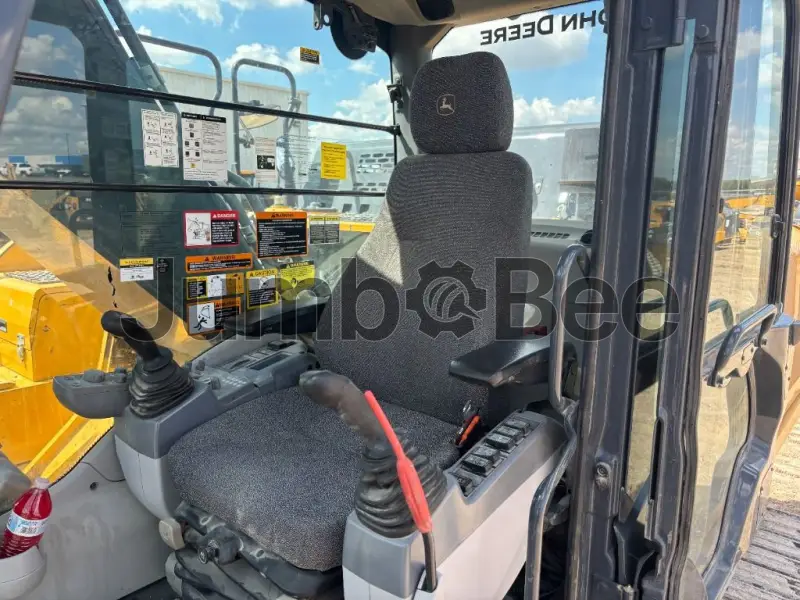

$348,660
John Deere PowerTech PSS 6.8L, 6068HT107
223 hp
6
841 hours
Moorhead, United States

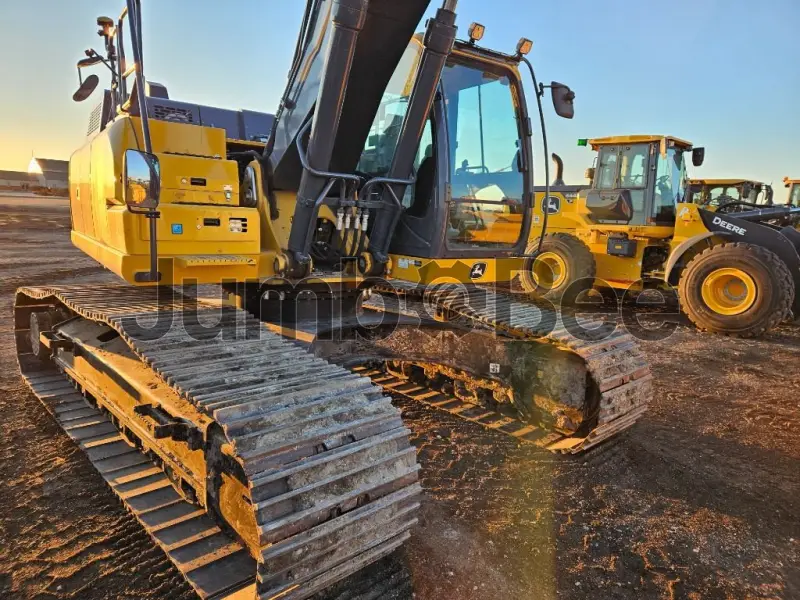

$306,330
31150 kg
John Deere PowerTech PSS 6.8L, 6068HT107
Tier 4 Final
1918 hours
Bismarck, United States
$317,030
3760 mm
1 cu(m)
John Deere PowerTech PSS 6.8L, 6068HT107
1343 hours
Chandler, United States
Compare John Deere 300P Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 300P Tracked Excavator
223 hp
10710 mm × 3390 mm × 3380 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 300P?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 300P?
The supplied specifications list 166.3 kW (223 hp) net power, 7,870 mm maximum digging depth, 11,090 mm maximum reach at ground level, and 472 L/min maximum rated hydraulic flow. It also has a 514 L fuel tank and 43 kPa ground pressure.
What type of engine does the 300P use?
The 300P uses a John Deere PowerTech PSS 6.8L, 6068HT107 engine. It has 6 cylinders and is listed with Tier 4 Final emissions.
How much horsepower does the 300P have?
The 300P has 223 hp (166.3 kW) net power, measured under ISO 9249.
What fuel does the John Deere 300P use?
The supplied data does not confirm the fuel type for the John Deere 300P. Its fuel tank capacity is listed as 514 L (135.8 US gal).
What jobs is this Excavators best suited for?
The supplied data does not identify specific job applications. Its listed digging depth, reach, bucket capacity, and hydraulic flow can be compared with the requirements of the intended excavation work.
What is the expected lifespan of the 300P?
No expected service-life figure is supplied. Evaluate service records, maintenance history, hydraulic performance, engine condition, undercarriage wear, and structural condition when assessing an individual machine.
What should a buyer check when purchasing a used Excavators?
Check service records, engine operation, hydraulic performance, leaks, bucket and stick wear, undercarriage condition, track components, cab controls, batteries, and structural damage. Verify that the machine's configuration and operating condition match the intended work.
