John Deere 245G Tracked Excavators
John Deere 245G
Average price
$185,508.75
5+
sold in last year
General overview
John Deere 245G is a construction excavator designed for digging, trenching, and general earthmoving on job sites. It is powered by a 117 kW (159 hp) Isuzu engine and is rated to Tier 4 Final emissions requirements.
The model combines a 2,390 mm (7 ft 10 in) track gauge with a 40 kPa (5.8 psi) ground pressure and a 1,680 mm (5 ft 6 in) tail swing radius. Working specifications include a maximum digging depth of 6,620 mm (21 ft 9 in), maximum reach at ground level of 9,900 mm (32 ft 6 in), and a bucket digging force of 158 kN (35,520 lbf).
Year
2017, 2018, 2019, 2020, 2021, 2022
Country of manufacturing
United States
General specifications
Dimensions
Height
Width
Length
3,030 mm
~119.3 in
3,190 mm
~125.6 in
9,110 mm
~358.7 in
Engine Power
159 hp
Emission standard level
Tier 4 Final
Displacement
5 cu(m)
Fuel tank
380 L
Number of batteries
2
Number of Cylinders
4
Width
3,190 mm
Operating Weight
23,100 kg
Reference Bucket Capacity
1.2 cu(m)
Drawbar Pull
203 kN
Maximum Rated Flow
613 L/min
Hydraulic Pumps
cu(cm)
Engine Model
Isuzu
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
38,000 kPa
Hydraulic System - Including Tank
130 L
Shipping Height - Top of Cab
3,030 mm
Tail Swing Radius
1,680 mm
Track Gauge
2,390 mm
Maximum Digging Depth
6,620 mm
Maximum Reach at Ground Level
9,900 mm
Maximum Cutting Height
11,230 mm
Maximum Loading Height
8,920 mm
Bucket Digging Force - ISO
158 kN
Stick Digging Force - ISO
114 kN
Stick length
2,910 mm
Net Power (ISO 9249)
159 hp
Maximum Operating Pressure
34,300 kPa
Additional specifications
Rated power
119 kW
Ground Pressure
40 kPa

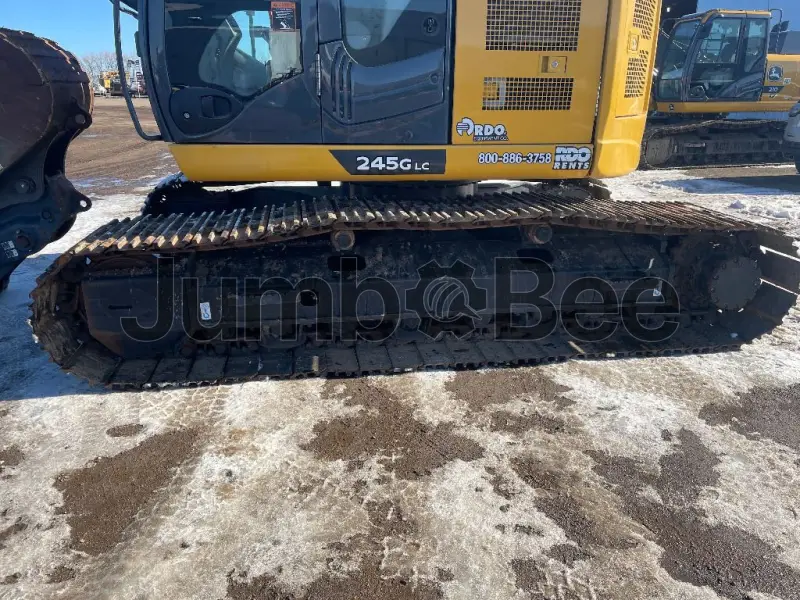

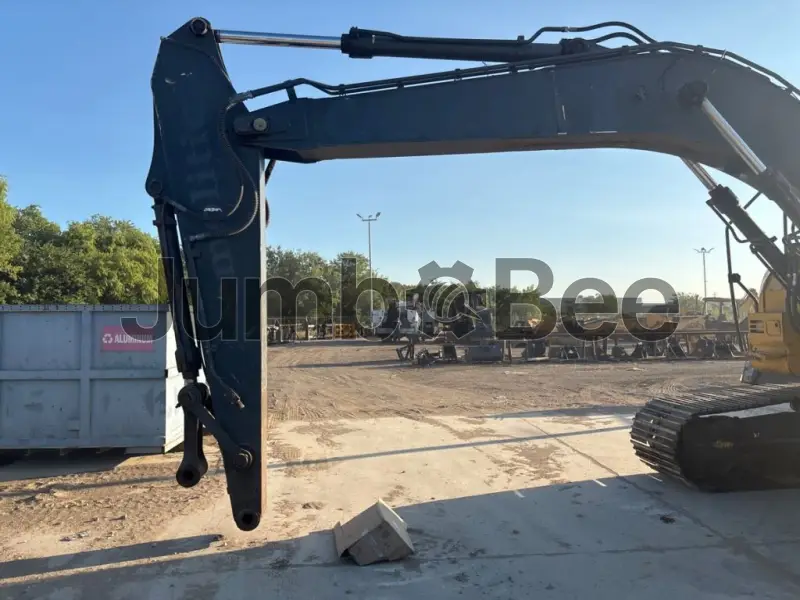

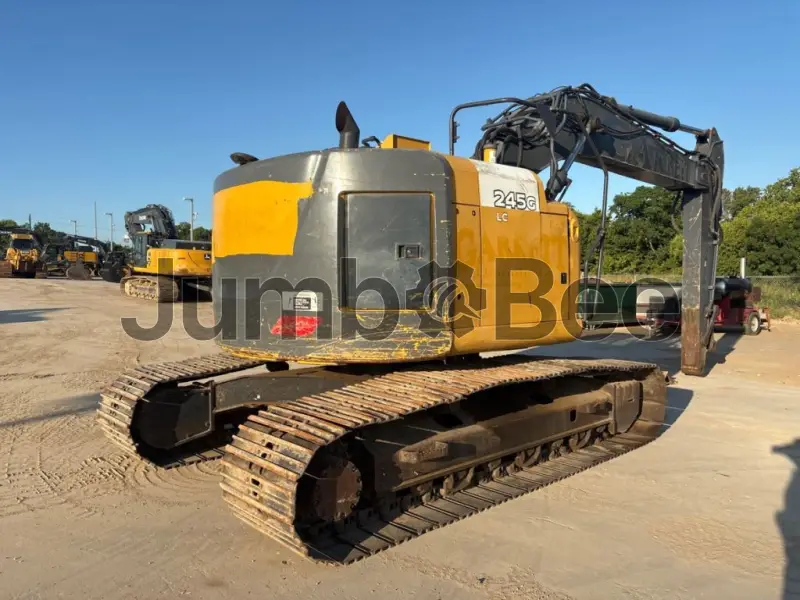

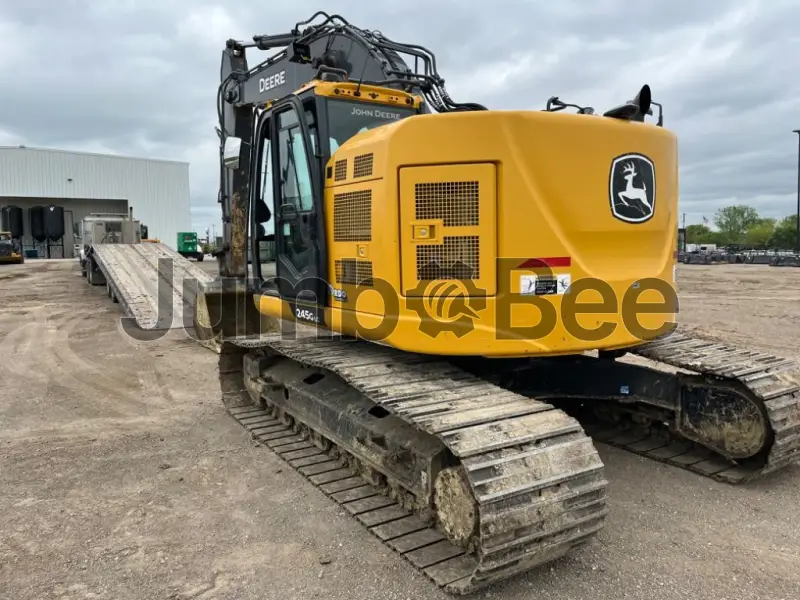

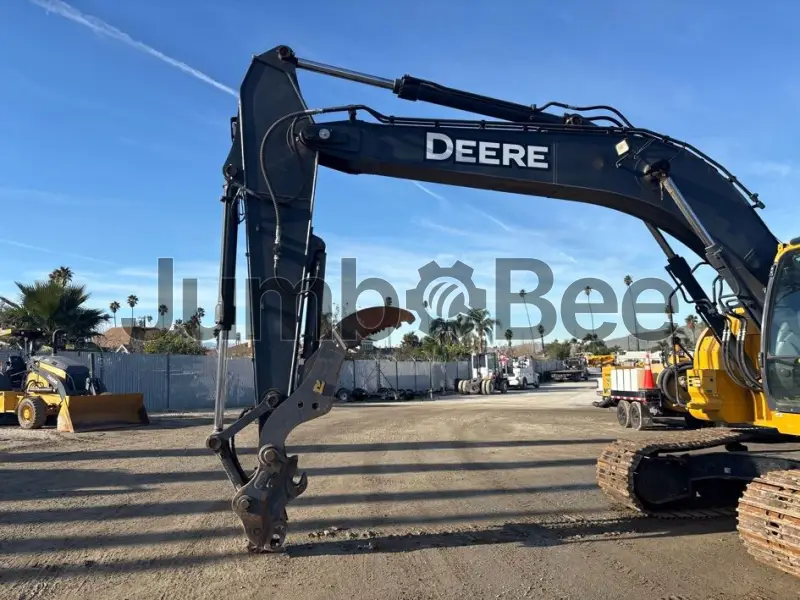

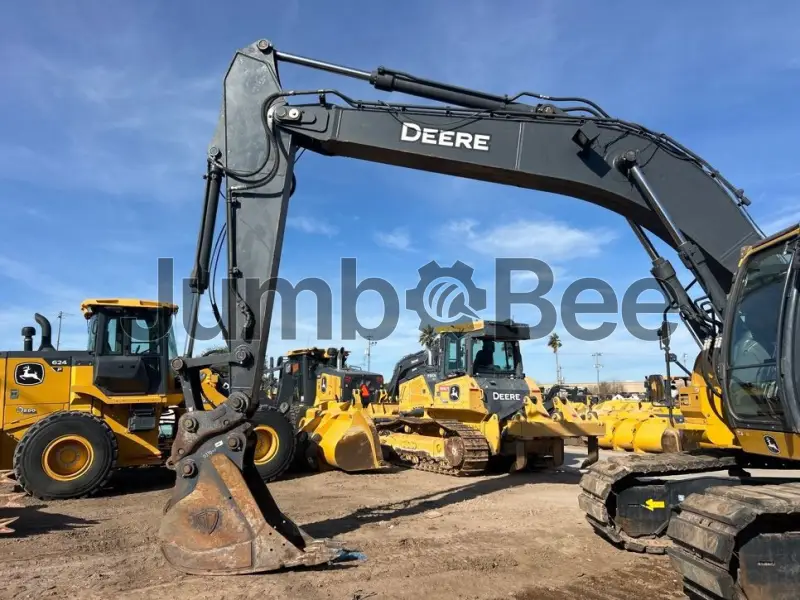

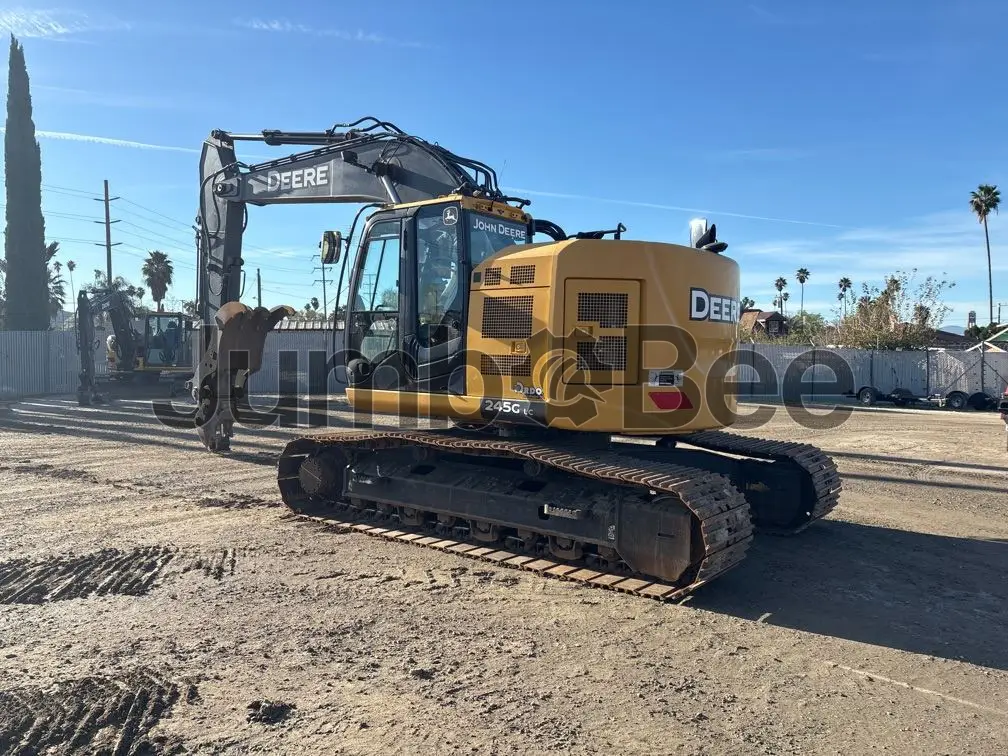

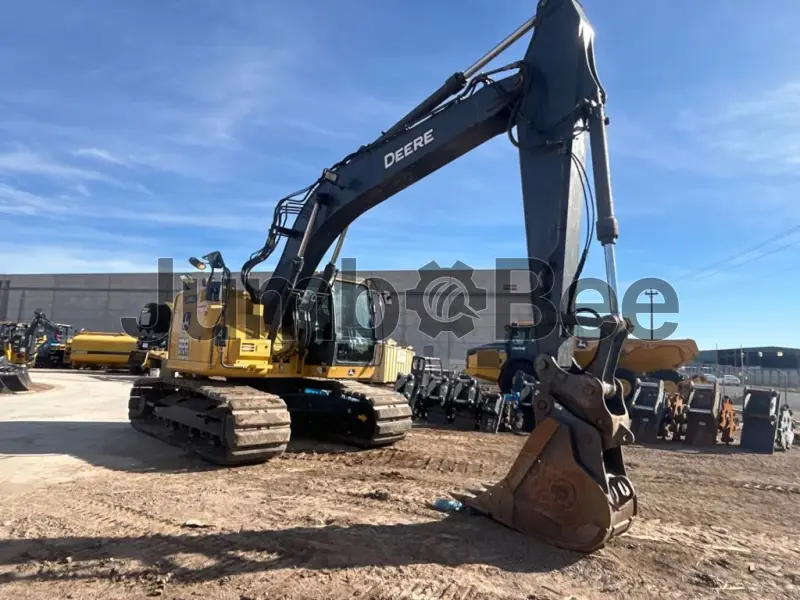

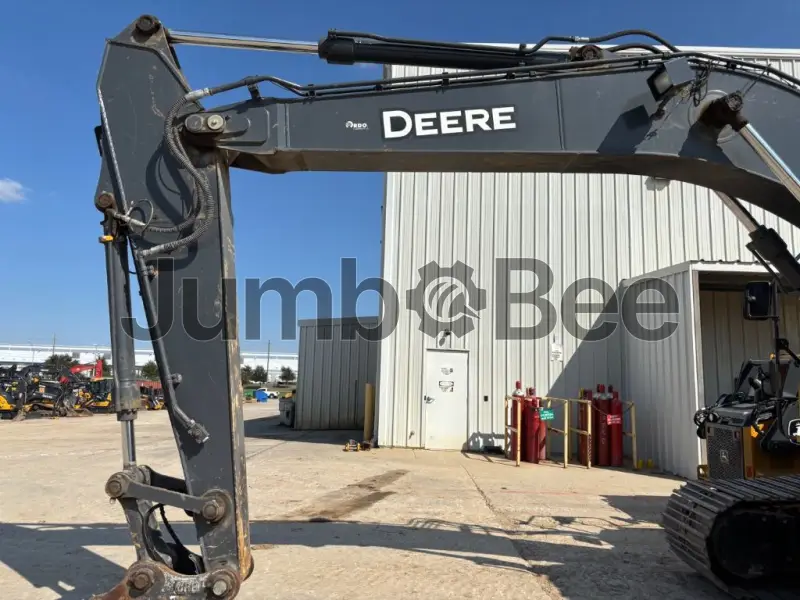

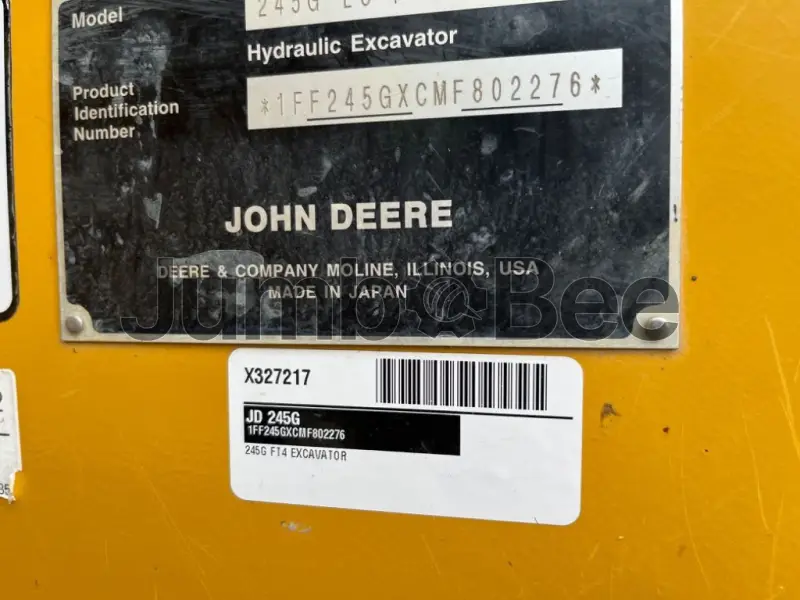

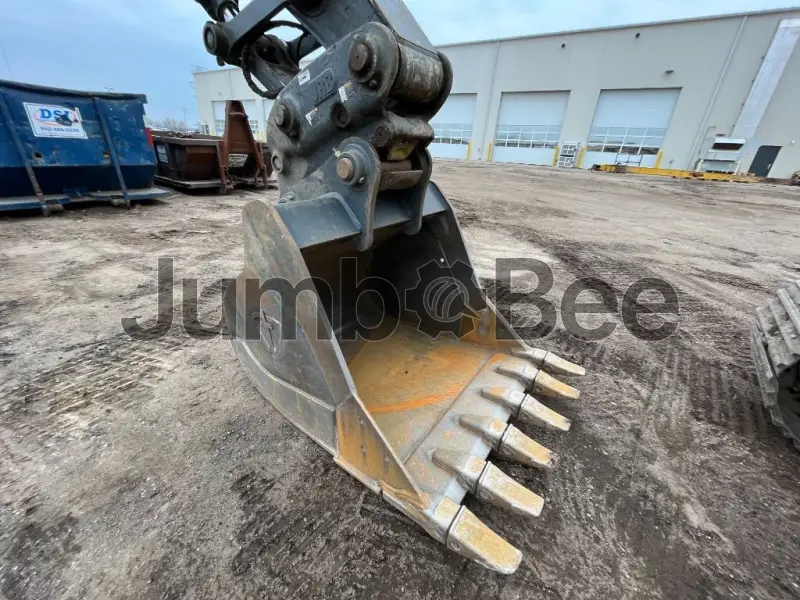

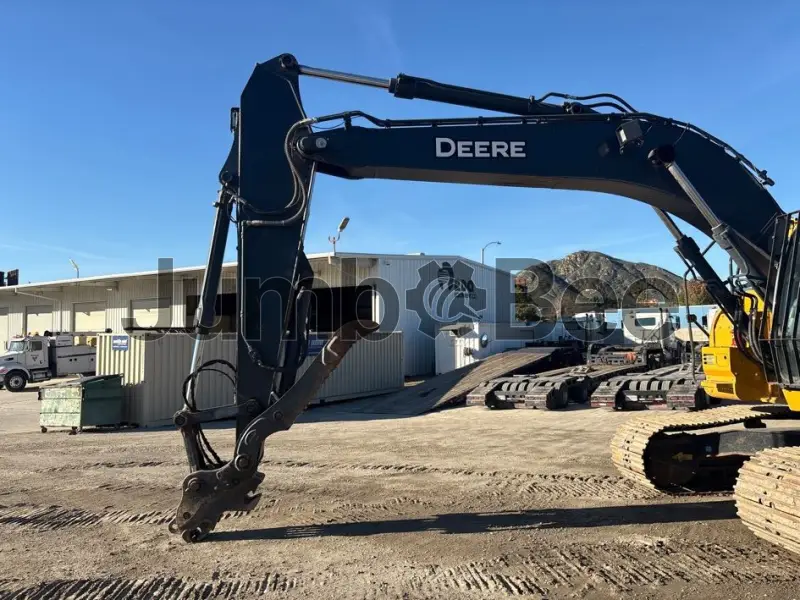

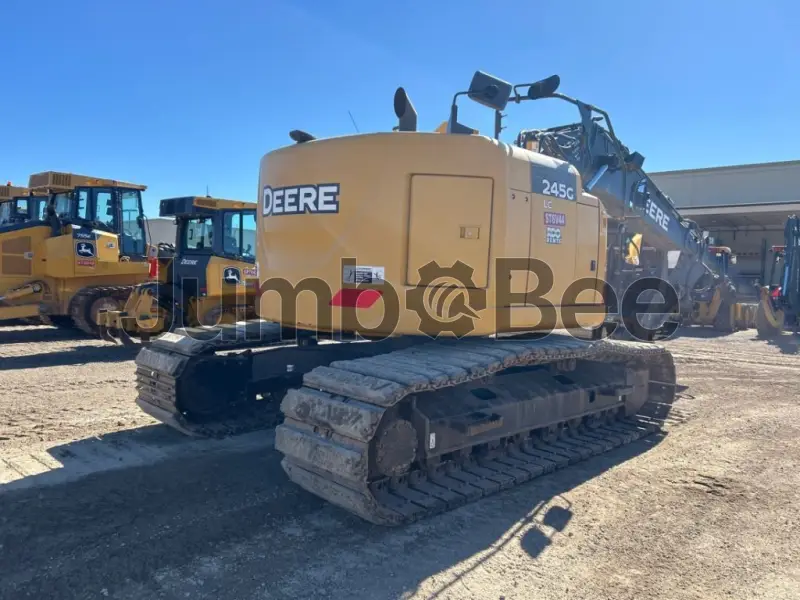

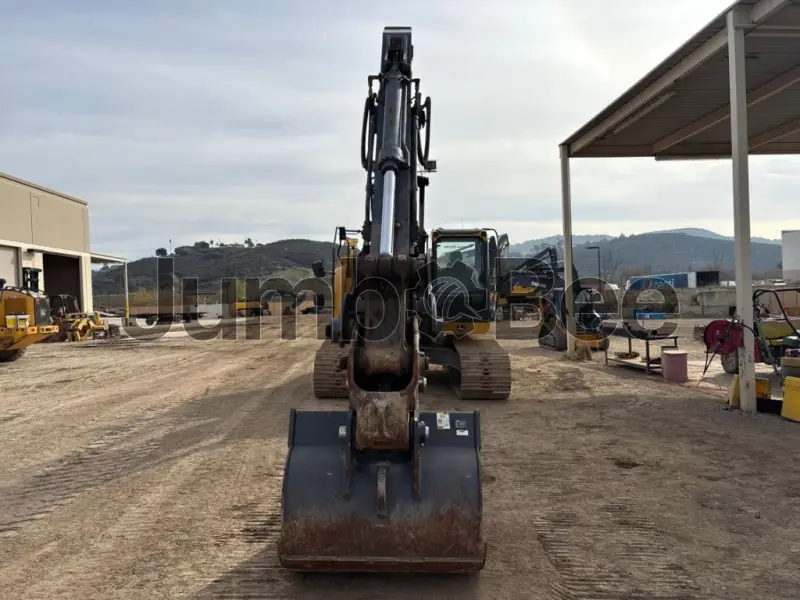

John Deere 245G Tracked Excavators Listings

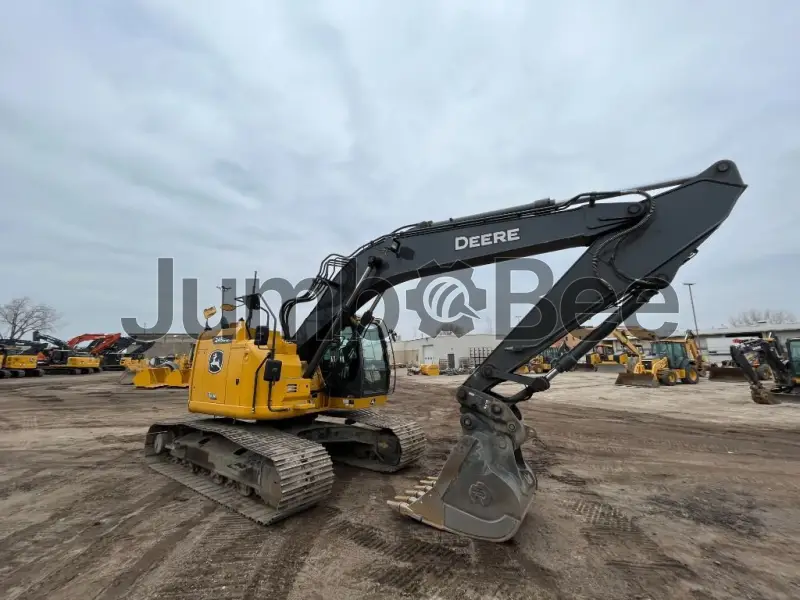

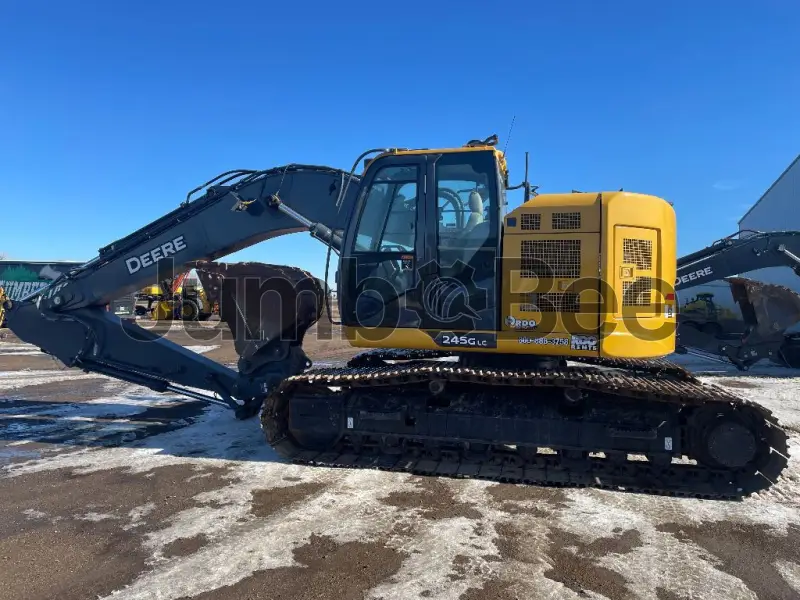

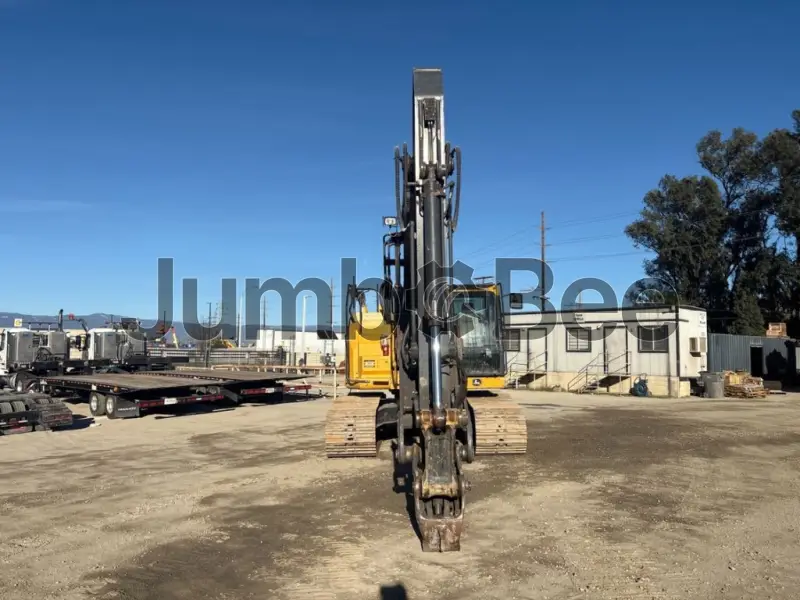

$207,420
159 hp
Isuzu
Tier 4 Final
2610 hours
Lakeside, United States

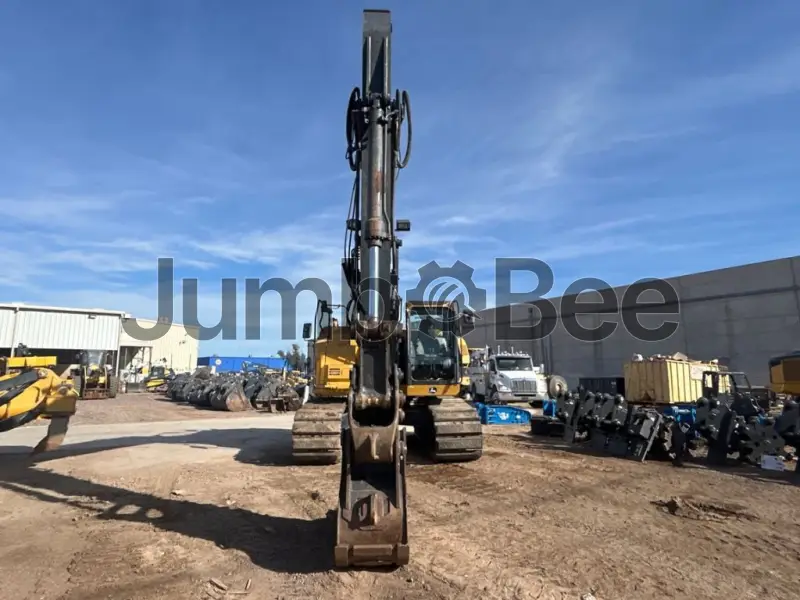

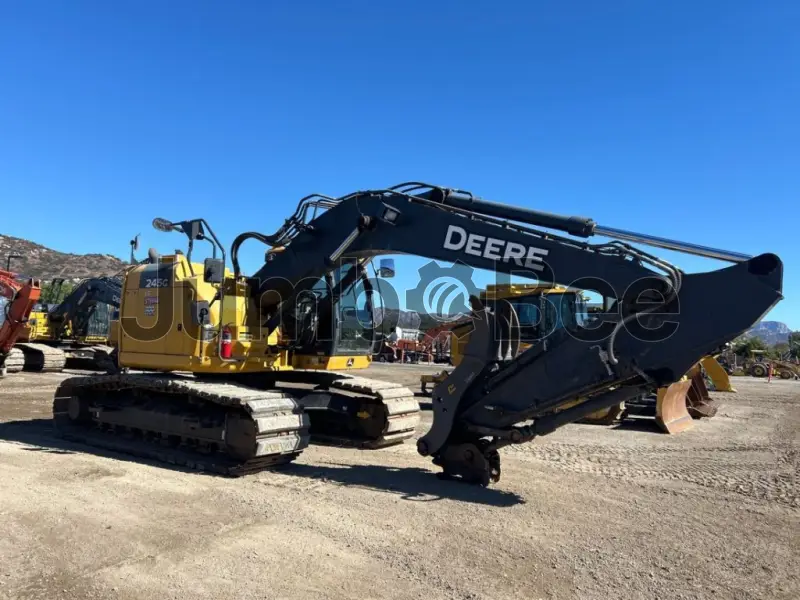

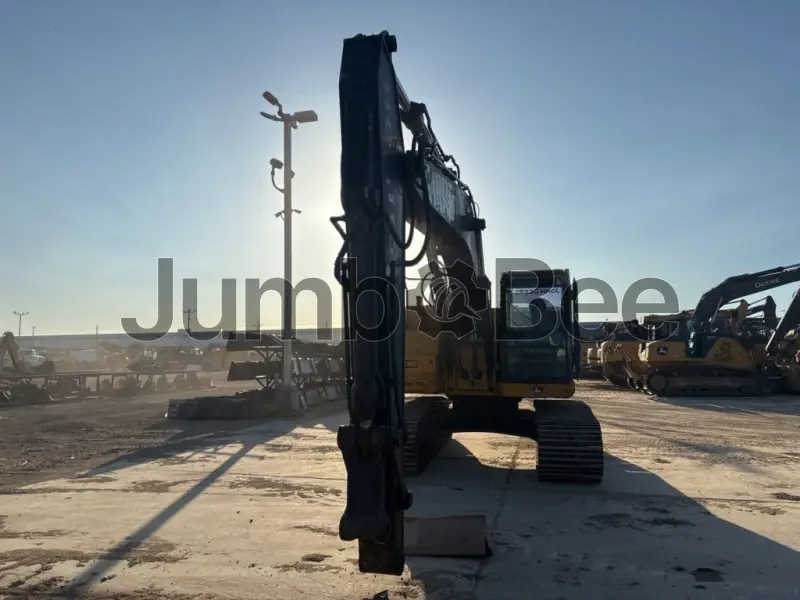

$230,750
4
5 cu(m)
2910 mm
2317 hours
Rochester, United States

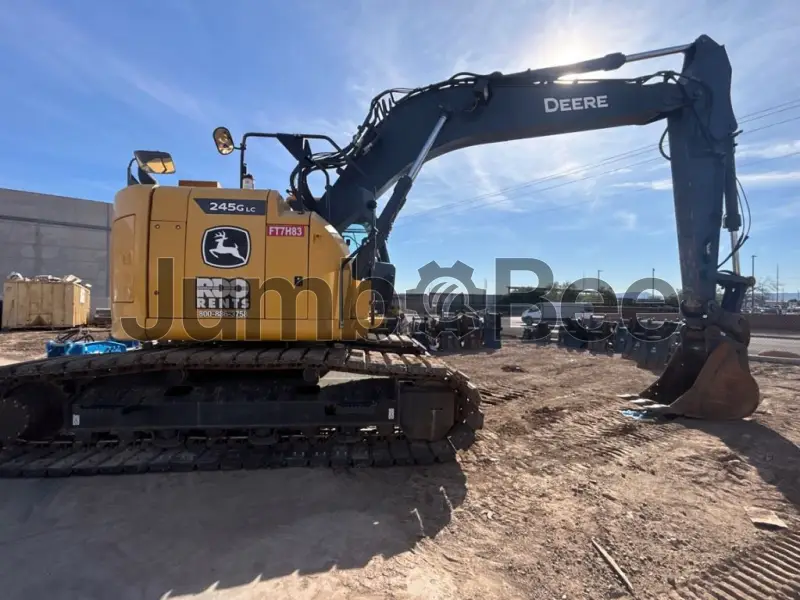

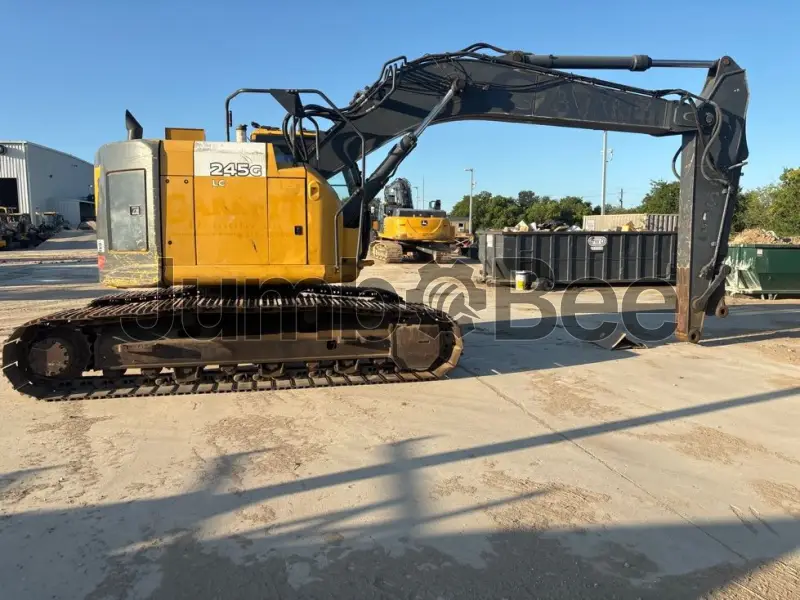

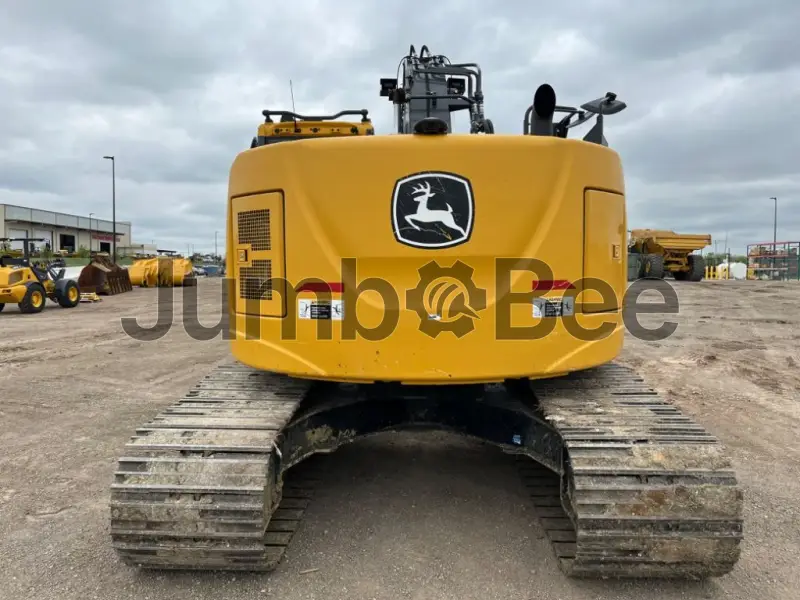

$209,820
38000 kPa
2
380 L
3118 hours
Chandler, United States

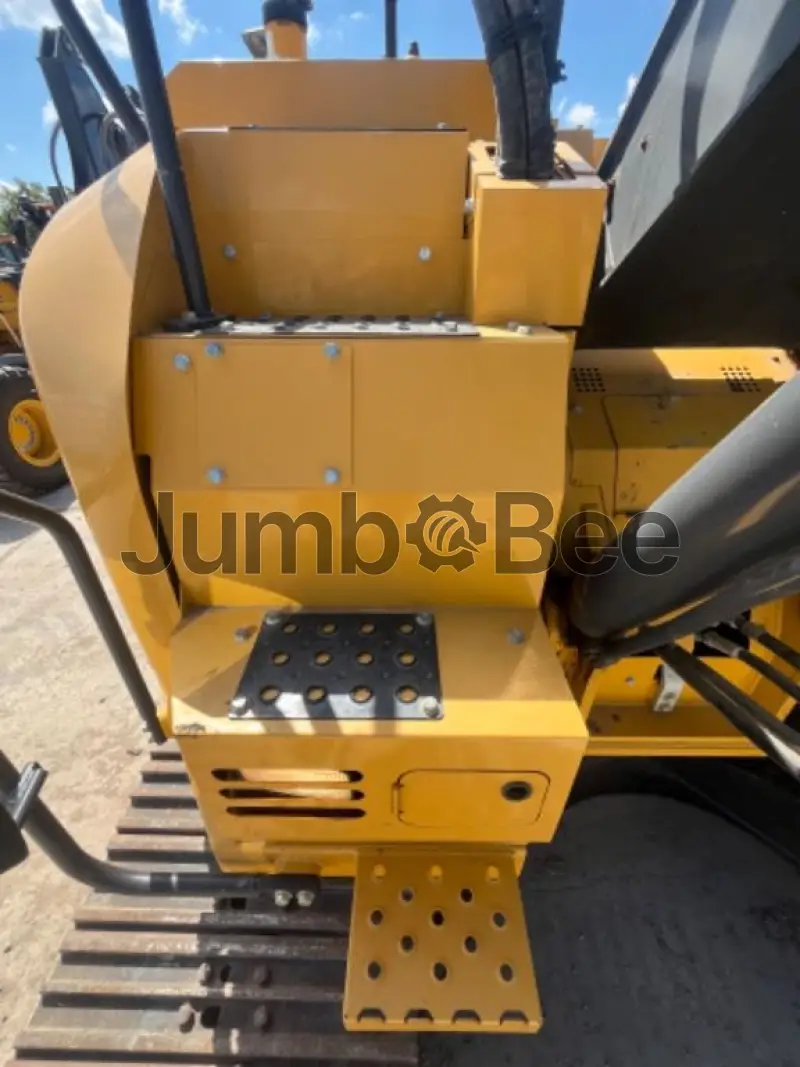

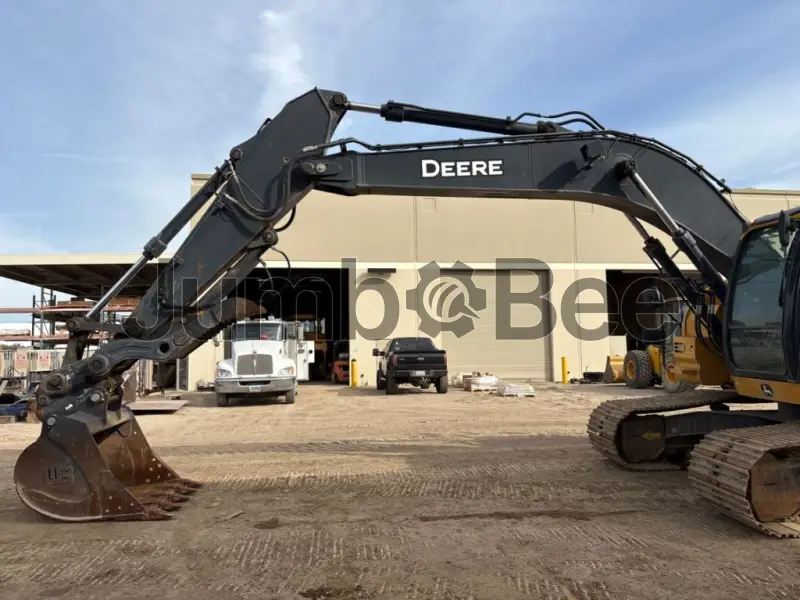

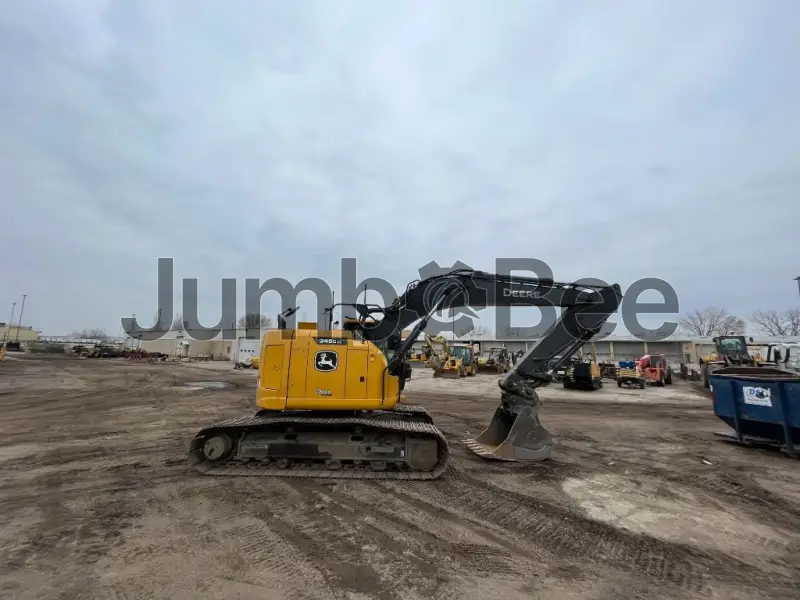

$71,510
34300 kPa
Tier 4 Final
159 hp
7113 hours
Fort Worth, United States

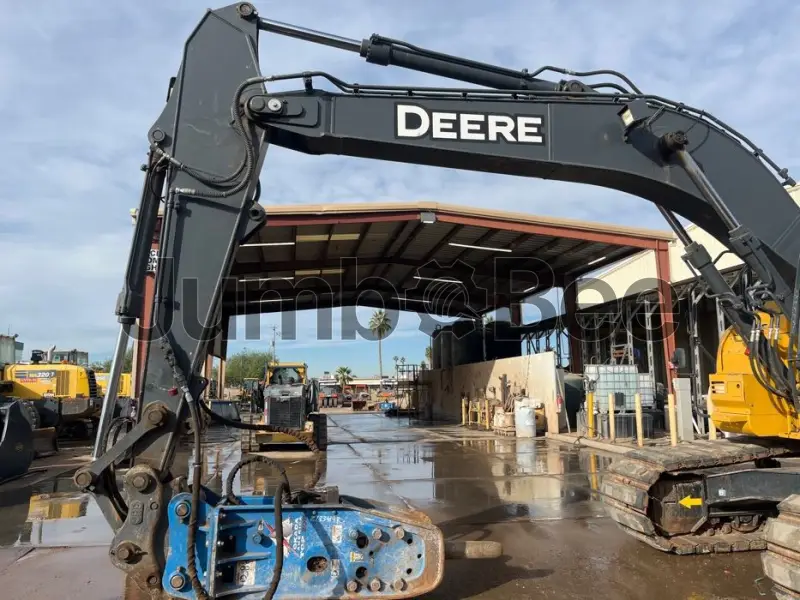

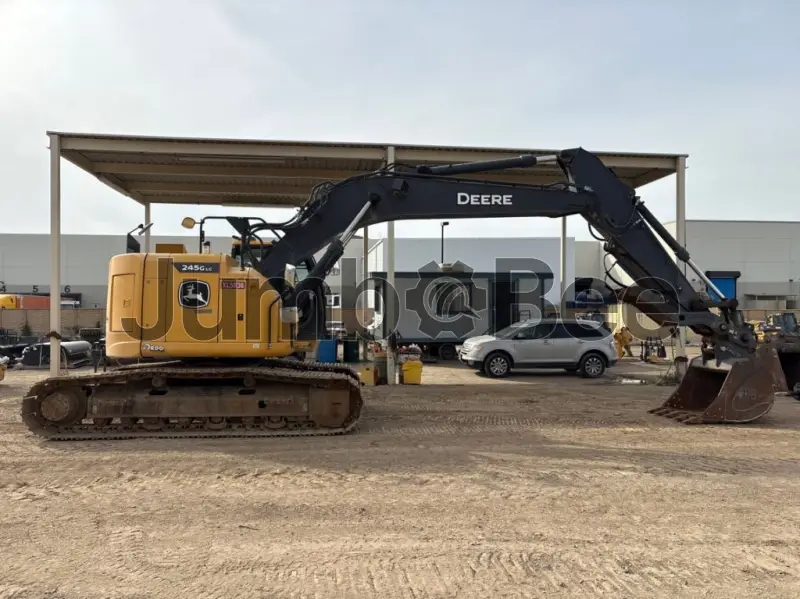

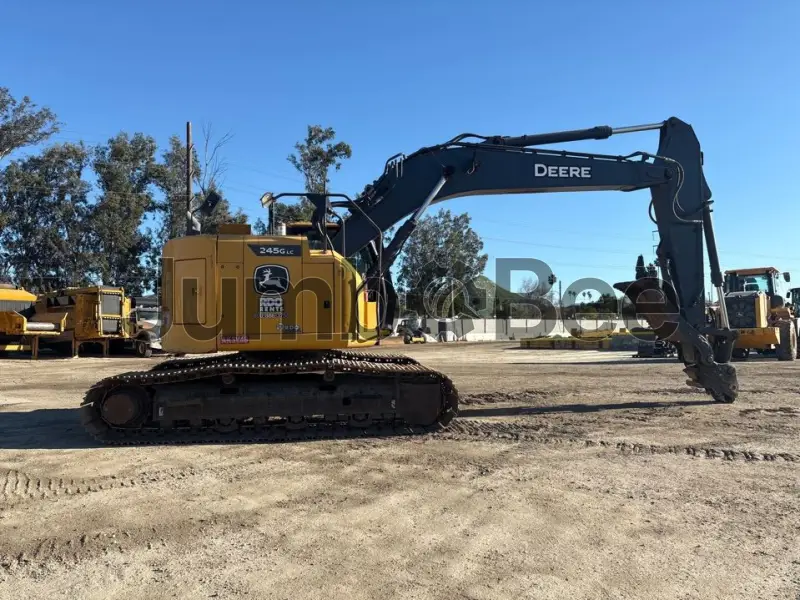

$195,190
2910 mm
3030 mm
158 kN
2910 hours
Mckinney, United States

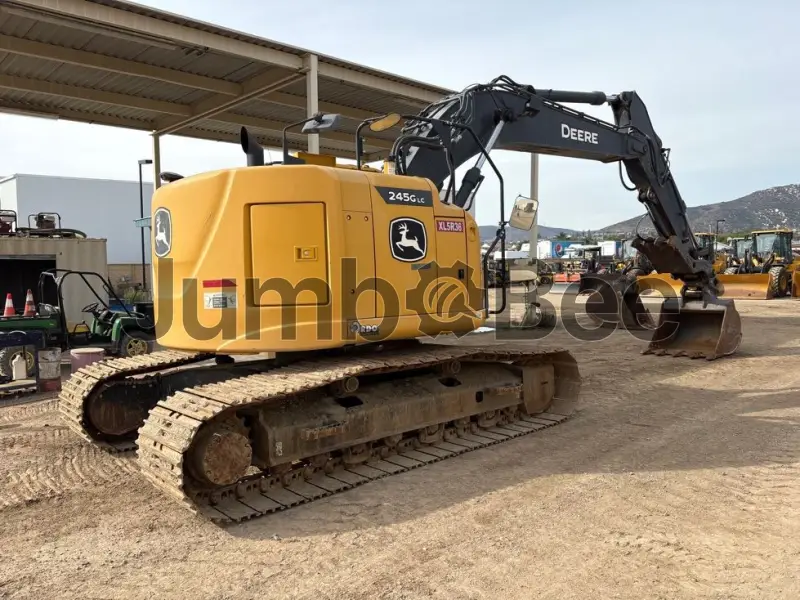

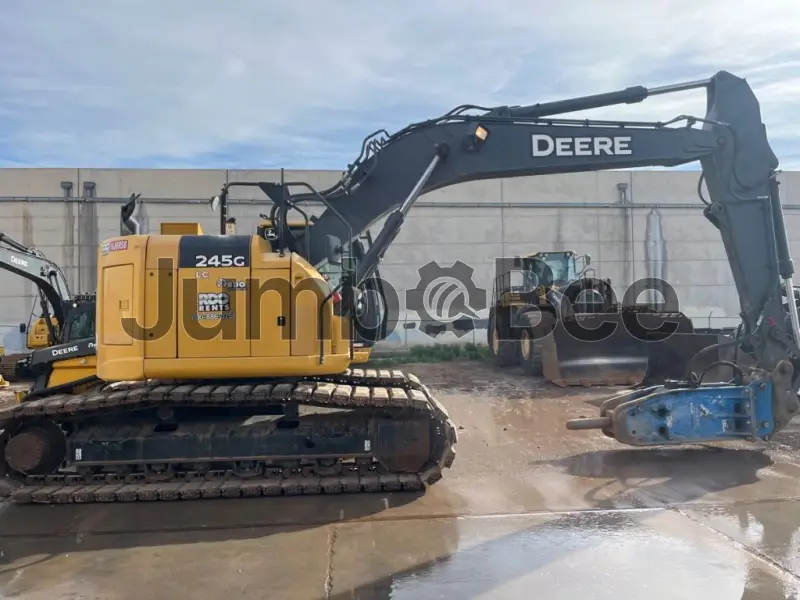

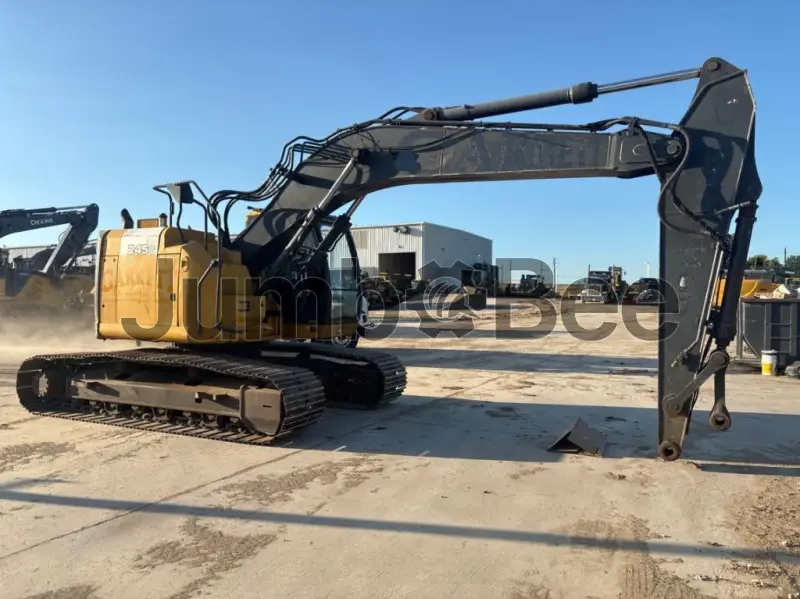

$154,660
38000 kPa
159 hp
Isuzu
4792 hours
Lakeside, United States

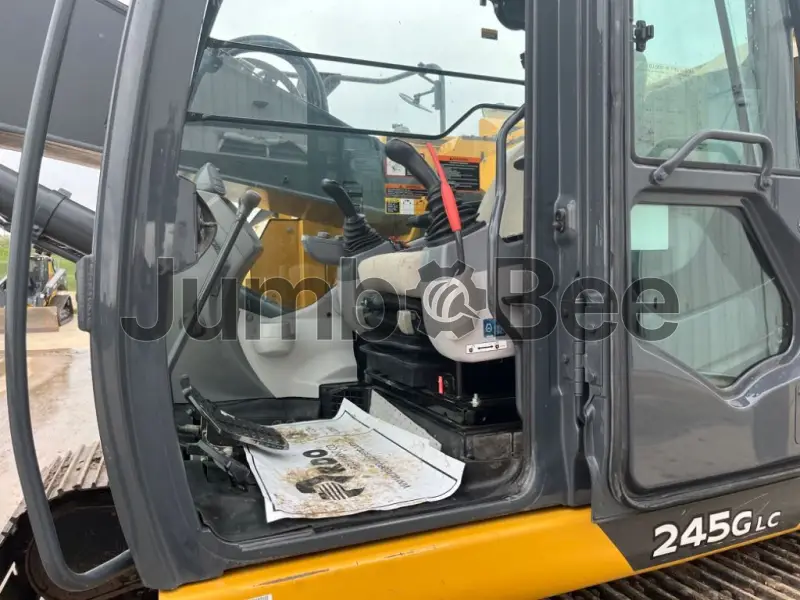

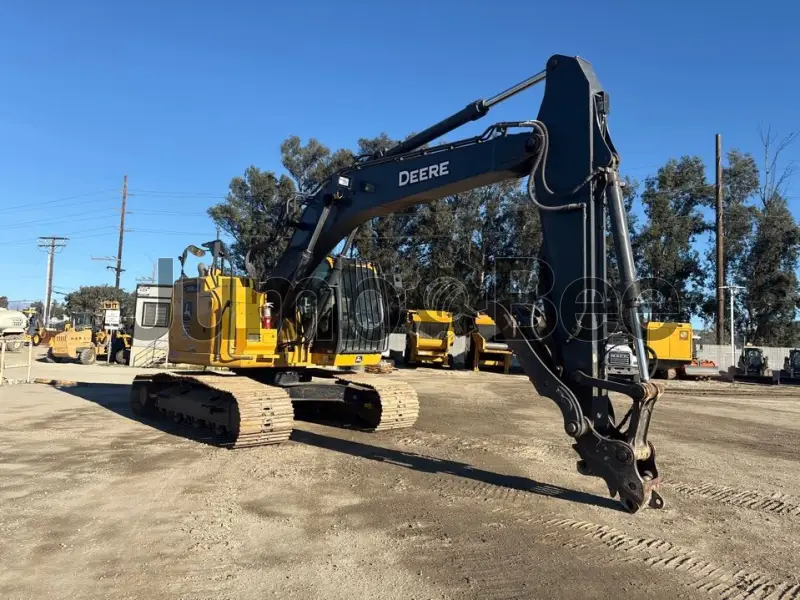

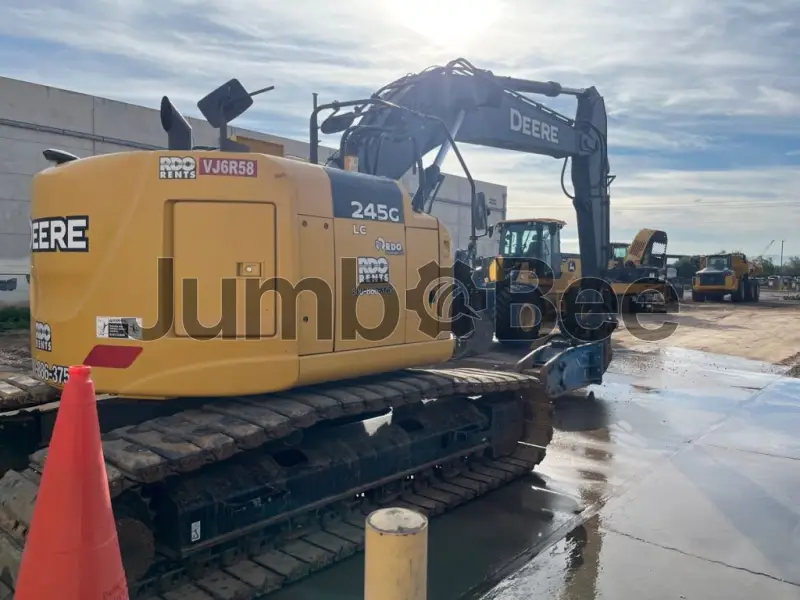

$167,060
159 hp
Isuzu
114 kN
2808 hours
Minot, United States

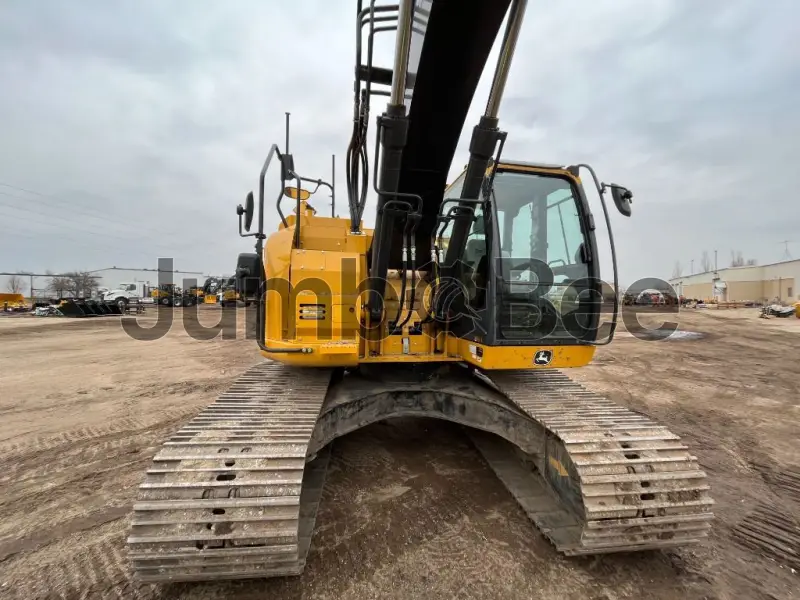

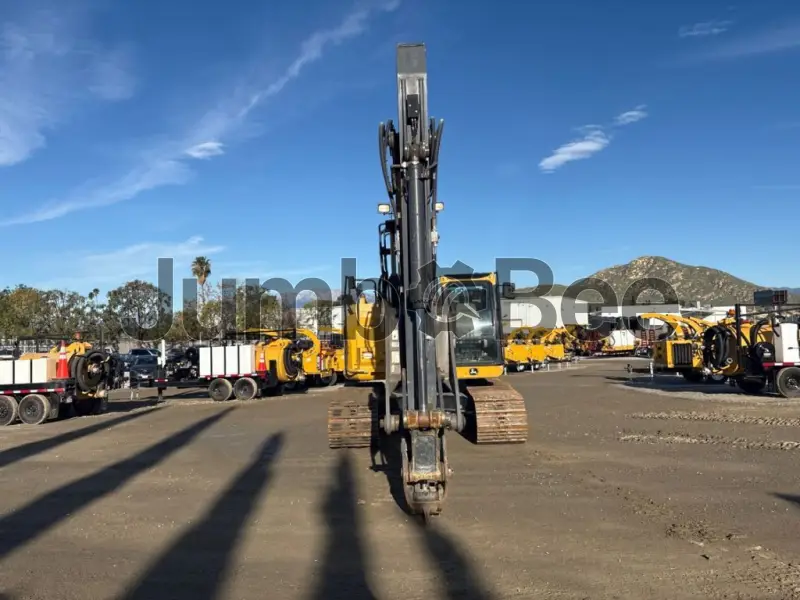

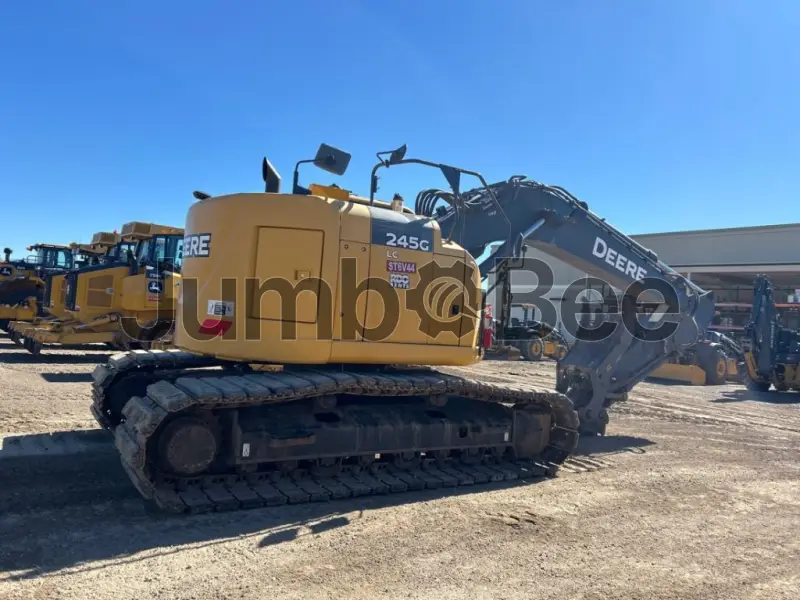

$209,170
38000 kPa
2
380 L
3294 hours
Yuma, United States
$167,880
Tier 4 Final
203 kN
613 L/min
3501 hours
Irving, United States
$117,220
114 kN
2
159 hp
6029 hours
Pflugerville, United States
$164,800
130 L
34300 kPa
38000 kPa
3834 hours
Irving, United States
$219,640
159 hp

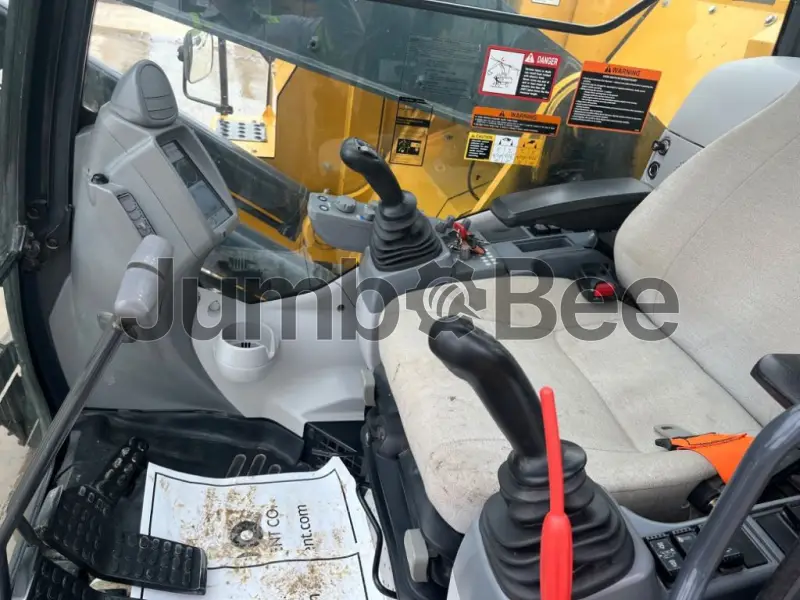

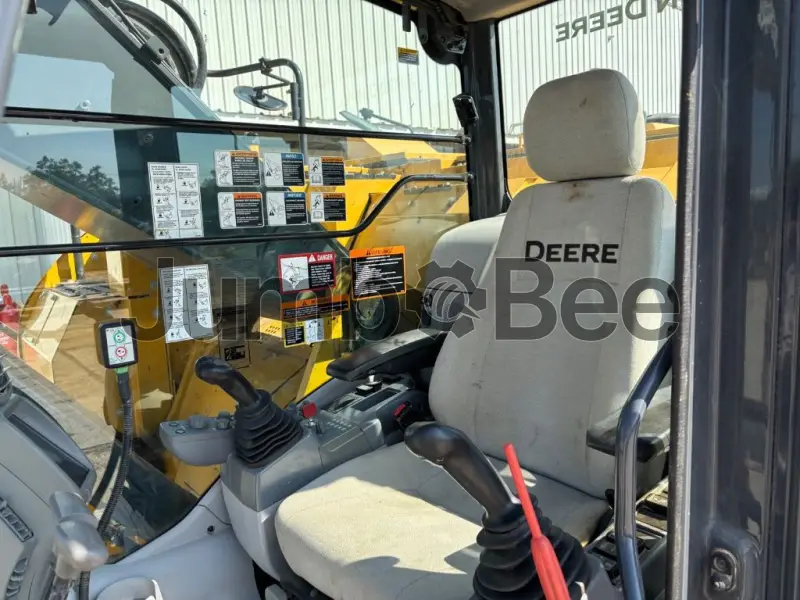

Cab w/ AC
Tier 4 Final
2454 hours
Rapid City, United States
$216,300
1.2 cu(m)
ROPS
Tier 4 Final
1944 hours
Chandler, United States
$226,790
Rubber Tracks
34300 kPa
38000 kPa
2659 hours
Riverside, United States
$185,330
159 hp
Isuzu
Tier 4 Final
3611 hours
Irving, United States
$221,440
1.2 cu(m)
613 L/min
130 L
2918 hours
Riverside, United States
$201,370
3030 mm
2
380 L
2945 hours
Riverside, United States
Compare John Deere 245G Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 245G?
No confirmed market price is supplied for the John Deere 245G. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 245G?
Listed strengths include 118.6 kW (159 hp) of engine power, 613 L/min (161.9 gpm) maximum rated hydraulic flow, and a maximum digging depth of 6,620 mm (260.6 in). It also has 158 kN (35,520 lbf) bucket digging force and 114 kN (25,628 lbf) stick digging force.
What type of engine does the 245G use?
The 245G uses an Isuzu engine with 4 cylinders. The listed emission standard is Tier 4 Final.
How much horsepower does the 245G have?
The 245G has 159 hp (118.6 kW) of engine power.
What fuel does the John Deere 245G use?
The supplied specifications do not confirm the fuel type for the John Deere 245G.
What jobs is this Excavators best suited for?
The supplied data does not specify intended applications. Its listed digging depth, reach, loading height, and digging forces indicate capabilities relevant to excavation and loading work.
What is the expected lifespan of the 245G?
The supplied data does not provide an expected service life for the 245G. Actual lifespan depends on operating conditions, maintenance history, inspection results, and wear of major components.
What should a buyer check when purchasing a used Excavators?
Inspect service records, engine operation, hydraulic leaks and response, boom, stick and bucket wear, track condition, undercarriage wear, cab controls, and structural damage. Verify the machine’s configuration and test its digging and travel functions before purchase.
